Official FMS 1/18 Scale Atlas 6x6 Crawler RTR Thread

First Prev Next Last
  • Filter
  • Time
  • Show
Clear All
new posts

  • Official FMS 1/18 Scale Atlas 6x6 Crawler RTR Thread

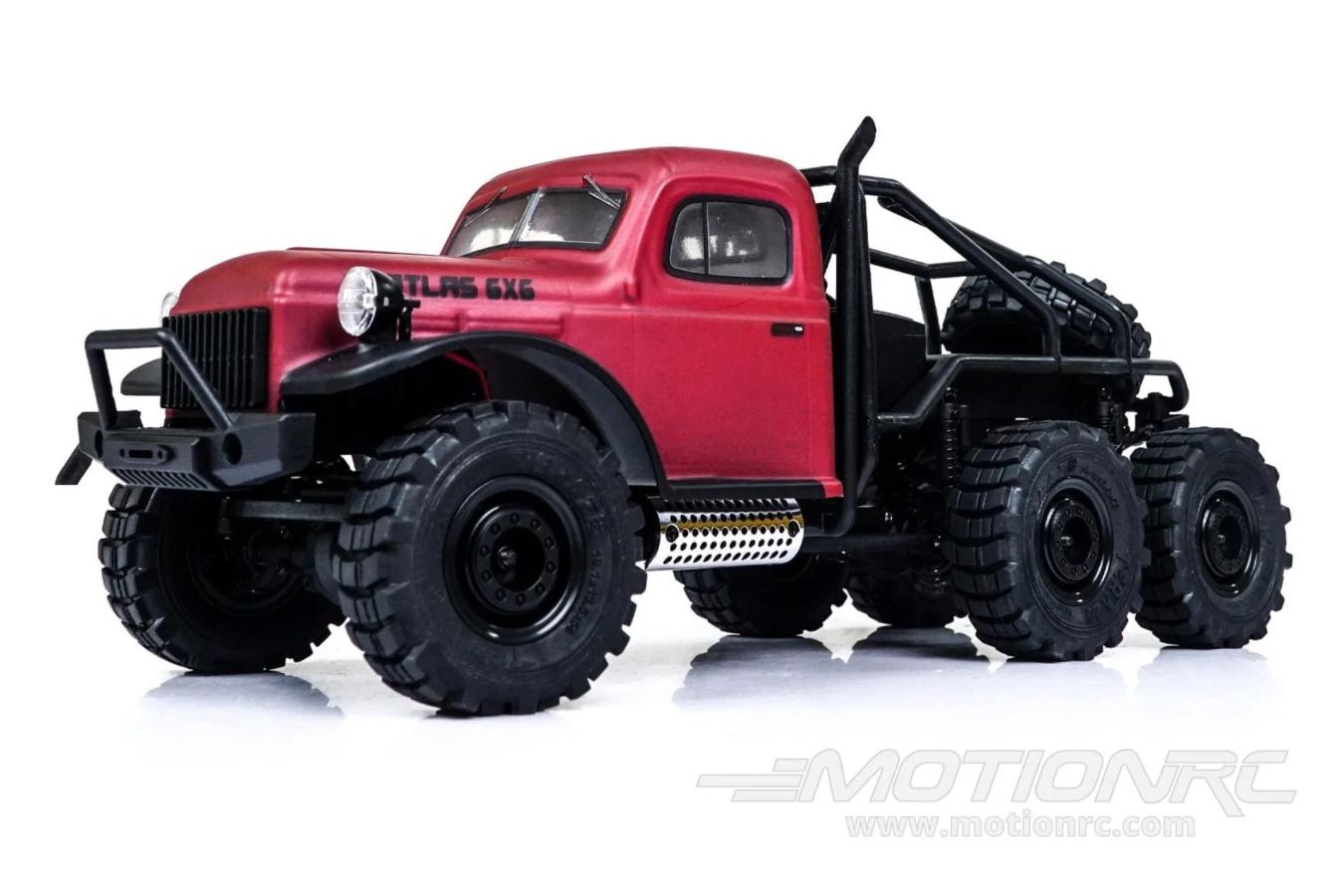

    Atlas 1/18 Scale 6x6 Crawler - RTR from FMS

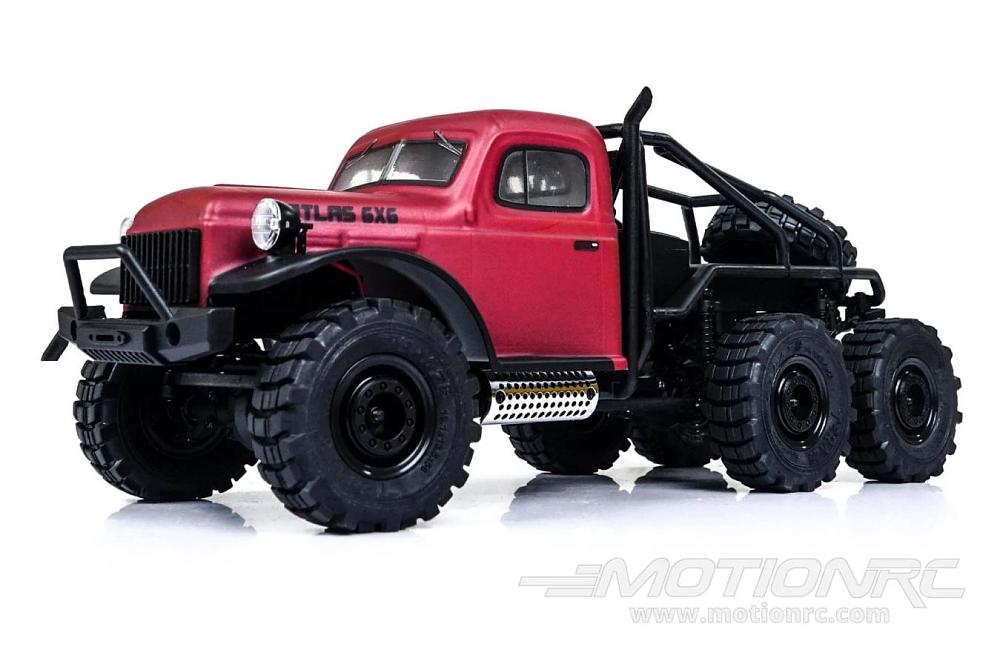

    Click image for larger version

Name:	Capture.JPG
Views:	795
Size:	95.5 KB
ID:	348360

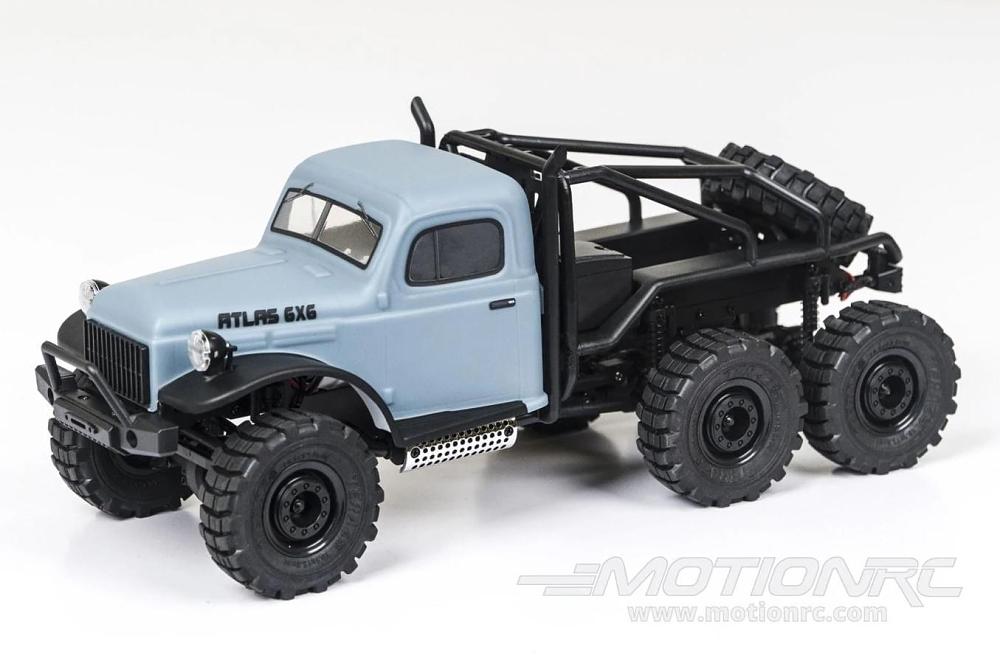

    Click image for larger version

Name:	Capture1.JPG
Views:	643
Size:	89.8 KB
ID:	348361

    Version Info: This vehicle is delivered as “RTR” but requires the additional purchase of 4 (four) AAA alkaline batteries for the transmitter.

    Motion RC is pleased to offer the FMS 1:18 scale Atlas 6x6, a captivating mix of modern chassis design and old-school cool. Don’t let the compact size fool you, this mini monster is a fully-capable crawling machine that includes features normally found only in larger, more expensive machines!

    The unique high-torque transmission and gearbox delivers the torque of an optimized 55-turn brushed motor to all 6 wheels via a specialized drive system. Expertly-tuned coil-over dampers allow the Atlas to articulate over rugged obstacles while anodized aluminum chassis rails maintain the ideal central chassis stiffness. Soft, big-block tires on beadlock wheels provide maximum grip over most any terrain.

    Drive with confidence thanks to the Atlas’ waterproof electronics package, which allows the vehicle to operate in shallow water without a worry! In addition, an auxiliary receiver power provides convenient installation of FPV systems or additional lighting features.

    Combine the versatile, go-anywhere fun of the FMS 1:18 Atlas 6x6 with Motion RC’s industry-leading customer service and product support for a package that cannot be beat!

    Waterproof Electronics

    Drive your Atlas 6x6 in moisture or shallow water with the assurance provided by splash-proof electronics.
    Crawl with Confidence

    Tackle most any terrain thanks to the 6-wheel drive system and powerful 55-turn brushed motor found on the Atlas.
    Comfortable, Reliable 2.4GHz Transmitter

    Never worry about interference thanks to the solid control link provided by the 2.4GHz radio system.
    LED Headlamps and Taillights

    Don’t stop driving because of darkness thanks to the LED light set included with the Atlas.
    • Scale ladder frame truck chassis
    • 6x6 All-wheel-drive system
    • High torque transmission (104:1 final drive ratio)
    • High-grip big block M/T tires
    • 1” inch beadlock truck rims
    • Realistic ring & pinion axle housings
    • Waterproof electronics
    • Matte-painted polycarbonate body with clear windows
    • Front and rear LED lights
    • Anodized aluminum main chassis rails
    • Functional spare tire and toolbox
    • 55T high-torque brushed motor
    • Extended run time (up to 30 minutes on a single charge)
    • CMS (chassis-mounted servo) with Panhard bar
    • FMS Atlas 1/18 Scale Red 6x6 Crawler - RTR
    • FMS 2.4GHz Pistol-Grip Transmitter
    • FMS 2-in-1 RX/ESC
    • FMS Steering Servo
    • FMS Hi-Torque 55T Brushed Motor
    • 7.4V 600mAh LiPo Battery
    • USB battery Charger
    • 4x AAA Alkaline batteries for transmitter
    Product Specifications:

    AGE LEVEL :14 and up
    SKILL LEVEL :beginner
    BUILD TIME :less than 15 minutes
    Model Scale 1/18
    Length 296mm / 11.5in
    Width 113mm / 4.4in
    Height 129mm / 5.0in
    Weight (No Battery) 200g / 7.1oz
    Wheelbase 155mm / 6.0in
    Ground Clearance 31.5mm / 1.2in
    Body Polycarbonate, factory painted and with clear windows
    Chassis Aluminum/Composite ladder-type
    Drivetrain 6WD
    Wheel Size (Diameter x Width) 25.4 x 12.5mm / 1.0in x 0.49in beadlock
    Wheel Hex Size N/A
    Tire Tread Big-Block Pin
    Bushing Material Bronze
    Suspension 6-wheel solid axle
    Shock Type Friction damper
    Transmission 6WD Shaft-driven
    Gear Pitch N/A
    Internal Gear Ratio N/A
    Final Drive Ratio 104:1
    Pinion N/A
    Spur Gear N/A
    Differential No
    Ball Bearings Yes
    Brakes Electronic
    Electronic Speed Control Brushed 2-in-1 RX/ESC (included)
    Motor 55T Brushed
    Battery 7.4V 600mAh LiPo
    Max Battery Dimensions (L x W x H) N/A
    Servos 3x 1Kg High-Torque Servos
    Radio 2 Channel
    Lights Yes
    Sound No
    Water Resistant Yes
    Skill Level Beginner
    Assembly Time Less than 15 minutes
    Recommended Environment Indoors/Outdoors
    My YouTube RC videos:

  • #2
    What size is the motor? 130, 260, ? Any size motor can have 55T, it's the size that is a true indicator of power. Some of the smaller trucks, this size , can't drive over a puff of wind. I "want to believe".
    Twenty six tanks, and not done yet!


    • #3
      I love mine. Painted OD and put the star on it. Great for the water.


      • #4
        Anyone up graded there motor or anything on there atlus yet


        • #5
          Originally posted by 761st View Post
          I love mine. Painted OD and put the star on it. Great for the water.

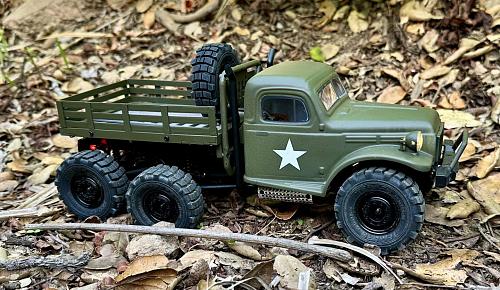

          Hey, 761; did it look anything like this?

          Click image for larger version

Name:	FMS 6X6 03.jpg
Views:	20
Size:	255.4 KB
ID:	400308

          Ok, to a question for anyone out there. The electronics on mine died, don't kknow if it's the transmitter or the main board. Any suggestions? Spare or replacement parts?
          Twenty six tanks, and not done yet!
