Great Planes P6E Hawk - Instrument Panel

[Grover54]

Hey all you P6E Hawk Fanatics..... Does anyone know where I can get a good image of a P6E Hawk instrument panel for the large scale (76") WS? Even better is if someone has a 3D STL file for the instrument panel. I can scale it up if it's for a smaller model. I've got a note into Callie graphics but thought I'd ask here too





Thanks!
Grover54
jgroves54@hotmail.com

[Gilatrout]

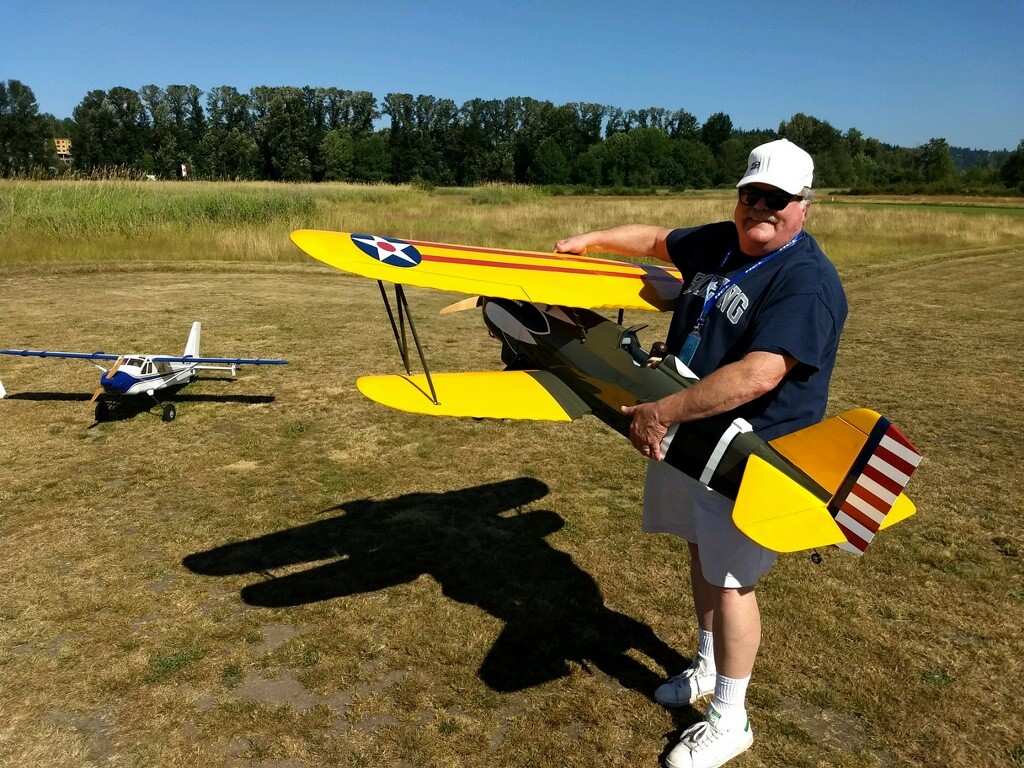

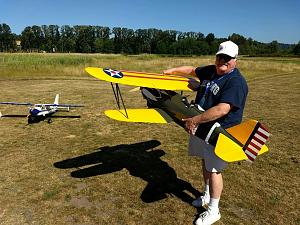

Nice model. The Hawk is one of my favorite planes.

Years ago, I got a staff member at the museum of the air force to take some reference photos of theirs for me. No instruments but you can see the layout.


I'm including all the cockpit photos I have for your reference.

[Grover54]

Nice model. The Hawk is one of my favorite planes.

Years ago, I got a staff member at the museum of the air force to take some reference photos of theirs for me. No instruments but you can see the layout.


I'm including all the cockpit photos I have for your reference.

Thanks for the photos. It never ceases to amaze me pilots of that day flew with just a minimal amount of instrumentation and basic control surfaces. They really had to be natural pilots! Chuck Yeager once said if you need an instrument to tell you your angle of attack, you shouldn't be flying!
