  • Official Skynetic 900mm Sbach 342 3D Discussion Thread

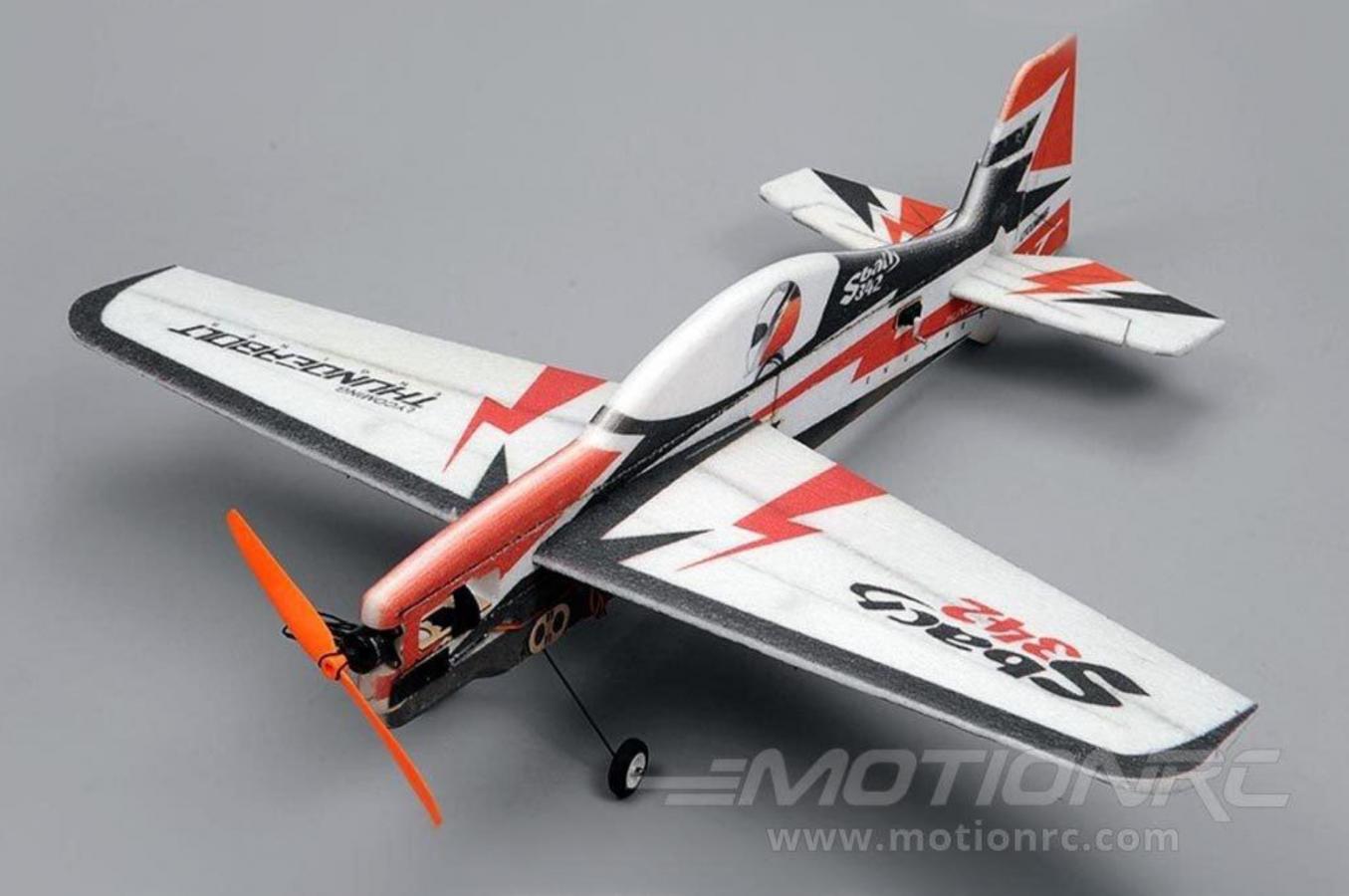

    Sbach 342 3D 900mm (35.4") Wingspan - ARF BUNDLE from Skynetic - SKY1014-002

    Click here for the official product page

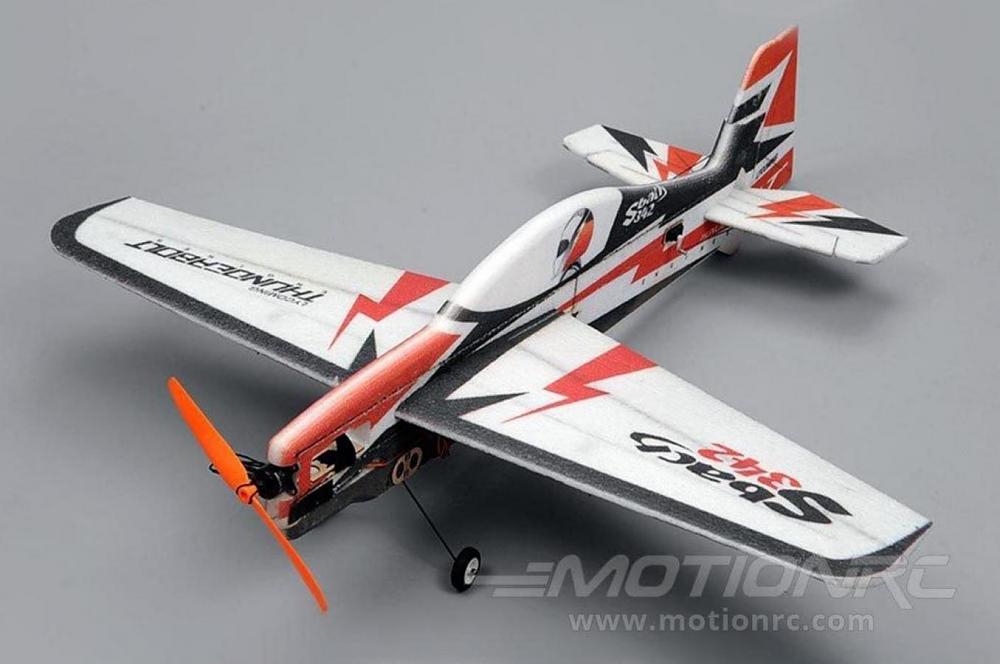

    Click image for larger version

Name:	Capture.JPG
Views:	1046
Size:	87.8 KB
ID:	314986



    The Skynetic Sbach 342 EPP 3D is a 3D flyer made of durable, lightweight and extremely thick EPP foam for rigidity that can help you perform show-stopping indoor 3D maneuvers with ease. Both wing and gear are easily removable for transport and/or flying preference. Can be flown both indoors in a large area like a gym or outside. With a streamlined and aerodynamic profile, the Sbach 342 EPP 3D is tailor-made for countless hours of exhilarating, crash-resistant flying fun!
    FEATURES:
    • Slick, streamlined and aerodynamic profile with sharp red and black livery
    • Extremely thick and nearly indestructible EPP foam for a high level of crash resistance
    • Powerful AS2212 KV1250 Brushless motor for a wide flight performance envelope
    INCLUDES:
    • Skynetic Sbach 342 3D 900mm (35.4") Wingspan - ARF BUNDLE
    • AS2212 KV1250 Brushless motor
    • 30 amp brushless ESC with XT60 connector
    • 4x 8g micro servos
    REQUIRES:
    • 4 Channel radio - select a minimum 4 channel radio from our Radio Collection
    • 4 Channel receiver - select a minimum 4 channel receiver from our Receiver Collection
    • 3 Cell 11.1V 1000 - 1200mAh Li-Po battery with XT60 connector - we recommend EPR10003X6
    • 3 Cell compatible battery charger - select a minimum 3 cell (3S) charger from our Charger Collection
    PRODUCT SPECIFICATIONS:

    AGE LEVEL : 14 AND UP
    SKILL LEVEL : INTERMEDIATE
    BUILD TIME : 5 HOURS

    Wingspan 35.4in / 900mm
    Length 39.0in / 990mm
    Flying Weight 530 - 560g
    CG (Center of Gravity) 95 - 100mm from the leading edge of the wing at the root
    Power System Powerful AS2212 KV1250 Brushless motor (installed)
    Electronic Speed Control 30 amp brushless ESC with XT60 connector (installed)
    Propeller / EDF Electric propeller
    Servos 4x 8g micro servos
    Landing Gear Fixed
    Required Battery 3 Cell 11.1V 1000 - 1200mAh Li-Po battery with XT60 connector (required)
    Required Radio 4+ channel radio system (required)
    Ailerons Yes
    Elevator Yes
    Rudder Yes
    Flaps No
    Lights No
    Hinge Type Foam
    Material EPP Foam
    Skill Level Intermediate
    Build Time 5 Hours
    Recommended Environment Indoor/Outdoo
    My YouTube RC videos:
    https://www.youtube.com/@toddbreda

  • #2
    Its very disappointing that the assembly documentation is still incorrect and customer service is no help. The plane components you receive are very different from the old instructions. Its too bad, because obviously the new plane design is better.
