  • Official Skynetic 702mm Kraftei Me 163 PNP Thread

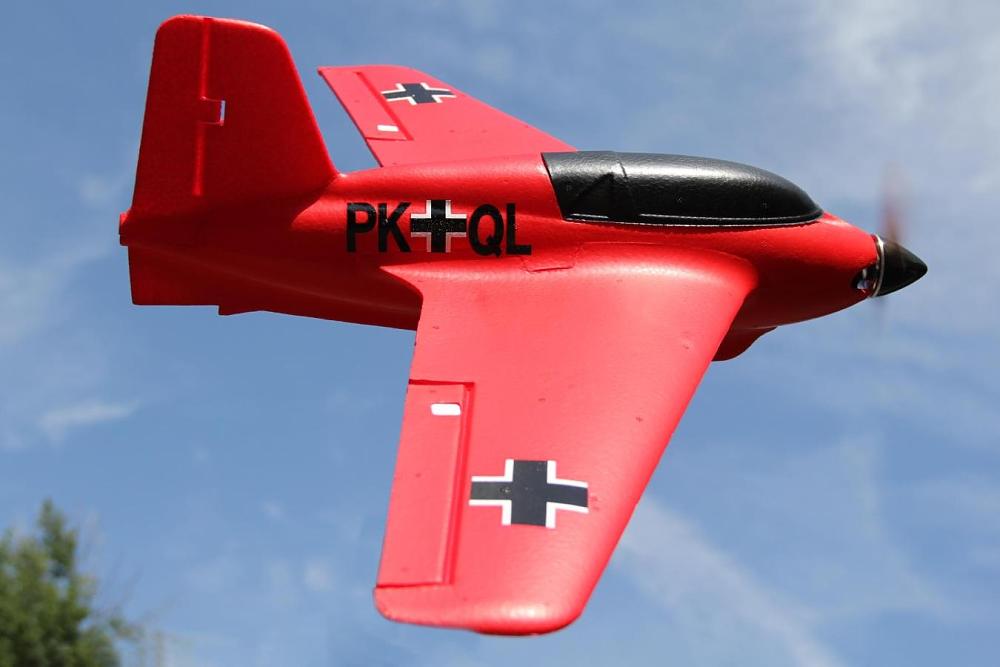

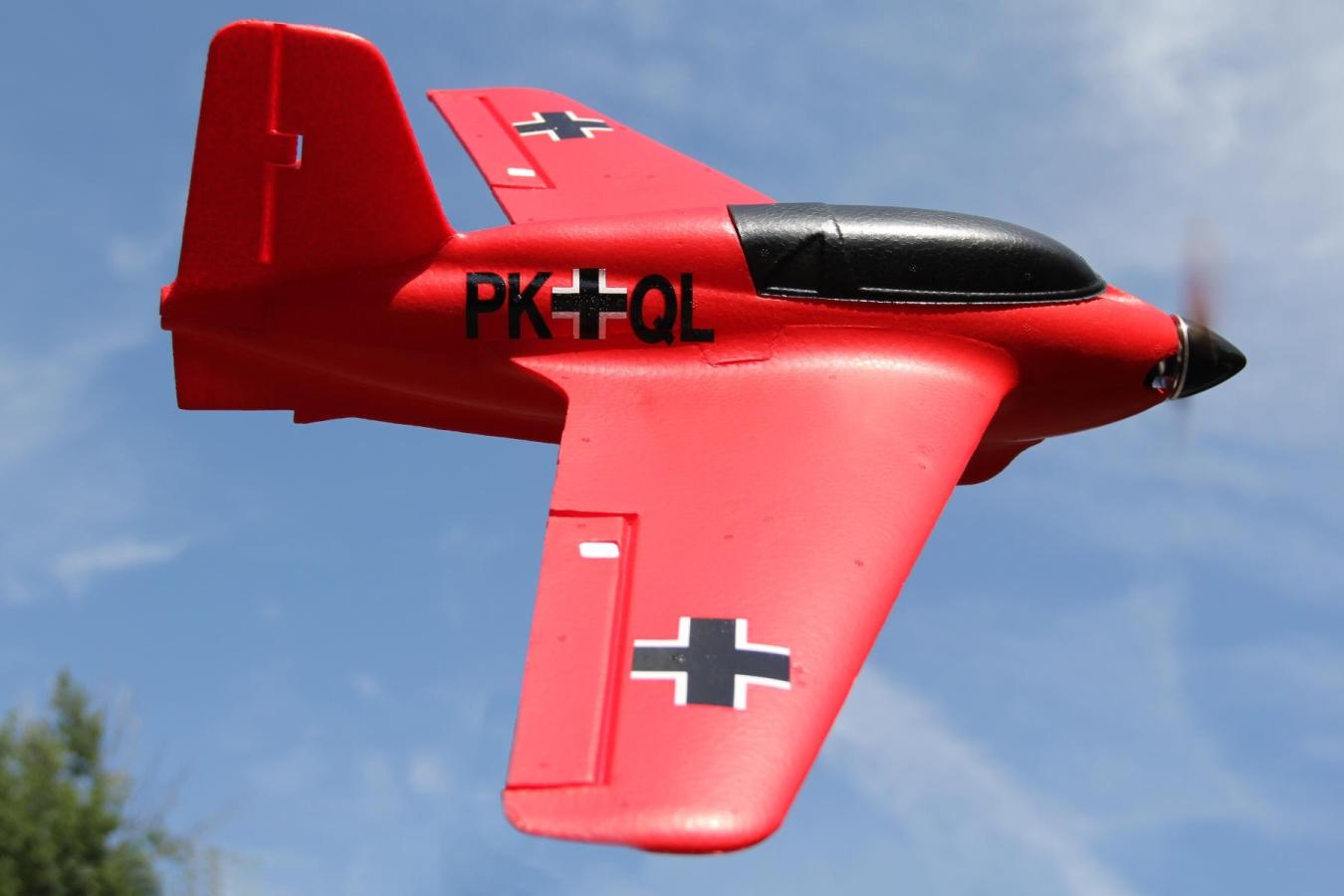

    Kraftei Me 163 Red 702mm (28") Wingspan - PNP from Skynetic - SKY1032-002

    Click image for larger version

Name:	master.jpg
Views:	566
Size:	64.1 KB
ID:	360354

    The Skynetic Kraftei Me 163 is a bullet with wings. This bird is FAST! Meant for outdoor flying, the Kraftei Me 163 is built for speed but can also handle slow, stable flight just as easily as high speed flight. Based off the design of the rocket-powered Messerschmitt Me 163 Komet, Skynetic's version is powered by a brushess motor for easy hand launches, with a sensible propeller design for easy belly landings. A prominent keel along the underside of the fuselage acts both as a landing protector and a good grip area for the hand toss. With a streamlined and aerodynamic profile, the Kraftei Me 163 is tailor-made for countless hours of outdoor exhilarating, high speed-flying fun!

    Features:
    • Slick, streamlined and aerodynamic profile with bright red livery for easy visibility
    • Ridge on the bottom of the fuselage that acts both as a landing protector and hand grip
    • Powerful AS2212-10 Kv2280 brushless outrunner motor for exhilarating high speeds
    • Modified mold for improved cooling
    • Enhanced structural support
    • Hand-launch-friendly power system
    • Built from rugged EPO foam for durability
    • Easy to assemble and transport
    Includes:
    • Skynetic Kraftei Me 163 Red 702mm (28") Wingspan - PNP
    • Servos, motor, ESC pre-installed
    Requires:
    • 4 Channel radio - select a minimum 4 channel radio from our Radio Collection
    • 4 Channel receiver - select a minimum 4 channel receiver from our Receiver Collection
    • 3 Cell 11.1V 1000 - 2200mAh LiPo battery with XT60 connector - we recommend EPR18003X6
    • 3 Cell compatible battery charger - select a minimum 3 cell (3S) charger from our Charger Collection
    Product Specifications:

    AGE LEVEL :14 and up
    SKILL LEVEL :Intermediate
    BUILD TIME :1 Hour
    Model Scale 1/13
    Wingspan 702mm / 27.63in
    Length 470mm / 18.5in
    Empty Weight 285g
    CG (Center of Gravity) Refer to the owner's manual
    Power System AS2212-10 Kv2280 Brushless Outrunner Motor (included)
    Electronic Speed Control 30A with XT60 connector (included)
    Propeller / EDF Electric (included)
    Servos
    • 2x 8g micro servos for elevons
    Landing Gear None
    Required Battery 3 Cell 11.1V 1000 -2200 mAh LiPo battery with XT60 connector (required)
    Required Radio 4 Channel (required)
    Ailerons Elevons
    Elevator Elevons
    Rudder No
    Flaps No
    Lights No
    Hinge Type Foam
    Material EPO Foam
    Skill Level Intermediate
    Build Time 1 Hour
    Recommended Environment Outdoors
    My YouTube RC videos:
    https://www.youtube.com/@toddbreda

  • #2
    I'd want to install a rocket motor on this.
