The full-size Pilatus PC-6 is a STOL workhorse capable of operating in rugged, short-field conditions for light transport roles.

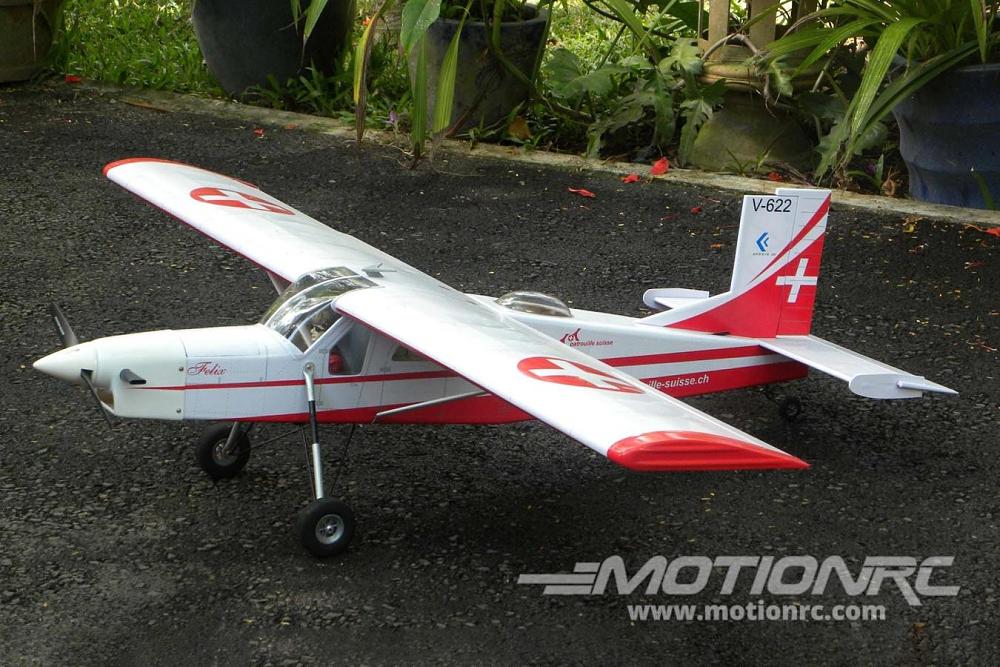

The Nexa Pilatus PC-6 Swiss is an accurate replica with all balsa construction. With a detailed covering and painted fiberglass cowl, the Pilatus PC-6 Swiss will make a beautiful addition to anyone's hangar and the pre-hinged control surfaces will have it in the air in no time.
Features:
- Complete Balsa and lite-ply construction for rigidity and durability
- Covered from tip to tail in scale details
- Large battery hatch allows for your chosen electric or gas setup
- Nexa Pilatus PC-6 Swiss 1580mm (62.2") Wingspan - ARF
- Landing gear and wheels
- 5 Channel radio - select a minimum 5 channel radio from our Radio Collection
- 5 Channel receiver - select a minimum 5 channel receiver from our Receiver Collection
- Brushless outrunner motor - we recommend the Admiral GP10 5030-400Kv Brushless Motor
- 70 Amp brushless ESC - we recommend the ZTW Mantis 85A ESC with 5A SBEC
- 4x 45g standard servos for elevator and rudder - we recommend Hitec D-645MW High Voltage High Torque Digital Metal Gear Servo Airplane Multi-Pack (4 Servos)
- 4 Cell 14.8V 4500 - 5000 mAh LiPo Batteries - we recommend the Admiral 5000mAh 4S 14.8V 40C LiPo Battery with XT60 Connector
- Electric propeller - we recommend the APC 13x8 Thin Electric Propeller - Black
- 4 Cell compatible battery charger - select a minimum 4 cell (4S) charger from our Charger Collection
- 2-stroke engine - we recommend the NGH GT9 Pro 9cc Two-Stroke Engine
- 2-blade gas propeller - we recommend the APC 12x6 Gas Propeller
- Silicone fuel tube
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
AGE LEVEL : 14 and up
SKILL LEVEL : Intermediate
BUILD TIME : 6+ Hours
| Model Scale | 1/7.5 |
| Wingspan | 1580mm / 62.2in |
| Length | 1160mm /45.7in |
| Weight | 2600g / 91.71oz |
| CG (Center of Gravity) | 74mm from the leading edge of the wing's root |
| Power System | 400Kv or equivalent brushless outrunner motor for electric or 2-stroke for gas (required) |
| Electronic Speed Control | 70A (required) |
| Propeller / EDF | 13x8 2-blade for electric or 12x6 2-blade for gas (required) |
| Servos | 45g standard servos: left aileron, right aileron, elevator, rudder - HRC6005-017 |
| Landing Gear | Fixed (included) |
| Required Battery | 4 Cell 14.8V 4500 - 5000mAh LiPo batteries (required) |
| Required Radio | 5+ Channel (required) |
| Ailerons | Yes |
| Elevator | Yes |
| Rudder | Yes |
| Flaps | No |
| Lights | No |
| Hinge Type | CA fabric |
| Material | Balsa and light plywood |
| Skill Level | Intermediate |
| Build Time | 6+ Hours |
| Recommended Environment | Outdoors |
