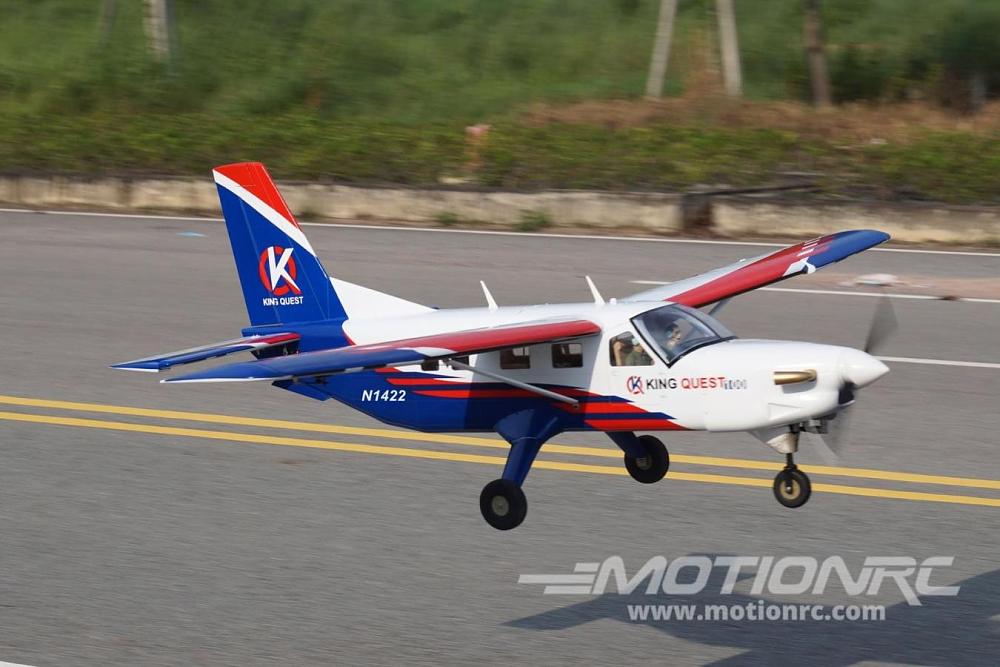

This Nexa King Question Kodiak is brand new to the Nexa lineup at the end of 2022. This brand new aircraft is absolutely full of scale details. The full size King Quest Kodiak is a multi-purpose STOL plane and this model is a gorgeous replica of the original. With all the scale details and a 2200mm wingspan, this model is impressive from both near and far. Though this plane is large, the 2 piece wing can be fairly easily removed for transportation to and from the field. As with the original, this plane does not require a lot of runway for takeoff and landing. Handling is fantastic.
This Nexa model can be setup with either gas or electric power system. The super large hatch allows easy access to either battery or fuel tank. Servo pockets make installed the standard size servos (control surfaces) and micro sized servos (flaps) a breeze.
Features:
- Complete Balsa and lite-ply construction for rigidity and durability
- Completely covered from tip to tail in scale details as shown
- Large battery hatch allows for your chosen electric or gas setup
- Functional pre-hinged landing flaps
- Hand painted pilot
- Stable landing gear with steerable nose gear
- Nexa King Quest Kodiak 2210mm (87") Wingspan - ARF
- Landing gear and wheels
- 7 Channel radio - select a minimum 7 channel radio from our Radio Collection
- 7 Channel receiver - select a minimum 7 channel receiver from our Receiver Collection
- Brushless outrunner motor - we recommend the Admiral GP20 6320-295Kv Brushless Motor
- 120 Amp brushless ESC - we recommend the ZTW Gecko 120A ESC OPTO High Voltage
- BEC - we recommend the Castle Creations 20A BEC Pro
- 5x 45g standard servos for ailerons and nose gear wheel - we recommend Hitec D-645MW High Voltage High Torque Digital Metal Gear Servo Airplane Multi-Pack (5 Servos)
- 3x 17g standard servos for elevators, nose gear wheel, and flaps - we recommend Hitec HS-82MG Metal Gear Micro Servo
- 6 Cell 22.2V 5500mAh LiPo Battery - we recommend the Admiral Pro 6000mAh 6S 22.2V 50C LiPo Battery with EC5 Connector
- Electric propeller - we recommend the APC 16x10 Thin Electric Propeller
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
- 2-stroke engine - we recommend the NGH GT17 17cc Two-Stroke Engine
- 2-blade gas propeller - we recommend the APC 14x8 Gas Propeller
- Silicone fuel tube
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
AGE LEVEL : 14 and up
SKILL LEVEL : Intermediate
BUILD TIME : 7+ Hours
| Model Scale | 1/6 |
| Wingspan | 2210mm / 87in |
| Length | 1580mm /62.2in |
| Weight | 5900g / 208.12oz |
| CG (Center of Gravity) | 95mm from the leading edge of the wing's root |
| Power System | 295Kv or equivalent brushless outrunner motor for electric or 2-stroke for gas (required) |
| Electronic Speed Control | 120A (required) |
| Propeller / EDF | 16x10 2-blade for electric or 14x8 2-blade for gas (required) |
| Servos |
|
| Landing Gear | Fixed (included) |
| Required Battery | 6 Cell 22.2V 5500mAh LiPo batteries (required) |
| Required Radio | 7+ Channel (required) |
| Ailerons | Yes |
| Elevator | Yes |
| Rudder | Yes |
| Flaps | Yes |
| Lights | No |
| Hinge Type | Nylon |
| Material | Balsa and light plywood |
| Skill Level | Intermediate |
| Build Time | 7+ Hours |
| Recommended Environment | Outdoors |
