Official Nexa 1540mm Messerschmitt BF-109 ARF Thread

[Aros]

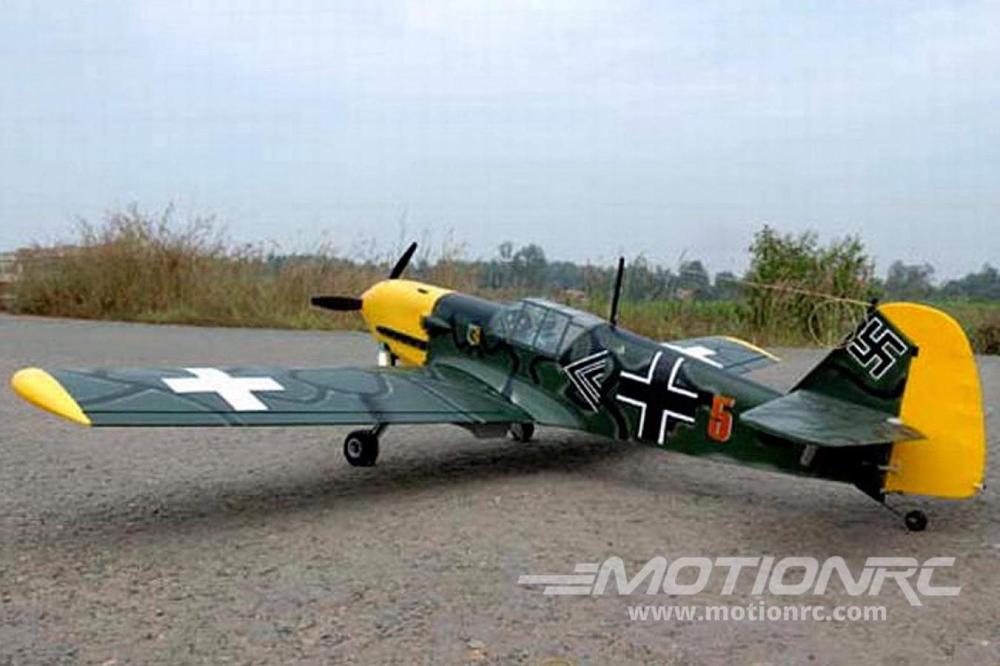

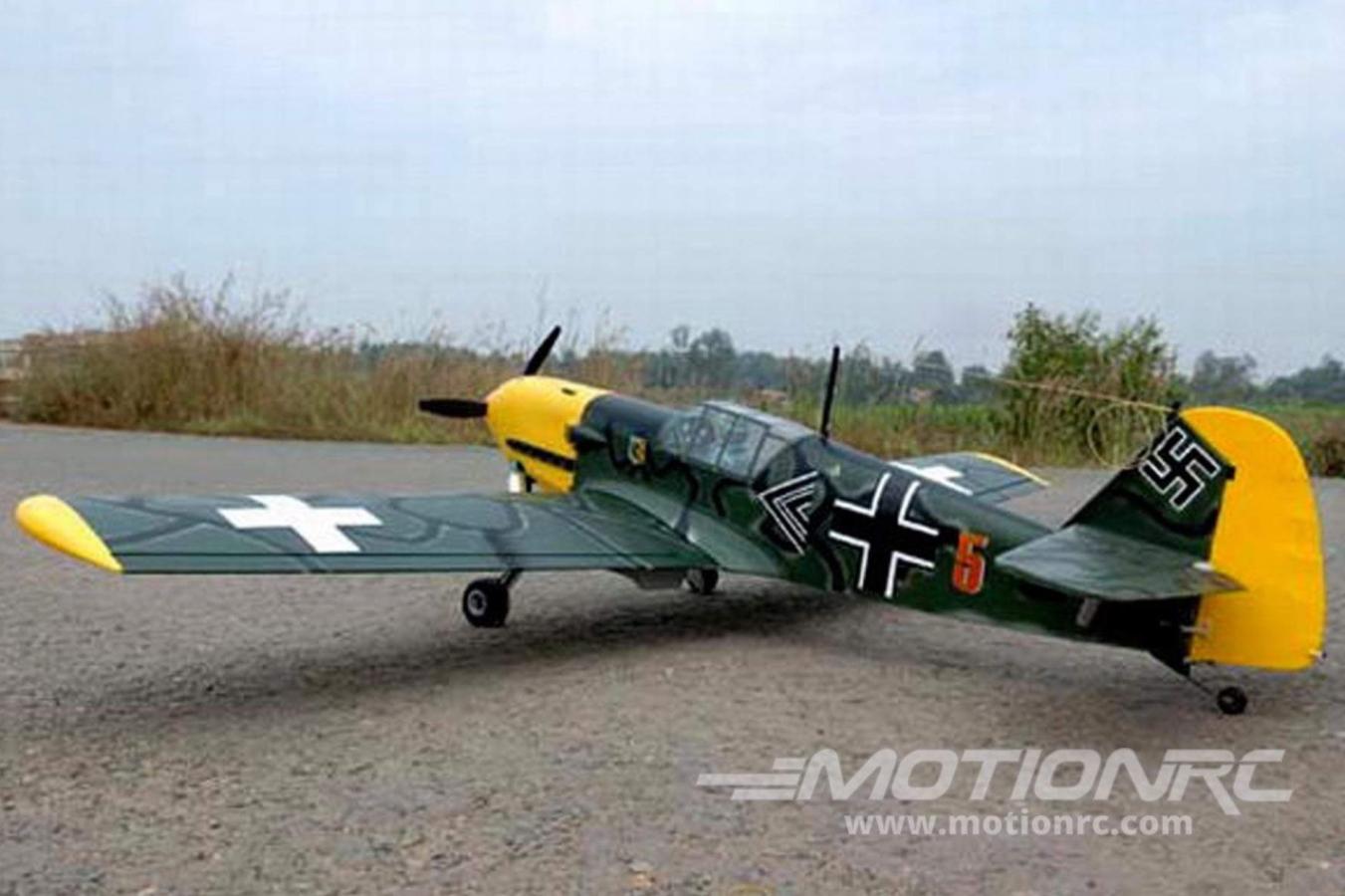

Messerschmitt BF-109 1540mm (60") Wingspan - ARF from Nexa - NXA1025-001

The Messerschmitt Bf-109 is a German World War II fighter aircraft that was, along with the Focke-Wulf Fw 190, the backbone of the Luftwaffe's fighter force.

The Nexa Messerschmitt BF-109 is a electric or gas option .46-size aerobatic airplane with a 1540mm wingspan, constructed primarily from balsa wood and covered with a fuel-resistant covering. This ARF requires assembly and installation of your choice of servos and power system, fully functional flaps, fiberglass cowl, painted pilot and other scale details. The large battery hatch affords ample room for either electric or gas setups. Impress at your flying field with this iconic World War II axis warbird!

Fully Covered and Detailed The Nexa Messerschmitt BF-109 comes fully covered including simulated panel lines and rivets.

Scale Details Throughout There is no shortage of scale details with this Messerschmitt BF-109 including functional flaps, detailed cockpit and painted pilot.

Fiberglass Cowling The cowl is made of fiberglass for both looks and durability.

Fly An Axis Classic The Messerschmitt BF-109 is an iconic German WWII warbird that performs aerobatics with ease and style and looks menacing while doing it.

Features:

• Complete Balsa and lite-ply construction for rigidity and durability
• Covered from tip to tail in scale details including functional flaps, plastic seat, antenna, printed simulated panel lines and rivets
• Fiberglass cowling for strength and durability
• All control surfaces come out of the box pre-hinged and installed for convenience
• Large battery hatch allows for your chosen electric or gas setup

Includes:

• Nexa Messerschmitt BF-109 1540mm (60") Wingspan - ARF
• Wheels and spinner
• Fuel tank, hardware and decals

Requires:

• 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
• 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
• 400Kv or equivalent brushless outrunner motor - we recommend the Admiral GP10 5030-400Kv Brushless Motor
• 70 Amp brushless ESC - we recommend the ZTW Mantis 85A ESC with 5A SBEC
• 4x metal gear servos for ailerons, elevator, and rudder - we recommend Hitec D-645MW High Voltage/Torque Digital Metal Gear Servo Multi-Pack (4 Servos)
• 2x micro metal gear servos for flaps - we recommend Hitec HS-82MG Metal Gear Micro Servo Airplane Multi-Pack (2 Servos)
• 4 Cell 14.8V 4500 - 5000mAh LiPo Battery - we recommend the Admiral Pro 5000mAh 4S 14.8V 60C LiPo Battery with EC5 Connector
• Standard 13x8 2-blade electric propeller - we recommend the APC 13x8 Thin Electric Propeller - Black
• 4 Cell compatible battery charger - select a minimum 4 cell (4S) charger from our Charger Collection
• Electric retracts with upgraded struts - Nexa 1540mm Messerschmitt BF-109 Electric Retract Set with Upgraded Struts

Gas Requires:

• .46 - .70 (7.45cc - 11.5cc) gas engine - we recommend the NGH GT9 Pro 9cc Two-Stroke Engine
• Standard 12x6 2-blade gas propeller - we recommend the APC 12x6 Gas Propeller

Customer Note
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).

Product Specifications:

AGE LEVEL :14 and up
SKILL LEVEL :intermediate
BUILD TIME :6+ hours

Model Scale	1/7.5
Wingspan	1540mm / 60.6in
Length	1120mm / 44.0in
Empty Weight	3100g / 109.34oz
CG (Center of Gravity)	88-92mm from the leading edge of the wing's root
Power System	580Kv or equivalent brushless outrunner motor for electric or .46 - .70 (7.45cc - 11.5cc) for gas (required)
Electronic Speed Control	70-85A (required)
Propeller / EDF	13x8 2-blade for electric or 12x6 2-blade for gas (required)
Servos	45g metal gear standard: left aileron, right aileron, elevator, rudder - HRC6005-017 17g metal gear standard: left flap , right flap - HRC6005-022
Landing Gear	Electronic retractable gear (required)
Required Battery	4 Cell 14.8V 4500 - 5000mAh LiPo Battery (required)
Required Radio	6+ Channel (required)
Ailerons	Yes
Elevator	Yes
Rudder	Yes
Flaps	Yes
Lights	No
Hinge Type	CA fabric
Material	Balsa and light plywood
Skill Level	Intermediate
Build Time	6+ Hours
Recommended Environment	Outdoors

[ncflyer79]

This is considered sport scale right????

[Aros]

Yes it would be.

[Randy H]

This has got to be a sport scale, It kind of looks like an e model 109. The landing gear is in the wrong place and the outline of the model is way off. To bad it is not truer to scale it looks more sport scale than anything else.

[Aros]

It's definitely sports scale. I had the Nexa P-38. While it was sports scale, it flew fabulously and still had the general look I was after.

[Randy H]

True this may be a good choice for someone who wants a model that kind of has the ME 109 looks. I was hoping for a motion would come out with a more scale like 109. We can always hope.

[Aros]

FlightLine please pickup the white courtesy phone!

[Randy H]

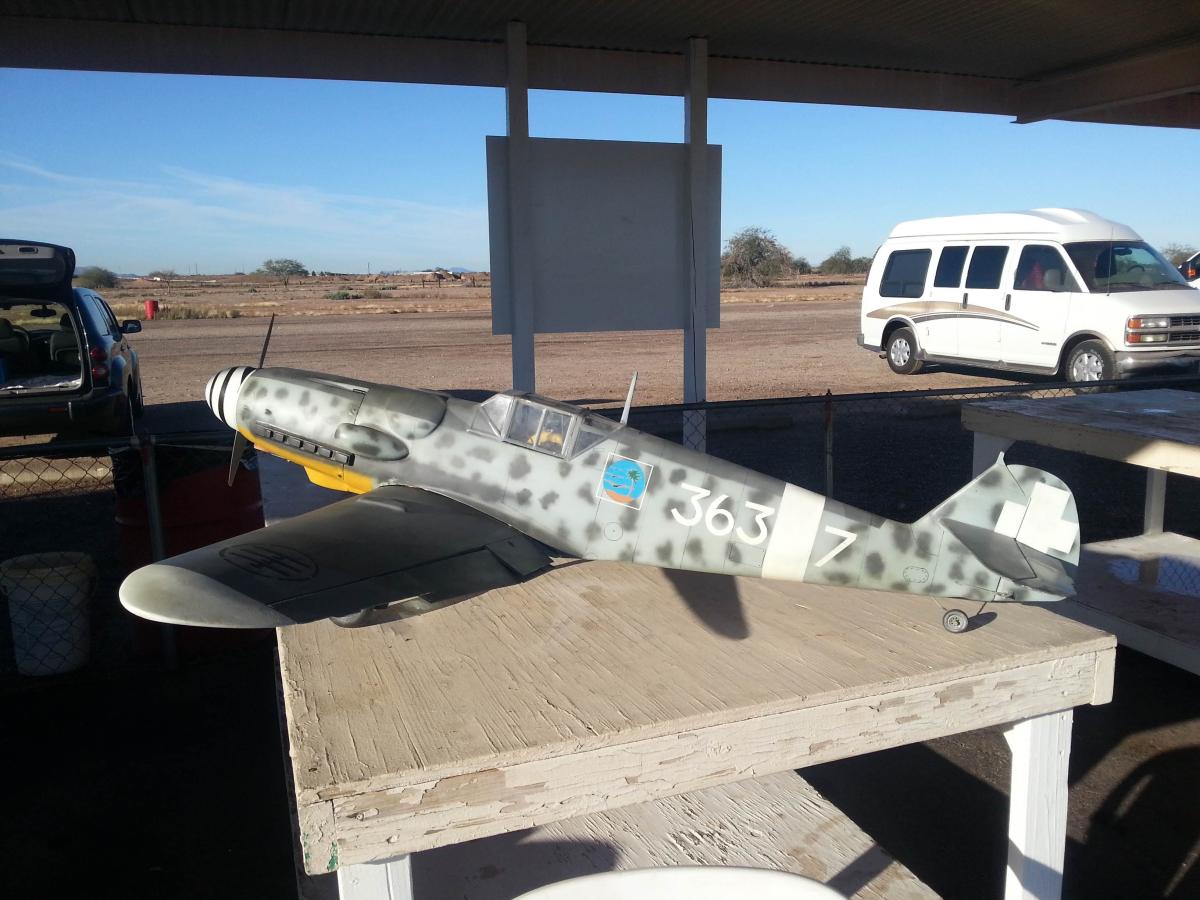

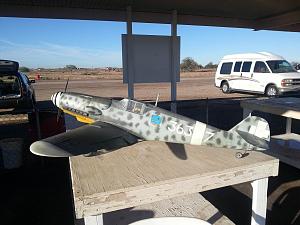

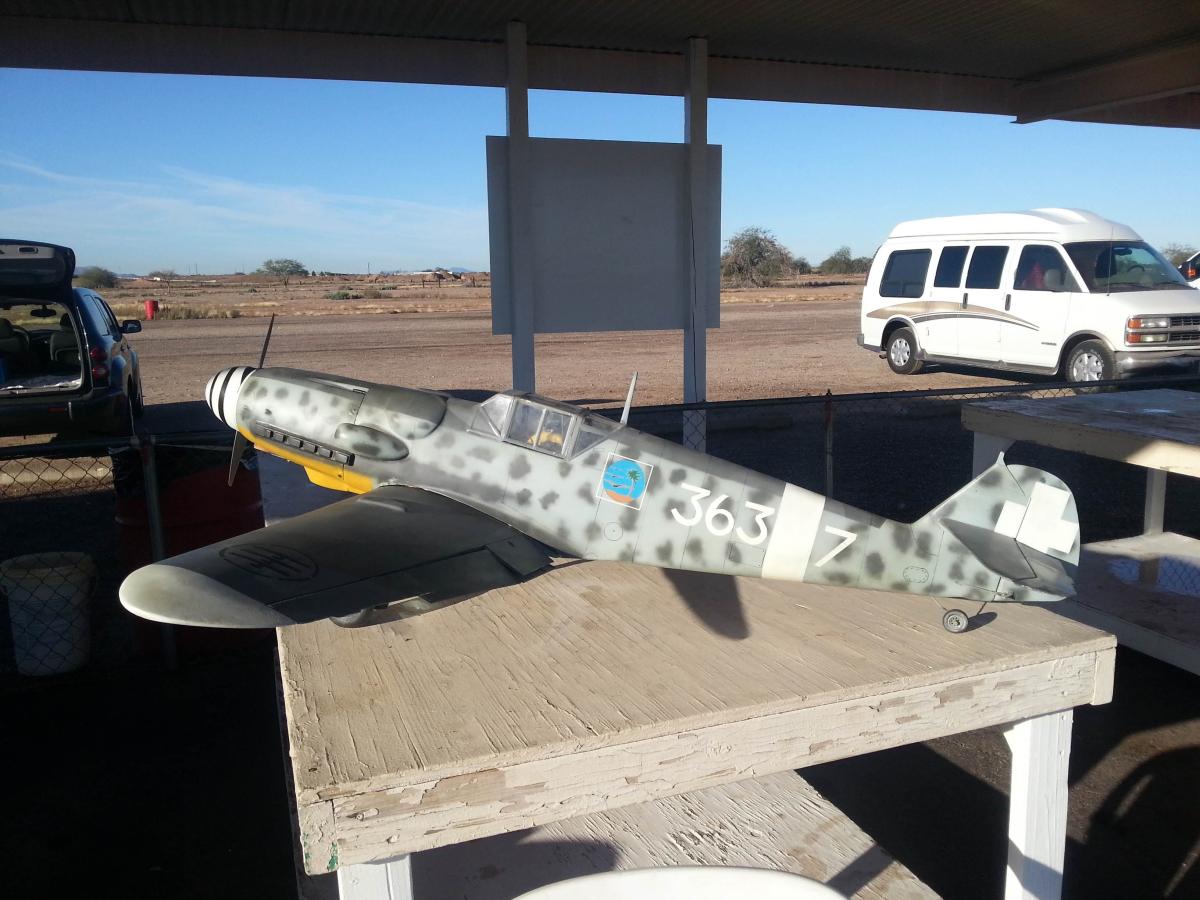

This is an ME109G6 I built from a Sky Shark kit years ago. I was hoping that Motion would come out with something like this with more detail. This 109 is in Italian air force colors.

[edwen303]

Is there a thread in rcgroups on this model, or VQ 60 size 109? How is the chance the main wheel well being modified to a scale location?

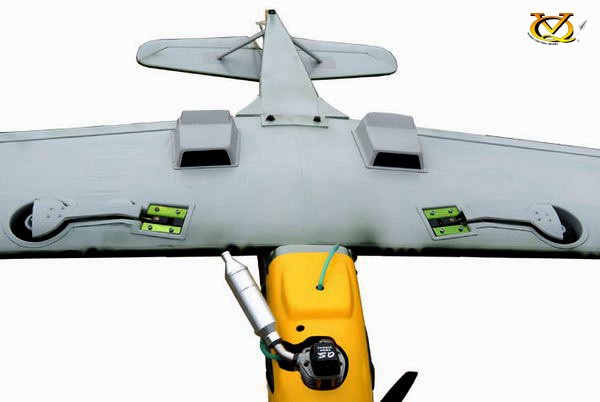

Attached is the picture from VQ site
