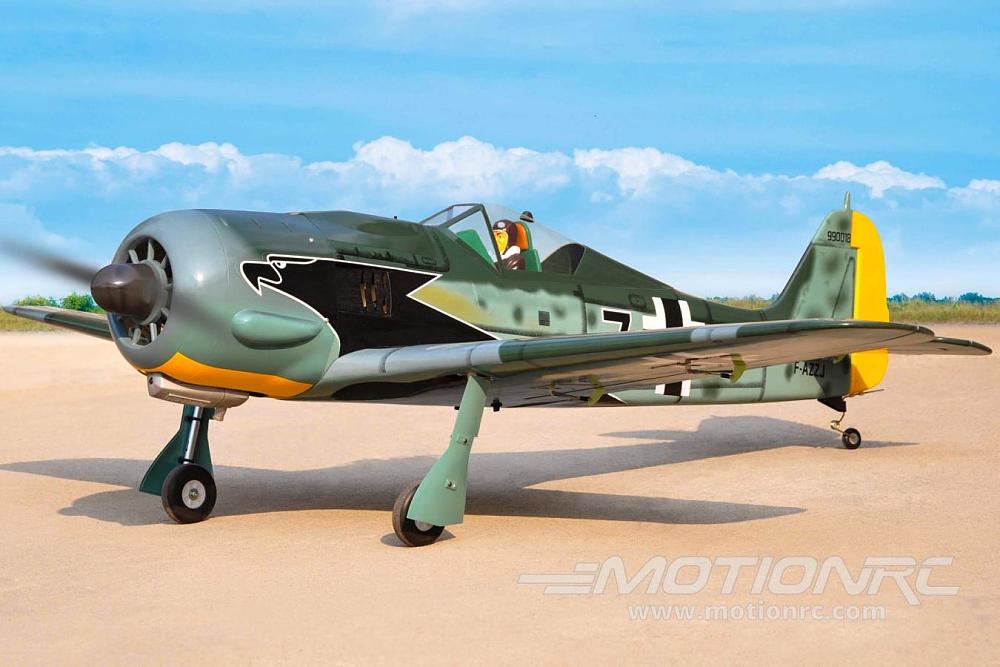

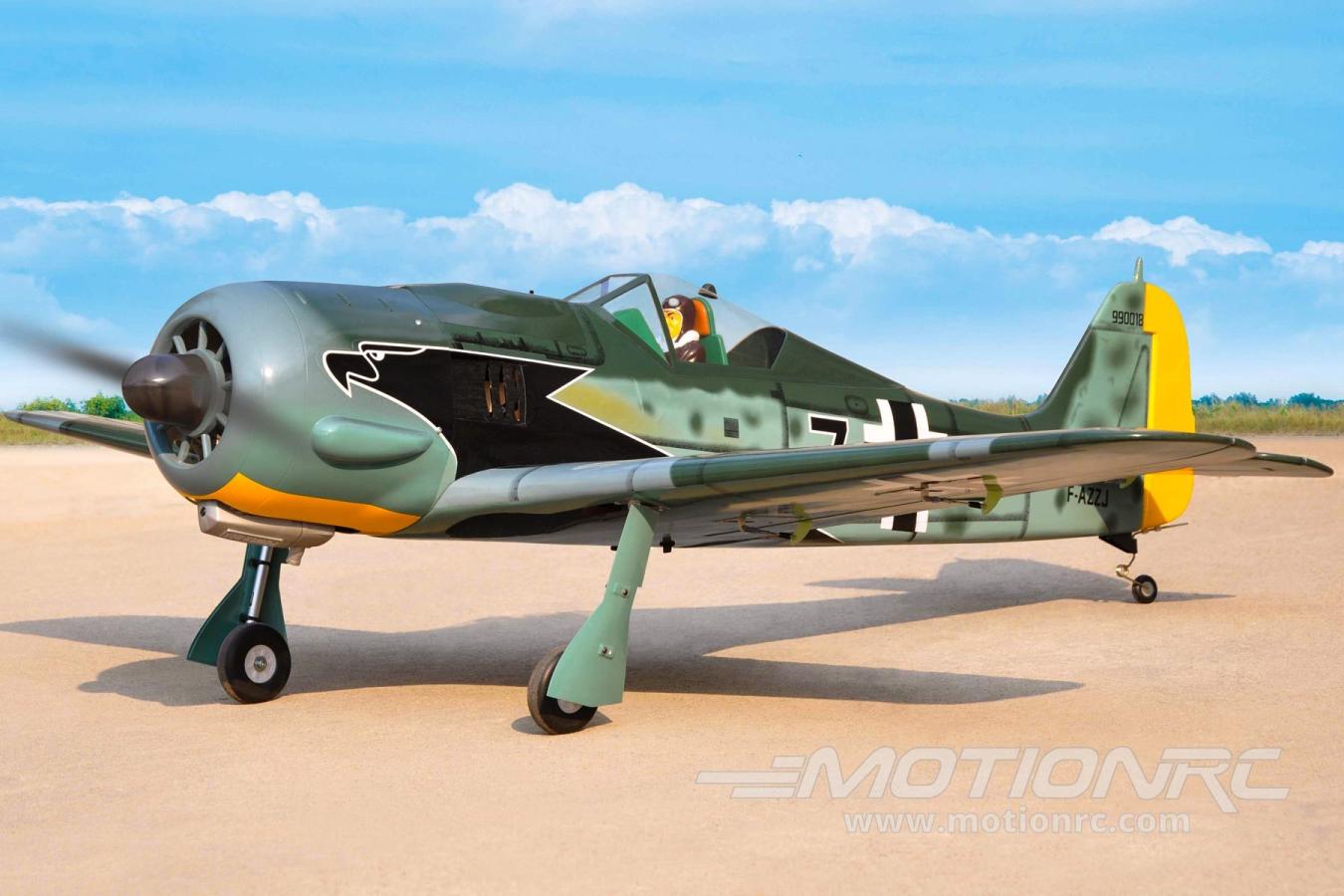

Focke-Wulf 190A 1780mm (70.1") Wingspan from Black Horse - Balsa Wood ARF - BHM1012-001
The Focke-Wulf FW 190 is a legendary German single-seat, single-engine fighter aircraft that was developed in the late 1930s and played a crucial role during World War II. Alongside the well-known Messerschmitt BF 109, the FW 190 was the cornerstone of the Luftwaffe's Jagdwaffe (Fighter Force). Its powerful twin-row BMW 801 radial engine gave it the ability to carry heavier loads compared to the BF 109, allowing it to serve as a versatile day fighter, fighter-bomber, ground-attack aircraft, and even as a night fighter to some extent.
Experience the power and precision of this legendary aircraft in model scale from Black Horse! Scaled to approximately 1:6 with attention paid to a true to original appearance with favorable flight characteristics. The model can be operated using an electric power system or with an internal combustion engine about 26cc displacement.
 |
Scale Simulated Covering The printing and covering on the FW 190A has scale rivet and panel line detail and weathering that elevates the model to a whole new level of scale appeal. |
 |
Electric Retractable Landing Gear Adding to the scale appeal, the FW 190A comes with electric retracts with CNC machined oleo struts. |
 |
Gas or Electric Power You can choose between gas or electric to power your model depending on your preference. Check the specifications for recommendations. |
 |
Bold Presence This FW 190A has a nice mid-range 70" wingspan for solid presence both in the air and on the ground. |
 |
Removable Main Wing Easy assembly and intuitive design allows for the main wing to be removed for transport. |
 |
Detailed Cockpit and Pilot The painted pilot and detailed cockpit provides that extra layer of scale detail that is sure to impress during states of static display. |
- Electric retractable gear with oleo CNC suspension metal struts
- High level of prefabrication right out of the box
- Lightweight, strong, laser cut balsa and plywood construction
- Panel lines and details printed directly onto the pre-applied, high quality covering
- Aerofoiled tail surfaces
- Recessed hinges on all control surfaces
- Pre-drilled hinge mounting holes
- Heavy-duty pin hinges on all control surfaces
- Split flaps for easier landings and shorter takeoffs
- Painted and detailed cockpit, pilot and interior included
- Fiberglass control horns with ball link connector
- comprehensive control and fitting accessories included
- Two-piece, plug-in wings simplify transportation and assembly
- Fiberglass cowl and glass reinforced landing gear covers/pants
- Mounts for both electric and gas power options included
- Black Horse Focke-Wulf 190A 1780mm (70.1") Wingspan - ARF
- Electric retractable gear with oleo CNC suspension metal struts
- Instruction manual
- 7 Channel radio - select a minimum 7 channel radio from our Radio Collection
- 7 Channel receiver - select a minimum 7 channel receiver from our Receiver Collection
- 295Kv Brushless Outrunner Motor - we recommend the Admiral GP20 6320-295Kv Brushless Motor
- 80 Amp Brushless ESC - we recommend ZTW Mantis 85A ESC with 5A SBEC
- 7x high torque servos - we recommend SEVEN MKS DS1220 Titanium Gear High Torque Standard Digital ServoHitec HS-645MG Ultra Torque Ball Bearing Metal Gear Standard Servos
- For 8S setup TWO 4 Cell 14.8V 4000 - 5000mAh LiPo Batteries with EC5 connector in series - we recommend Admiral Pro 5000mAh 4S 14.8V 60C LiPo Battery with EC5 Connector Multi-Pack (2 Batteries)Admiral Pro 4000mAh 5S 18.5V 60C LiPo Battery with EC5 Connector Multi-Pack (2 Batteries)
- Receiver battery - we recommend Admiral 2100mAh 2S 6.6V LiFe Battery with XT60/JR/Futaba Connectors
- 2 to 1 EC5 series adapter - we recommend Admiral EC5 2 to 1 Series Adapter
- Electric propeller - we recommend the APC 19x8 Thin Electric Propeller
- 4 Cell compatible battery charger - select a minimum 4 cell (4S) charger from our Charger Collection
- Engine: 20-26cc gas / 1.20 4-stroke - we recommend NGH GT25
- Gas Propeller - we recommend APC 16x10 Sport Gas Propeller
- Receiver and ignition batteries - we recommend TWO Admiral 2100mAh 2S 6.6V LiFe Battery with XT60/JR/Futaba Connectors
- Servos in E setup + Hitec HS-562MG High Speed Servo for Throttle
Black Horse ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine). Product Specifications:
AGE LEVEL :14 and up
SKILL LEVEL :intermediate
BUILD TIME :6+ hours
| Model Scale | 1:6 Scale |
| Wingspan | 1780mm / 70.0in |
| Length | 1520mm / 59.8in |
| Weight | 5500g / 13lbs |
| CG (Center of Gravity) | 100mm from the leading edge of the wing at the root |
| Wing Area | 51.9dm2 |
| Wing Loading | 115.6 g/dm2 |
| Power System | 295Kv Brushless Outrunner Motor or 20-26cc / 4-stroke (required) |
| Electronic Speed Control | 80A (required for electric) |
| Propeller / EDF | 19x8 for electric, 16x10 gas (required) |
| Servos |
|
| Landing Gear | CNC machined oleo gear (tri-gear) |
| Required Battery | TWO 4 Cell 14.8V 4000-5000 mAh LiPo Batteries with EC5 connector in series (required for electric) |
| Required Radio | 6+ Channel (required) |
| Ailerons | Yes |
| Elevator | Yes |
| Rudder | Yes |
| Flaps | Yes |
| Lights | Optional |
| Hinge Type | Nylon Heavy Duty pin hinges |
| Material | Balsa and plywood |
| Skill Level | Intermediate |
| Build Time | 6+ Hours |
| Recommended Environment | Outdoors |
