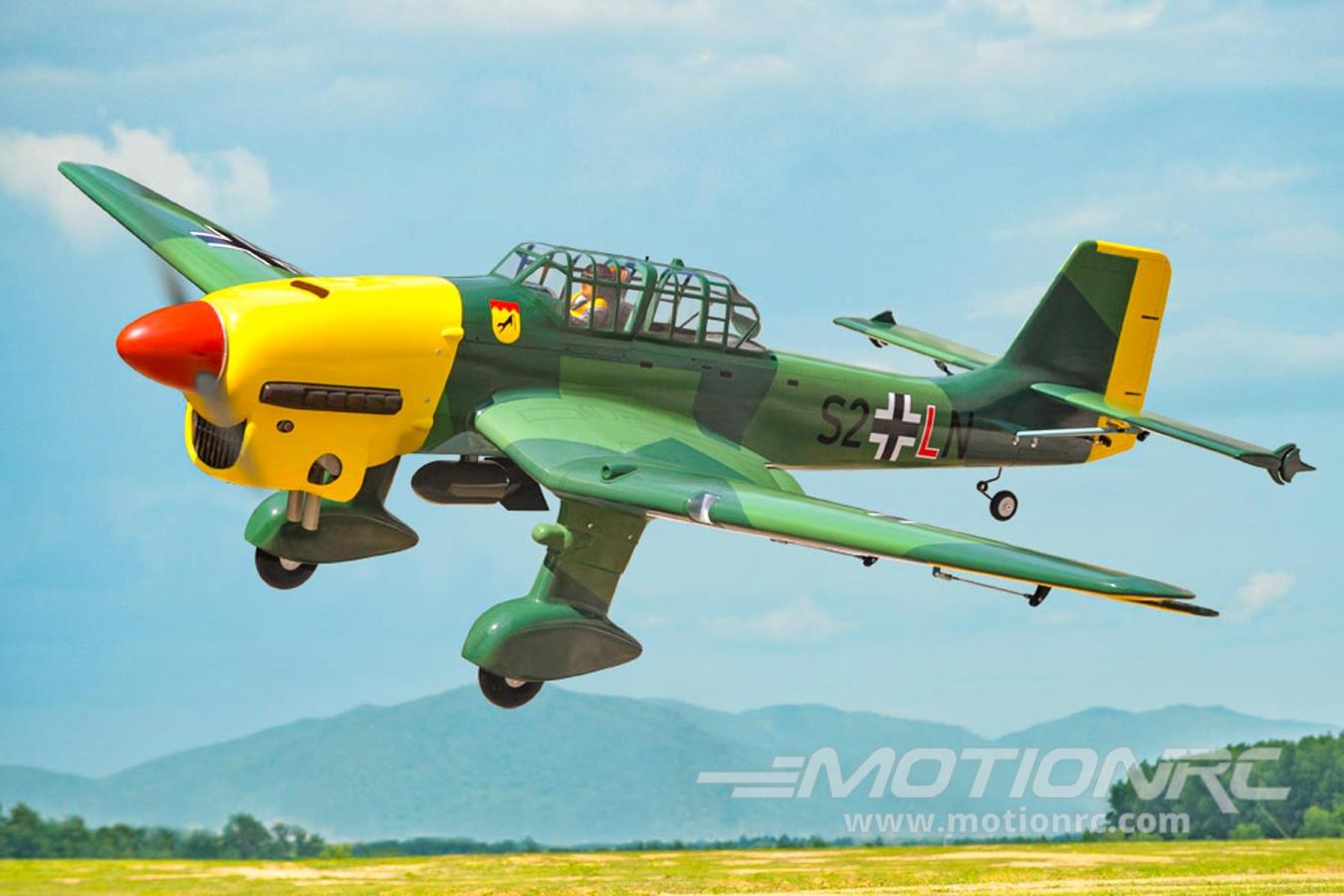

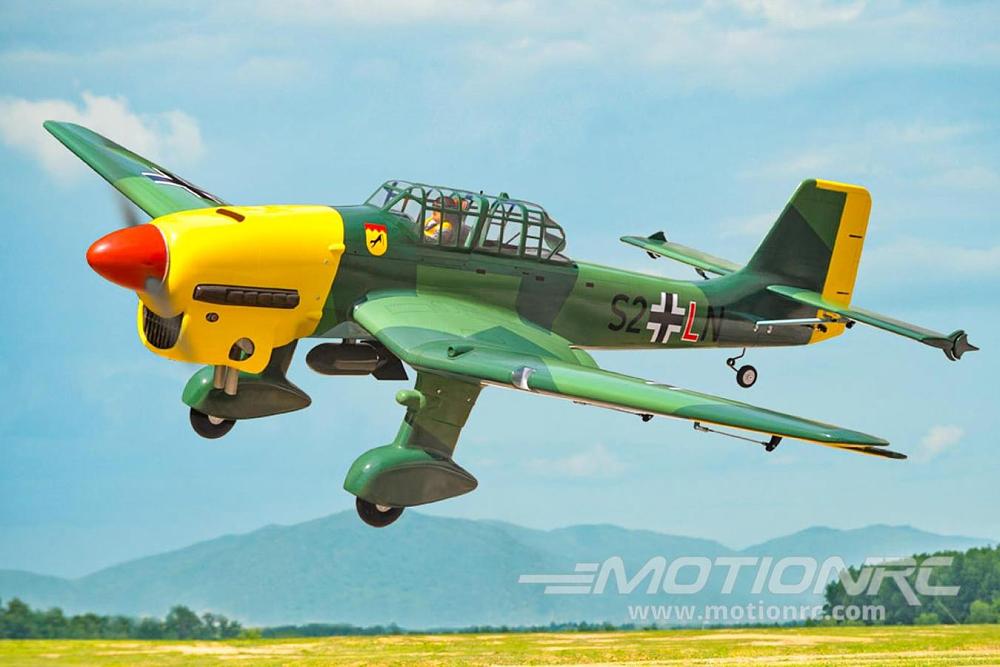

Junkers Ju 87 B-2 Stuka 2300mm (90.5") Wingspan from Black Horse - Balsa Wood ARF - BHM1013-001
The Junkers Ju 87, commonly known as the "Stuka", was a highly recognizable German dive bomber and ground-attack aircraft. Making its first appearance in 1937, it played a crucial role for the Axis powers throughout World War II. One of its most distinctive features was its inverted gull wings. Additionally, the aircraft was equipped with ram-air sirens called Jericho trumpets on its faired main gear legs, which came to symbolize German air power and the famous Blitzkrieg campaigns of 1939-1942.
The Stuka was also equipped with innovative automatic pull-up dive brakes on both wings, ensuring a safe recovery from a dive even if the pilot experienced high g-forces or became too focused on their target. While it was a reliable and effective weapon against ground targets, the Stuka, like many other dive bombers of its time, was vulnerable to enemy fighter aircraft.
The Black Horse Stuka is scaled to approximately 1:6 and attention was paid to a true to original appearance and favorable flight characteristics. The model can be operated using an electric power system or with an internal combustion engine about 60cc displacement.
 |
Scale Simulated Covering The printing and covering on the Ju 87 Stuka has scale rivet and panel line detail that elevates the model to a whole new level of scale appeal. |
 |
Robust Landing Gear Aluminum oleo suspension struts absorb rough landings on grass surfaces while the iconic giant wheel pants provide additional protection from the elements. |
 |
Gas or Electric Power You can choose between gas or electric to power your model depending on your preference. Check the specifications for recommendations. |
 |
Large Wingspan This giant scale Ju 87 Stuka has an impressive 90.5" wingspan for impressive presence both in the air and on the ground. |
 |
Removable Main Wing Easy assembly and intuitive design allows for the main wing to be removed for transport. |
 |
Detailed Cockpit and Pilot The painted pilot and detailed cockpit provides that extra layer of scale detail that is sure to impress during states of static display. |
- Oleo CNC suspension metal struts
- High level of prefabrication right out of the box
- Lightweight, strong, laser cut balsa and plywood construction
- Panel lines and details printed directly onto the pre-applied, high quality covering
- Aerofoiled tail surfaces
- Recessed hinges on all control surfaces
- Pre-drilled hinge mounting holes
- Heavy-duty pin hinges on all control surfaces
- Large easy access fuel tank/battery/servo access hatches with sprung loaded latches
- Painted and detailed cockpit, pilot and interior included
- Fiberglass control horns with ball link connector
- comprehensive control and fitting accessories included
- Two-piece, plug-in wings simplify transportation and assembly
- Fiberglass cowl and glass reinforced landing gear covers/pants
- Mounts for both electric and gas power options included
- Black Horse Junkers Ju 87 B-2 Stuka 2300mm (90.5") Wingspan - ARF
- Oleo CNC suspension metal struts
- Instruction manual
- 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
- 180-185Kv Brushless Outrunner Motor - we recommend the Admiral GP60 8925-180Kv Brushless Motor
- 85-120 Amp Brushless ESC - we recommend Castle Creations Phoenix Edge 120A HV ESC
- 9x high torque servos - we recommend NINE MKS DS1220 Titanium Gear High Torque Standard Digital Servo
- For 12S setup TWO 6 Cell 22.2V 5000 - 6000mAh LiPo Batteries with EC5 connector in series - we recommend Admiral 5000mAh 6S 22.2V 50C LiPo Battery with EC5 Connector Multi-Pack (2 Batteries)
- 2x Receiver battery - we recommend TWO Admiral 2100mAh 2S 6.6V LiFe Battery with XT60/JR/Futaba Connectors
- 2 to 1 EC5 series adapter - we recommend Admiral EC5 2 to 1 Series Adapter
- Electric propeller - we recommend an APC 24x8E or 24x10E propeller
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
- Engine: 60cc gas - we recommend Admiral 60cc Two-Stroke Engine
- Gas Propeller: 24x8
- Receiver and ignition batteries - we recommend TWO Admiral 2100mAh 2S 6.6V LiFe Battery with XT60/JR/Futaba Connectors
- Servos in E setup + Hitec HS-562MG High Speed Servo for Throttle
Black Horse ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine). Product Specifications:
AGE LEVEL :14 and up
SKILL LEVEL :intermediate
BUILD TIME :6+ hours
| Model Scale | 1:6 Scale |
| Wingspan | 2300mm / 90.5in |
| Length | 1837mm /72.3in |
| Weight | 8999g / 19.8lbs |
| CG (Center of Gravity) | 128mm from the leading edge of the wing at the root |
| Wing Area | 90.2dm2 |
| Wing Loading | 95.34 g/dm2 |
| Power System | 180Kv Brushless Outrunner Motor or 60cc 2 or 4-stroke (required) |
| Electronic Speed Control | HV 120A (required for electric) |
| Propeller / EDF | 22x12 for electric, 22x8 for gas (required) |
| Servos |
|
| Landing Gear | CNC machined oleo gear (tri-gear) |
| Required Battery | TWO 6 Cell 22.2V 5500-6000 mAh LiPo Batteries with EC5 connector in series (required for electric) |
| Required Radio | 6+ Channel (required) |
| Ailerons | Yes |
| Elevator | Yes |
| Rudder | Yes |
| Flaps | Yes |
| Lights | Optional |
| Hinge Type | Nylon Heavy Duty pin hinges |
| Material | Balsa and plywood |
| Skill Level | Intermediate |
| Build Time | 6+ Hours |
| Recommended Environment | Outdoors |
