J-3 Cub 1620mm (63.7") Wingspan - ARF from Nexa - NXA1005-002
The Piper J-3 Cub is a small, simple, light aircraft that was built between 1937 and 1947 by Piper Aircraft. With tandem (fore and aft) seating, it was intended for flight training but became one of the most popular and best-known light aircraft of all time. The Cub's simplicity, affordability and popularity—as well as its large production numbers, with nearly 20,000 built in the United States—invokes comparisons to the Ford Model T automobile.
This ARF requires assembly and installation of your choice of servos and power system, and includes two piece wing with aluminum wing joiner, fiberglass cowl and operational pilot door. A large battery tray provides ample space for any size battery you require.
 |

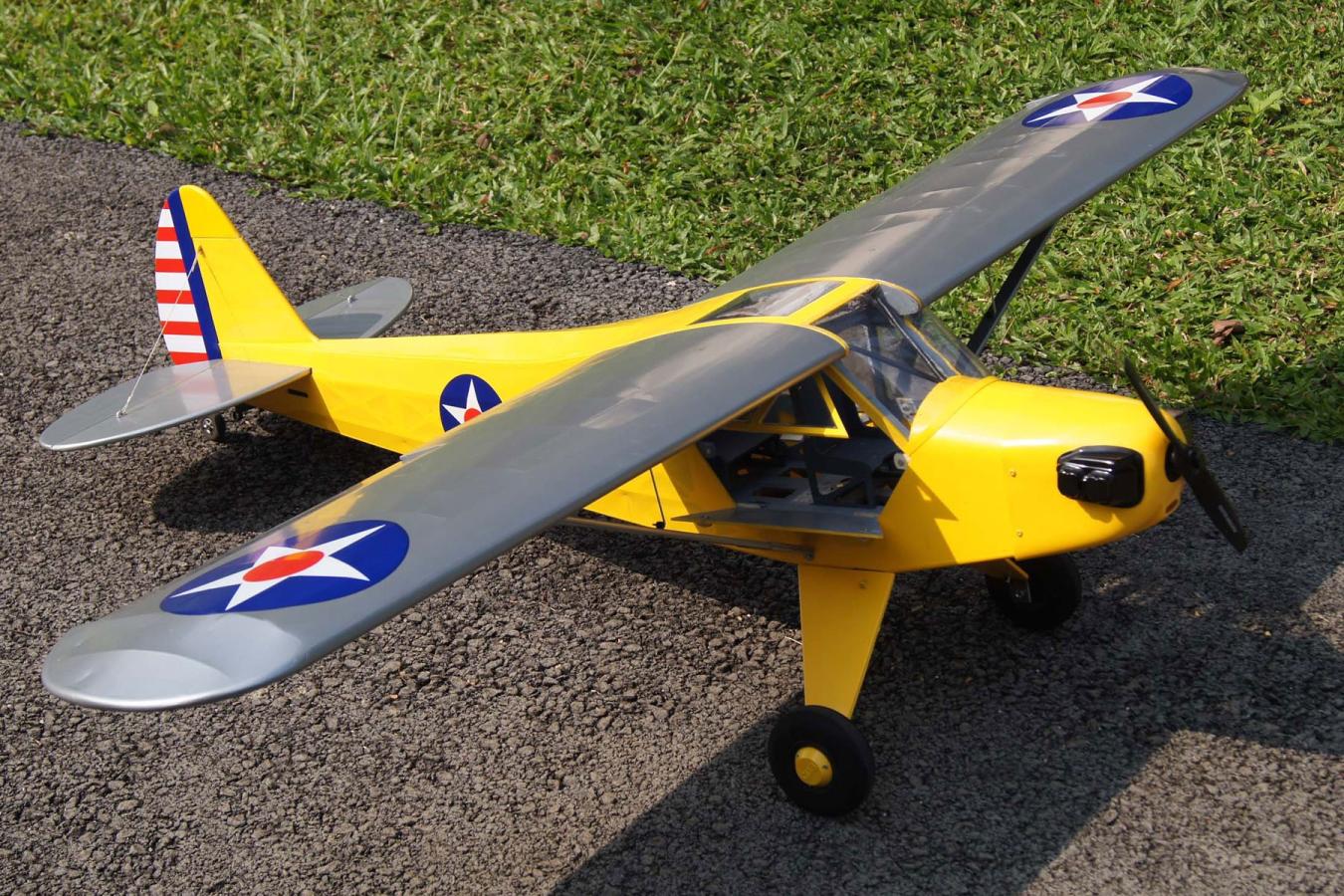

Fully Covered and Detailed The Nexa J-3 Cub comes fully covered in a US Army "Cub Yellow" scheme. |
 |
History Recreated Expansive clear cockpit panels enhance the observation characteristic of the Cub platform. |
 |
Two Piece Wing with Aluminum Wing Joiner The J-3 Cub has a two piece wing with aluminum wing joiner for easy transportation. |
 |
Fiberglass Cowling A fiberglass cowling arrives pre-painted and ready for your electric motor or liquid fuel engine. |
- Complete Balsa and lite-ply construction for rigidity and durability
- Two piece wing with aluminum wing joiner for easy transport
- Large battery tray provides ample space for any size battery you require
- Functional pilot door and well appointed throughout
- Fiberglass cowling for strength and durability
- All control surfaces come out of the box pre-hinged and installed for convenience
- Nexa J-3 Cub 1620mm (63.7") Wingspan - ARF
- Electric motor mount
- Wheels, spinner, hardware and decals
- 5 Channel radio - select a minimum 5 channel radio from our Radio Collection
- 5 Channel receiver - select a minimum 5 channel receiver from our Receiver Collection
- .46 size brushless outrunner motor - we recommend the Admiral GP5 4220-770Kv Brushless Motor
- 85 Amp brushless ESC - we recommend the ZTW Mantis G2 85A ESC with 8A SBEC
- 2x 17g standard servos for ailerons - we recommend Hitec HS-85BB High Torque Micro Servo Airplane Multi-Pack (2 Servos)
- 2x 45g standard servos for elevator and rudder - we recommend Hitec HS-485HB Deluxe Ball Bearing Karbonite Gear Standard Servo Airplane Multi-Pack (2 Servos)
- 4 Cell 14.8V 4000 - 5000 mAh LiPo Battery - we recommend the Admiral 5000mAh 4S 14.8V 40C LiPo Battery with XT60 Connector
- Electric propeller - we recommend the APC 12x8 Thin Electric Propeller - Black
- 4 Cell compatible battery charger - select a minimum 4 cell (4S) charger from our Charger Collection
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine). Product Specifications:
AGE LEVEL : 14 and up
SKILL LEVEL : Intermediate
BUILD TIME : 6+ Hours | Model Scale | 1/6.6 |
| Wingspan | 1620mm / 63.7in |
| Length | 1250mm / 49.2in |
| Weight | 2700g / 95.23oz |
| CG (Center of Gravity) | Refer to the manual |
| Power System | .46 size brushless outrunner motor (required) |
| Electronic Speed Control | 85A (required) |
| Propeller / EDF | 12x8 2-blade (required) |
| Servos |
|
| Landing Gear | Fixed (included) |
| Required Battery | 4 Cell 14.8V 4000 - 5000mAh LiPo battery (required) |
| Required Radio | 5+ Channel (required) |
| Ailerons | Yes |
| Elevator | Yes |
| Rudder | Yes |
| Flaps | No |
| Lights | No |
| Hinge Type | Nylon |
| Material | Balsa and light plywood |
| Skill Level | Intermediate |
| Build Time | 6+ Hours |
| Recommended Environment | Outdoors |
