  • 3D printed 1/72nd scale Los Angeles class submarine

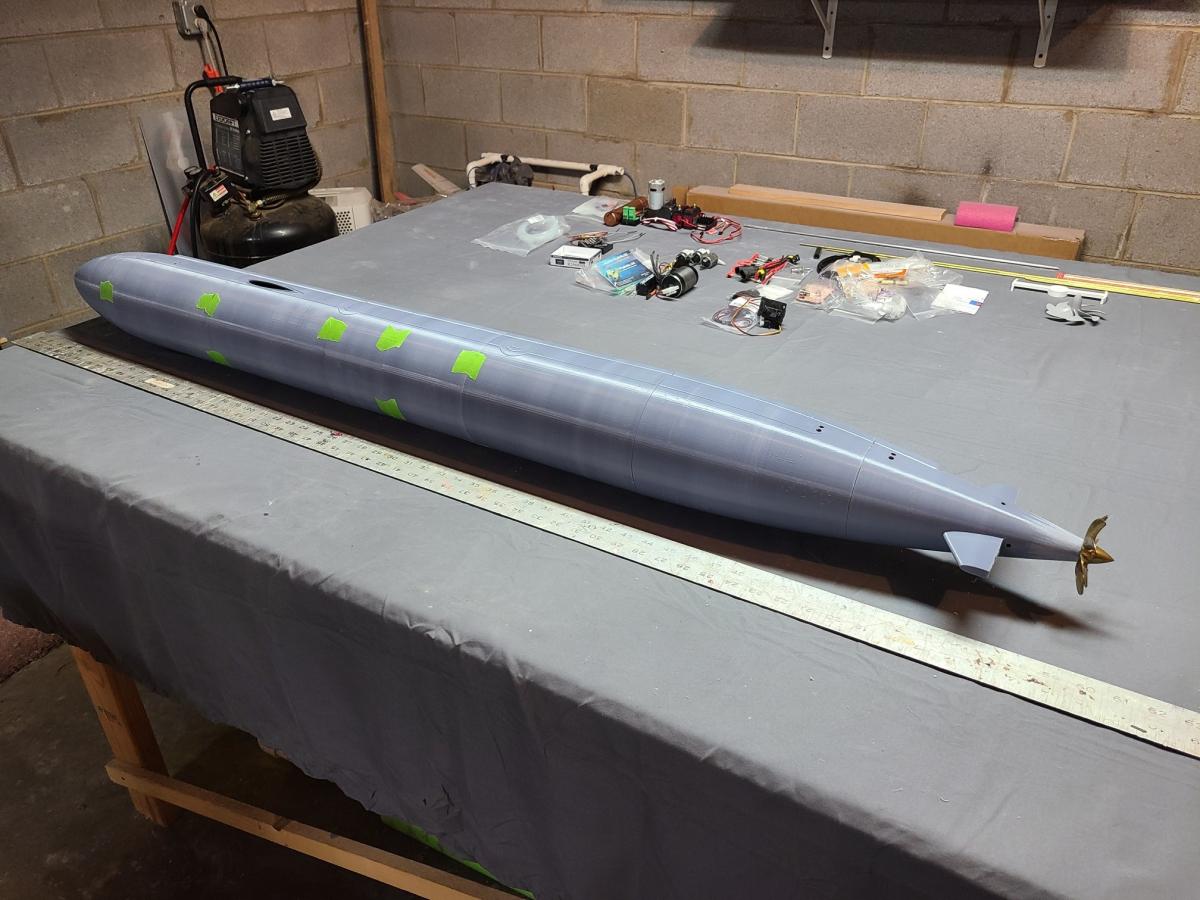

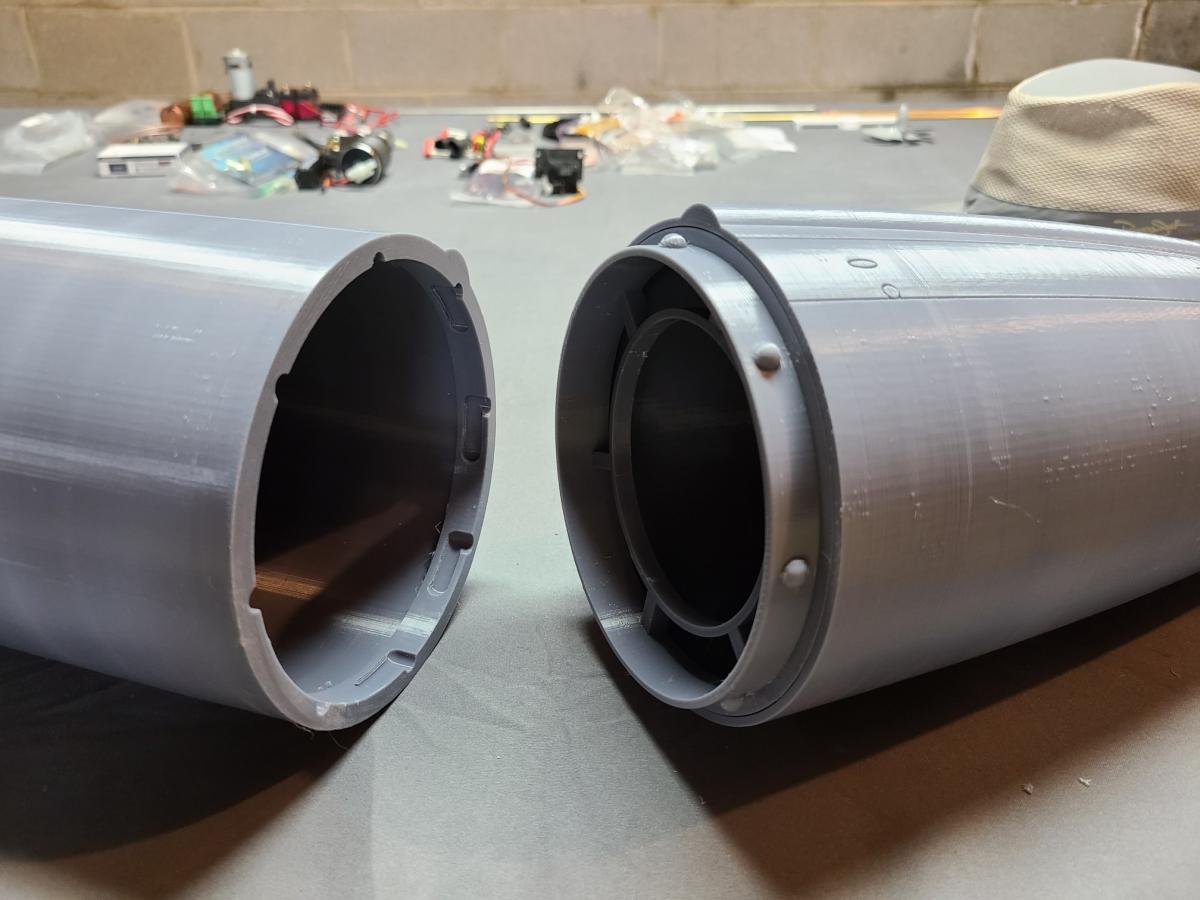

    Been working on this for about a week now. Decided to go ahead and make a thread for it. This is a 1/72 Los Angeles fast attack submarine printed with PLA+. The control surfaces are on the printer now and then the sail will complete the printing process. It is a bayonet locking system so the boat separates into three sections with just a slight twist. I will be painting it with high fill polyurethane primer inside and out to 1. Help seal the inside, 2. Provide an external surface finish that will make it impossible to tell it was 3D printed and 3. Lock it all together. The files were purchased from The Nautilus Drydocks originally as 1/96th scale but I enlarged the boat to make it 1/72. I am hoping to be able to use the same modular sub driver in my Redoutable to power this boat but we shall see. More to come.

    Click image for larger version

Name:	20200818_002228_copy_2016x1512.jpg
Views:	909
Size:	87.1 KB
ID:	269333

    Click image for larger version

Name:	20200818_000314_copy_2016x1512.jpg
Views:	799
Size:	120.2 KB
ID:	269334

  • #2
    Looking good Steve.
    AMA 424553

    Comment


    • #3
      Looks awesome, Steve!
      https://www.instagram.com/tcat.rc.creations/
      https://www.youtube.com/channel/UC-2CFSVF3mGmuAhs4-hNpAg

      ​​​​​​https://cults3d.com/en/users/TcatRcCreations/creations

      Comment


      • #4
        Thanks guys. I find all this very satisfying.

        Comment


        • #5
          As a former 688 class submariner, I'll be following along closely.

          Comment


          • #6

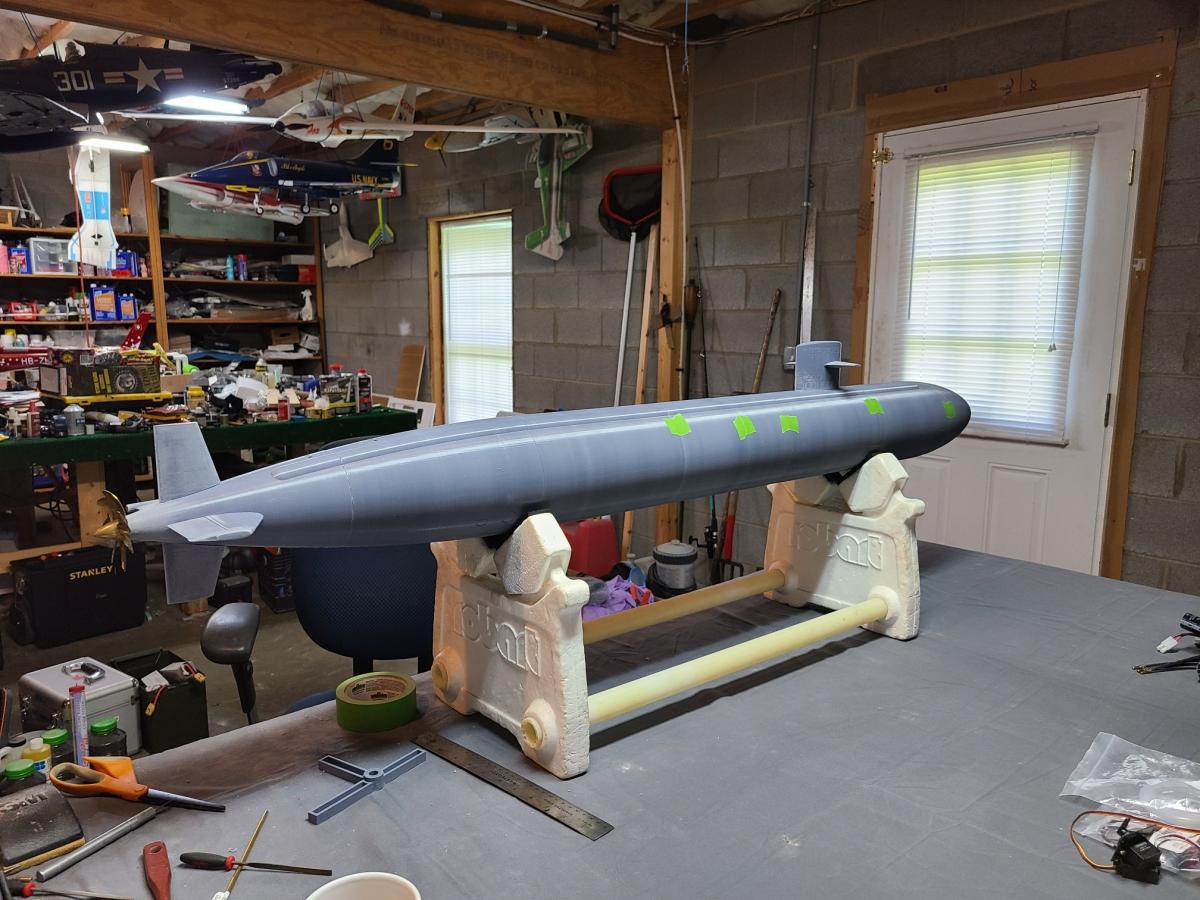

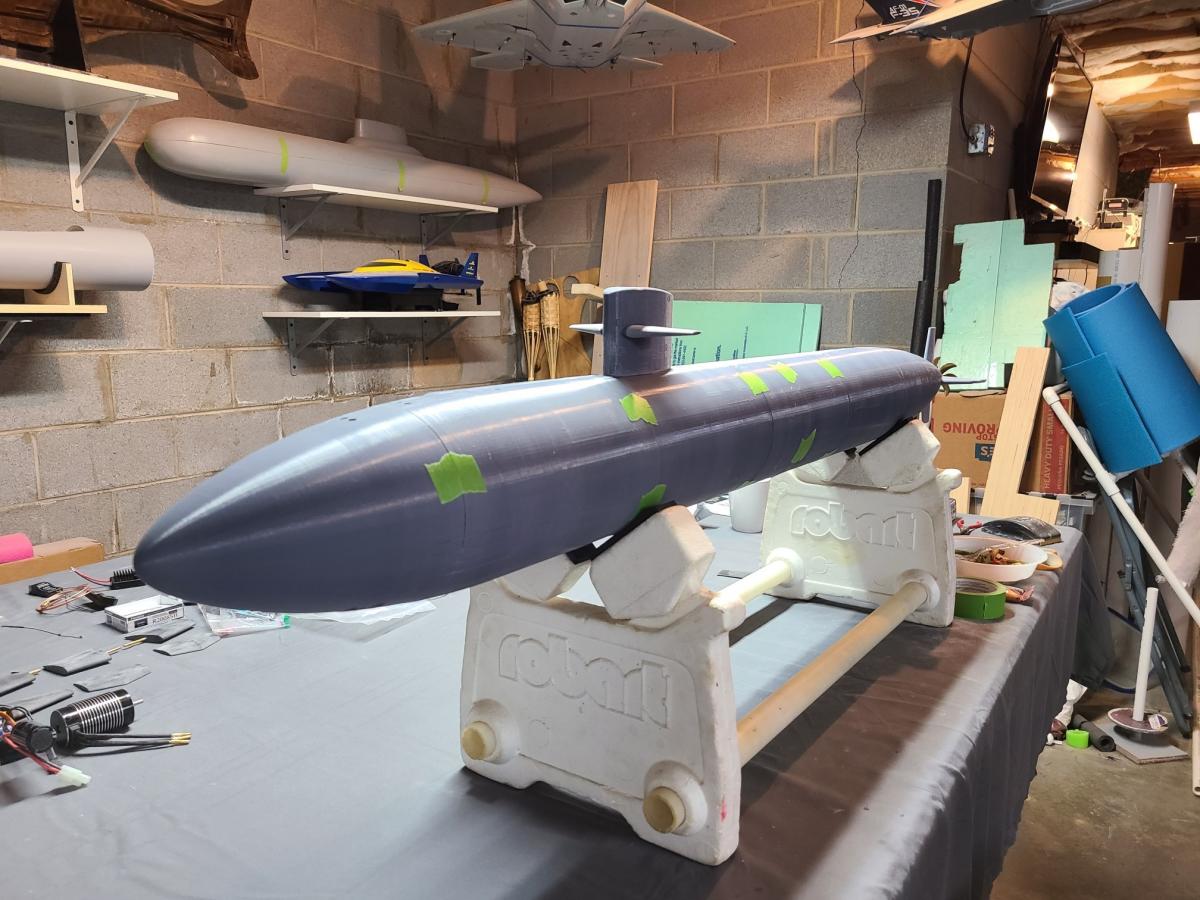

            It is a good looking boat.

            Click image for larger version

Name:	20200819_124607_copy_2016x1512.jpg
Views:	686
Size:	137.4 KB
ID:	269694

            Click image for larger version

Name:	20200819_125251_copy_2016x1512.jpg
Views:	601
Size:	148.5 KB
ID:	269695

            Click image for larger version

Name:	20200819_125136_copy_2016x1512.jpg
Views:	687
Size:	138.6 KB
ID:	269696

            Click image for larger version

Name:	20200819_124616_copy_2016x1512.jpg
Views:	617
Size:	108.9 KB
ID:	269697

            Comment


            • #7

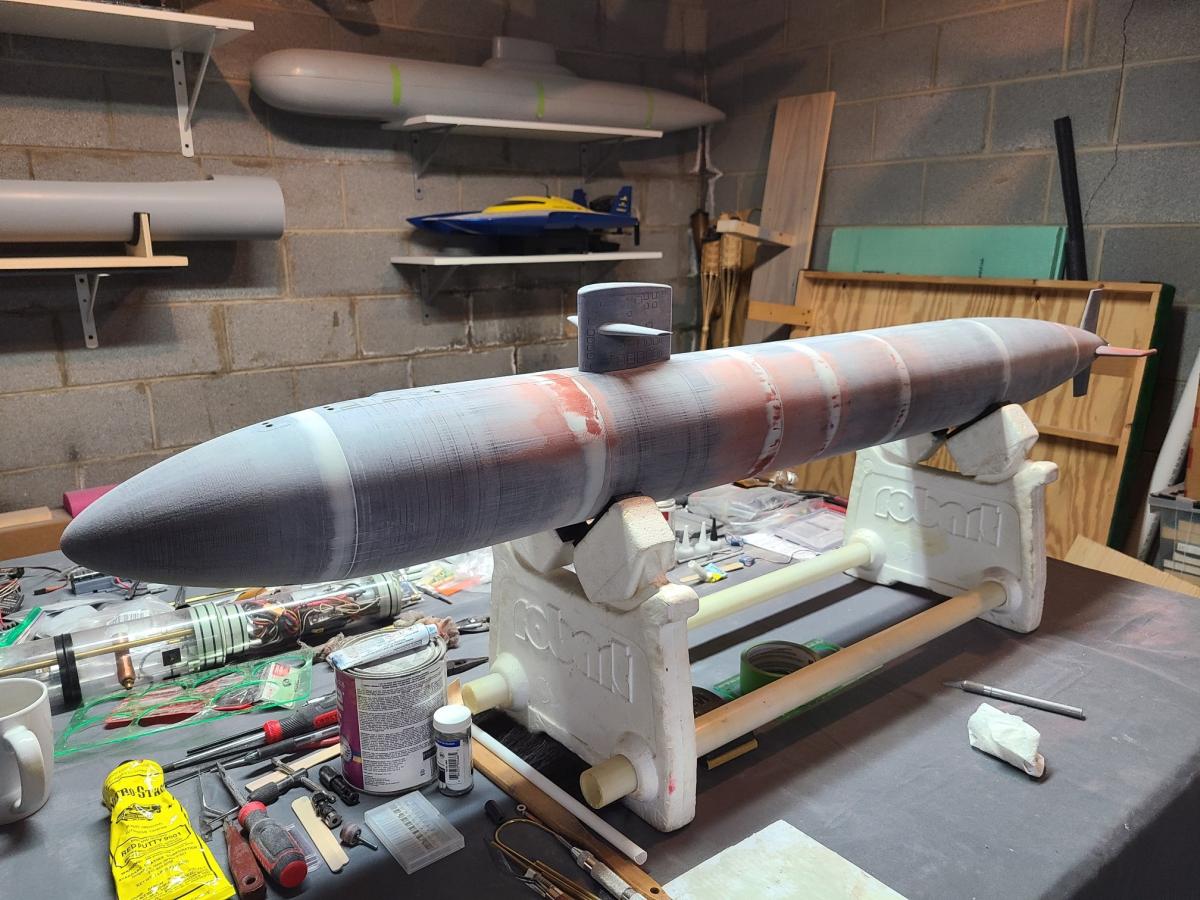

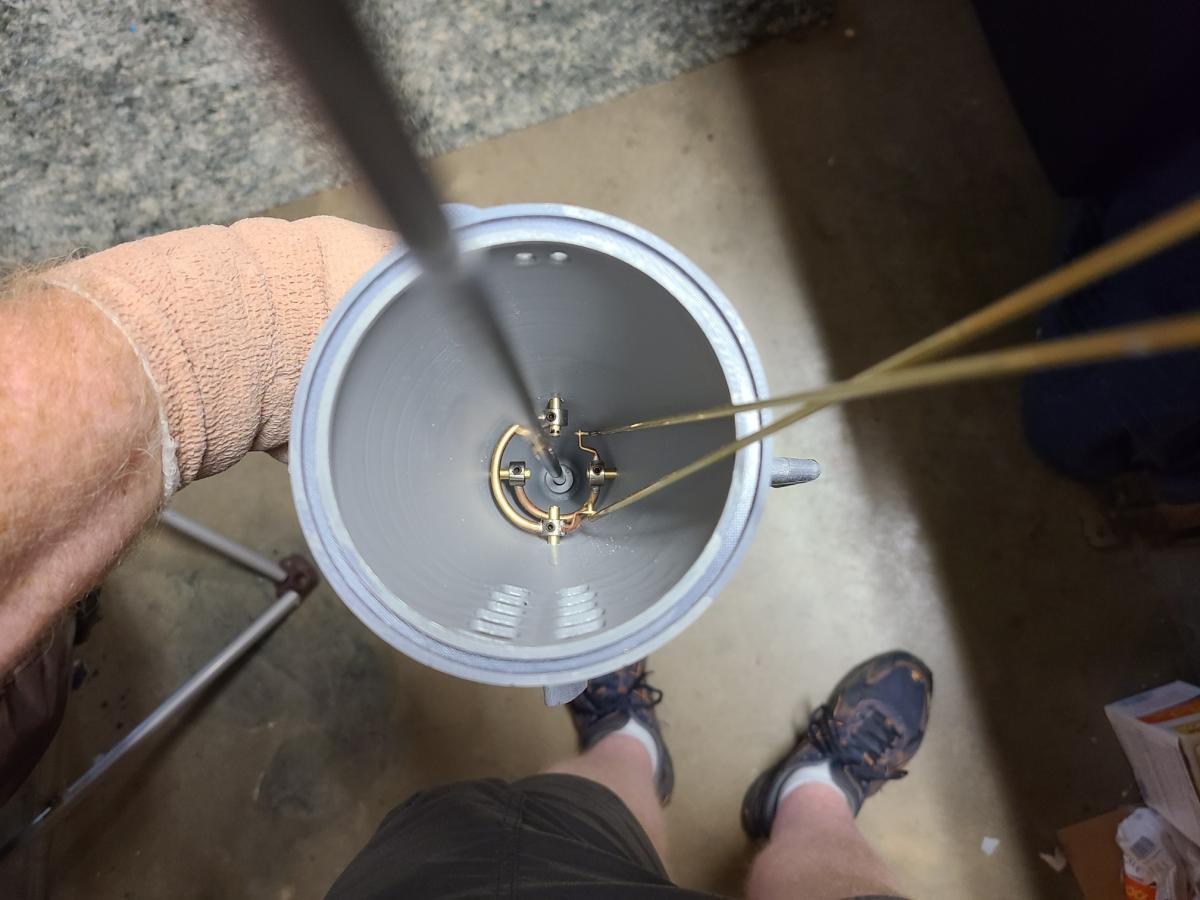

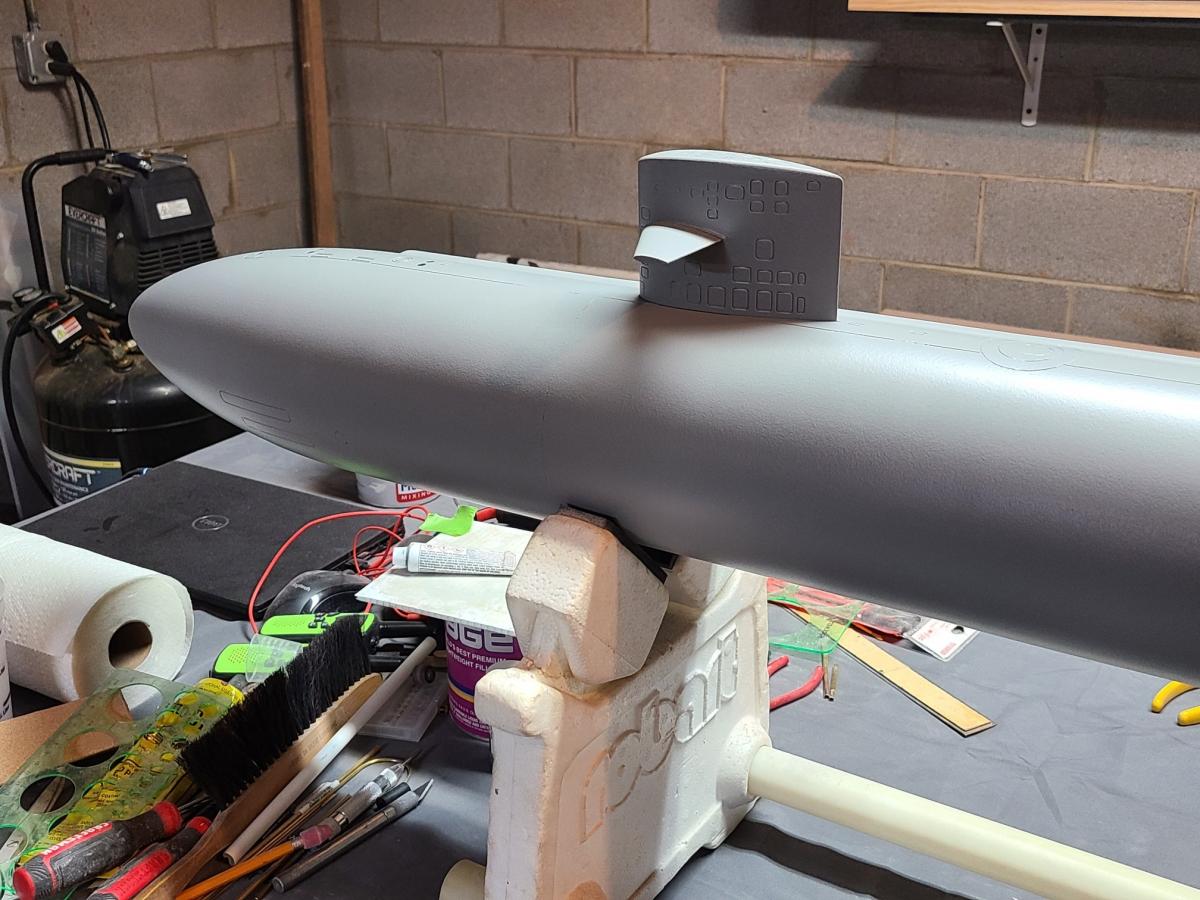

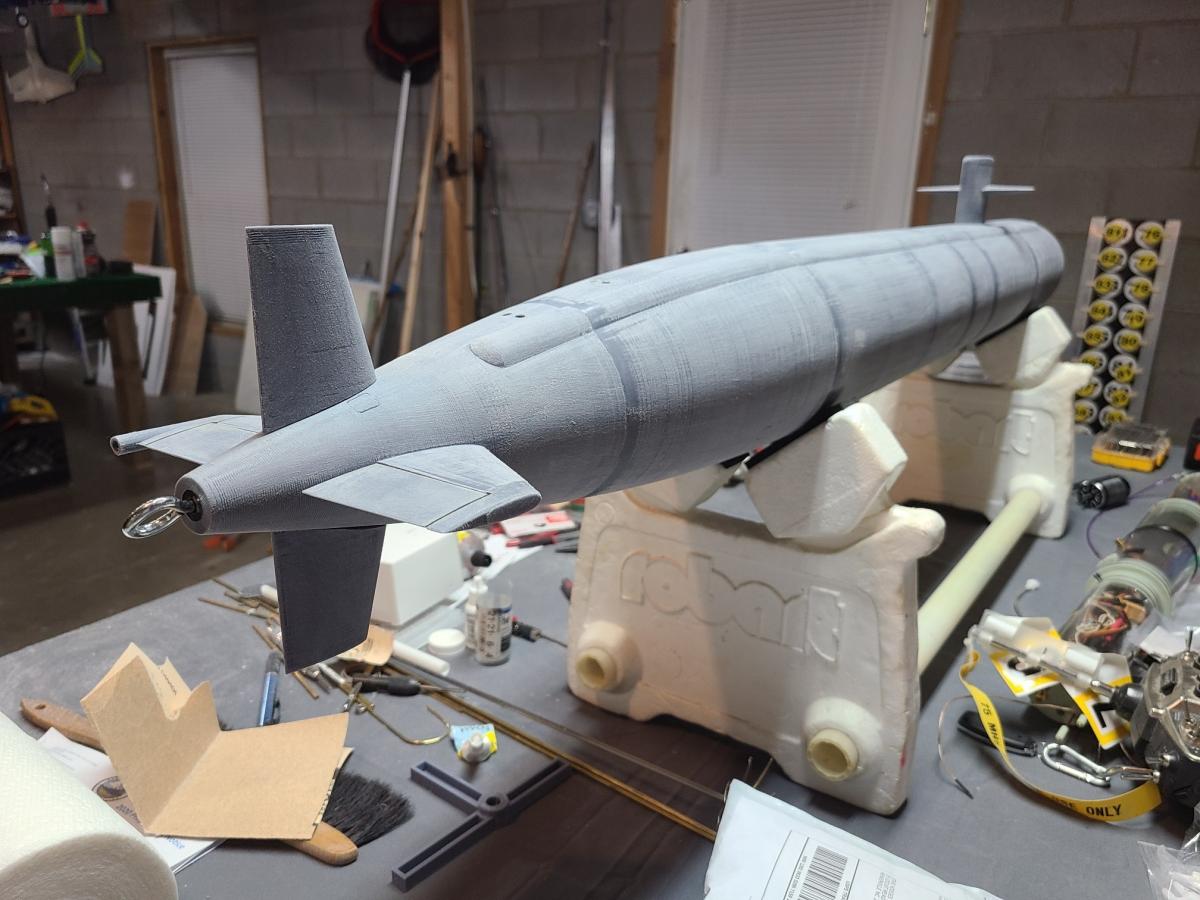

              I taped off all the openings in each section and sloshed polyurethane primer inside. Fabricated and installed the stern plane yokes and pushrods and sanded it with 80 grit paper. It is now ready for Evercoat Rage filler and then a coat of PU primer. I test fit the sub driver from the Redoutable and will have to design and print some mounting/retaining rings which shouldn't be a big deal. There is a good possibility that I could have this one ready for next months Regatta in Cohutta, GA as well as the Ohio.

              Click image for larger version

Name:	20200822_084132_copy_2016x1512.jpg
Views:	630
Size:	89.9 KB
ID:	270382

              Click image for larger version

Name:	20200823_210819_copy_2016x1512.jpg
Views:	638
Size:	159.2 KB
ID:	270383

              Click image for larger version

Name:	20200823_210828_copy_2016x1512.jpg
Views:	606
Size:	135.7 KB
ID:	270384

              Click image for larger version

Name:	20200823_210842_copy_2016x1512.jpg
Views:	603
Size:	116.1 KB
ID:	270385

              Comment


              • #8

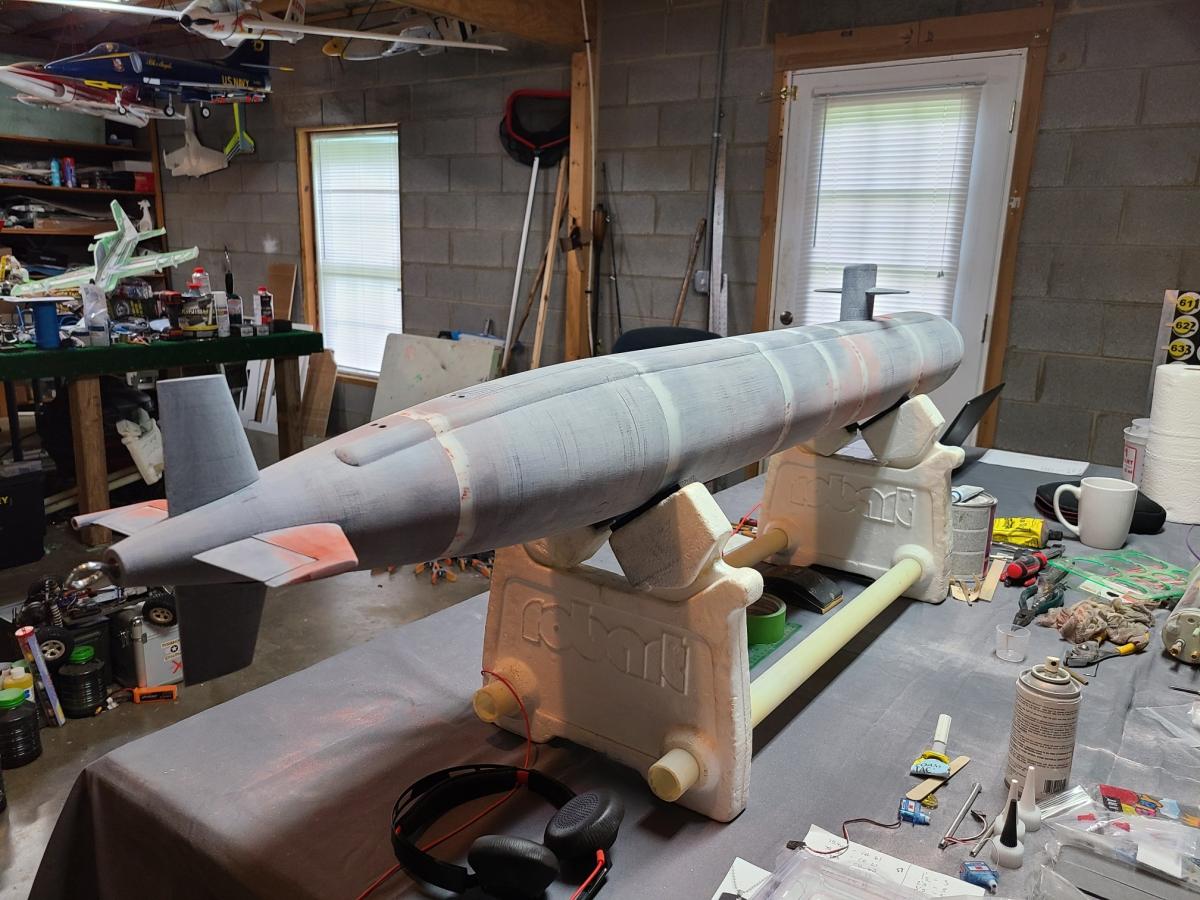

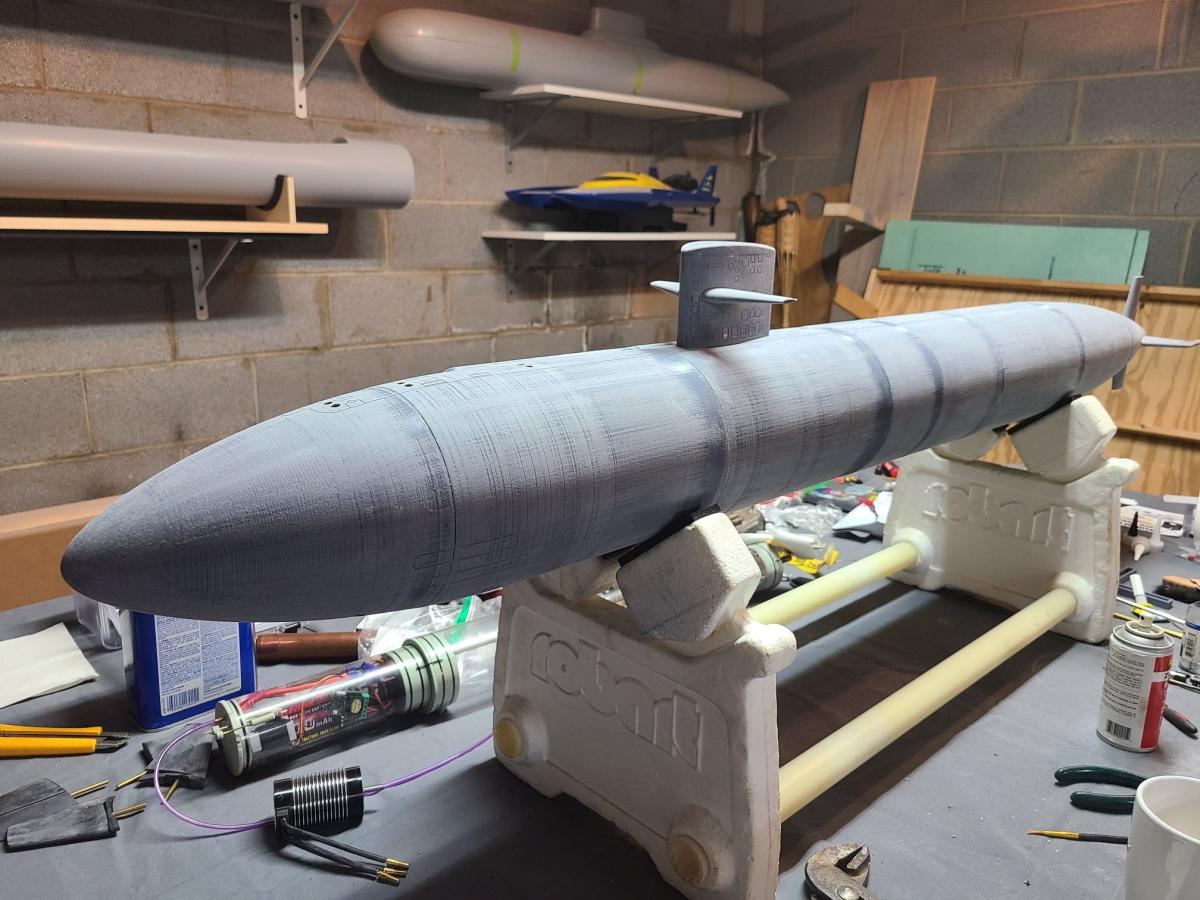

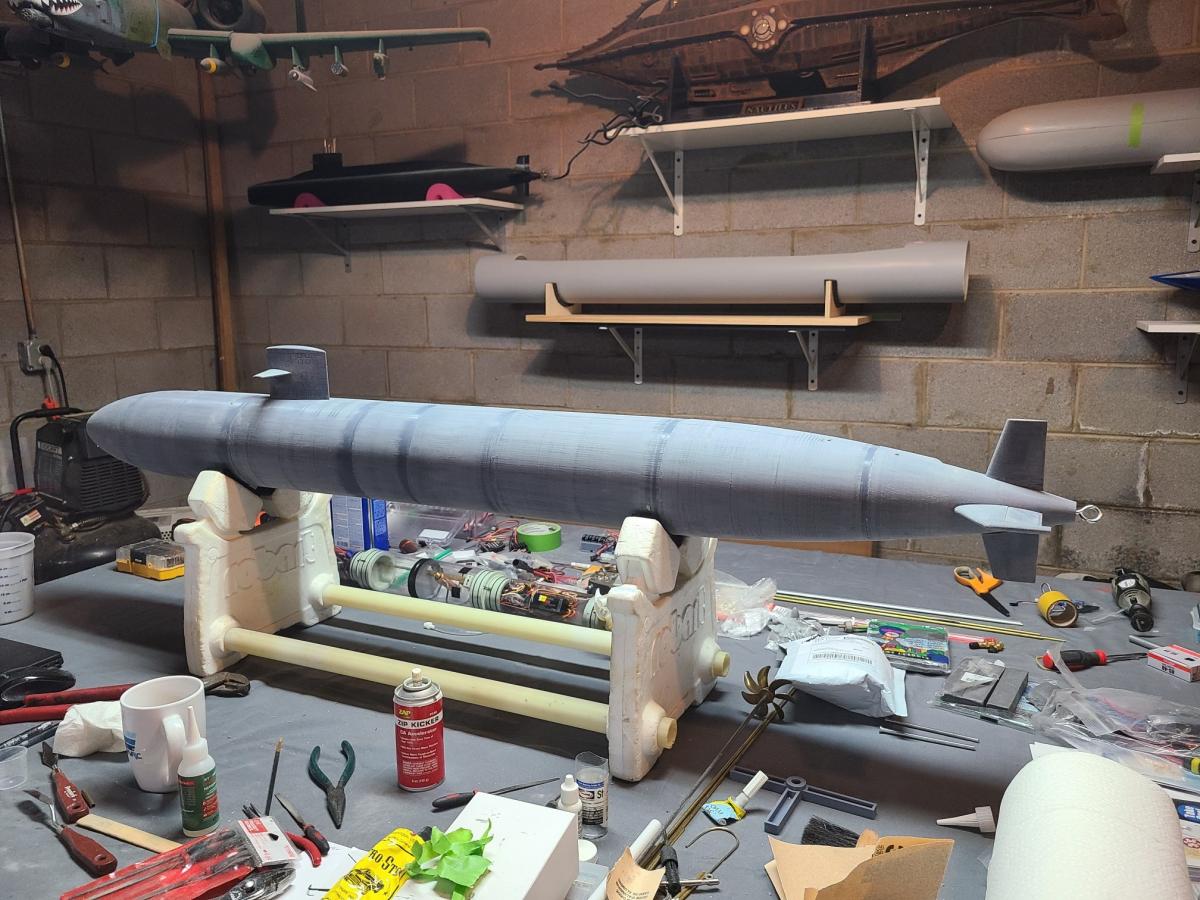

                Filling is done. She's ready for primer.

                Click image for larger version

Name:	20200825_113929_copy_2016x1512.jpg
Views:	599
Size:	153.5 KB
ID:	270626
                Click image for larger version

Name:	20200825_113954_copy_2016x1512.jpg
Views:	644
Size:	150.8 KB
ID:	270627

                Comment


                • #9
                  RCjetdude Are you using Rage's 105, or 120, or higher?
                  Live Q&A every Tuesday and Friday at 9pm EST on my Twitch Livestream

                  Live chat with me and other RC Nuts on my Discord

                  Camp my Instagram @Alpha.Makes

                  Comment


                  • #10
                    Originally posted by Alpha View Post
                    RCjetdude Are you using Rage's 105, or 120, or higher?
                    105

                    Comment


                    • #11

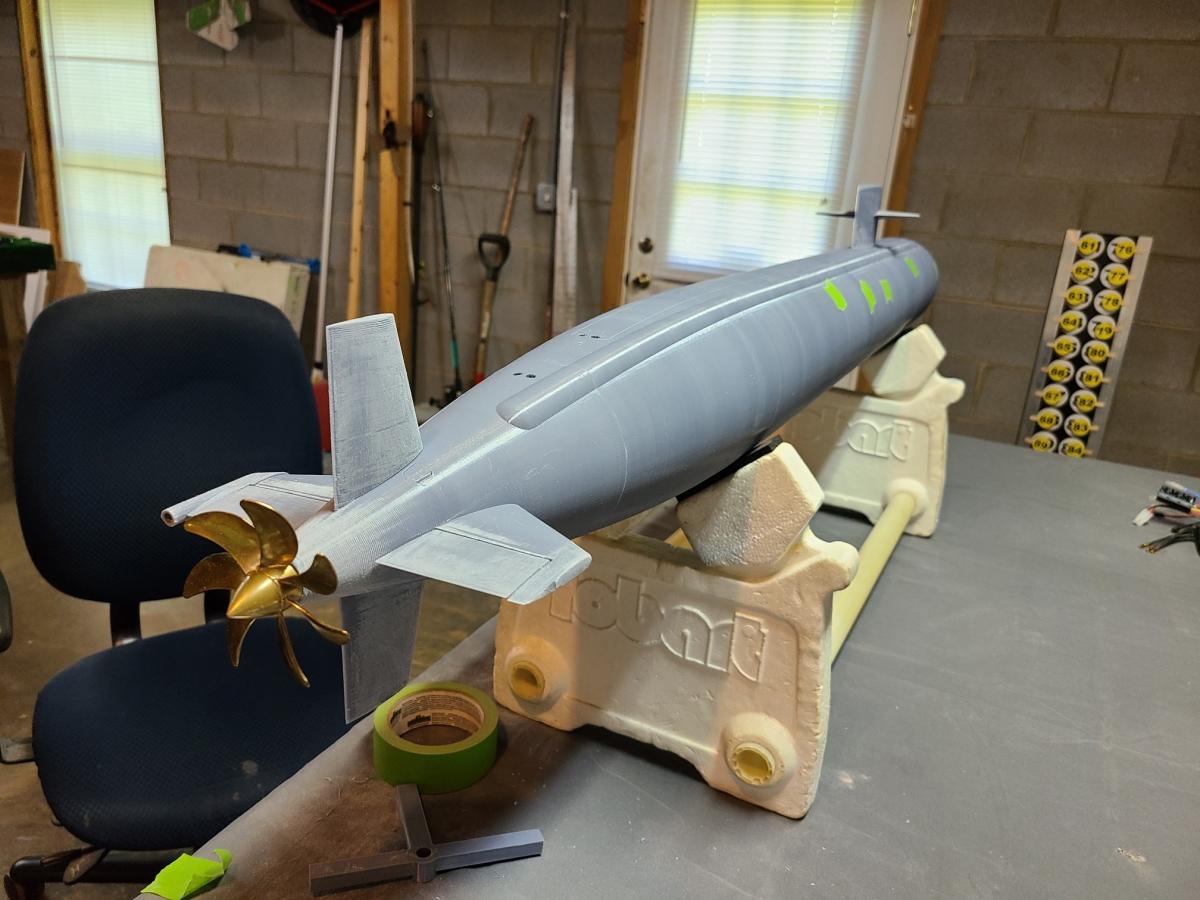

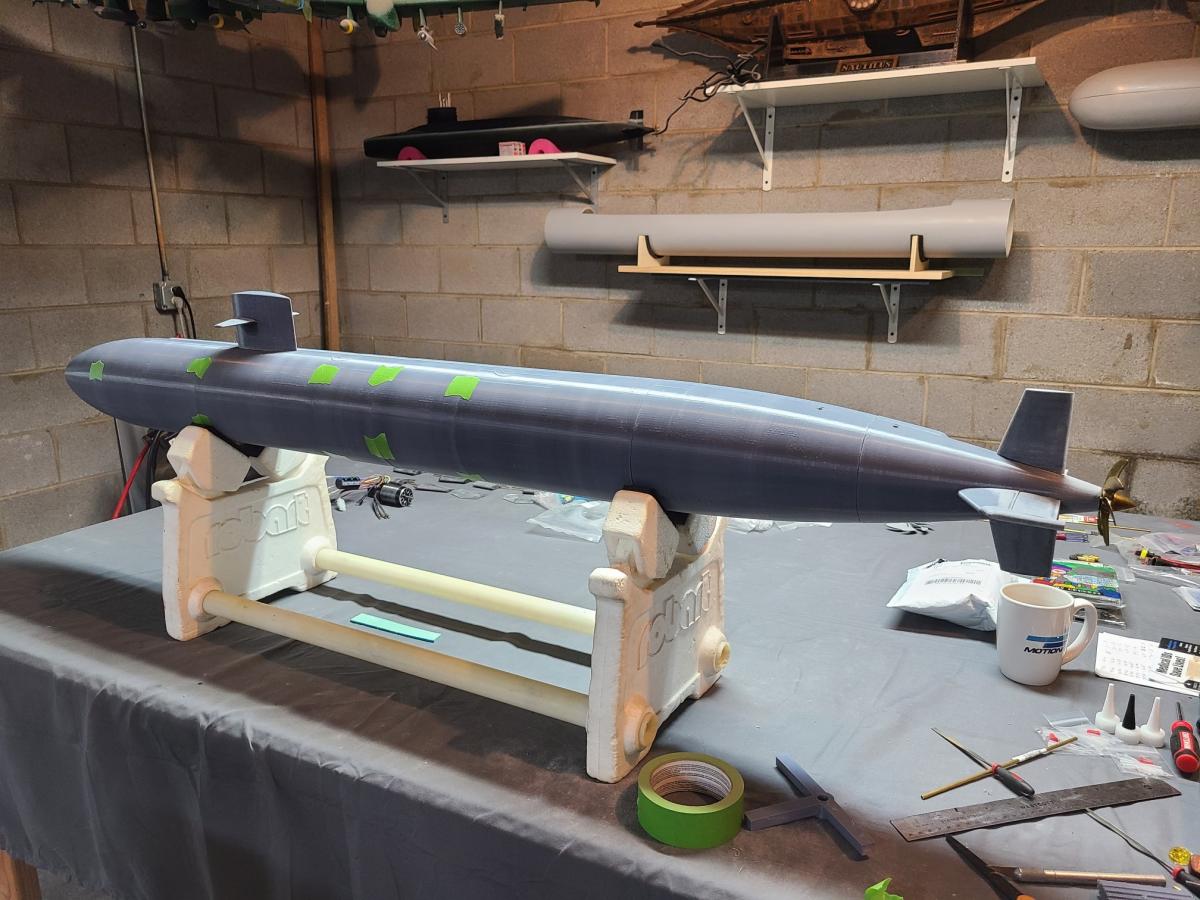

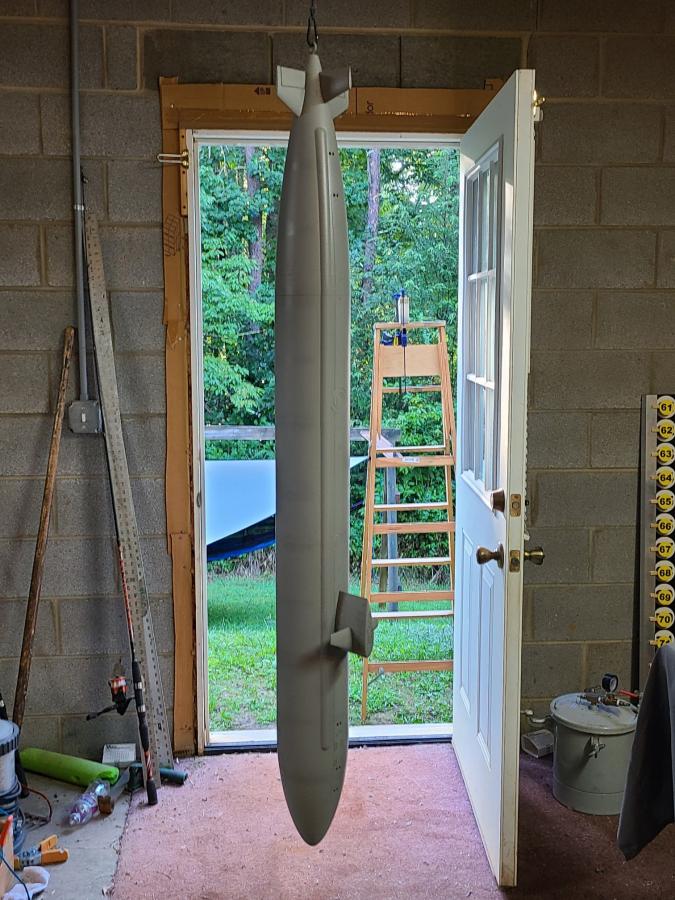

                      First coat of Finish 1 FP410 Polyurethane high fill primer is on now.

                      Click image for larger version

Name:	20200825_185433_copy_1512x2016.jpg
Views:	585
Size:	113.9 KB
ID:	270728

                      Comment


                      • #12
                        RCjetdude Now that's a great looking 'tuna'. Great work, Sir. Best, LB
                        Captain: Got any ideas?
                        F/O: Actually not.
                        — Captain Chesley B 'Sully' Sullenberger III and F/O Jeff Skiles—

                        You'll never be good at something unless you're willing to suck at it first.
                        ~Anonymous~

                        AMA#116446

                        Comment


                        • #13
                          Getting ready to gut it.

                          Comment


                          • #14

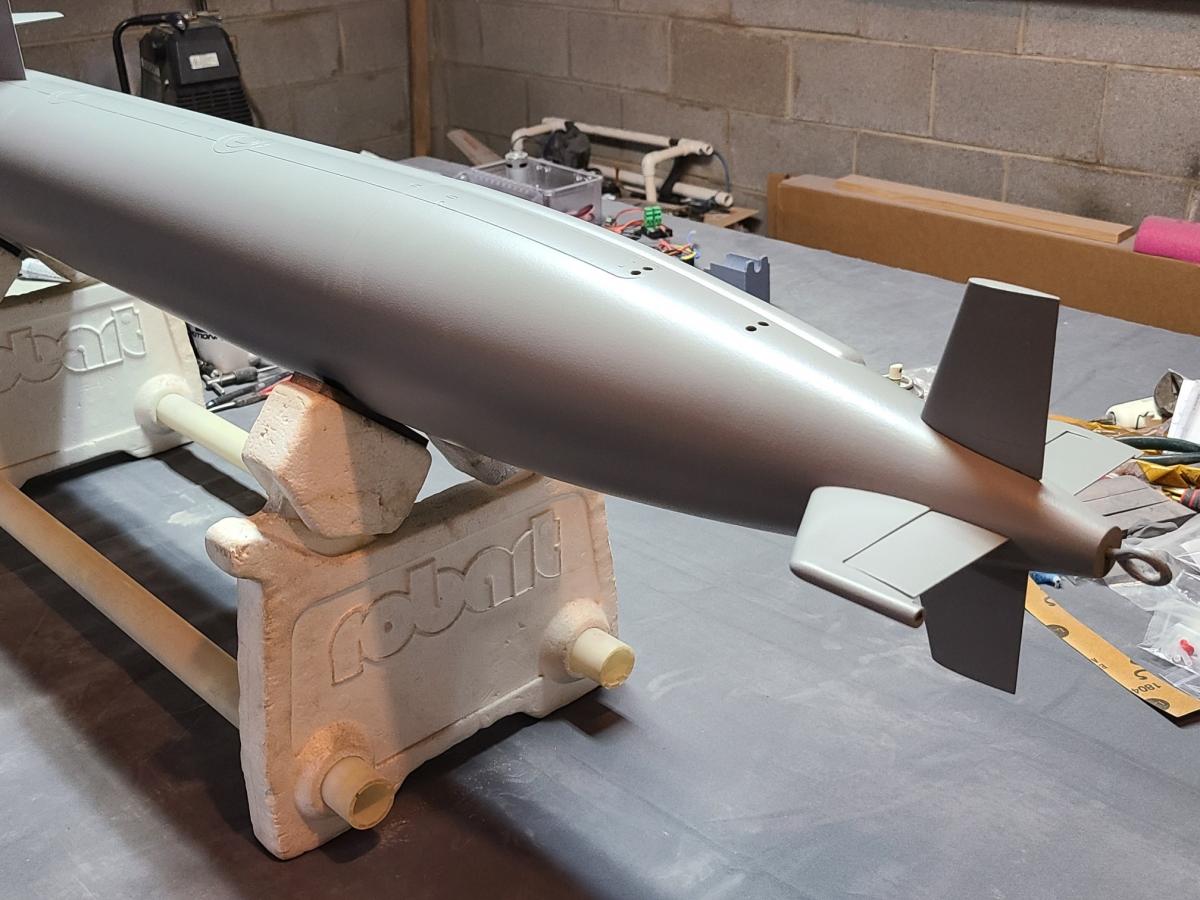

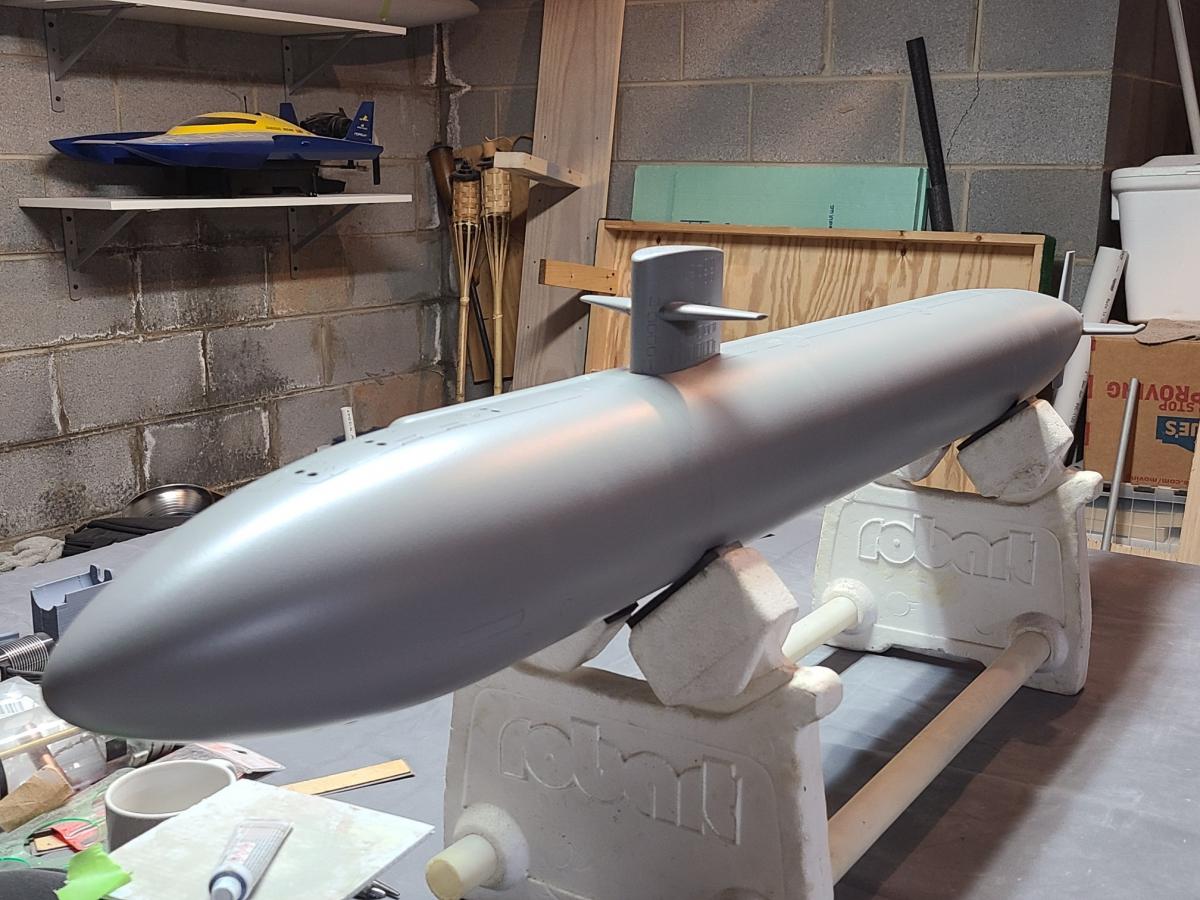

                            Second coat of primer is on. After some minimal sanding I will paint it. So far she has turned out great! Hard to believe it was 3D printed.

                            Click image for larger version  Name:	20200826_213751_copy_2016x1512.jpg Views:	0 Size:	138.4 KB ID:	270911
                            Click image for larger version  Name:	20200826_213737_copy_2016x1512.jpg Views:	0 Size:	137.5 KB ID:	270912
                            Click image for larger version  Name:	20200826_213720_copy_2016x1512.jpg Views:	0 Size:	119.8 KB ID:	270913

                            Comment


                            • #15
                              Really outstanding! It is hard to tell for sure. You've doing some amazing work on the filling and sanding.

                              Comment


                              • #16
                                What's your weight?

                                I was thinking, since these are 3D printed, it would be easy to design the belly to be thicker/heavier with more infill or perhaps magnetic ballast rods. This would make trimming the boat easier to accomplish, by both giving the model a built in lower center of gravity to counteract the sail, and also by implementing a convenient way to magnetically adjust ballast inside the boat using a magnet held outside the boat. 'Just an idea.

                                Keep crushing it!
                                Live Q&A every Tuesday and Friday at 9pm EST on my Twitch Livestream

                                Live chat with me and other RC Nuts on my Discord

                                Camp my Instagram @Alpha.Makes

                                Comment


                                • #17
                                  Originally posted by Alpha View Post
                                  What's your weight?

                                  I was thinking, since these are 3D printed, it would be easy to design the belly to be thicker/heavier with more infill or perhaps magnetic ballast rods. This would make trimming the boat easier to accomplish, by both giving the model a built in lower center of gravity to counteract the sail, and also by implementing a convenient way to magnetically adjust ballast inside the boat using a magnet held outside the boat. 'Just an idea.

                                  Keep crushing it!
                                  It weighs around 2700g empty. I printed it at 100% infill. Subs have a tendency to torque in the water. The more power the more of a list. To counter that yes, you want the weight in the bottom and typically foam in the top to get the vertical center of buoyancy and center of mass as far apart as possible. Trimming a boat by adding weight to the bottom and foam to the top of the hull is very time consuming so any system incorporated into a design to help facilitate that process would be good in my book. Currently the 3D subs that are available and designed for RC are so new that features such as that just haven't yet found their way into the designs but as more of these come on-line that may all change.

                                  Comment


                                  • #18

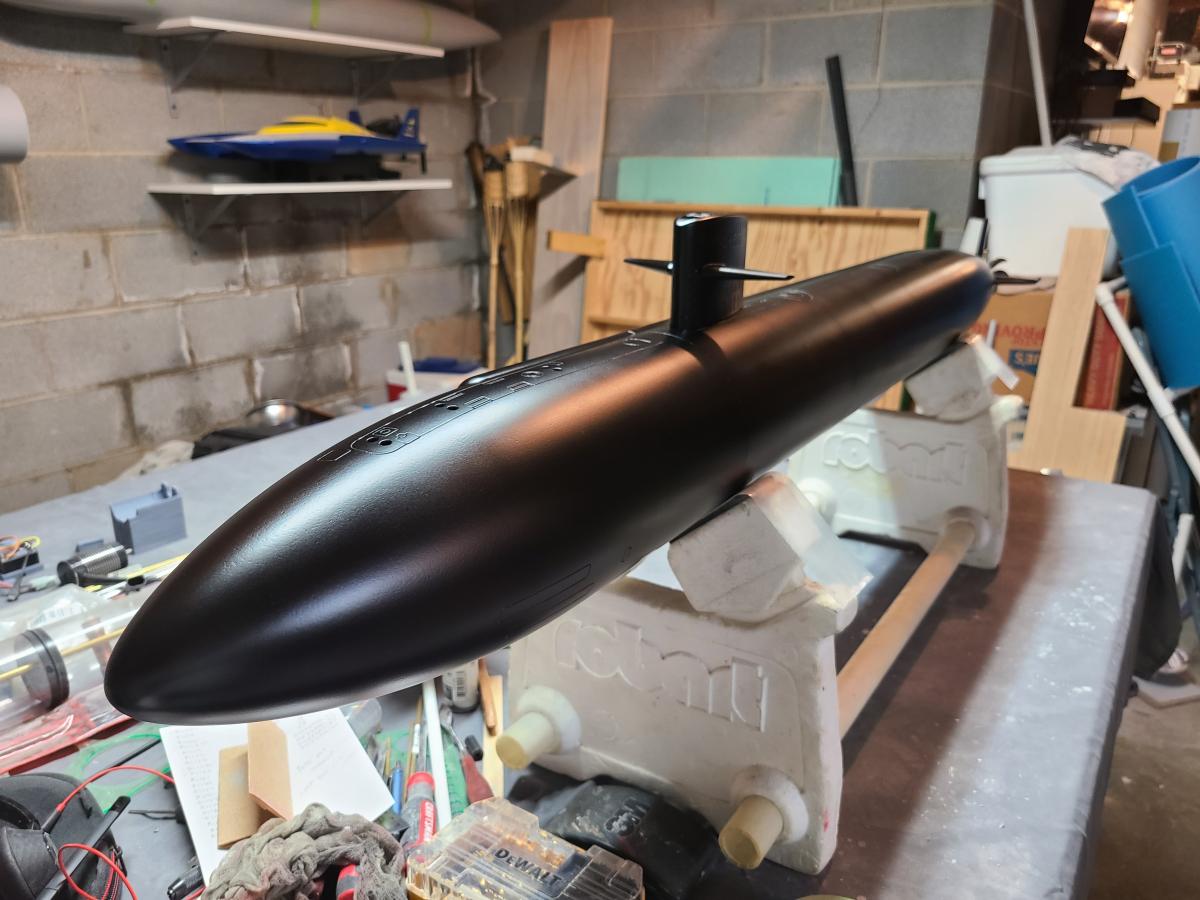

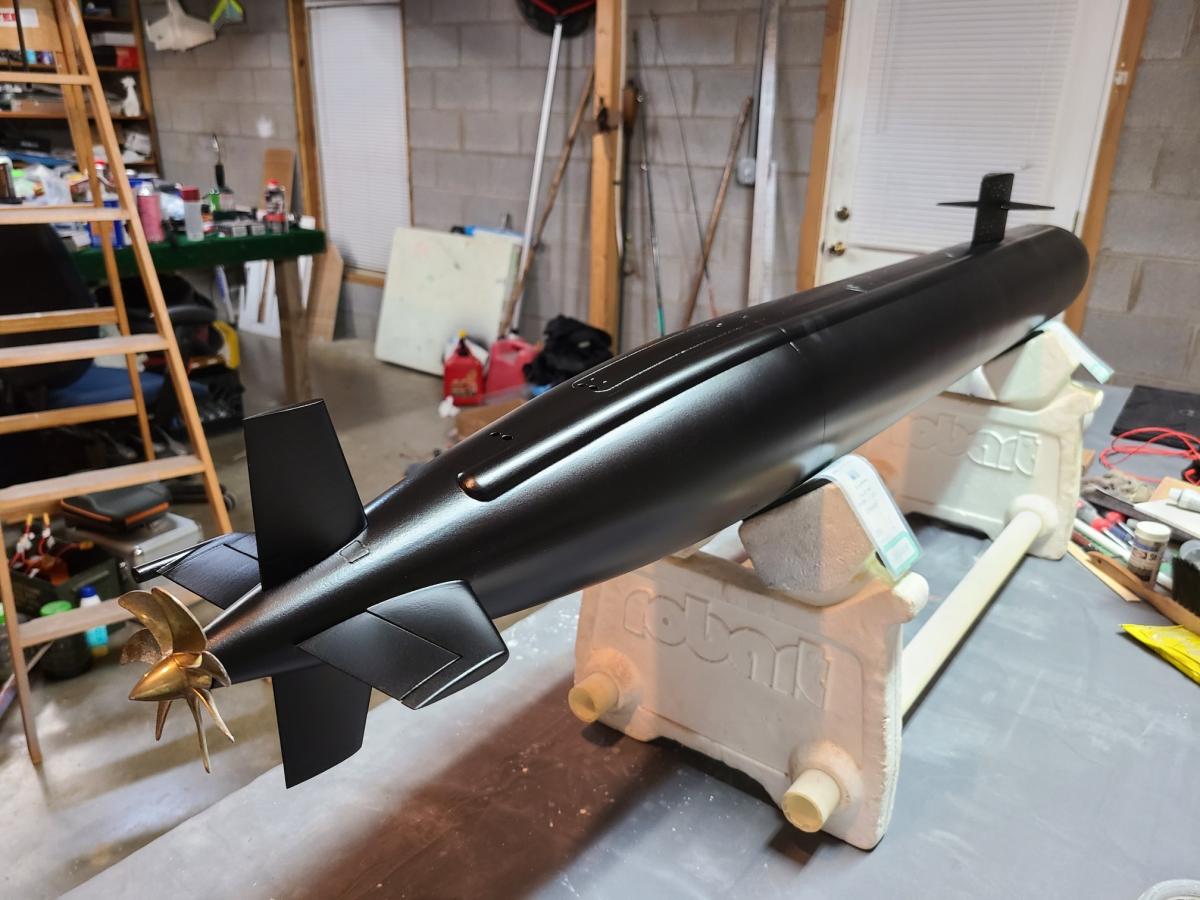

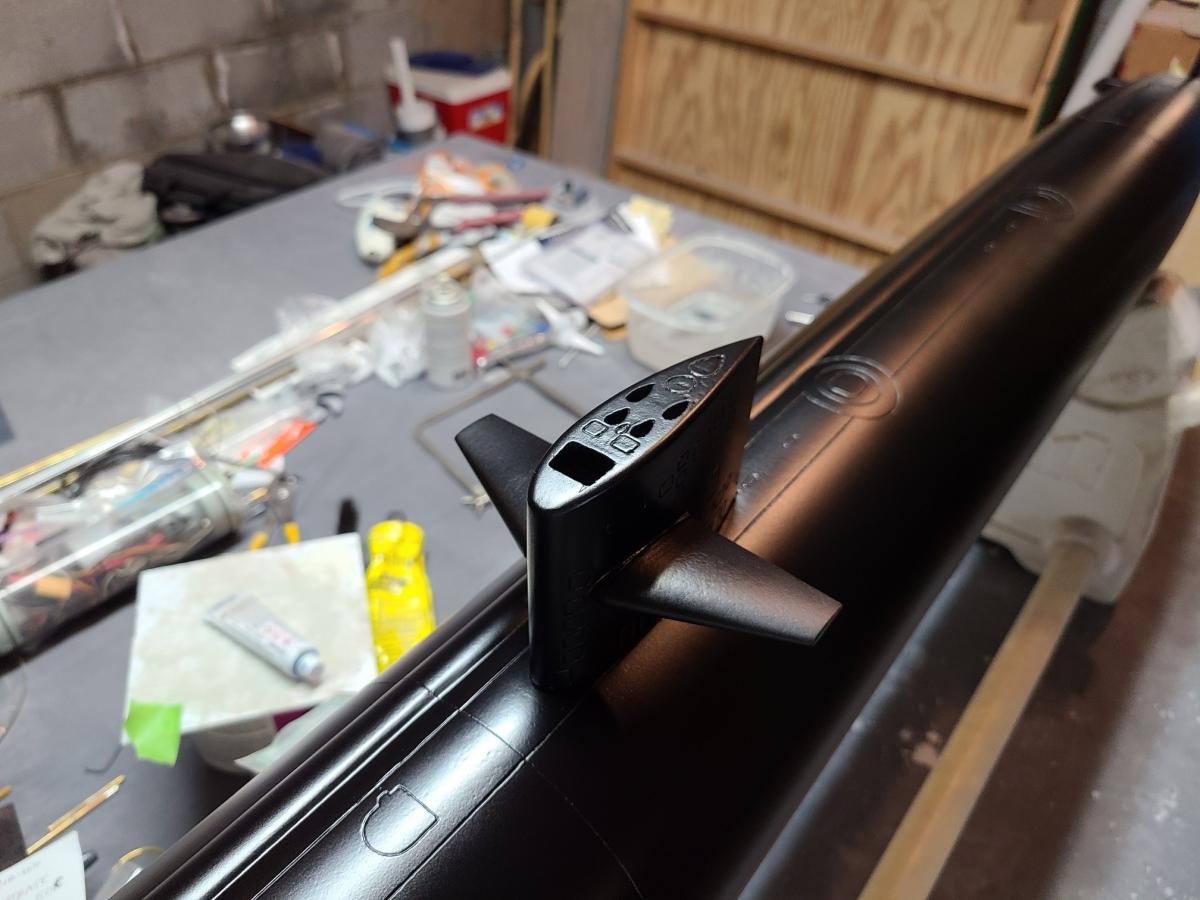

                                    I see a grey sub and I want it painted black

                                    Click image for larger version

Name:	20200827_221404.jpg
Views:	721
Size:	112.5 KB
ID:	271149
                                    Click image for larger version

Name:	20200827_210550_copy_2016x1512.jpg
Views:	531
Size:	117.2 KB
ID:	271150
                                    Click image for larger version

Name:	20200827_210450_copy_2016x1512.jpg
Views:	565
Size:	97.8 KB
ID:	271151

                                    Comment


                                    • #19
                                      Nice! What will you use for the anti-fouling paint?

                                      Comment


                                      • #20
                                        Originally posted by RCjetdude View Post
                                        I see a grey sub and I want it painted black.
                                        RCJD, 10/10 Cool Factor. Outstanding. Best, LB
                                        Captain: Got any ideas?
                                        F/O: Actually not.
                                        — Captain Chesley B 'Sully' Sullenberger III and F/O Jeff Skiles—

                                        You'll never be good at something unless you're willing to suck at it first.
                                        ~Anonymous~

                                        AMA#116446
