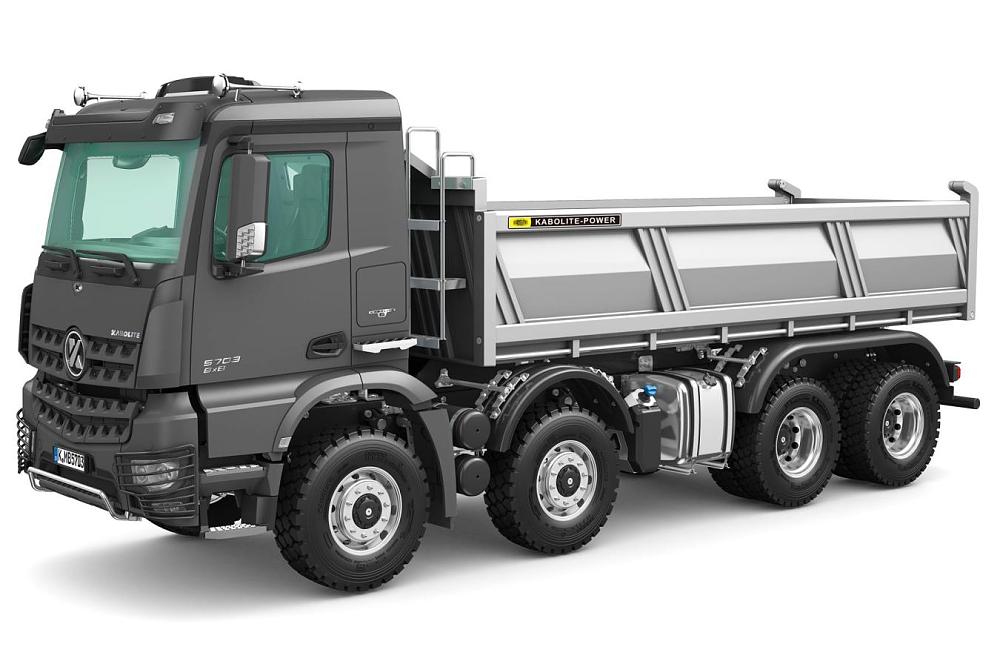

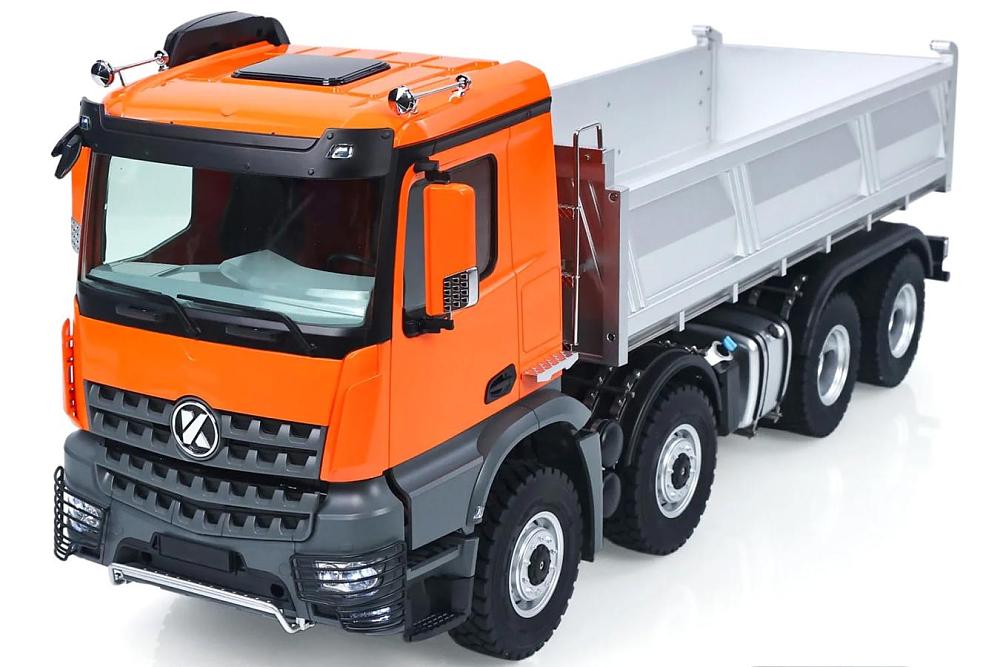

Bring big-job capability to your RC construction site with the Kabolite K5703 1/14 Scale 8x8 Electric Dump Truck. Designed for operators who want the imposing stance, working functions, and mechanical presence of a modern heavy hauler, the K5703 combines eight-wheel drive with a two-speed transmission for confident travel across dirt, gravel, and uneven work areas. Its electrically powered dump mechanism raises the bed smoothly to a maximum angle of 47 degrees, while the bed’s rated load capacity of up to 15 kg (33.1 lb.) makes this truck far more than a display model. A metal chassis rail, metal crossmember, metal driveshafts, and metal transmission gears give the drivetrain a solid, durable foundation, and the model’s substantial 8.5 kg (18.7 lb.) weight delivers the planted feel scale construction enthusiasts appreciate. Realistic lighting and sound add atmosphere to every haul, from the trip to the loading zone to the final tip at the dump site. Supplied assembled, painted, and equipped with a FlySky 2.4GHz radio system, vehicle battery, and charger, the K5703 arrives ready for your next large-scale construction project after charging the included 74v 5000mAh LiPo battery and supplying four Alkaline batteries for the transmitter.
 |
Heavy-Duty 8x8 Traction All four axles are driven, giving the K5703 the grip to move through realistic construction-site terrain with greater confidence. The two-speed transmission lets you select the gear that best suits the job: use low gear for controlled maneuvering and load handling, then shift to high gear when it is time to travel between work zones. |
 |
Powerful Electric Dump System Load, transport, and tip material with the touch of a transmitter control. The electric lifting mechanism raises the bed smoothly to a maximum 47-degree angle and is rated to handle loads up to 15 kg (33.1 lb). Unlike a static scale truck, the K5703 delivers the working action needed for interactive hauling alongside excavators, loaders, and other 1/14 scale construction equipment. |
 |
Metal Where It Matters The K5703 balances a detailed molded body with a strong metal foundation. Metal chassis rails, crossmembers, driveshafts, and transmission gears reinforce key load-bearing and power-transmitting areas, helping the truck withstand repeated driving, loading, and dumping. At approximately 8.5 kg (18.7 lb), it has the reassuring mass and planted handling expected from a premium RC construction vehicle. |
 |
Realistic Lights and Sound Working lights bring the truck to life during daytime or dusk operations, while the integrated sound system adds convincing engine and vehicle effects. Together with the detailed cab, multi-axle chassis, large rubber tires, and functional bed, these systems create an immersive scale experience whether the K5703 is working or parked in a display lineup. |
- Imposing 1/14 scale heavy-duty dump truck with highly detailed construction styling
- Full-time 8x8 drivetrain provides traction across loose and uneven terrain
- Two-speed transmission offers selectable low-speed control and a faster travel gear
- Powerful electric dump mechanism delivers smooth, dependable bed operation
- Dump bed rises to a maximum angle of 47 degrees
- Rated dump bed load capacity of up to 15 kg (33.1 lbs.)
- Durable metal chassis rail and metal crossmember construction
- Metal driveshafts and metal transmission gears improve drivetrain strength and longevity
- Realistic light and sound system enhances scale operation
- Large rubber tires measure up to 85 mm (3.35 in) in outside diameter
- 23-degree approach angle and 31-degree departure angle help negotiate changing terrain
- FlySky 2.4GHz radio system provides reliable, interference-resistant control
- Approximately 45 minutes of operating time under typical conditions
- Assembled and painted Ready-to-Run package minimizes setup time
- Kabolite K5703 Orange 1/14 Scale 8x8 Metal Dump Truck - RTR
- FlySky 2.4GHz transmitter and receiver
- Installed drive motor
- Installed steering servo
- Installed two-speed transmission
- Vehicle battery
- Battery charger
- Light and sound system
- Four (4) AA size batteries for the radio transmitter – we recommend GP Super Alkaline 1.5V AA Batteries (4 pack)
- Suitable open operating area and scale material for hauling
AGE LEVEL : 14 and Up
SKILL LEVEL : Intermediate
BUILD TIME : 10 Minutes | Scale | 1/14 |
| Length | 670mm / 26.4in |
| Width | 212mm / 8.3in |
| Height | 274mm / 10.8in |
| Weight | 8,500g / 299oz |
| Body Material | Metal and plastic |
| Chassis Material | Metal and plastic |
| Track Material | N/A |
| Motors | Brushed |
| House Rotation | N/A |
| Lights | Yes |
| Sound | Yes |
| Exhaust Effect | No |
| Required Battery | 2S 7.4V 5000mAh (included) |
| Required Radio | FlySky 2.4GHz (included) |
| Skill Level | Intermediate |
| Build Time | 10 minutes |
| Operating Time | 45 minutes |
| Recommended Environment | Outdoors |
