  • Official FMS 1/18 Scale Chevy K-10 Pickup 4WD Crawler RTR Thread

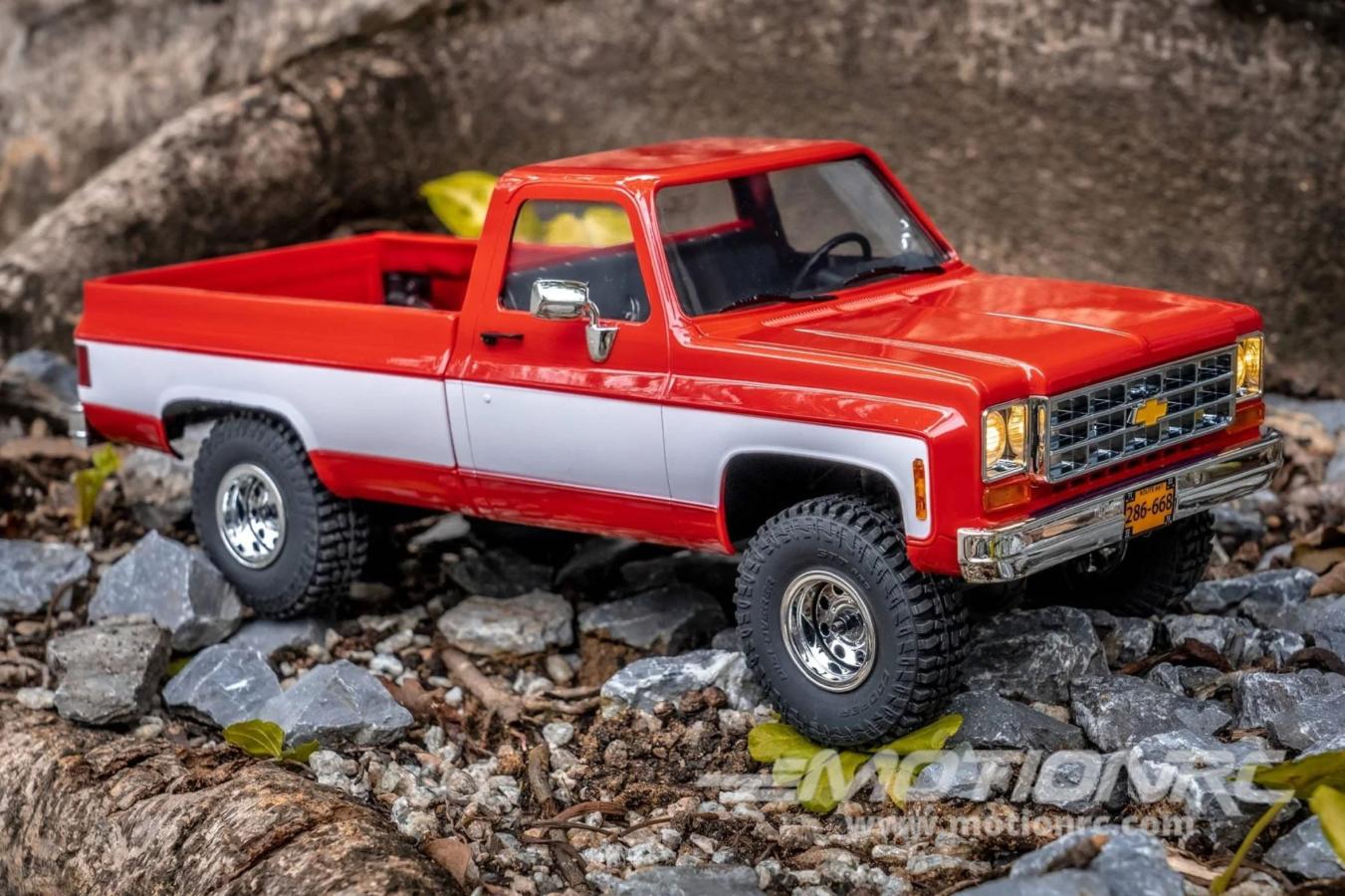

    Chevy K-10 Pickup 1/18 Scale 4WD Crawler - RTR from FMS - FMS11808RTR

    Click image for larger version

Name:	Capture.JPG
Views:	532
Size:	192.0 KB
ID:	348366

    Version Info: This vehicle is delivered as “RTR” but requires the additional purchase of 4 (four) AAA alkaline batteries for the transmitter.

    The FMS Chevy K-10 Pickup 1/18 Scale 4WD Crawler RTR from Motion RC is an ideal choice for scale adventure, offering working and static details that create an exceptional modeling experience! This officially-licensed Chevrolet icon includes features such as realistic LED light set with headlights, turn signals, and brake lights. The injection-molded, hard plastic body contains scale details such as a model year-accurate (1974) plated front grille, bumpers, and side mirrors. The opening tailgate provides access to a generous bed that can be filled with your choice of payload or other scale accessories. Even the famous two-tone color scheme is accurately reproduced and then painted with a protective clear coat to maintain that “just off the showroom floor” look. Full interior details include a realistic bench seat and dashboard that complement this truly exceptional scale model.

    The scale details are complimented by outstanding running gear. Metal frame rails, link-style solid axle suspension with coil-over dampers, chassis-mounted steering servo, and an efficient center gearbox to transfer the power of the optimized 180-class brushed crawling motor to the ground. Super-soft, realistic tires on plated wheels provide the grip and conformity required to traverse the most difficult climbs, and the 2-in-1 receiver/ESC unit delivers the precise and reliable control needed to climb with confidence.

    Combine the versatile, go-anywhere fun of the Chevy K-10 Pickup 1/18 Scale 4WD Crawler RTR with Motion RC’s industry-leading customer service and product support for an unbeatable package!
    Drive at Dusk

    The FMS K10 features a complete LED light set with headlights, turn signals, and brake lights for when the trail gets dark.
    Comfortable, Reliable 2.4GHz Transmitter

    Never worry about interference thanks to the solid control link provided by the 2.4GHz radio system.
    Ready for Payload

    The opening tailgate provides access to a generous bed that can be filled with your choice of payload or other scale accessories.
    Realistic, Crawling-Capable Chassis

    The K10 includes a traditional 4WD drivetrain and ladder-style, solid-axle design for ease of maintenance and impressive crawling capability!
    Features:
    • Officially-licensed by the Chevrolet Division of General Motors Corporation
    • Injection-molded hard body with factory-correct colors and a protective clearcoat
    • Chassis-mounted servo
    • Functioning tailgate and hood
    • Plated scale side mirrors, bumpers, and wheels.
    • Factory-installed LED light system
    • High-traction ultra-soft scale tires on plated scale wheels
    • Optimized 55T brushed crawler motor
    • 2S 7.4V 380 mAh LiPo delivers up to 30 minutes of run time per charge
    Includes:
    • FMS Chevy K-10 Pickup 1/18 Scale 4WD Crawler - RTR
    • FMS 2.4GHz Pistol-Grip Transmitter
    • FMS 2-in-1 RX/ESC
    • FMS Steering Servo
    • FMS Hi-Torque 180-size Brushed Motor
    • 7.4V 380mAh LiPo Battery
    • USB battery Charger
    Requires:
    • 4x AAA Alkaline batteries for transmitter
    Product Specifications:

    AGE LEVEL :14 and up
    SKILL LEVEL :beginner
    BUILD TIME :less than 15 minutes

    Model Scale 1/18
    Length 323mm / 12.6in
    Width 139mm / 5.4in
    Height 131mm / 5.1in
    Weight (No Battery) 423g / 15.1oz
    Wheelbase 196mm / 7.6in
    Ground Clearance 38mm / 1.4in
    Body Injection molded ABS plastic, factory painted with clear windows
    Chassis Metal/Composite scale-type
    Drivetrain 4WD
    Wheel Size (Diameter x Width) 55mm x 16mm
    Wheel Hex Size N/A
    Tire Tread Scale
    Bushing Material Bronze
    Suspension Fixed axle
    Shock Type Oil-filled damper
    Transmission 4WD Shaft-driven
    Gear Pitch N/A
    Internal Gear Ratio N/A
    Final Drive Ratio 84:1
    Pinion N/A
    Spur Gear N/A
    Differential No
    Ball Bearings No
    Brakes Electronic
    Electronic Speed Control Brushed 2-in-1 RX/ESC (included)
    Motor 180-Size Brushed
    Battery 7.4V 380mAh LiPo
    Max Battery Dimensions (L x W x H) N/A
    Servos 1Kg High-Torque Servo
    Radio 2 Channel
    Lights Yes
    Sound No
    Water Resistant Yes
    Skill Level Beginner
    Assembly Time Less than 15 minutes
    Recommended Environment Indoors/Outdoors
    My YouTube RC videos:
    https://www.youtube.com/@toddbreda

  • #2
    Need help with the wiring diagram under the hood to the receiver please. Pic I took before disconnecting the wires was blurry.
