  • Official CEN Racing Ford F250SD 4x4 1/10 Scale 4WD Truck Thread

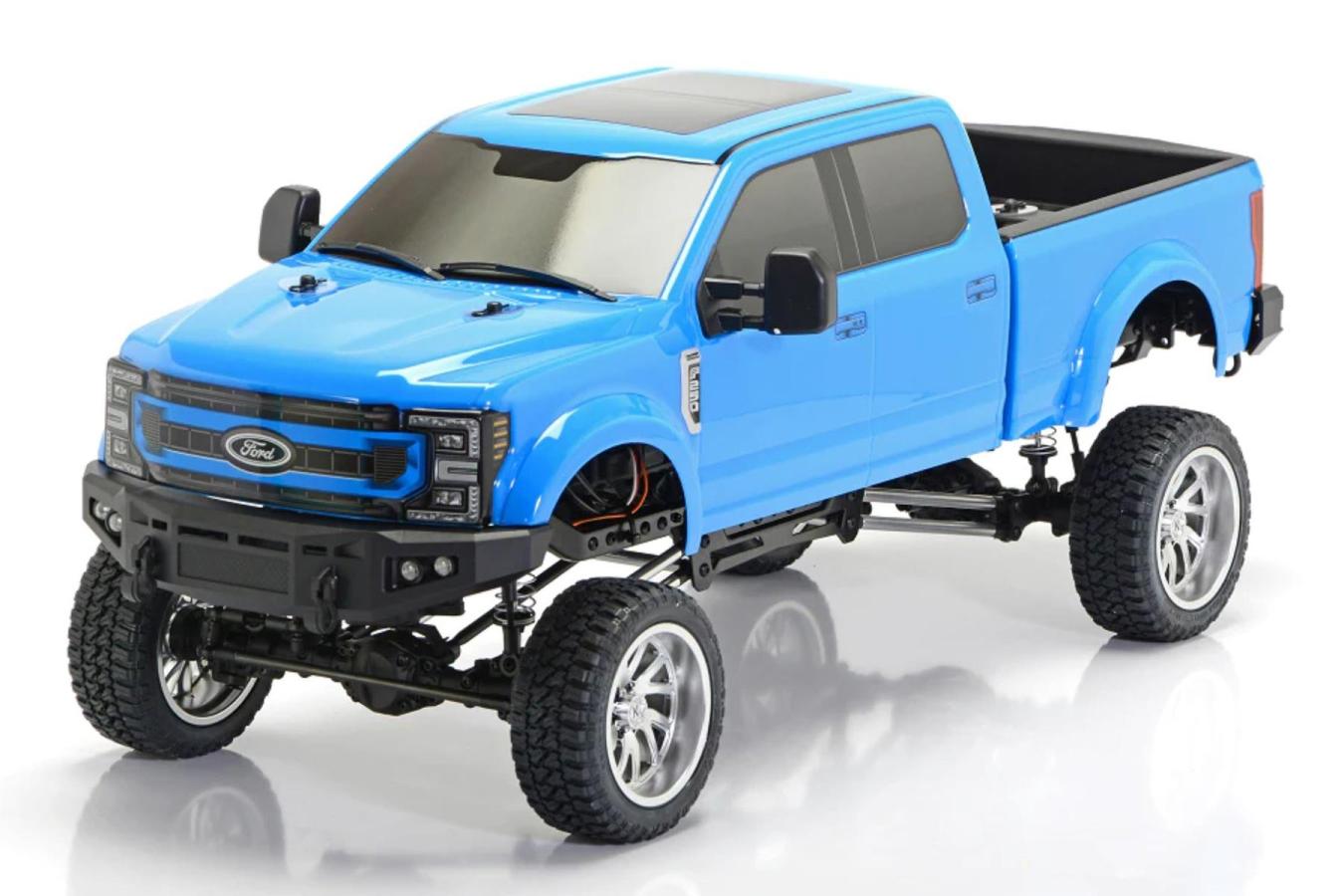

    CEN Racing Ford F250SD Daytona 4x4 1/10 Scale Solid Axle 4WD Truck - RTR - CEG8992

    Click image for larger version

Name:	master.jpg
Views:	488
Size:	102.1 KB
ID:	356252

    Version Info: This truck is delivered as "RTR", however does require 4x AA batteries for the transmitter and 2S LiPo battery pack, purchased separately (see Requires below for details).

    The CEN Ford F250 SD KG1 Lifted Truck 1/10 4WD Solid Axle RTR Truck is the latest CEN release and perfectly complements the new generation of R/C scale and style that began with their F450 model. This is an officially licensed Ford F250 Super-Duty with licensed KG1 Vile wheels and Fury Country Hunter tires, resulting in a true 1/10 scale RTR that’s fun to drive and awesome for use as a scale tow vehicle for a boat, plane, crawler, or race car. Your CEN Racing truck is backed by Motion RC's world-renowned customer service and technical support. Drive on!

    Fully Assembled and Ready to Run

    The F250 Super Duty arrives fully assembled and ready for your scale adventure. Simply add four AA transmitter batteries and a 2S Lipo pack and you’re ready to roll.
    Underbody LEDs Included

    Select from three different colors to light up the street under the F250 with a simple transmitter control.
    Officially Licensed Wheels and Tires

    The F250 is equipped with realistic, officially licensed KG1 Forged Vile wheels and Fury low-profile Country Hunter Tires.
    Molded Bed Liner

    The F250 includes a realistic, molded bed liner for convenience and durability.
    • Multi-color RGB underbody LED lighting kit included, controlled from transmitter
    • Waterproof and dustproof
    • Steel rails with CMS (chassis-mounted servo) design
    • Steel shock hoops and skid plate
    • Complete ball bearings
    • Easy-access battery tray
    • Custom-lifted suspension design
    • 110mm big-bore, oil-filled, coil-over shock absorbers
    • Hardened steel drag link
    • Front and Rear sway bars
    • Complete metal-geared transmission
    • Sealed transmission case and axle housings
    • 4WD with central driveshafts
    • Planetary metal geared differentials
    • Officially licensed by Ford, KG1, and Fury tires
    • 3 channel 2.4GHz pistol grip radio system
    • WP-1040 ESC by Hobbywing
    • RS-540 high torque brushed motor
    • 12Kg metal-geared steering servo by Savox
    • Injection molded front and rear bumpers with LED portals (LEDs not included)
    • CEN Racing Ford F250SD Daytona 4x4 1/10 Scale Solid Axle 4WD Truck - RTR
    • 4GHz 3-channel pistol grip transmitter
    • Instruction manual
    Requires:Product Specifications:

    AGE LEVEL :14 and up
    SKILL LEVEL :beginner
    BUILD TIME :less than 15 minutes
    Model Scale 1/10
    Length 650mm / 25.6in
    Width 255mm / 10in
    Height N/A
    Weight (No Battery) 2.5Kg / 5.5lbs
    Wheelbase 407mm / 16in
    Ground Clearance 90mm / 3.5in
    Body Vacuum-formed polycarbonate with hard plastic details
    Chassis Steel and nylon composite
    Drivetrain 4WD
    Wheel Size (Diameter x Width) 66.5 x 37.5mm
    Wheel Hex Size N/A
    Tire Tread Low profile Country Hunter
    Bushing Material N/A
    Suspension Solid-axle w/shocks
    Shock Type Oil-filled coil-over
    Transmission 4WD Shaft-driven
    Gear Pitch 32P
    Internal Gear Ratio N/A
    Final Drive Ratio 2.8:1 / 1.56:1
    Pinion 12T
    Spur Gear 85T
    Differential Planetary gear-type
    Ball Bearings Yes
    Brakes Electronic
    Electronic Speed Control Brushed ESC
    Motor 540-size brushed
    Battery 4x AA alkaline for transmitter and 2S LiPo (required)
    Max Battery Dimensions (L x W x H) 146 x 50 x 25mm
    Servos 1
    Radio 3 Channel (included)
    Lights Yes
    Sound No
    Water Resistant Yes
    Skill Level Beginner
    Assembly Time Less Than 15 minutes
    Recommended Environment Outdoors
    My YouTube RC videos:

  • #2
    Looking great. But brushless motor needed for advance level.
