Official FMS FCX24 Max Smasher 1/24 Scale 4WD Monster Truck RTR Thread

First Prev Next Last
  • Filter
  • Time
  • Show
Clear All
new posts

  • Official FMS FCX24 Max Smasher 1/24 Scale 4WD Monster Truck RTR Thread

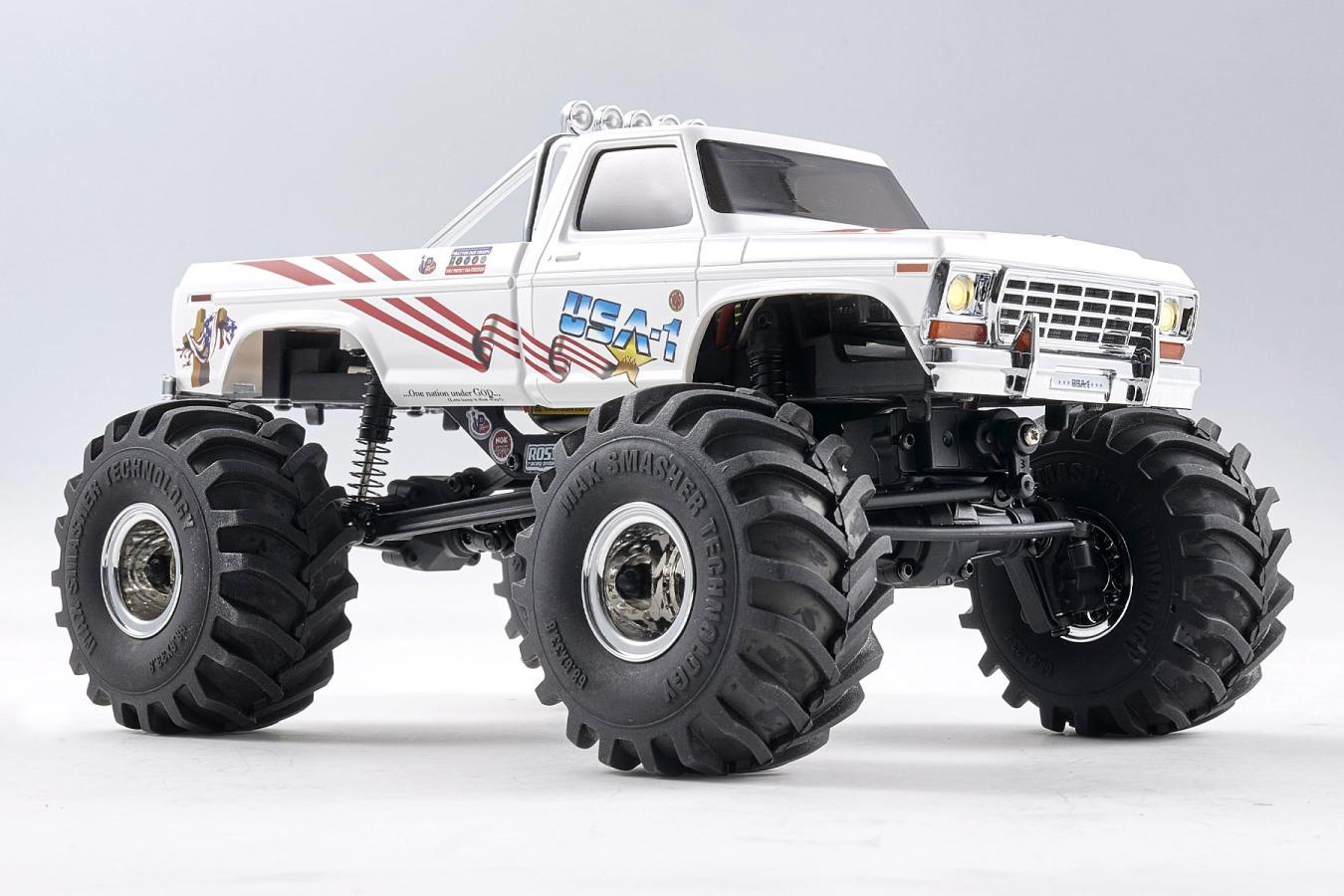

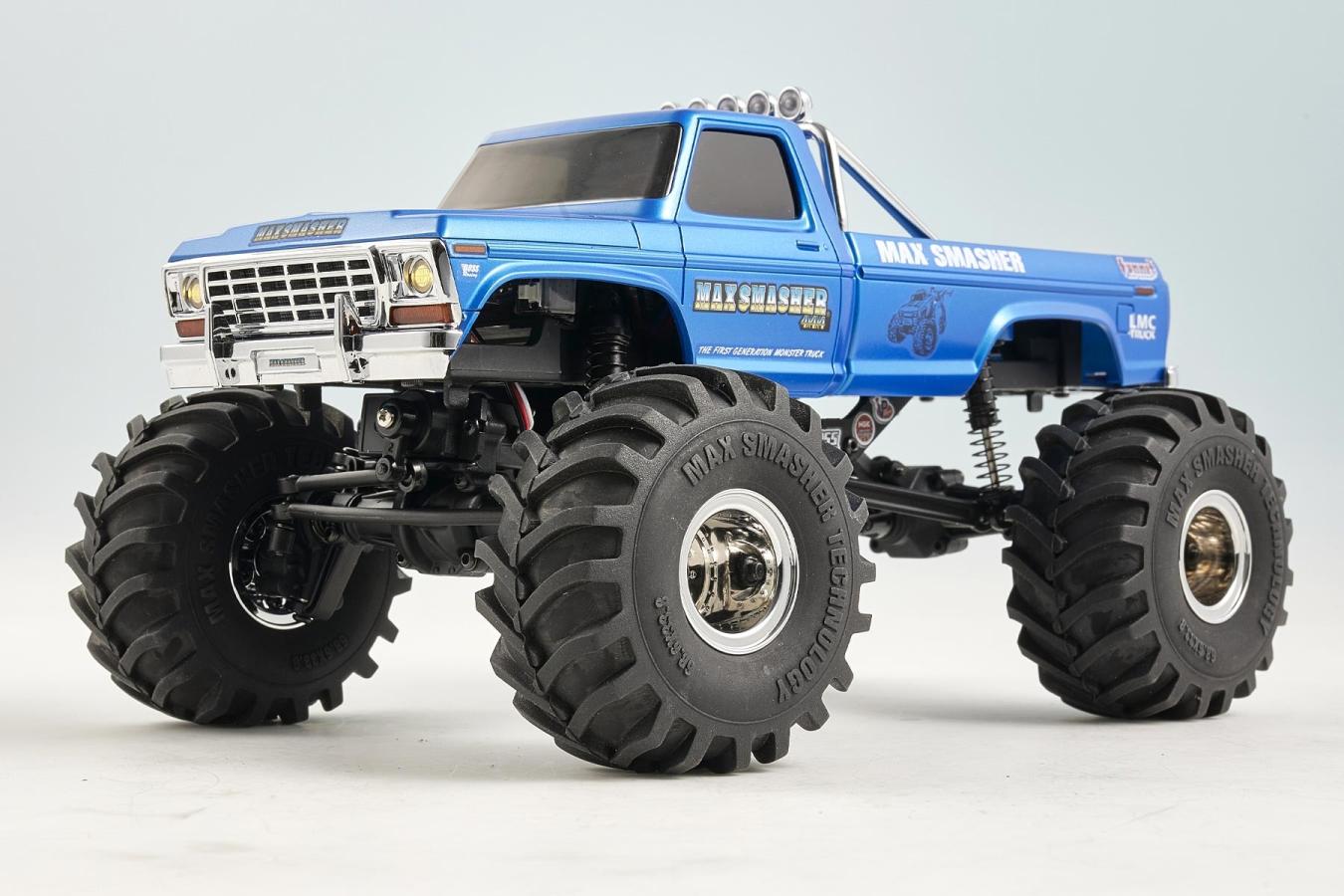

    FCX24 Max Smasher 1/24 Scale 4WD Monster Truck - RTR by FMS

    Click image for larger version

Name:	master.jpg
Views:	1086
Size:	124.5 KB
ID:	359921
    Click image for larger version

Name:	master.jpg
Views:	1187
Size:	130.8 KB
ID:	359922

    Version Info: This truck is delivered as "RTR", however does require 4x AAA batteries for the transmitter sold separately (see Requires below for details).

    The FMS 1/24 Max Smasher series captures memories of classic American monster trucks while taking advantage of the category-leading feature list of the FCX24 platform. The body design screams, “classic monster pickup”, while the huge air-filled, hollow tires provide excellent traction and shock absorption. The two-speed gearbox, controlled by a third transmitter channel, allows for extraordinary torque, or high-speed, off-road driving. The choice is yours with a flip of a switch. The front and rear axles arrive with planetary gear differentials installed, which allows high-speed off-road driving and outstanding cornering performance. Meanwhile, the parts to convert to straight axles without differentials are also included for owners to install when looking for pure crawling and unsurpassed climbing performance.

    Although highly detailed and painted, the Max Smasher also includes a sticker set that allows for further customization, while the included LiPo battery and USB charger allow for extended run times of over 20 minutes.

    Enjoy the next small thing in radio control by combining the versatile, go-anywhere fun of FMS FCX24 Max Smasher 1/24 Scale 4WD Monster Truck with Motion RC’s industry-leading customer service and product support for a package that cannot be beat!

    Portal Axles

    The use of portal axles allows for additional reduction of FDR (final drive ratio) and delivers more ground clearance for unsurpassed traction and agility.
    Composite Chassis and Links

    The strong but lightweight chassis rails and links are complimented by heavy-duty steel CVD-style drive shafts for durability and optimized torque transfer.
    Combination Receiver/ESC

    The full-featured RX/ESC unit contains additional ports to allow users to add taillights, fog lights, and turn signals in addition to the included headlight LED lamps. The ESC is user-programmable to tailor acceleration, hold, and brake forces toward a crawling or monster truck racing setup.
    Metal-Geared Steering Servo

    The FCX24 Max Smasher contains a best-in-category metal-geared steering servo that allows you to traverse, crawl, climb, or race with confidence!
    • Ready to Run Model
    • Shift on the fly 2-speed transmission (control from transmitter)
    • Front and Rear Planetary Gear Differentials
    • Complete ball bearings
    • Multi-function LED lights controlled from TX
    • Portal axles
    • Metal-geared micro steering servo
    • Four-link suspension layout with nylon-composite frame rails
    • Injection-molded, highly detailed bodyshell
    • Monster truck wheels and tires
    • 130-size brushed motor
    • 2.4GHz radio system
    • FMS Max Smasher Blue 1/24 Scale 4WD Monster Truck - RTR
    • FMS 2.4GHz Pistol-Grip Transmitter
    • FMS 2-in-1 RX/20A ESC (installed)
    • FMS Metal-Geared Steering Servo (installed)
    • FMS 2-speed Shift Servo (installed)
    • FMS Hi-Torque 180-size Brushed Motor
    • 7.4V 380mAh LiPo Battery
    • USB battery Charger
    • 4x AAA alkaline batteries for transmitter
    Product Specifications:

    AGE LEVEL :14 and up
    SKILL LEVEL :Intermediate
    BUILD TIME :None
    Model Scale 1/24
    Length 227mm / 8.9in
    Width 156mm / 6.1in
    Height 127mm / 5in
    Weight (No Battery) N/A
    Wheelbase 139mm / 5.4in
    Ground Clearance 44mm
    Body Plastic
    Chassis N/A
    Drivetrain 4WD
    Wheel Size (Diameter x Width) 68mm x 34mm
    Wheel Hex Size N/A
    Tire Tread Off-road / On-road
    Bushing Material N/A
    Suspension N/A
    Shock Type N/A
    Transmission N/A
    Gear Pitch N/A
    Internal Gear Ratio N/A
    Final Drive Ratio N/A
    Pinion N/A
    Spur Gear N/A
    Differential N/A
    Ball Bearings N/A
    Brakes N/A
    Electronic Speed Control 2-in-1 RX/20A ESC
    Motor Hi-Torque 180-size Brushed Motor
    Battery 4x AAA alkaline for transmitter (required)
    Max Battery Dimensions (L x W x H) N/A
    Servos Metal Gear Servo
    Radio 2.4GHz Transmitter
    Lights Yes
    Sound N/A
    Water Resistant N/A
    Skill Level Intermediate
    Assembly Time None
    Recommended Environment Outdoors, smooth to rugged surfaces
    My YouTube RC videos:

  • #2
    Just bought one of these cool trucks. Have one question. How do the headlights operate? I turn the on switch up inside the truck and they turn on for 2 seconds and turn off. I see how on the old transmitter it has a button. I have the new version if this helps. Thanks


    • #3
      Never mind. I saw a video on it. Press the bind button on top of the transmitter. Mine only seems to have only low beams though.
