  • Official Team Corally Furago XD/Punisher XD Small Scale 4WD Monster Truck Discussion Thread

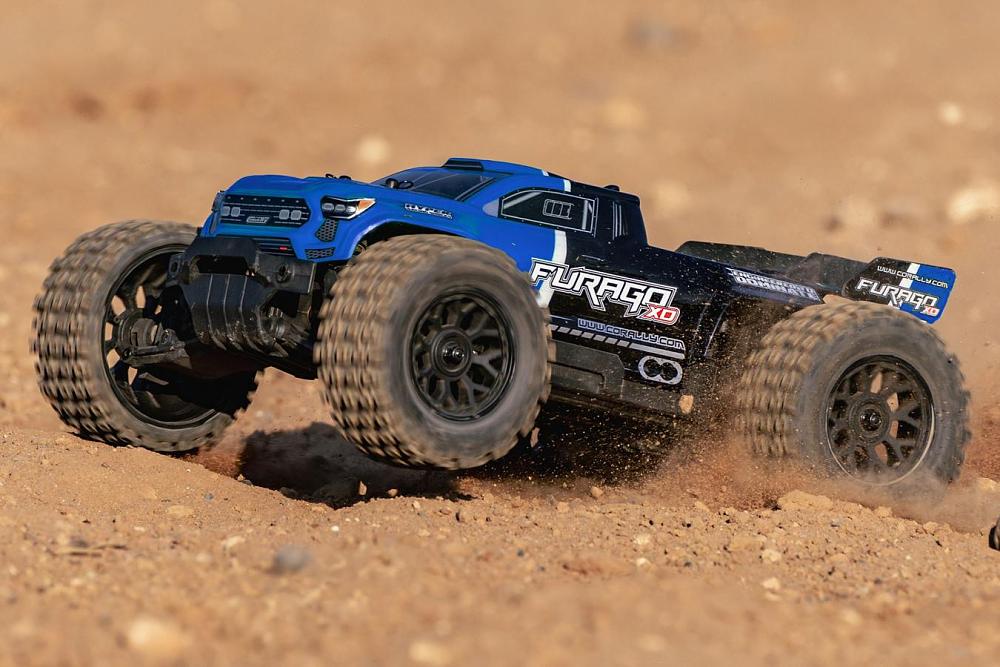

    Click image for larger version  Name:	furago.jpg Views:	0 Size:	142.0 KB ID:	449613


    Click image for larger version  Name:	punisher.jpg Views:	0 Size:	160.9 KB ID:	449614




    The Furago XD is a ready-to-run mini monster truck designed to stand out and go wherever you do. It’s an easy way to get into the hobby, while still delivering plenty of fun for anyone who just wants to charge up and drive. Compact enough to fit in a backpack, it’s built for take-anywhere action—turning curbs into ramps, dirt patches into tracks, and empty parking lots into stunt zones. The all-new Furago body design brings a fresh, modern look with a bold stance that feels fast before you even pull the trigger. Built on the all-new XD2S platform with four-wheel drive, it offers sharp handling, solid stability, and impressive performance for its size. Battery and charger are included—just plug in, power up, and bash.

    Team Corally pushed engineering to the next level with the all-new XD2S chassis, packed into a compact small scale platform. Designed with practical expertise, it’s built around full-size electronics—delivering stronger performance, improved durability, and easier access to high-quality components. That means an oversized 540 brushed motor, paired with a Team Corally 2-in-1 water-resistant brushed ESC and receiver, along with a true standard-size steering servo—not a small micro unit. The battery tray is made for industry-standard 2S shorty LiPo packs, making upgrades simple and accessible.

    Even better, everything you need is included: battery, charger, and the proven Team Corally CT2S 2.4GHz transmitter—so you can charge up and hit the ground driving. Enjoy this model along with Motion RC’s parts and technical support, industry-leading customer service and product selection for a package that cannot be beat!
    XD2S Platform – Designed To Be Durable

    The composite chassis forms the backbone of the XD2S, built to absorb impacts while keeping components protected and maintenance simple. Integrated side body clamps hold the body securely in place, while an 8 mm tower-to-tower aluminum brace adds rigidity where it counts.
    Bulletproof Metal Drivetrain

    Built for hard use with a complete metal driveline. Up front, durable steel CVD joints provide smooth power delivery and precise steering under load. At the rear, strong dogbones keep the setup simple and tough. Fixed center driveshafts connect directly to the center spool for a direct, responsive 4WD feel. For added stability, the center shaft is supported in the servo area, helping reduce vibrations and maintain a rigid, reliable structure.
    Steering You Can Trust

    A true standard-size servo delivers 15 kg of torque with 0.12-second transit time, using a standard 3-wire lead and 25T output spline. The steering system features an integrated spring-loaded servo saver, helping protect the servo while maintaining smooth, consistent steering, even when hitting bumps or landing jumps off-line.
    All-New Furago Body with Four Color Options

    The new Furago XD body features a bold, pickup-inspired design with unmistakable muscle car attitude. Its flowing, bulky lines, single-cab profile, oversized hood, and detailed styling create a powerful presence in mini scale. This fresh direction for Team Corally delivers a standout look that’s built to turn heads on every run.
    Features:
    • Fully assembled and ready to run
    • 2S 7.4v LiPo battery and convenient USB charger included
    • Powerful 540 17-turn brushed motor
    • 2-in-1 60A ESC/4 channel receiver
    • Throttle limiting available via transmitter for new drivers
    • High-performance 4WD chassis with heavy-duty drivetrain
    • Exceptional driving dynamics
    Includes:
    • Team Corally Furago XD Blue Small Scale 4WD Monster Truck - RTR
    • Team Corally High Power 2500mAh, 2S LiPo battery
    • P3 pocket balance charger 3A/38W
    • Team Corally CT2S 2.4 GHz transmitter
    Requires:Product Specifications:

    AGE LEVEL : 14 and Up
    SKILL LEVEL : Beginner
    BUILD TIME : Less Than 15 Minutes
    Model Scale Approx. 1/12
    Length 340mm / 13.3in
    Width 265mm / 10.4in
    Height 125mm / 4.9in
    Weight (No Battery) 1600g / 57.1oz
    Wheelbase 220mm / 8.7in
    Ground Clearance 55mm / 2.2in
    Body Polycarbonate, factory decorated
    Chassis Composite tub
    Drivetrain 4WD
    Wheel Size (Diameter x Width) 100mm x 44mm
    Wheel Hex Size 12mm
    Tire Tread All-terrain
    Bushing Material N/A
    Suspension Independent
    Shock Type Oil-filled, coil-over
    Transmission 4WD shaft-driven
    Gear Pitch 48DP
    Internal Gear Ratio 2.5:1
    Final Drive Ratio 10.88:1
    Pinion N/A
    Spur Gear N/A
    Differential Bevel gear-type
    Ball Bearings Yes
    Brakes Electronic
    Electronic Speed Control Brushed 2-in-1 RX/ESC (included)
    Motor 540-size brushed
    Battery 7.4V LiPo (included)
    Max Battery Dimensions (L x W x H) 107 x 48 x 25mm (4.2 x 1.9 x 1")
    Servos 1
    Radio CT2S 2.4GHz pistol grip (included)
    Lights No
    Sound No
    Water Resistant Yes
    Skill Level Beginner
    Assembly Time Less Than 15 Minutes
    Recommended Environment Outdoors
