AH-6 Little Bird 800 Size Scale Helicopter - ARF (Almost Ready to Fly) from Roban - RBN-LTB-8
The AH-6 / MH-6 'Little Bird' are light attack/assault helicopters operated by the 160th Special Operations Aviation Regiment (SOAR), also known as the Night Stalkers. Both the AH-6 and MH-6 are based around a civilian airframe (MD500), with extensive modifications in terms of avionics and provisions for the mounting of specialized equipment and weapons systems. These aircraft are primarily used for close air support and transportation of US Special Operations Forces to and from confined areas. The ruggedness and superior maneuverability of the Little Bird have made it an extremely important asset to these covert forces.

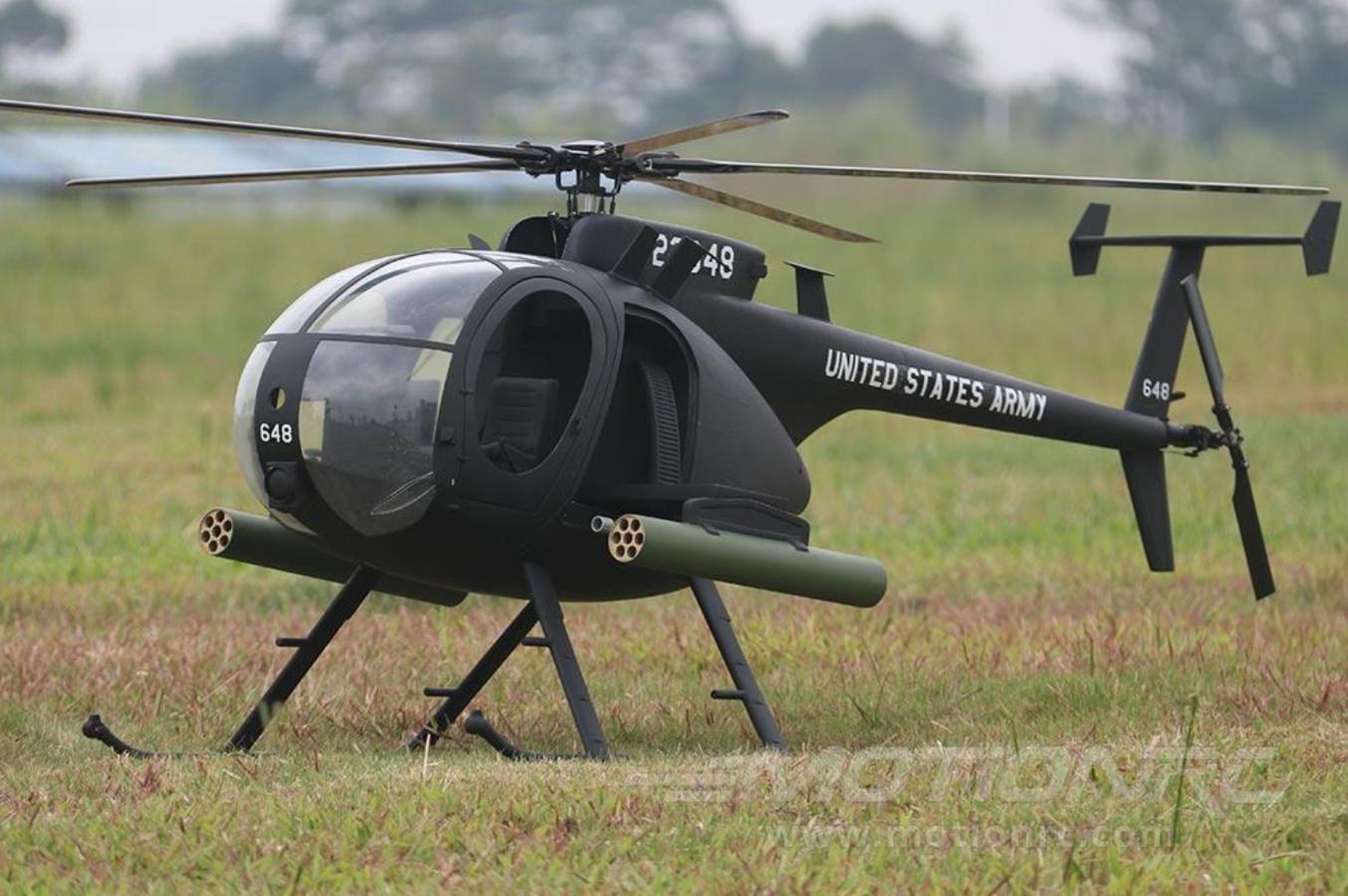

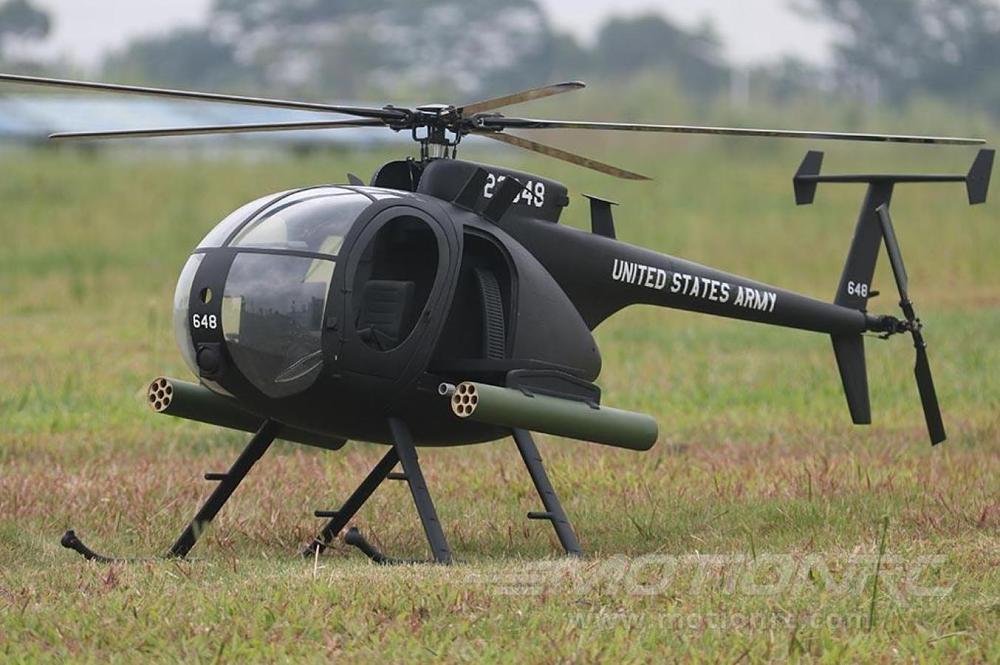

This is the Roban AH-6 Little Bird Scale 800 AH-6 ARF. A premium scale kit that offers unparalleled detail. From tip-to-tail the AH-6 body kit displays an accuracy of detail to the real aircraft not normally seen in the RC helicopter hobby.
This kit comes with a fully illuminated scale detail cockpit with illuminated dashboard, joysticks, rudder pedals, aerials, windshield wipers and more. Floor and ceiling details can be crafted so once the interiors are installed you have an impressively scaled cockpit/interior.
These scale kits house the cockpit in precisely the right location and the mechanics are built into the engine compartment just like in the full scale version. The AH-6 really impresses with the highly detailed and accurately scaled down profile.
Features:
- 5 Blade rotorhead and scale carbon fiber rotor blades
- 2 Tail blade head and scale carbon fiber tail blades
- Extremely detailed surface with molded panel lines and rivets
- Complete 2 seat scale cockpit
- Complete built In / partially pre-installed position lighting system (Controlled via AUX channel)
- Special CCPM mechanics built in the top section like the full scale
- Take off weight of 8kg (approximately double of a 700 3D helicopter)
- Roban AH-6 Little Bird 800 size scale body
- Full 800 size helicopter mechanics
- 5 Carbon fiber rotor blades
- 2 Carbon fiber tail blades
- Complete 2 seat scale cockpit
- Complete built in / partially pre-installed position lighting system
- Helicopter flight controller - we recommend the BavarianDEMON 3X Flybarless System
- Electronic speed control (ESC) - we recommend the Castle Creations Phoenix Edge High Voltage 160A ESC With Cooling Fan
- Battery eliminator circuit (BEC) - we recommend the Castle Creations 20A BEC Pro
- Brushless motor - we recommend the Scorpion HKIII 4035-500Kv brushless motor
- Three cyclic servos - we recommend the MKS DS1220 High Torque Servo Multi-Pack (3 Servos)
- Tail servo - we recommend the MKS DS HBL980
- 12 Cell 44.4V 5000mAh LiPo battery - we recommend the Admiral 5000mAh 6S 22.2V 50C LiPo Battery Multi-Pack in series
- 8 Channel radio - select a minimum 8 channel radio with pitch and throttle curves from our Radio Collection
- 8 Channel receiver - select a minimum 8 channel receiver from our Receiver Collection
Roban Scale Helicopters are intended for modelers who have advanced level building skills. Both ARF and KIT product formats require you to install your own electronics (ESC, servos, motor, etc). KIT product formats also require you to install your own helicopter mechanics. Because helicopter mechanics can vary greatly in size and shape, you may be required to modify the fuselage slightly (including cutting, drilling, etc.) to achieve a perfect fit. Roban fuselages are all handmade from fiberglass and therefore may have slight variation in tolerances between body panels, doors, or windows. These variations do not affect flight performance and can be easily adjusted by an experienced builder with proper tools. These precautions are intended for novice builders; an experienced modeler should have no issue achieving perfect results with these premiere scale helicopters kits.
Product Specifications:
AGE LEVEL :18 and up
SKILL LEVEL :expert
BUILD TIME :4+ hours
| Class / Size | 800 |
| Power Type | Electric |
| Rotor Type | Collective Pitch |
| Body Material | Fiberglass |
| Overall Size (L x W x H) | 1980 x 590 x 645mm |
| Flying Weight | 8,000g |
| Main Rotor Diameter | 1570mm |
| Main Rotor Blade Length | 700mm |
| Tail Rotor Diameter | 280mm |
| Tail Rotor Blade Length | 45mm |
| Tail Drive Type | Torque Tube |
| Cyclic Servos | 3x Metal Gear |
| Tail Servo | 1x Metal Gear |
| Power System | 500Kv Brushless Motor |
| Electronic Speed Control | 160A High Voltage with EC5 Connector |
| Recommended Battery | 2x 6S 22.2V 5000 mAh LiPo with EC5 Connector (in series for 12S) |
| Battery Compartment Size (L x W x H) | N/A |
| Required Radio | 8 Channel |
| Skill Level | Expert |
| Build Time | 4+ Hours |
| Recommended Environment | Outdoors |
