UH-1N Marines 800 Size Scale Helicopter ARF (Almost Ready to Fly) from Roban - RBN-212GR-8
The UH-1N Iroquois is a light-lift utility helicopter and was developed as a twin engine follow on to the ubiquitous UH-1H Huey. The aircraft is primarily used by the US Marines and Air Force, as well as numerous other countries, for a wide variety of missions. These primarily include: troop transport, airlift of emergency security forces, and security and surveillance of off-base nuclear weapons convoy. The civilian version, the B212, is also used for a wide variety of missions including: disaster response operations, search and rescue, medical evacuation, airborne cable inspections, support to aircrew survival school, aerial testing, routine missile site support and transport.

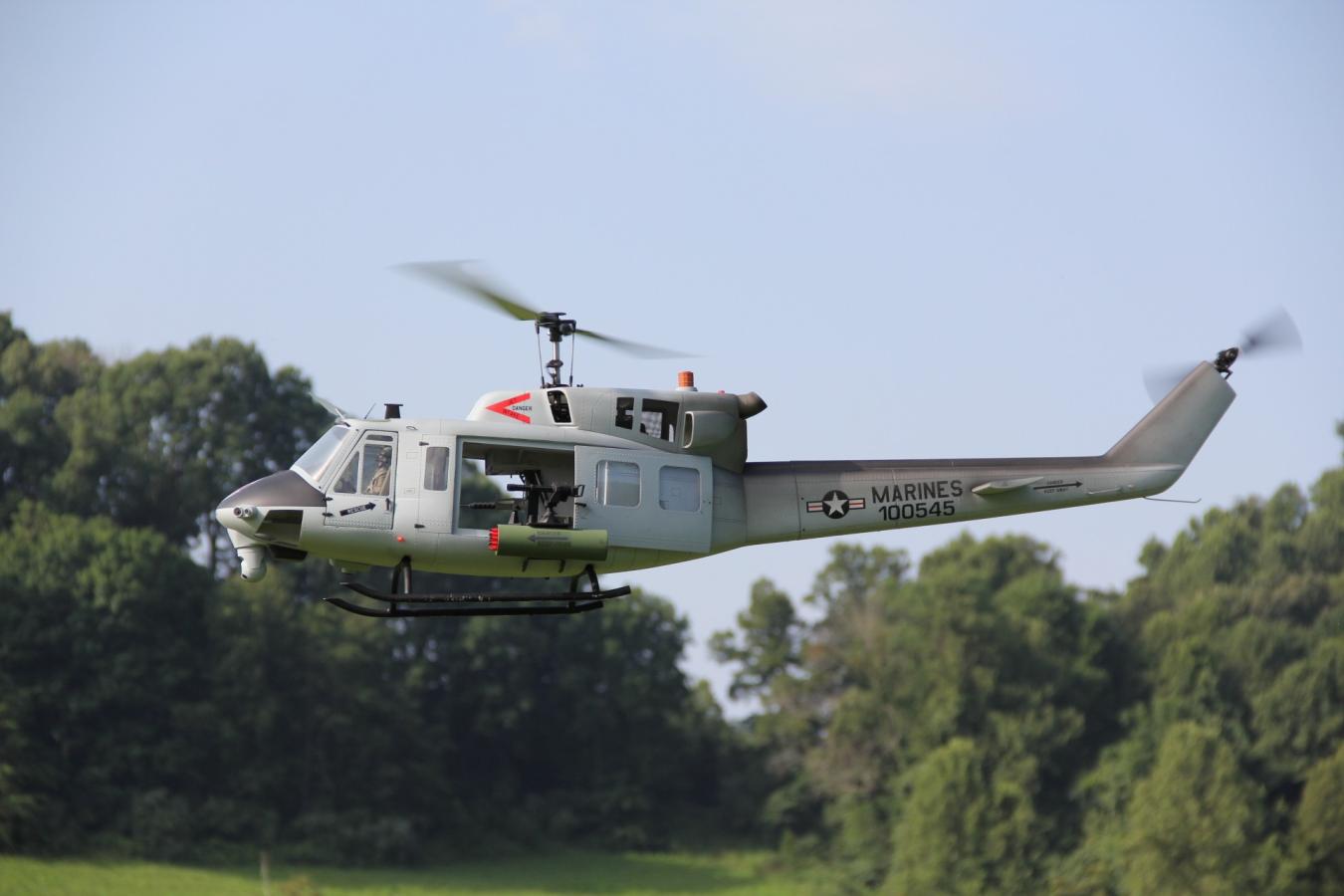

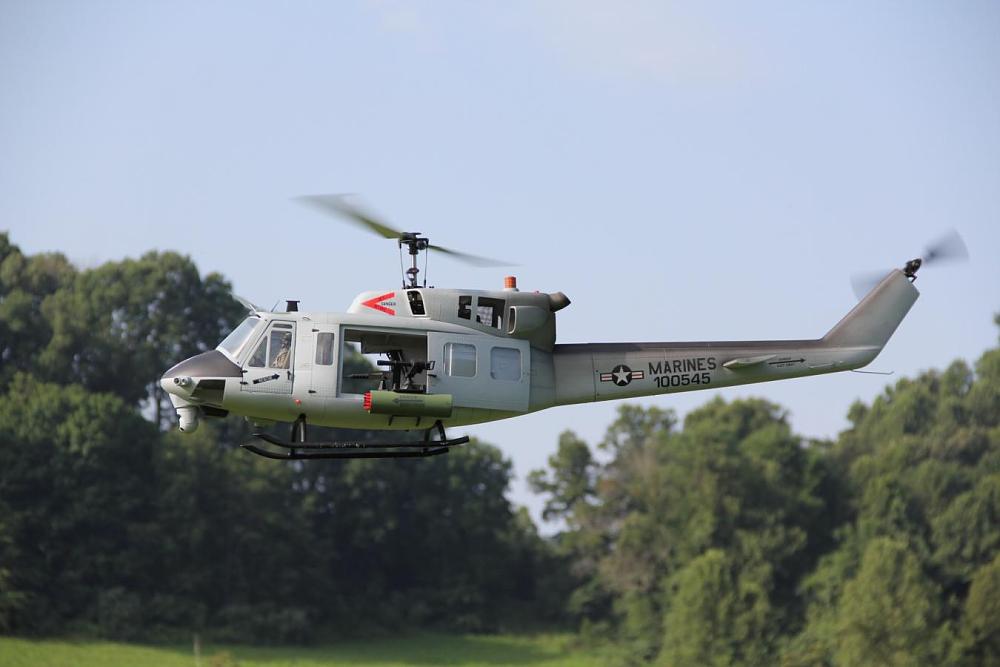

This is the Roban UH-1N Marines Scale 800 ARF. A premium scale kit that offers unparalleled detail. From tip-to-tail the UH-1N Marines body kit displays an accuracy of detail to the real aircraft not normally seen in the RC helicopter hobby. This kit comes with a very high level of detail. The fuselage is pre-painted, windows installed and all structural bulkheads installed. All doors are pre-fitted and fully operational, navigation and strobe lights included.
This kit comes with a fully illuminated scale detail cockpit with illuminated dashboard, joysticks, rudder pedals, aerials, windshield wipers and more. Full rear cabin interiors are included (not installed). Floor and ceiling details can be crafted so once the interiors are installed you have an impressively scaled cockpit/interior. Balance bar upgrade is available for the rotor head (sold separately).
The working/sliding door easily opens and allows quick access to the removable floor panel and battery compartment. These scale kits house the cockpit in precisely the right location and the mechanics are built into the engine compartment just like in the full scale version. The UH-1N Marines kit really impresses with the highly detailed and accurately scaled down profile.
Features:
- 2 Blade rotorhead and scale carbon fiber rotor blades
- 2 Tail blade head and scale carbon fiber tail blades
- Extremely detailed surface with molded panel lines and rivets
- Complete 7 seat scale cockpit
- Complete built In / partially pre-installed position lighting system (Controlled via AUX channel)
- Special CCPM mechanics built in the top section like the full scale
- Take off weight of 8kg (approximately double of a 700 3D helicopter)
- Roban UH-1N Marines 800 Size Scale Body
- Full 800 size helicopter mechanics
- 2 Carbon fiber rotor blades
- 2 Carbon fiber tail blades
- Complete 7 seat scale cockpit
- Complete built in / partially pre-installed position lighting system
- Instruction manual
- Decal set
- Helicopter flight controller - we recommend the BavarianDEMON 3X Flybarless System
- Electronic speed control (ESC) - we recommend the Castle Creations Phoenix Edge High Voltage 160A ESC With Cooling Fan
- Battery eliminator circuit (BEC) - we recommend the Castle Creations 20A BEC Pro
- Brushless motor - we recommend the Scorpion HKIII 4035-560Kv brushless motor
- Three cyclic servos - we recommend the MKS DS1220 High Torque Servo Multi-Pack (3 Servos)
- Tail servo - we recommend the MKS DS HBL980
- 12 Cell 44.4V 5000mAh LiPo battery - we recommend the Admiral 5000mAh 6S 22.2V 50C LiPo Battery Multi-Pack in series
- 8 Channel radio - select a minimum 8 channel radio with pitch and throttle curves from our Radio Collection
- 8 Channel receiver - select a minimum 8 channel receiver from our Receiver Collection
Roban Scale Helicopters are intended for modelers who have advanced level building skills. Both ARF and KIT product formats require you to install your own electronics (ESC, servos, motor, etc). KIT product formats also require you to install your own helicopter mechanics. Because helicopter mechanics can vary greatly in size and shape, you may be required to modify the fuselage slightly (including cutting, drilling, etc.) to achieve a perfect fit. Roban fuselages are all handmade from fiberglass and therefore may have slight variation in tolerances between body panels, doors, or windows. These variations do not affect flight performance and can be easily adjusted by an experienced builder with proper tools. These precautions are intended for novice builders; an experienced modeler should have no issue achieving perfect results with these premiere scale helicopters kits.
Product Specifications:
AGE LEVEL: 18 and up
SKILL LEVEL: Expert
BUILD TIME: 4+ hours
| Class / Size | 800 |
| Power Type | Electric |
| Rotor Type | Collective Pitch |
| Body Material | Fiberglass |
| Overall Size (L x W x H) | 1960 x 355 x 510mm |
| Flying Weight | 8,000g |
| Main Rotor Diameter | 1660mm |
| Main Rotor Blade Length | 750mm |
| Tail Rotor Diameter | 280mm |
| Tail Rotor Blade Length | 105mm |
| Tail Drive Type | Torque Tube |
| Cyclic Servos | 3x Metal Gear |
| Tail Servo | 1x Metal Gear |
| Power System | 560Kv Brushless Motor |
| Electronic Speed Control | 160A High Voltage with EC5 Connector |
| Recommended Battery | 2x 6S 22.2V 5000 mAh LiPo with EC5 Connector (in series for 12S) |
| Battery Compartment Size (L x W x H) | N/A |
| Required Radio | 8 Channel |
| Skill Level | Expert |
| Build Time | 4+ Hours |
| Recommended Environment | Outdoors |
