  • Official Roban 800 Size MD-500E Yellow/Blue/Red Scale Helicopter ARF Thread

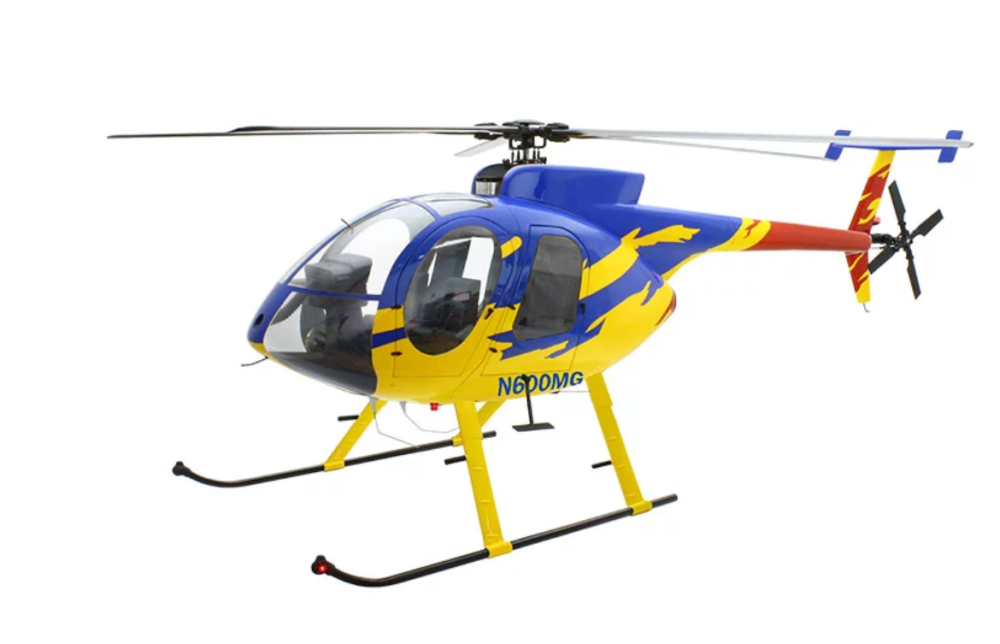

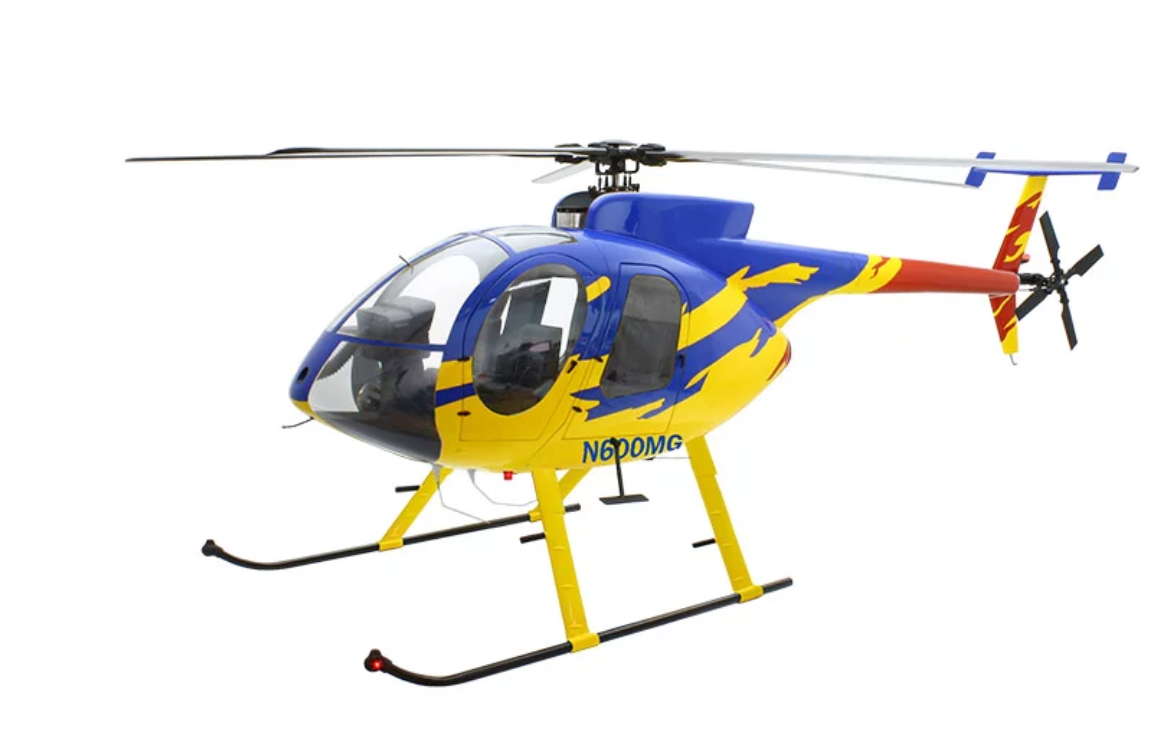

    MD-500E Yellow, Blue, and Red 800 Size Scale Helicopter ARF (Almost Ready to Fly) from Roban - RCH-MD500BYR8

    Click image for larger version

Name:	Screenshot 2020-11-20 204316.png
Views:	791
Size:	338.6 KB
ID:	345460


    This is the Roban MD-500E Yellow, Blue and Red 800 ARF, a premium scale kit that offers unparalleled detail. From tip-to-tail the MD-500E body kit displays an accuracy of detail to the real aircraft not normally seen in the RC helicopter hobby.

    This kit comes with a fully illuminated scale detail cockpit with illuminated dashboard, joysticks, rudder pedals, aerials, windshield wipers and more. Full rear cabin interiors are included (not installed). Floor and ceiling details can be crafted so once the interiors are installed you have an impressively scaled cockpit/interior.

    These scale kits house the cockpit in precisely the right location and the mechanics are built into the engine compartment just like in the full scale version. The MD-500E really impresses with the highly detailed and accurately scaled down profile.

    Features:
    • 5 Blade rotorhead and scale carbon fiber rotor blades
    • 2 Blade tail rotor with carbon fiber tail blades
    • Extremely detailed surface with molded panel lines and rivets
    • Complete 4 seat scale cockpit
    • Complete built In / partially pre-installed position lighting system (Controlled via AUX channel)
    • Special CCPM mechanics built in the top section like the full scale
    • Take off weight of 8kg (approximately double of a 700 3D helicopter)
    Includes:
    • Roban MD-500E Yellow/Blue/Red 800 size scale body
    • Full 800 size helicopter mechanics
    • 5 Carbon fiber rotor blades
    • 2 Carbon fiber tail blades
    • Complete 4 seat scale cockpit
    • Complete built in / partially pre-installed position lighting system
    Requires:Important Information - Please Read
    Roban Scale Helicopters are intended for modelers who have advanced level building skills. Both ARF and KIT product formats require you to install your own electronics (ESC, servos, motor, etc). KIT product formats also require you to install your own helicopter mechanics. Because helicopter mechanics can vary greatly in size and shape, you may be required to modify the fuselage slightly (including cutting, drilling, etc.) to achieve a perfect fit. Roban fuselages are all handmade from fiberglass and therefore may have slight variation in tolerances between body panels, doors, or windows. These variations do not affect flight performance and can be easily adjusted by an experienced builder with proper tools. These precautions are intended for novice builders; an experienced modeler should have no issue achieving perfect results with these premiere scale helicopters kits.

    Product Specifications:

    AGE LEVEL: 18 and up
    SKILL LEVEL: Expert
    BUILD TIME: 4+ hours

    Class / Size 800
    Power Type Electric
    Rotor Type Collective Pitch
    Body Material Fiberglass
    Overall Size (L x W x H) 1980 x 590 x 645mm
    Flying Weight 8000g
    Main Rotor Diameter 1570mm
    Main Rotor Blade Length 700mm
    Tail Rotor Diameter 280mm
    Tail Rotor Blade Length 45mm
    Tail Drive Type Torque Tube
    Cyclic Servos 3x Metal Gear
    Tail Servo 1x Metal Gear
    Power System 500Kv Brushless Motor
    Electronic Speed Control 160A High Voltage with EC5 Connector
    Recommended Battery 2x 6S 22.2V 5000 mAh LiPo with EC5 Connector (in series for 12S)
    Battery Compartment Size (L x W x H) N/A
    Required Radio 8 Channel
    Skill Level Expert
    Build Time 4+ Hours
    Recommended Environment Outdoors
