  • Official Roban 700 Size B206 Stars and Stripes Scale Helicopter ARF Thread

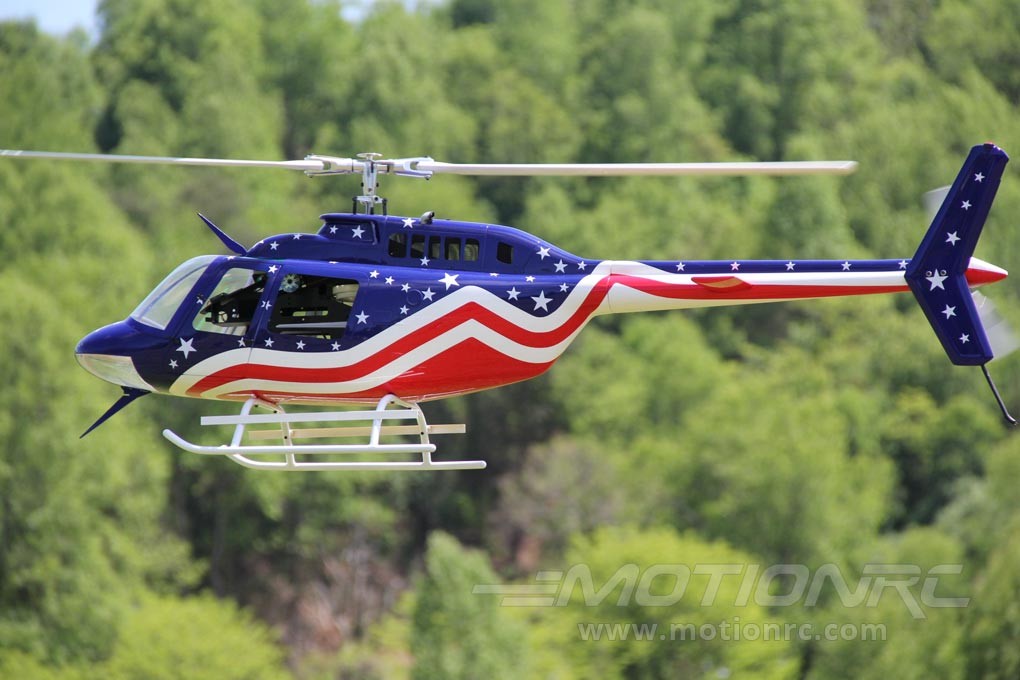

    B206 Stars and Stripes 700 Size Helicopter Scale Conversion Kit from Roban - RBN-KF206SS7

    Click image for larger version

Name:	mastera.jpg
Views:	46
Size:	121.1 KB
ID:	345504


    This is the Roban B206 News 700 scale conversion kit. A premium scale kit that offers unparalleled detail. From tip-to-tail the B206 body kit displays an accuracy of detail to the real aircraft not normally seen in the RC helicopter hobby.

    These scale kits house the cockpit (sold separately) in precisely the right location and are designed to fit your trex 700 mechanics or similar. The B206 really impresses with the highly detailed and accurately scaled down profile.

    Originally developed as the YOH-4 for the United States Army's Light Observation Helicopter program, the Model 206 Jetranger was one of the first a generation of light single engine helicopters. Despite a losing the competition, the airframe was redesigned and successfully marketed to both commercial markets as the Jetranger, and military markets as the OH-58 Kiowa.

    Commercially, the aircraft is one of the successful and recognizable helicopters ever produced. It has starred in films, served police and fire departments, fought in multiple wars, transported VIPs, flown aerial tours, trained generations of soldiers and Marines to fly, and operated as a medical transport.

    Features:
    • Extremely detailed surface with molded panel lines and rivets
    • Use of 750MX standard equipment (12S Battery, 530Kv motor), fly with your existing parts
    • Take off weight of 8kg (approximately double of a 700 3D helicopter)
    • 1750mm long, 1/8 scale
    Includes:
    • Roban B206 Stars and Stripes 700 body kit
    Requires:Important Information - Please Read
    Roban Scale Helicopters are intended for modelers who have advanced level building skills. Both ARF and KIT product formats require you to install your own electronics (ESC, servos, motor, etc). KIT product formats also require you to install your own helicopter mechanics. Because helicopter mechanics can vary greatly in size and shape, you may be required to modify the fuselage slightly (including cutting, drilling, etc.) to achieve a perfect fit. Roban fuselages are all handmade from fiberglass and therefore may have slight variation in tolerances between body panels, doors, or windows. These variations do not affect flight performance and can be easily adjusted by an experienced builder with proper tools. These precautions are intended for novice builders; an experienced modeler should have no issue achieving perfect results with these premiere scale helicopters kits.

    Product Specifications:

    AGE LEVEL: 18 and up
    SKILL LEVEL: Expert
    BUILD TIME: 4+ hours

    Class / Size 700
    Power Type Electric
    Rotor Type Collective Pitch
    Body Material Fiberglass
    Overall Size (L x W x H) 1870 x 510 x 330mm
    Flying Weight 8000g
    Main Rotor Diameter 1560mm
    Main Rotor Blade Length 700mm
    Tail Rotor Diameter 280mm
    Tail Rotor Blade Length 105mm
    Tail Drive Type Torque Tube
    Cyclic Servos 3x Metal Gear
    Tail Servo 1x Metal Gear
    Power System 1100Kv Brushless Motor
    Electronic Speed Control 120A High Voltage with EC5 Connector
    Recommended Battery 6S 22.2V 5000 mAh LiPo with EC5 Connector
    Battery Compartment Size (L x W x H) N/A
    Required Radio 7 Channel
    Skill Level Expert
    Build Time 4+ Hours
    Recommended Environment Outdoors
