  • Official Roban 700 Size HH-60 Jayhawk US Coast Guard Scale Helicopter ARF Thread

    US Coast Guard HH-60 Jayhawk 700 Size Scale Helicopter ARF (Almost Ready to Fly) from Roban - RBN-SF-HH60-7S

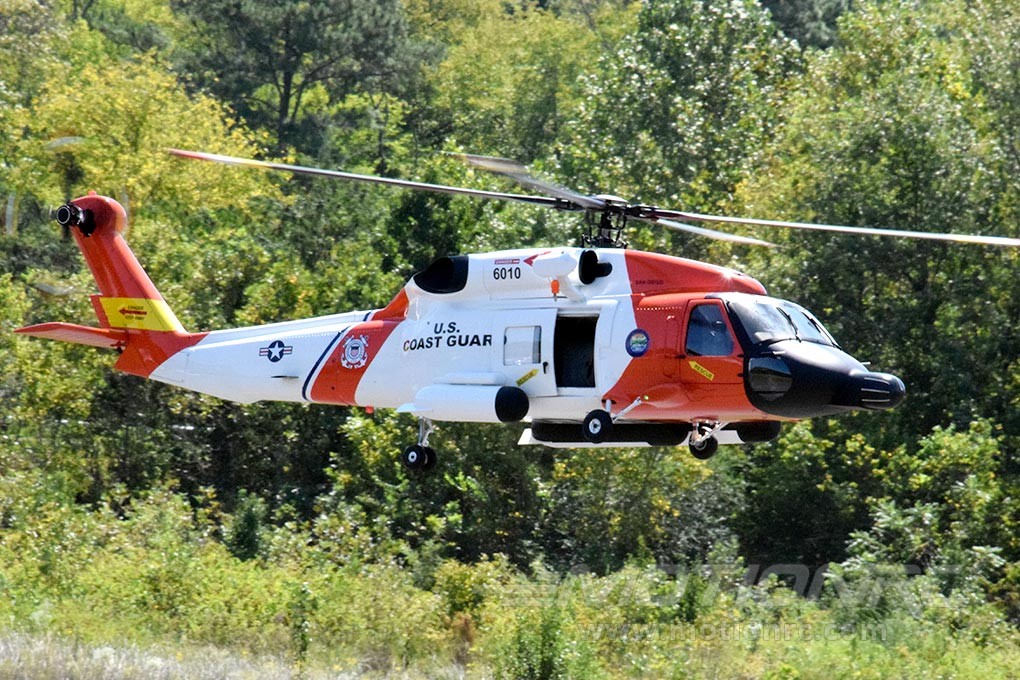

    Click image for larger version  Name:	mastera.jpg Views:	44 Size:	267.9 KB ID:	345520



    This is the Roban HH-60 Jayhawk 700 size ARF, a premium scale kit that offers unparalleled detail. From tip-to-tail the HH-60 body kit displays an accuracy of detail to the real aircraft not normally seen in the RC helicopter hobby.

    This kit comes with a full scale detail cockpit with dashboard, joysticks, rudder pedals, aerials, windshield wipers and more. Floor and ceiling details can be crafted so once the interiors are installed you have an impressively scaled cockpit/interior.

    These scale kits house the cockpit in precisely the right location and the mechanics are built into the engine compartment just like in the full scale version. The HH-60 really impresses with the highly detailed and accurately scaled down profile.

    Features:
    • 4 Blade rotorhead and scale carbon fiber rotor blades
    • 4 Tail blade head and scale carbon fiber tail blades
    • Extremely detailed surface with molded panel lines and rivets
    • Complete scale cockpit kit
    • Complete built In / partially pre-installed position lighting system (Controlled via AUX channel)
    • Special CCPM mechanics built in the top section like the full scale
    • Take off weight of 9kg (approximately double of a 700 3D helicopter)
    • 1700mm long, 1/10 scale
    Includes:
    • Roban HH-60 Jayhawk 700 size scale body
    • Full 700 size helicopter mechanics
    • 4 Carbon fiber rotor blades
    • 4 Carbon fiber tail blades
    • Complete 7 seat scale cockpit
    • Complete built In / partially pre-installed position lighting system
    Requires:Important Information - Please Read
    Roban Scale Helicopters are intended for modelers who have advanced level building skills. Both ARF and KIT product formats require you to install your own electronics (ESC, servos, motor, etc). KIT product formats also require you to install your own helicopter mechanics. Because helicopter mechanics can vary greatly in size and shape, you may be required to modify the fuselage slightly (including cutting, drilling, etc.) to achieve a perfect fit. Roban fuselages are all handmade from fiberglass and therefore may have slight variation in tolerances between body panels, doors, or windows. These variations do not affect flight performance and can be easily adjusted by an experienced builder with proper tools. These precautions are intended for novice builders; an experienced modeler should have no issue achieving perfect results with these premiere scale helicopters kits.

    Product Specifications:

    AGE LEVEL: 18 and up
    SKILL LEVEL: Expert
    BUILD TIME: 4+ hours
    Class / Size 700
    Power Type Electric
    Rotor Type Collective Pitch
    Body Material Fiberglass
    Overall Size (L x W x H) 1850 x 665 x 455mm
    Flying Weight 9000g
    Main Rotor Diameter 1560mm
    Main Rotor Blade Length 700mm
    Tail Rotor Diameter 280mm
    Tail Rotor Blade Length 105mm
    Tail Drive Type Torque Tube
    Cyclic Servos 3x Metal Gear
    Tail Servo 1x Metal Gear
    Power System 450Kv Brushless Motor
    Electronic Speed Control 120A High Voltage with EC5 Connector
    Recommended Battery 2x 6S 22.2V 5000 mAh LiPo with EC5 Connector (in series for 12S)
    Battery Compartment Size (L x W x H) N/A
    Required Radio 7 Channel
    Skill Level Expert
    Build Time 4+ Hours
    Recommended Environment Outdoors
    My YouTube RC videos:
    https://www.youtube.com/channel/UCDZ..._bdGEJBmtV7YUw

  • #2
    I would like to correct this post as well as others to the correct size of this kit. After come research with a NATOPS manual and looking at the actual size of the airframe it calculates to 1/10 scale. I bought 2 pilot figures ($200.00 wasted) to place in the 1/8 scale kit, and found that they are way to big. After measuring and using a conversion scale ratio, it is in fact a 1/10 scale model.

    Comment


    • #3
      Thank you gvasquez64 for pointing that discrepancy out, I have updated the page to reflect this updated information. As one of the primary product publishers for Motion RC, I always strive to offer accurate information and specifications but can only go off of the information that is provided and unfortunately errors do occur. I thank and welcome anyone who can offer information to correct a product page as all customers will benefit.
      My YouTube RC videos:
      https://www.youtube.com/channel/UCDZ..._bdGEJBmtV7YUw
