  • Official Roban 600 Size MD-500E G-Jive Blue Scale Helicopter Conversion Kit Thread

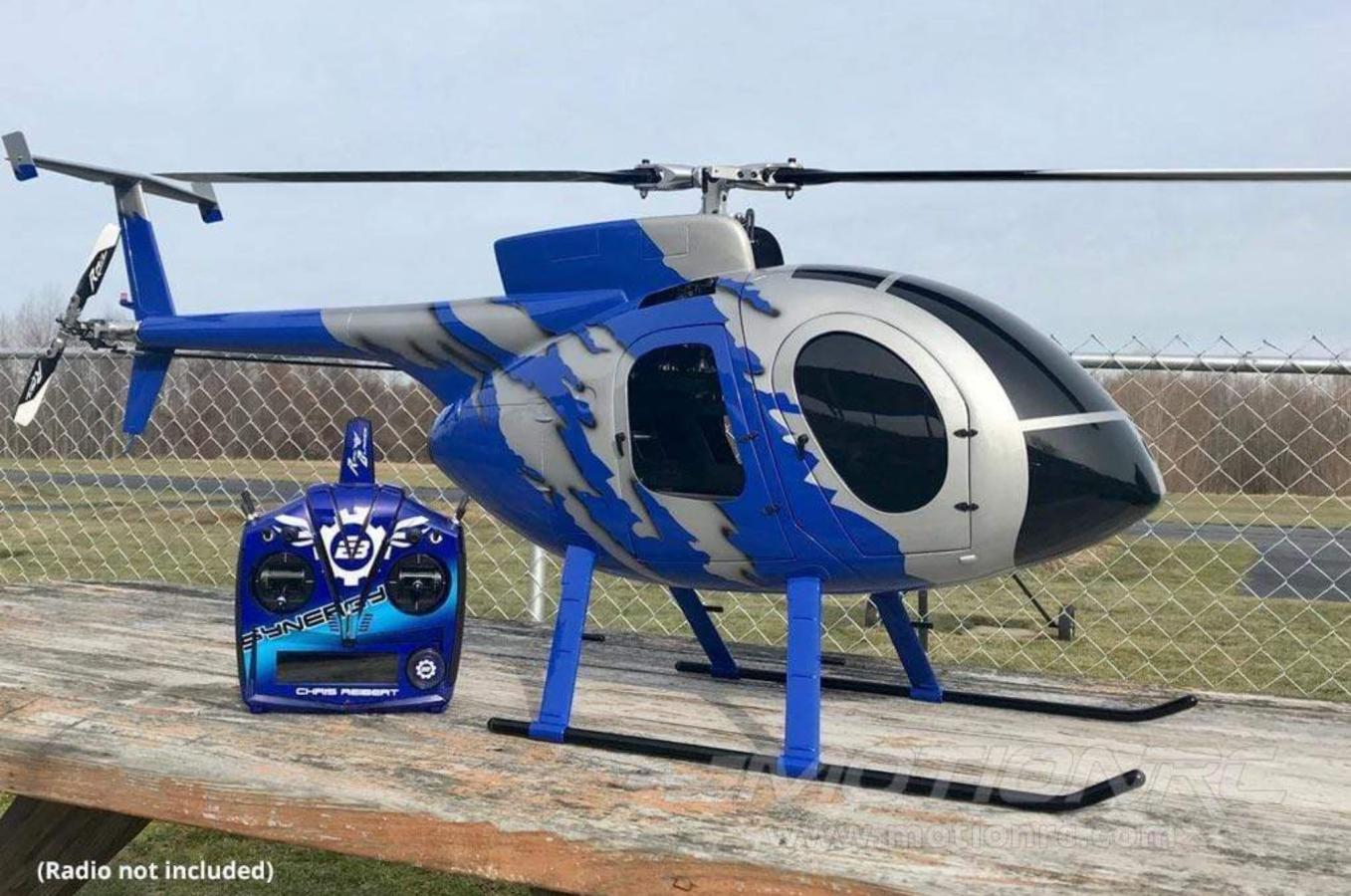

    MD-500E G-Jive Blue 600 Size Helicopter Scale Conversion Kit from Roban - RBN-KFMD500GJB6

    Click image for larger version

Name:	Capture19.JPG
Views:	828
Size:	168.1 KB
ID:	345569


    The MD 500 series is an American family of light utility civilian and military helicopters. The MD 500 was developed from the Hughes 500, a civilian version of the US Army's OH-6A Cayuse/Loach. The successful Hughes 500/MD 500 series began life in response to a U.S. Army requirement for a Light Observation Helicopter (LOH). This is the 600 size MD-500E G-Jive Blue version.

    Most of the work is done for you. All wood work is installed. Pre-drilled holes for easy install of the landing gear. Standard 600 set up is an 1100 Kv brushless outrunner motor, 80-100 amp ESC and a 6S 22.2V 5000 mAh or higher LiPo battery.

    This fuselage can be completed in as little as 4-6 hrs and is intended for the intermediate to advanced builder. No modifications needed when using stock mechanics and stock rotor head.

    Note: As of July 2018, this is an updated version of the MD500 with a full epoxy front fuselage and separate windows.

    Features:
    • Fully painted fiberglass scale fuselage
    • Magnetic cabin lock system for quick and easy access
    • Extremely detailed surface and molded panel lines
    • Use of 600 standard equipment (6S Battery, 1100Kv motor), fly with your existing parts
    Includes:
    • Roban MD-500E G-Jive Blue 600 body kit
    Requires:Optional:Important Information - Please Read
    Roban Scale Helicopters are intended for modelers who have advanced level building skills. Both ARF and KIT product formats require you to install your own electronics (ESC, servos, motor, etc). KIT product formats also require you to install your own helicopter mechanics. Because helicopter mechanics can vary greatly in size and shape, you may be required to modify the fuselage slightly (including cutting, drilling, etc.) to achieve a perfect fit. Roban fuselages are all handmade from fiberglass and therefore may have slight variation in tolerances between body panels, doors, or windows. These variations do not affect flight performance and can be easily adjusted by an experienced builder with proper tools. These precautions are intended for novice builders; an experienced modeler should have no issue achieving perfect results with these premiere scale helicopters kits.

    Product Specifications:

    AGE LEVEL: 18 and up
    SKILL LEVEL: Advanced
    BUILD TIME: 4+ hours
    Class / Size 600
    Power Type Electric
    Rotor Type Collective Pitch
    Body Material Fiberglass
    Overall Size (L x W x H) 1260 x 350 x 480mm
    Flying Weight 1353g
    Main Rotor Diameter N/A
    Main Rotor Blade Length N/A
    Tail Rotor Diameter N/A
    Tail Rotor Blade Length N/A
    Tail Drive Type Torque Tube
    Cyclic Servos 3x Metal Gear
    Tail Servo 1x Metal Gear
    Power System 1100Kv Brushless Motor
    Electronic Speed Control 130A High Voltage with EC5 Connector
    Recommended Battery 6S 22.2V 5000 mAh LiPo with EC5 Connector
    Battery Compartment Size (L x W x H) N/A
    Required Radio 7 Channel
    Skill Level Advanced
    Build Time 4+ Hours
    Recommended Environment Outdoors
