  • Official Roban 600 Size UH-60 Black Hawk V3 Scale Helicopter Conversion Kit Thread

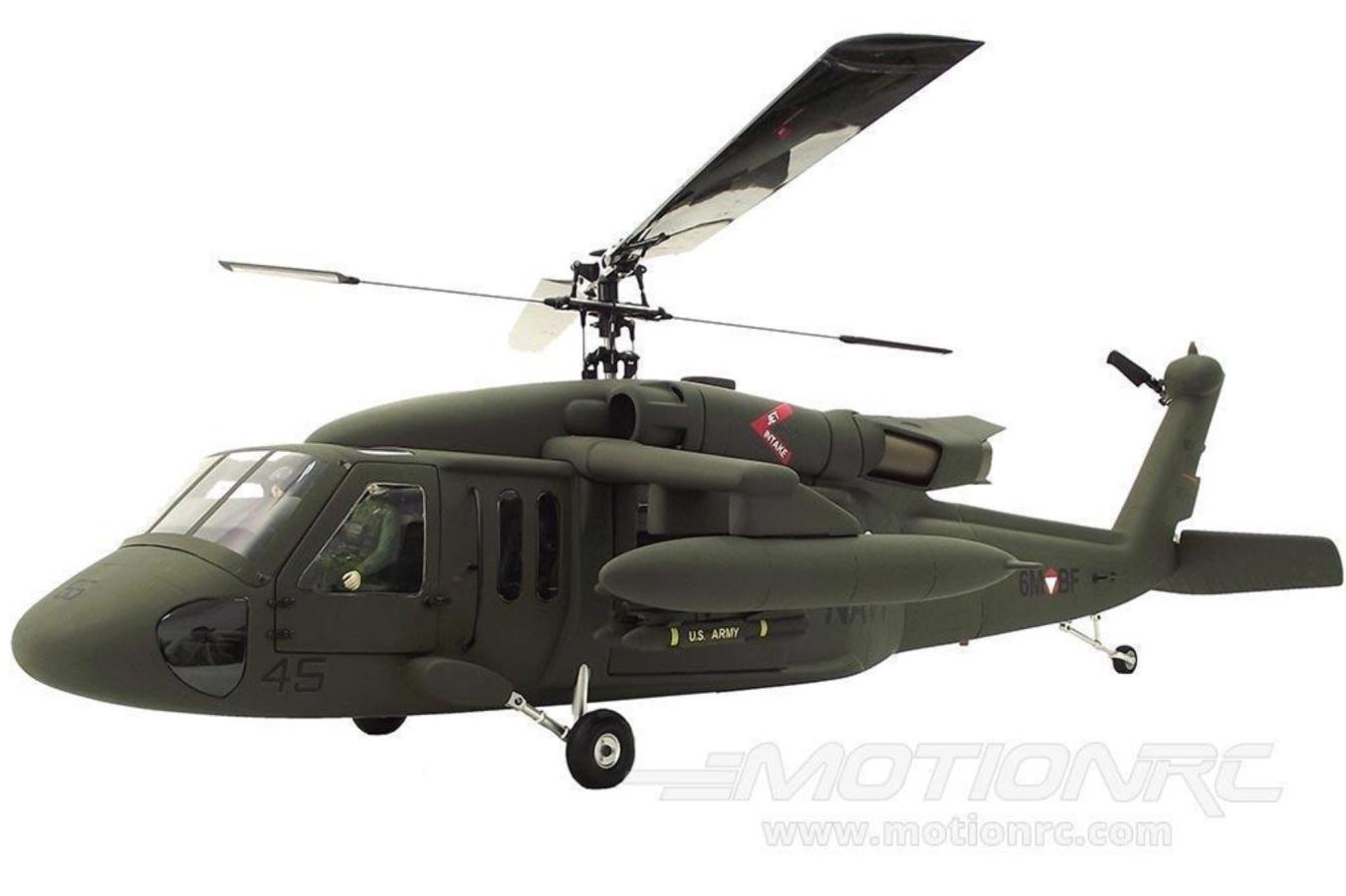

    UH-60 Black Hawk V3 600 Size Helicopter Scale Conversion Kit from Roban - RBN-KFUH60BH6

    Click image for larger version

Name:	Capture25.JPG
Views:	1154
Size:	66.1 KB
ID:	345607


    The UH-60 Black Hawk is a four-bladed, twin-engine, medium-lift utility helicopter. Named after the Native American war leader Black Hawk, the UH-60A entered service with the U.S. Army in 1979, to replace the UH-1 Iroquois as the Army's tactical transport helicopter. This was followed by the fielding of electronic warfare and special operations variants of the Black Hawk. Improved UH-60L and UH-60M utility variants have also been developed. Modified versions have also been developed for the U.S. Navy, Air Force, and Coast Guard. In addition to U.S. Army use, the UH-60 family has been exported to several nations. Black Hawks have served in combat during conflicts in Grenada, Panama, Iraq, Somalia, the Balkans, Afghanistan, and other areas in the Middle East.

    This is the 600 size UH-60 Black Hawk V3 version. Designed to take your Chaos 600 or Trex 600ESP torque tube versions* and transform it into a very scale RC version of the full scale helicopter. This kit includes everything you need to install your mechanics, including the special 5mm flex drive system specially designed for easy plug n play install in the Chaos or Align mechanics.

    These 600 scale conversion kits from Roban offer special designed side frames which are designed to offer 2 primary special features. One is to lower the transmission which allows the torque tube to travel thru the lower tail boom of the helicopter which has always been a problem with most military helicopters. Probably the most revolutionary design in scale helicopters, these frames allow the entire mechanical system to be tucked up inside the dog house just like the full scale helicopters.

    No more mechanics taking up the entire fuselage area leaving no room for cockpits, rear seats, etc.

    Most of the work is done for you. All wood work is installed. Pre-drilled holes for easy install of the landing gear. Standard 600 set up is an 1100 Kv brushless outrunner motor, 80-100 amp ESC and a 6S 22.2V 5000 mAh or higher LiPo battery.

    This fuselage can be completed in as little as 4-6 hrs and is intended for the intermediate to advanced builder. No modifications needed when using stock mechanics and stock rotor head.

    * Note: This kit does not fit the Trex 600 Pro EFL models.

    Features:
    • Fully painted fiberglass scale fuselage
    • Magnetic cabin lock system for quick and easy access
    • Extremely detailed surface and molded panel lines
    • Use of 600 standard equipment (6S Battery, 1100Kv motor), fly with your existing parts
    Includes:
    • Roban UH-60 Black Hawk V3 600 body kit
    Requires:Optional:Important Information - Please Read
    Roban Scale Helicopters are intended for modelers who have advanced level building skills. Both ARF and KIT product formats require you to install your own electronics (ESC, servos, motor, etc). KIT product formats also require you to install your own helicopter mechanics. Because helicopter mechanics can vary greatly in size and shape, you may be required to modify the fuselage slightly (including cutting, drilling, etc.) to achieve a perfect fit. Roban fuselages are all handmade from fiberglass and therefore may have slight variation in tolerances between body panels, doors, or windows. These variations do not affect flight performance and can be easily adjusted by an experienced builder with proper tools. These precautions are intended for novice builders; an experienced modeler should have no issue achieving perfect results with these premiere scale helicopters kits.

    Product Specifications:

    AGE LEVEL: 18 and up
    SKILL LEVEL: Advanced
    BUILD TIME: 4+ hours
    Class / Size 600
    Power Type Electric
    Rotor Type Collective Pitch
    Body Material Fiberglass
    Overall Size (L x W x H) 1524 x 241 x 254mm
    Flying Weight 1500g
    Main Rotor Diameter N/A
    Main Rotor Blade Length N/A
    Tail Rotor Diameter N/A
    Tail Rotor Blade Length N/A
    Tail Drive Type Torque Tube
    Cyclic Servos 3x Metal Gear
    Tail Servo 1x Metal Gear
    Power System 1100Kv Brushless Motor
    Electronic Speed Control 130A High Voltage with EC5 Connector
    Recommended Battery 6S 22.2V 5000 mAh LiPo with EC5 Connector
    Battery Compartment Size (L x W x H) N/A
    Required Radio 7 Channel
    Skill Level Advanced
    Build Time 4+ Hours
    Recommended Environment Outdoors
