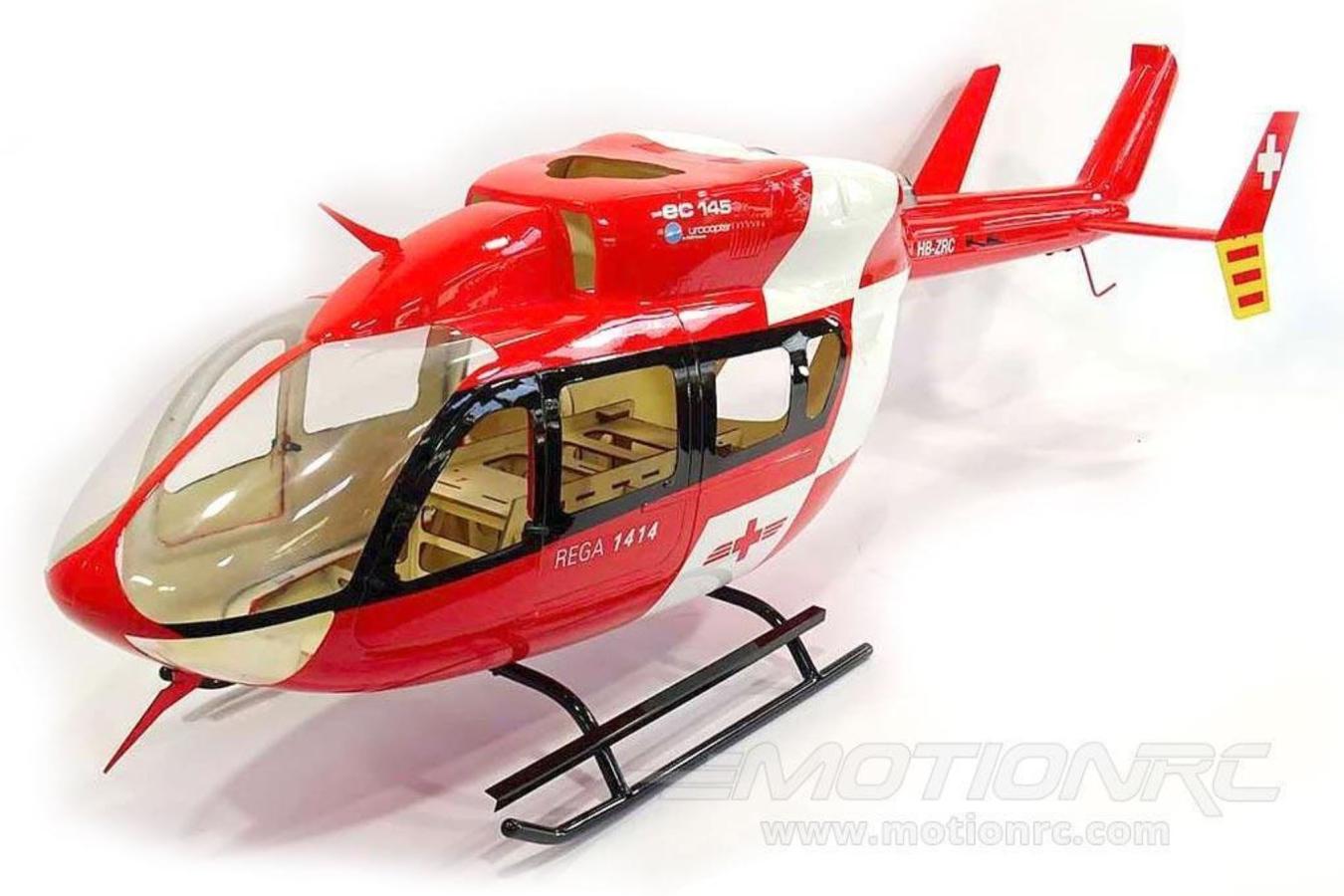

EC-145 Swiss Medic Red/White 600 Size Helicopter Scale Conversion Kit from Roban - RBN-KF145RW-6
The Eurocopter EC145 is a twin-engine light utility helicopter developed and manufactured by Eurocopter, which was rebranded as Airbus Helicopters in 2014. The EC145 is a twin-engine helicopter and can carry up to nine passengers along with two crew, depending on customer configuration. The helicopter is marketed for passenger transport, corporate transport, emergency medical services (EMS), search and rescue, parapublic and utility roles. This is the 600 size EC-145 Swiss Medic Red/White version. Designed to take your Chaos 600 or Trex 600ESP torque tube versions* and transform it into a very scale RC version of the full scale helicopter. This kit includes everything you need to install your mechanics, including the 45 degree angle raised tail gearbox specially designed for easy plug-n-play install in the Chaos or Align mechanics.
Most of the work is done for you. All wood work is installed. Pre-drilled holes for easy install of the landing gear. Standard 600 set up is an 1100 Kv brushless outrunner motor, 80-100 amp ESC and a 6S 22.2V 5000 mAh or higher LiPo battery.
This fuselage can be completed in as little as 4-6 hrs and is intended for the intermediate to advanced builder.
Features:
- Fully painted fiberglass scale fuselage
- Magnetic cabin lock system for quick and easy access
- Extremely detailed surface and molded panel lines
- Use of 600 standard equipment (6S Battery, 1100Kv motor), fly with your existing parts
- Roban EC-145 Swiss Medic Red/White 600 - Body Kit
- 600 Size helicopter kit - we recommend the Phoenixtech 600ESP helicopter kit
- Helicopter flight controller - we recommend the BeastX MicroBeast Plus Flybarless System
- Electronic speed control (ESC) - we recommend the Castle Creations Phoenix Edge 100A ESC with 5A SBEC
- Battery eliminator circuit (BEC) - we recommend the Castle Creations 20A BEC Pro
- Brushless motor - we recommend the Scorpion HKIV 4025-1100Kv Brushless Motor
- Three cyclic servos - we recommend the MKS DS1220 High Torque Servo Multi-Pack (3 Servos)
- Tail servo - we recommend the MKS HBL669 Standard Tail Servo
- 6 Cell 22.2V 5000 mAh LiPo Battery with EC5 connector - We recommend the Admiral 6 Cell 22.2V 5000 mAh LiPo Battery with EC5 Connector
- 8 Channel radio - select a minimum 8 channel radio with pitch and throttle curves from our Radio Collection
- 8 Channel receiver - select a minimum 8 channel receiver from our Receiver Collection
Roban Scale Helicopters are intended for modelers who have advanced level building skills. Both ARF and KIT product formats require you to install your own electronics (ESC, servos, motor, etc). KIT product formats also require you to install your own helicopter mechanics. Because helicopter mechanics can vary greatly in size and shape, you may be required to modify the fuselage slightly (including cutting, drilling, etc.) to achieve a perfect fit. Roban fuselages are all handmade from fiberglass and therefore may have slight variation in tolerances between body panels, doors, or windows. These variations do not affect flight performance and can be easily adjusted by an experienced builder with proper tools. These precautions are intended for novice builders; an experienced modeler should have no issue achieving perfect results with these premiere scale helicopters kits.
Product Specifications:
AGE LEVEL: 18 and up
SKILL LEVEL: Advanced
BUILD TIME: 4+ hours
| Class / Size | 600 |
| Power Type | Electric |
| Rotor Type | Collective Pitch |
| Body Material | Fiberglass |
| Overall Size (L x W x H) | 1460 x 365 x 385mm |
| Flying Weight | 1500g |
| Main Rotor Diameter | N/A |
| Main Rotor Blade Length | N/A |
| Tail Rotor Diameter | N/A |
| Tail Rotor Blade Length | N/A |
| Tail Drive Type | Torque Tube |
| Cyclic Servos | 3x Metal Gear |
| Tail Servo | 1x Metal Gear |
| Power System | 1100Kv Brushless Motor |
| Electronic Speed Control | 120A High Voltage with EC5 Connector |
| Recommended Battery | 6S 22.2V 5000 mAh LiPo with EC5 Connector |
| Battery Compartment Size (L x W x H) | N/A |
| Required Radio | 7 Channel |
| Skill Level | Advanced |
| Build Time | 4+ Hours |
| Recommended Environment | Outdoors |
