  • Official Roban 500 Size AH-1 Cobra Camo Scale Helicopter Conversion Kit Thread

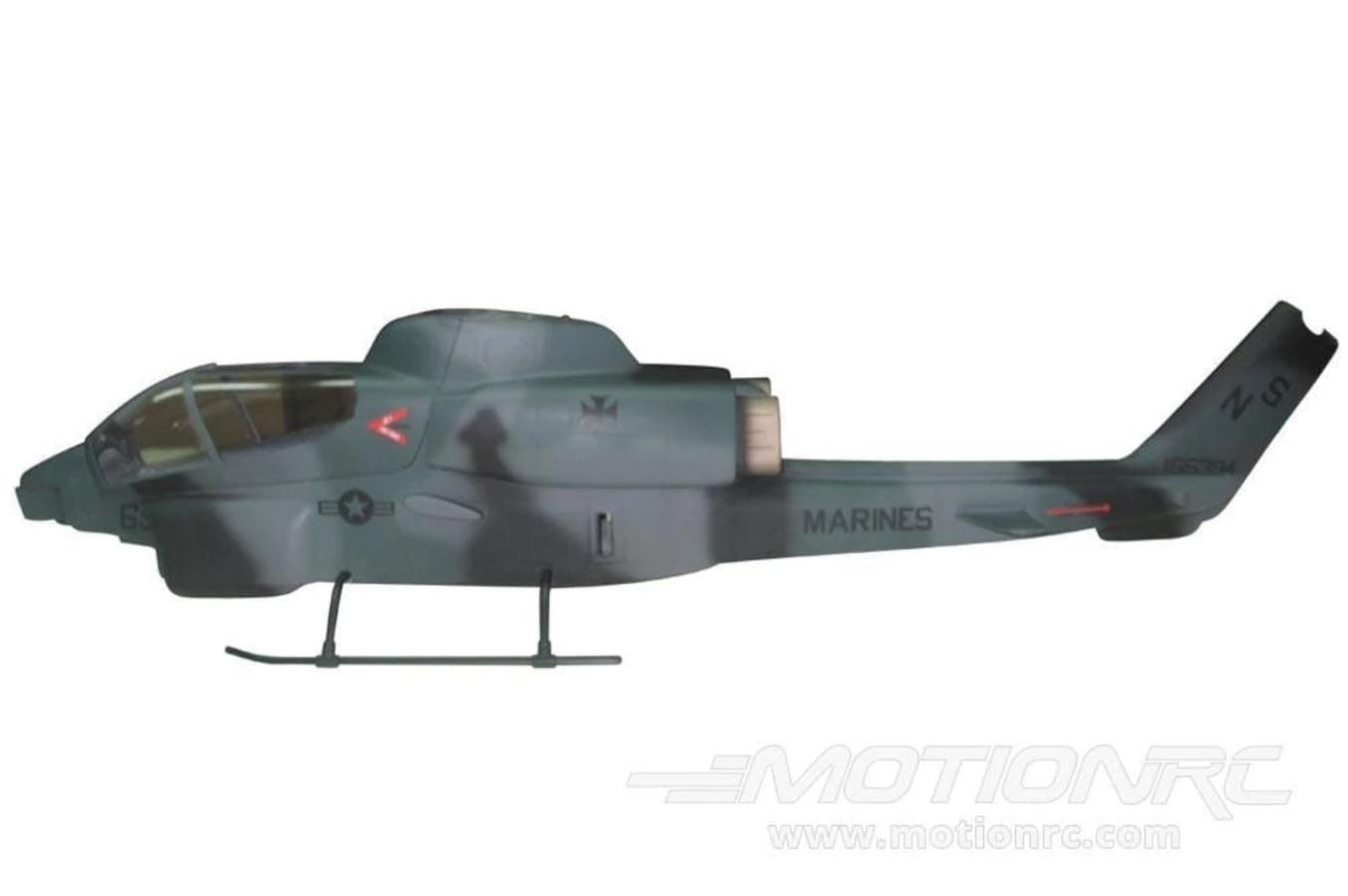

    AH-1 Cobra Camo 500 Size Helicopter Scale Conversion Kit from Roban - RBN-KFAH1C5

    Click image for larger version

Name:	Capture41.JPG
Views:	1009
Size:	41.8 KB
ID:	345670


    The Roban AH-1 Cobra Camo 500 size is a scale conversion kit modeled after the famous AH-1 Cobra attack helicopter used by the US Marines. This is a premium scale conversion kit that offers tremendous detail. From tip-to-tail the AH-1 Cobra body kit displays an accuracy of detail to the real aircraft not normally seen in the RC helicopter hobby.

    This kit comes with a scale detail features like guns, rocket launchers, aerials, windshield wipers, and more. Floor and ceiling details can be crafted so once the interiors are installed you have an impressively scaled cockpit/interior.

    These scale kits house the cockpit (sold separately) in precisely the right location and the mechanics are built into the engine compartment just like in the full-scale version. The AH-1 Cobra really impresses with the highly detailed and accurately scaled down profile.

    Features:
    • Fully painted fiberglass scale fuselage
    • Extremely detailed surface with molded panel lines and rivets
    • Parts for elevated tail rotor
    • Scale weapons set (guns and rockets)
    • Use of 500 standard equipment (6S Battery, 1400-1600Kv motor), fly with your existing parts
    • 1127mm long
    Includes:
    • Roban AH-1 Cobra Camo 500 body kit
    • Scale weapons set (guns and rocket launchers)
    Requires:Optional:Important Information - Please Read
    Roban Scale Helicopters are intended for modelers who have advanced level building skills. Both ARF and KIT product formats require you to install your own electronics (ESC, servos, motor, etc). KIT product formats also require you to install your own helicopter mechanics. Because helicopter mechanics can vary greatly in size and shape, you may be required to modify the fuselage slightly (including cutting, drilling, etc.) to achieve a perfect fit. Roban fuselages are all handmade from fiberglass and therefore may have slight variation in tolerances between body panels, doors, or windows. These variations do not affect flight performance and can be easily adjusted by an experienced builder with proper tools. These precautions are intended for novice builders; an experienced modeler should have no issue achieving perfect results with these premiere scale helicopters kits.

    Product Specifications:

    AGE LEVEL: 18 and up
    SKILL LEVEL: Advanced
    BUILD TIME: 4+ hours

    Class / Size 500
    Power Type Electric
    Rotor Type Collective Pitch
    Body Material Fiberglass
    Overall Size (L x W x H) 1127 x 328 x 245mm
    Flying Weight 1195g
    Main Rotor Diameter N/A
    Main Rotor Blade Length N/A
    Tail Rotor Diameter N/A
    Tail Rotor Blade Length N/A
    Tail Drive Type Servo
    Cyclic Servos 3x Metal Gear
    Tail Servo 1x Metal Gear
    Power System 3226-1400Kv Brushless Motor
    Electronic Speed Control 100A ESC
    Recommended Battery 6S 22.2V 2600 - 3300 mAh LiPo with XT60 Connector
    Battery Compartment Size (L x W x H) N/A
    Required Radio 7 Channel
    Skill Level Advanced
    Build Time 4+ Hours
    Recommended Environment Outdoors
