    What does "servo range of at least 300oz" mean

    What does 300oz mean when discussing tail servo range?
  • Beeg
    So many planes. So little time!

    • Dec 2016
    • 1335
    • Texas
    • Send PM

    #2
    That would be the torque of the servo in oz./in. In other words how much power the servo has...

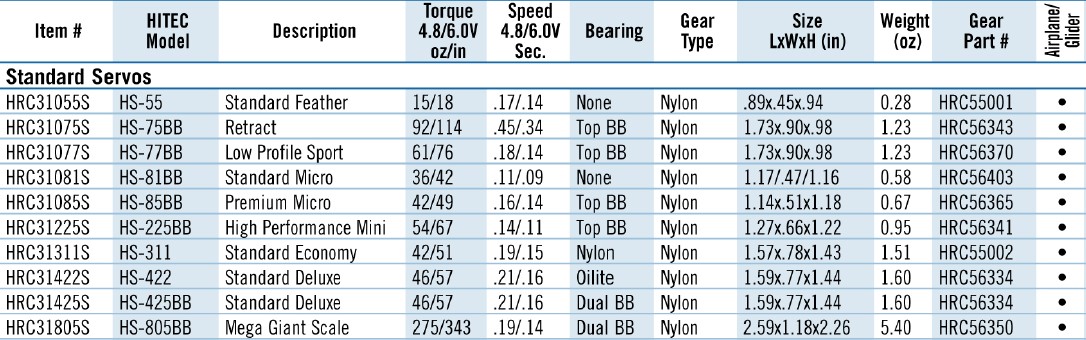

    Here is an example for older, non-high voltage (HV) Hitec servos.. Notice the torque listed at 4.8 and 6.0 volts in oz./in.
    Click image for larger version  Name:	ServoTorque.jpg Views:	0 Size:	153.3 KB ID:	257371
    If you want even more torque in a smaller package go to Hitec, MKS, Spektrum and look at their HV servos.. at 7.4 and 8 volts they start getting pretty powerful..
