3D printed 1/72nd Columbia class submarine

Collapse
X
Collapse
First Prev Next Last

  • Filter
  • Time
  • Show
Clear All
new posts

  • 3D printed 1/72nd Columbia class submarine

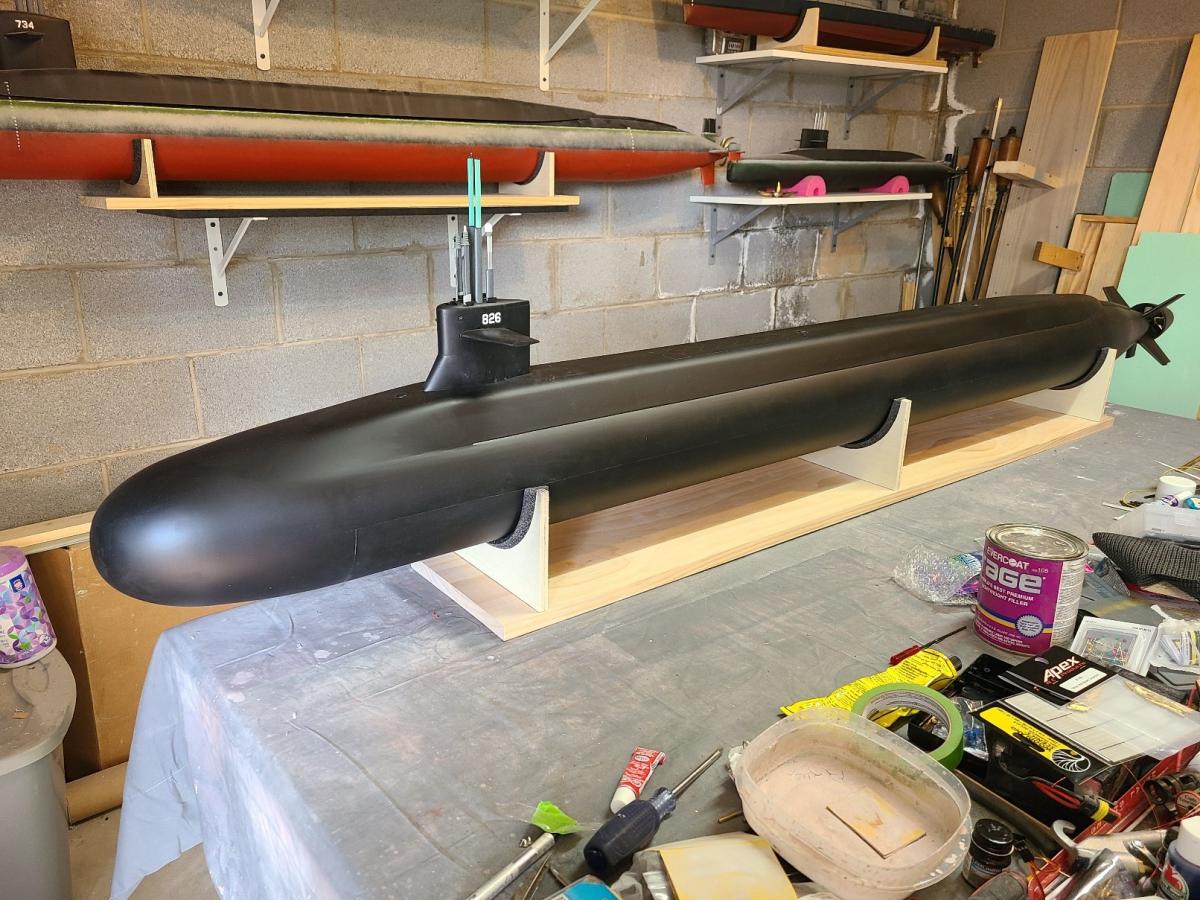

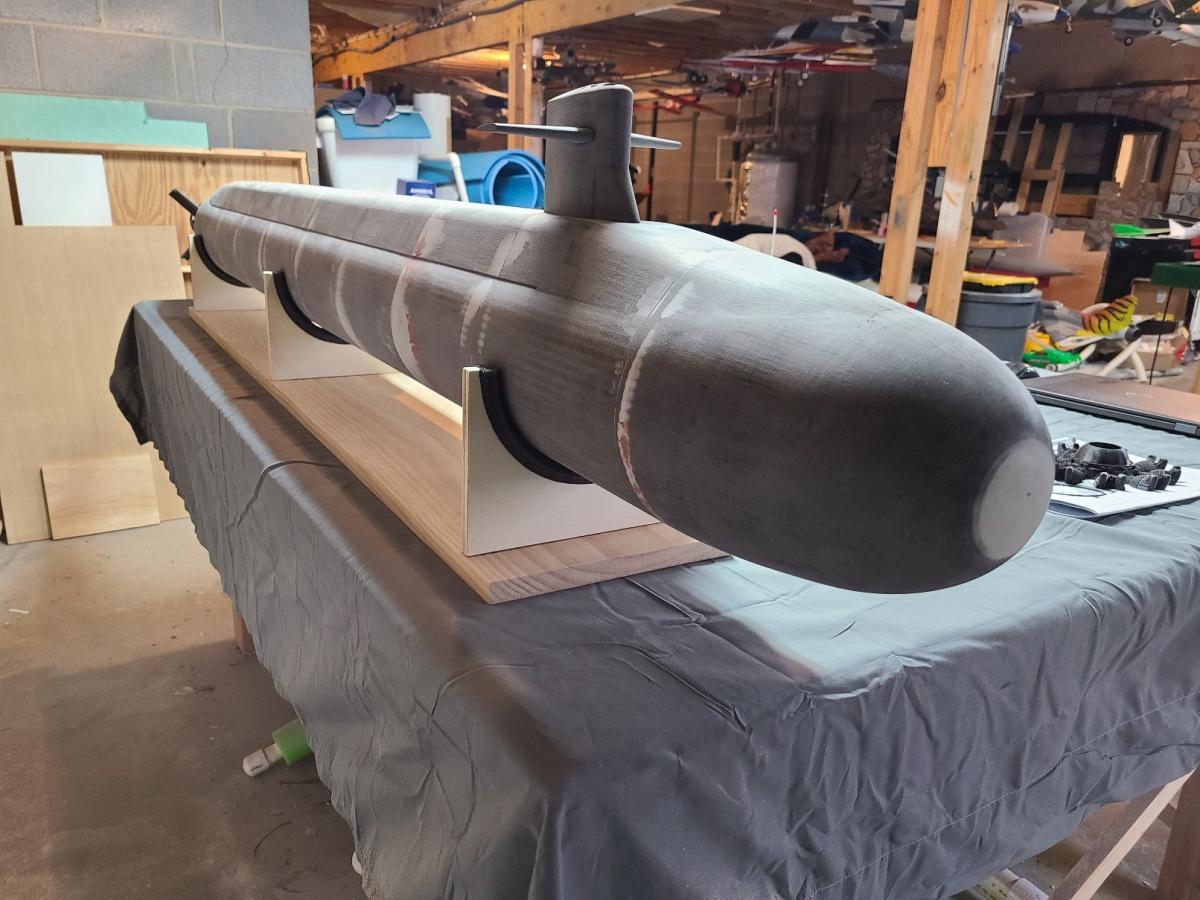

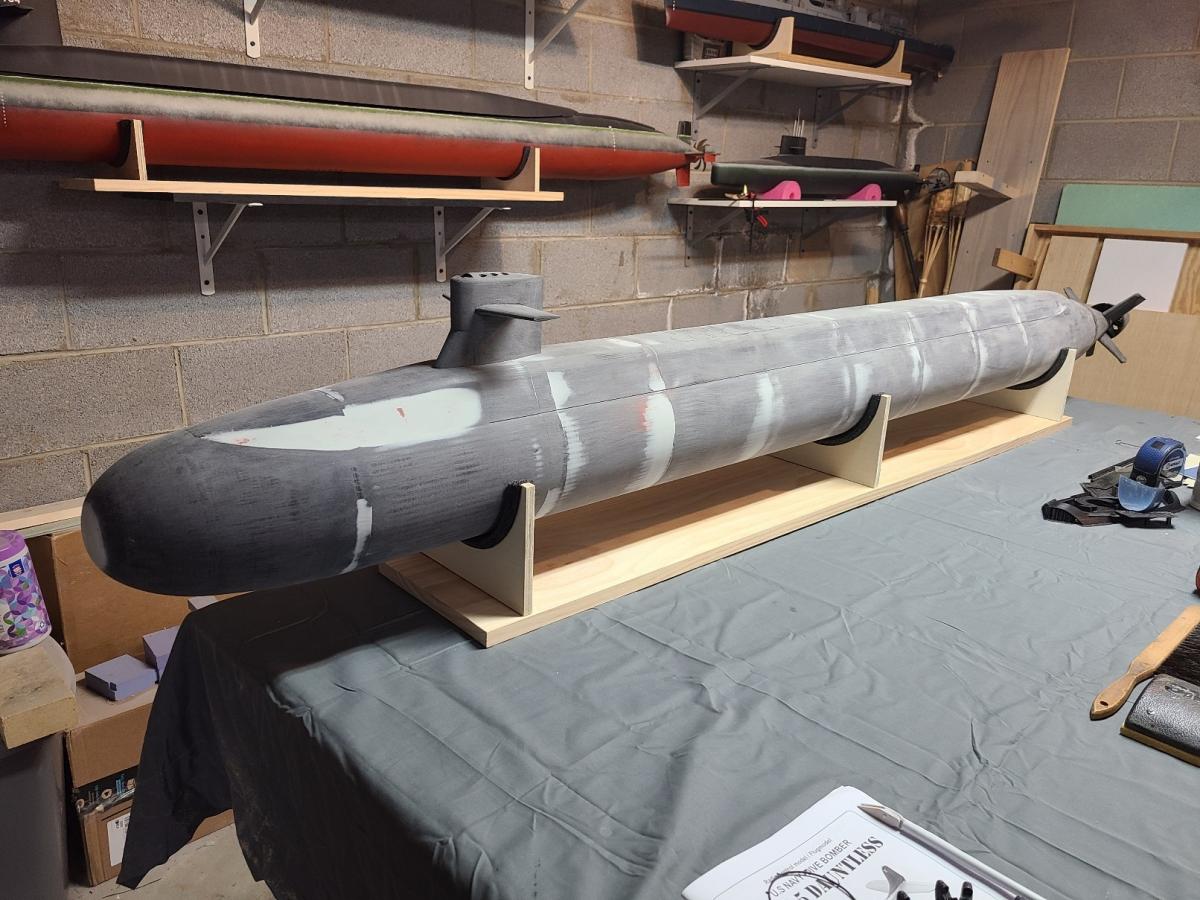

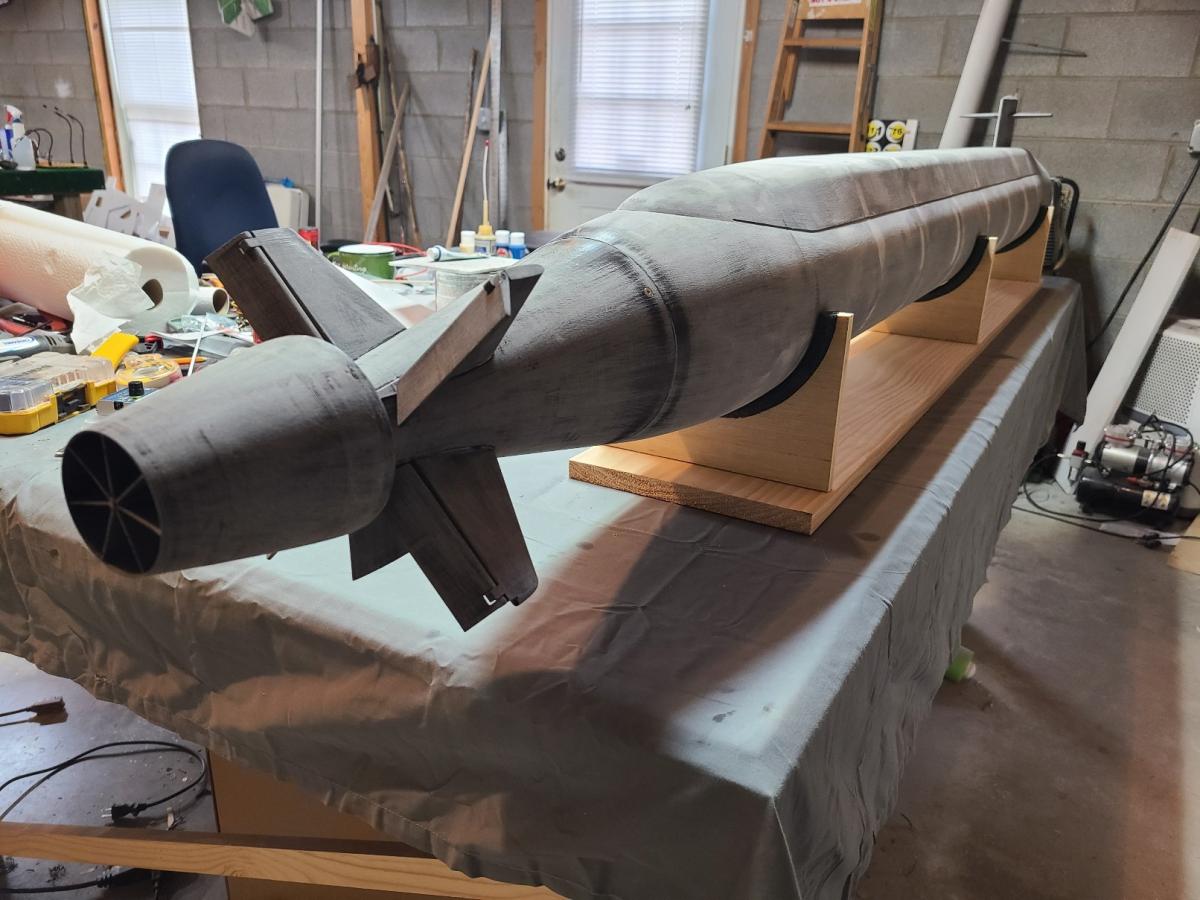

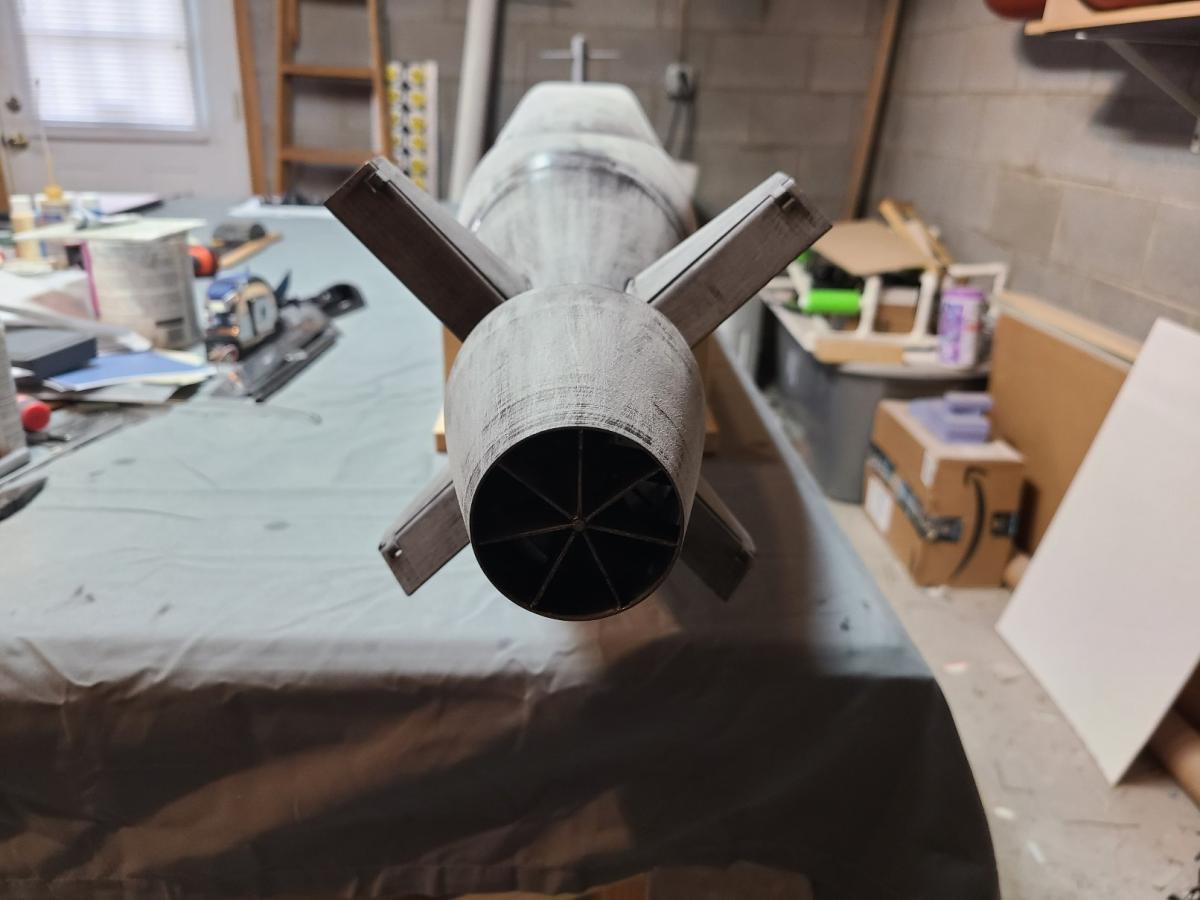

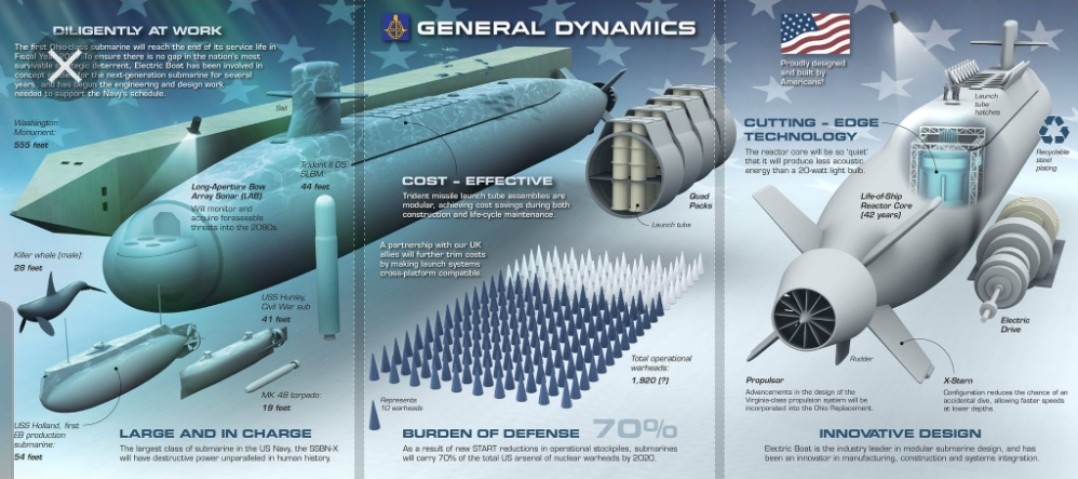

    This is my 3D printed Columbia class sub (SSBN-826) measuring in at 93" long with a 7-1/8" beam. Based solely on artists conceptual drawings as they just started building the first boat back in October.. Completely printed with ASA filament on my Ender 3 Pro. It is ready to split the hull and start working on the running gear. Nothing fancy. It is too cold to put a coat of primer on it and needs a few things done inside first. This was my first full CAD project using Fusion 360 and could still use some tweaks but it turned out well. Taught me a lot in the process but something I did over my Christmas break. It took 4 spools of filament and just over 3 weeks to print. I still need to design some interior bulkheads but they should be easy. Altogether I estimate I will have about $500 in this one. Will be using the water tight enclosure and power module from my Ohio in it. Always good to share components when possible.

    Click image for larger version

Name:	SmartSelect_20201115-021615_Firefox.jpg
Views:	139
Size:	291.2 KB
ID:	306981

    Click image for larger version  Name:	SmartSelect_20201218-144137_Firefox.jpg Views:	128 Size:	127.0 KB ID:	297697
    Click image for larger version  Name:	20210130_111421_copy_1612x1209.jpg Views:	86 Size:	126.3 KB ID:	297698

    Click image for larger version  Name:	20210130_111308_copy_1612x1209.jpg Views:	84 Size:	143.9 KB ID:	297699
    Click image for larger version  Name:	20210130_111339_copy_1612x1209.jpg Views:	79 Size:	78.3 KB ID:	297700
    Click image for larger version  Name:	20210130_111352_copy_1612x1209.jpg Views:	76 Size:	121.2 KB ID:	297701

  • #2
    WOW! Very Cool.
    Mike
    \"When Inverted Down Is Up And Up Is Expensive\"

    Comment


    • #3

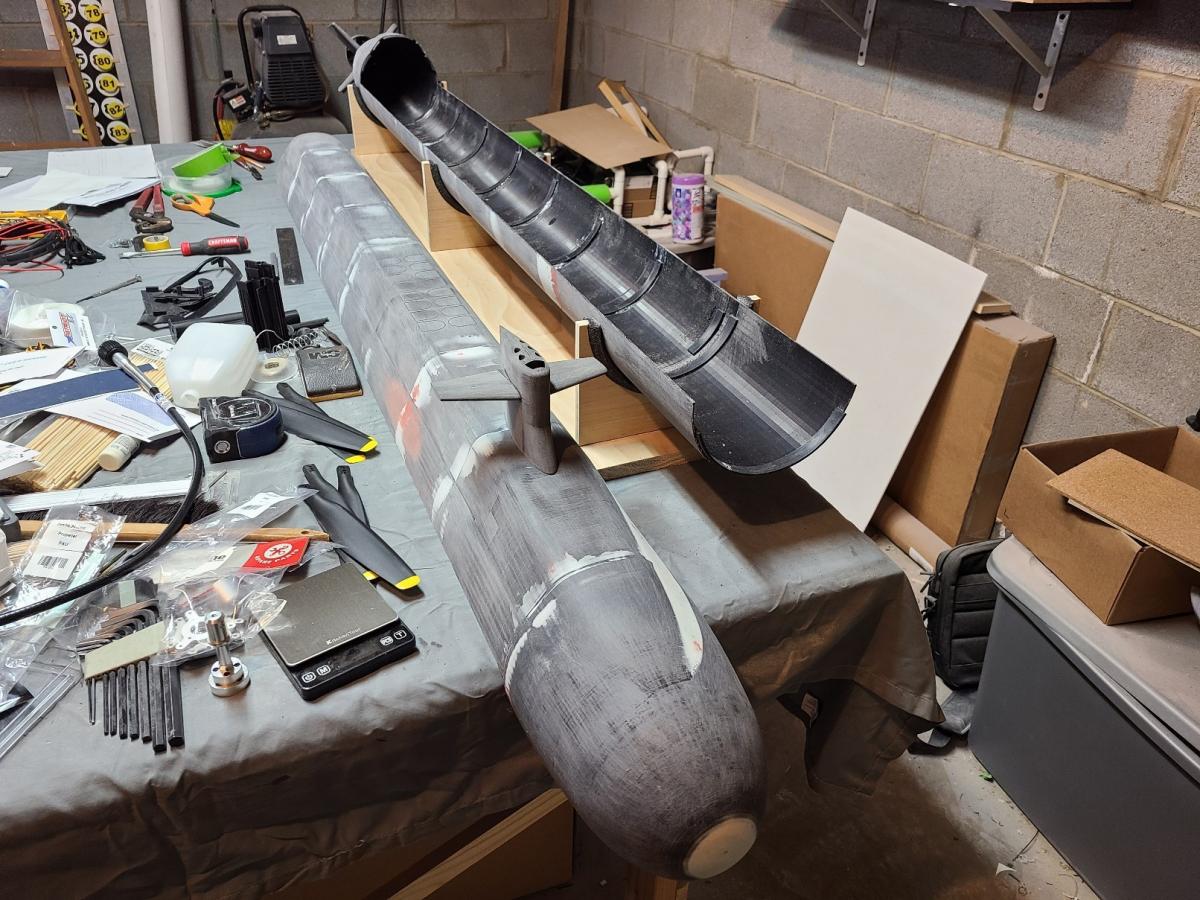

      It didn't take long to cut the sides with a razor saw and split the hull.

      Click image for larger version

Name:	20210204_102522_copy_1612x1209.jpg
Views:	211
Size:	173.9 KB
ID:	297923

      Comment


      • #4

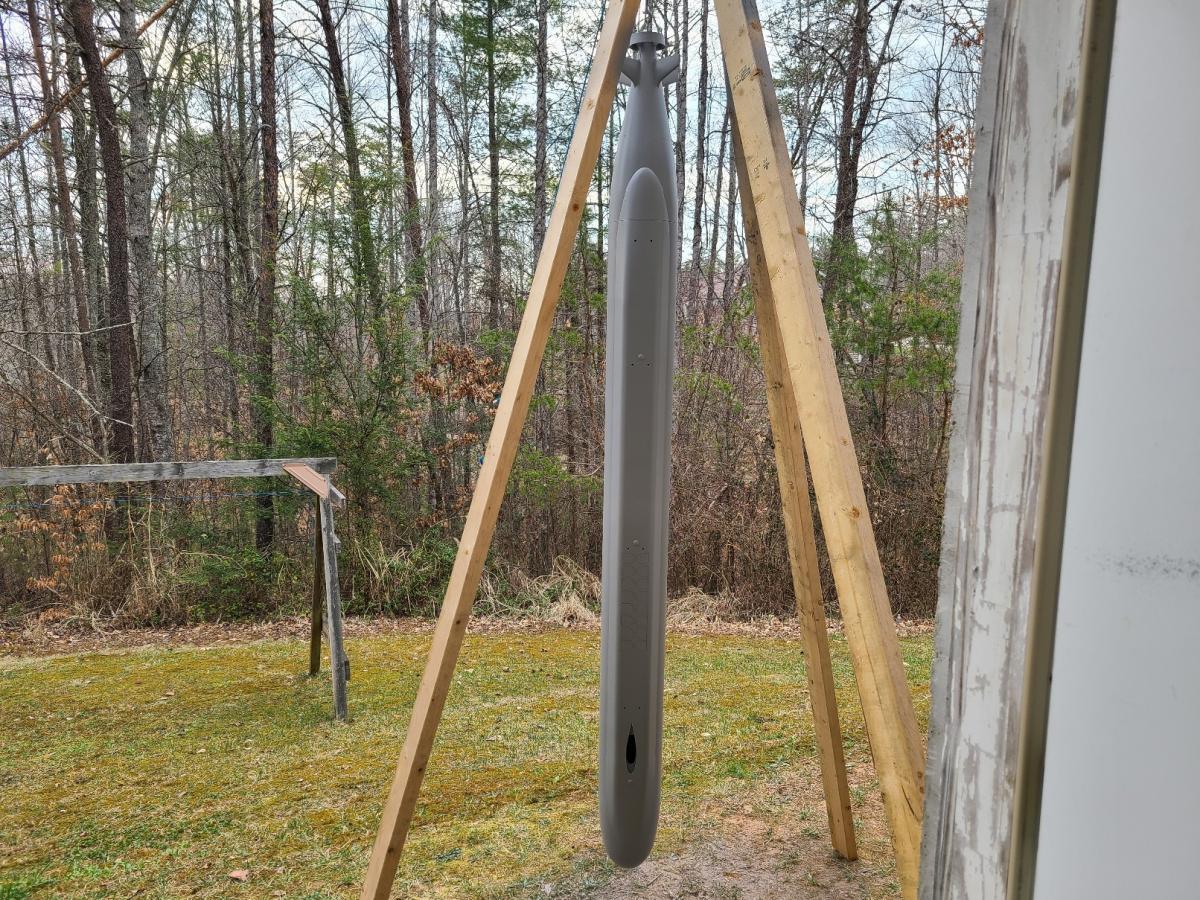

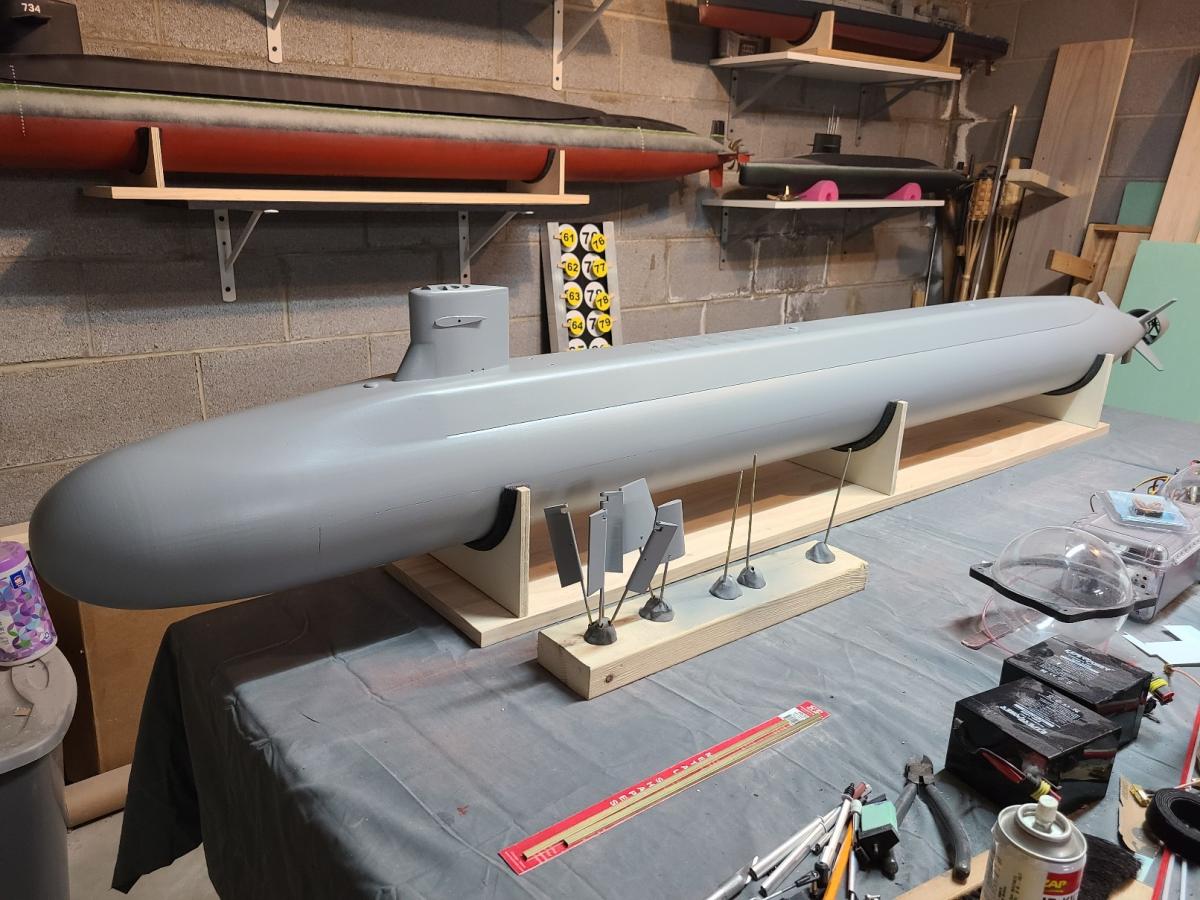

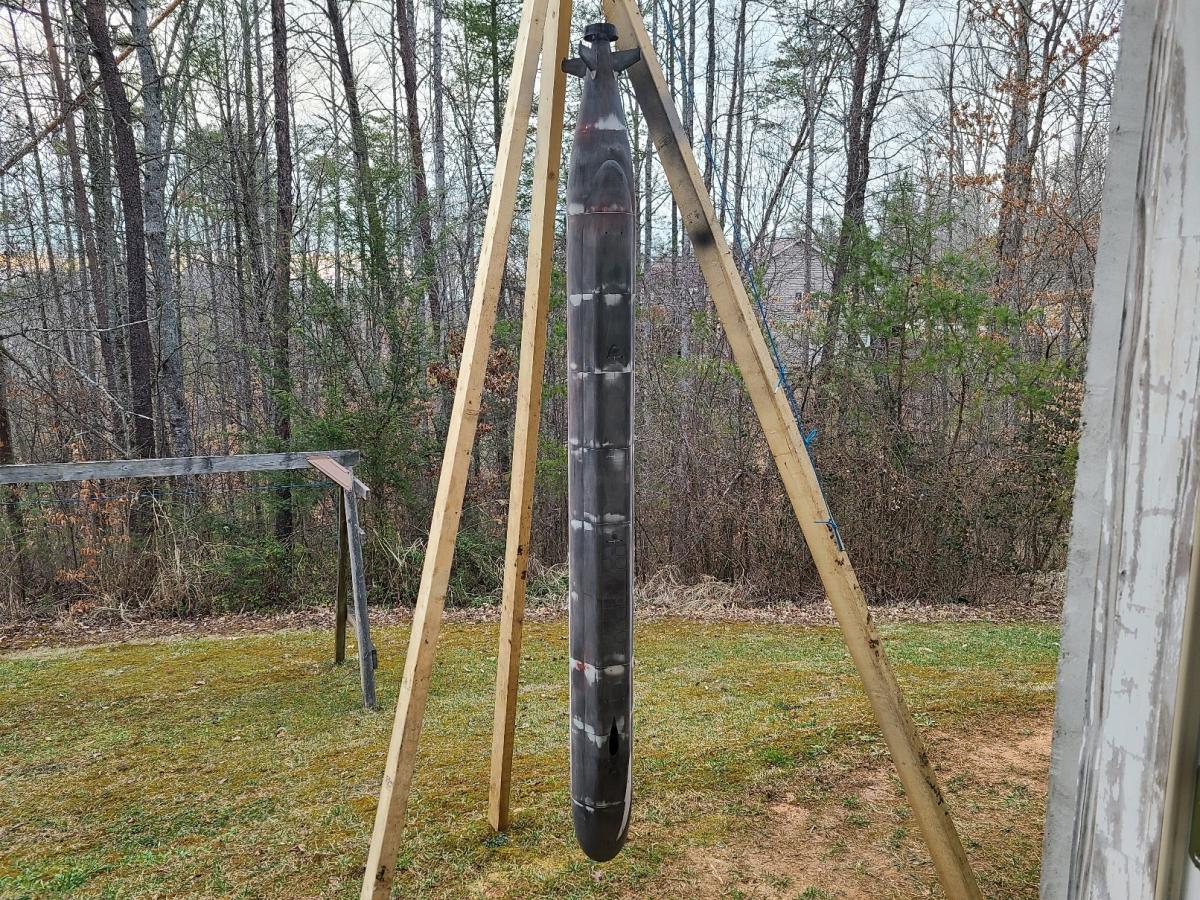

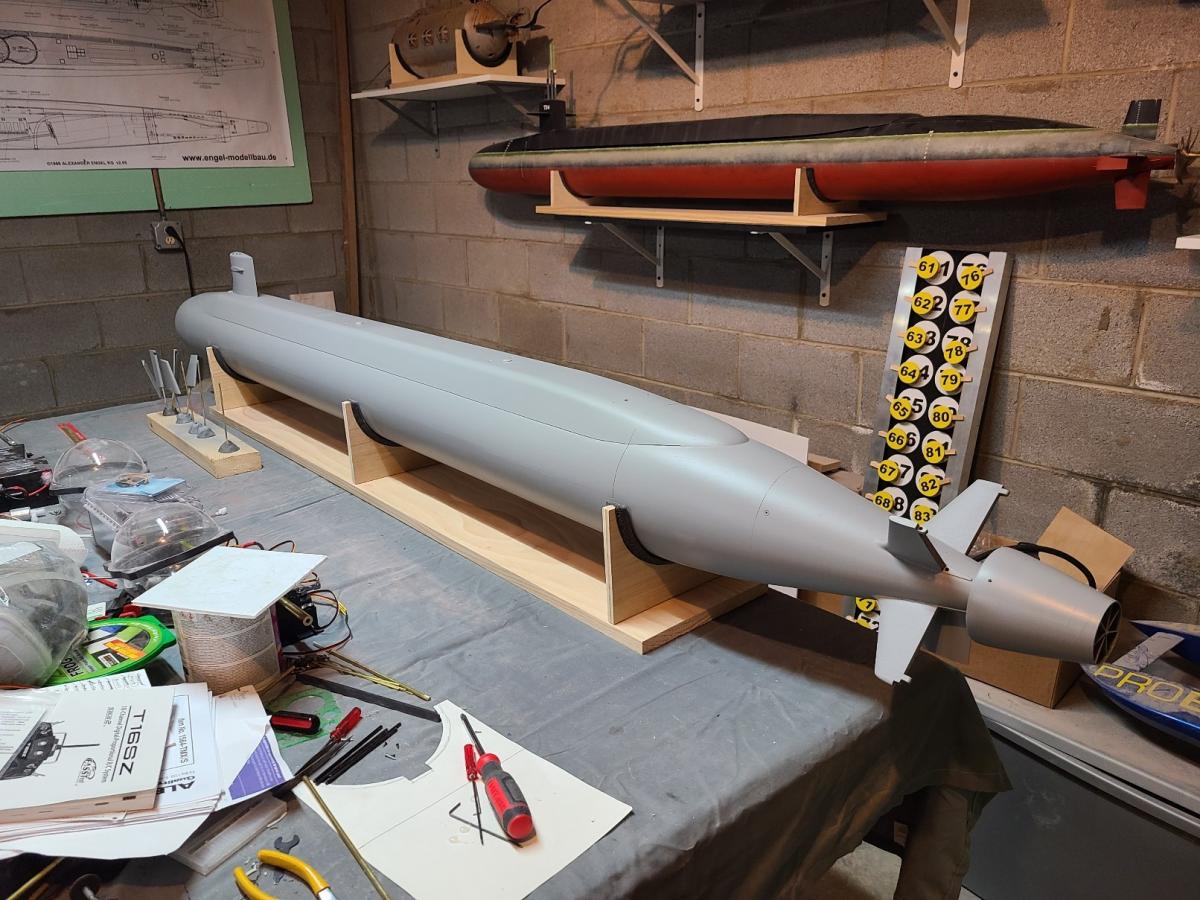

        It now has a coat of primer and looking very good. Getting close to being finished.

        Click image for larger version

Name:	20210310_175045_copy_1612x1209.jpg
Views:	167
Size:	362.1 KB
ID:	303884
        Click image for larger version

Name:	20210311_172348_copy_1612x1209.jpg
Views:	141
Size:	293.8 KB
ID:	303885
        Click image for larger version

Name:	20210311_184952_copy_1612x1209.jpg
Views:	144
Size:	146.4 KB
ID:	303886
        Click image for larger version

Name:	20210311_184936_copy_1612x1209.jpg
Views:	147
Size:	160.1 KB
ID:	303887

        Comment


        • #5

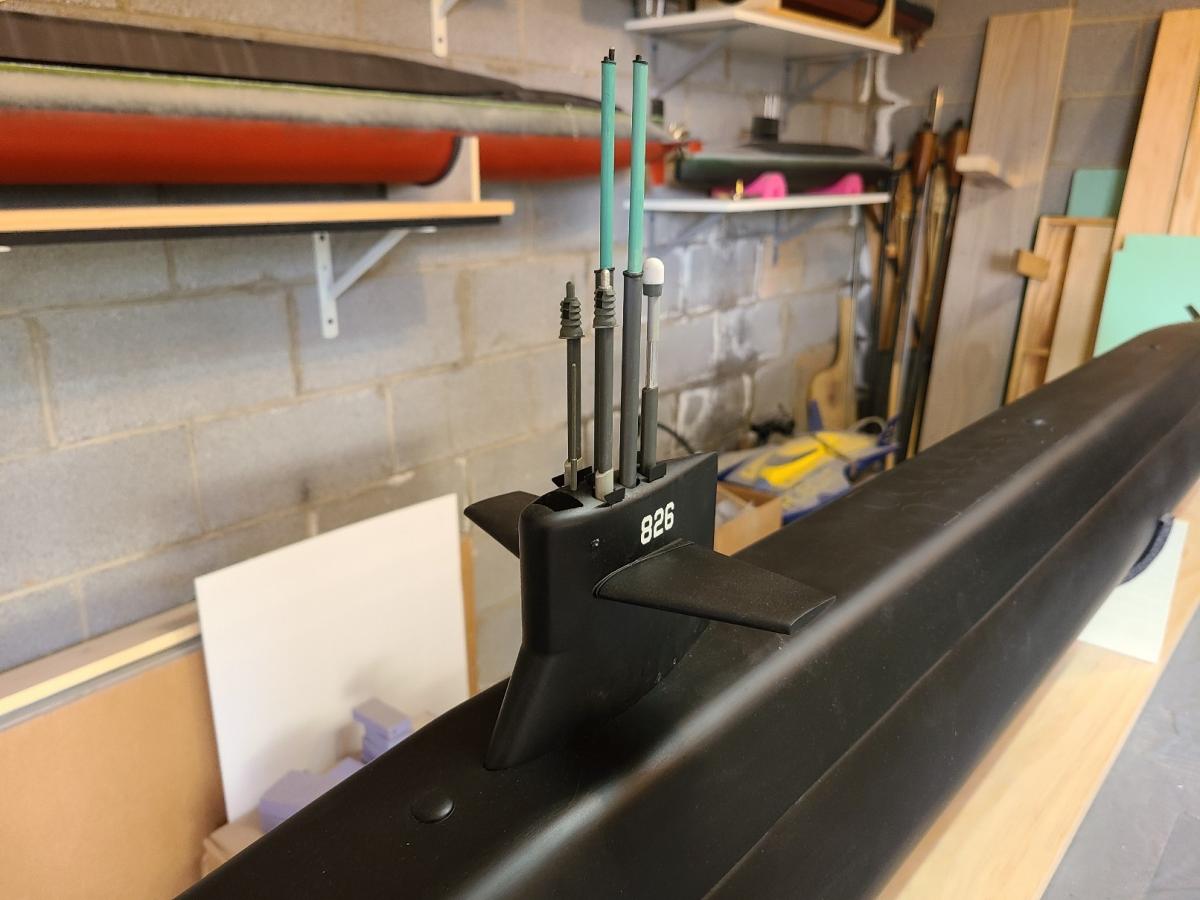

          Getting very close to being done. Lights installed. Down to some final wiring and radio setup.

          Click image for larger version

Name:	20210330_165829_copy_1612x1209.jpg
Views:	150
Size:	173.9 KB
ID:	306978
          Click image for larger version

Name:	20210330_165903_copy_1612x1209.jpg
Views:	118
Size:	89.7 KB
ID:	306979
          Click image for larger version

Name:	20210330_165848_copy_1612x1209.jpg
Views:	123
Size:	187.7 KB
ID:	306980

          Comment


          • #6
            Wow

            Mike
            \"When Inverted Down Is Up And Up Is Expensive\"

            Comment


            • #7
              Update time.

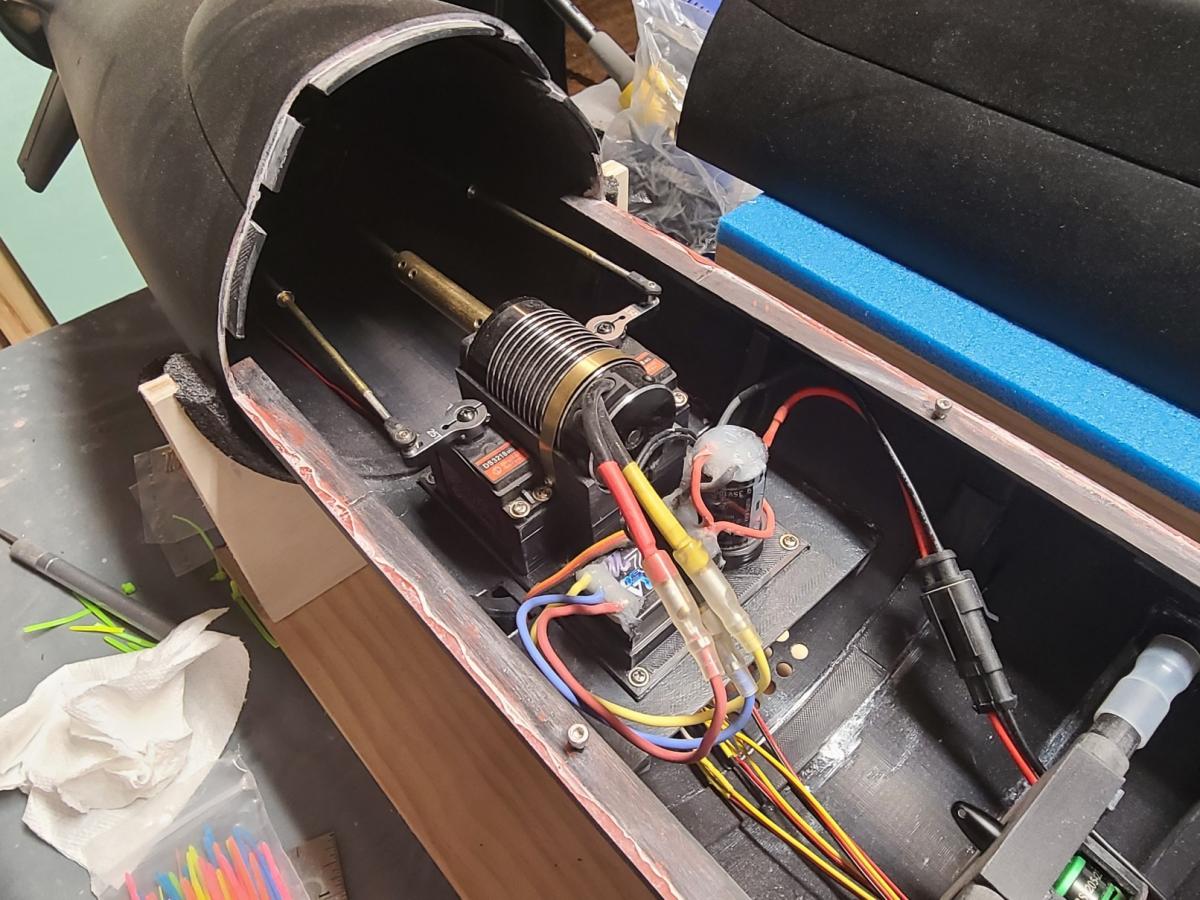

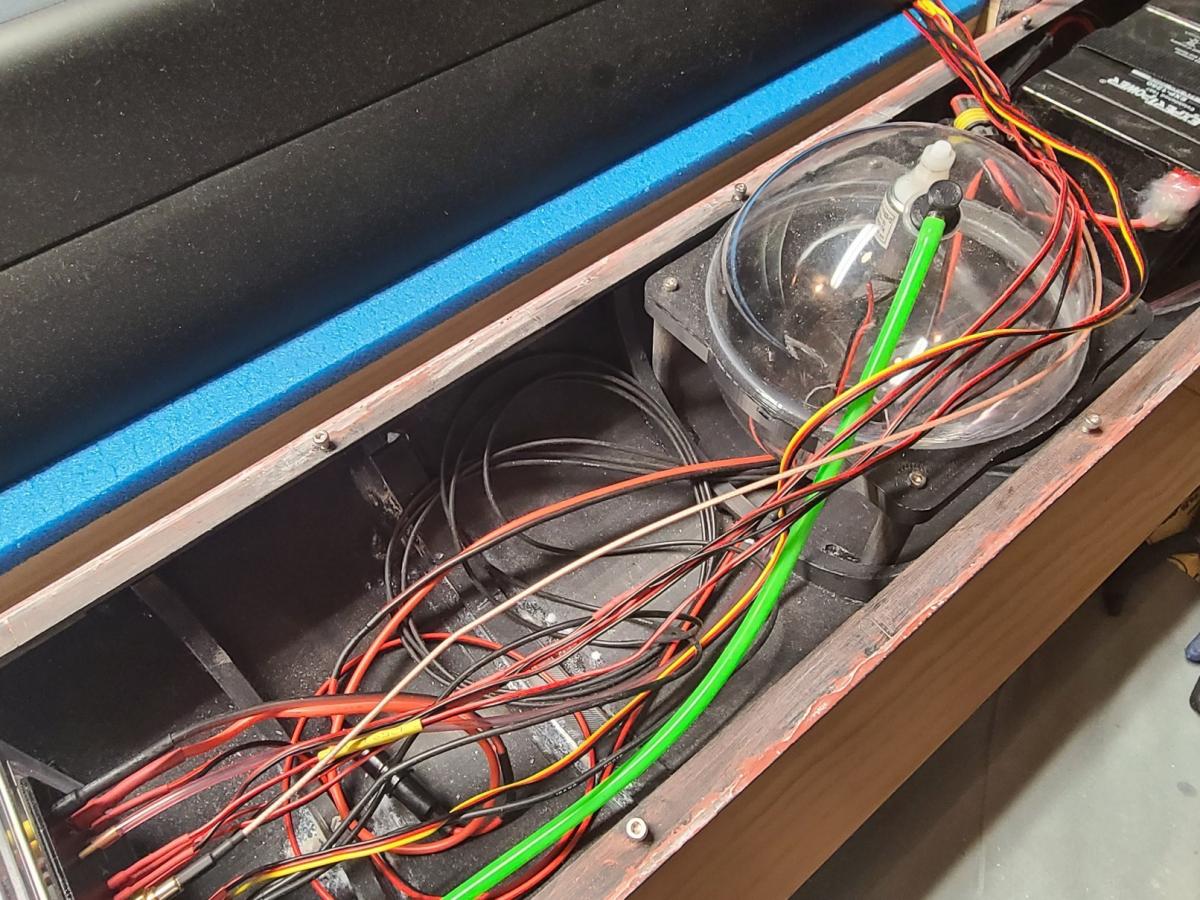

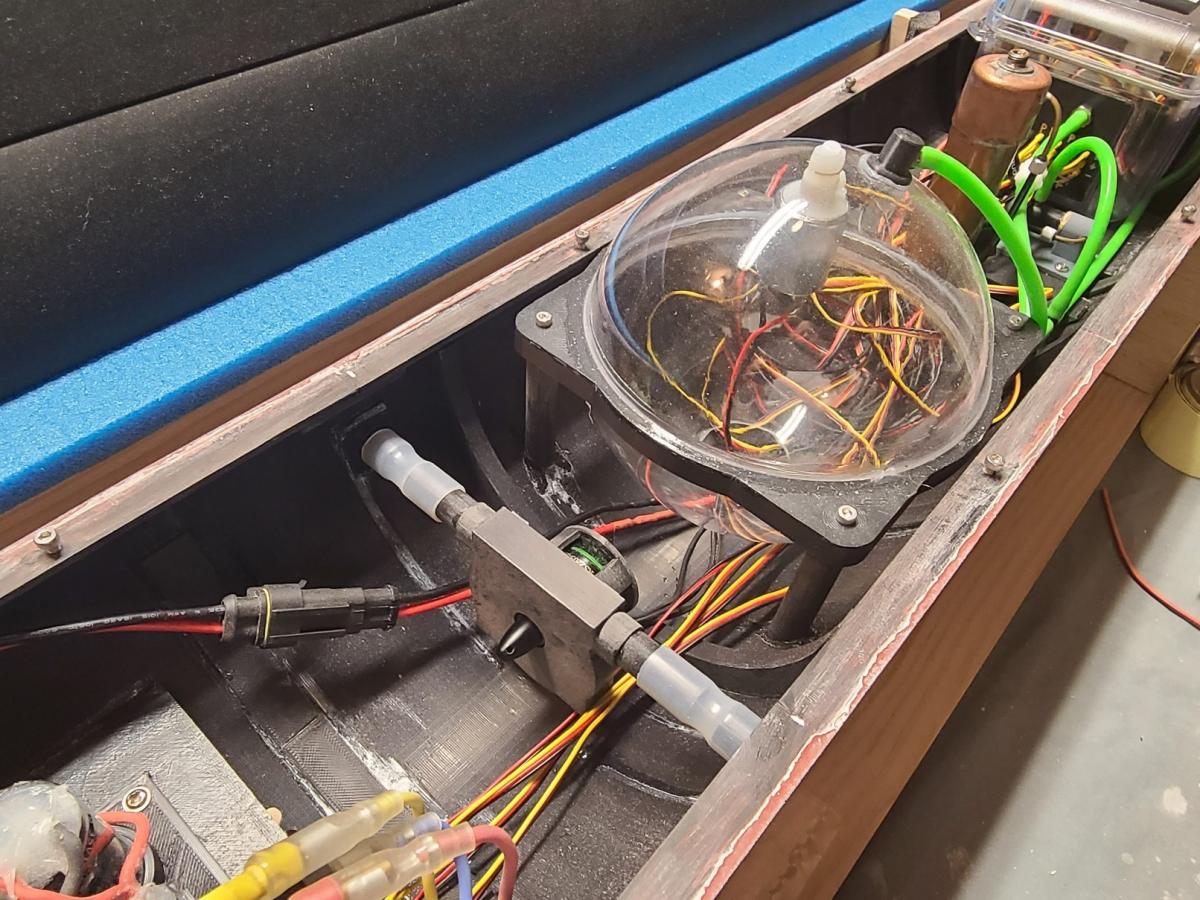

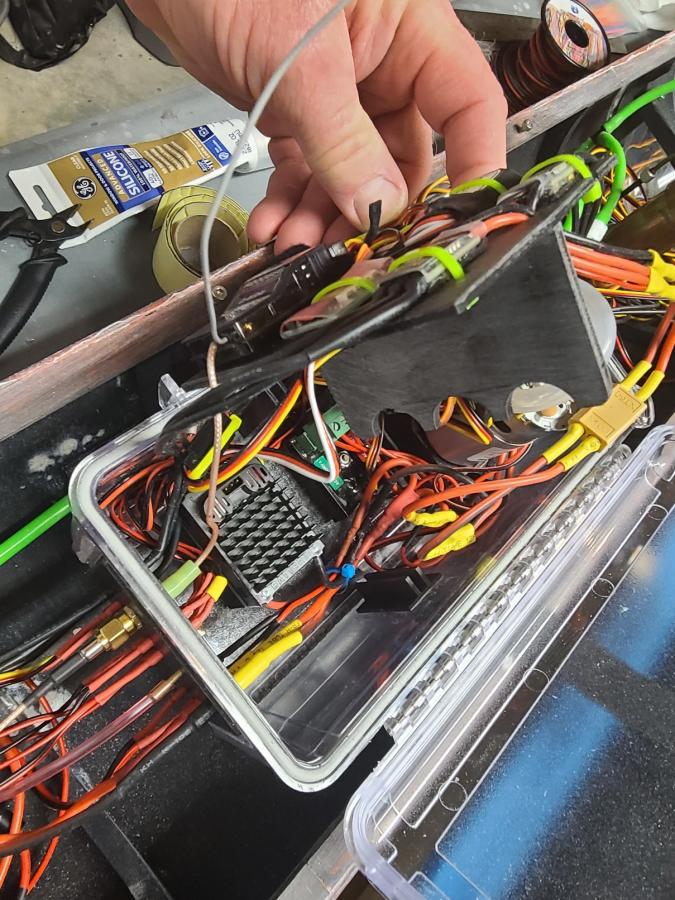

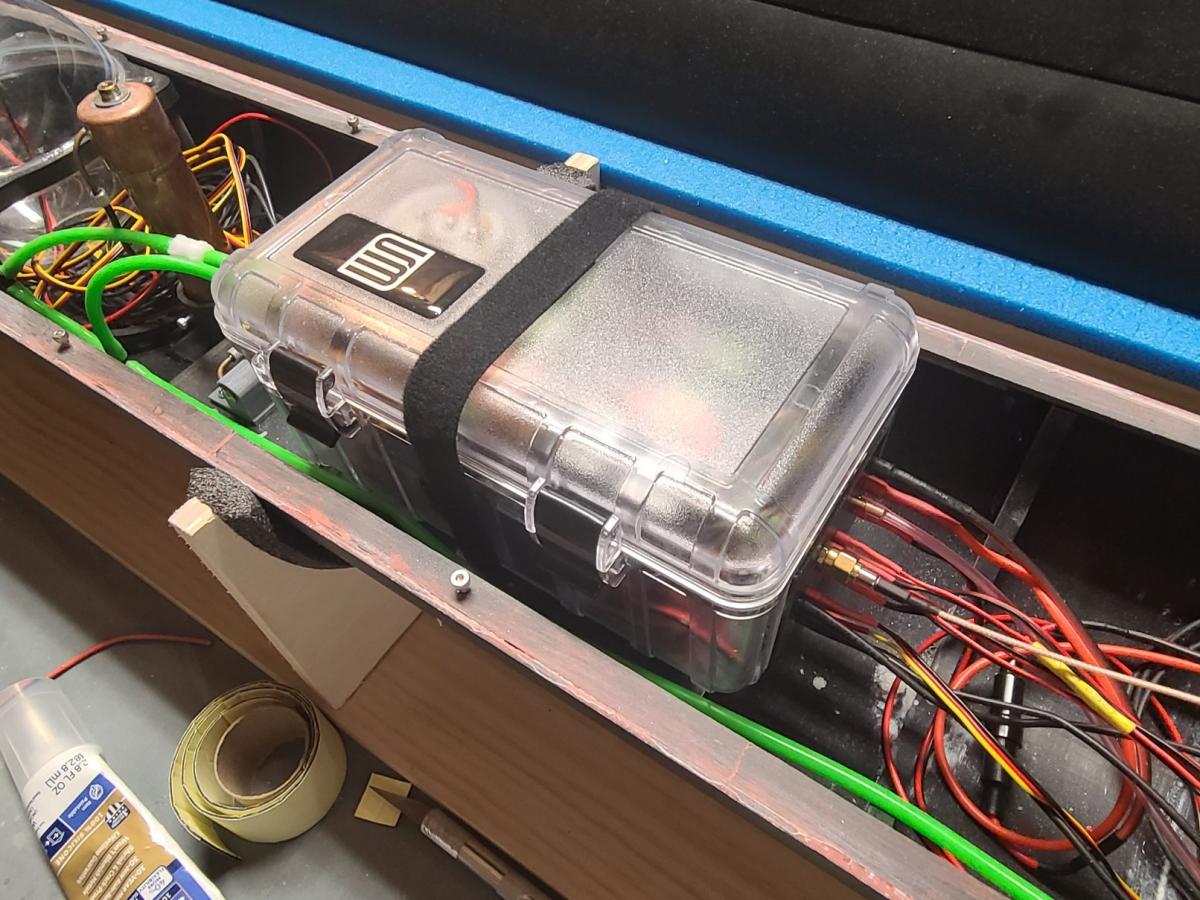

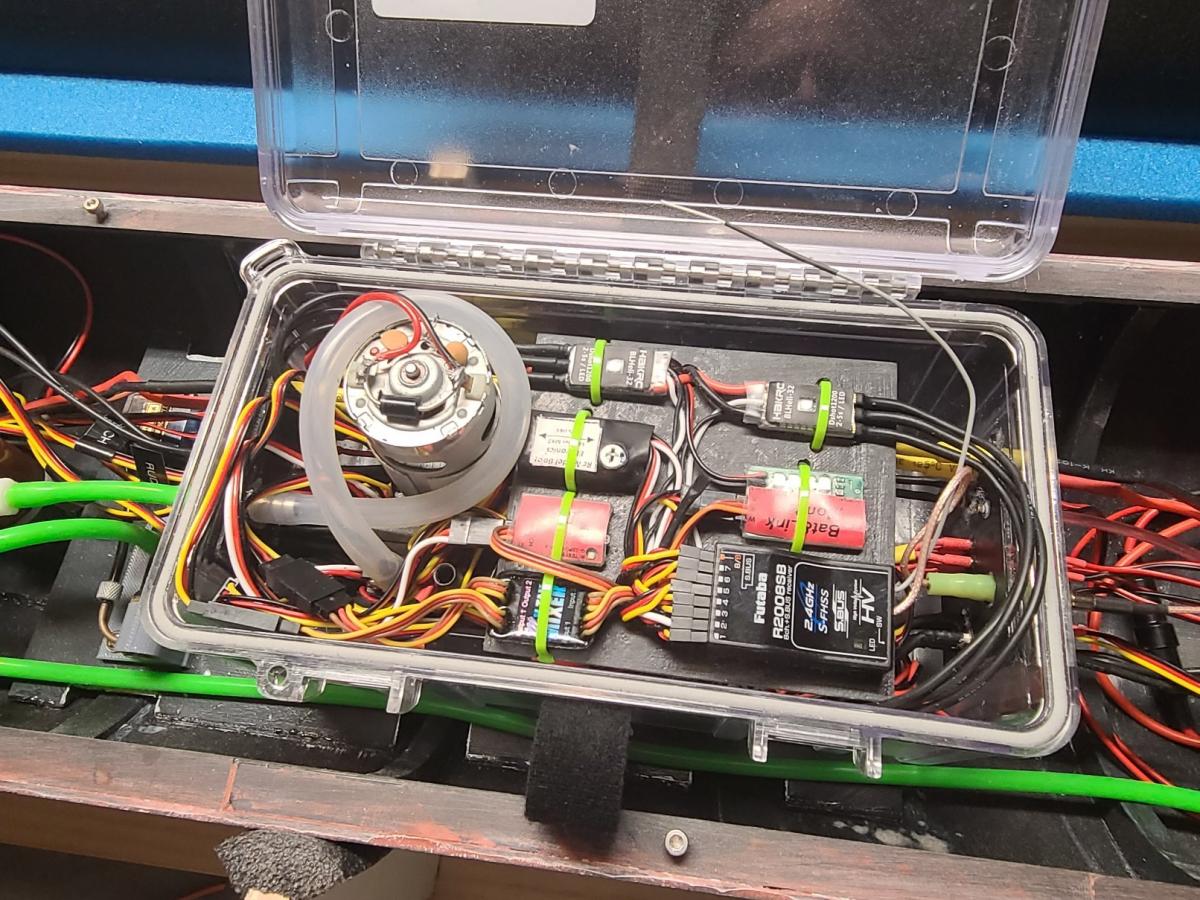

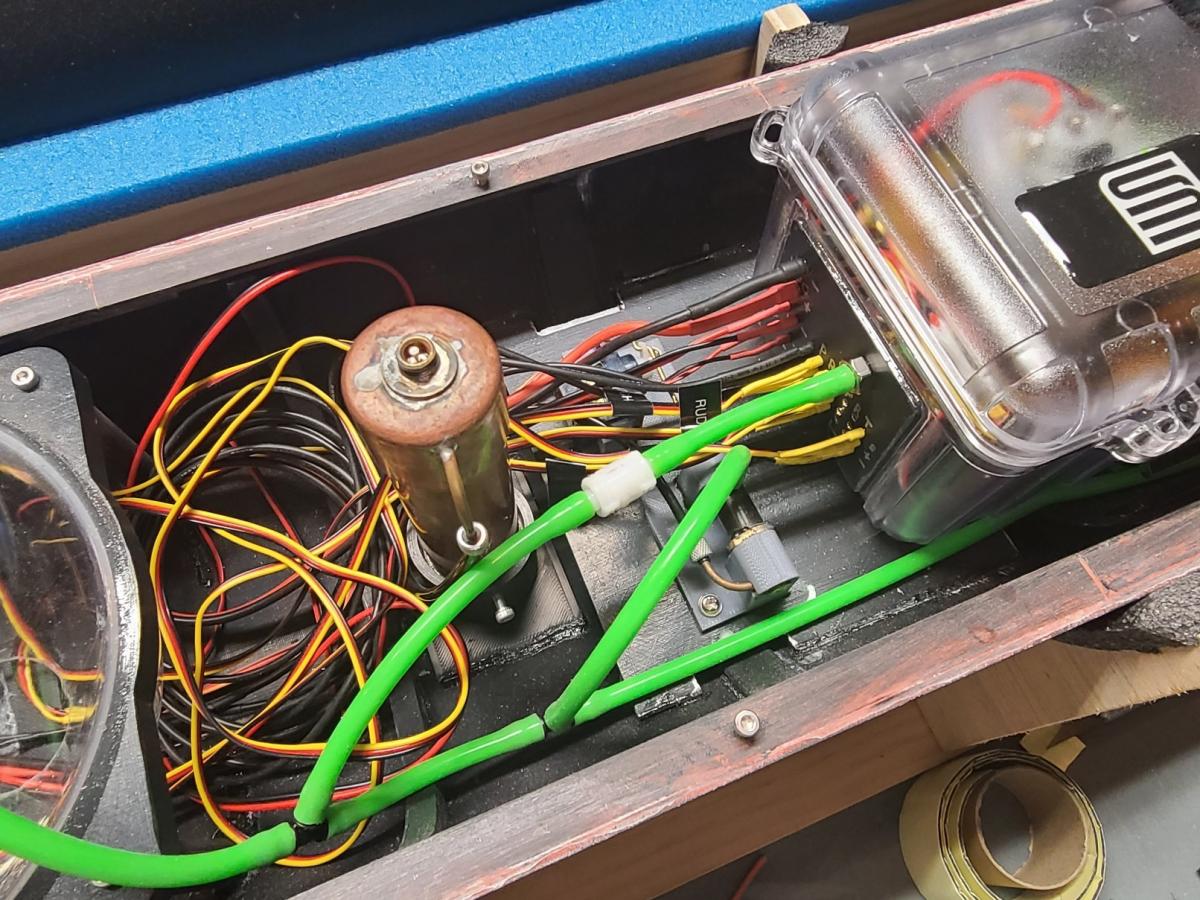

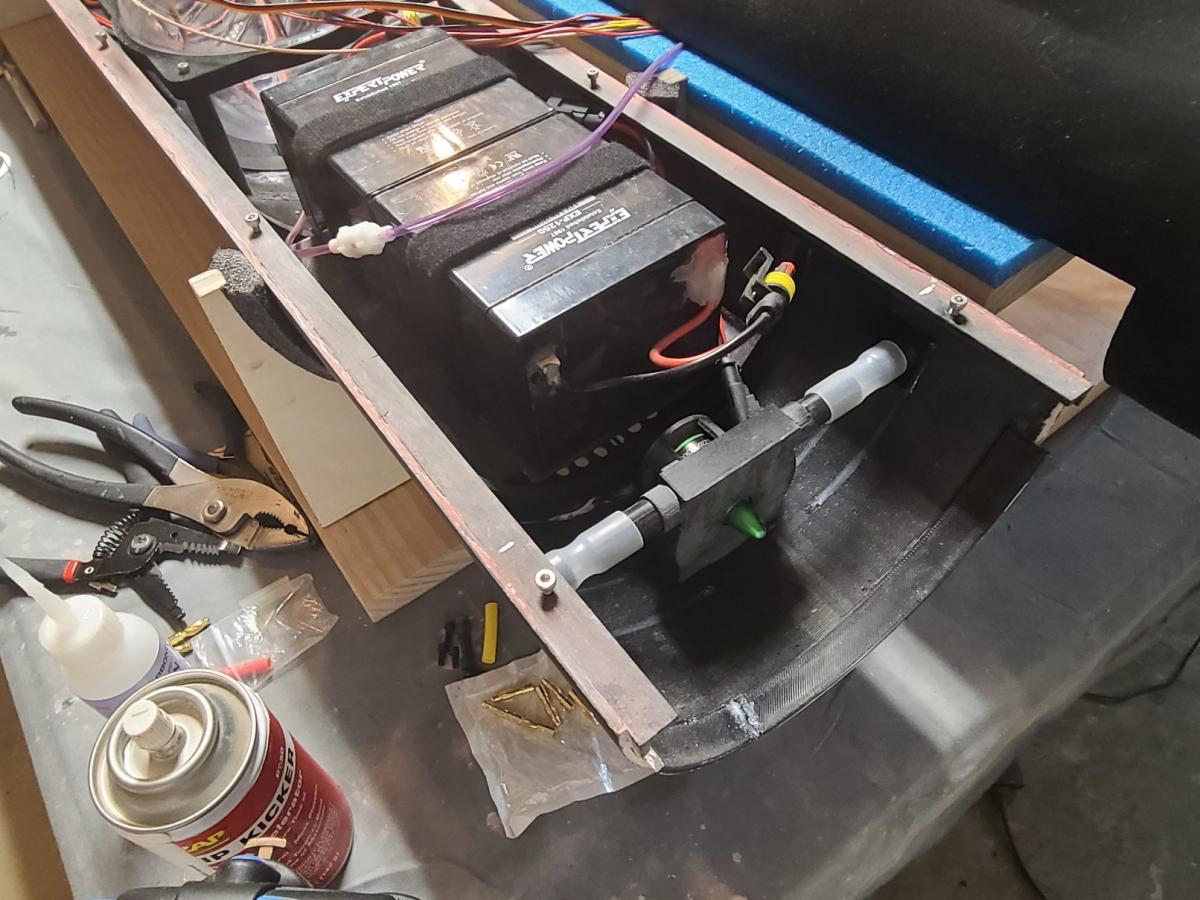

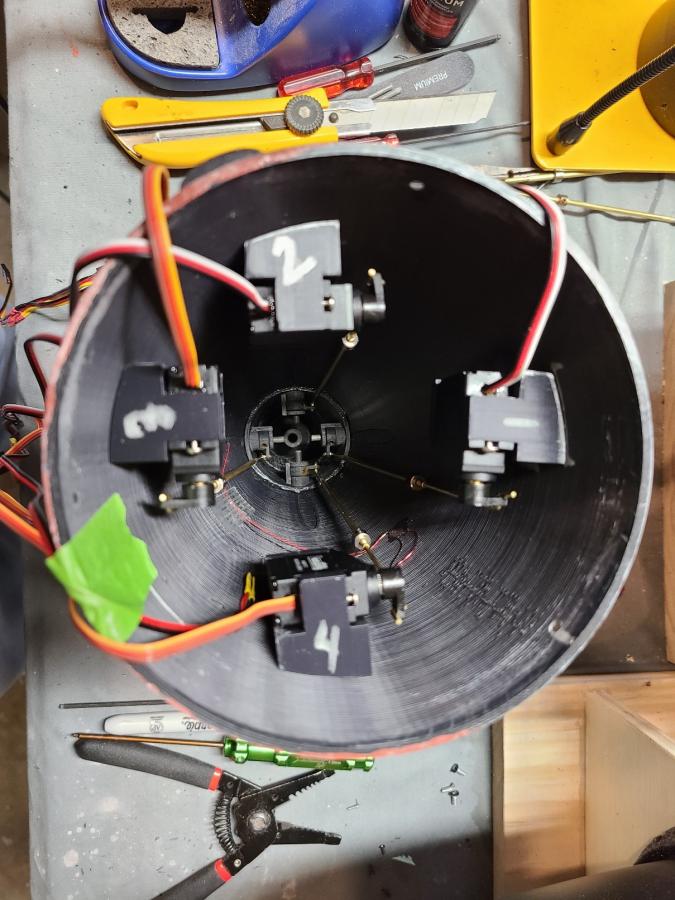

              The guts...

              Click image for larger version

Name:	20210504_233206_copy_1612x1209.jpg
Views:	73
Size:	134.6 KB
ID:	316775
              Click image for larger version

Name:	20210504_233156_copy_1612x1209.jpg
Views:	47
Size:	186.7 KB
ID:	316776
              Click image for larger version

Name:	20210504_233151_copy_1612x1209.jpg
Views:	47
Size:	161.4 KB
ID:	316777
              Click image for larger version

Name:	20210504_233142_copy_1612x1209.jpg
Views:	48
Size:	192.9 KB
ID:	316778
              Click image for larger version

Name:	20210504_233128_copy_1612x1209.jpg
Views:	46
Size:	175.9 KB
ID:	316779
              Click image for larger version

Name:	20210504_233120_copy_1612x1209.jpg
Views:	46
Size:	155.2 KB
ID:	316780
              Click image for larger version

Name:	20210504_233229_copy_1612x1209.jpg
Views:	47
Size:	200.0 KB
ID:	316781
              Click image for larger version

Name:	20210504_233305_copy_1209x1612.jpg
Views:	48
Size:	129.3 KB
ID:	316782
              Click image for larger version

Name:	20210517_185255_copy_1209x1612.jpg
Views:	47
Size:	87.6 KB
ID:	316786

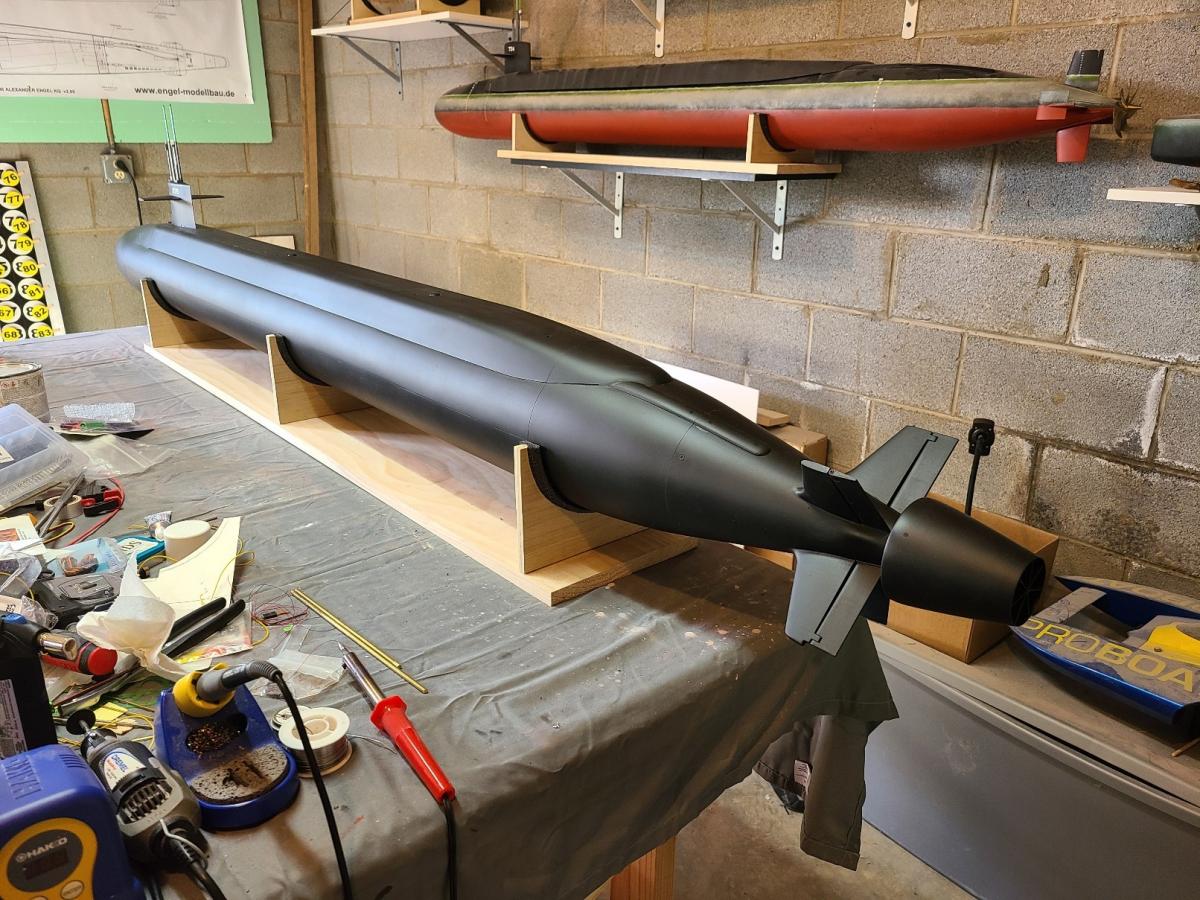

              And the glory...

              Click image for larger version

Name:	20210508_171601_copy_1612x1209.jpg
Views:	50
Size:	305.4 KB
ID:	316783
              Click image for larger version

Name:	20210614_190746_copy_1612x1209.jpg
Views:	46
Size:	143.3 KB
ID:	316784
              Click image for larger version

Name:	20210614_185247_copy_1612x1209.jpg
Views:	46
Size:	140.2 KB
ID:	316785

              Comment


              • #8
                WOW!
                Mike
                \"When Inverted Down Is Up And Up Is Expensive\"

                Comment


                • #9
                  Awesome.
                  AMA 424553

                  Comment


                  • #10

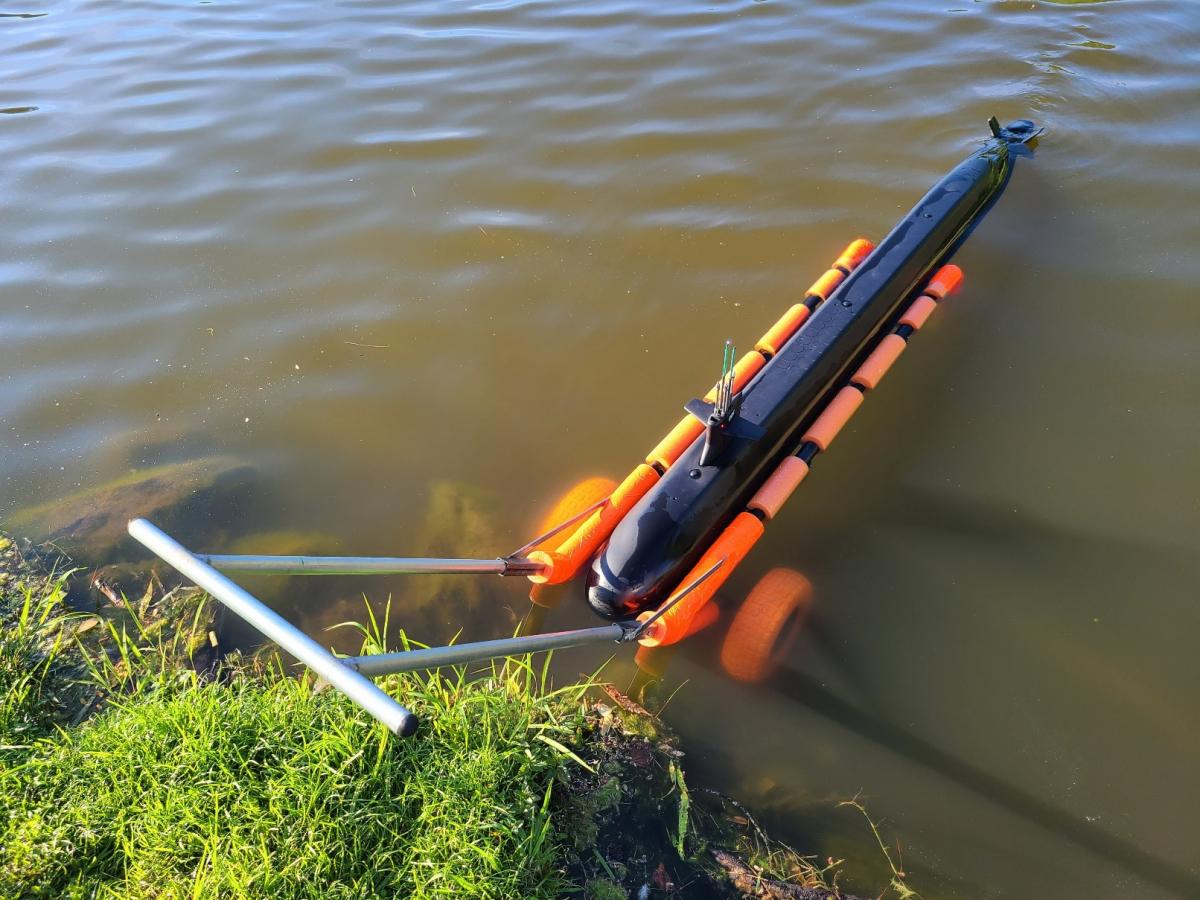

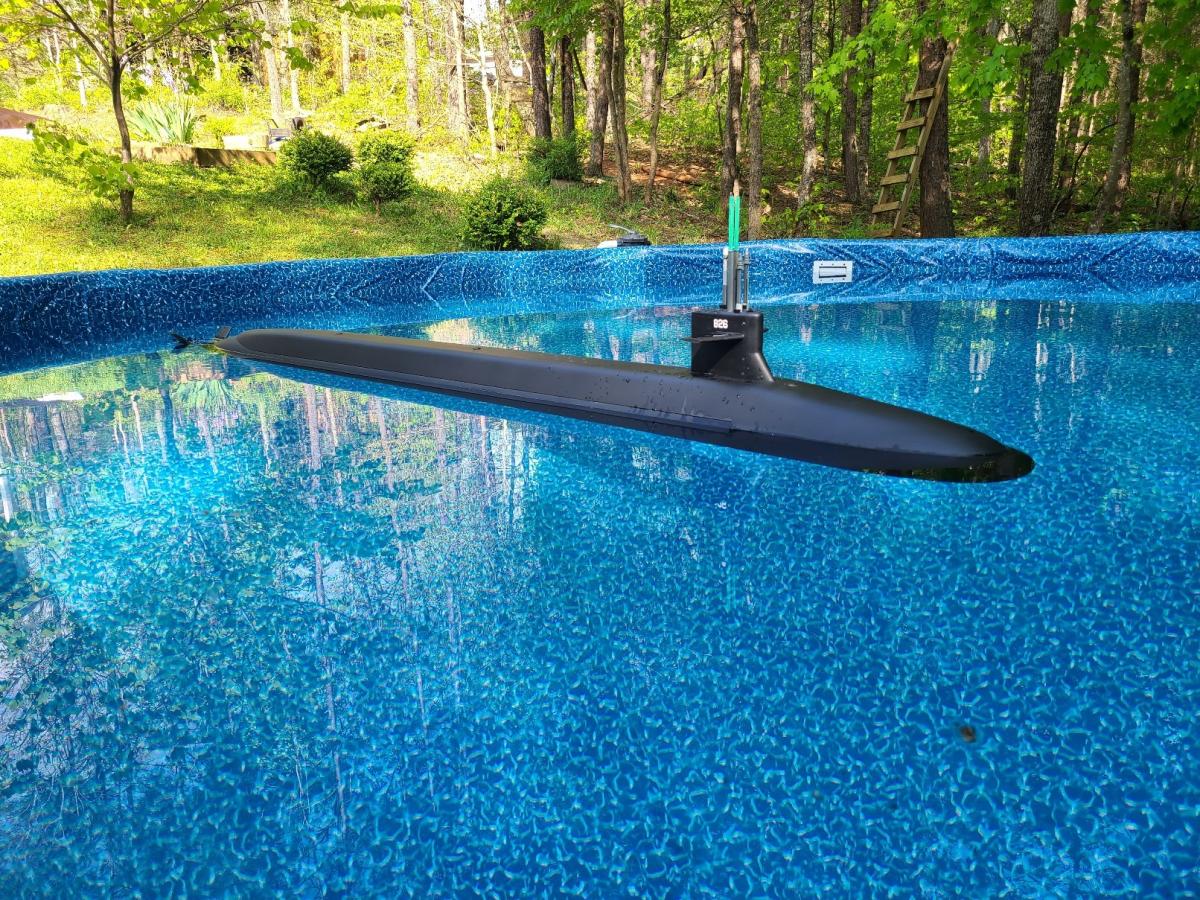

                    And today she had a perfectly trimmed hands off periscope depth run.
