Official Mato USA M36 Jackson Metal 1/16 Scale Tank Destroyer Discussion Thread

Collapse
X
Collapse
First Prev Next Last

  • Filter
  • Time
  • Show
Clear All
new posts

  • Official Mato USA M36 Jackson Metal 1/16 Scale Tank Destroyer Discussion Thread

    Click image for larger version

Name:	mato-usa-m36-jackson-green-metal-1-16-scale-tank-destroyer-rtr.webp
Views:	474
Size:	67.6 KB
ID:	419346


    Click image for larger version

Name:	mato-usa-m36-jackson-unpainted-metal-1-16-scale-tank-destroyer-rtr.jpg
Views:	254
Size:	123.9 KB
ID:	419347



    The M36 Tank Destroyer, nicknamed "Jackson", was a highly effective American armored vehicle during World War II. Designed to counter heavily armored German tanks like the Panther and Tiger, the M36 was armed with the powerful 90mm M3 gun, capable of penetrating thick armor at long ranges. This gun gave it a significant edge over earlier U.S. tank destroyers, such as the M10, which were outmatched by the firepower of advanced German tanks.

    The M36 was based on the chassis of the M10 but featured a turret with sloped armor for improved protection and an open top, which allowed for greater visibility but exposed the crew to enemy fire and weather. The vehicle was powered by a Ford GAA V8 gasoline engine, offering reasonable mobility for its size.

    First deployed in late 1944, the M36 proved instrumental during the Battle of the Bulge, where its superior firepower helped turn the tide against German armored assaults. Post-war, the M36 saw service in conflicts like the Korean War and was exported to other nations. Combining firepower, mobility, and reliability, the M36 became one of the most respected tank destroyers of its era.

    Mato tanks are the ultimate expression of 1/16 scale, all-metal, handcrafted RC tank models. Delivered in a custom-crafted aluminum carrying case, each Mato tank offered by Motion RC contains an extensive list of premium upgrades, including a Flysky 10 channel transmitter, Clark TK50S MFCB, scale T74 metal tracks, wheels, and sprockets, LED lights, sound system, 360-degree turret rotation, Heng Long and Tamiya-compatible IR battle system, cannon barrel recoil, exhaust smoke system, cannon flash, adjustable track tensioners, 5:1 ratio steel gearboxes, adjustable sound effect volume, realistic Vertical Volute Spring Suspension (VVSS) and more!
    360° Turret Rotation

    All Mato tanks feature complete, 360 degree turret rotation for scale realism and battlefield convenience.
    Handmade, Not Mass-Produced

    Each Mato tank is individually fabricated and assembled by skilled factory artisans, resulting in a one-of-a-kind replica that any RC armor enthusiast would be proud to own and operate.
    Customized Control

    All Mato tanks offered by Motion RC contain an upgraded 10-channel Flysky transmitter and Clark TK50S Multi-Function Control Board (MFCB).
    Detachable Front Fenders

    The M36 featured front fenders to reduce the amount of dirt and debris in the tracks and turret, and the Mato units are detachable just like the original.
    Metal Gearboxes

    The 5:1 ratio metal gearboxes provide powerful operation and supreme durability for an unsurpassed RC tank experience.
    Custom Carrying Case

    Each Mato tank is delivered in a custom-crafted, durable aluminum case, perfect for secure storage and transportation.
    Easy Access

    The upper hull is easily removed for maintenance or adjustment by a thumbscrew, and the power switch and battery charging plug are also conveniently located.
    All Metal Construction

    The M36’s all metal construction faithfully recreates the open turret design of the original vehicle.
    Features:
    • 100% handcrafted from metal by skilled factory artisans
    • Factory painted-ready for graphics and weathering
    • Aluminum carrying case for convenient storage and transportation
    • Advanced Flysky 10-channel 2.4GHz transmitter
    • Clark TK50S Multi-Function Control Board (MFCB)
    • Proportional acceleration, steering, turret traverse, and gun elevation/depression
    • Programmable radio settings for recoil, turning control, throttle feel, high speed and low-speed modes, etc.
    • Exhaust smoke effect (on/off)
    • Headlights (on/off)
    • Selectable sound sets with unique engine start, idle, accelerating, traverse, elevate, machine gun, cannon firing, and shutdown sound with variable volume
    • Adjustable track tension
    • Track recoil - This shudders the tank briefly rearward to simulate recoil when firing the main cannon
    • Infrared Battle System, which disables other tanks when hit five times during simulated combat. Up to 20 tanks at the same time can battle each other (compatible with Heng Long and Tamiya IR Battle Systems)
    • Vertical volute spring suspension with metal tracks, sprockets, idlers, and road wheels
    Includes:
    • Mato USA M36 Jackson Green Metal 1/16 Scale Tank Destroyer - RTR
    • 2S 7.4v 3000mAh Li-ion battery with Tamiya connector
    • 2S LiPo/Li-ion battery charger
    • Flysky 10-channel 2.4GHz radio transmitter
    • Infrared (IR) battle system receiver
    • Smoke oil
    • Owner’s manuals
    • Custom aluminum carrying case
    Requires:Optional:Product Specifications:

    AGE LEVEL : 14 and up
    SKILL LEVEL : Beginner
    BUILD TIME : 30 Minutes
    Scale 1/16
    Length 460mm / 18.1in
    Width 185mm / 7.3in
    Height 185mm / 7.3in
    Weight 5,500g / 196.4oz
    Body Material Metal
    Chassis Material Metal
    Track Material Metal
    Motors 380 motors x2
    Bearings Ball bearings
    Gearbox Gear Material Metal
    Adjustable Gear Ratio No
    Differential Type N/A
    Suspension Type VVSS
    Sprocket Metal
    Road Wheels Metal
    Idler Wheel Metal
    Adjustable Idler Yes
    Turret Rotation 360 degrees
    Lights Yes
    Sound Yes
    Exhaust Effect Yes
    IR Battle Ready Yes
    Airsoft BB Launch No
    Track Recoil Yes
    Cannon Barrel Recoil Yes
    Required Battery 2S 7.4V (included)
    Required Radio 2.4GHz (included)
    Skill Level Beginner
    Build Time 30 minutes
    Recommended Environment Indoor / Outdoor

  • #2

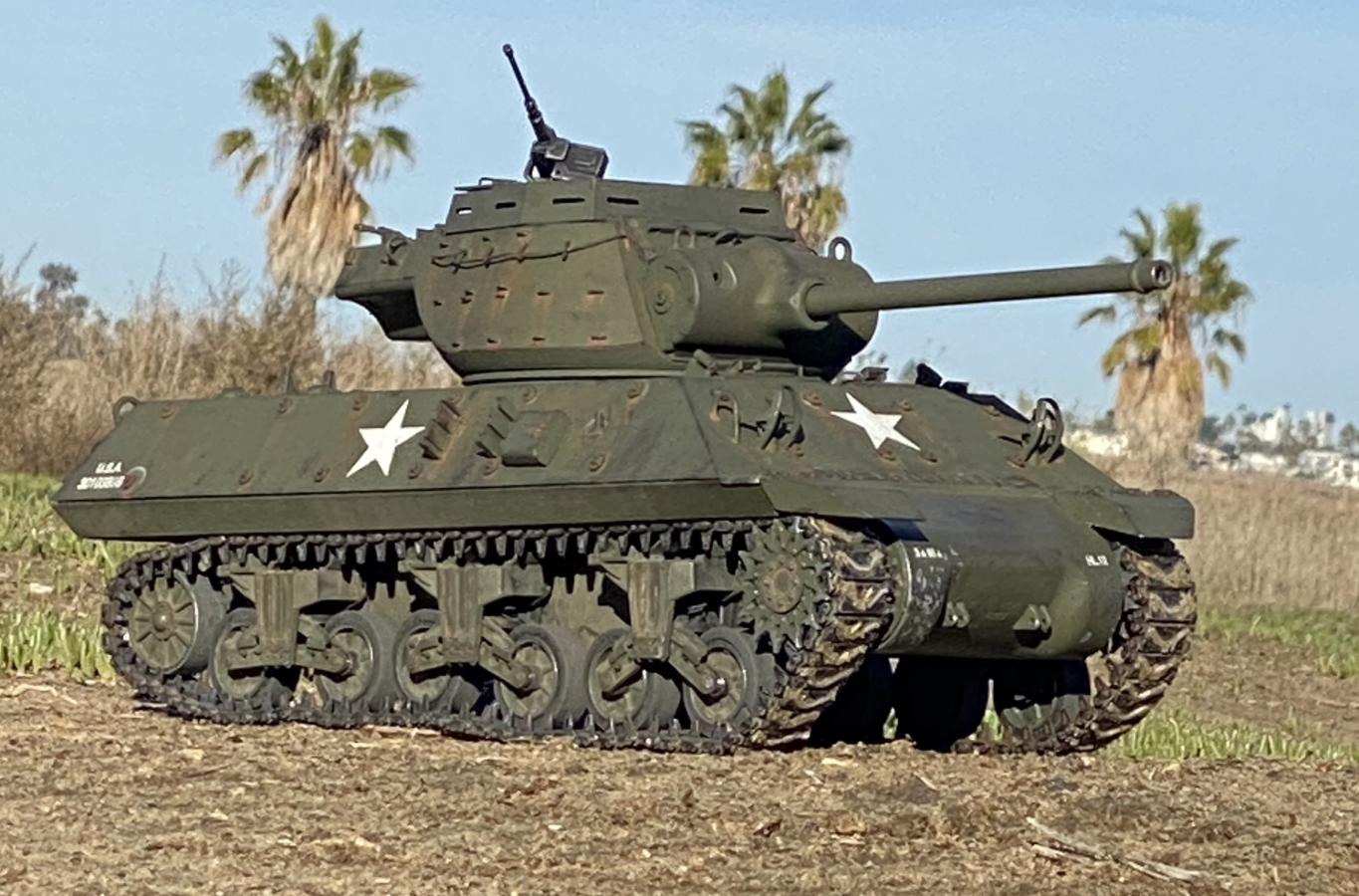

    I have one of these. The metal surface is great for painting, giving it that true metal appearance.

    Click image for larger version

Name:	IMG_3111.jpg
Views:	337
Size:	173.6 KB
ID:	419359

    The more screws it takes to reassemble a tank, the more likely it is you left something out!

    Comment


    • #3
      That looks amazing, Bob!
