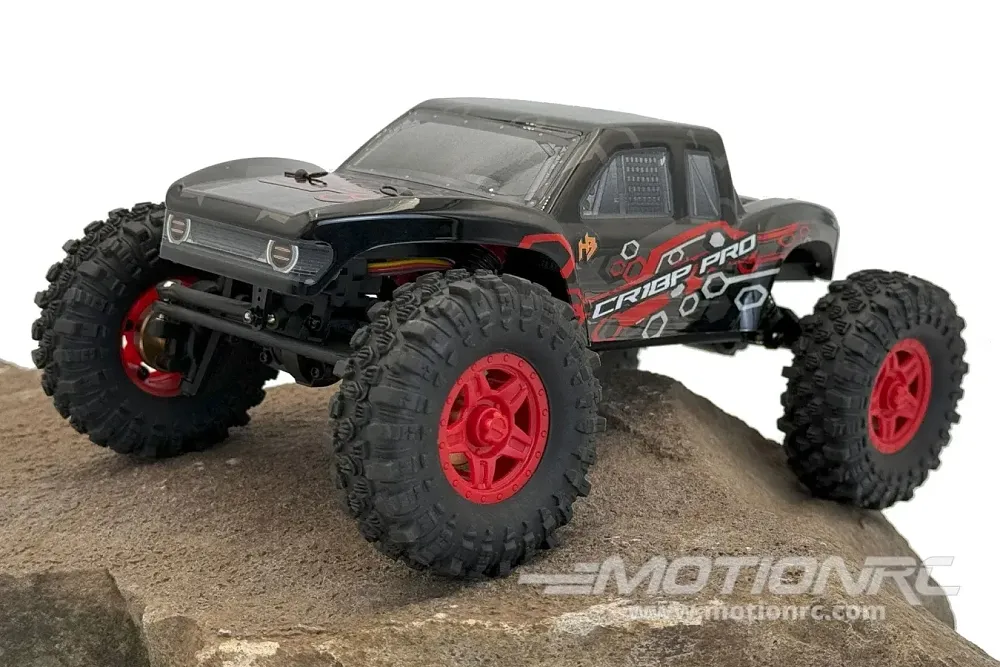

  • Official Hobby Plus CR18P Pro V3 Juice Up 1/18 Scale Brushless 4WD Mini Crawler Discussion Thread




    Version Info: This truck is delivered as "RTR", however does require 4x AAA batteries for the transmitter sold separately (see Requires below for details).

    The Hobby Plus brand of crawlers began in 2018, delivering all the features, performance, and handling you’ve come to expect at a budget-friendly price you won’t. Their latest high-performance 1/18 scale crawler model is the new CR18P Pro V3 Juice Up edition. Incorporating feedback from owners of previous models, the CR18P V3 is a further development of their industry-leading CR18 Pro EVO platform and excels in both indoor and outdoor environments. The design features a Low-CG Concept chassis design and revised shock mounting geometry to best optimize the benefits of big bore, oil-filled adjustable dampers. The SOA (servo-on-axle) setup delivers increased in steering angle and response to better leverage the benefits of the new super-sticky, oversize tires, lightweight rims, and included brass drive hexes and wheel weights. Weight bias has been optimized and power improved thanks to a Hobbywing ESC and motor and 3S LiPo battery pack, while the 27% rear underdrive ratio provides unsurpassed traction for the most difficult climbs and obstacle traversing.

    Enjoy an impressively realistic mini-crawling experience by combining the versatile, go-anywhere fun of Hobby Plus Crawlers with Motion RC’s parts and technical support, industry-leading customer service and product selection for a package that cannot be beat!
    Brushless Power

    The Hobbywing 1621SL brushless outrunner motor delivers impressive torque and easily modulated powerband for unsurpassed crawling performance.
    Precise Control

    The waterproof Hobbywing mini24 ESC is capable of 2S or 3S operation and delivers precise control during the toughest traverses and steep climb angles.
    Heavy-Duty Drivetrain

    The EV Pro V3 utilizes the same driveshafts as the 6x6 Arktos to reduce torque-twist, increase durability, and optimize power transfer.
    Intelligent Design

    The SOA (servo-on-axle) delivers a precise feel and maximized steering radius for the ultimate in crawling or climbing performance, while the side-mounted battery provides proper lateral balance. The tray between the rear shocks can be used for ballast or supplemental equipment mounting.
    Impressive Power

    An included 11.1v, 3S LiPo pack delivers unsurpassed power to create a truly exceptional crawling experience.
    Available in Two Colors

    Choose from two color options to stand apart from your crawling friends!
    Features:
    • New heavy-duty portal axle outdrives with 1.5mm pins
    • Single-speed transmission with metal gears
    • Hobbywing mini24 brushless ESC (2S/3S capable)
    • New rear ring and pinion gear set delivers 27% underdrive
    • Brass wheel hex (front axle only)
    • Brass wheel weight set (front and rear)
    • Heavy-duty plastic drive shafts (same as the Arktos)
    • Newly designed nylon bead lock wheel
    • Factory-printed body with finished graphics
    • Hobbywing 1621SL outrunner brushless motor
    • 3S 11.1V 360mAh LiPo battery
    • Optimized weight bias— 56% front/44% rear
    Includes:

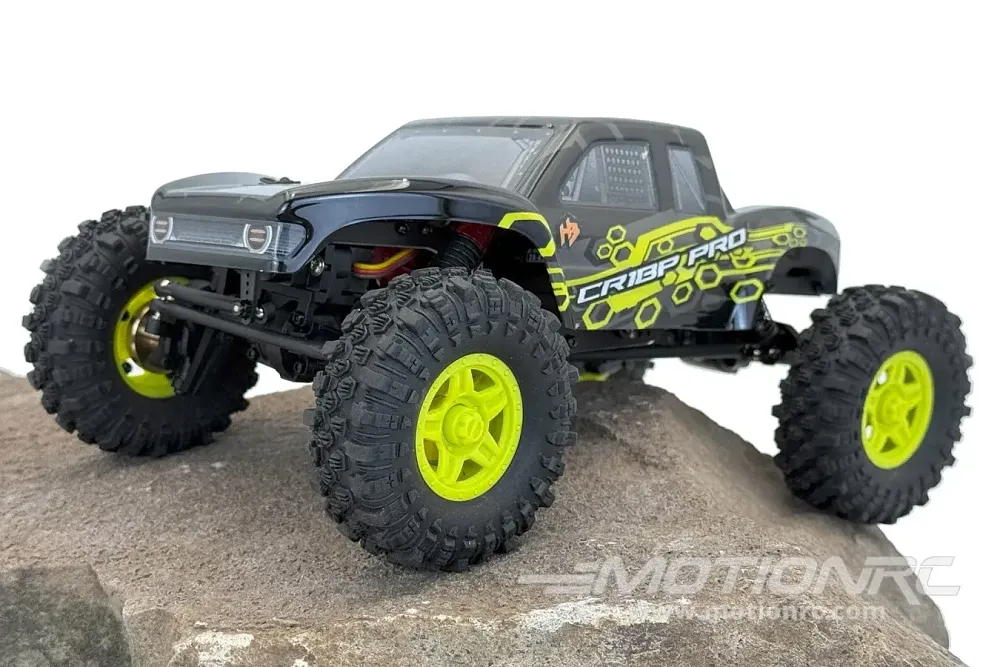

    • Hobby Plus CR18P Pro V3 Juice Up Yellow 1/18 Scale Brushless 4WD Mini Crawler - RTR
    • Hobby Plus/Flysky 4-channel 2.4GHz transmitter
    • 3S 11.2V 360mAh LiPo battery
    • USB charger
    • Instruction manual
    • Tools
    Requires:Product Specifications:

    AGE LEVEL : 14 and up
    SKILL LEVEL : Beginner
    BUILD TIME : None
    Model Scale 1/18
    Length 225mm / 8.8in
    Width 138mm / 5.4in
    Height 105mm / 4.1in
    Weight (No Battery) 475g / 16.7oz
    Wheelbase 160mm / 6.2in
    Ground Clearance 49.5mm / 1.9in
    Body Polycarbonate, factory painted and decorated
    Chassis Composite with metal rails
    Drivetrain 4WD
    Wheel Size (Diameter x Width) 30.2mm x 14.4mm
    Wheel Hex Size 7mm
    Tire Tread Multi-surface
    Bushing Material Oilite bronze
    Suspension 4-wheel, solid axle
    Shock Type Oil-filled
    Transmission Single speed, metal gear
    Gear Pitch MOD 0.4
    Internal Gear Ratio N/A
    Final Drive Ratio Front 98:1 / Rear 124.6:1
    Pinion 11T
    Spur Gear 44T
    Differential No
    Ball Bearings No
    Brakes Electronic
    Electronic Speed Control Hobbywing MINI24 brushless
    Motor Hobbywing 3500KV 1621SL brushless
    Battery 3S 11.1V 360mAh LiPo
    Max Battery Dimensions (L x W x H) 47 x 20 x 17mm
    Servos 3-wire, waterproof
    Radio 2.4Ghz 4-channel (included)
    Lights No
    Sound No
    Water Resistant Yes
    Skill Level Beginner
    Assembly Time None
    Recommended Environment Indoors/Outdoors
