  • TF Models 800 size UH-1C Build

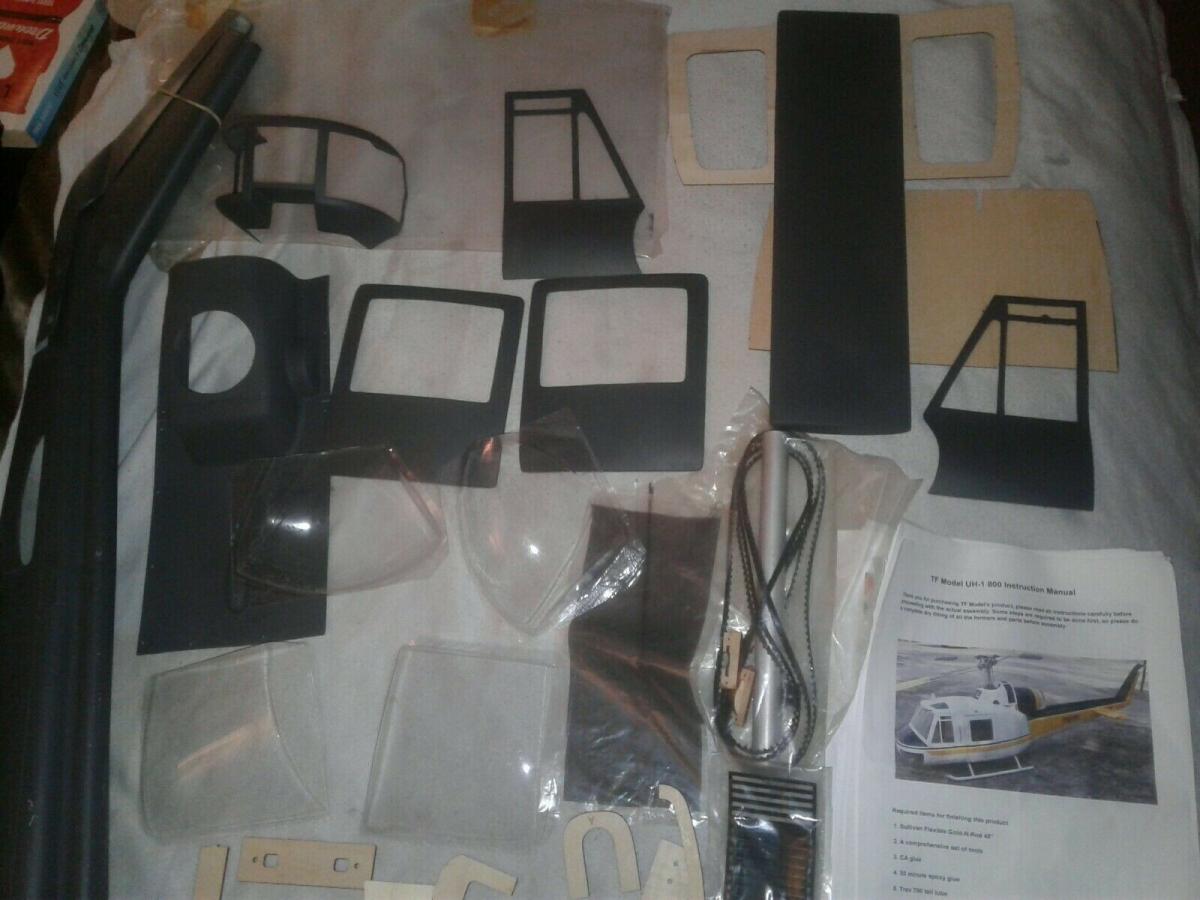

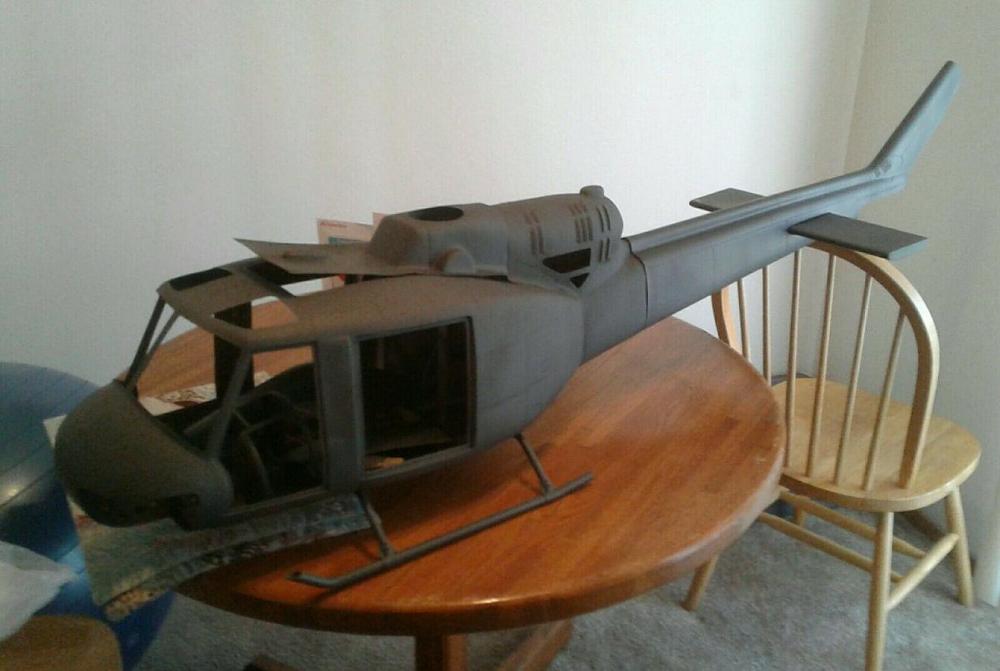

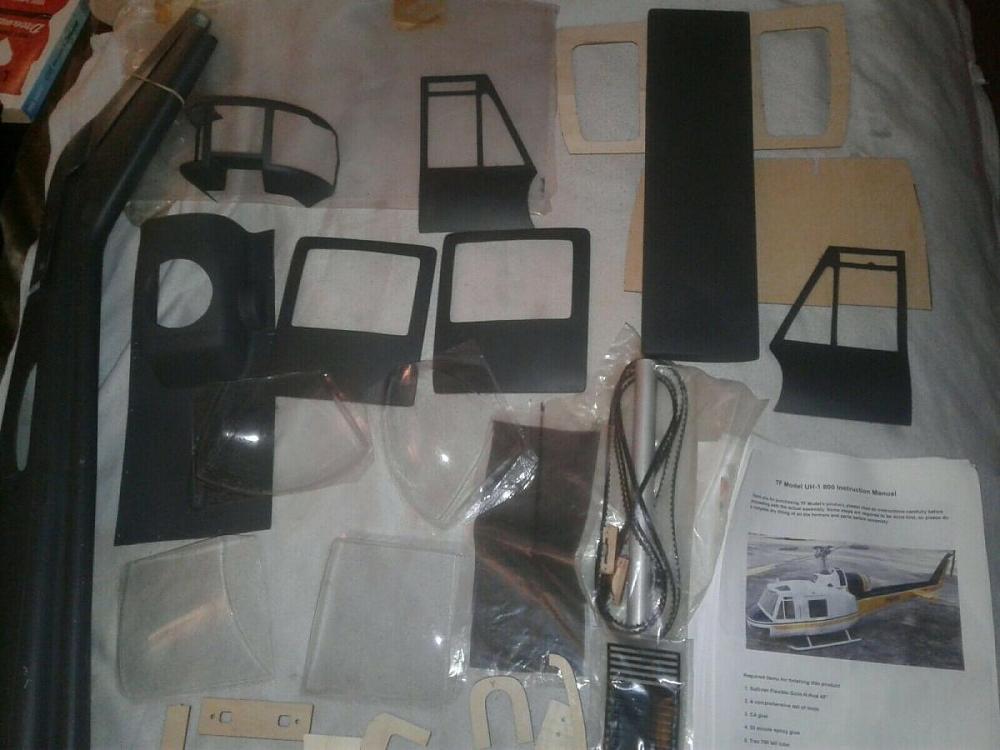

    I picked this kit up from Jon Ellis who got it and decided not to build it as it's not one of the best quality kits but since I'm "Tirediron" I jumped on it and started trying to make something nice out of it.

    Click image for larger version  Name:	B01.jpg Views:	15 Size:	96.4 KB ID:	223543

    Click image for larger version  Name:	B03.jpg Views:	8 Size:	95.5 KB ID:	223544

    Click image for larger version  Name:	01.jpg Views:	8 Size:	86.3 KB ID:	223553

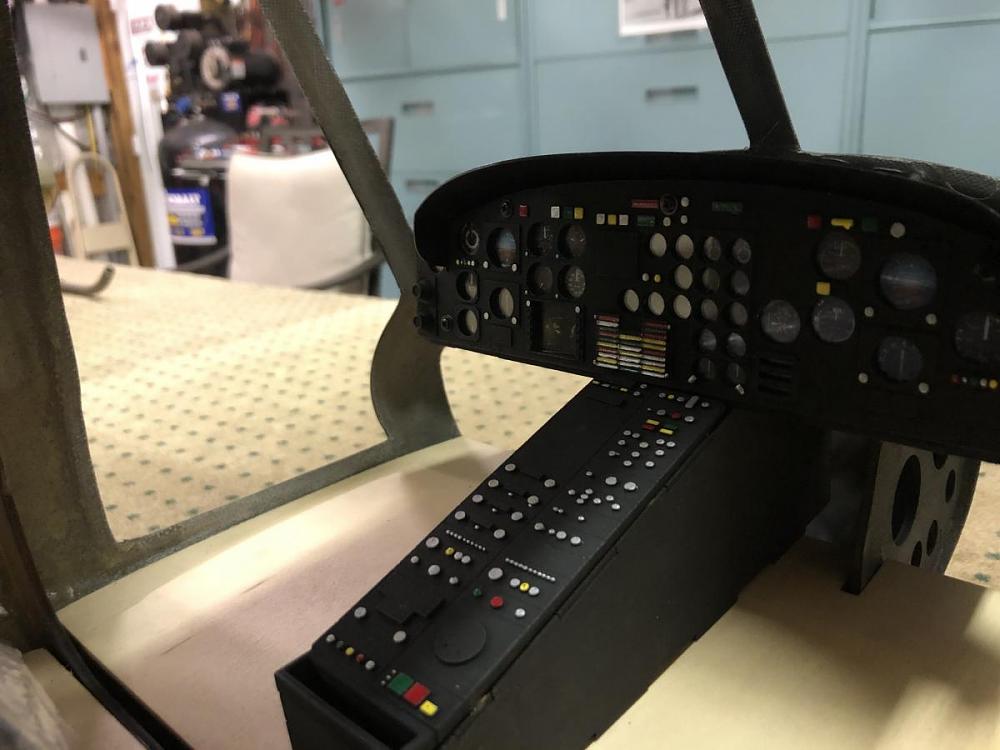

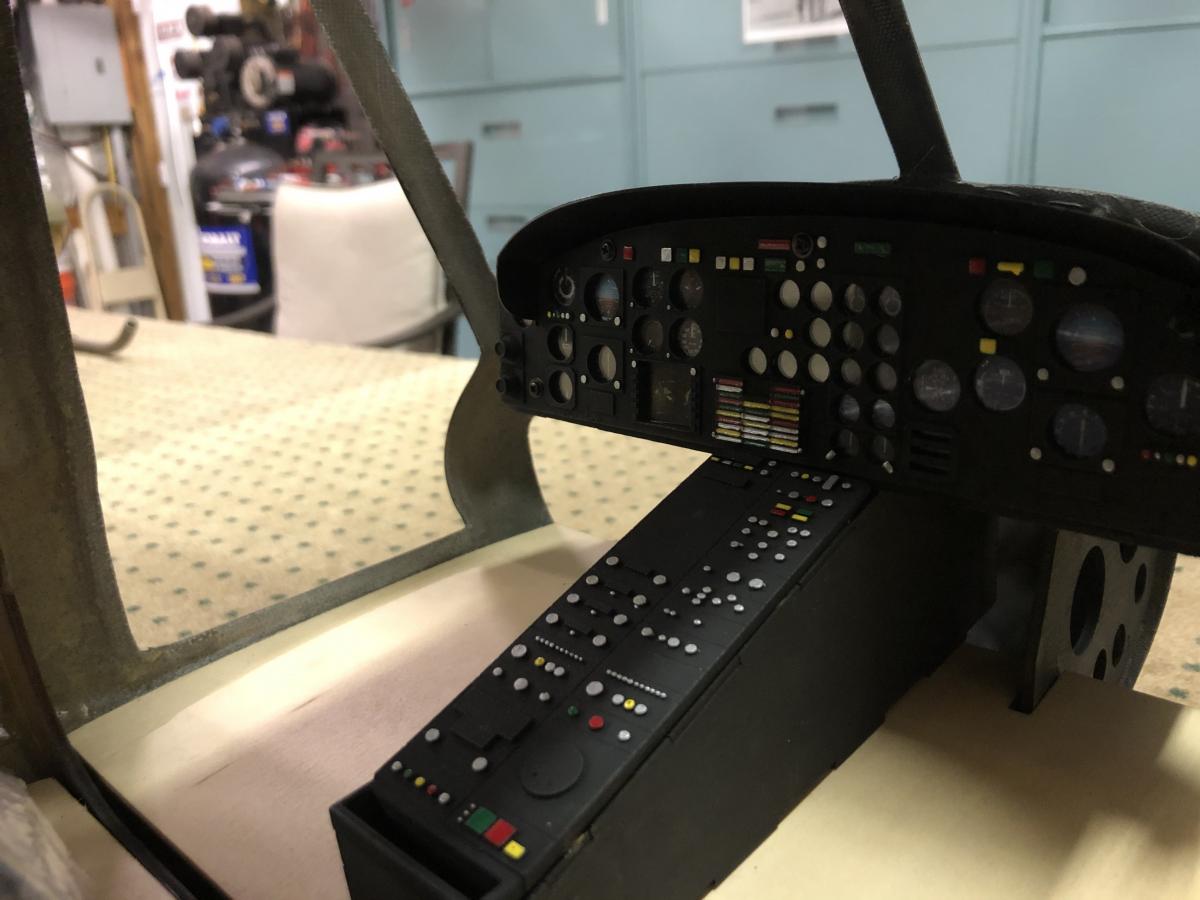

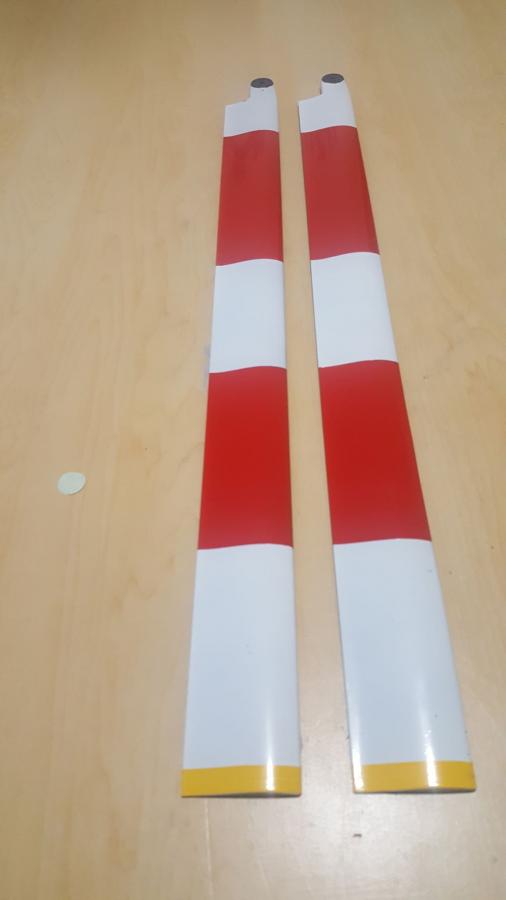

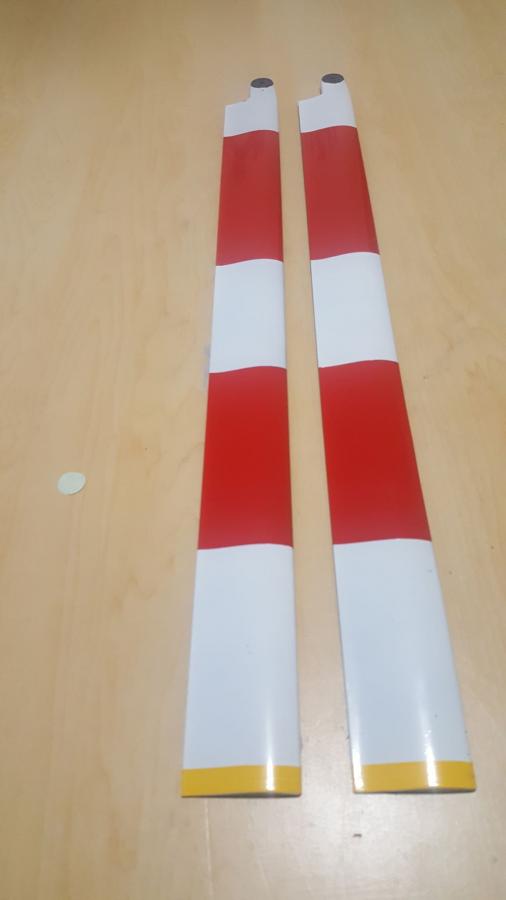

    I found this cockpit and blades on Facebook Marketplace

    Click image for larger version  Name:	02.jpg Views:	8 Size:	22.0 KB ID:	223545

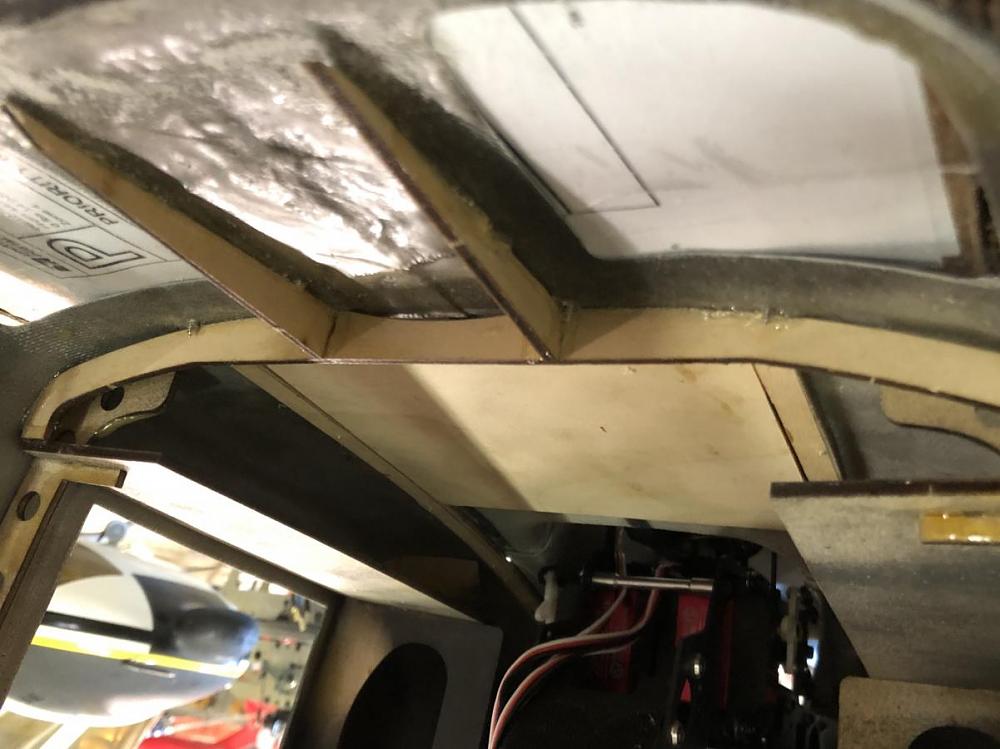

    Click image for larger version  Name:	03.jpg Views:	8 Size:	95.0 KB ID:	223547

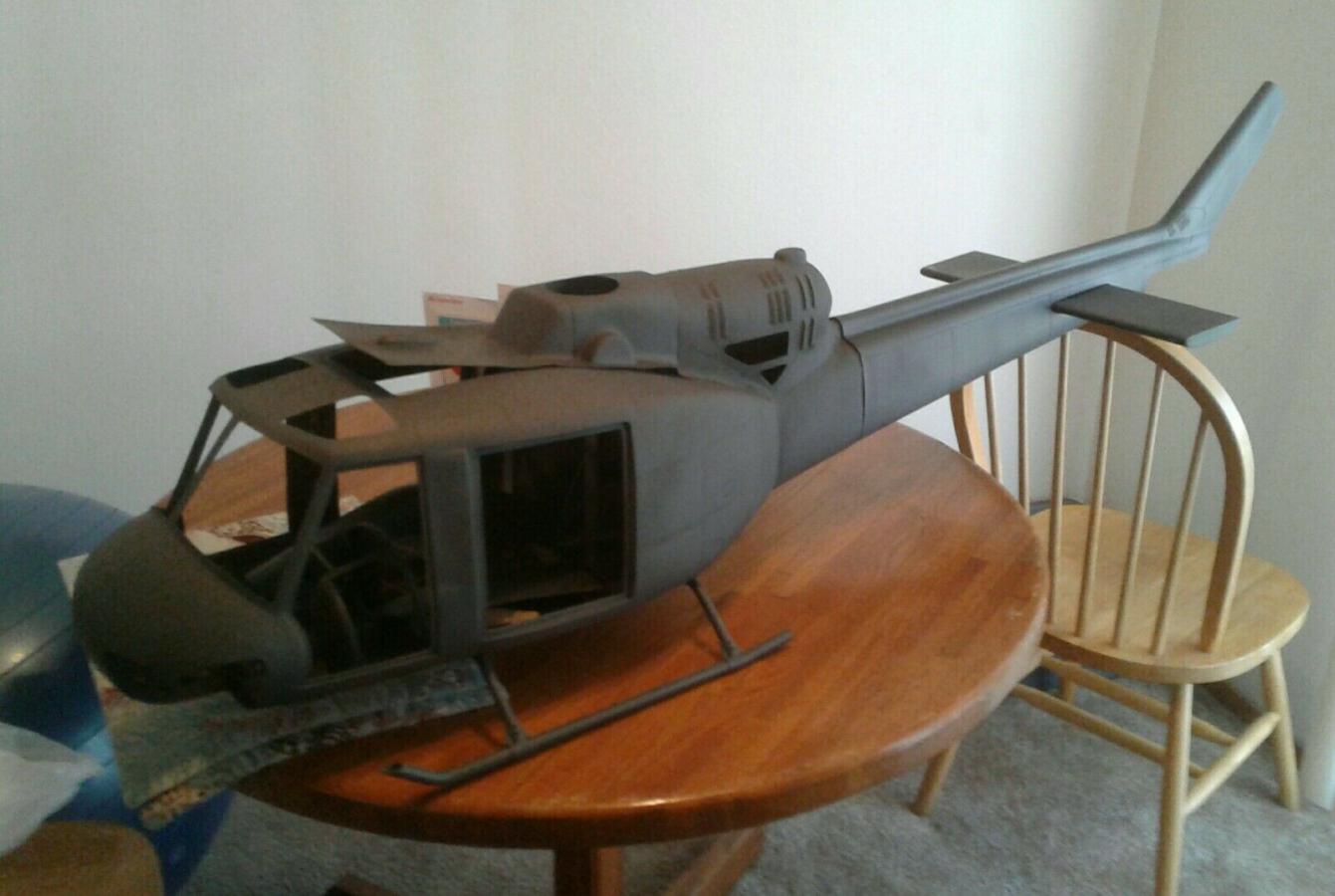

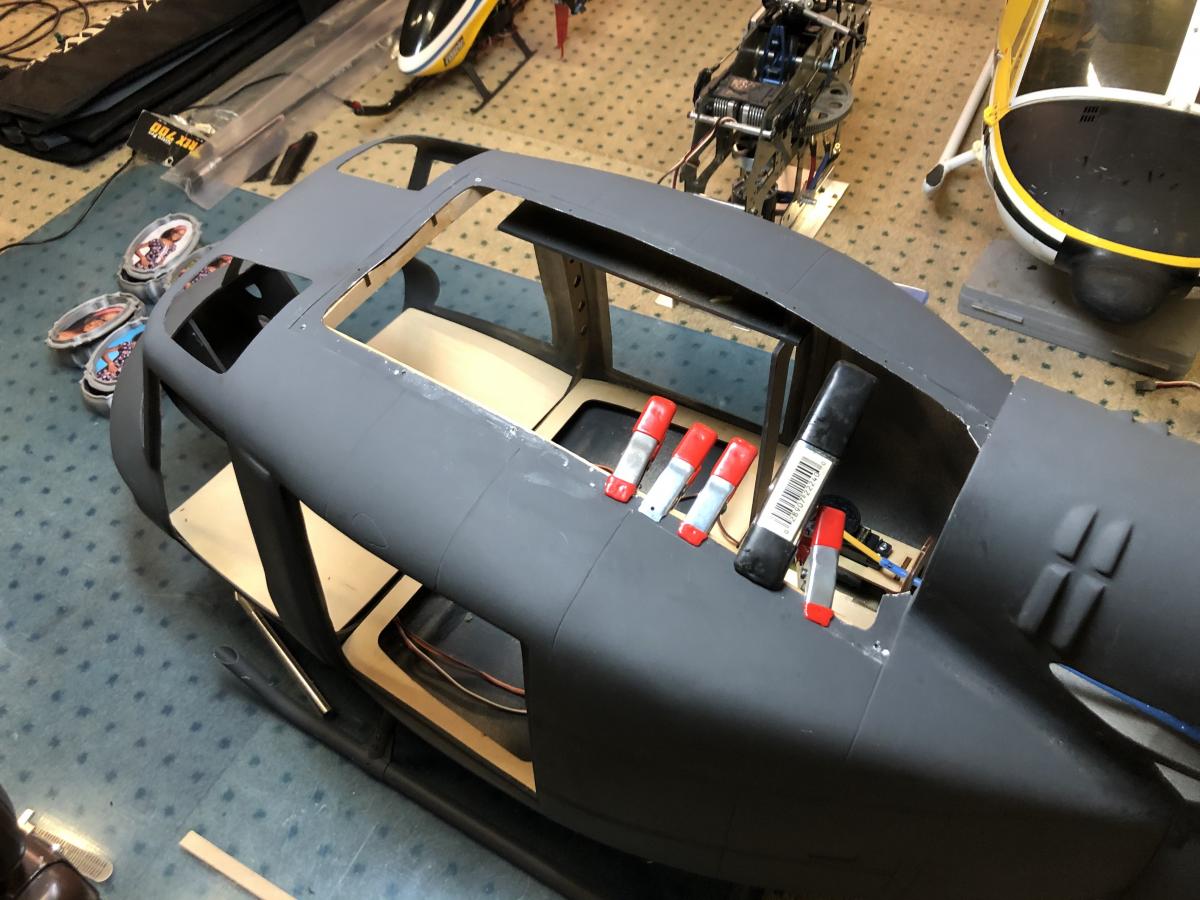

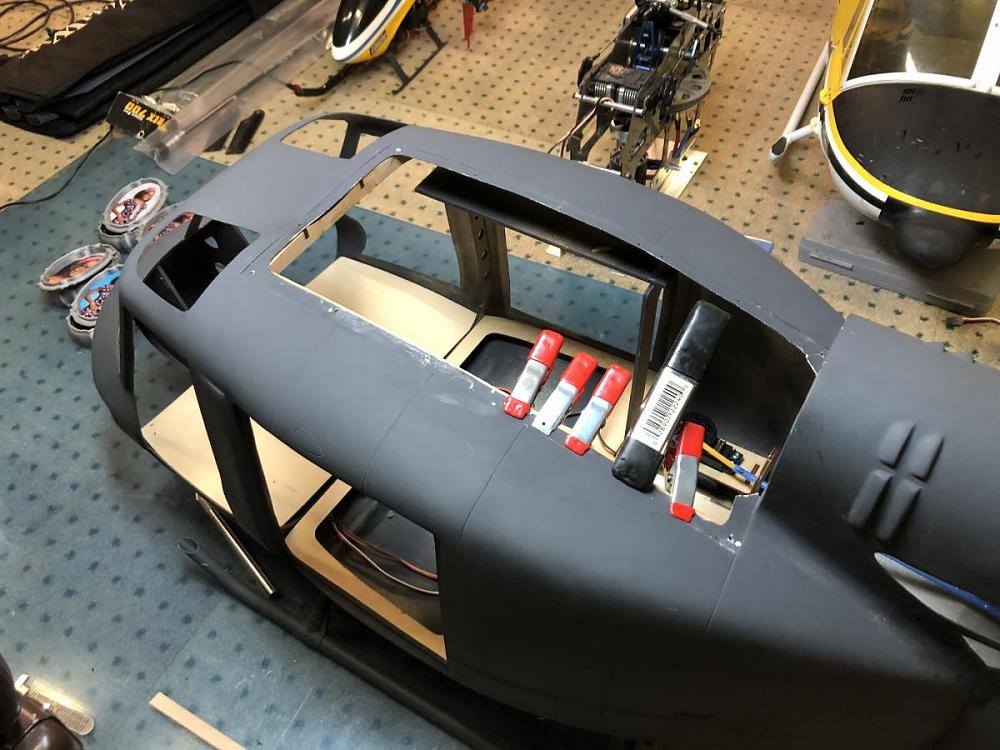

    Straightening the fuselage with plywood support.

    Click image for larger version  Name:	05.jpg Views:	8 Size:	127.4 KB ID:	223552

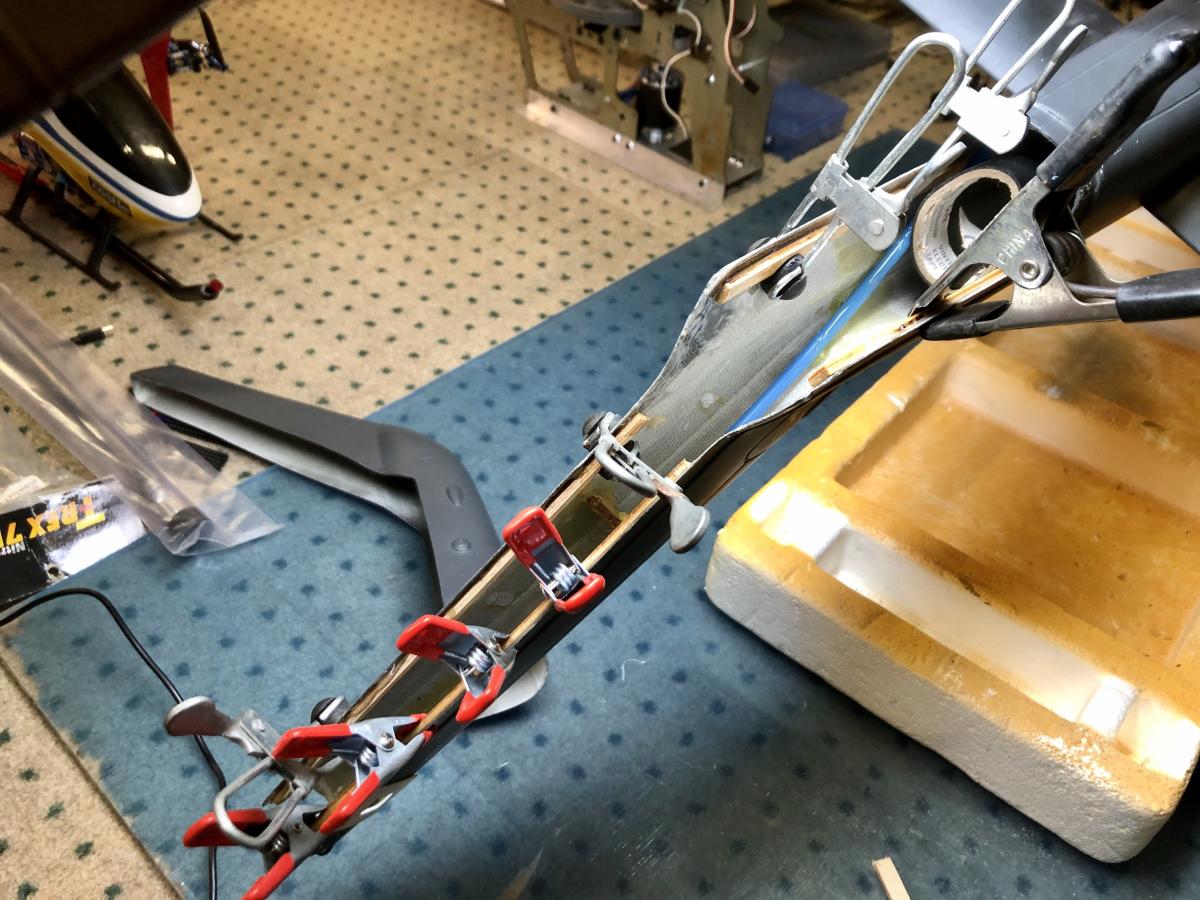

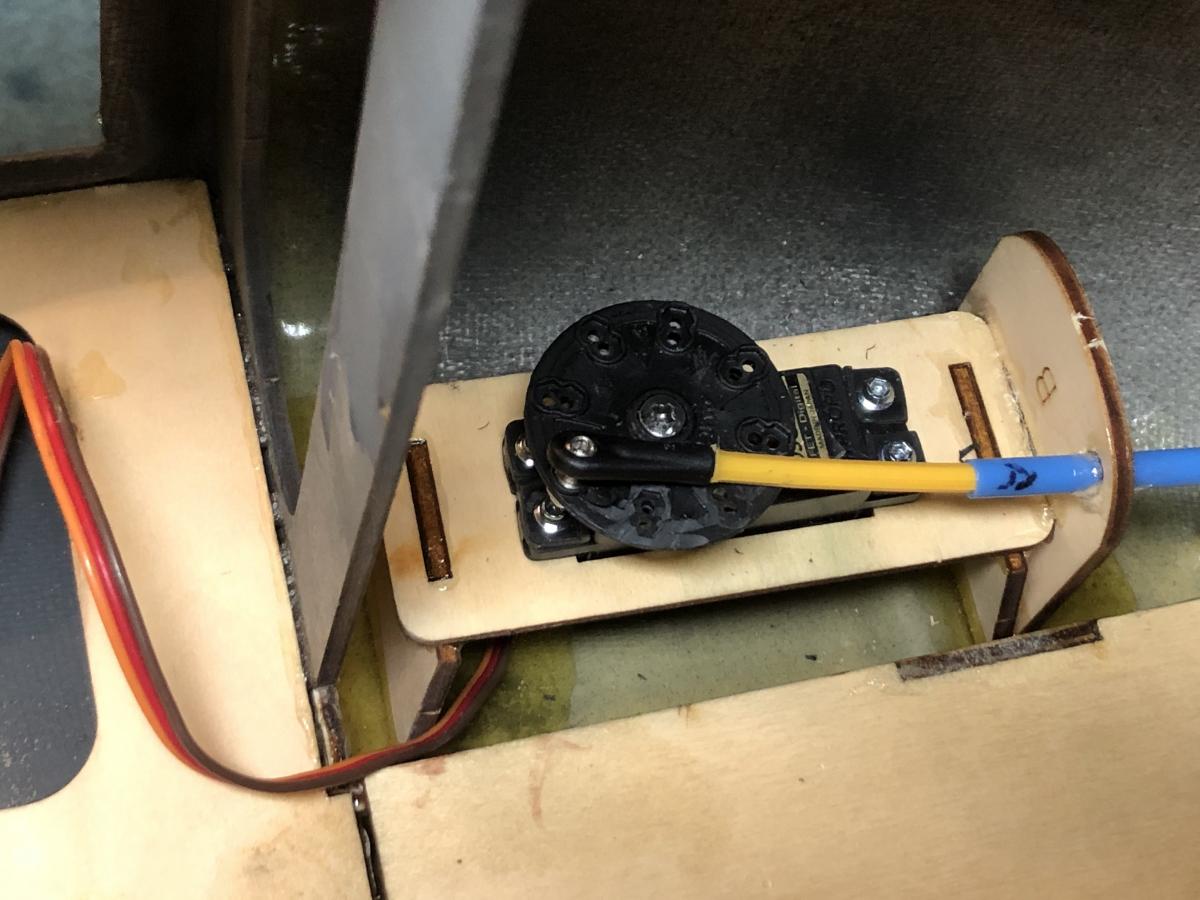

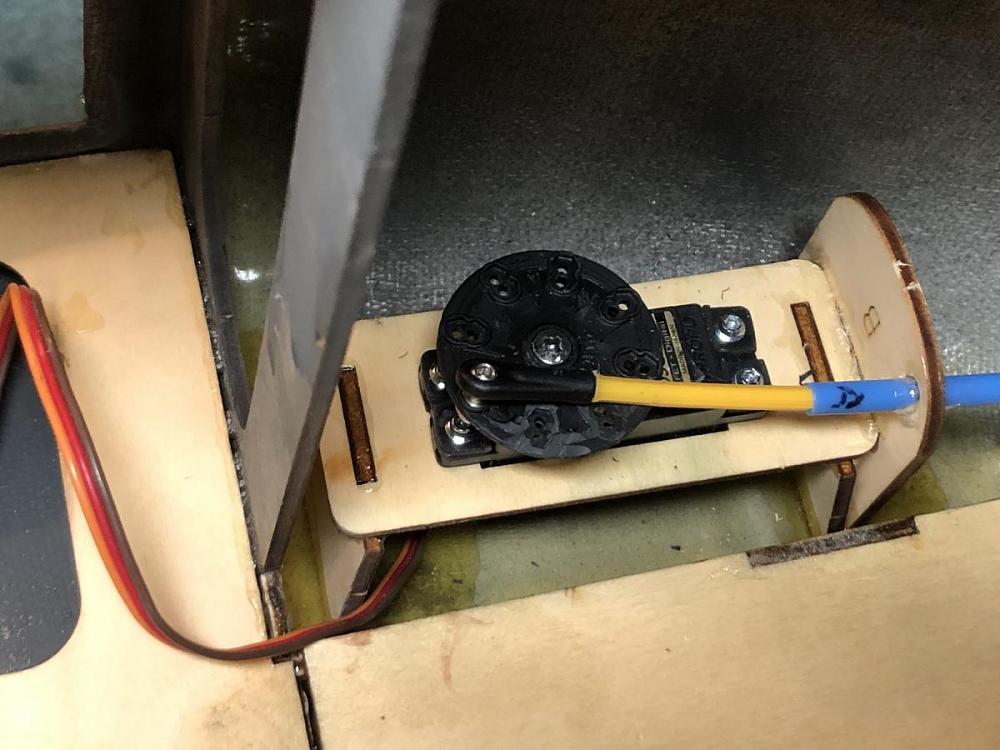

    Since I had to flip the tail rotor to the left side I decided to use a control tube linkage to make it cleaner.

    Click image for larger version  Name:	06.jpg Views:	7 Size:	109.0 KB ID:	223546

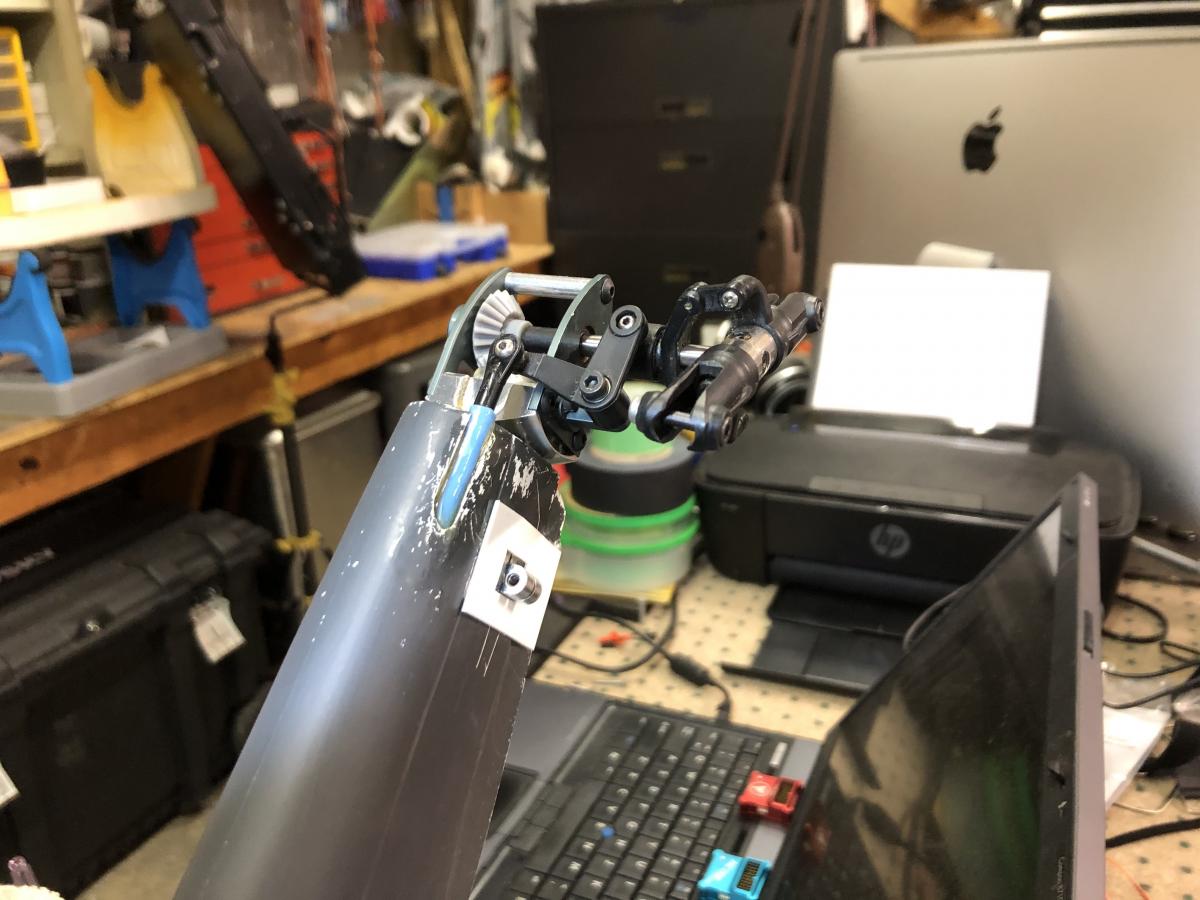

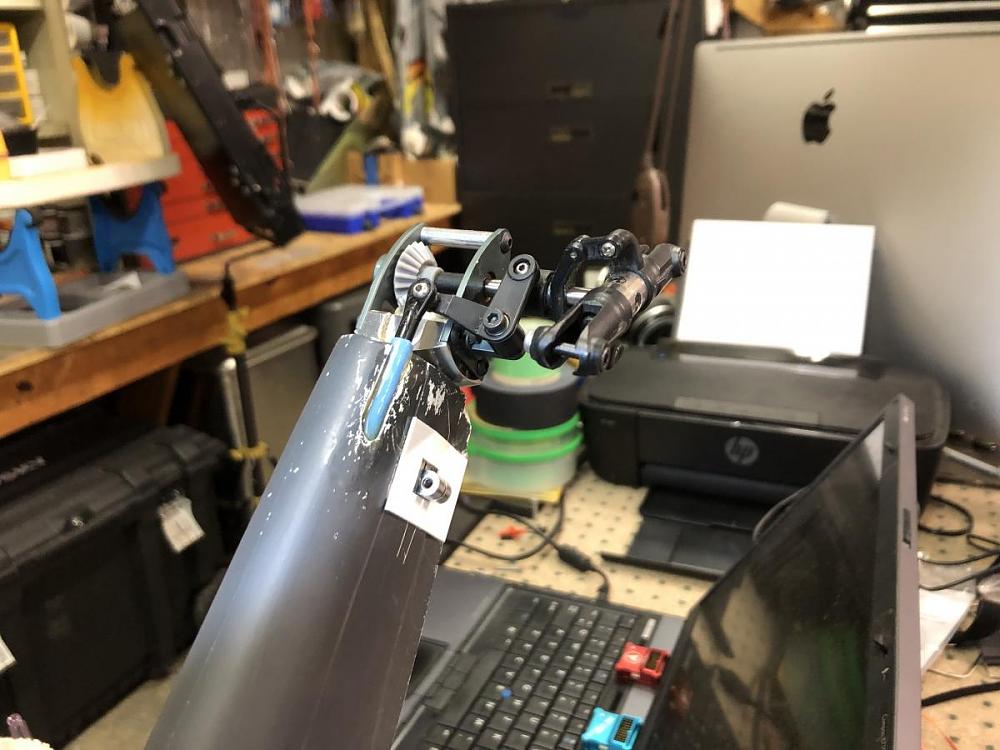

    The control tube will be blended in to the tail boom.

    Click image for larger version  Name:	10.jpg Views:	7 Size:	106.3 KB ID:	223551

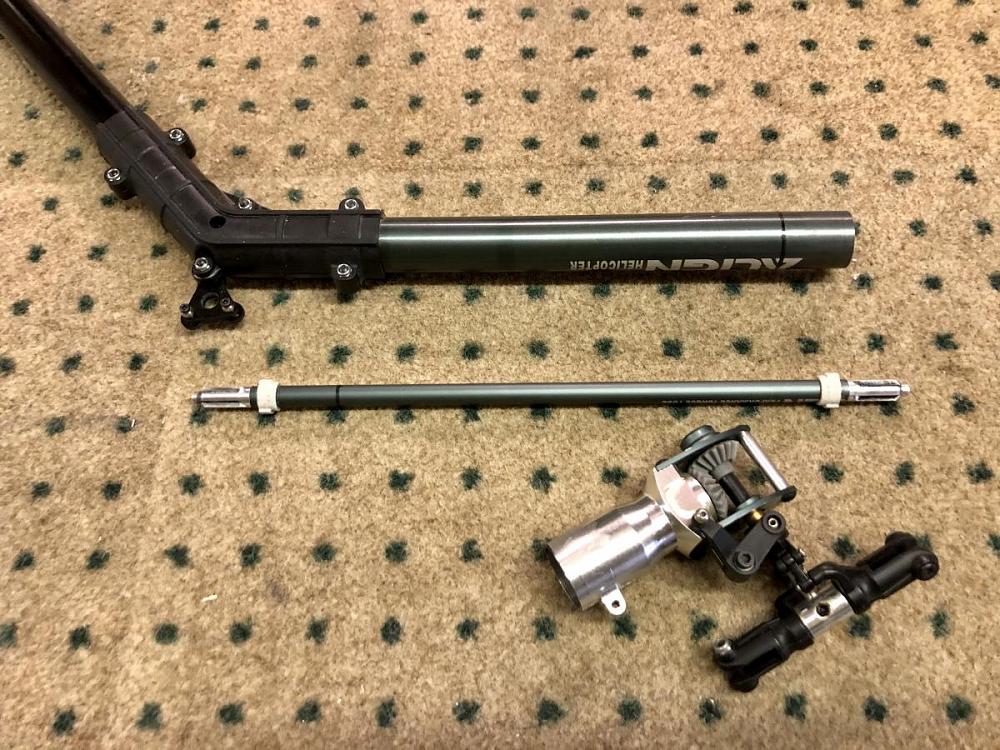

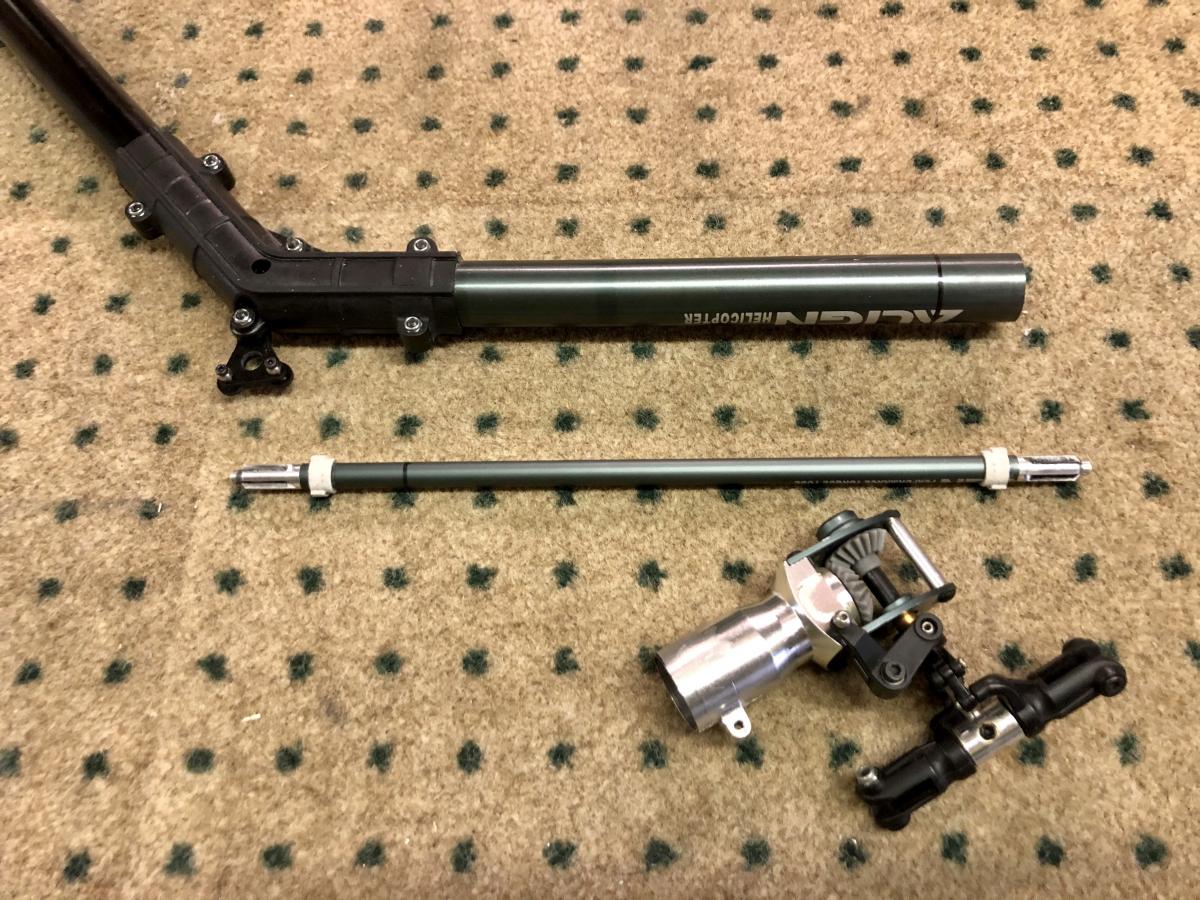

    This called for a T-Rex 600 with a 700 tube, it came with all the pieces to use a belt but I opted for the torque tube and just made up my own using a Roban raised tail elbow.

    Click image for larger version  Name:	11.jpg Views:	7 Size:	209.8 KB ID:	223558

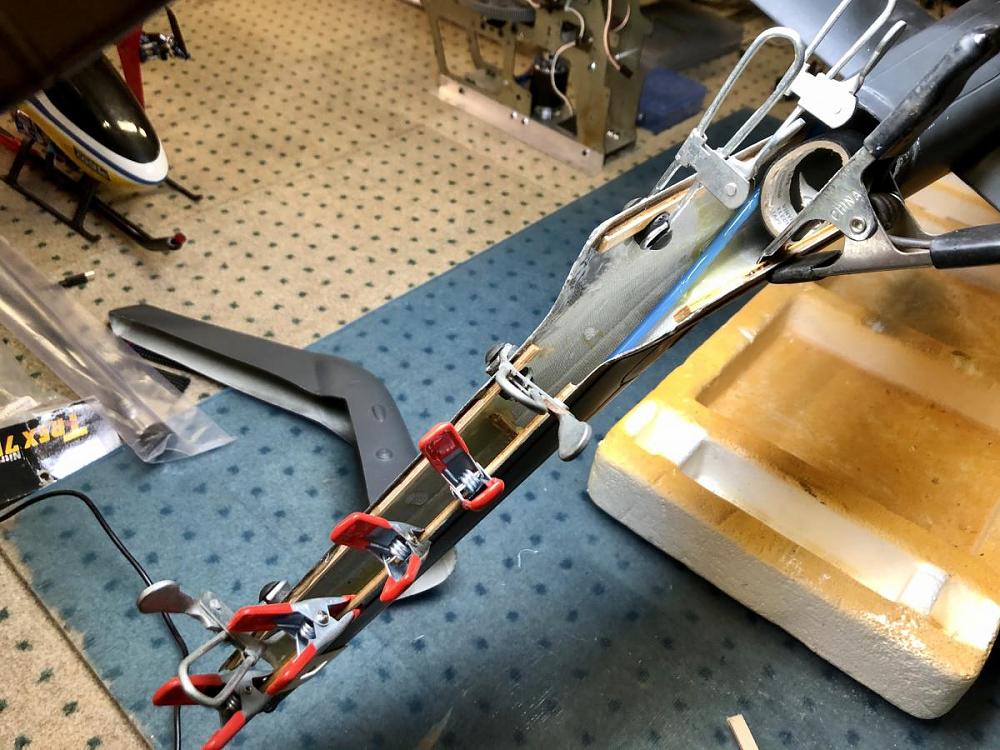

    Click image for larger version  Name:	12.jpg Views:	7 Size:	153.5 KB ID:	223556

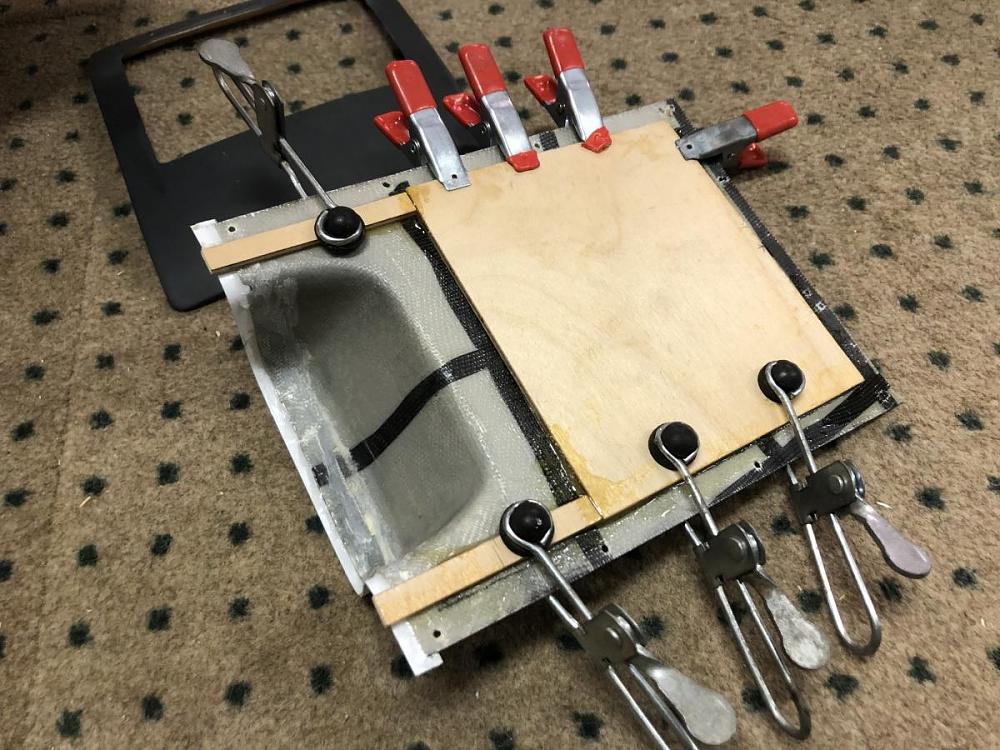

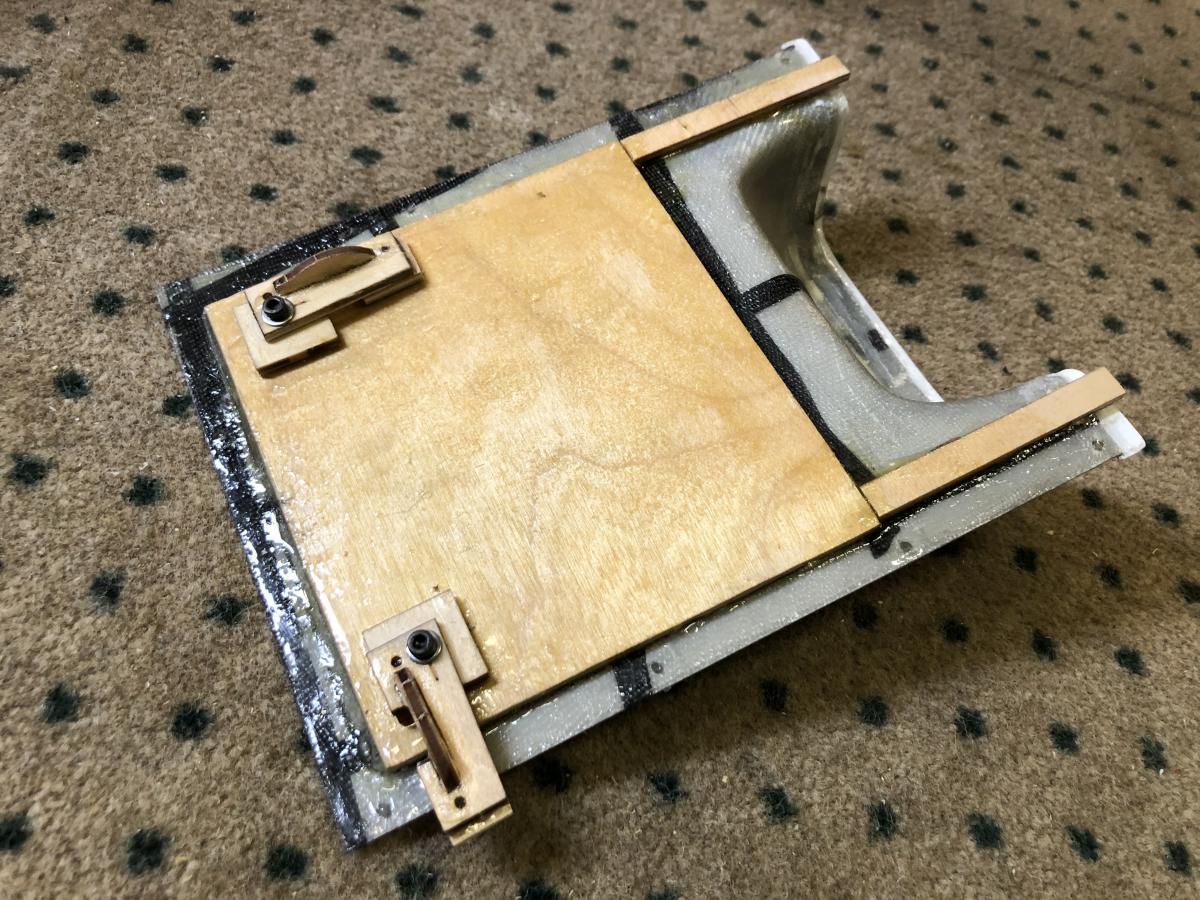

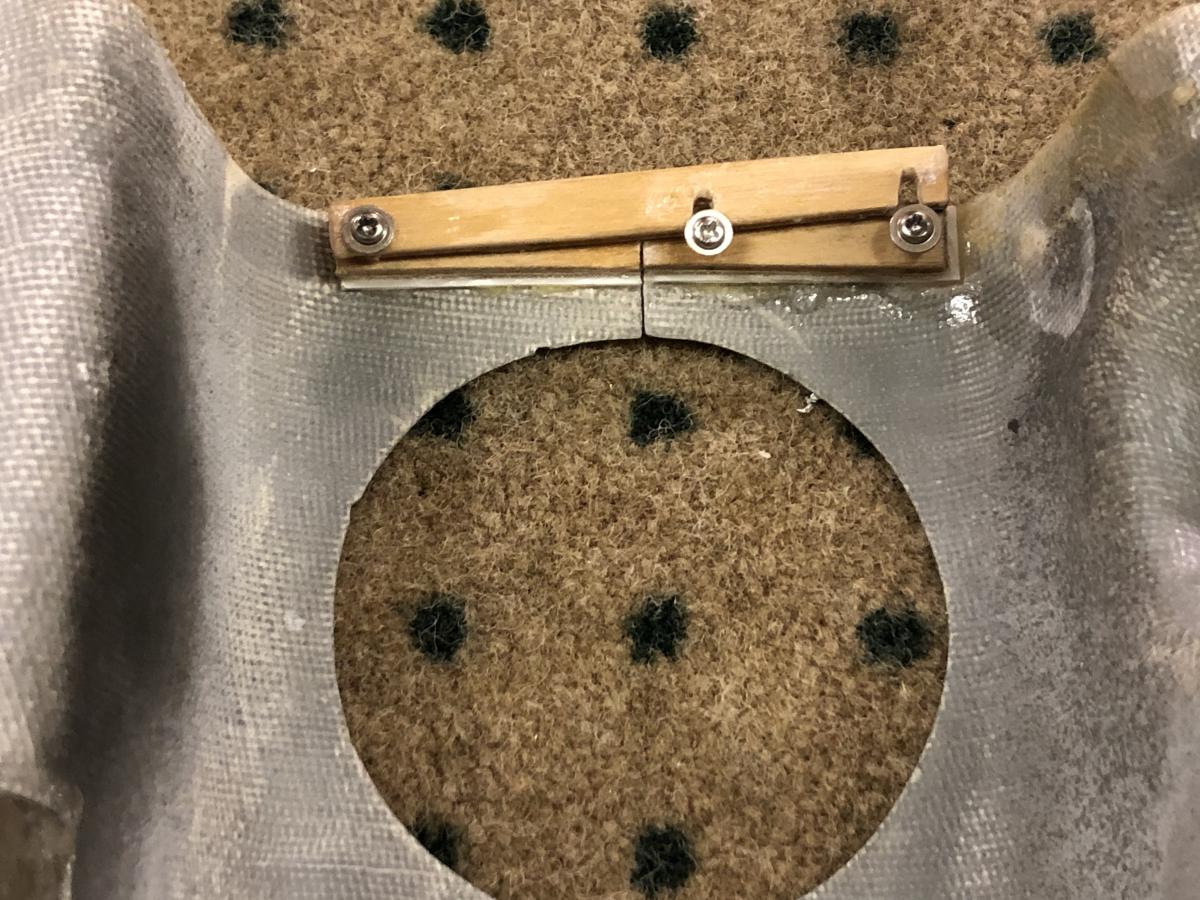

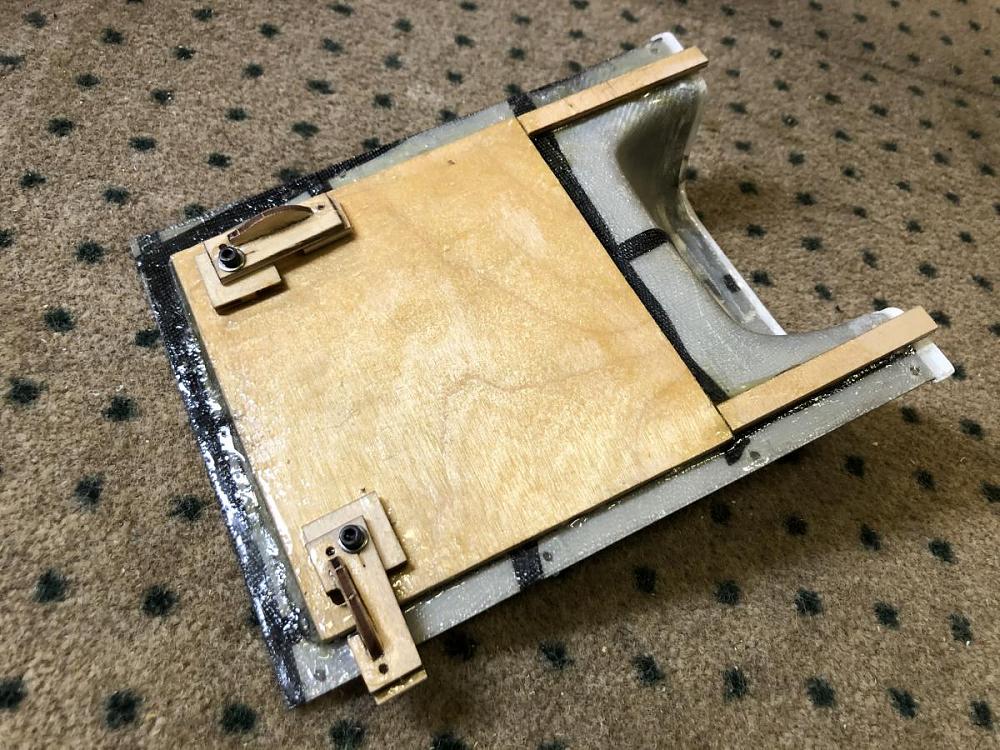

    This is my screwless battery hatch setup.

    Click image for larger version  Name:	13.jpg Views:	7 Size:	171.8 KB ID:	223555

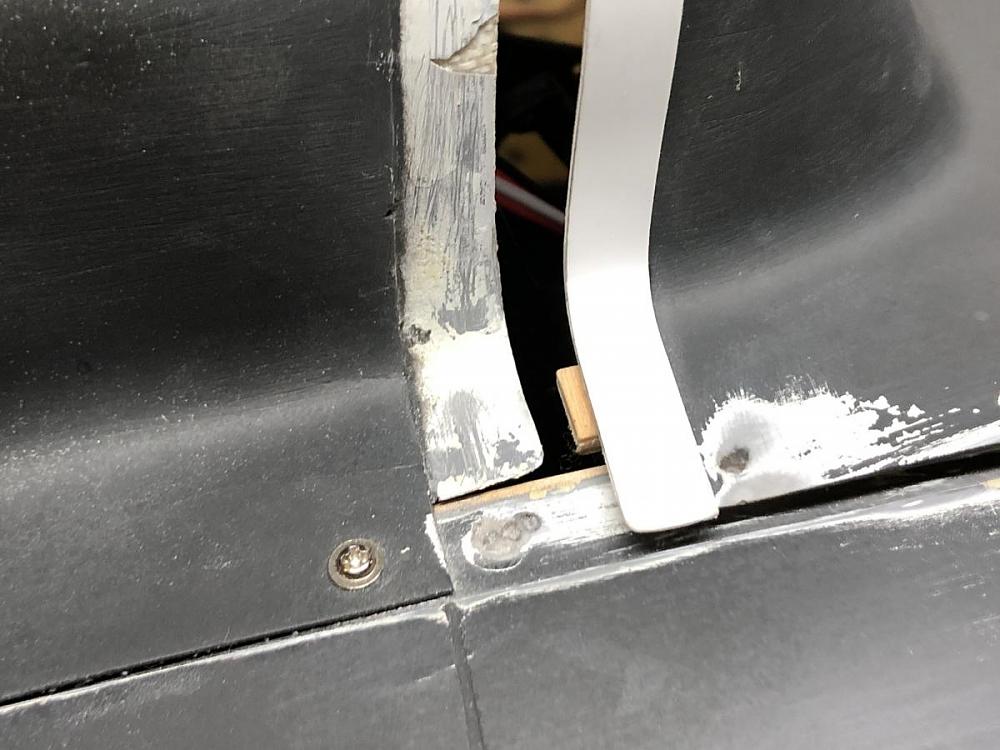

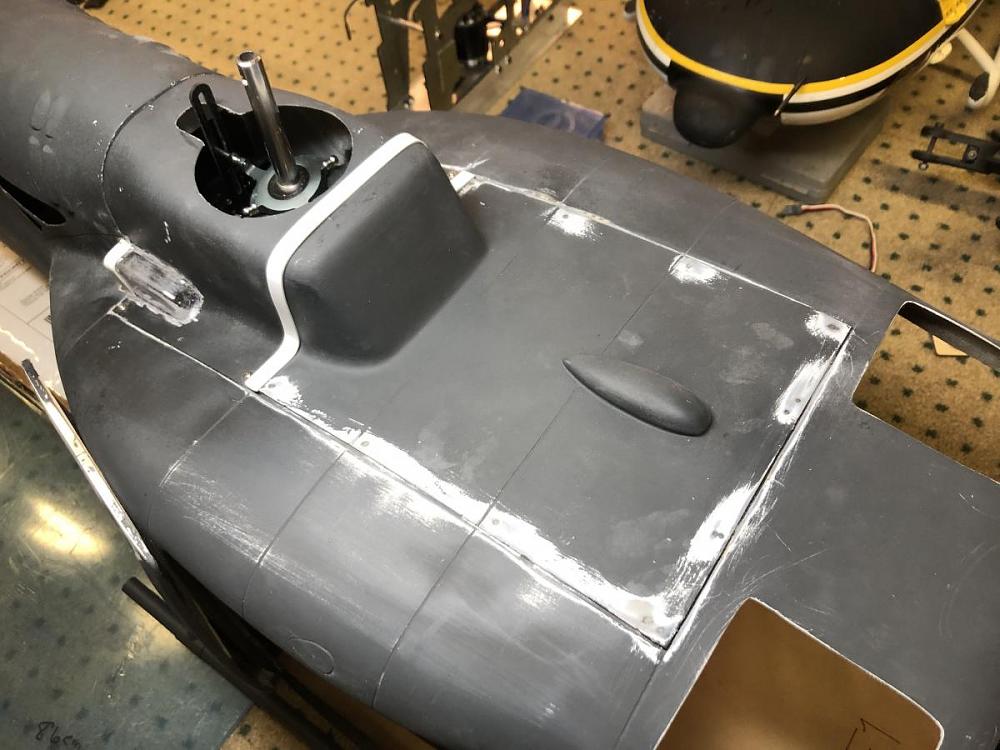

    Click image for larger version  Name:	14.jpg Views:	7 Size:	114.4 KB ID:	223550

    Click image for larger version  Name:	15.jpg Views:	7 Size:	107.5 KB ID:	223549

    Click image for larger version  Name:	16.jpg Views:	7 Size:	208.6 KB ID:	223557

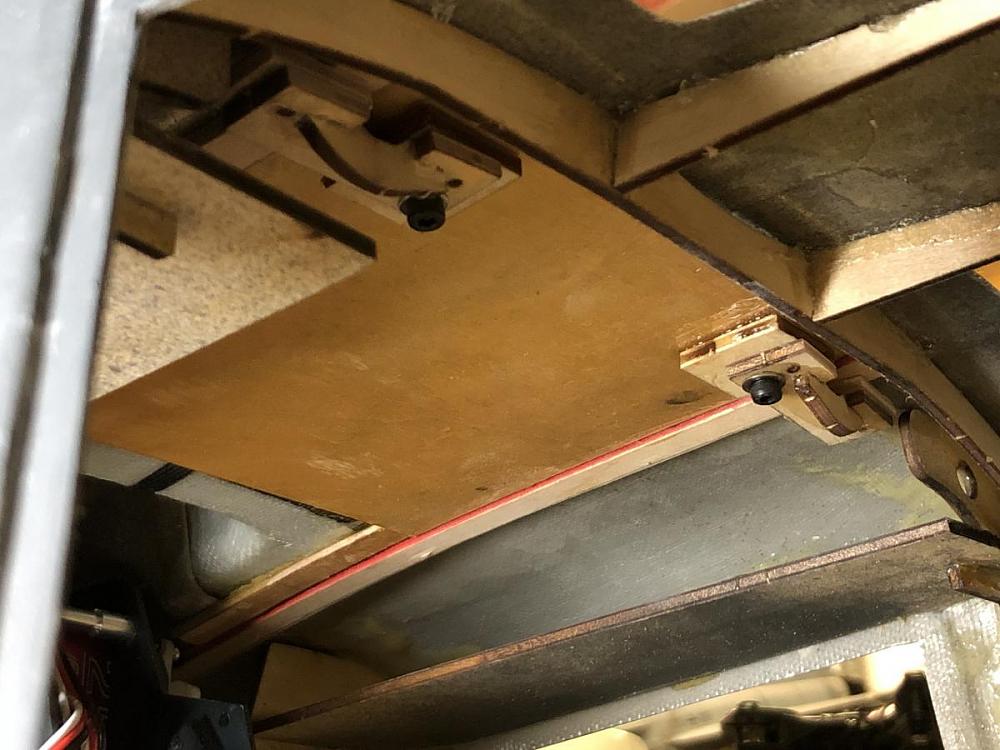

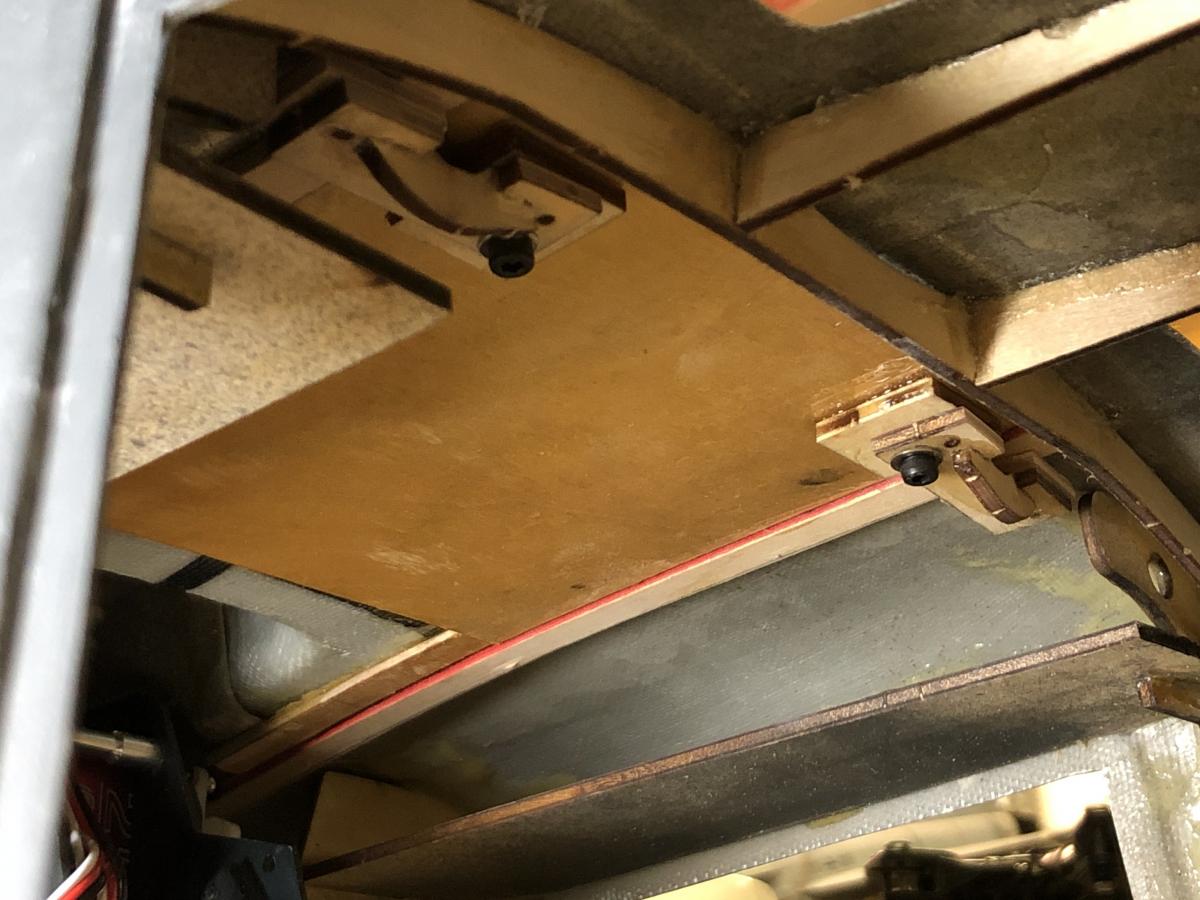

    Click image for larger version  Name:	17.jpg Views:	7 Size:	118.0 KB ID:	223548
    TiredIron Aviation
    Tired Iron Military Vehicles

  • #2
    Looking good, George! If anyone can nurse this bird into the air, it's you!

    Comment


    • #3

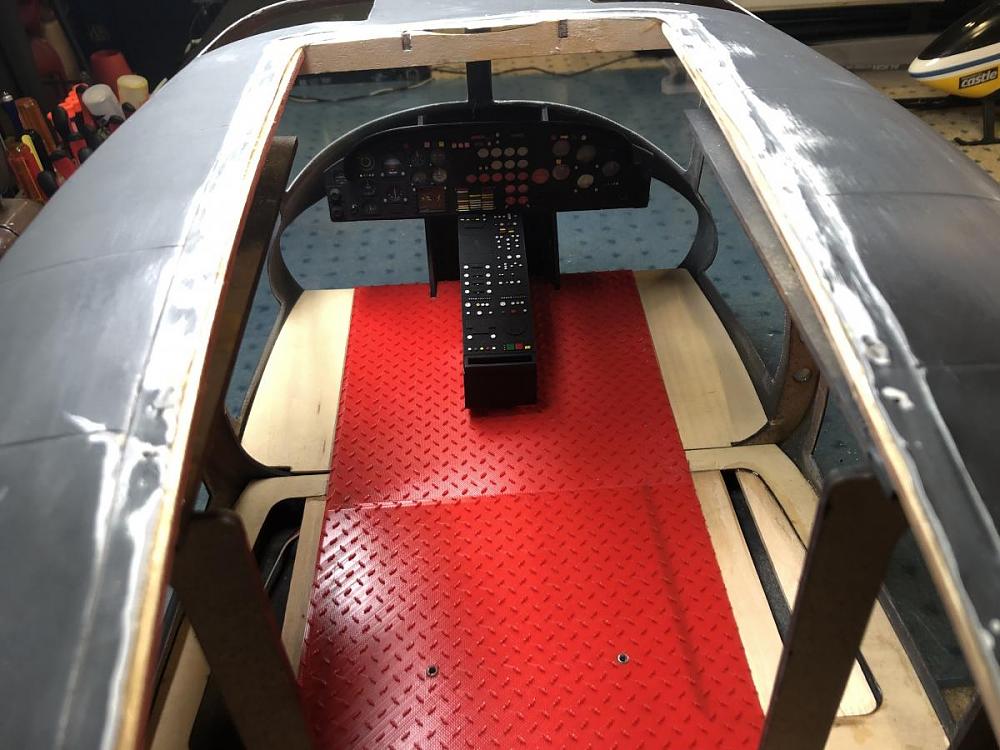

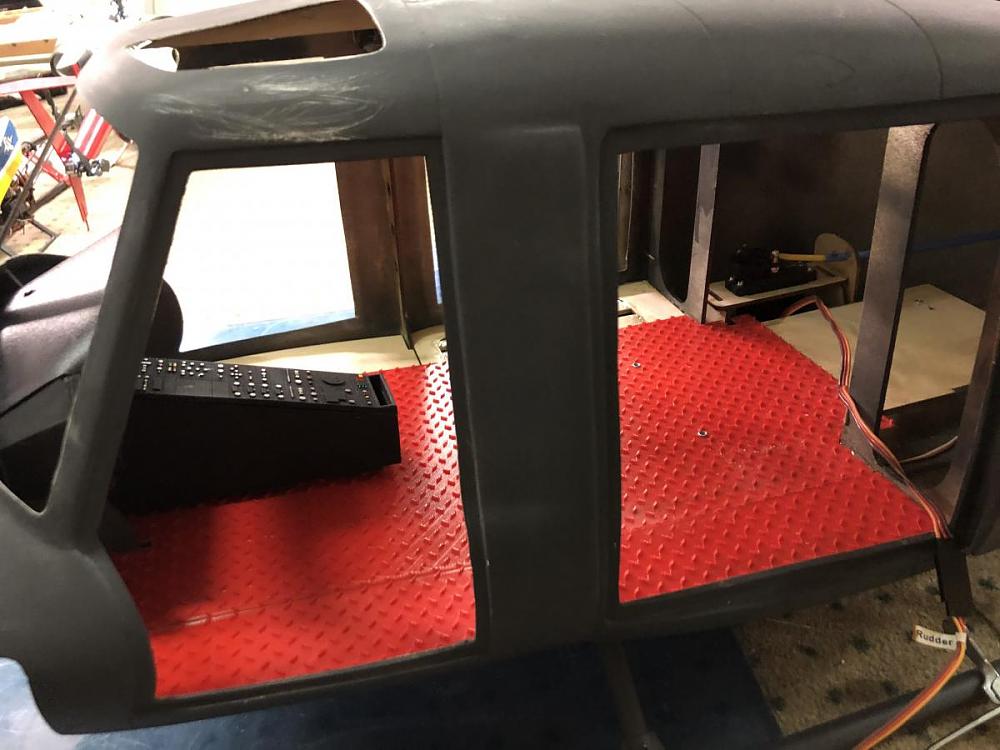

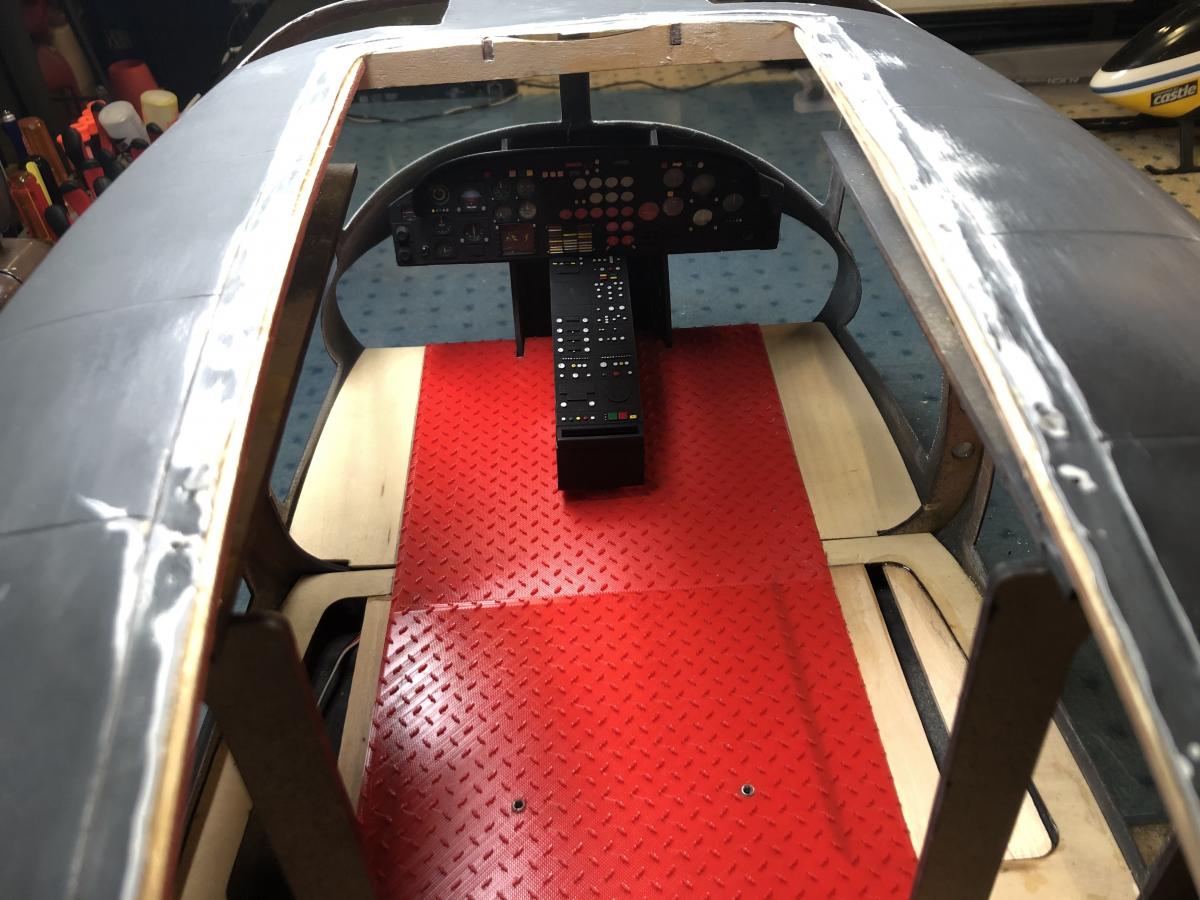

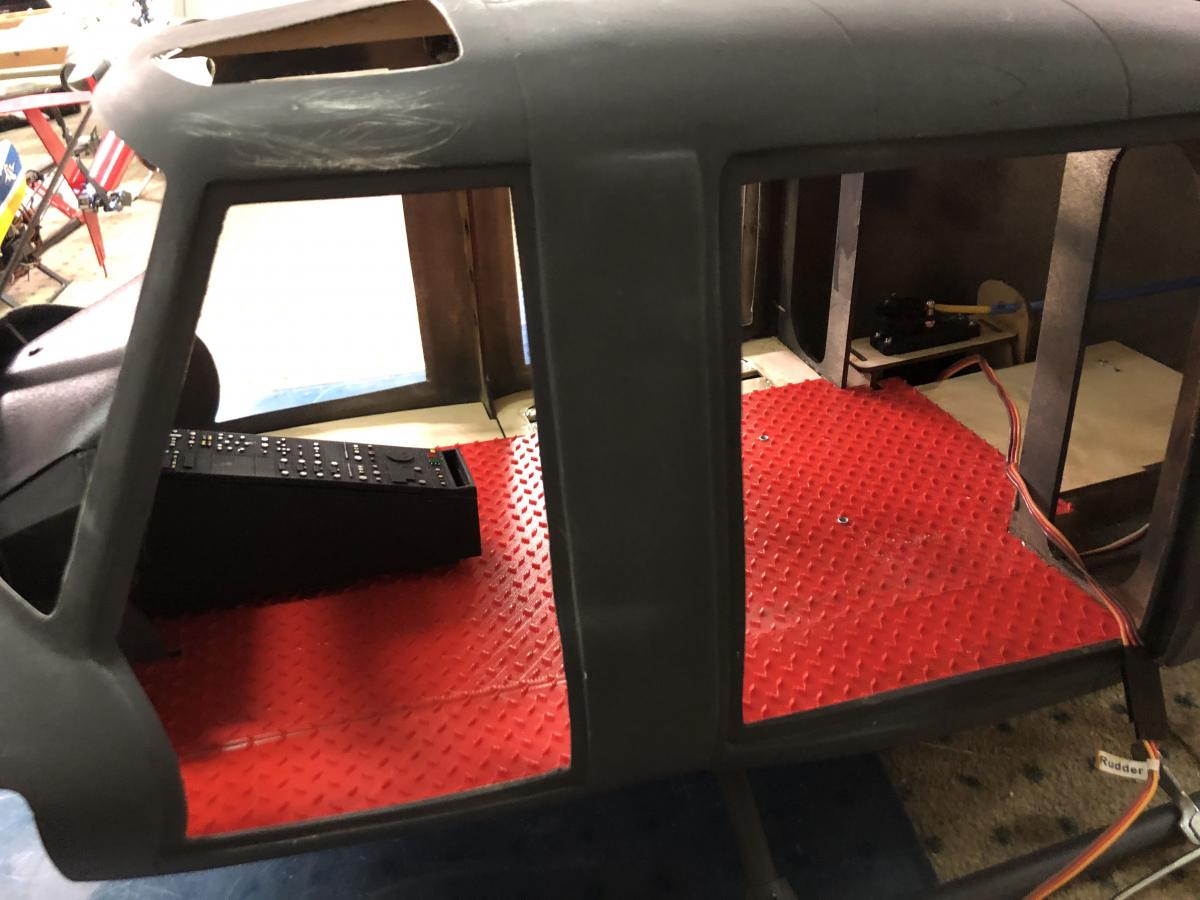

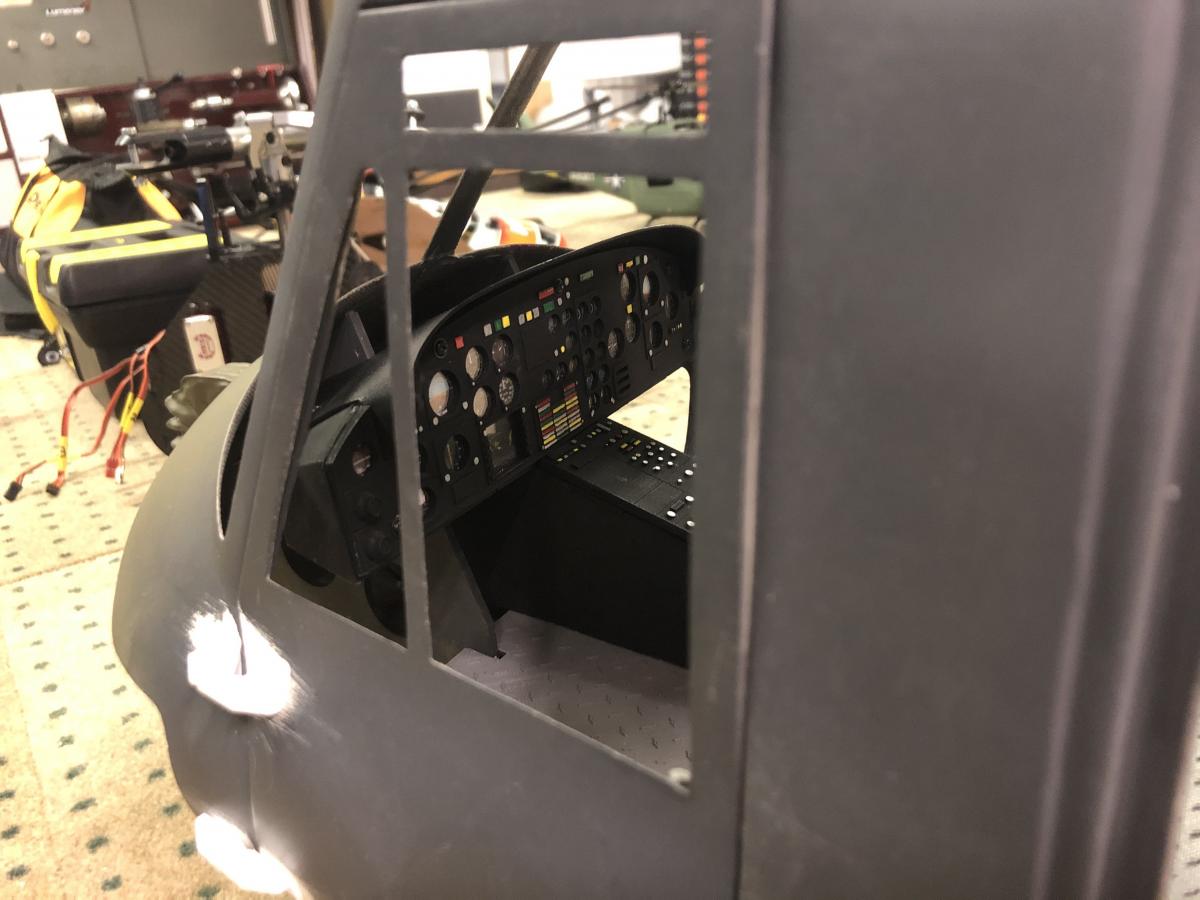

      Thanks Alpha, here's some pics of the diamond plate that Elbee shared with us...

      Click image for larger version

Name:	18.jpg
Views:	84
Size:	124.8 KB
ID:	223618

      Click image for larger version

Name:	19.jpg
Views:	66
Size:	98.0 KB
ID:	223619
      TiredIron Aviation
      Tired Iron Military Vehicles

      Comment


      • #4

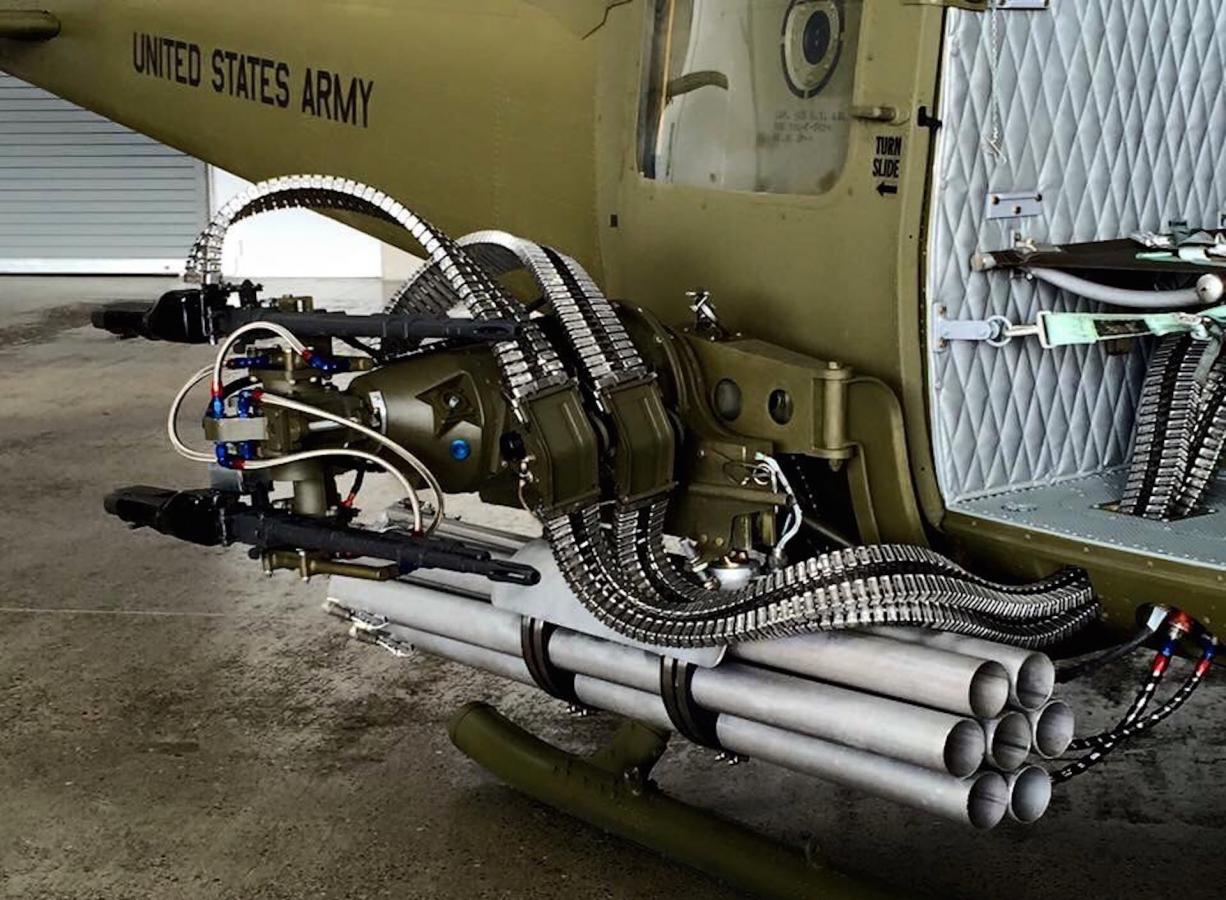

        Excellent work so far George, this is going to be one impressive machine! The diamond plate looks great! If you are going to do a sharkmouth scheme, let me know. I’ve got a huge file of reference photos of 174th AHC photos from when I did my 500 size version. Also, if you are interested, this grenade launcher might fit your machine. I had it designed by Real Model Pilots for my 500 size version, but they accidentally printed it twice as big as necessary.

        Comment


        • #5
          Originally posted by TiredIronGRB View Post
          Thanks Alpha, here's some pics of the diamond plate that Elbee shared with us...

          Click image for larger version

Name:	18.jpg
Views:	84
Size:	124.8 KB
ID:	223618

          Click image for larger version

Name:	19.jpg
Views:	66
Size:	98.0 KB
ID:	223619
          Hey George, looks nice by the way, but any chance you going to change that nyrod to a more rigid system?? Nyrod does not work good with tail rotors, just curious if you had an idea on replacing that or are you going to give it a try??

          Comment


          • #6
            Ha...I put the nyrod in there...works great ;)
            TiredIron Aviation
            Tired Iron Military Vehicles

            Comment


            • #7
              Originally posted by TiredIronGRB View Post
              Ha...I put the nyrod in there...works great ;)
              Oh okay, weather really plays with that nyrod on hot and cold tempts with flex as well, hope you got that baby in there rigid..........

              Comment


              • #8
                It's epoxied in several places.
                TiredIron Aviation
                Tired Iron Military Vehicles

                Comment


                • #9

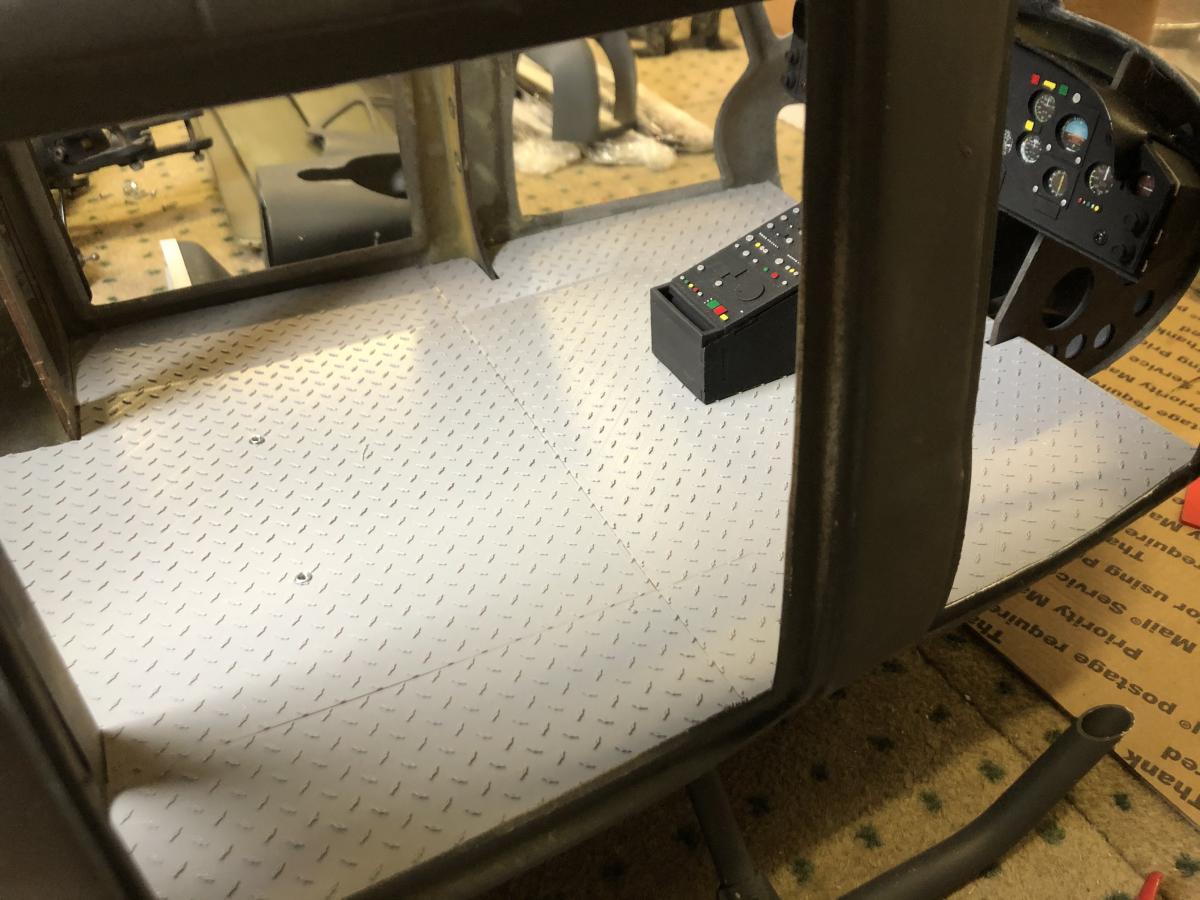

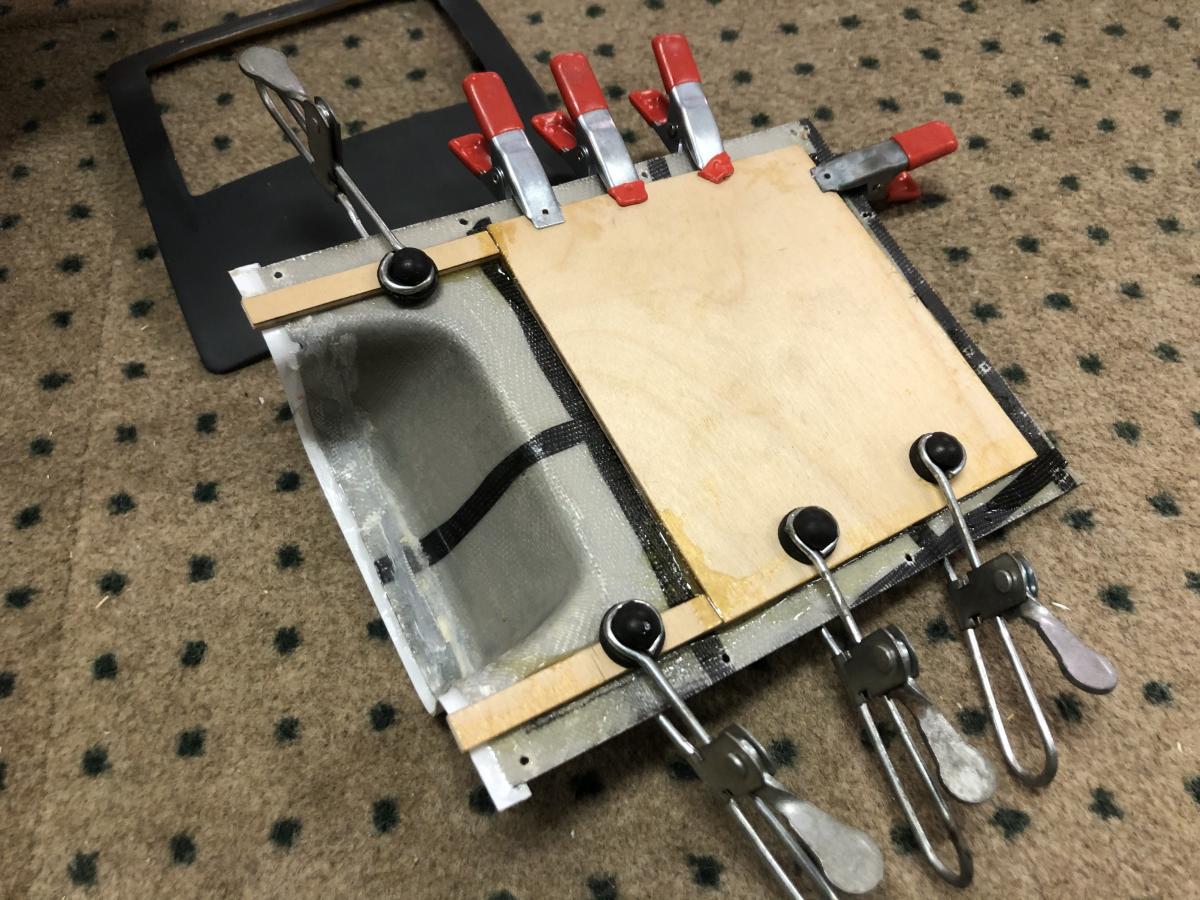

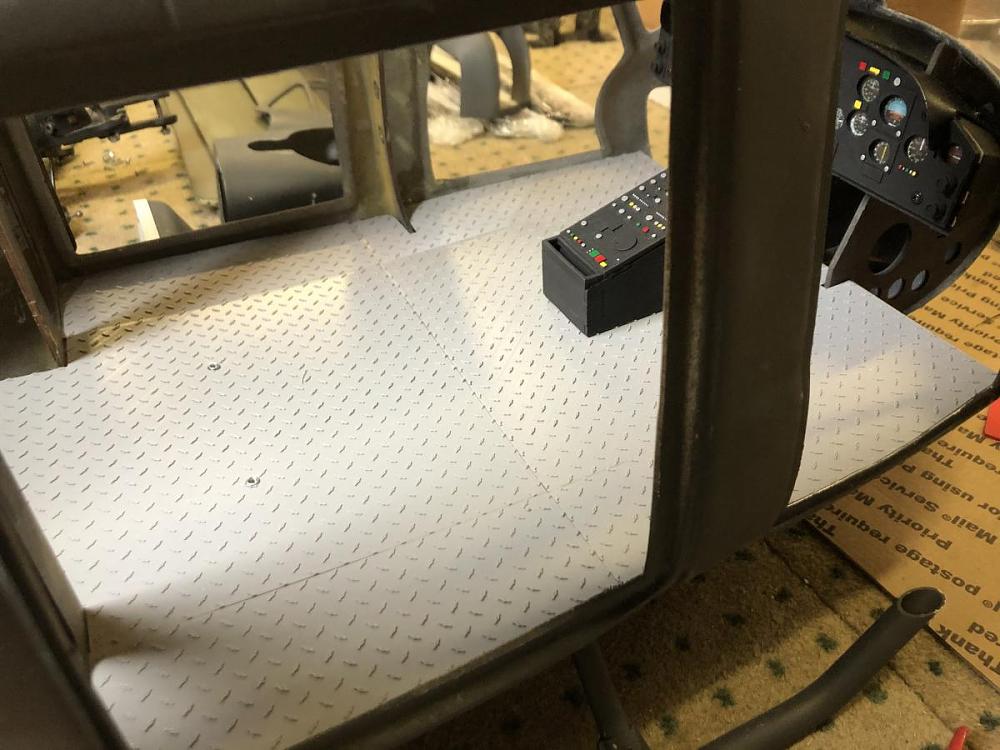

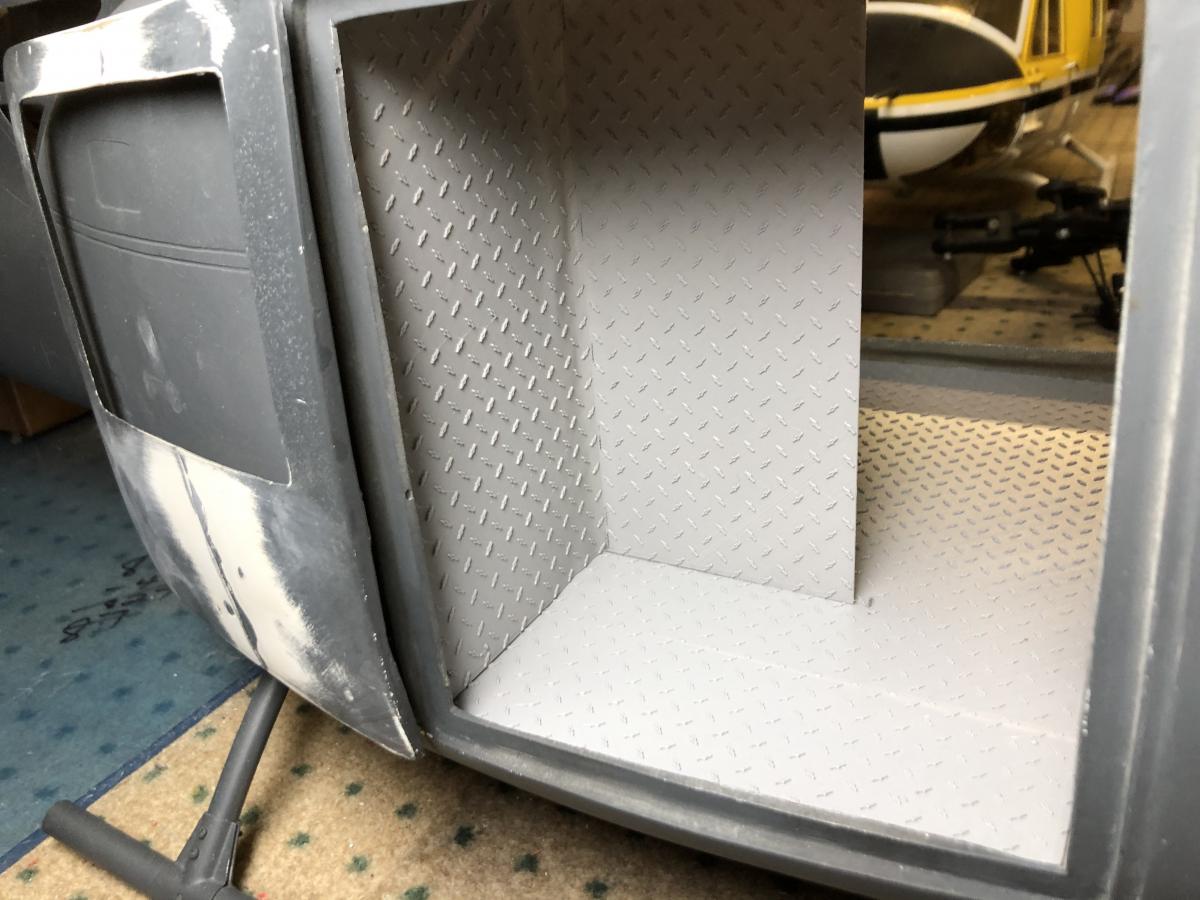

                  I finally got some gray filament in and reprinted all the flooring then started to work on the cabin walls.

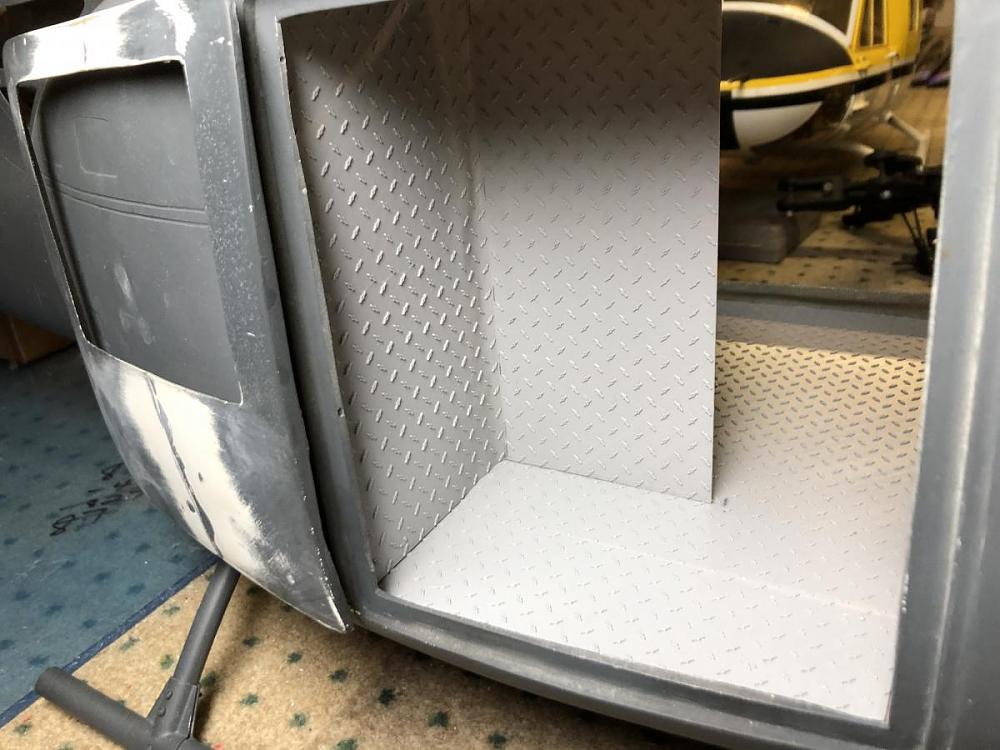

                  Click image for larger version

Name:	IMG_4273.jpg
Views:	79
Size:	114.3 KB
ID:	224515

                  Click image for larger version

Name:	IMG_4269.jpg
Views:	53
Size:	119.5 KB
ID:	224517

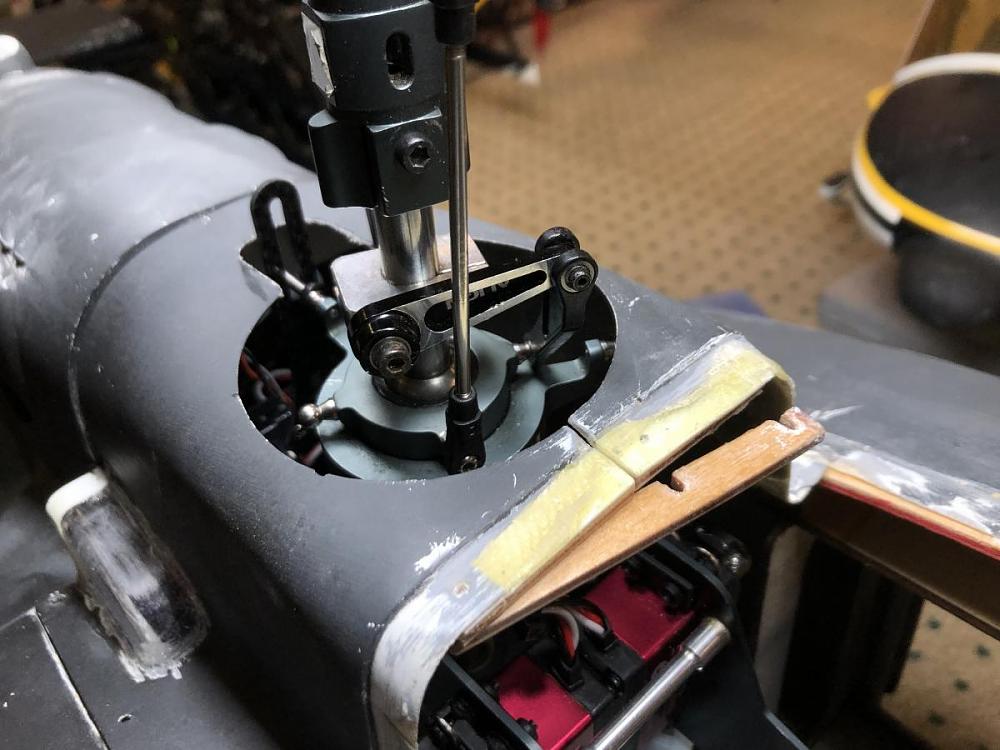

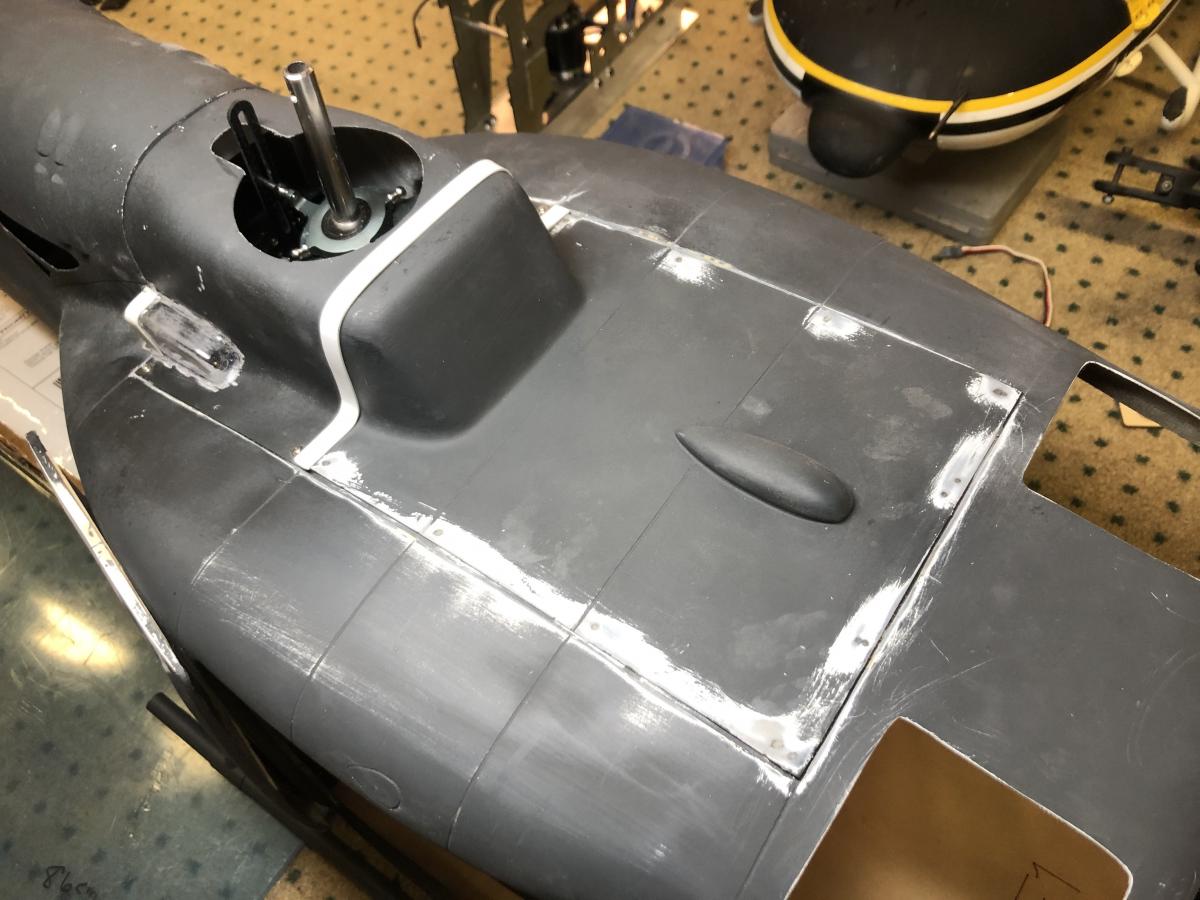

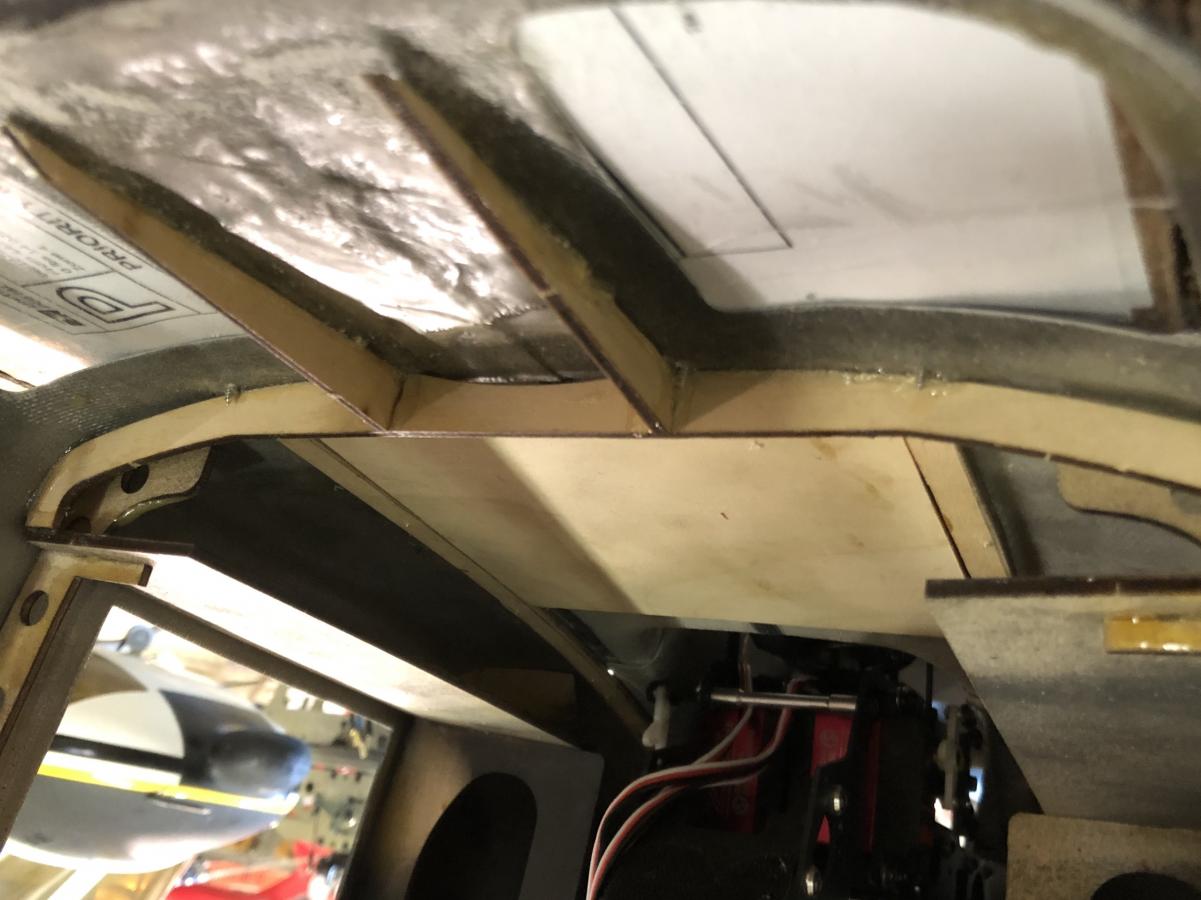

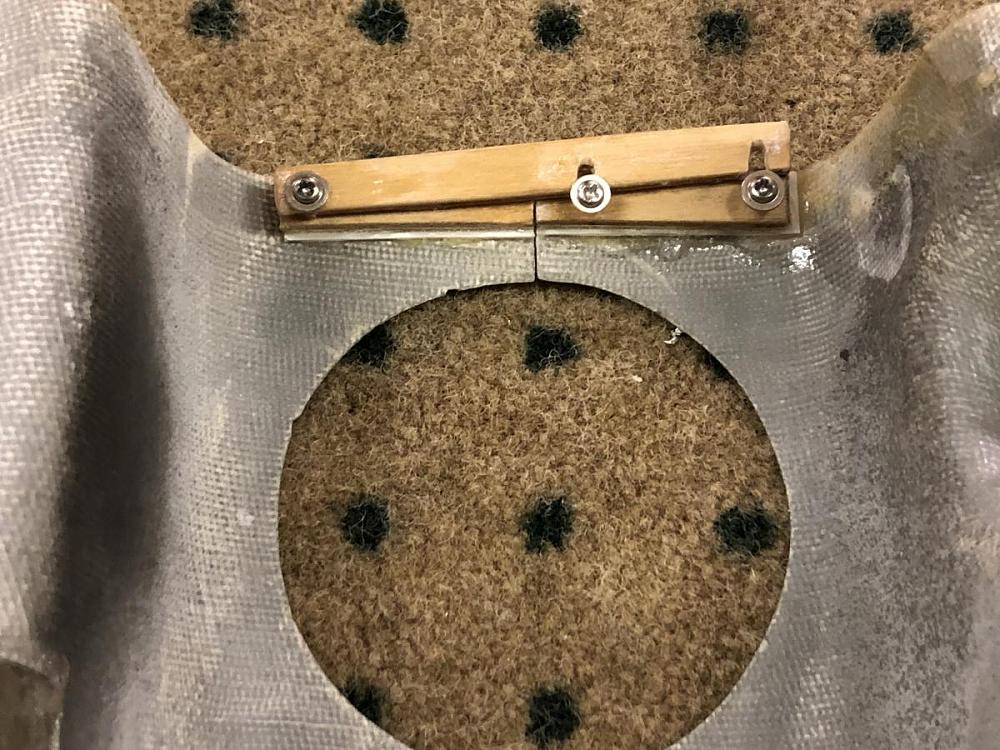

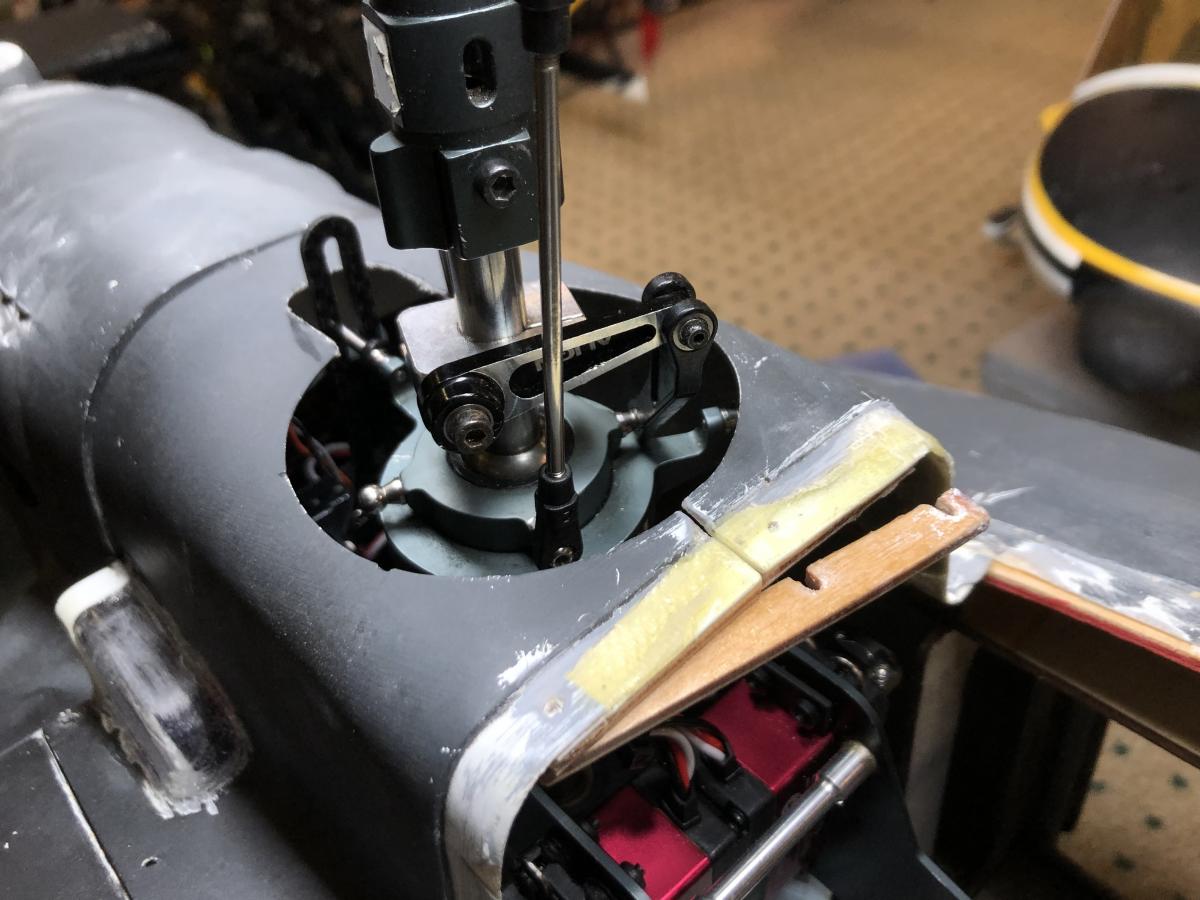

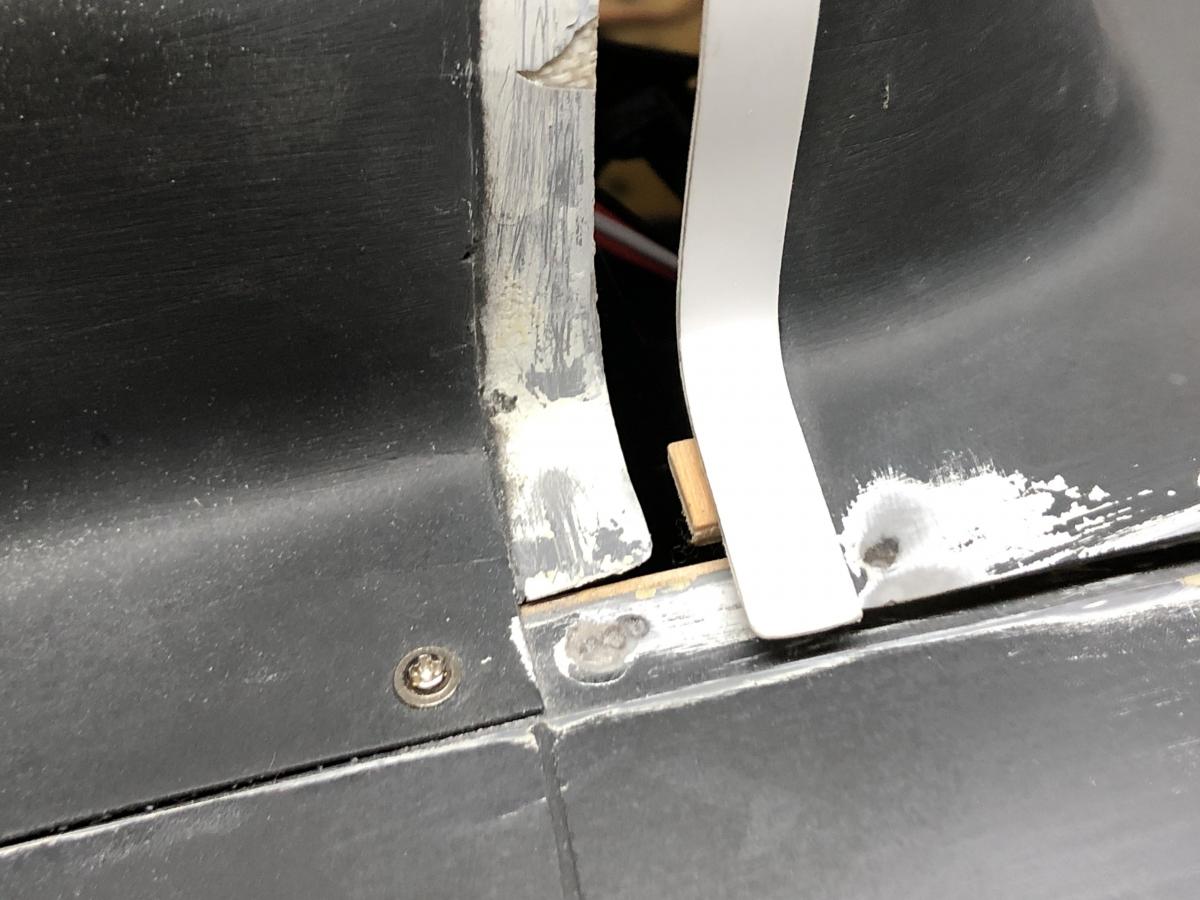

                  I made this latch so I can get the cowl on and off without removing the rotorhead.

                  Click image for larger version

Name:	IMG_4275.jpg
Views:	53
Size:	105.7 KB
ID:	224516

                  Click image for larger version

Name:	IMG_4274.jpg
Views:	53
Size:	186.4 KB
ID:	224518


                  TiredIron Aviation
                  Tired Iron Military Vehicles

                  Comment


                  • #10
                    Wow, that looks great, like the idea of the the top cowl removal, I'm just about ready to order the 800 Huey UH-1N, might do the same to it as well.

                    Comment


                    • #11
                      Looks great! The diamond plate really completes the look for the interior.

                      Comment


                      • #12
                        Yep the
                        diamond plate really stands out.

                        Comment


                        • #13

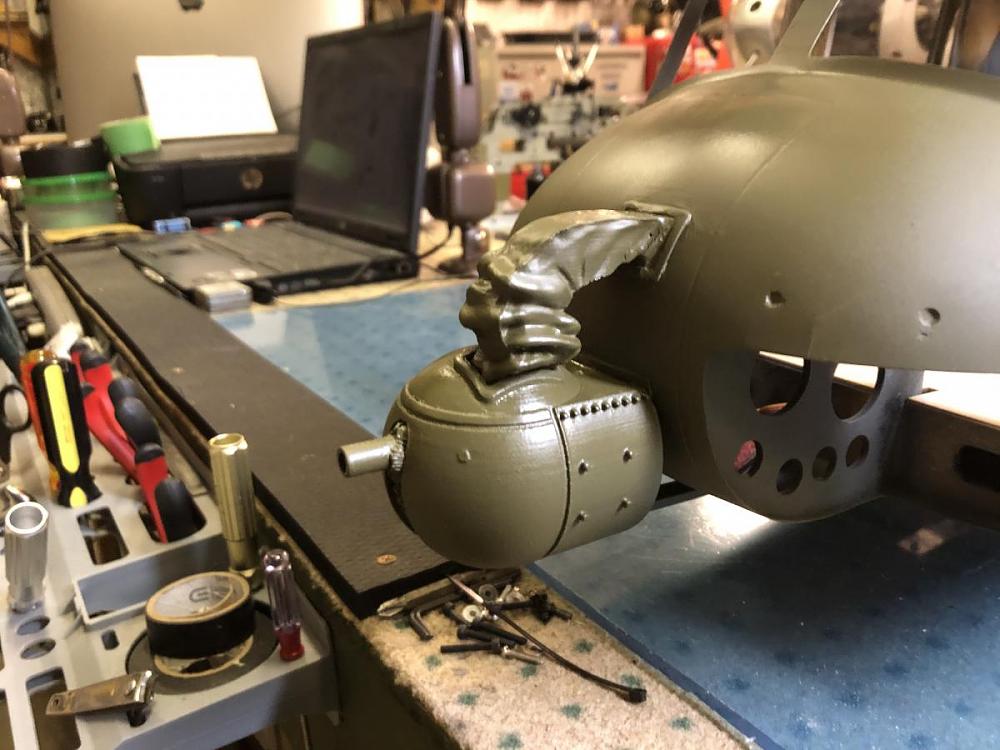

                          Thanks to @F106DeltaDart I'm going another route...

                          Click image for larger version

Name:	IMG_4320.jpg
Views:	60
Size:	110.5 KB
ID:	225244
                          TiredIron Aviation
                          Tired Iron Military Vehicles

                          Comment


                          • #14
                            Lol Very nice 203

                            Comment


                            • #15
                              Originally posted by TiredIronGRB View Post
                              Thanks to @F106DeltaDart I'm going another route...

                              Click image for larger version

Name:	IMG_4320.jpg
Views:	60
Size:	110.5 KB
ID:	225244
                              Looks great George!

                              Comment


                              • #16

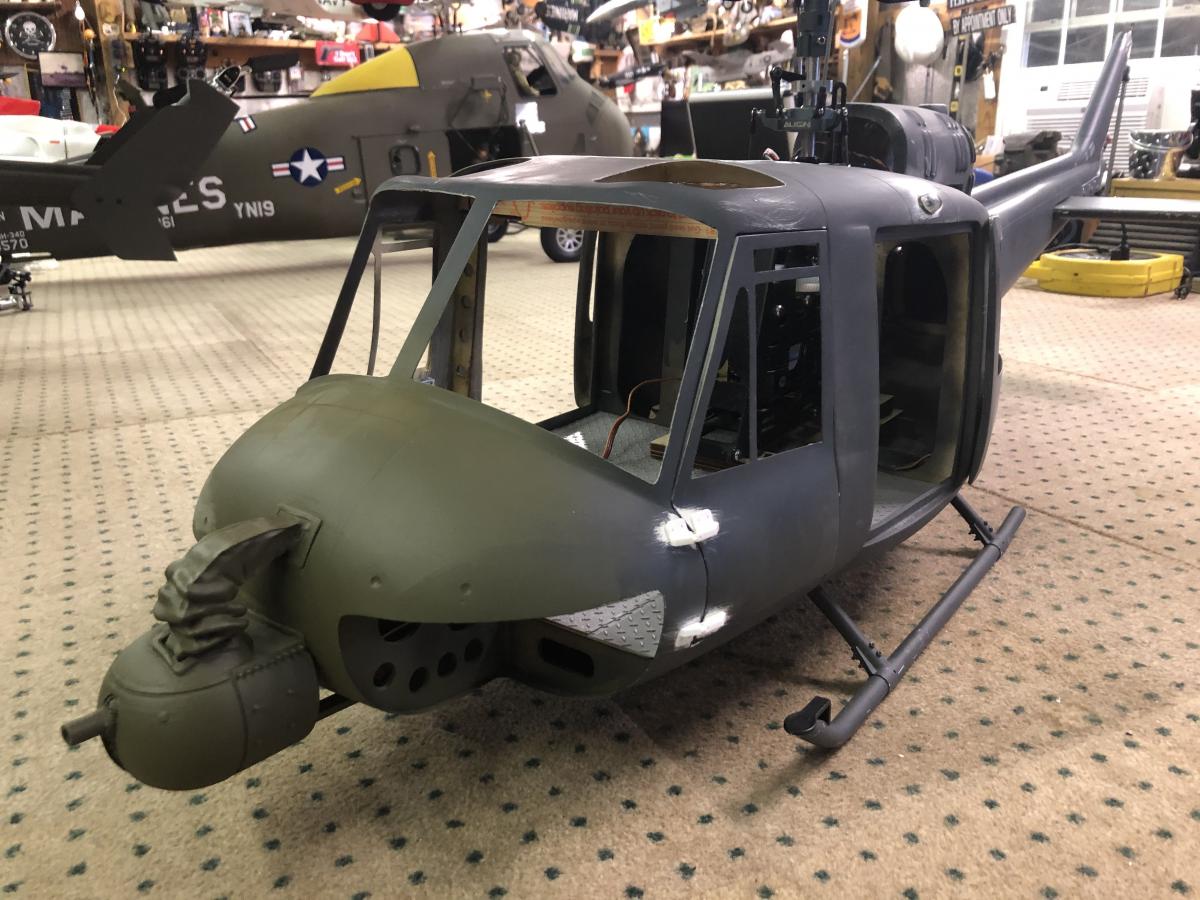

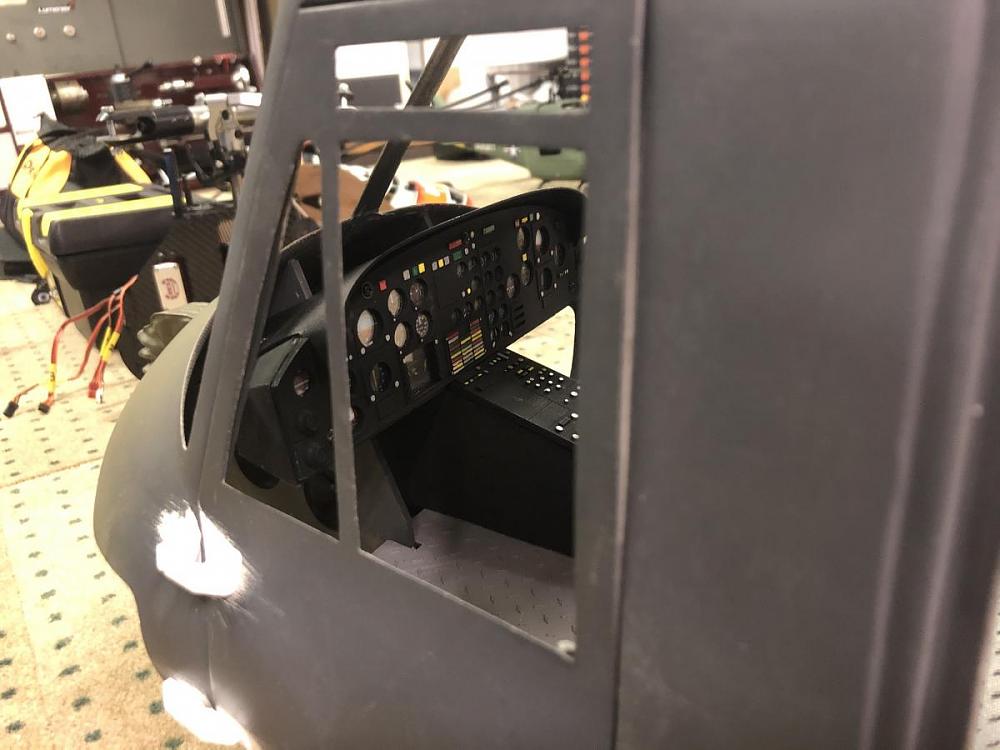

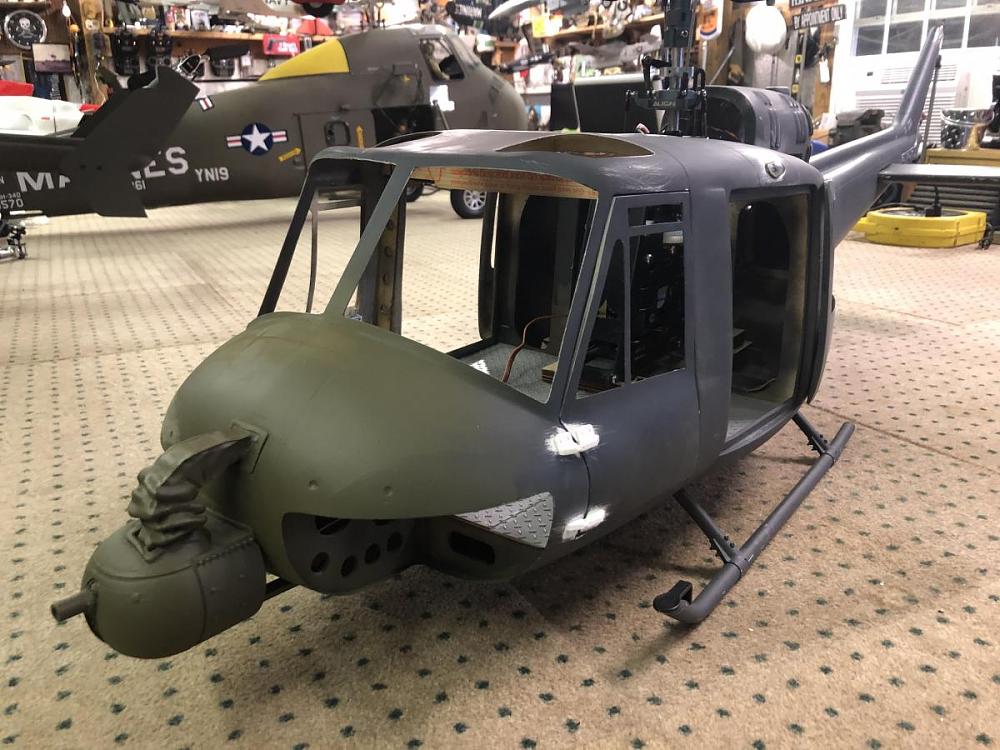

                                I got the doors fitted...

                                Click image for larger version

Name:	IMG_4371.jpg
Views:	19
Size:	149.7 KB
ID:	227867

                                Click image for larger version

Name:	IMG_4373.jpg
Views:	33
Size:	84.6 KB
ID:	227866
                                TiredIron Aviation
                                Tired Iron Military Vehicles

                                Comment


                                • #17
                                  Looking good! Despite all of the initial warping and fitment issues it is really turning into an awesome machine. Are you planning on leaving the doors open and putting in some door gunners?

                                  Comment


                                  • #18
                                    Originally posted by F106DeltaDart View Post
                                    Looking good! Despite all of the initial warping and fitment issues it is really turning into an awesome machine. Are you planning on leaving the doors open and putting in some door gunners?

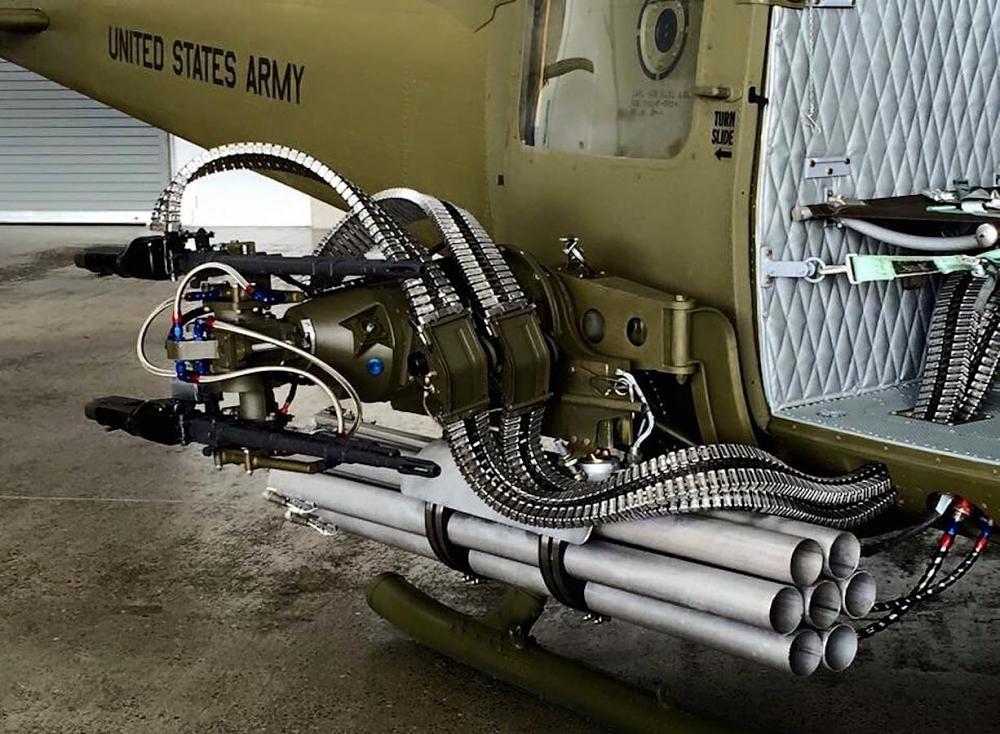

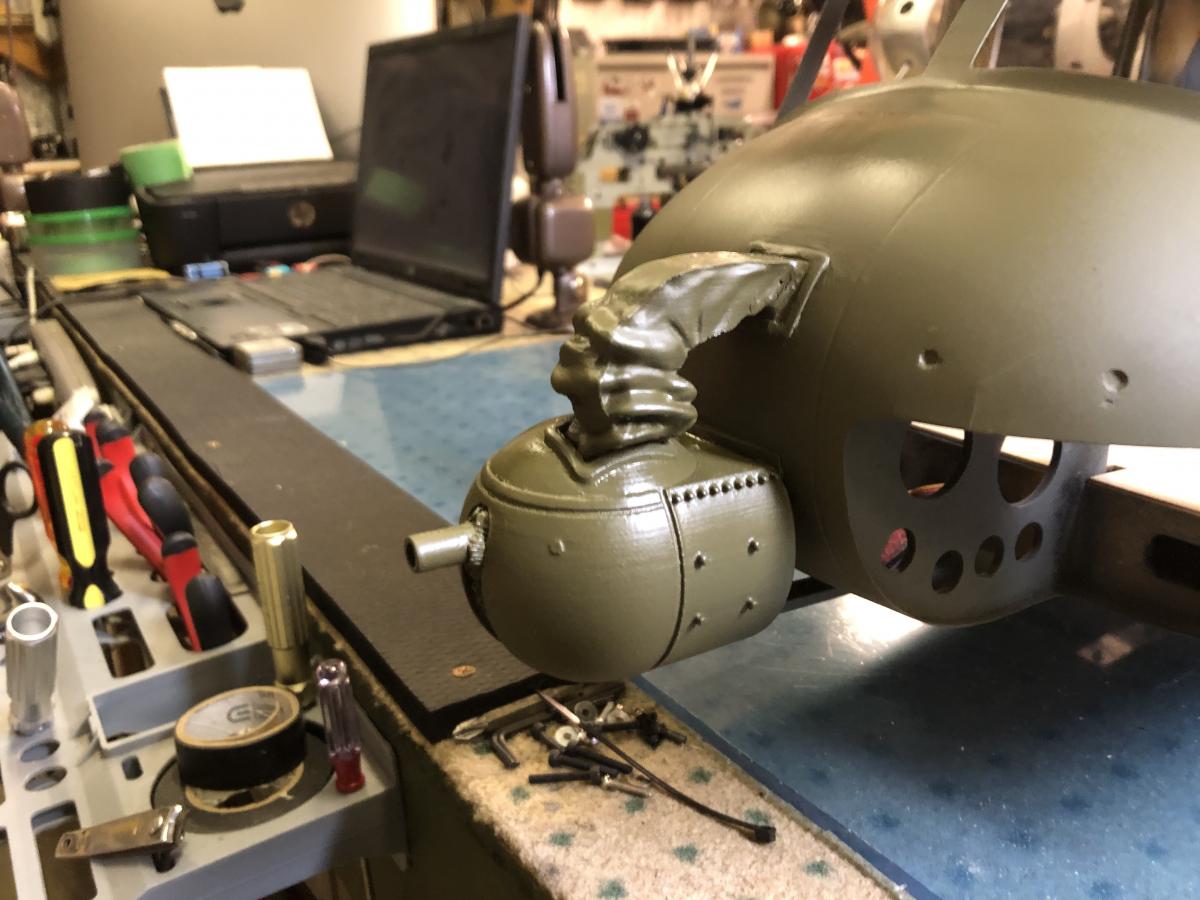

                                    Hopefully I will have this setup on it.

                                    Click image for larger version

Name:	20191208_143244087_iOS.jpg
Views:	26
Size:	168.3 KB
ID:	227908
                                    TiredIron Aviation
                                    Tired Iron Military Vehicles

                                    Comment
