    Back in stock last night...

    I popped on one, who got the other one?

    Click image for larger version

Name:	roban-lakota-uh-72-600-size-helicopter-scale-conversion-kit-motion-rc-719850995737_1024x1024.jpg?v=1555996517.jpg
Views:	240
Size:	76.4 KB
ID:	218078
    TiredIron Aviation
    Tired Iron Military Vehicles

  • #2

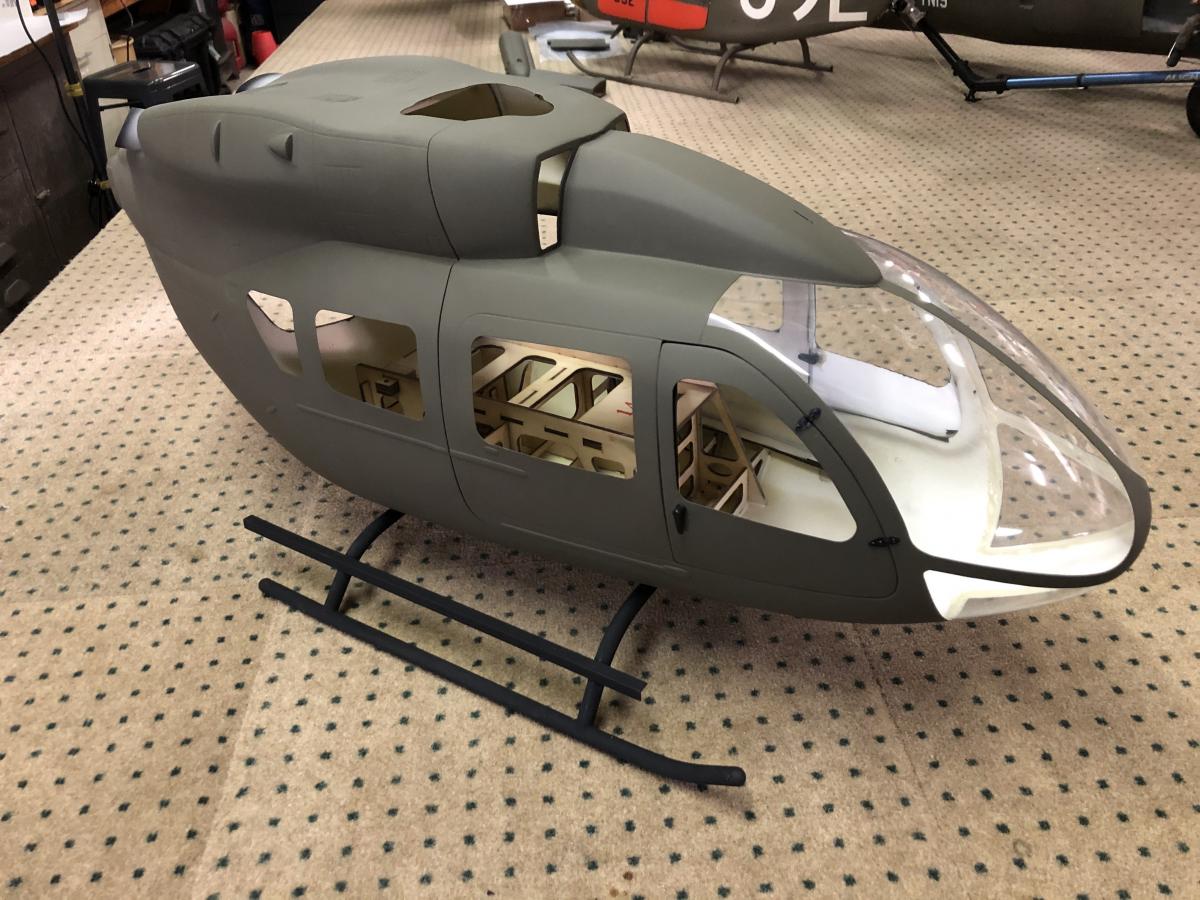

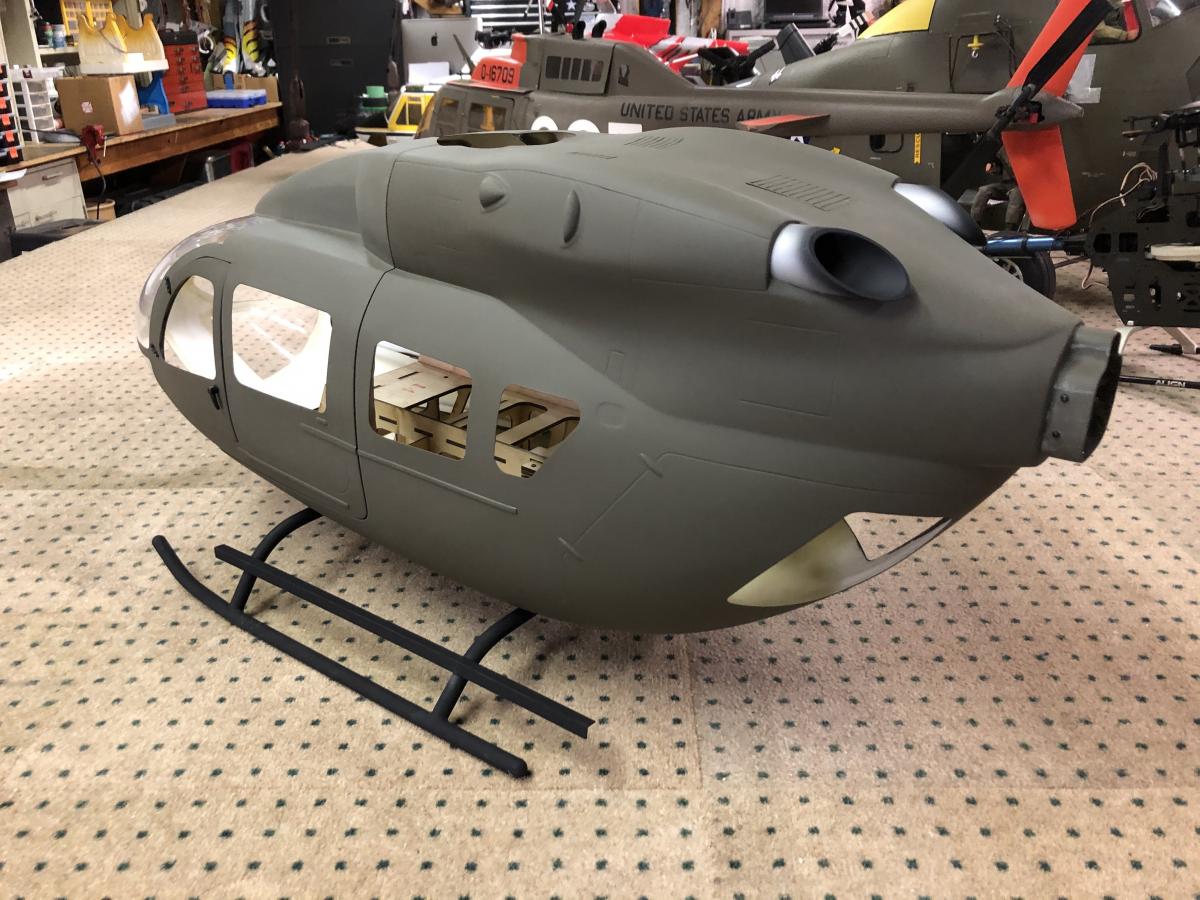

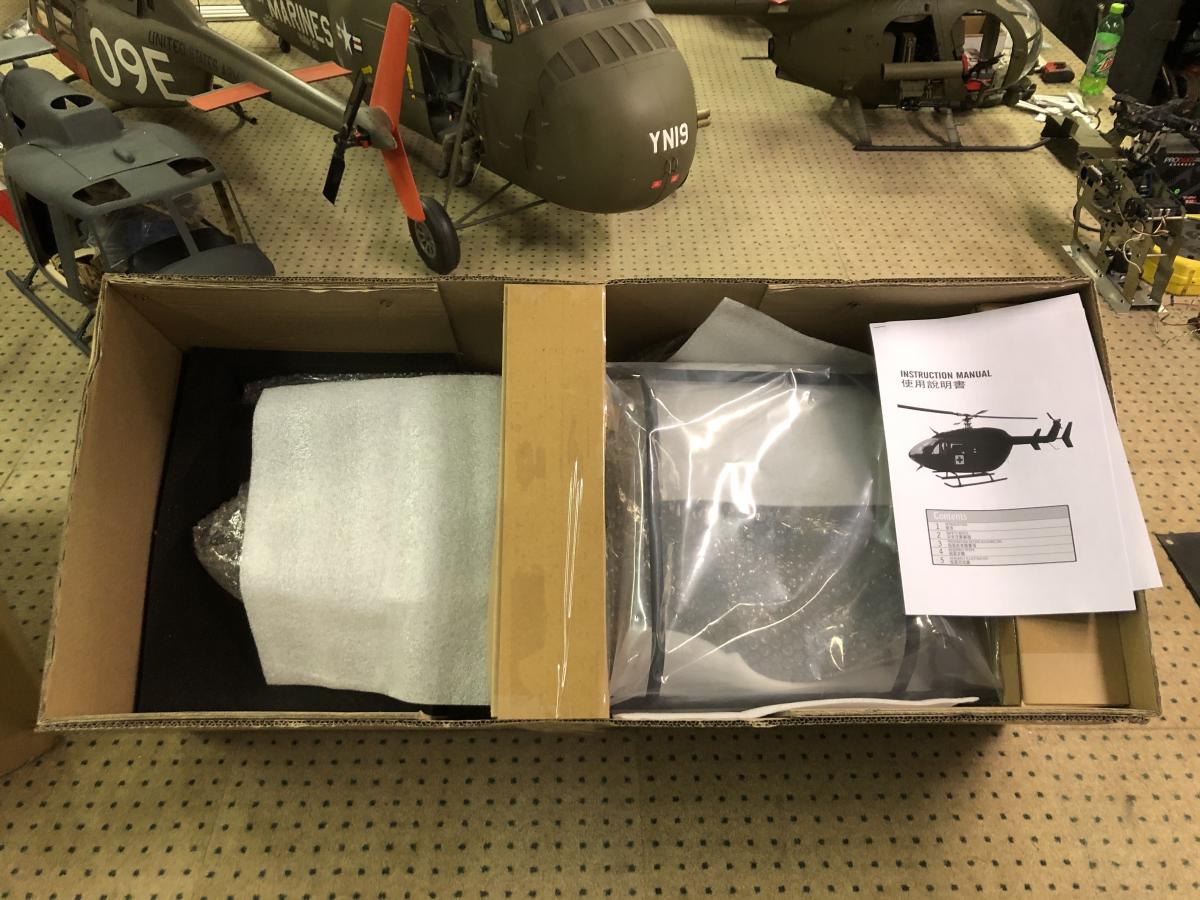

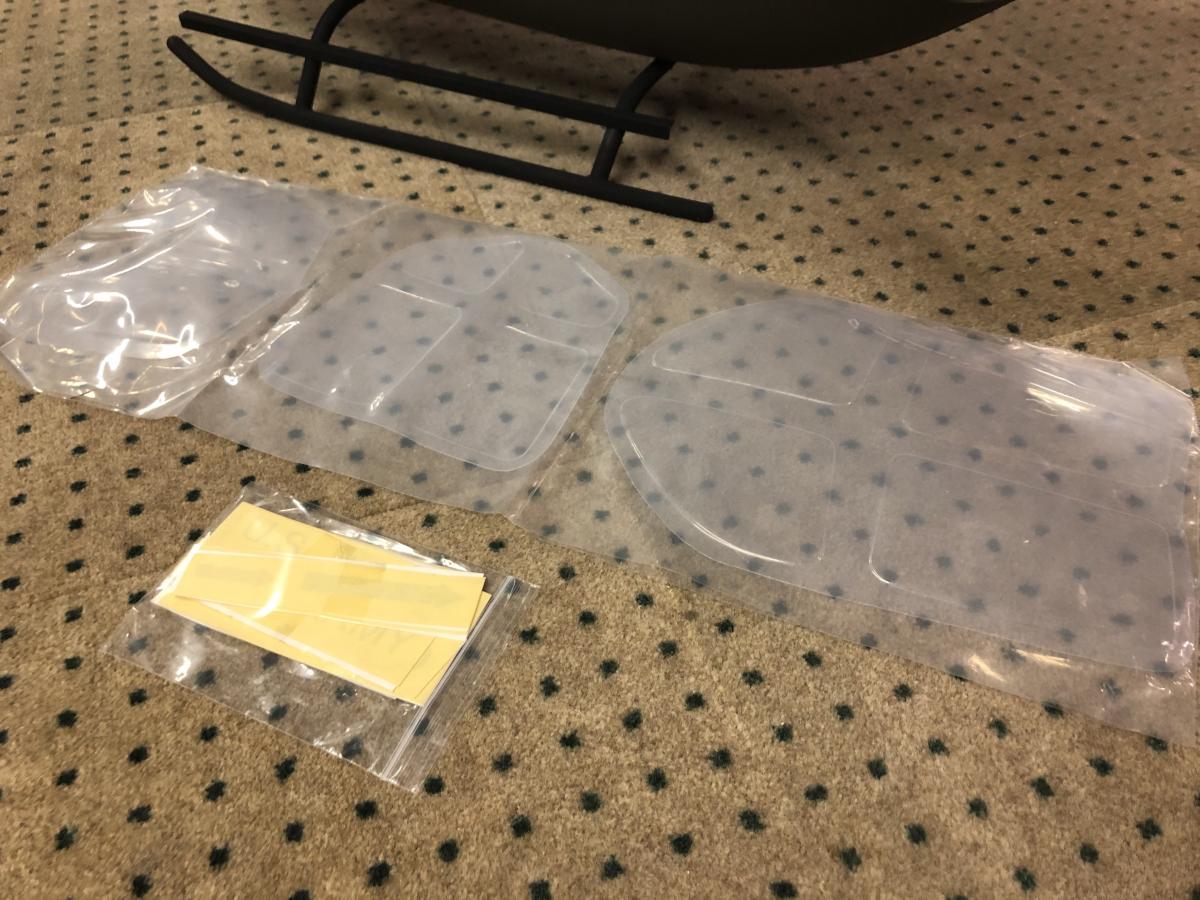

    The Lakota came today and was in perfect condition, it came double boxed both of which are extra thick cardboard. Each piece is individually bubble wrapped and the nose was in a nice foam protective holder.

    Click image for larger version

Name:	20191107_194128758_iOS.jpg
Views:	343
Size:	95.0 KB
ID:	218467

    Click image for larger version

Name:	20191107_194228693_iOS.jpg
Views:	292
Size:	134.4 KB
ID:	218468

    Click image for larger version

Name:	20191107_194400452_iOS.jpg
Views:	295
Size:	111.4 KB
ID:	218469

    Click image for larger version

Name:	20191107_194617007_iOS.jpg
Views:	290
Size:	150.1 KB
ID:	218470

    TiredIron Aviation
    Tired Iron Military Vehicles

    Comment


    • #3
      Nice George. The Lakota is a sweet helicopter!

      Comment


      • #4
        Love the windows on the front of the fuselage. Got pilot figures ready to go?

        Comment


        • #5
          Originally posted by James View Post
          Love the windows on the front of the fuselage. Got pilot figures ready to go?
          I haven't started any cockpit work yet, I'm doing a "out of the box to flying" thread and video first then I plan to detail it out. All you need is a T-Rex 600E(RTF), 4 blade rotor head and blades and a few hours, all the raised-tail parts are included in the kit.
          TiredIron Aviation
          Tired Iron Military Vehicles

          Comment


          • #6

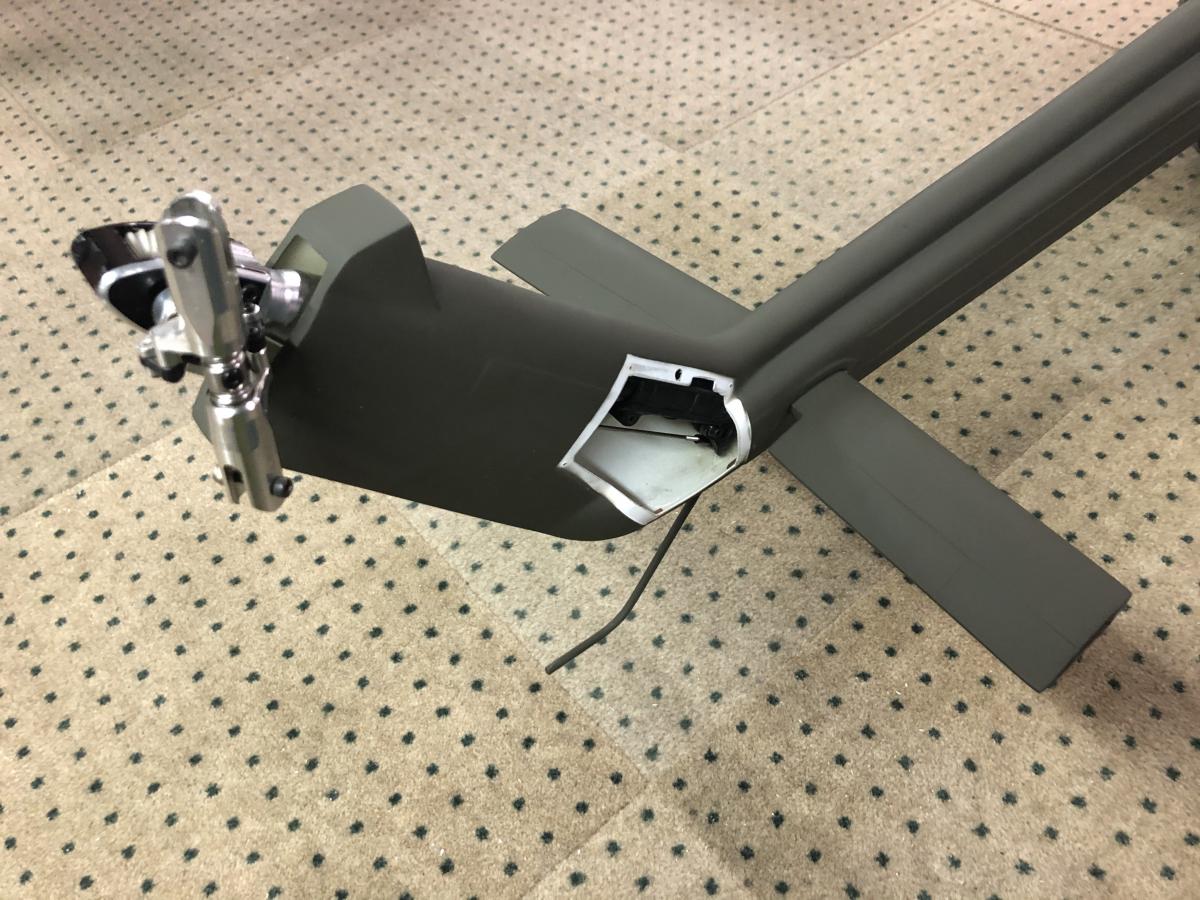

            I started working on the Lakota today, I installed the raised tail pieces that came with the kit on my T-Rex 600E with no issues at all.

            Click image for larger version

Name:	20191115_190537354_iOS.jpg
Views:	269
Size:	182.1 KB
ID:	219505

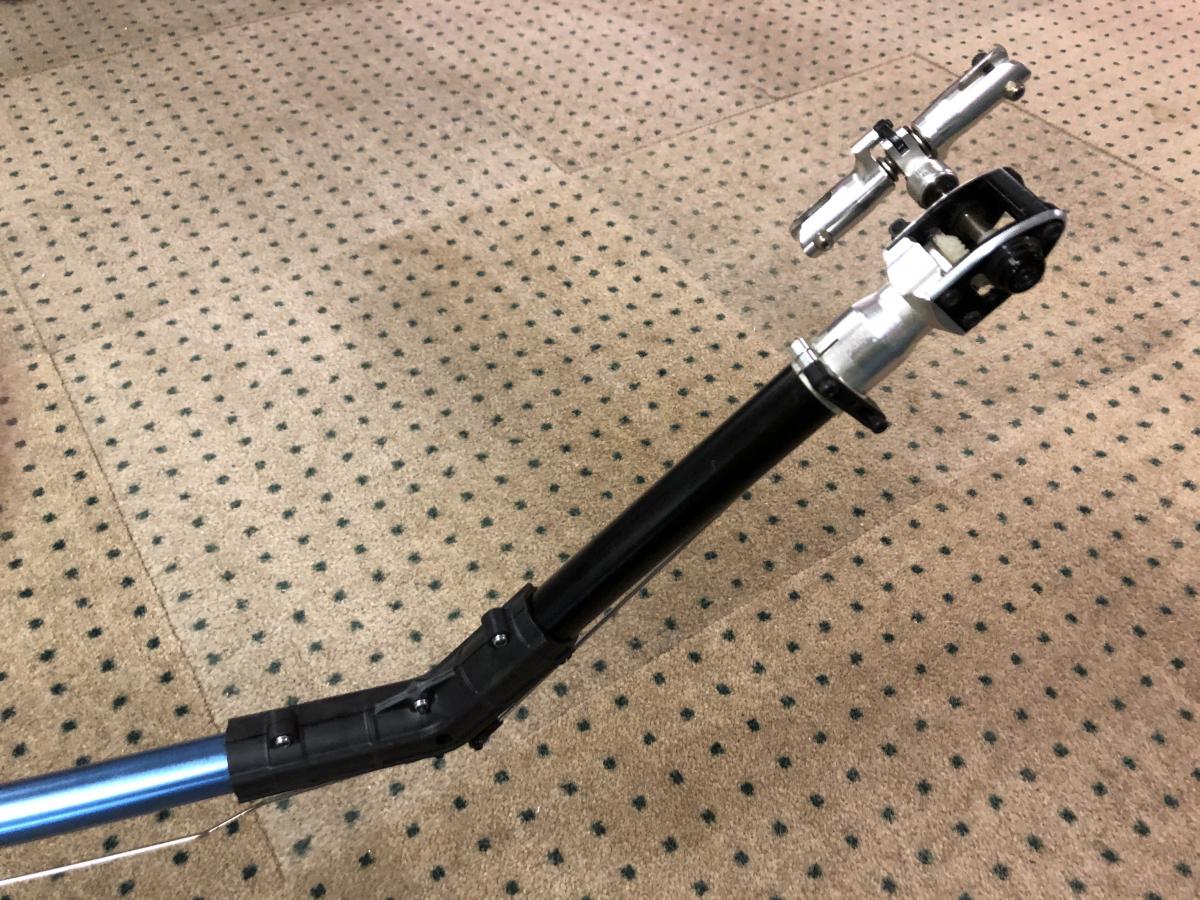

            Once I setup the FBL I will remove the tail drive with tube from the elbow and then remove the elbow from the boom so I can install it in the fuselage.

            Click image for larger version

Name:	20191115_190443925_iOS.jpg
Views:	275
Size:	205.4 KB
ID:	219507

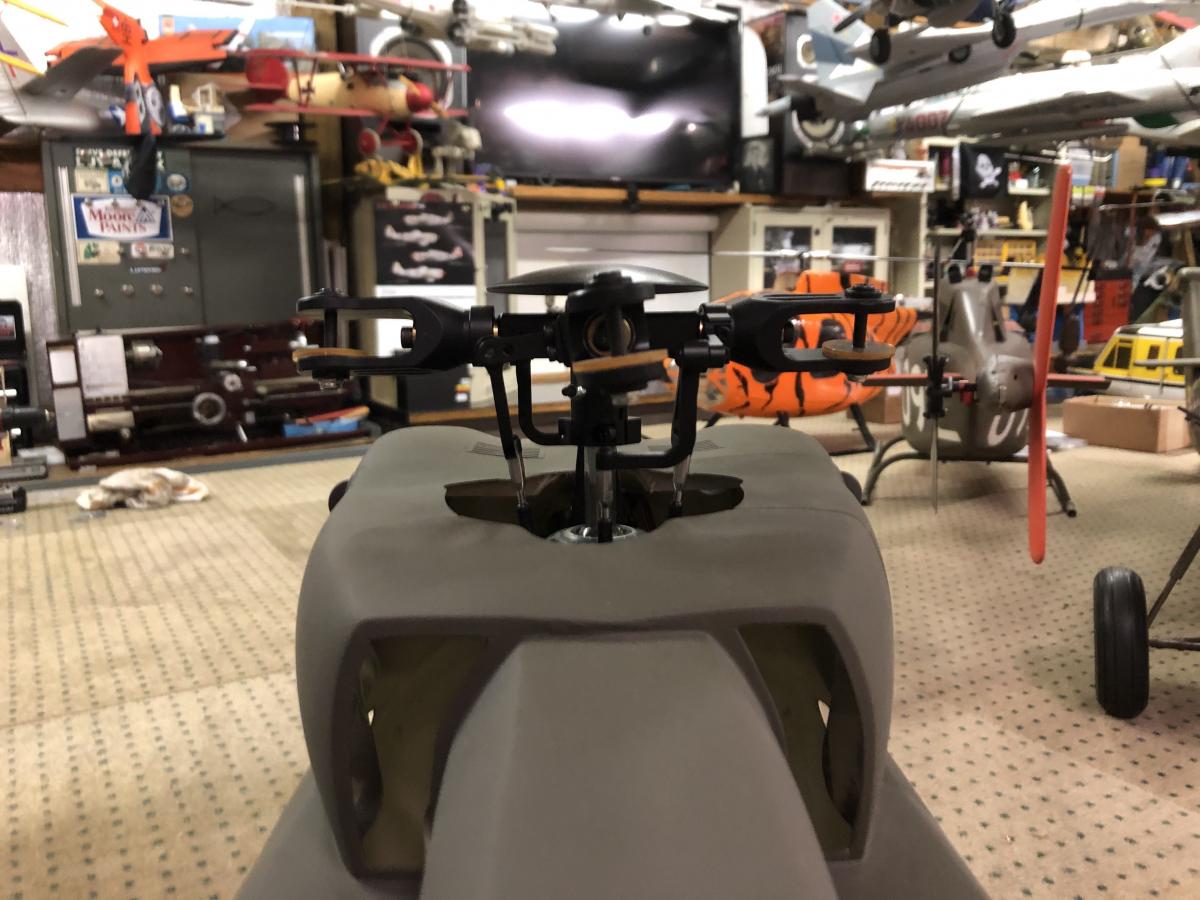

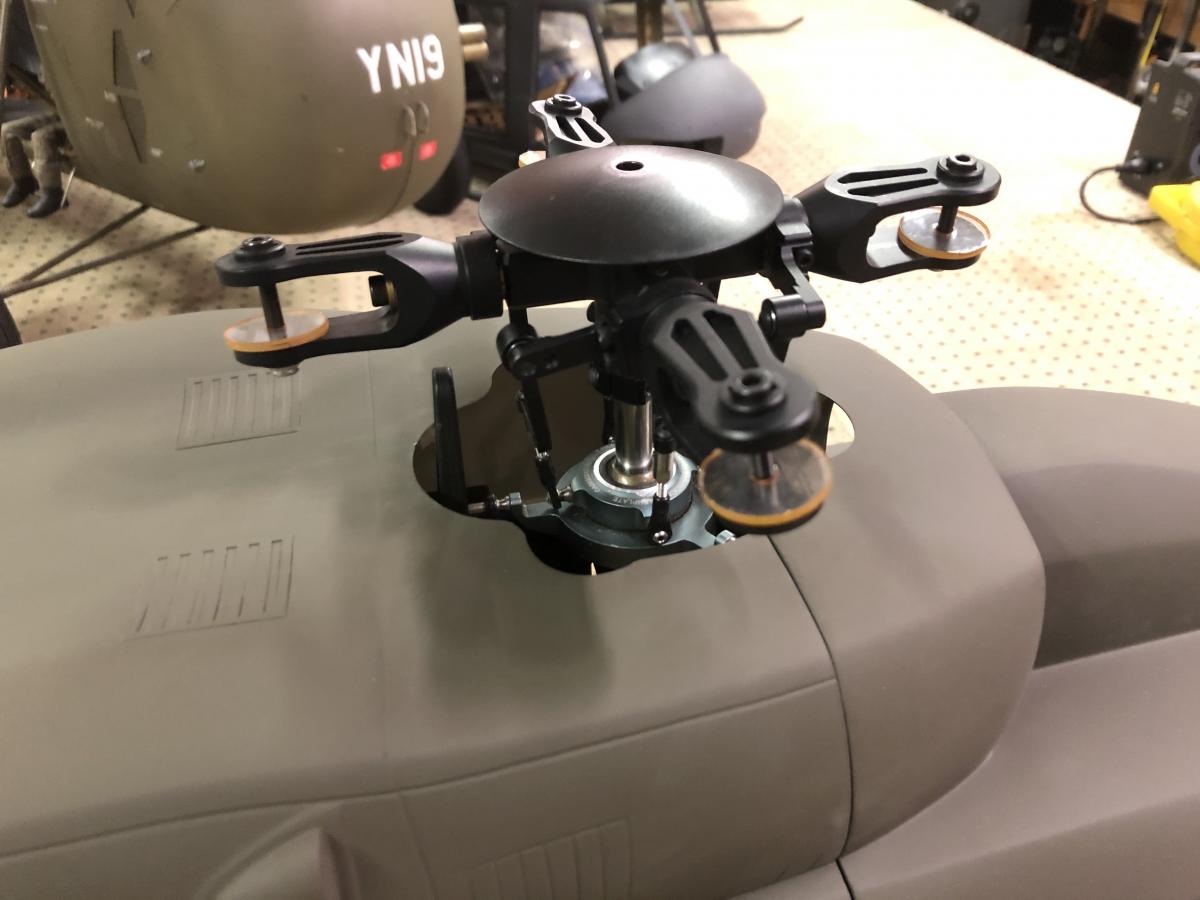

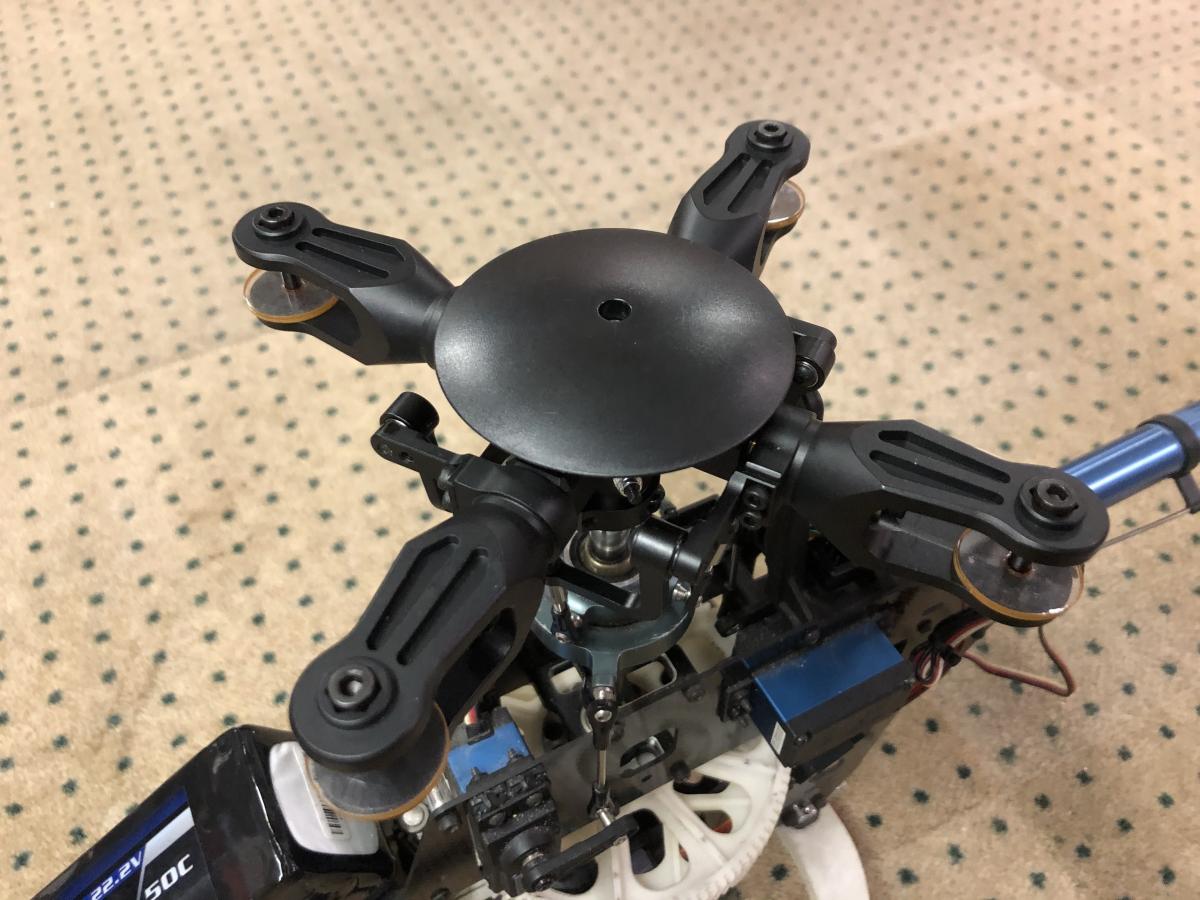

            Added a R.oban 4 blade rotor head

            Click image for larger version

Name:	20191115_190548414_iOS.jpg
Views:	264
Size:	122.7 KB
ID:	219501

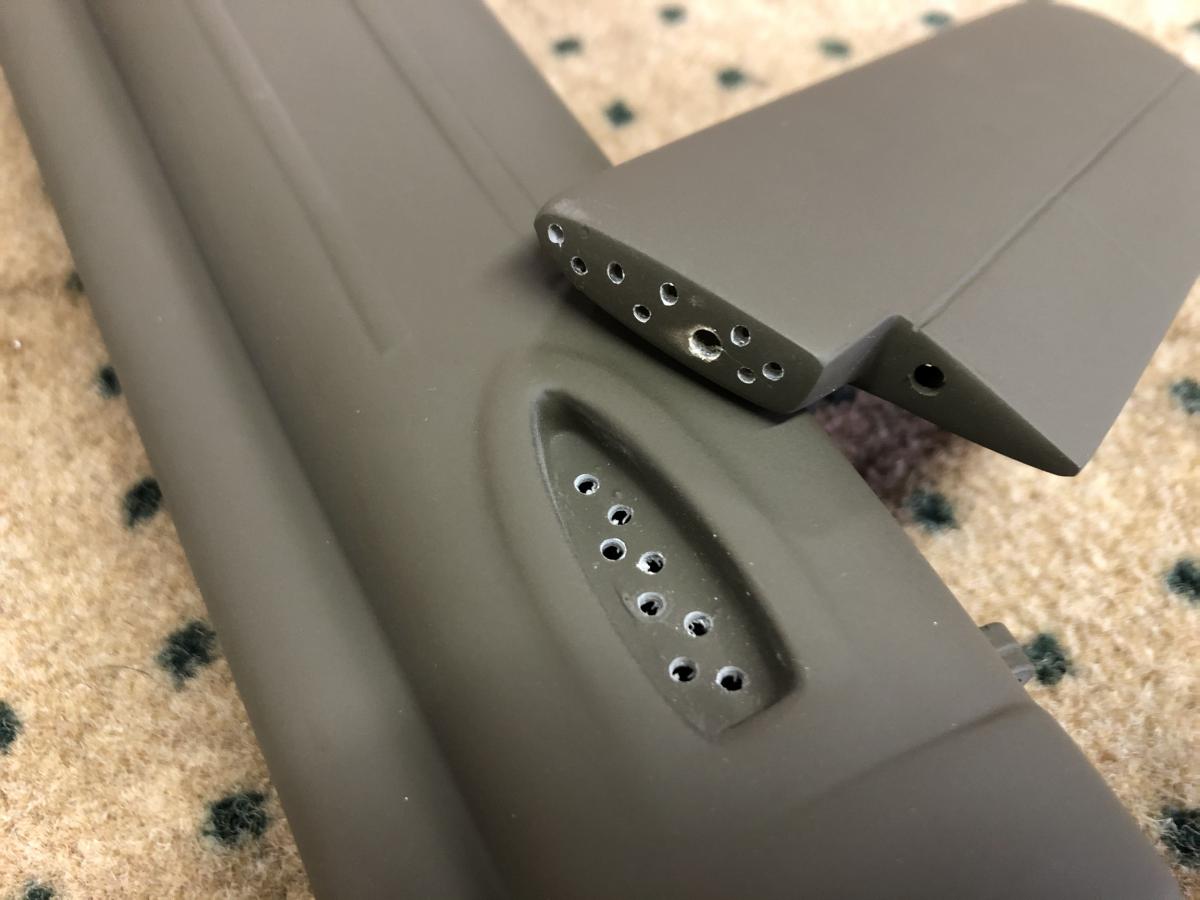

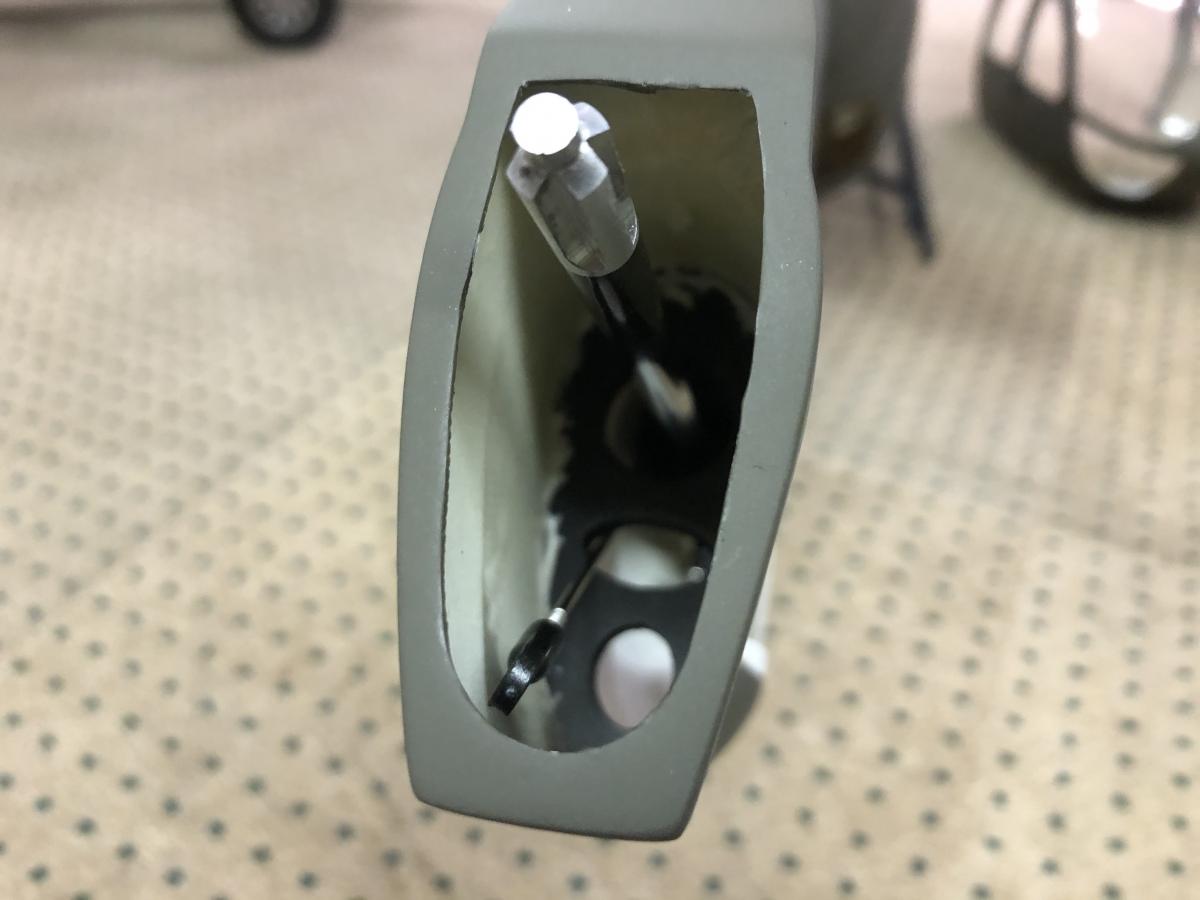

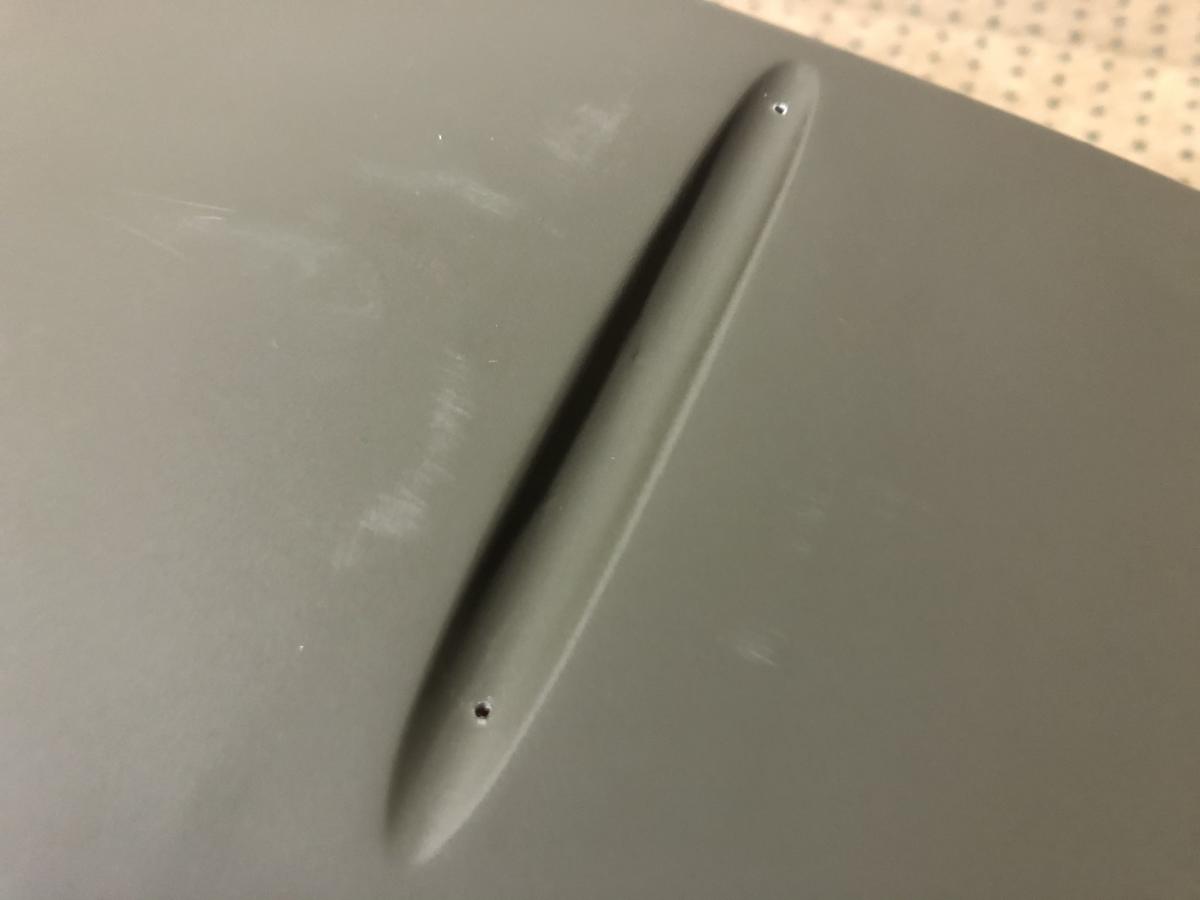

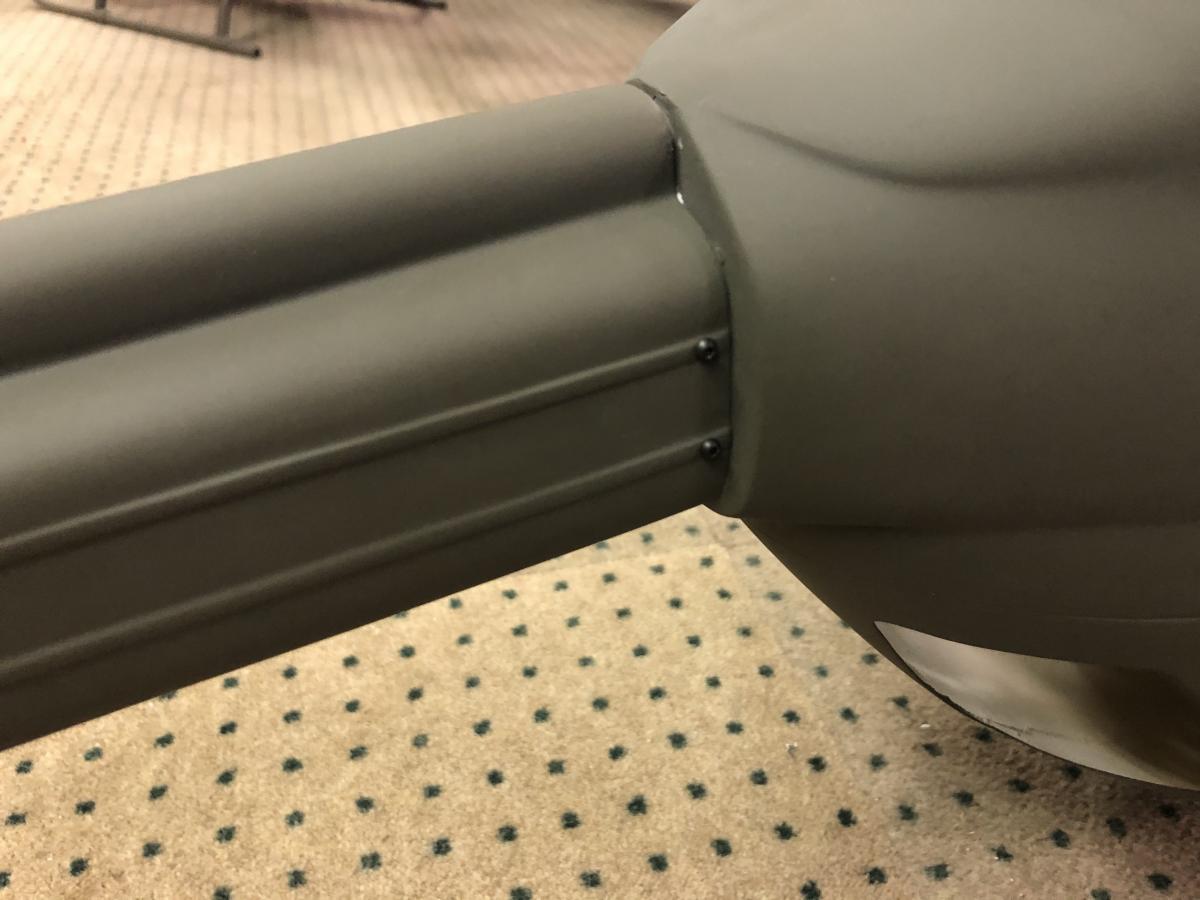

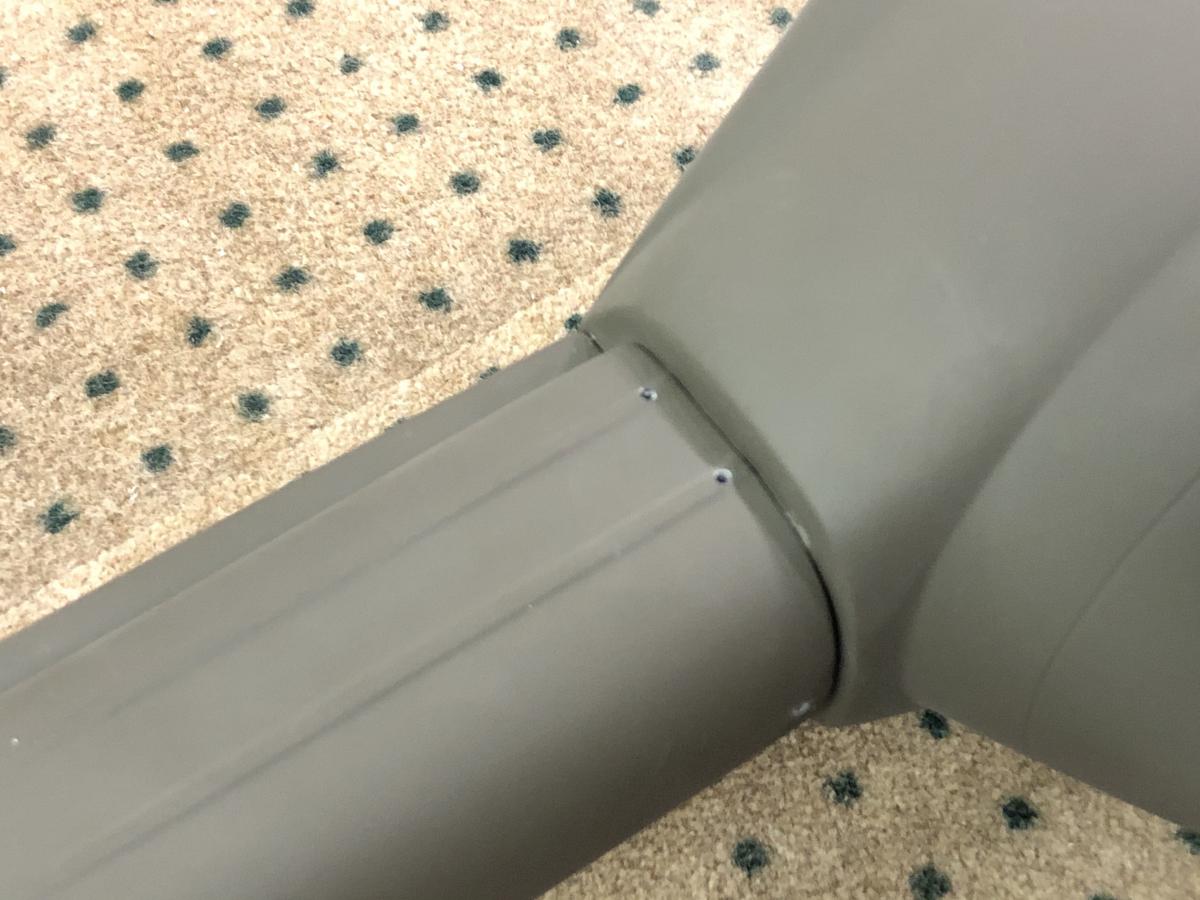

            Next I marked and drilled the tail boom and fuselage for the fasteners.

            Click image for larger version

Name:	20191115_194420685_iOS.jpg
Views:	272
Size:	175.9 KB
ID:	219504

            Click image for larger version

Name:	20191115_194705720_iOS.jpg
Views:	258
Size:	63.4 KB
ID:	219494

            I drilled through the ribs as they were the thickest part of the boom.

            Click image for larger version

Name:	20191115_200235145_iOS.jpg
Views:	245
Size:	108.0 KB
ID:	219496

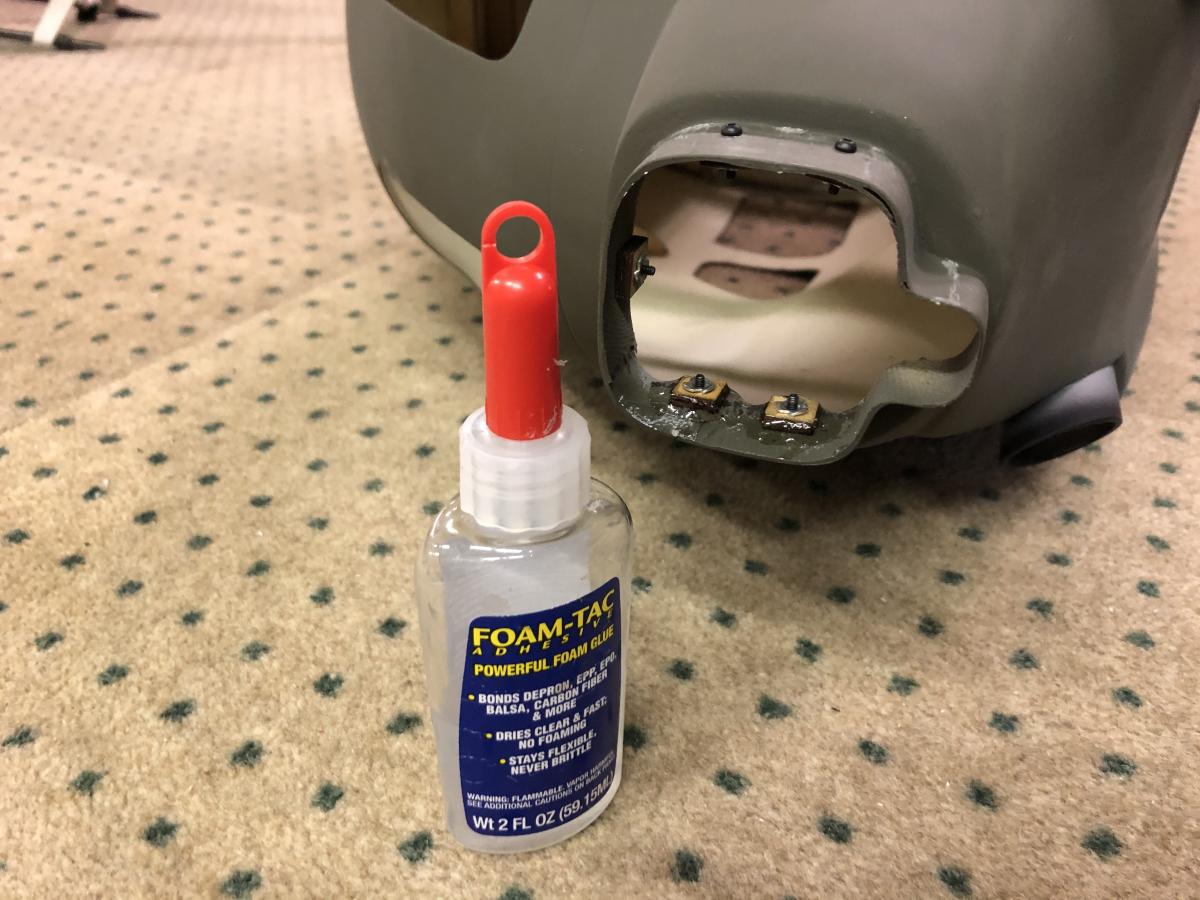

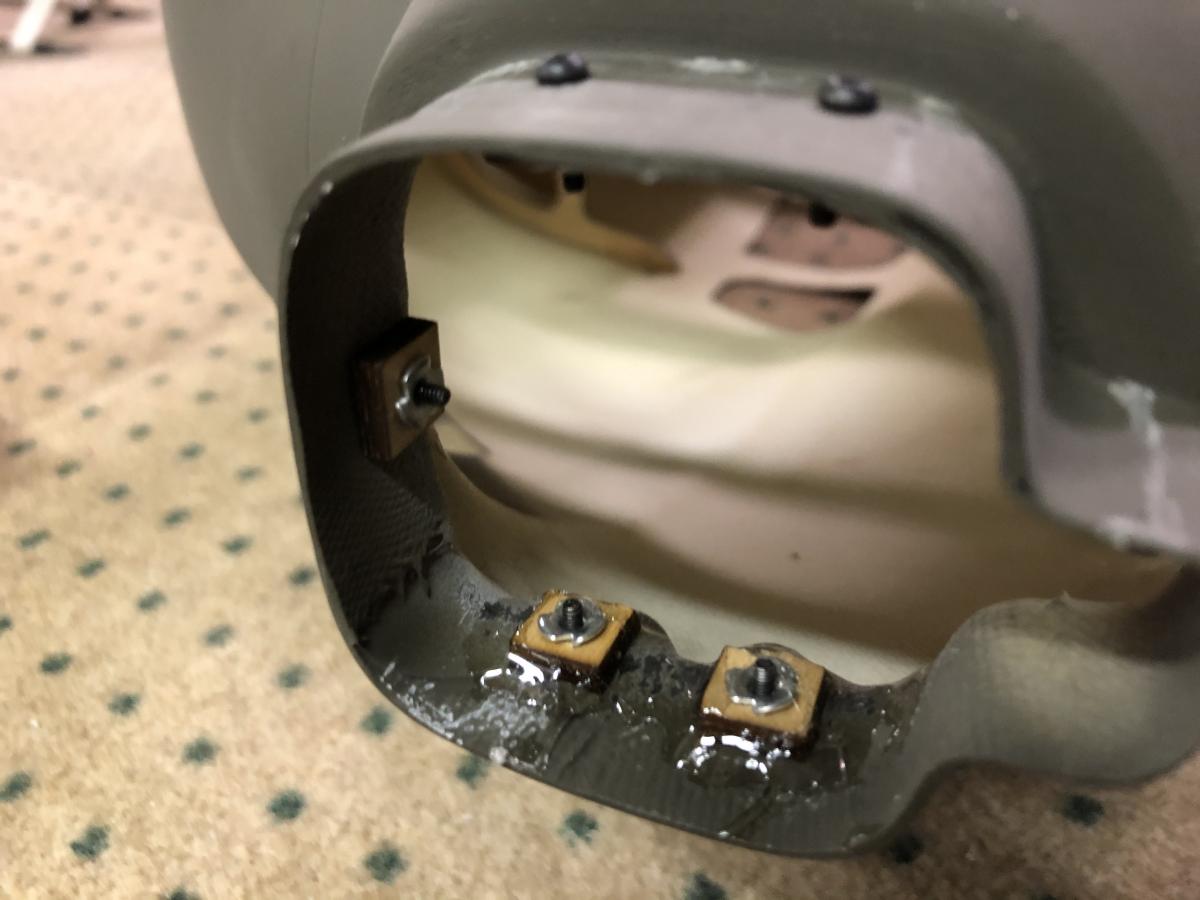

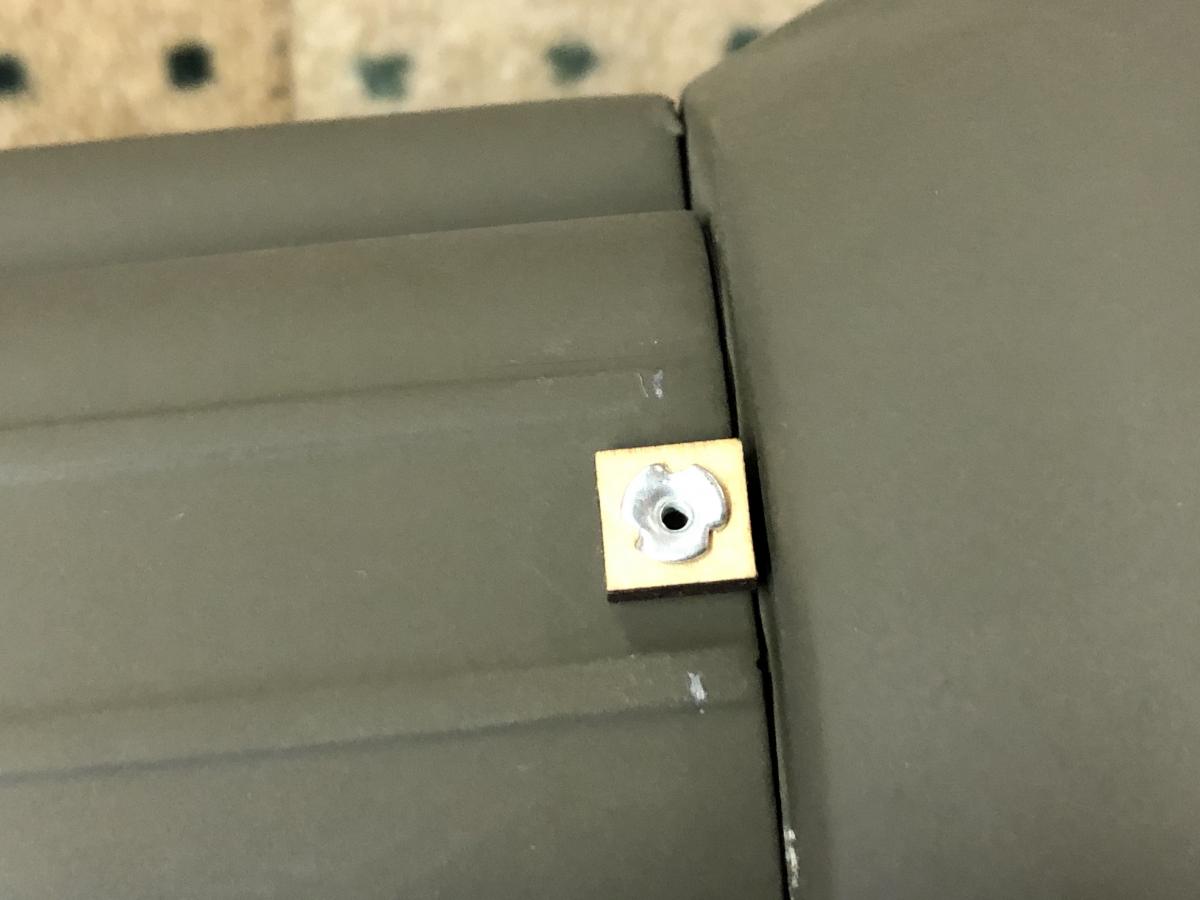

            I used Foam-Tac for the nutserts because it doesn't get brittle like epoxy or CA

            Click image for larger version

Name:	20191115_201053206_iOS.jpg
Views:	146
Size:	75.5 KB
ID:	219499

            Click image for larger version

Name:	20191115_201543245_iOS.jpg
Views:	264
Size:	127.7 KB
ID:	219502

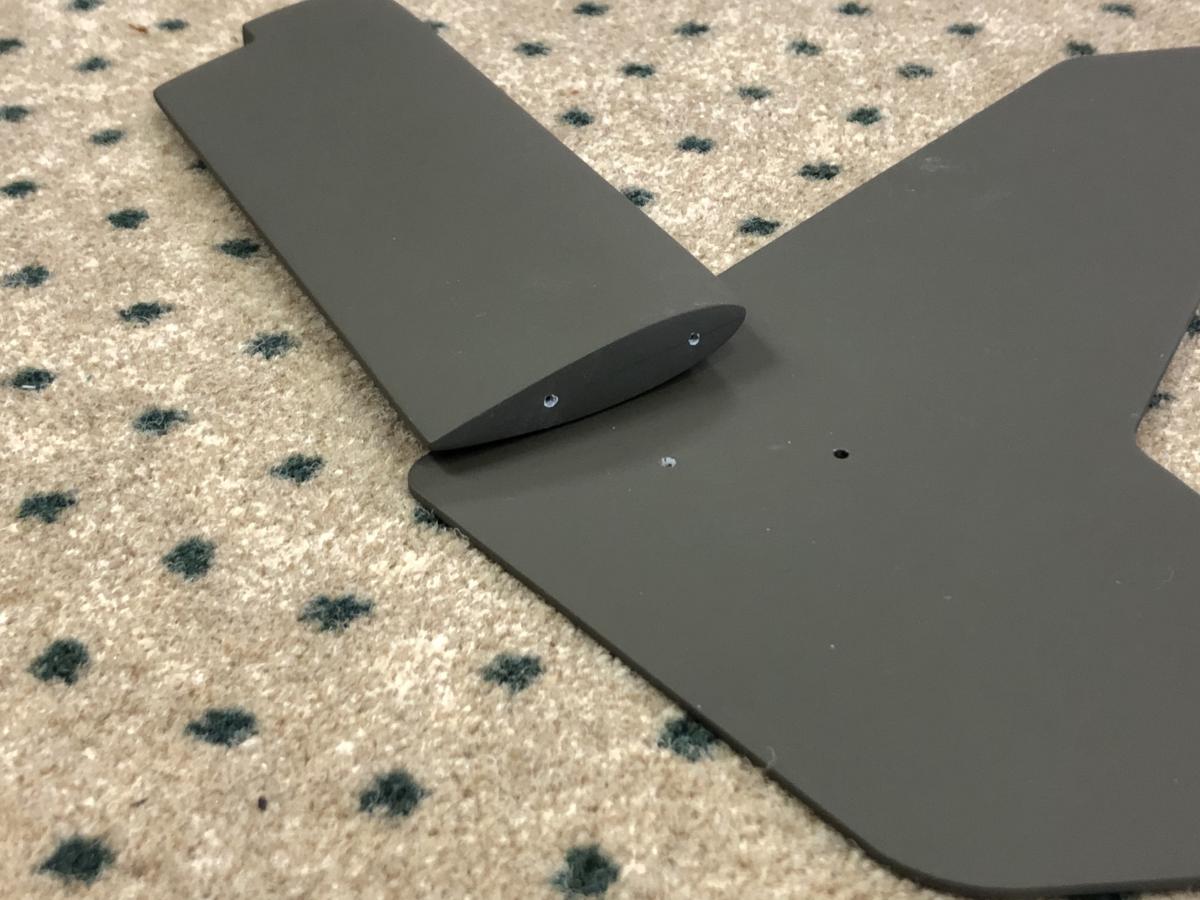

            I will use epoxy on the horizontals so I have drilled them for better adhesion.

            Click image for larger version

Name:	20191115_202637938_iOS.jpg
Views:	148
Size:	75.1 KB
ID:	219500

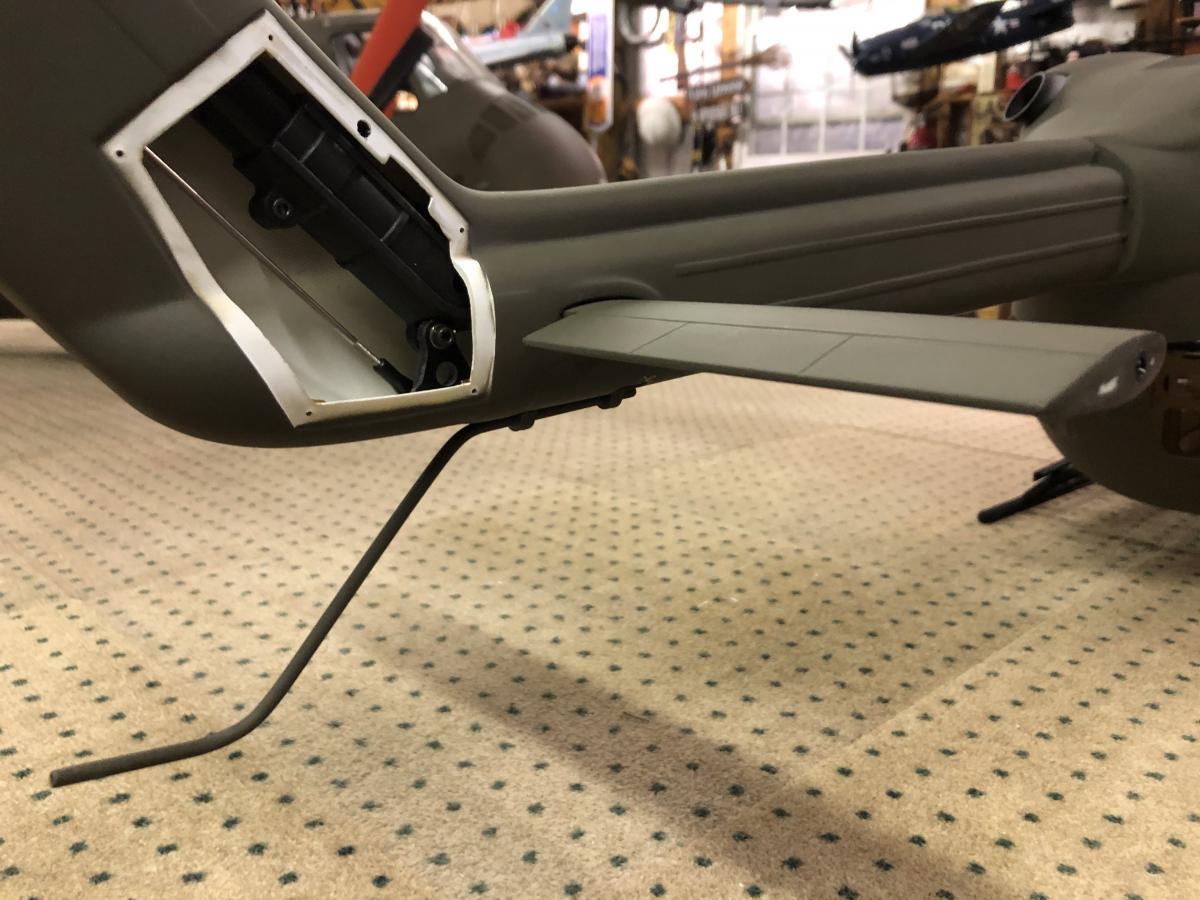

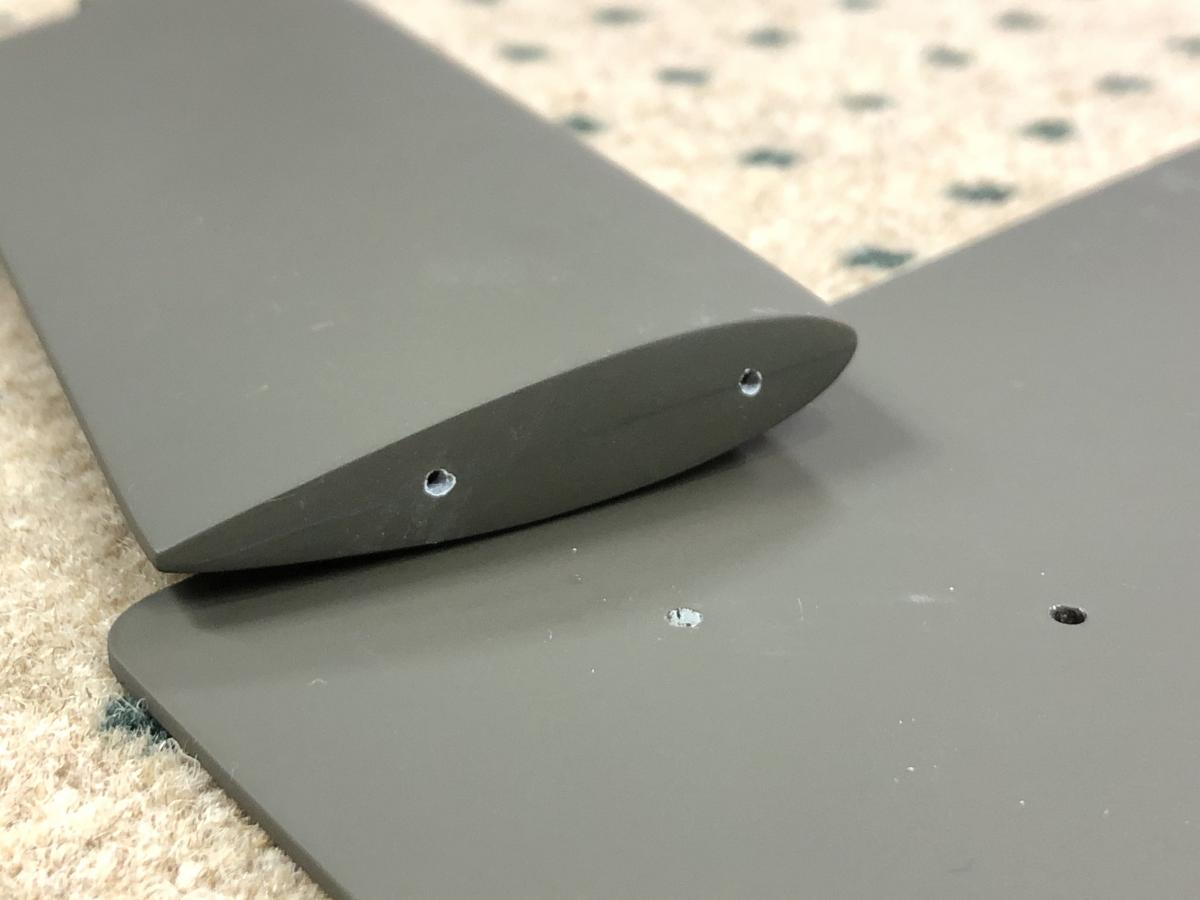

            Scribed from point to point and drilled for the outer fins.

            Click image for larger version

Name:	20191115_203614946_iOS.jpg
Views:	150
Size:	113.0 KB
ID:	219495

            Click image for larger version

Name:	20191115_203545946_iOS.jpg
Views:	300
Size:	57.5 KB
ID:	219493

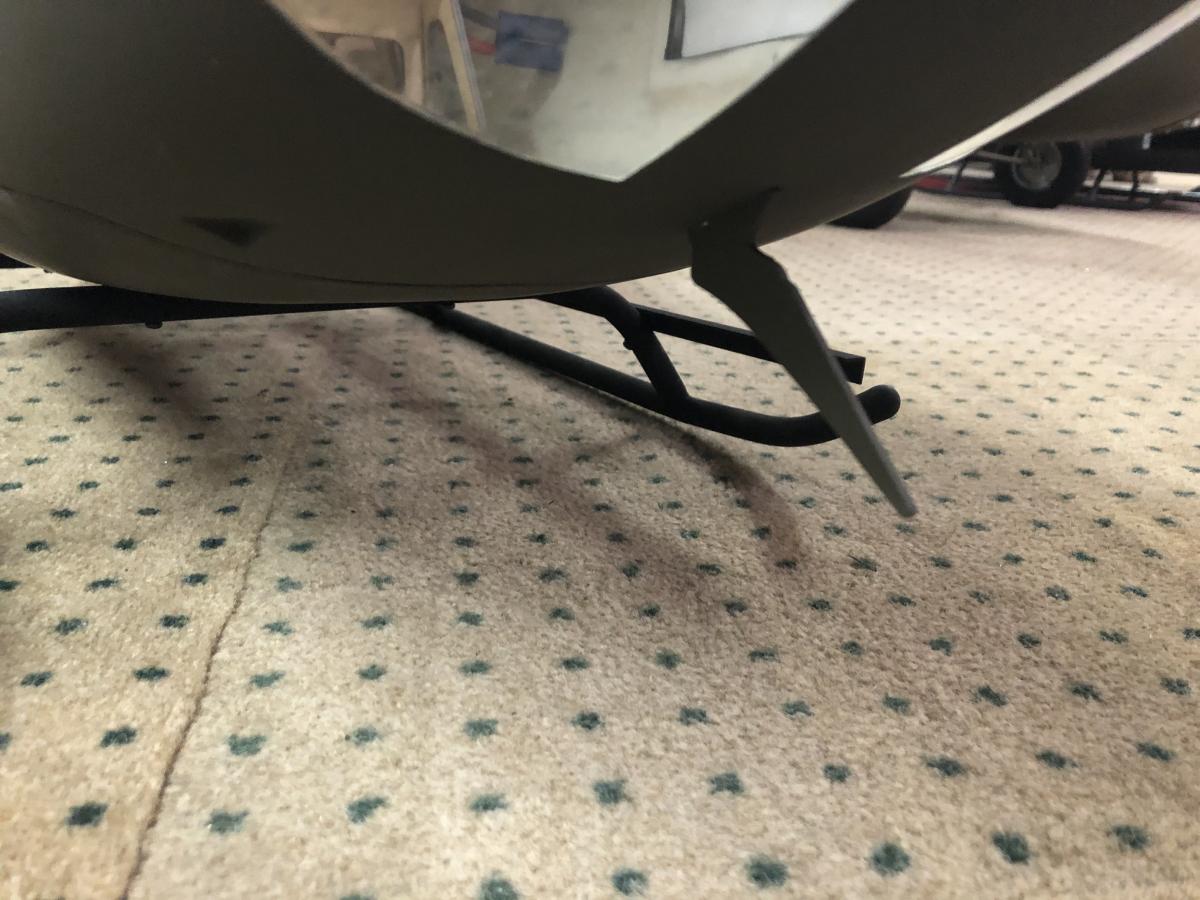

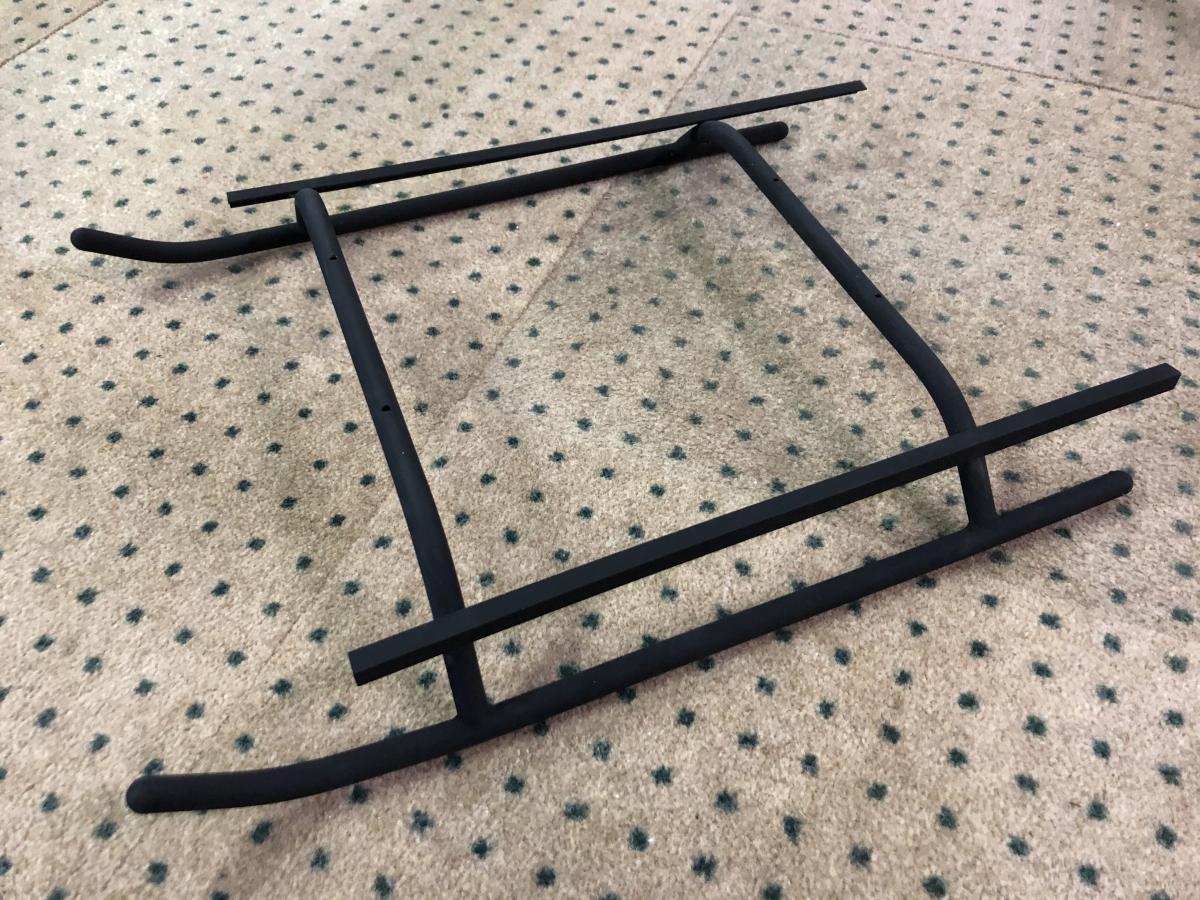

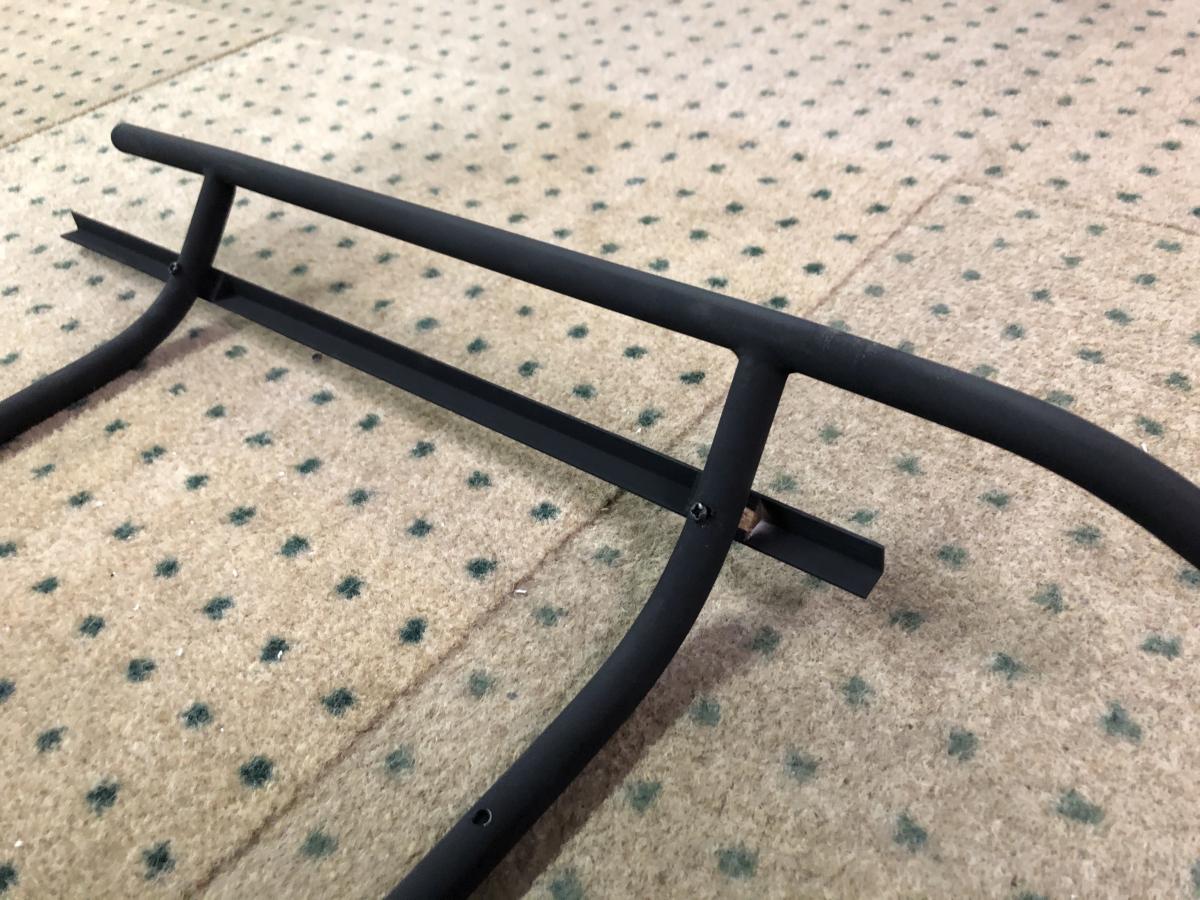

            Next is to put the step rail on the skids.

            Click image for larger version

Name:	20191115_204718290_iOS.jpg
Views:	260
Size:	165.2 KB
ID:	219503

            Click image for larger version

Name:	20191115_204736411_iOS.jpg
Views:	273
Size:	214.9 KB
ID:	219506

            Then centered the skid and drilled the fuselage.

            Click image for larger version

Name:	20191115_204143883_iOS.jpg
Views:	145
Size:	38.4 KB
ID:	219498

            Click image for larger version

Name:	20191115_205221060_iOS.jpg
Views:	256
Size:	63.6 KB
ID:	219497

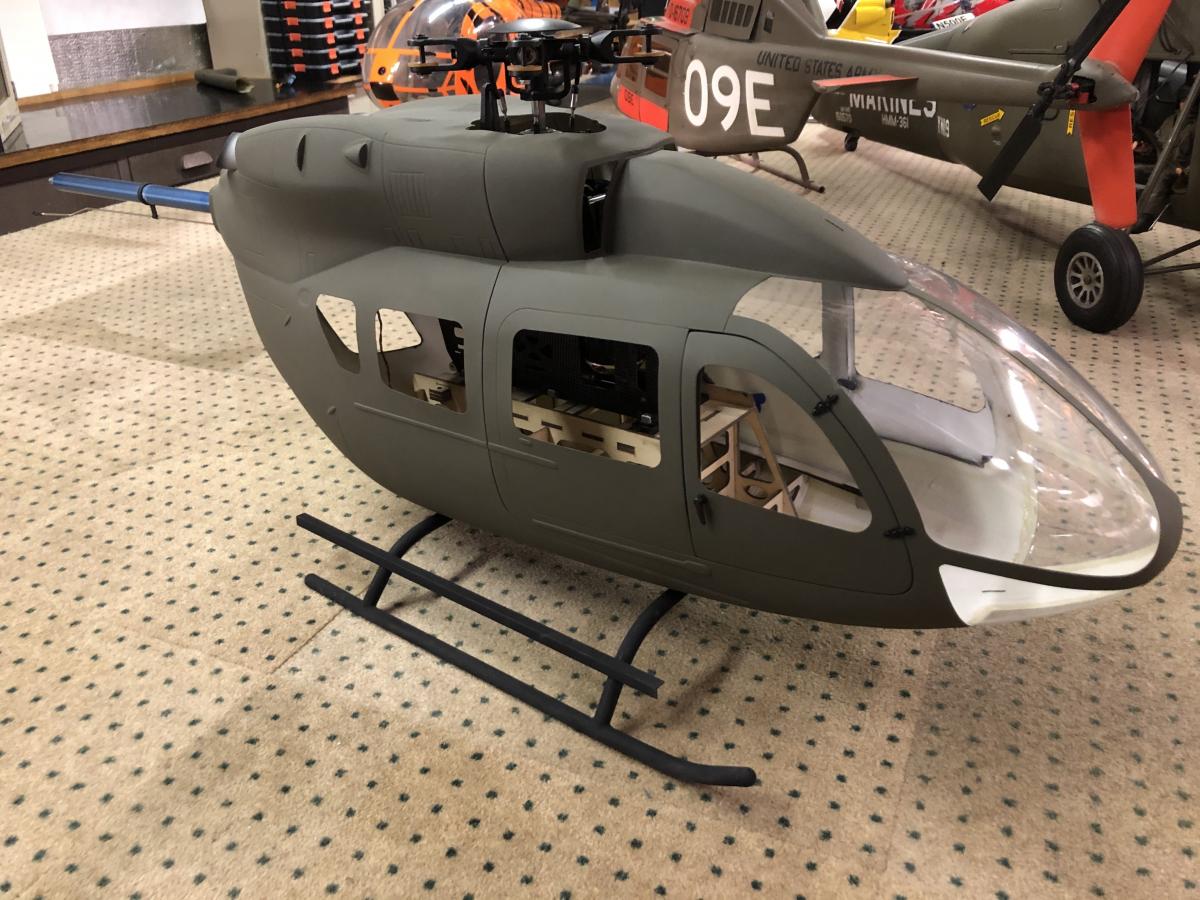

            She looks better on her legs...

            Click image for larger version

Name:	20191115_212220176_iOS.jpg
Views:	267
Size:	157.8 KB
ID:	219508

            Click image for larger version

Name:	20191115_212300364_iOS.jpg
Views:	266
Size:	157.8 KB
ID:	219509




            TiredIron Aviation
            Tired Iron Military Vehicles

            Comment


            • #7

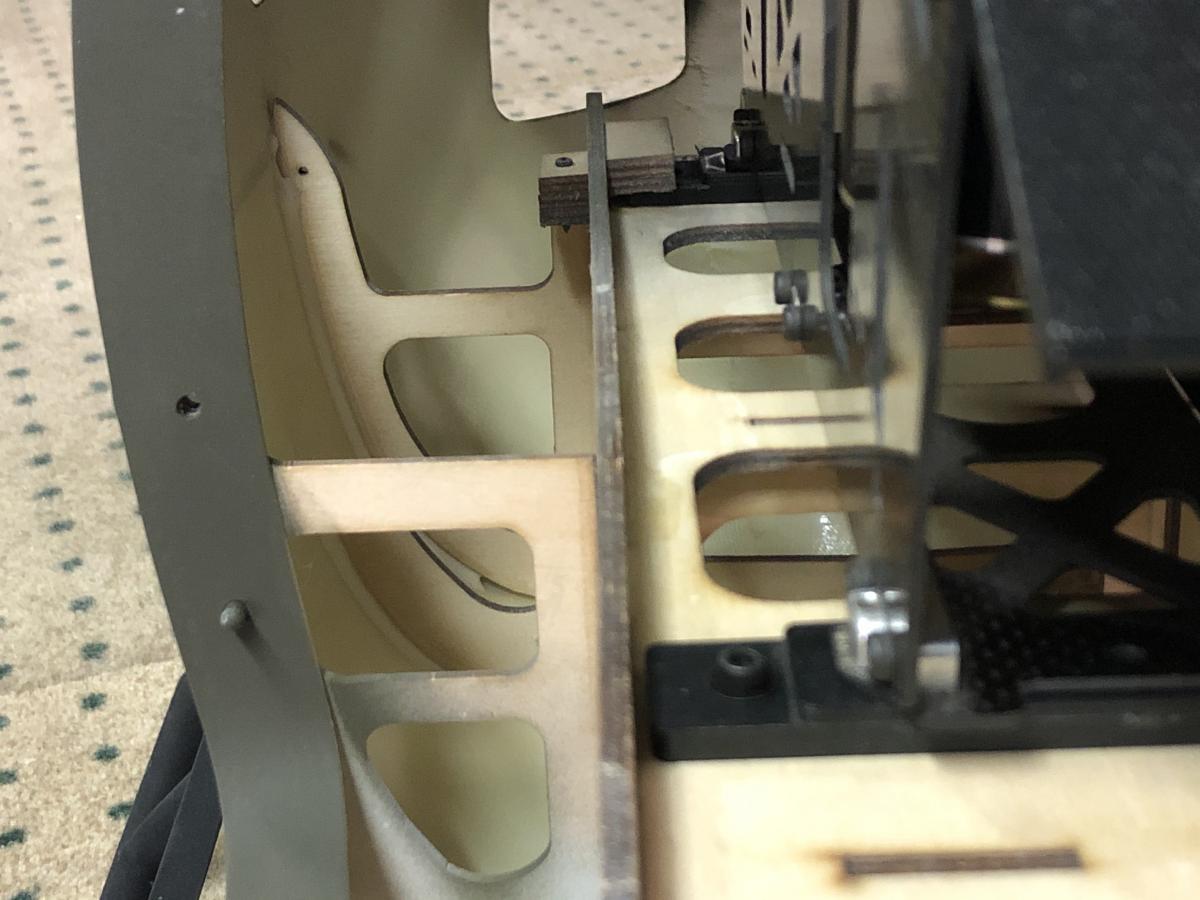

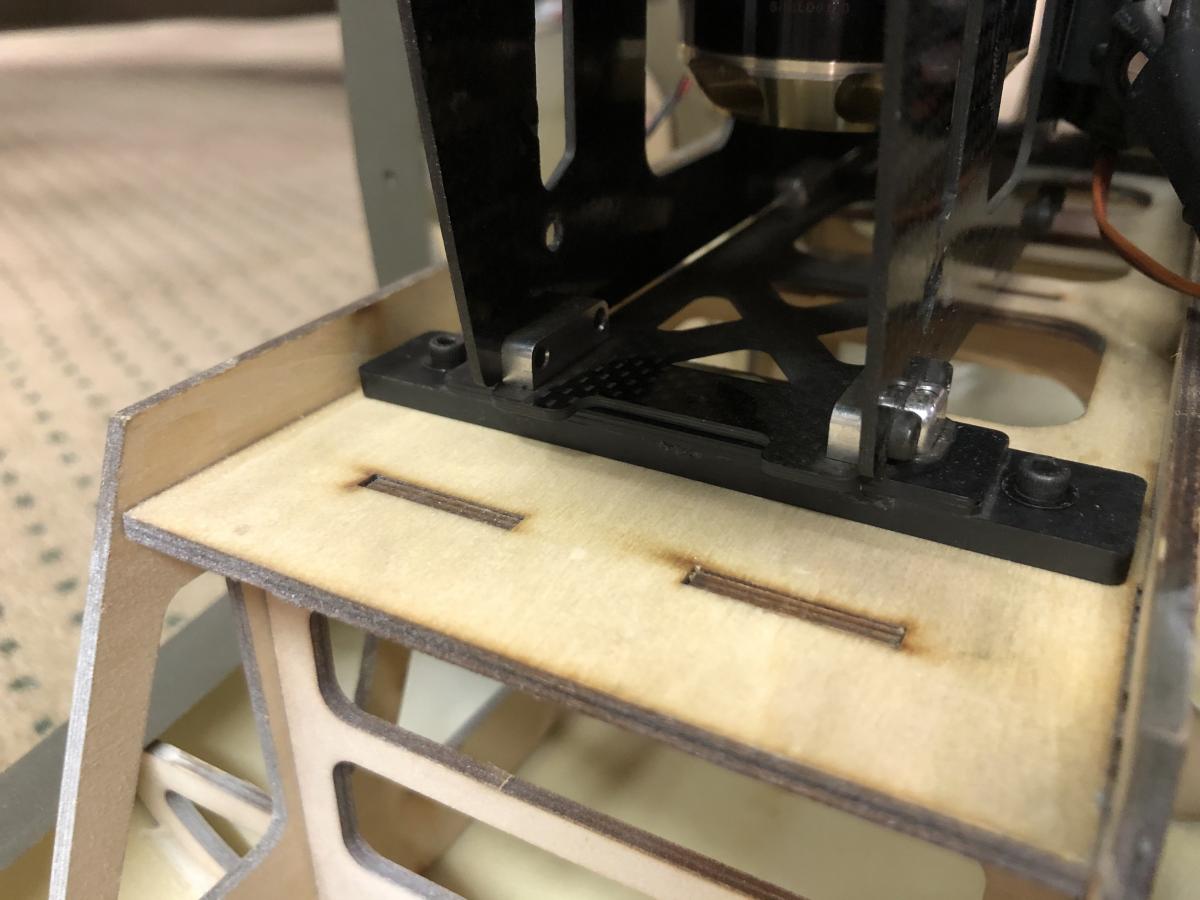

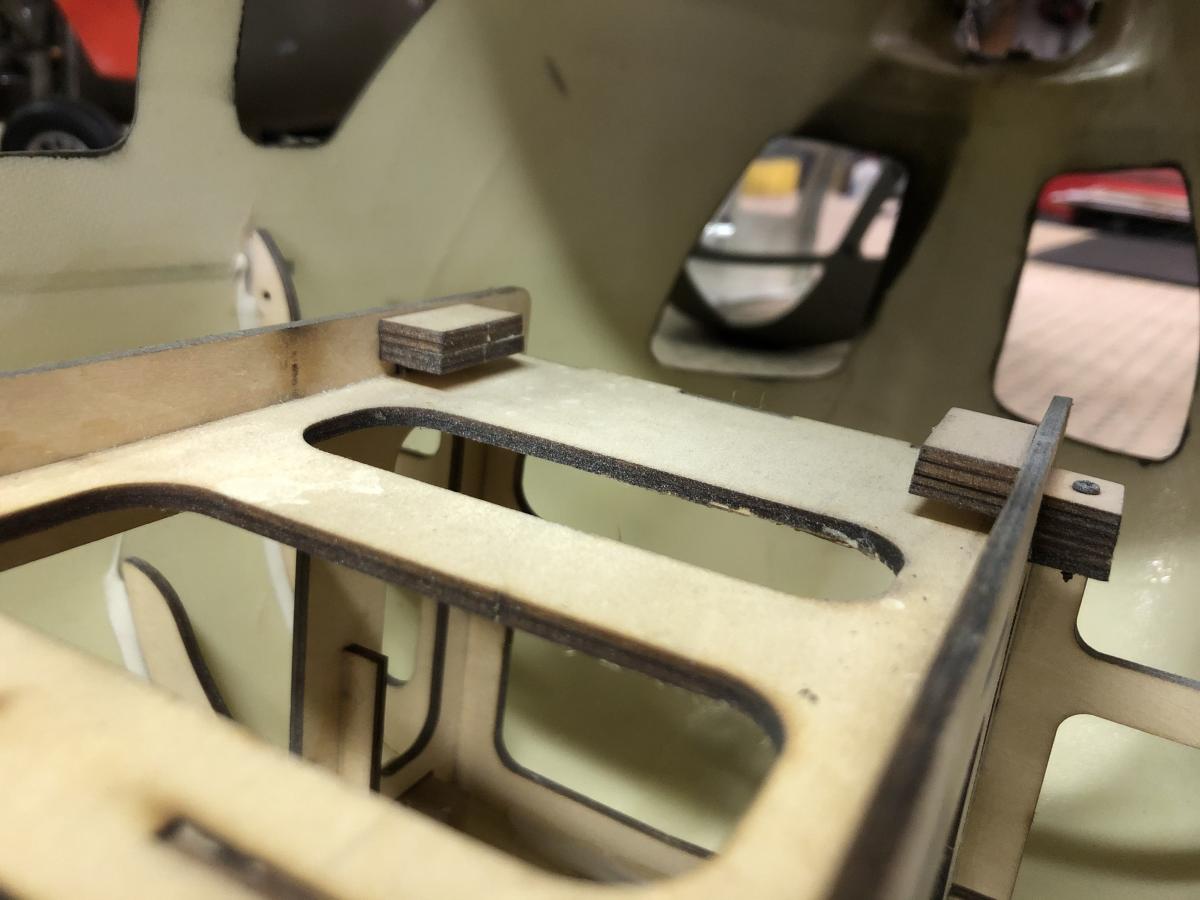

              Next step is to mount the mechanics in the fuselage, the mounts worked great in the skid mounting holes. The front mount screws into the floor but the rear mount slides under the wood catches in the rear.

              Click image for larger version

Name:	20191118_204643534_iOS.jpg
Views:	254
Size:	174.5 KB
ID:	220593

              Click image for larger version

Name:	20191118_204912090_iOS.jpg
Views:	227
Size:	82.1 KB
ID:	220584

              Click image for larger version

Name:	20191118_213112769_iOS.jpg
Views:	248
Size:	89.1 KB
ID:	220587

              Click image for larger version

Name:	20191118_213205196_iOS.jpg
Views:	240
Size:	94.5 KB
ID:	220583

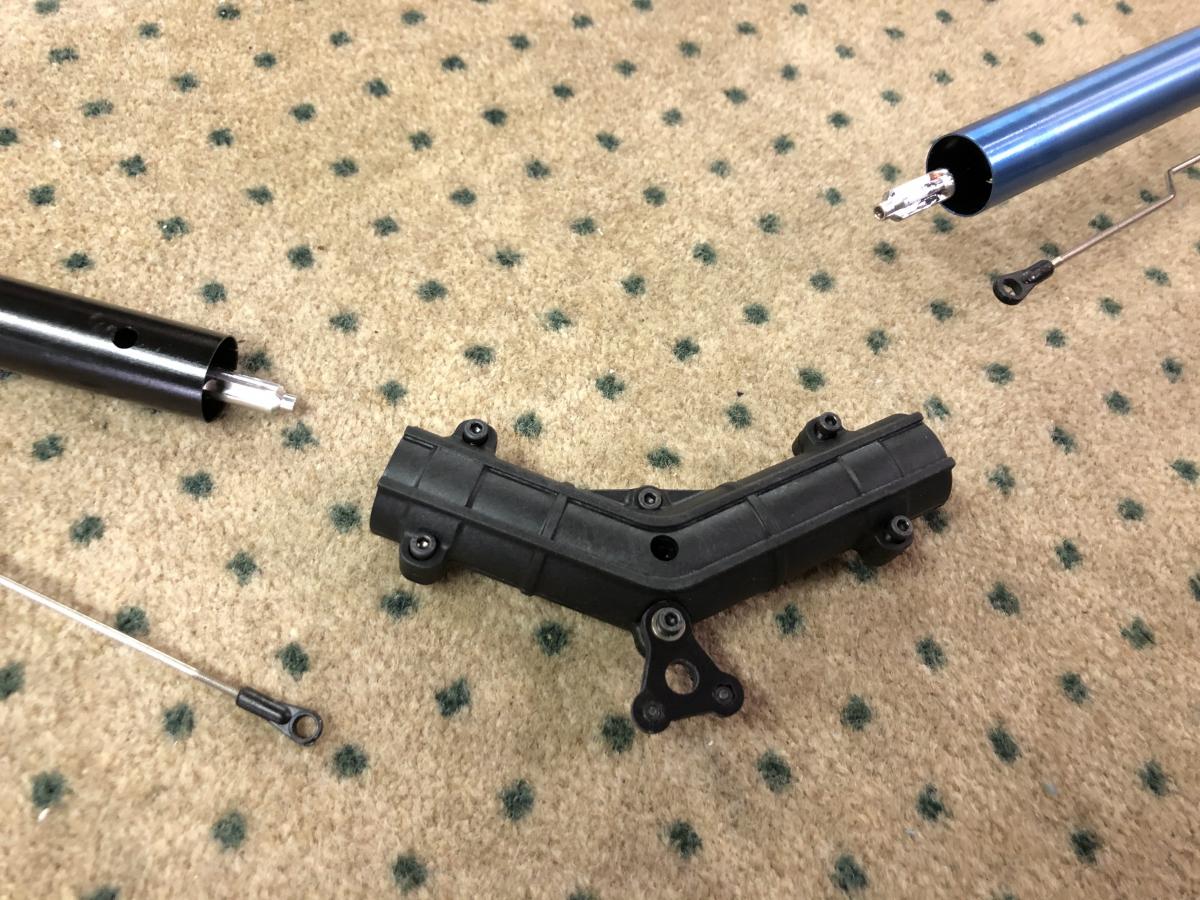

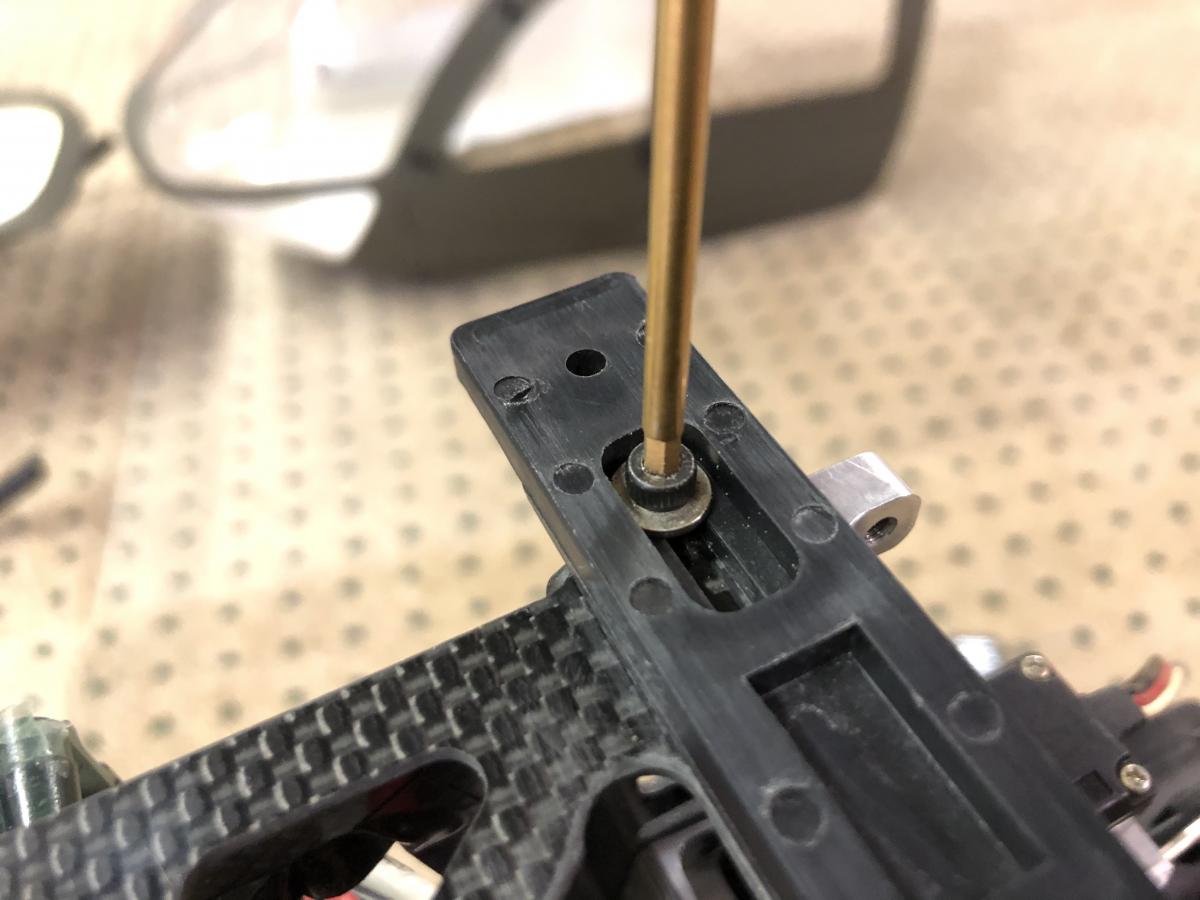

              Next you need to remove the raised tail so you can install the mechanics in the fuselage, besure to loosen the screws on each end of the elbow so you can reinstall it with the fuselage boom.

              Click image for larger version

Name:	20191118_205259304_iOS.jpg
Views:	246
Size:	153.8 KB
ID:	220589

              Click image for larger version

Name:	20191118_205330037_iOS.jpg
Views:	237
Size:	189.2 KB
ID:	220592

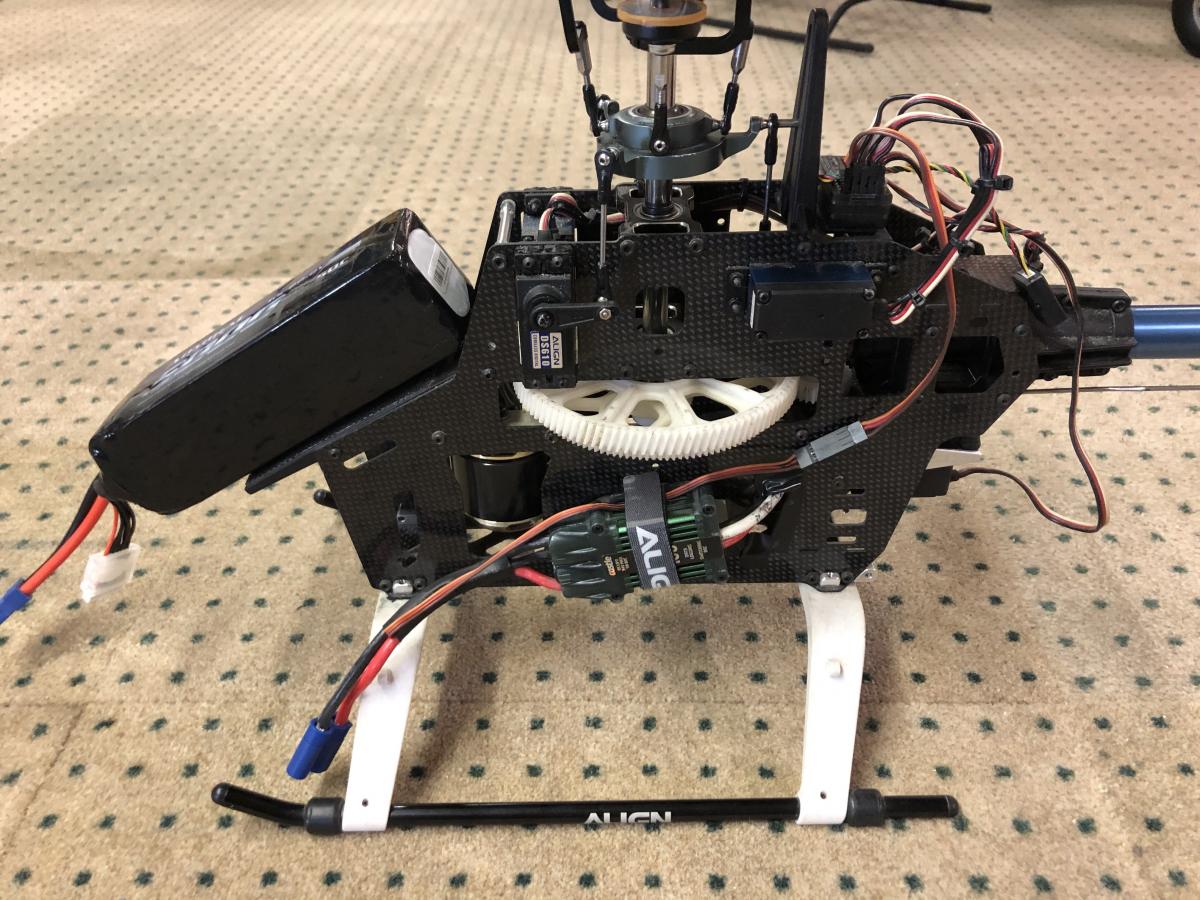

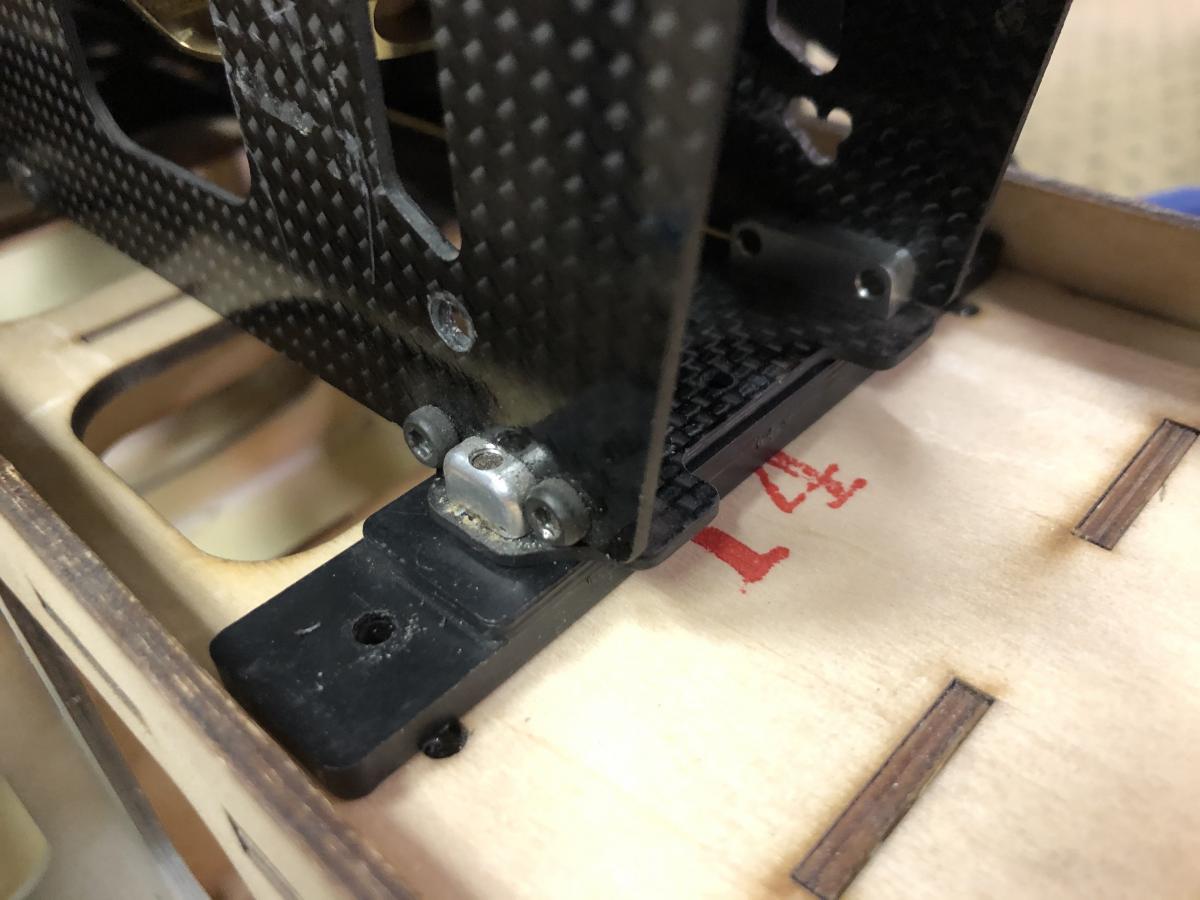

              The Trex 600E I used was a model with the swash guide in the rear so I had to trim the fuselage some with a flapper wheel.

              Click image for larger version

Name:	20191118_210852509_iOS.jpg
Views:	248
Size:	61.2 KB
ID:	220585

              Click image for larger version

Name:	20191118_212134244_iOS.jpg
Views:	248
Size:	71.0 KB
ID:	220586

              The rear mount slides under these two stops.

              Click image for larger version

Name:	20191118_210356580_iOS.jpg
Views:	239
Size:	80.6 KB
ID:	220588

              We're now ready to work on the boom.

              Click image for larger version

Name:	20191118_213452809_iOS.jpg
Views:	133
Size:	168.1 KB
ID:	220590

              Click image for larger version

Name:	20191118_213542478_iOS.jpg
Views:	248
Size:	162.3 KB
ID:	220591
              TiredIron Aviation
              Tired Iron Military Vehicles

              Comment


              • #8

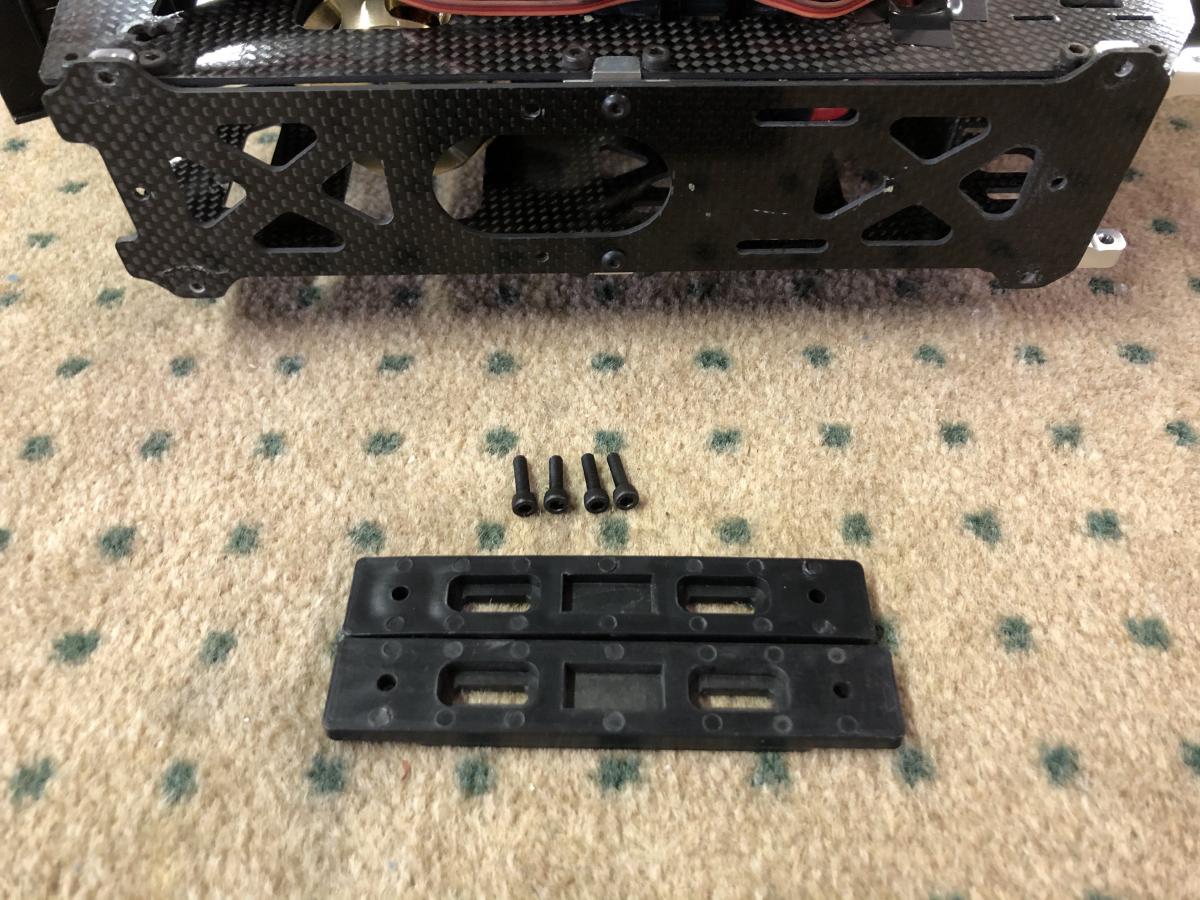

                Remove the two mounting screws at the front of the mechanics so you can slide them to the rear of the fuselage to give you enough room to get the tail boom installed. Slide the boom over the tube but leave it turn a quarter turn to the left so you can get the elbow installed.

                Click image for larger version  Name:	20191118_220536748_iOS.jpg Views:	0 Size:	92.5 KB ID:	220601

                Click image for larger version  Name:	20191118_214522126_iOS.jpg Views:	0 Size:	75.6 KB ID:	220599



                Click image for larger version  Name:	20191118_214519235_iOS.jpg Views:	0 Size:	100.5 KB ID:	220598

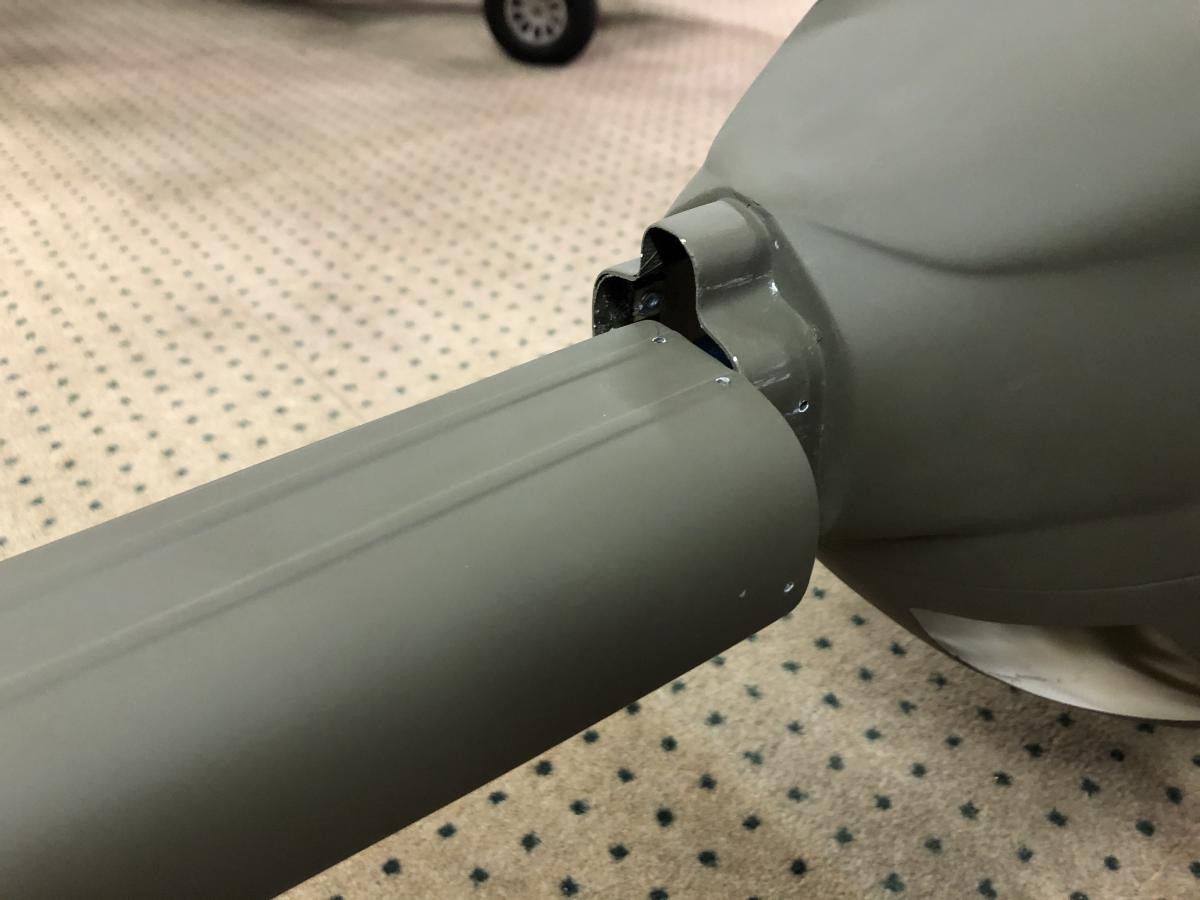

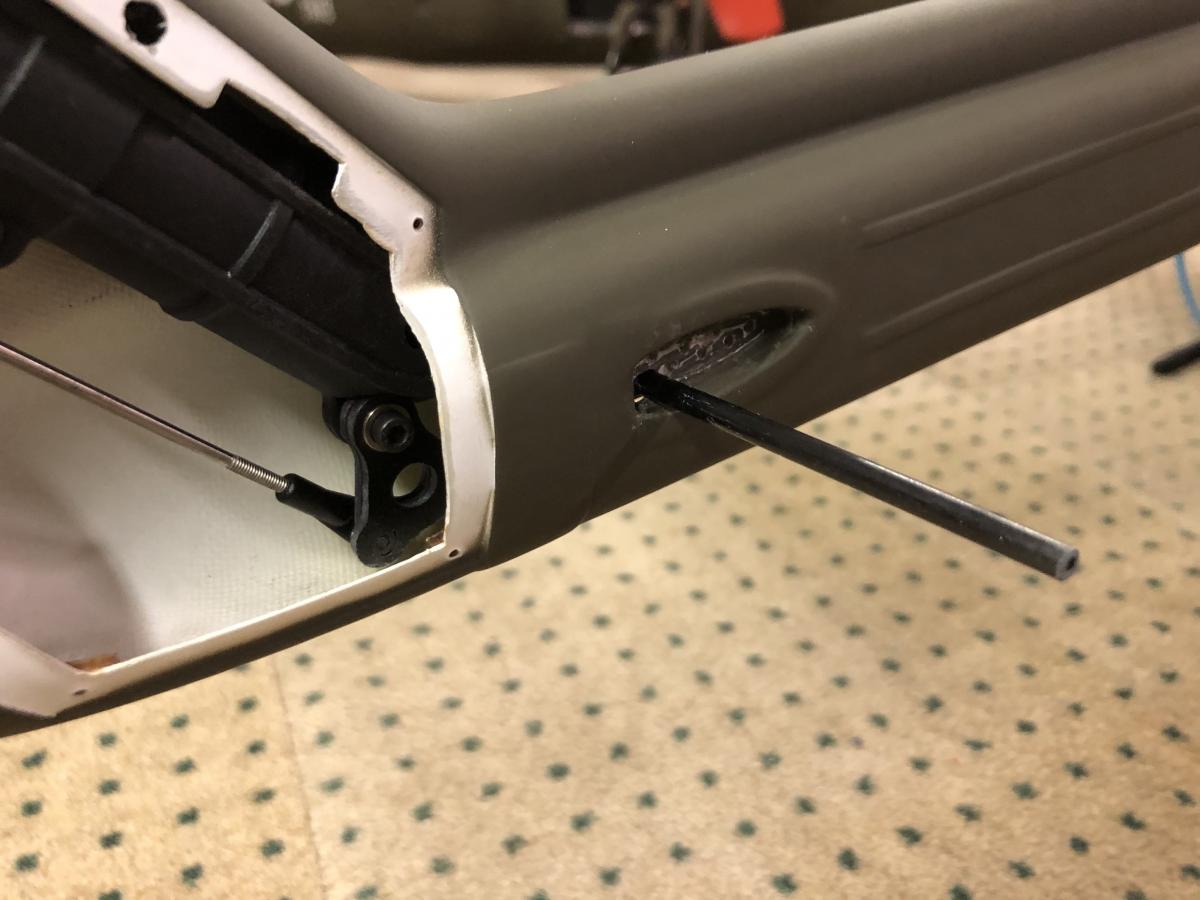

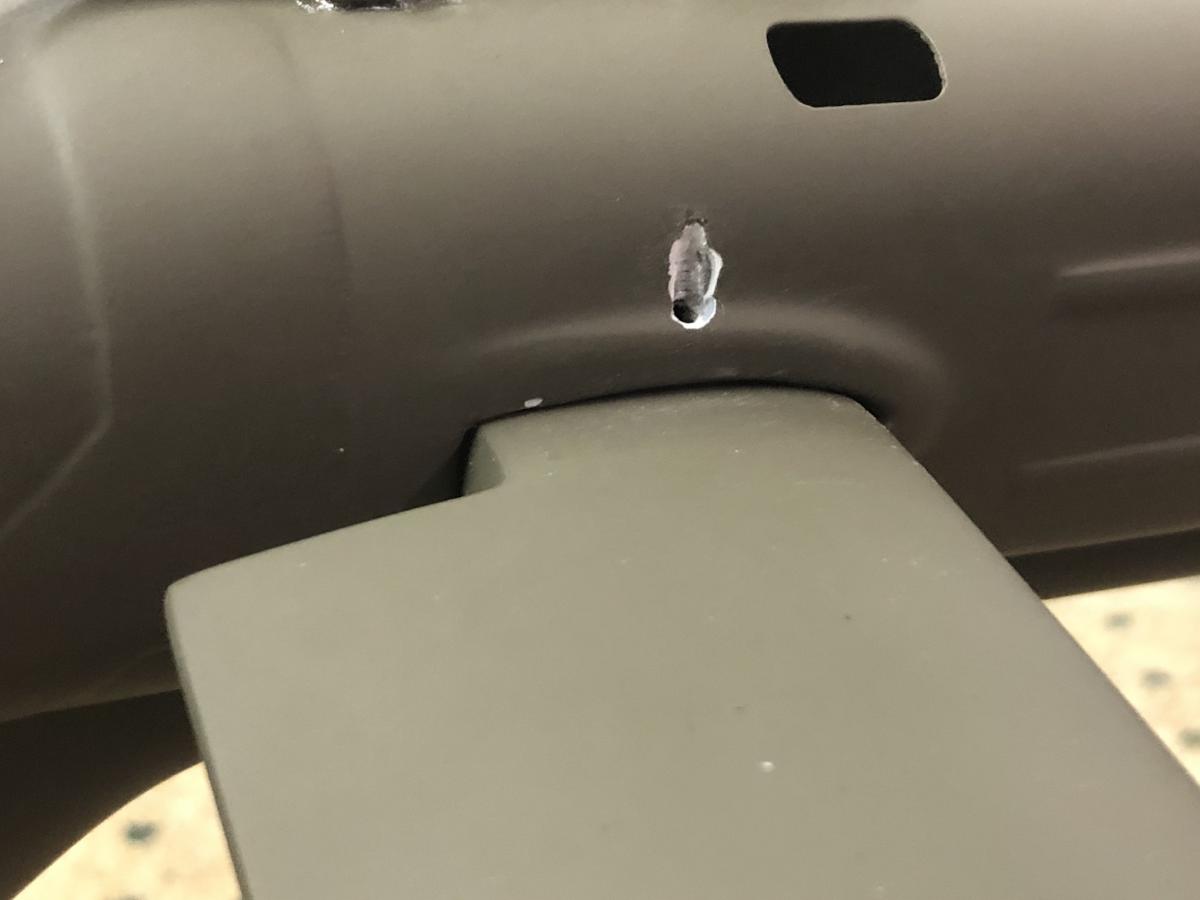

                After sliding the boom on I needed to drill a hole so I could tighten the top hole on the elbow.

                Click image for larger version

Name:	20191120_221719564_iOS.jpg
Views:	228
Size:	84.8 KB
ID:	220607

                Click image for larger version  Name:	20191118_221657905_iOS.jpg Views:	0 Size:	81.0 KB ID:	220602

                Then install the torque tube and control rod.

                Click image for larger version  Name:	20191118_221926257_iOS.jpg Views:	0 Size:	64.6 KB ID:	220596

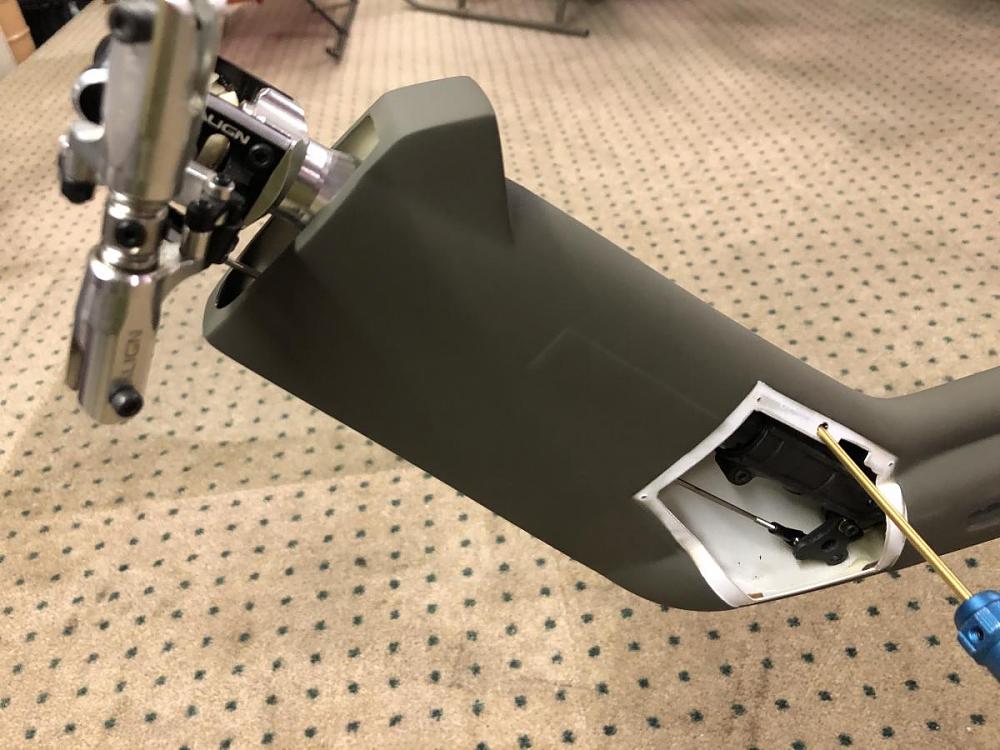

                Then install the final piece of the mechanics and tighten the last two screws.

                Click image for larger version  Name:	20191118_222237148_iOS.jpg Views:	0 Size:	121.8 KB ID:	220604

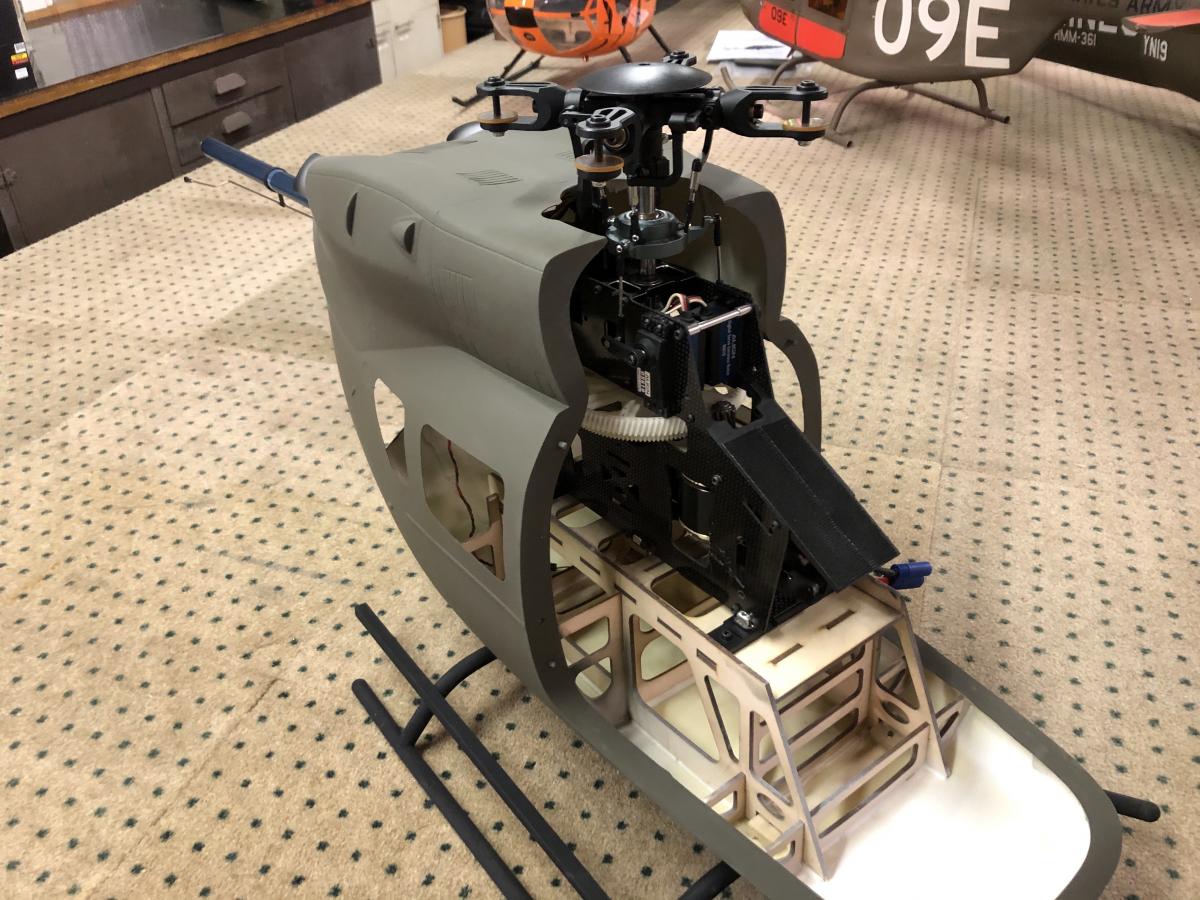

                The mechanics lined up perfectly in the fuselage.

                Click image for larger version  Name:	20191118_233750165_iOS.jpg Views:	0 Size:	125.3 KB ID:	220605

                Click image for larger version  Name:	20191118_233633619_iOS.jpg Views:	0 Size:	77.2 KB ID:	220597
                TiredIron Aviation
                Tired Iron Military Vehicles

                Comment


                • #9

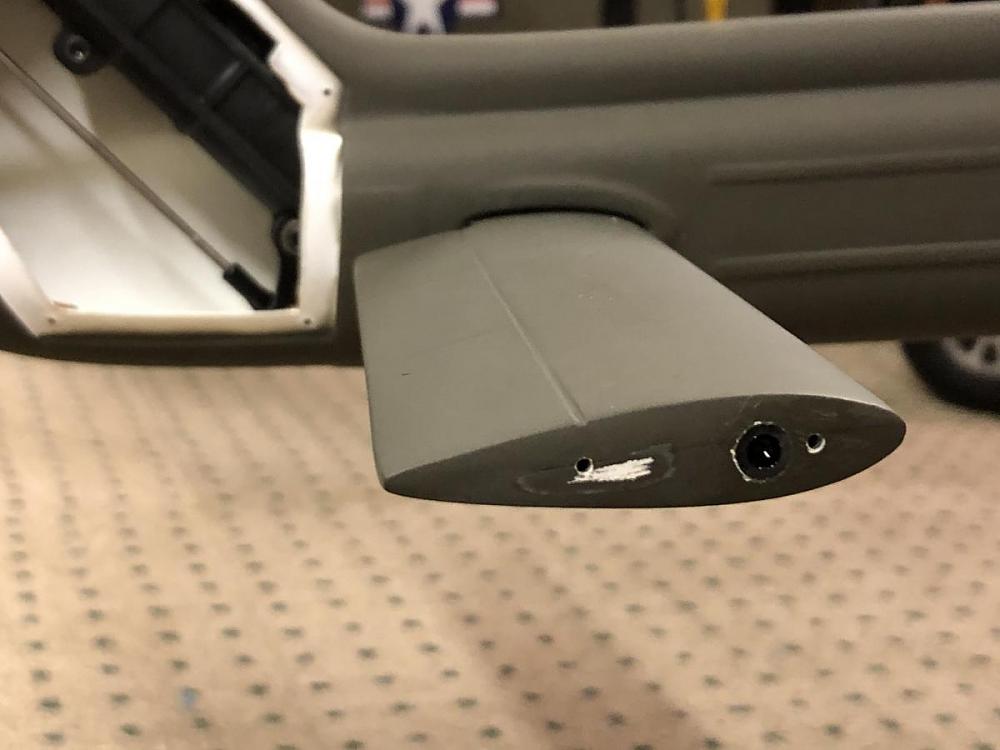

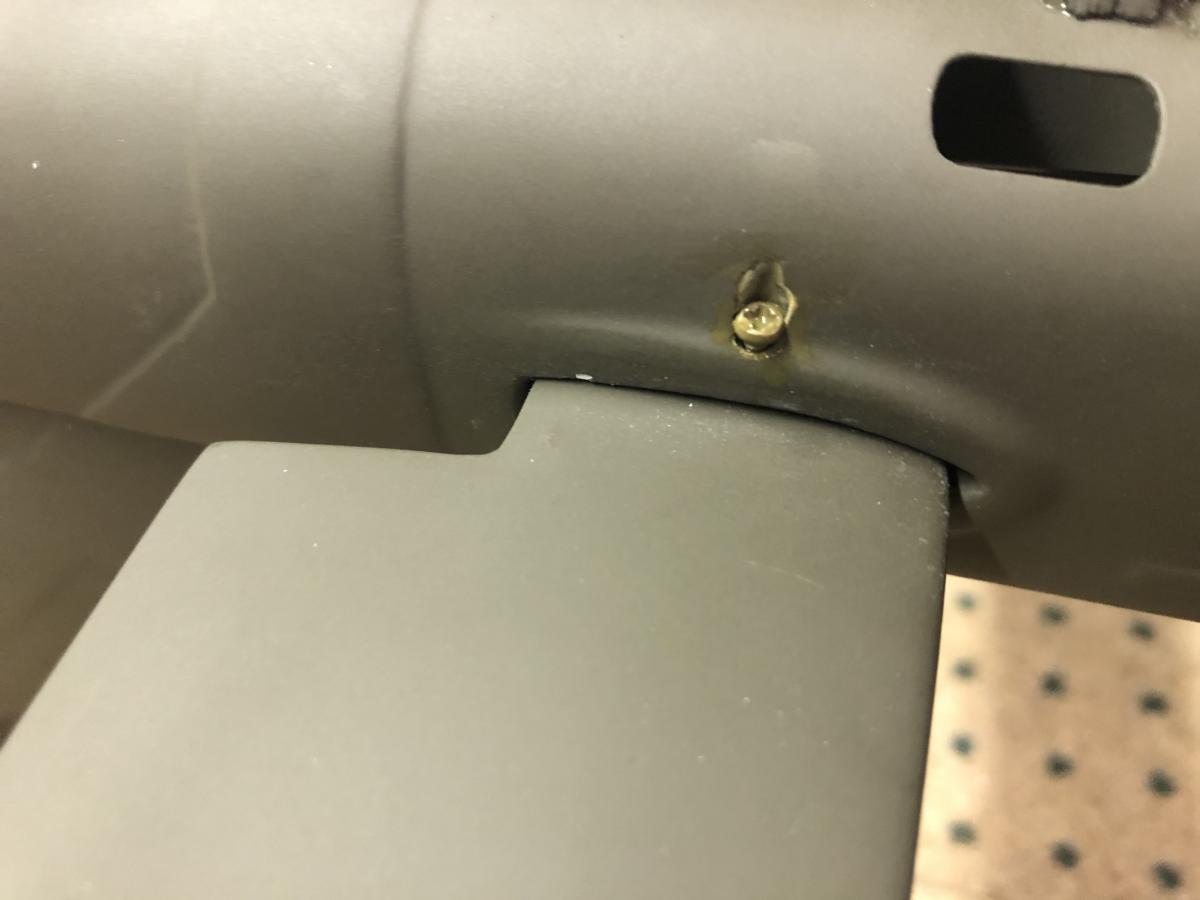

                  I decided against epoxying the horizontals on and decided to use a spar and make them removable. I drilled a hole in the bottom rear corner of the stab opening which will allow the spar to run under the mechanics and help support them. I use a 4mm spar in the fuse then 6mm spars in the stabs.

                  Click image for larger version  Name:	20191119_232923343_iOS.jpg Views:	0 Size:	87.4 KB ID:	220614

                  Click image for larger version  Name:	20191119_232953794_iOS.jpg Views:	0 Size:	183.9 KB ID:	220619

                  Click image for larger version  Name:	20191119_235747639_iOS.jpg Views:	0 Size:	71.2 KB ID:	220613

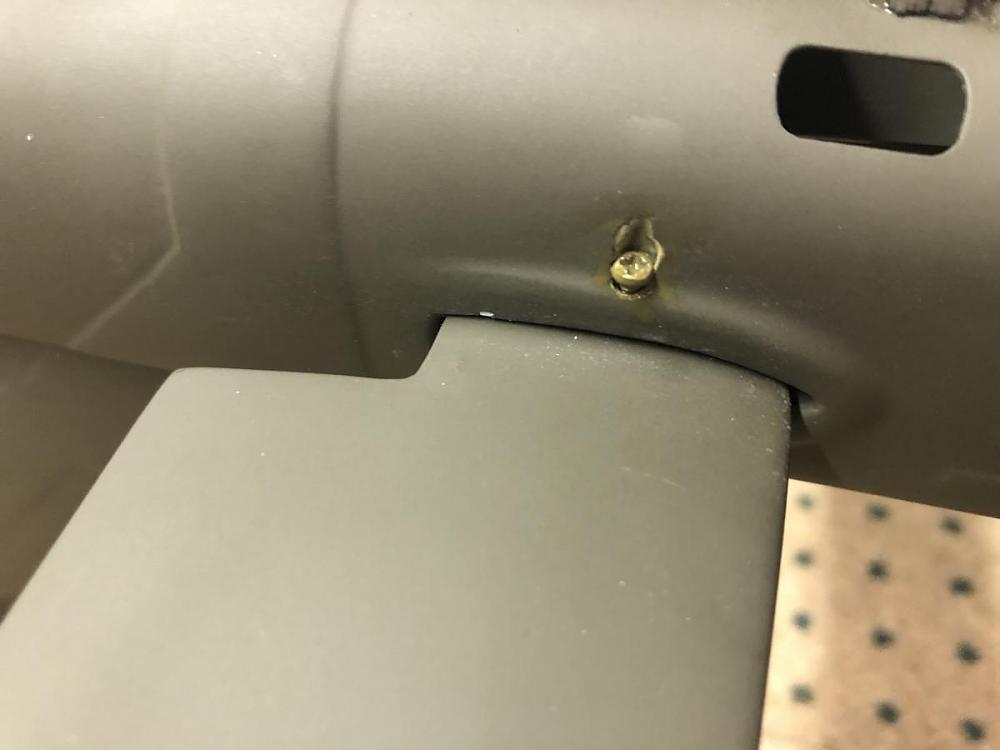

                  I drilled a hole through the fuselage and stab to secure each side.

                  Click image for larger version  Name:	20191120_220645761_iOS.jpg Views:	0 Size:	46.2 KB ID:	220612

                  Click image for larger version  Name:	20191120_221332522_iOS.jpg Views:	0 Size:	48.9 KB ID:	220615

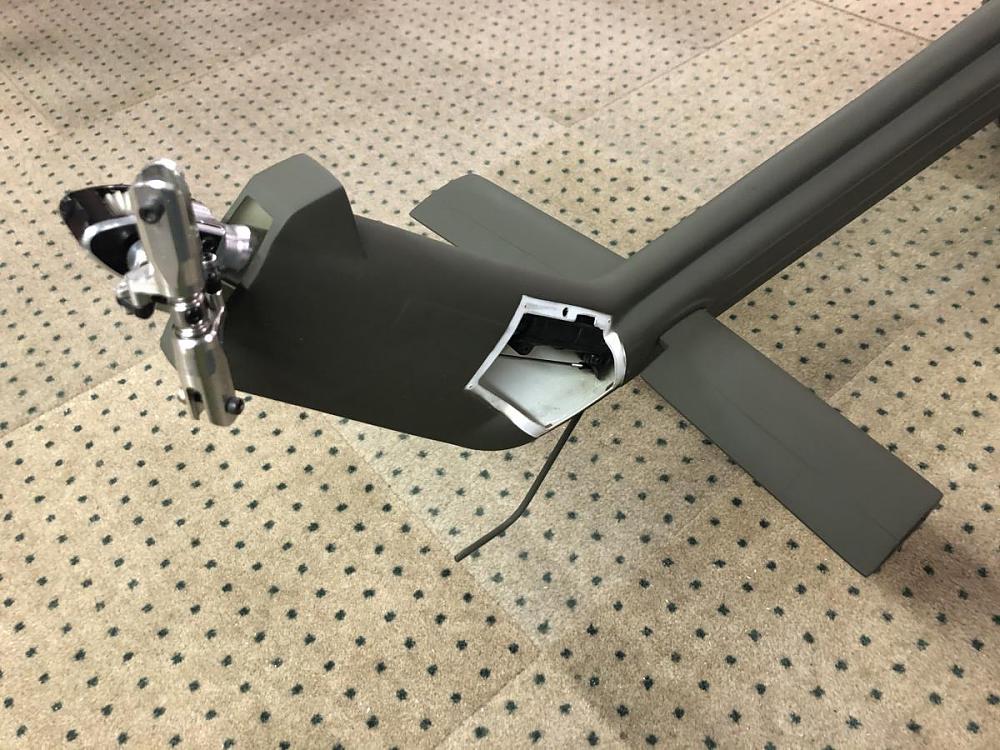

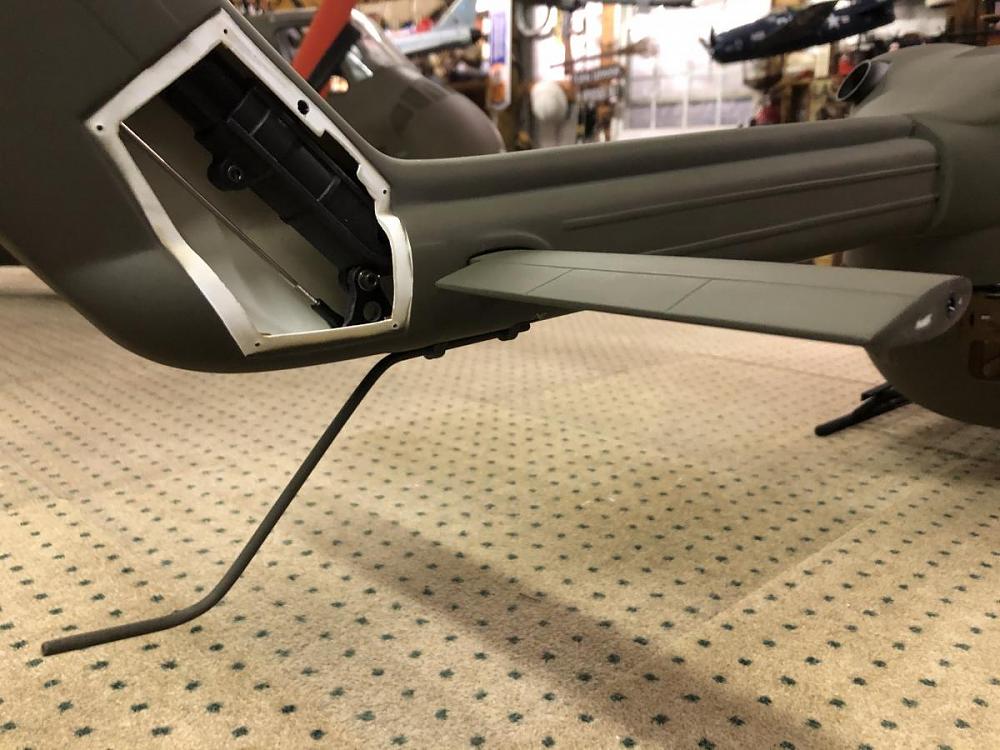

                  Installed the tail skid

                  Click image for larger version  Name:	20191120_221500970_iOS.jpg Views:	0 Size:	169.0 KB ID:	220618

                  Click image for larger version  Name:	20191120_002847171_iOS.jpg Views:	0 Size:	125.7 KB ID:	220616
                  TiredIron Aviation
                  Tired Iron Military Vehicles

                  Comment


                  • #10

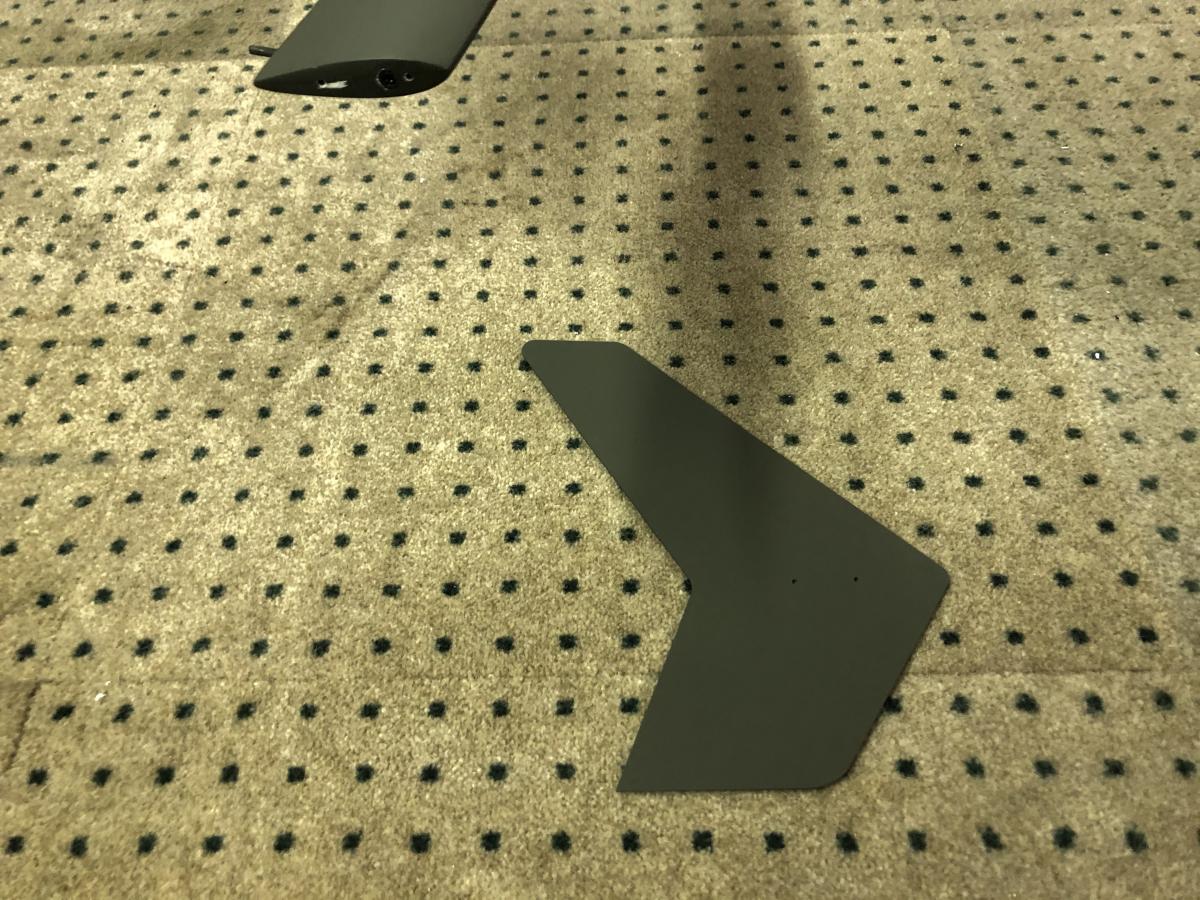

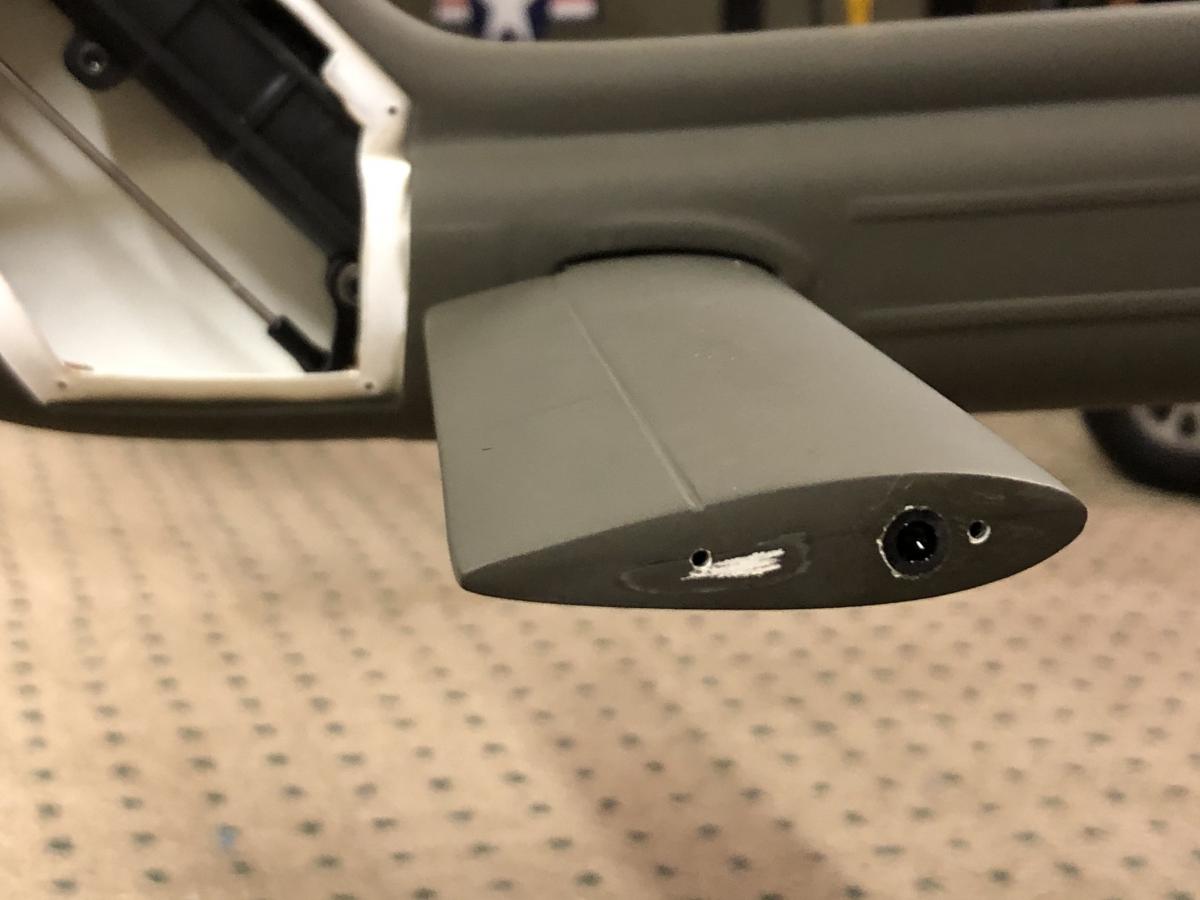

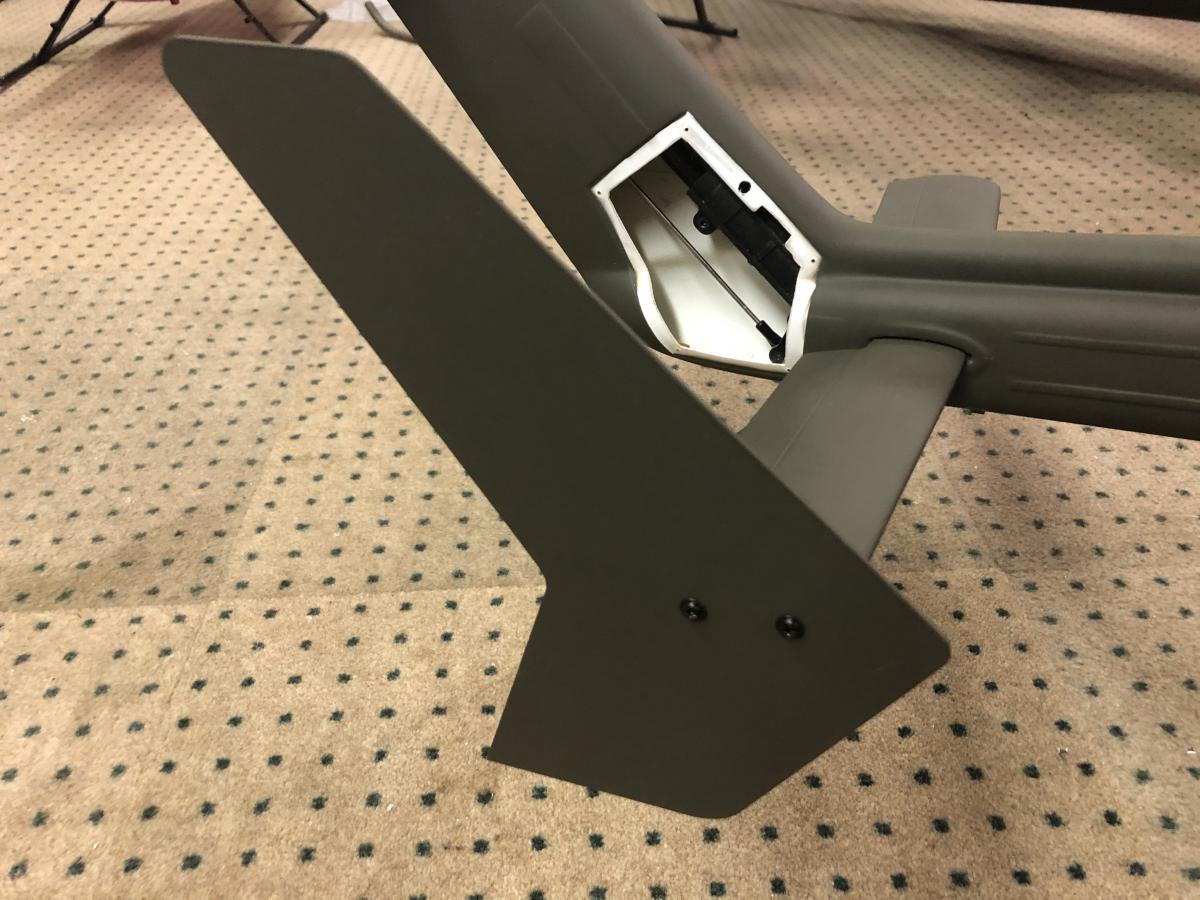

                    Next we add the horizontal fins. I just scored a line between the two ends then drilled two holes using the fin as a template.

                    Click image for larger version  Name:	20191120_225854953_iOS.jpg Views:	0 Size:	215.1 KB ID:	220638



                    Click image for larger version  Name:	20191119_233316402_iOS.jpg Views:	0 Size:	138.4 KB ID:	220639

                    Click image for larger version  Name:	20191120_230037195_iOS.jpg Views:	0 Size:	135.2 KB ID:	220630

                    Click image for larger version  Name:	20191120_230652899_iOS.jpg Views:	0 Size:	173.3 KB ID:	220637

                    The model comes with windows and decals but I plan to go another way and will update the thread when I do.

                    Click image for larger version  Name:	20191120_233907875_iOS.jpg Views:	0 Size:	152.7 KB ID:	220631

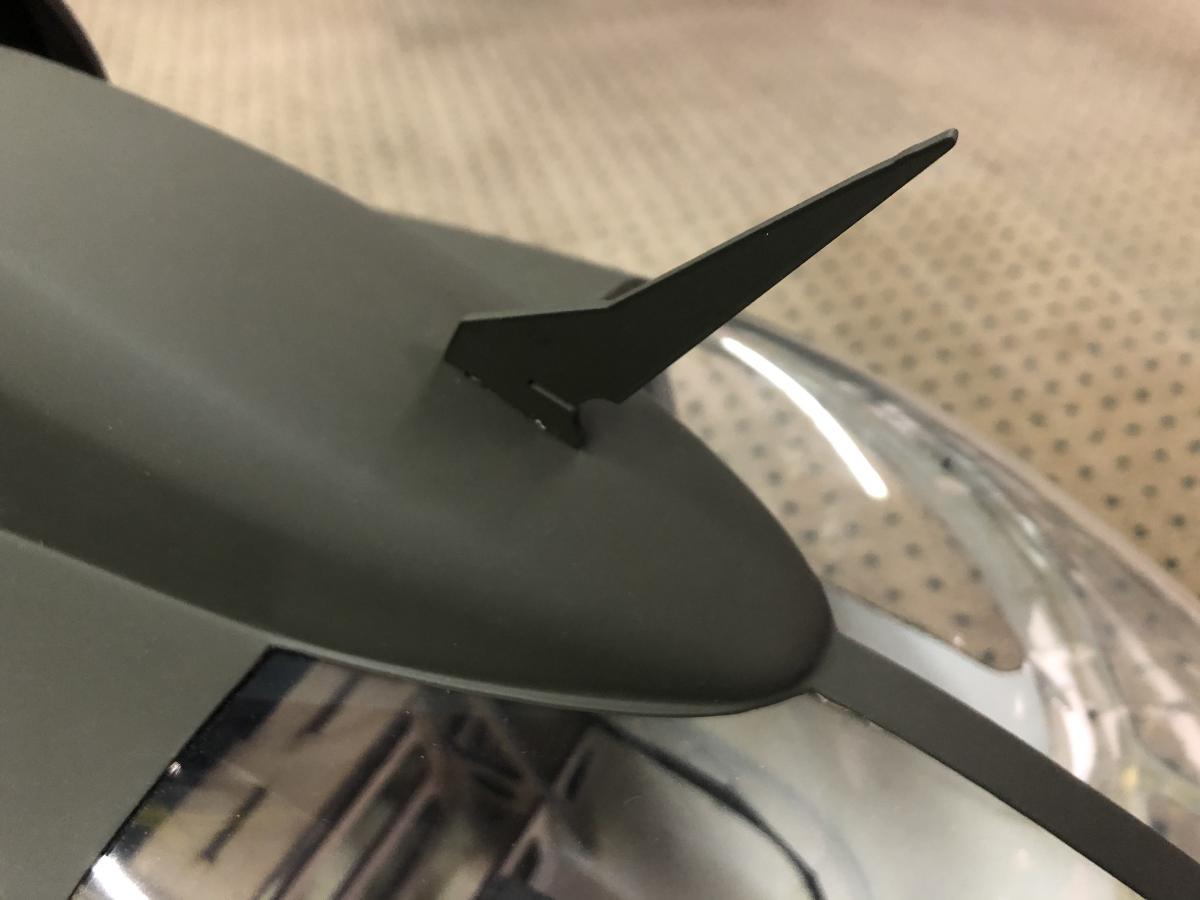

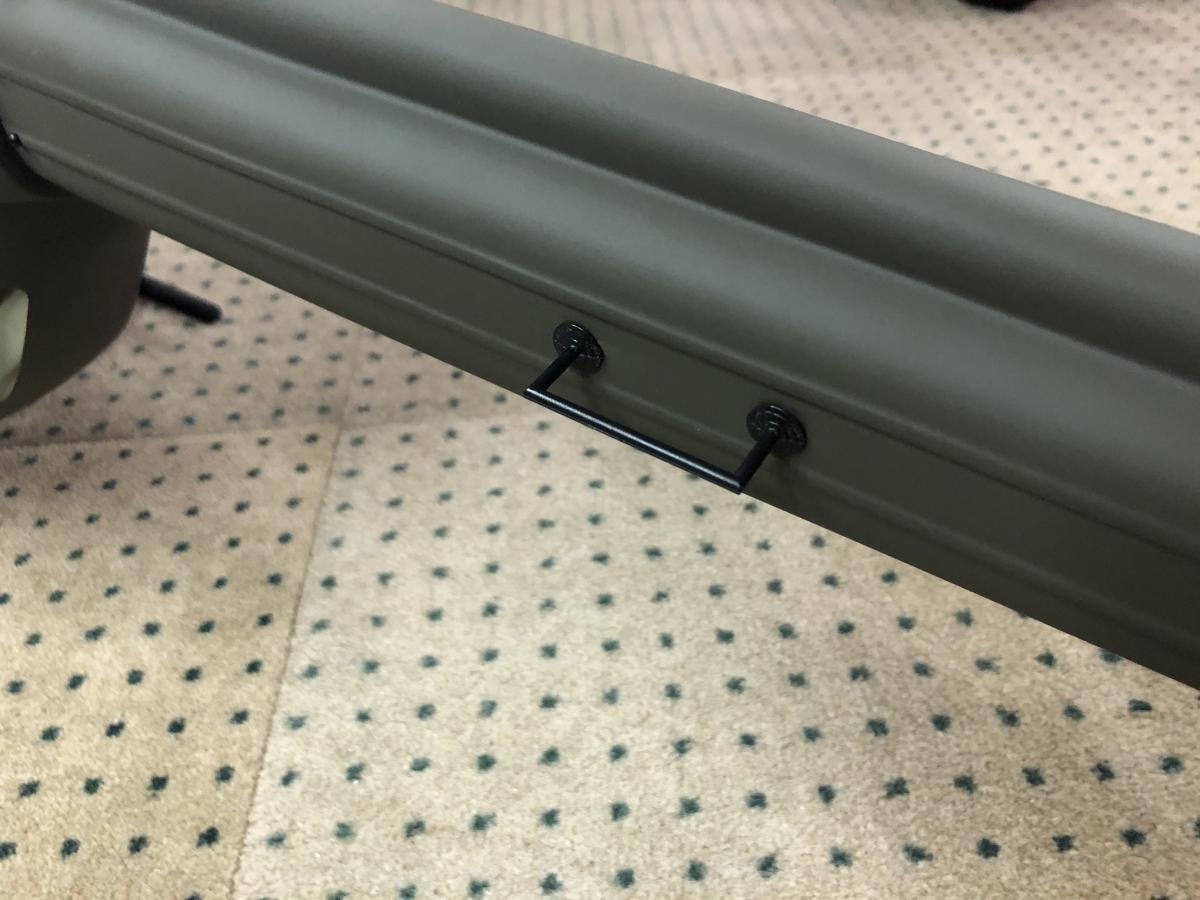

                    The last pieces are the antennas and wire cutters.

                    Click image for larger version  Name:	20191120_234750662_iOS.jpg Views:	0 Size:	104.1 KB ID:	220629

                    Click image for larger version  Name:	20191120_233644410_iOS.jpg Views:	0 Size:	62.2 KB ID:	220628

                    Click image for larger version  Name:	20191120_233605324_iOS.jpg Views:	0 Size:	126.4 KB ID:	220634

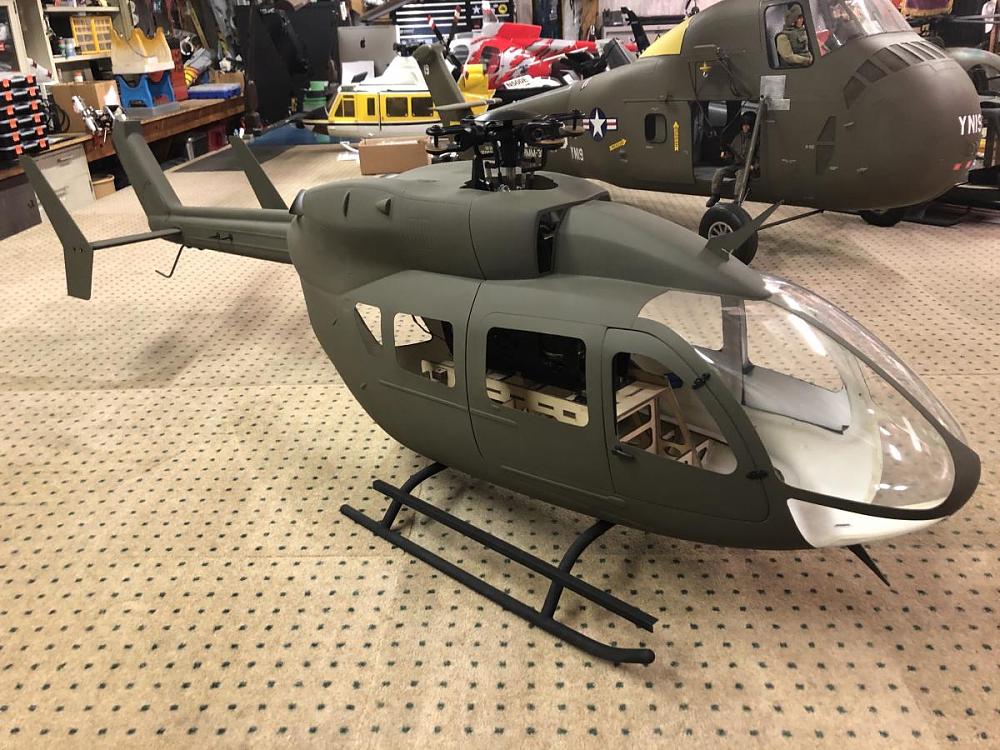

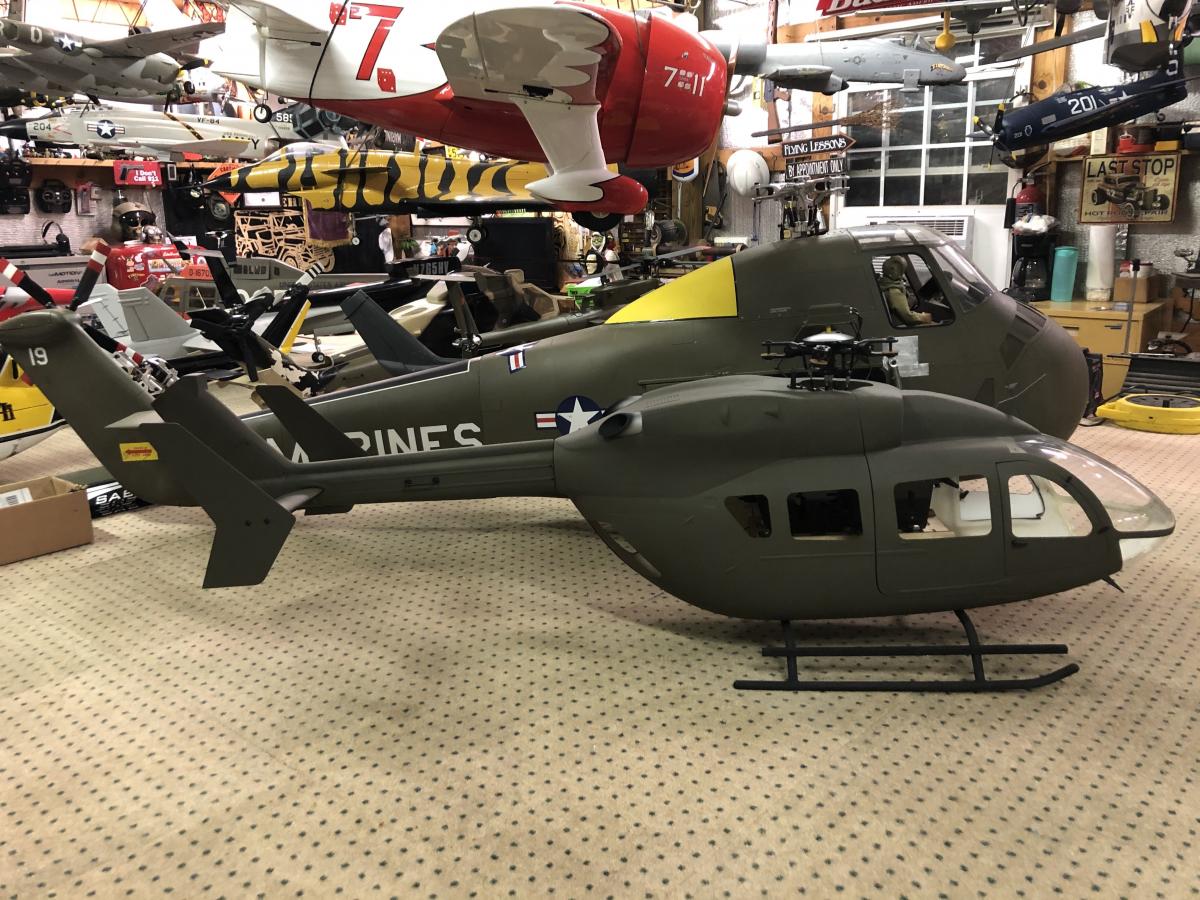

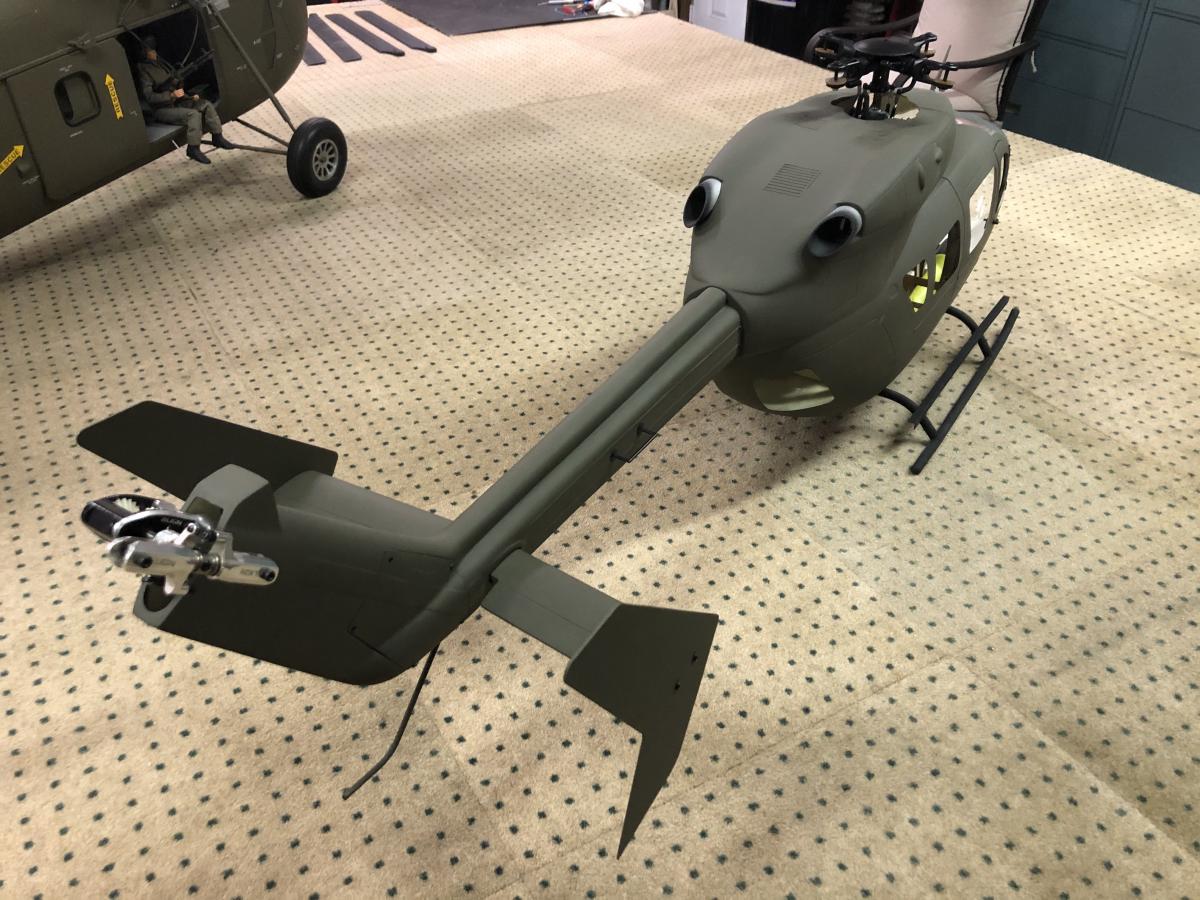

                    The UH-72 Lakota is a great looking helicopter and the raised tail sure makes it look larger than a 600

                    Click image for larger version  Name:	20191120_235901968_iOS.jpg Views:	0 Size:	171.6 KB ID:	220633

                    Click image for larger version  Name:	20191120_235938634_iOS.jpg Views:	0 Size:	175.4 KB ID:	220635

                    Click image for larger version  Name:	20191121_000023966_iOS.jpg Views:	0 Size:	194.6 KB ID:	220636
                    TiredIron Aviation
                    Tired Iron Military Vehicles

                    Comment


                    • #11
                      Very Nice George! Hope to get to your shop in the near future.
                      Roy Mayoral

                      Comment


                      • #12
                        The Lakota is such a striking twin engine helicopter. In its EC145 form, it is often seen in flashy color schemes, but there is something so monolithic seeing it in all OD! I like helicopters best in OD or black.

                        What are your plans with this beautiful beast, George?

                        Heli143 George's place is RC heaven. Although you may leave with one or two less helicopters than you came with!

                        Comment


                        • #13
                          Originally posted by Alpha View Post
                          What are your plans with this beautiful beast, George?
                          I plan to make a cockpit, add lighting and some 3D printed accessories then repaint it...I can't believe how big it is compared to most other 600 size scale kits

                          TiredIron Aviation
                          Tired Iron Military Vehicles

                          Comment


                          • #14
                            So this is like your 5th heli acquisition within the past two months
                            Haven't seen any maiden flights yet............
                            I am especially keen to see the awesome CH-34
                            Glad to see ya going full tilt boogie in this sport bro
                            Warbird Charlie
                            HSD Skyraider; FlightLine: Sea Fury; FMS 1400: P-40B, P-51, F4U, F6F, T-28, P-40E, 1700 F4U & F7F and a Fox glider; Freewing: A-6, P-51; VQ: P-39; Dynam: ME-262, FW-190, Waco; ASM A-26; ESM F7F-3; LX PBJ-1 EFL CZ T-28, C-150

                            Comment


                            • #15
                              Originally posted by OV10 View Post
                              So this is like your 5th heli acquisition within the past two months
                              Haven't seen any maiden flights yet............
                              I am especially keen to see the awesome CH-34
                              Glad to see ya going full tilt boogie in this sport bro
                              I never have anyone to video me
                              TiredIron Aviation
                              Tired Iron Military Vehicles

                              Comment


                              • #16
                                Originally posted by TiredIronGRB View Post

                                I never have anyone to video me
                                Since the heli king of your neck of the woods happens to be your close bud, time to get your butt over there filming Steve
                                Warbird Charlie
                                HSD Skyraider; FlightLine: Sea Fury; FMS 1400: P-40B, P-51, F4U, F6F, T-28, P-40E, 1700 F4U & F7F and a Fox glider; Freewing: A-6, P-51; VQ: P-39; Dynam: ME-262, FW-190, Waco; ASM A-26; ESM F7F-3; LX PBJ-1 EFL CZ T-28, C-150

                                Comment


                                • #17
                                  Originally posted by TiredIronGRB View Post

                                  I plan to make a cockpit, add lighting and some 3D printed accessories then repaint it...I can't believe how big it is compared to most other 600 size scale kits
                                  Looking forward to seeing it detailed out!! I need to make it up to your place sometime. I love seeing so many threads on these beautiful helicopters!

                                  Comment


                                  • #18
                                    Originally posted by F106DeltaDart View Post

                                    Looking forward to seeing it detailed out!! I need to make it up to your place sometime. I love seeing so many threads on these beautiful helicopters!
                                    Maybe you can come up after Darrell's event ;)
                                    TiredIron Aviation
                                    Tired Iron Military Vehicles

                                    Comment


                                    • #19
                                      Hi, I’m the person who picked up the other 600 size UH 72 Lakota when it briefly came back in stock. I just got around to starting my build today and was truly disappointed to learn that instructions are in German. Hence I’m very grateful for your post with photos and notes. Thank you. Have your flown yours yet?

                                      Comment


                                      • #20
                                        Originally posted by Scale Pilot View Post
                                        Hi, I’m the person who picked up the other 600 size UH 72 Lakota when it briefly came back in stock. I just got around to starting my build today and was truly disappointed to learn that instructions are in German. Hence I’m very grateful for your post with photos and notes. Thank you. Have your flown yours yet?
                                        Welcome to Hobby Squawk Scale Pilot, glad you joined us here! Be sure to post up pictures of your build so we can follow along :)

                                        I haven't flown it yet, it's been raining and I've had bronchitis, coughed a rib loose so all I've been flying is a recliner :(

                                        The next time it's dry and Steve or John is here I'll get some video.
                                        TiredIron Aviation
                                        Tired Iron Military Vehicles
