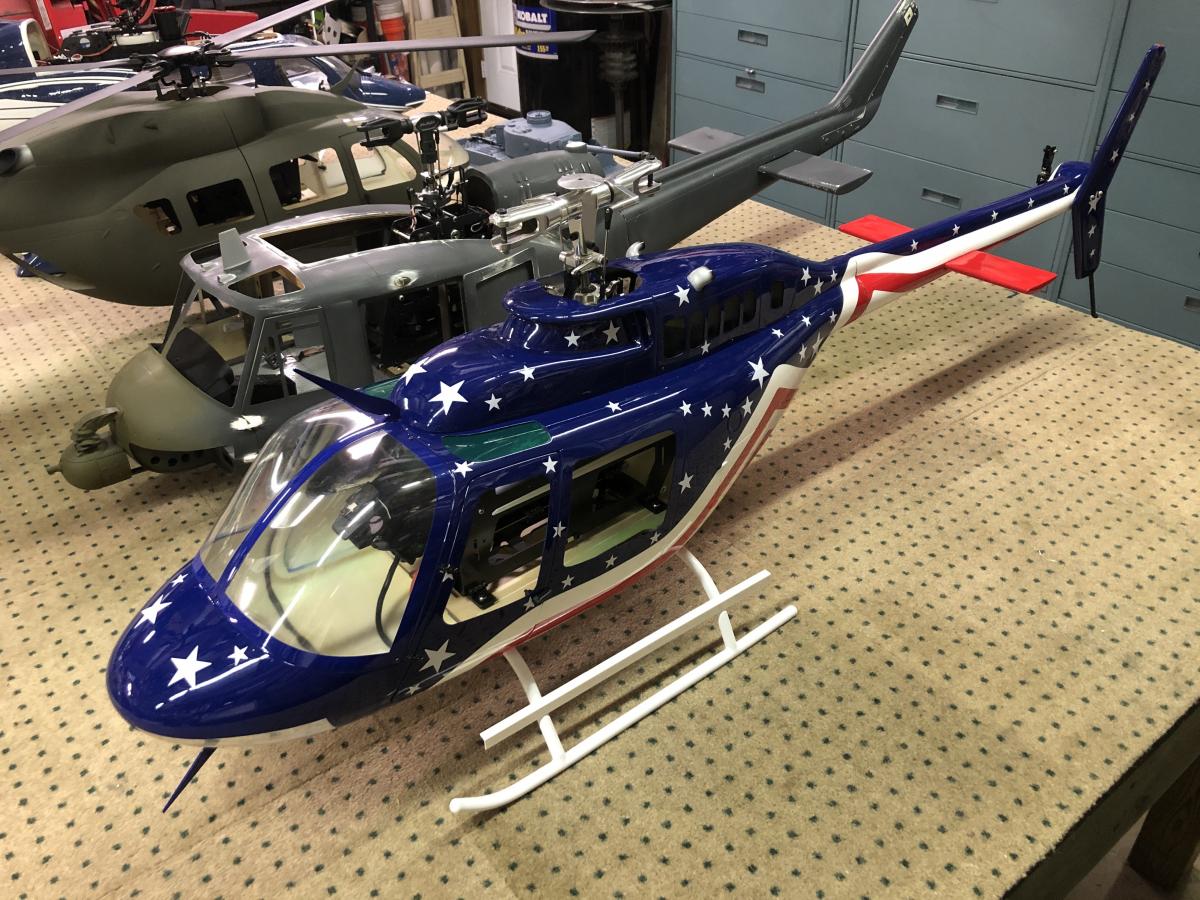

    I've started on this B206 last Hangar Day, it's like a local one that has the record for most hours logged on a 206.

    Here's the link for the kit, I'm using a stock T-Rex 700e mechanics and a Castle Talon 120A ESC.

    Click image for larger version  Name:	IMG_4514.jpg Views:	0 Size:	120.4 KB ID:	236986

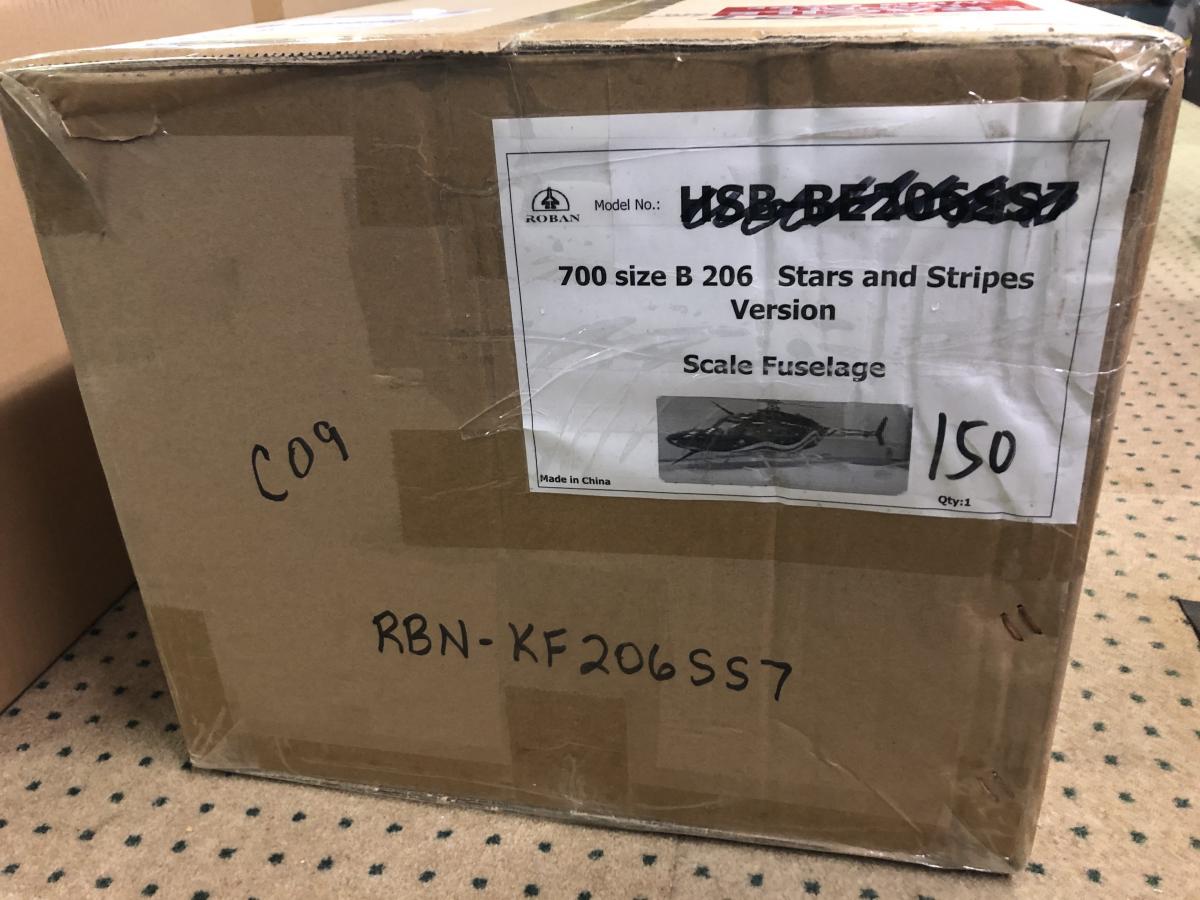

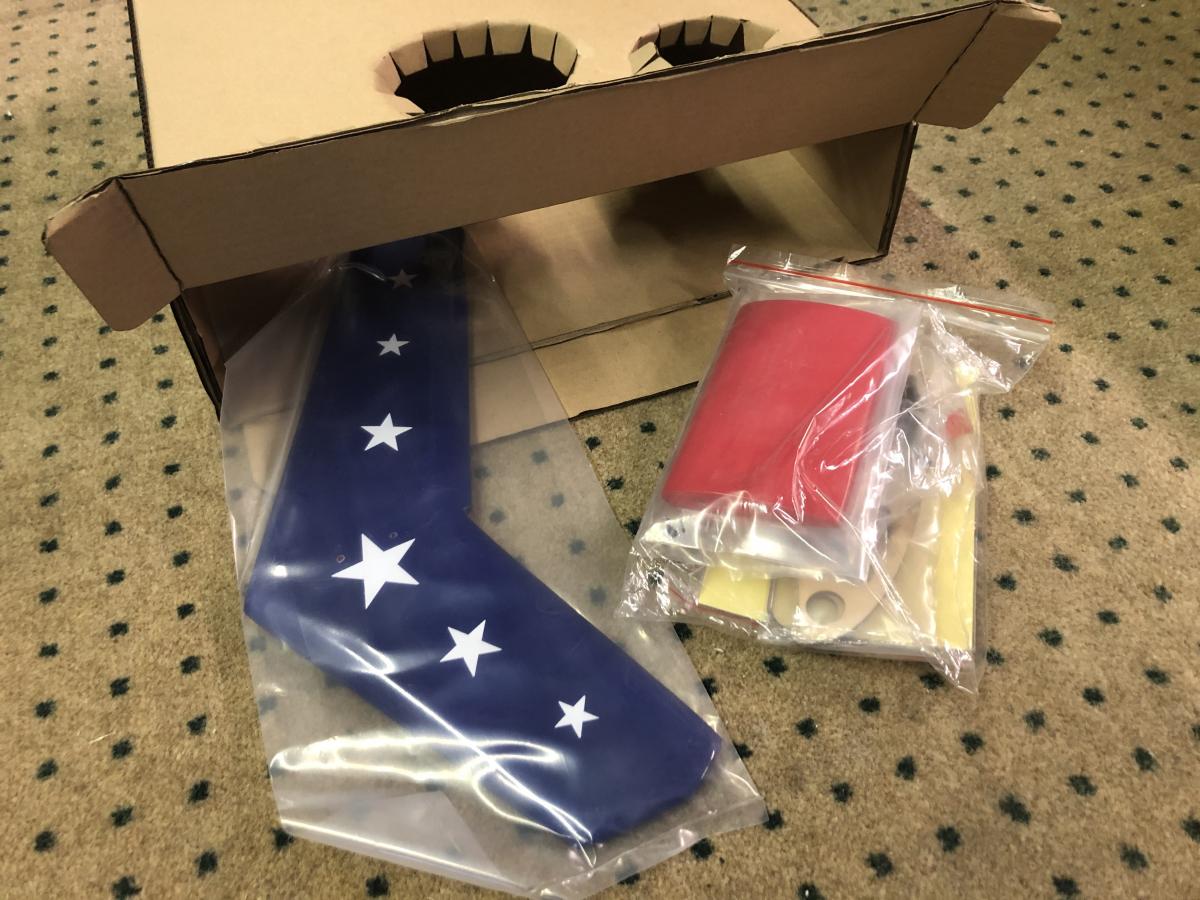

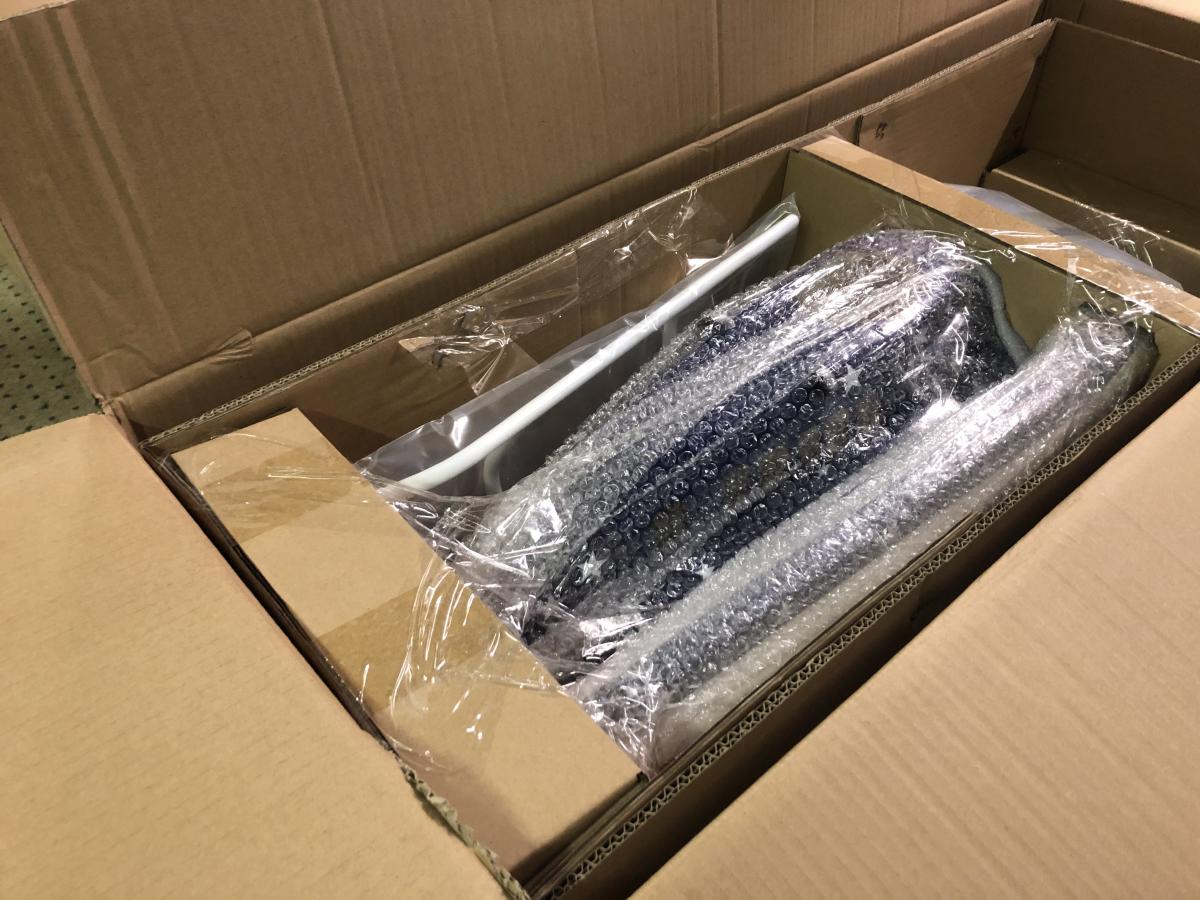

    I have opened up four new Robans and they have all been well packaged and arrived with no damage whatsoever.

    Click image for larger version  Name:	IMG_4516.jpg Views:	0 Size:	115.0 KB ID:	236987

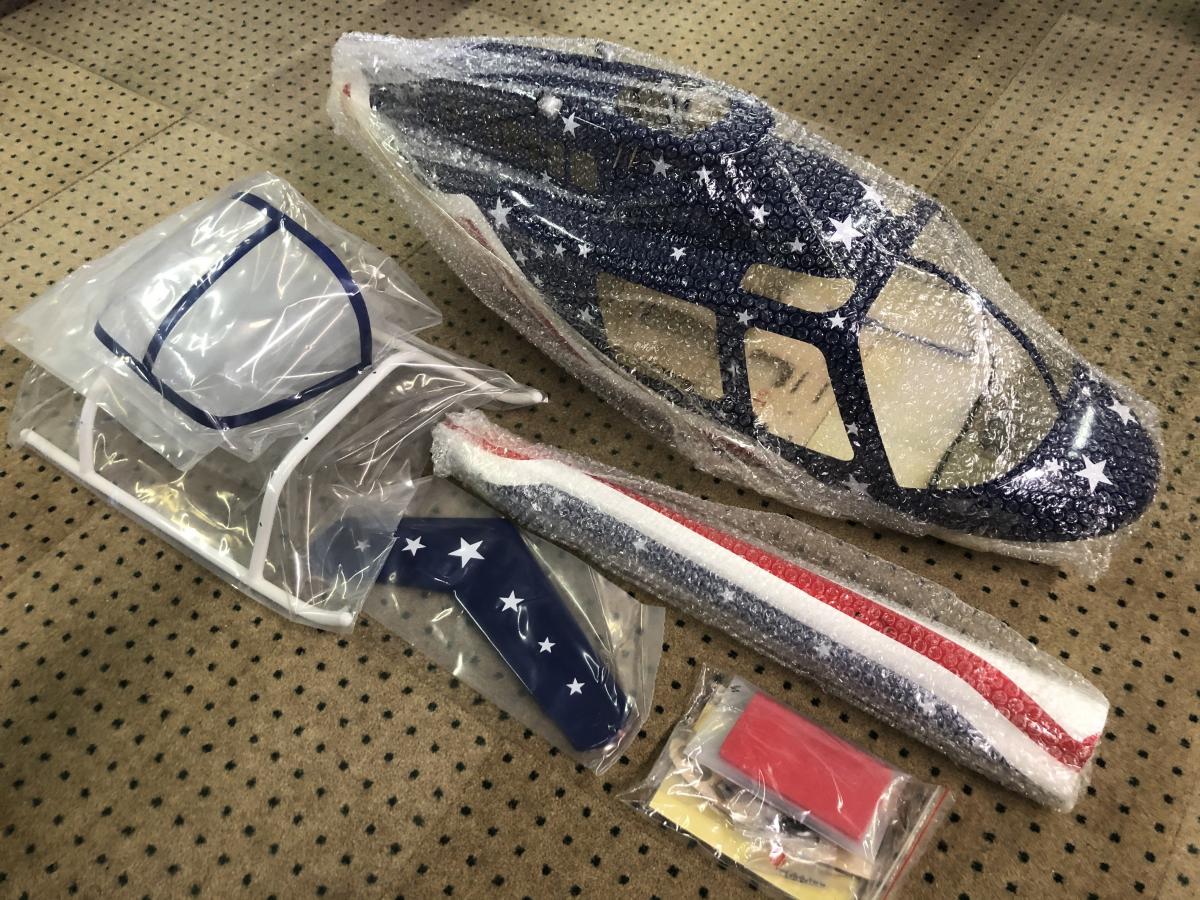

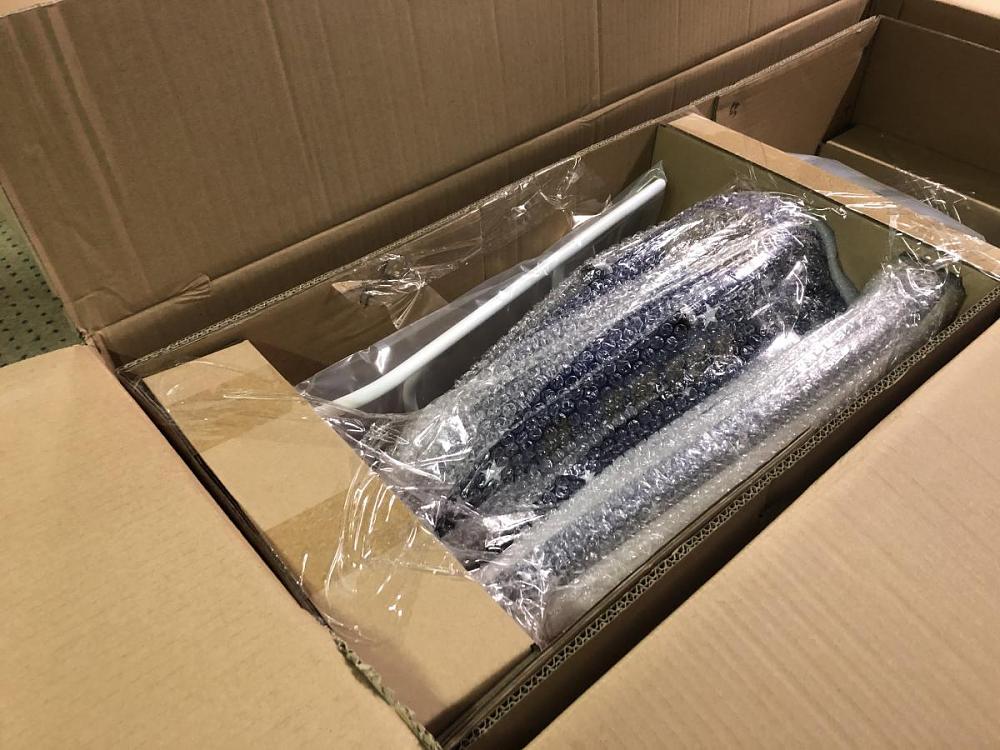

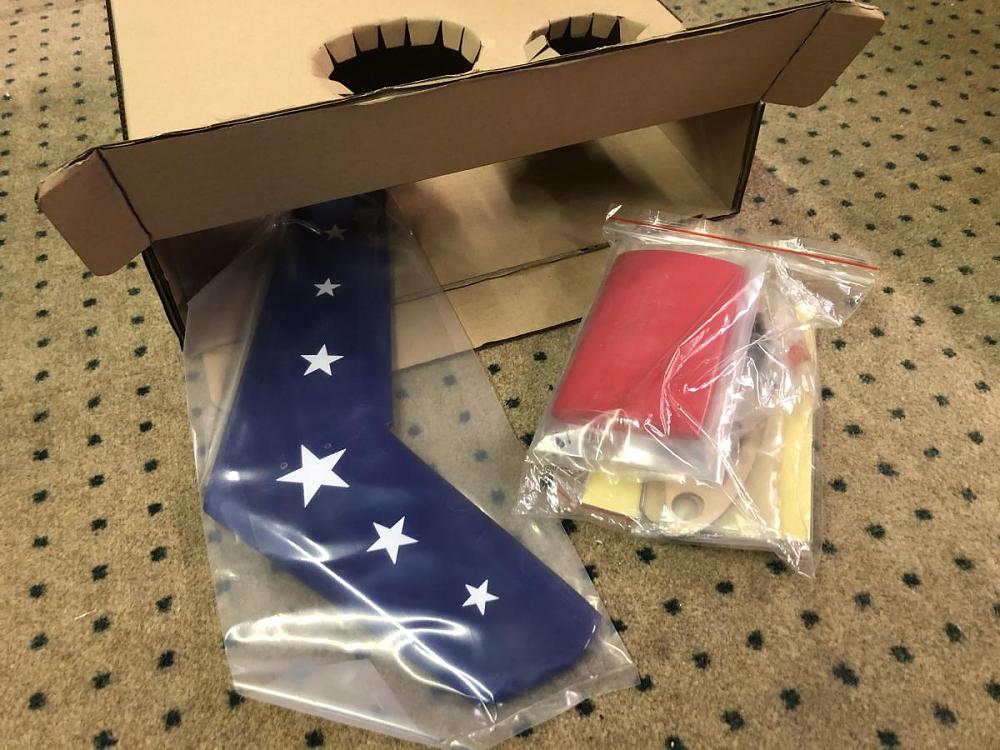

    Double thick cardboard and double boxes, all parts were well wrapped and taped in place through out.

    Click image for larger version  Name:	IMG_4517.jpg Views:	0 Size:	142.8 KB ID:	236988

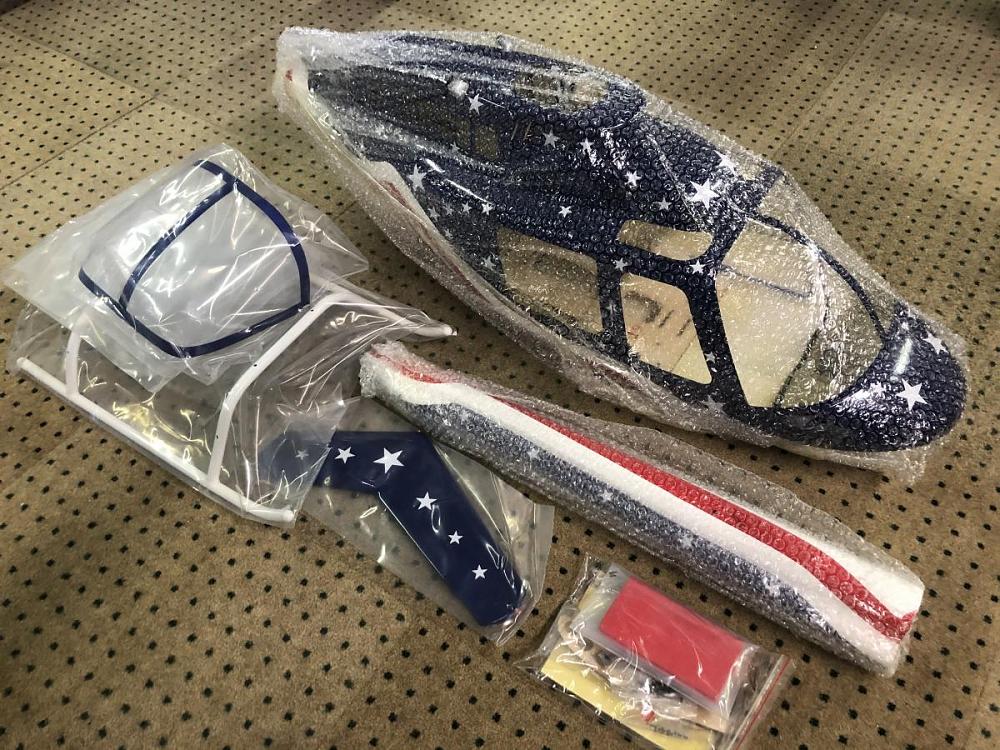

    Click image for larger version  Name:	IMG_4520.jpg Views:	0 Size:	231.0 KB ID:	236990

    Click image for larger version  Name:	IMG_4518.jpg Views:	0 Size:	142.6 KB ID:	236989

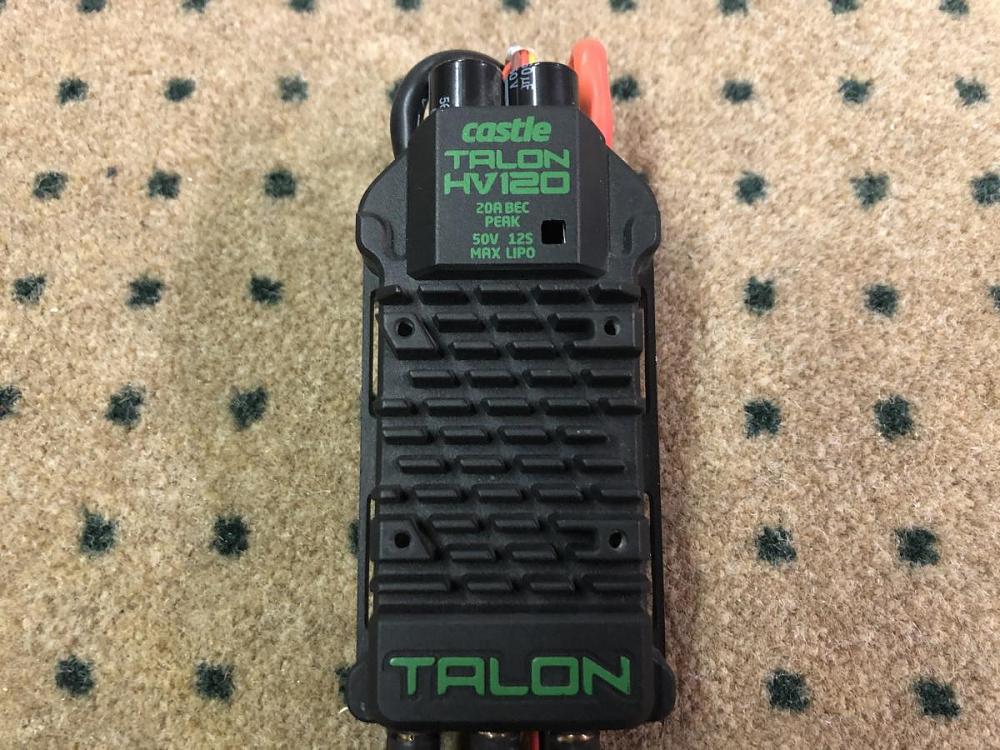

    Click image for larger version  Name:	IMG_4534.jpg Views:	0 Size:	175.9 KB ID:	236991

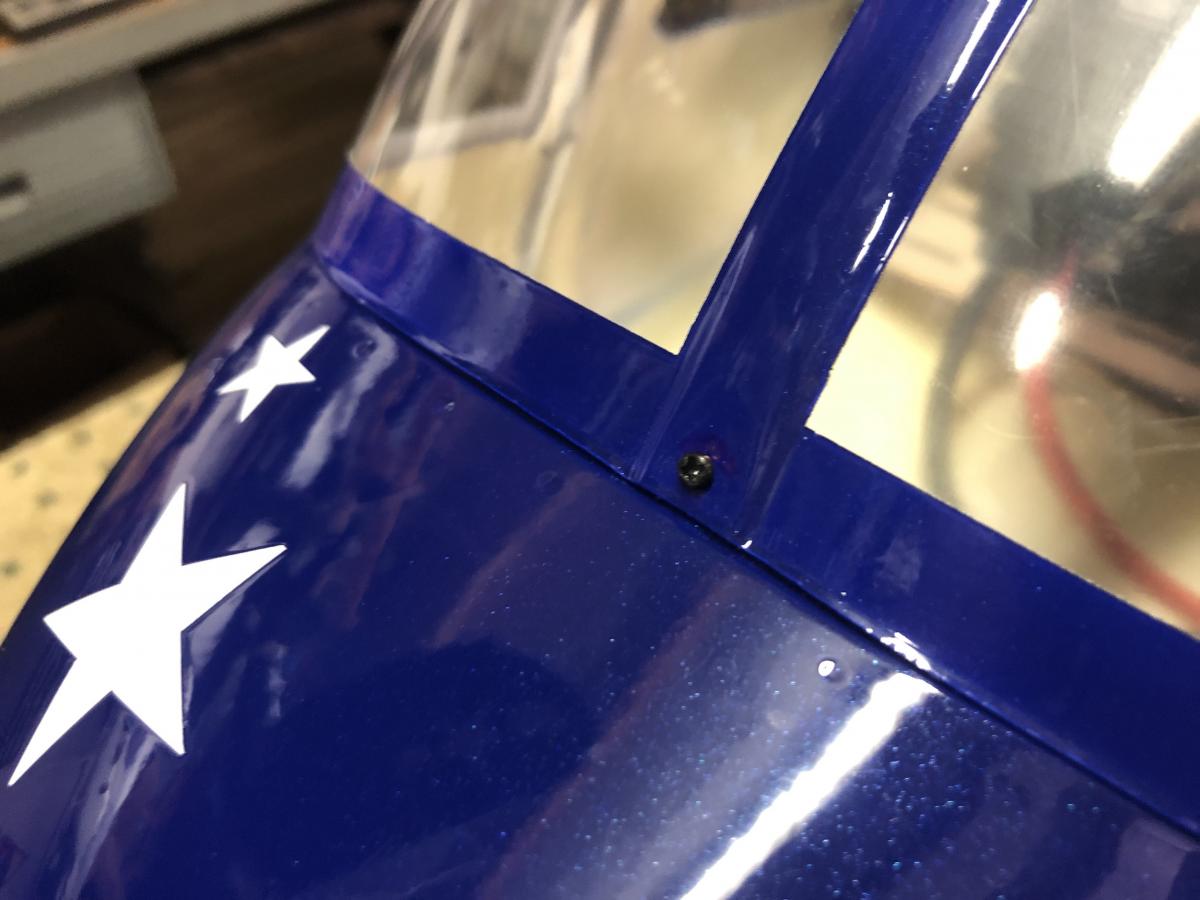

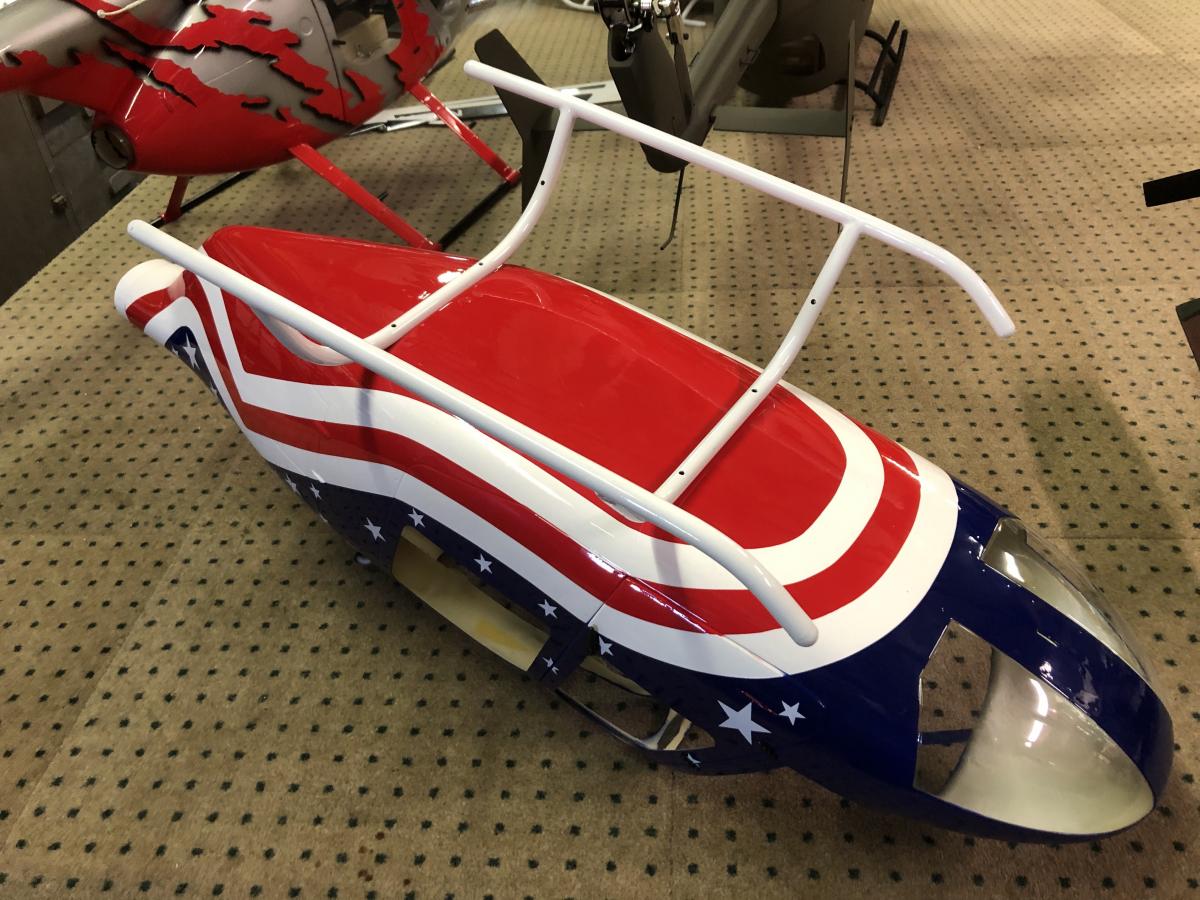

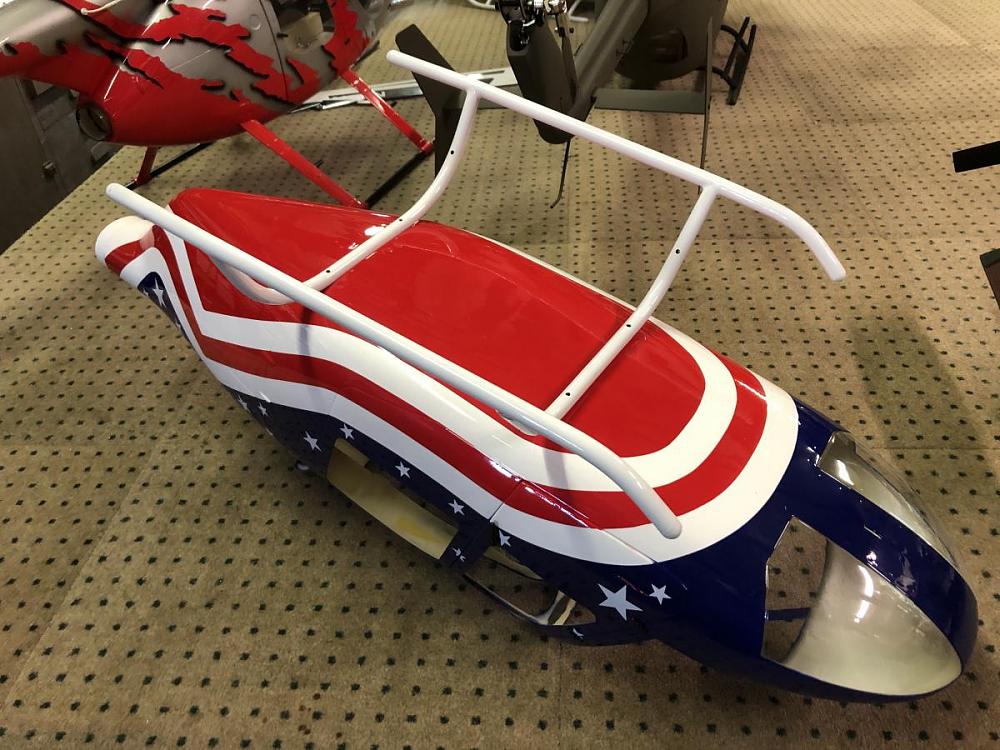

    The paint finish is absolutely gorgeous

    Click image for larger version  Name:	IMG_4589.jpg Views:	0 Size:	159.3 KB ID:	236995

    Click image for larger version  Name:	IMG_4590.jpg Views:	0 Size:	87.4 KB ID:	236992

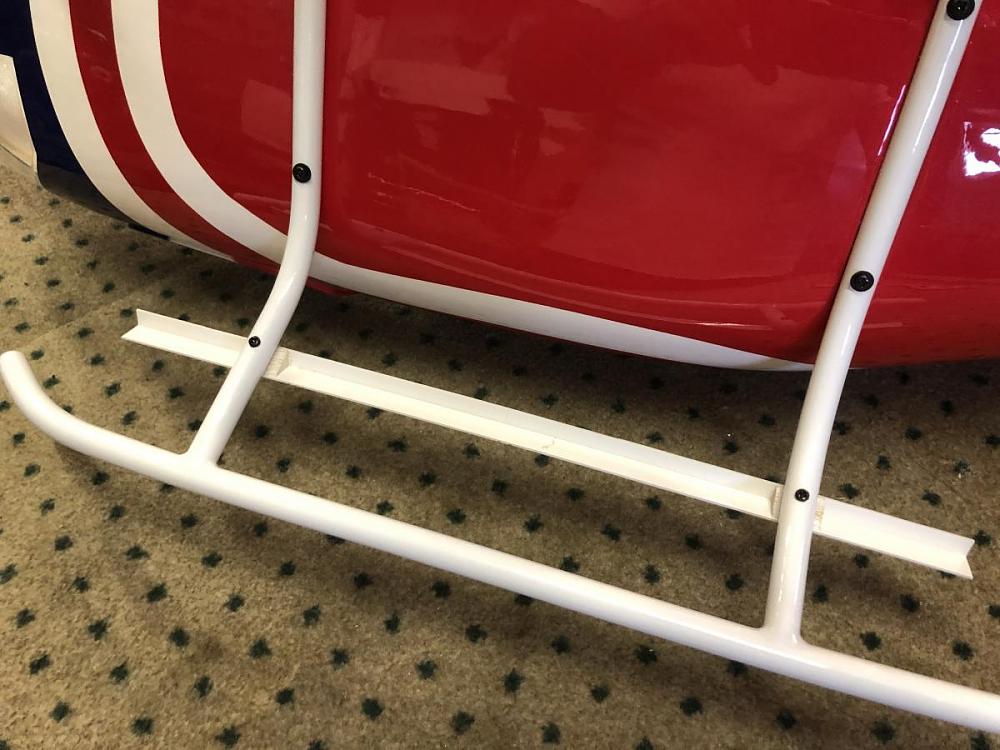

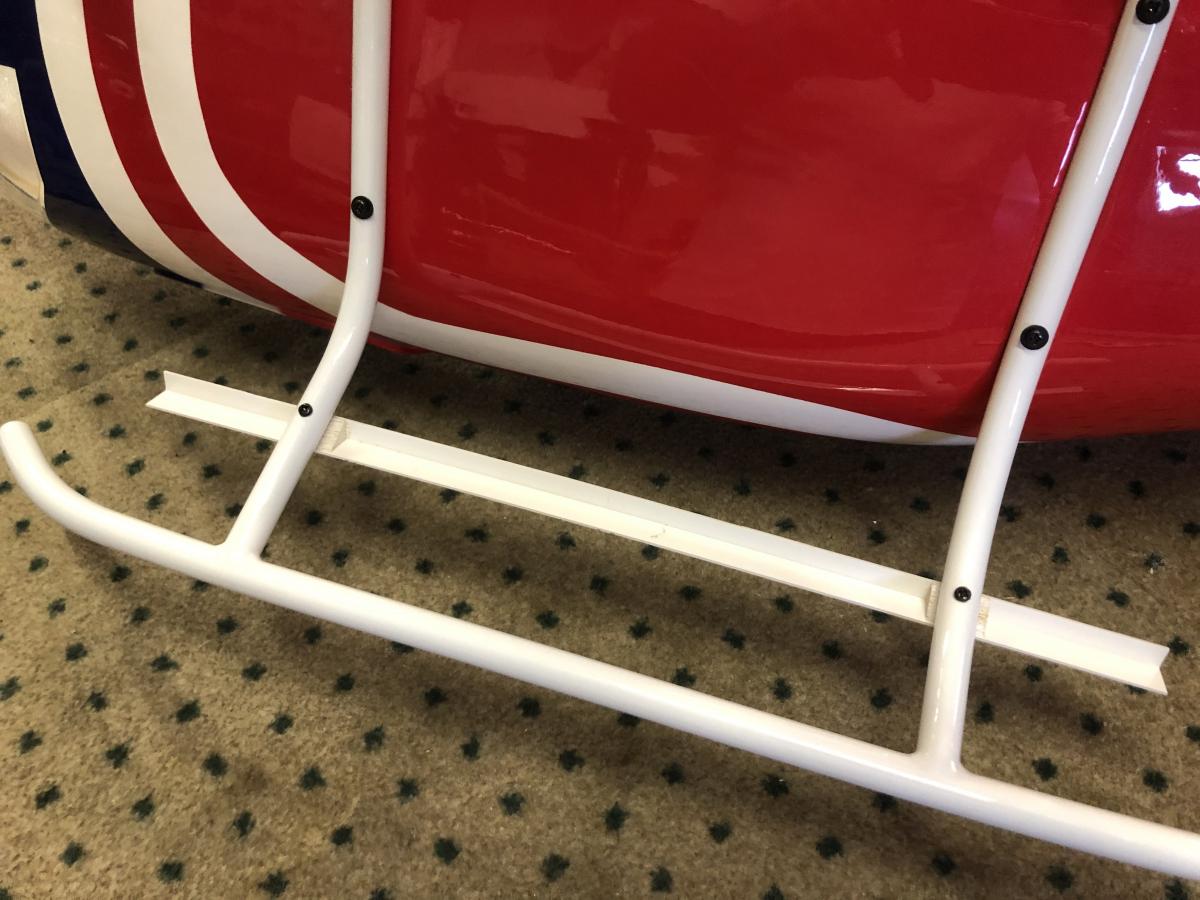

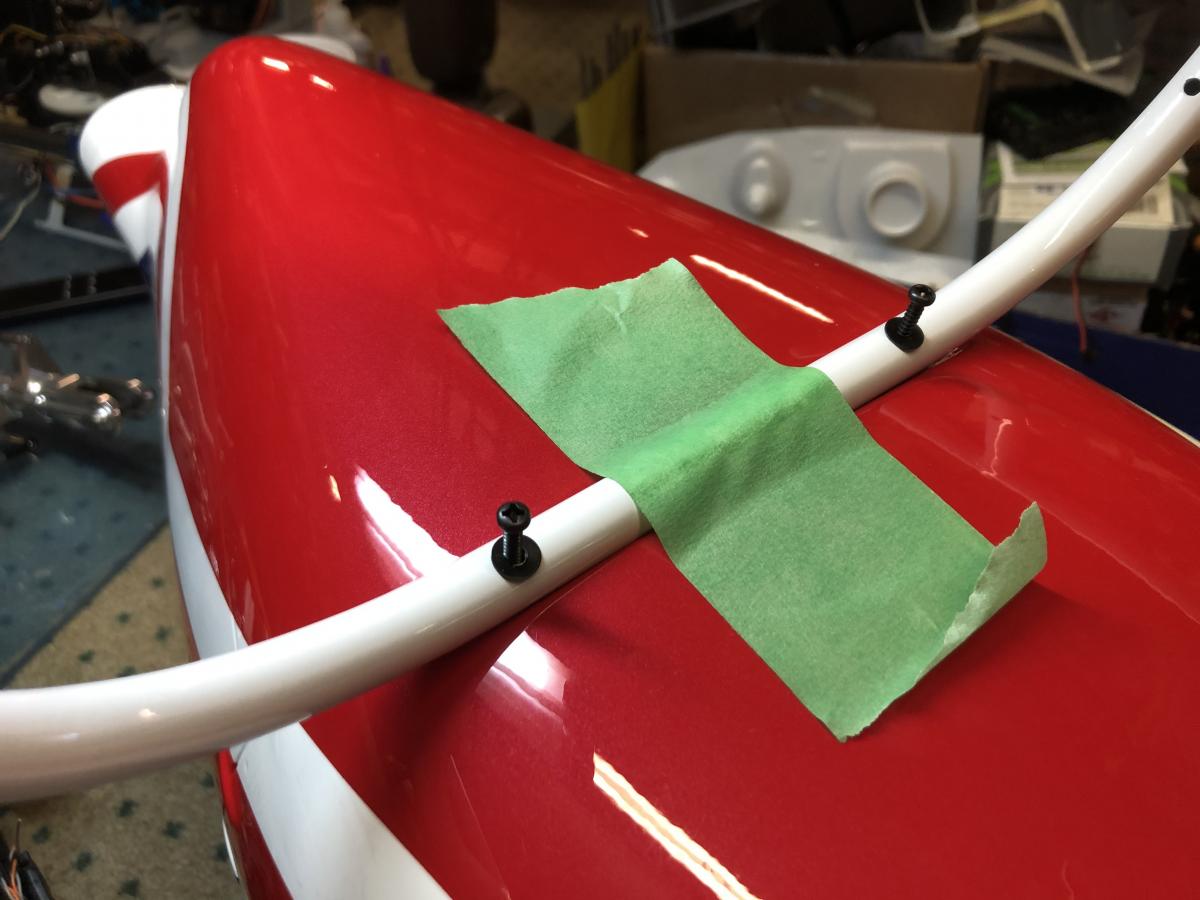

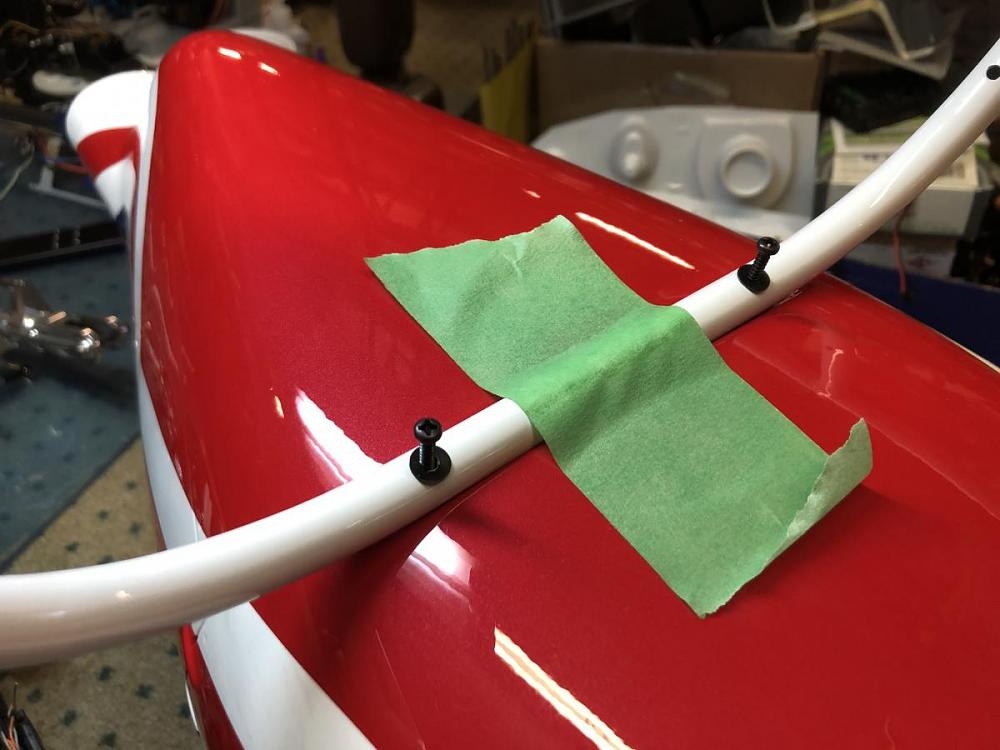

    I used a 2mm drill to start the holes for the skids and steps.

    Click image for larger version  Name:	IMG_4594.jpg Views:	0 Size:	119.5 KB ID:	236994

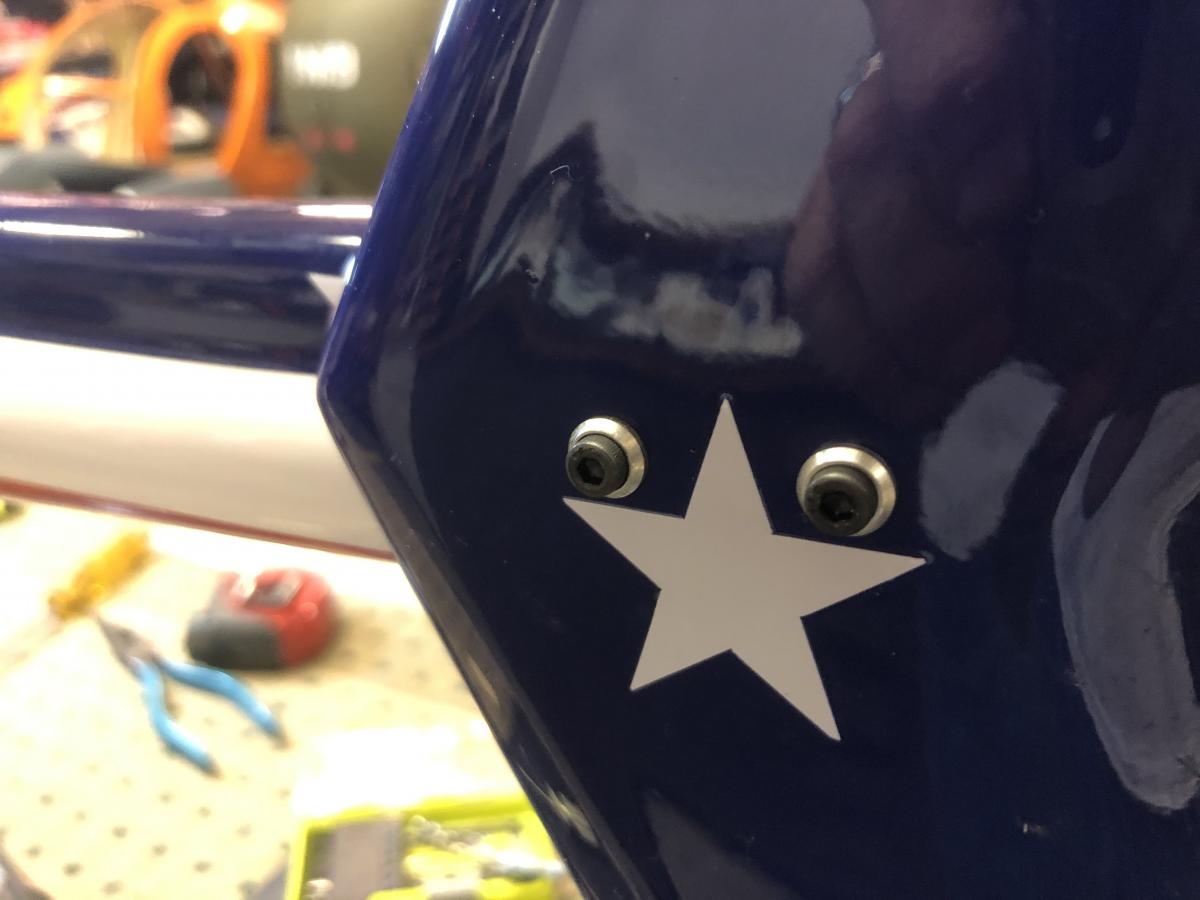

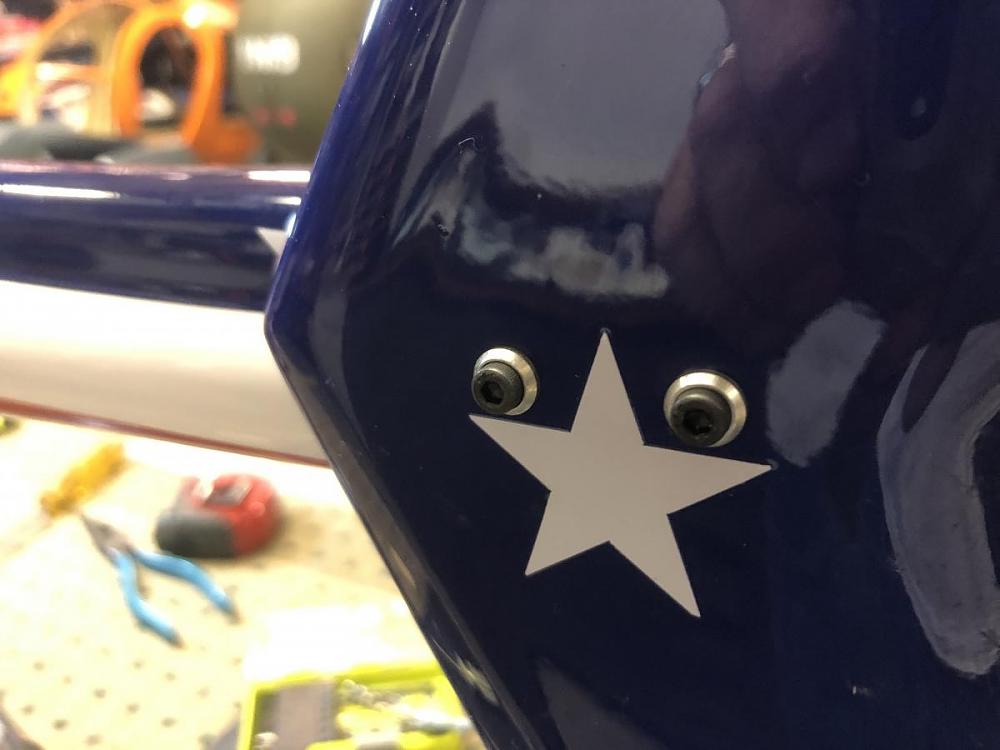

    I used these 3mm hex-heads and aluminum cups from the T-rex.

    Click image for larger version  Name:	IMG_4595.jpg Views:	0 Size:	66.1 KB ID:	236998

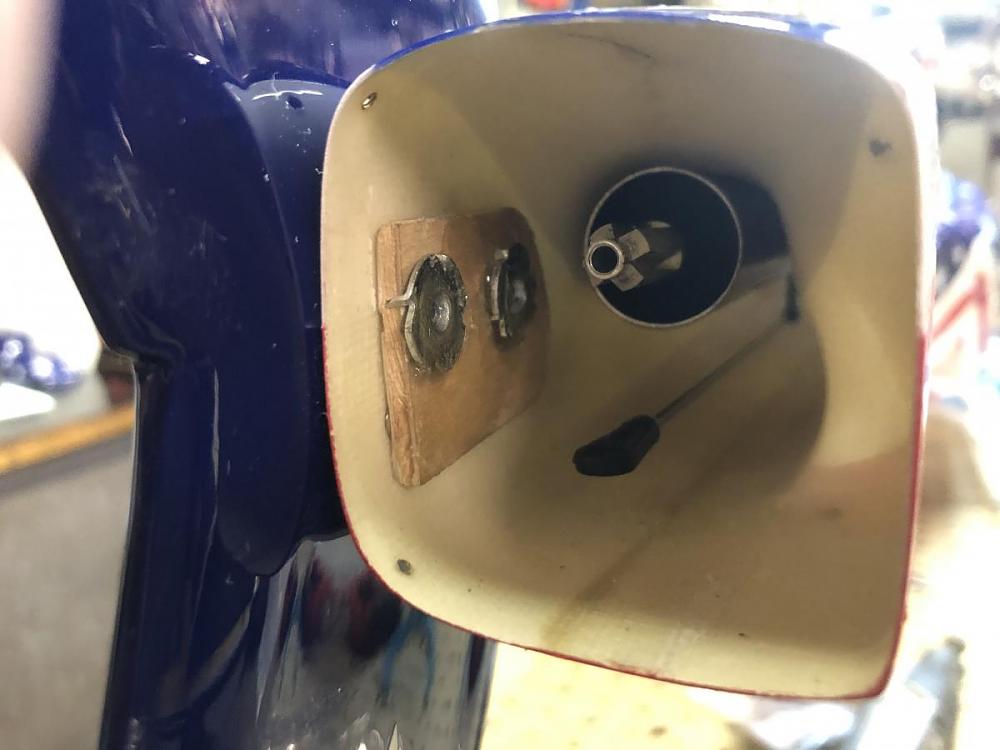

    Nutserts to hold the vertical stab.

    Click image for larger version  Name:	IMG_4596.jpg Views:	0 Size:	70.1 KB ID:	236993

    I'm using the Brain2 or Ikon2 (same thing just different 😎) and satellite receivers.

    Click image for larger version  Name:	IMG_4592.jpg Views:	0 Size:	169.2 KB ID:	236996

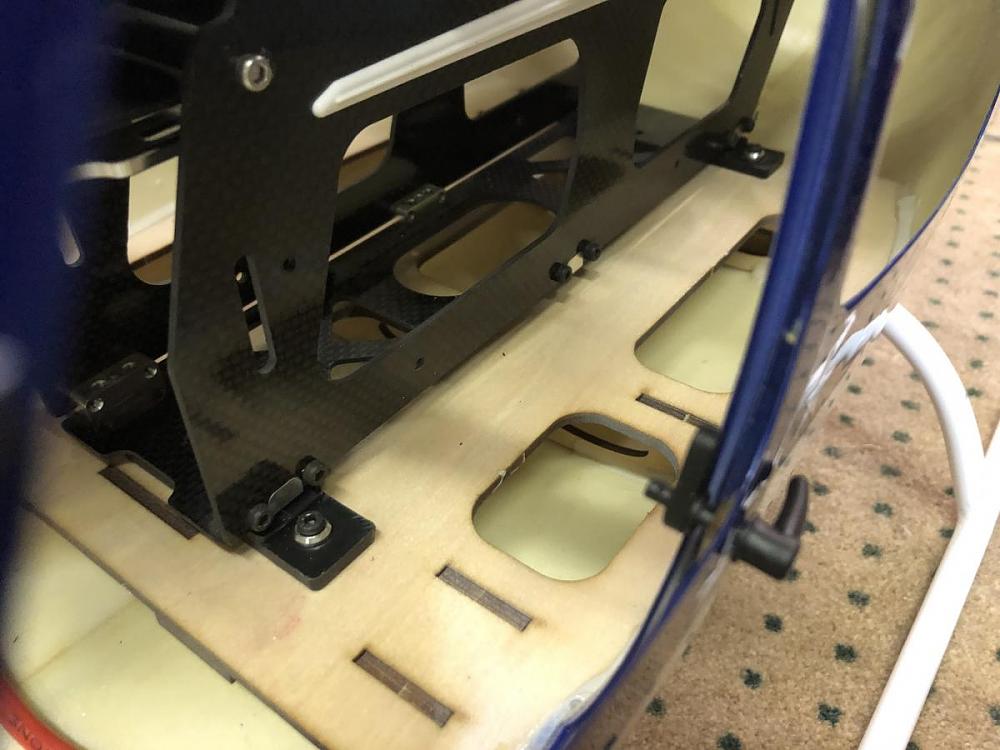

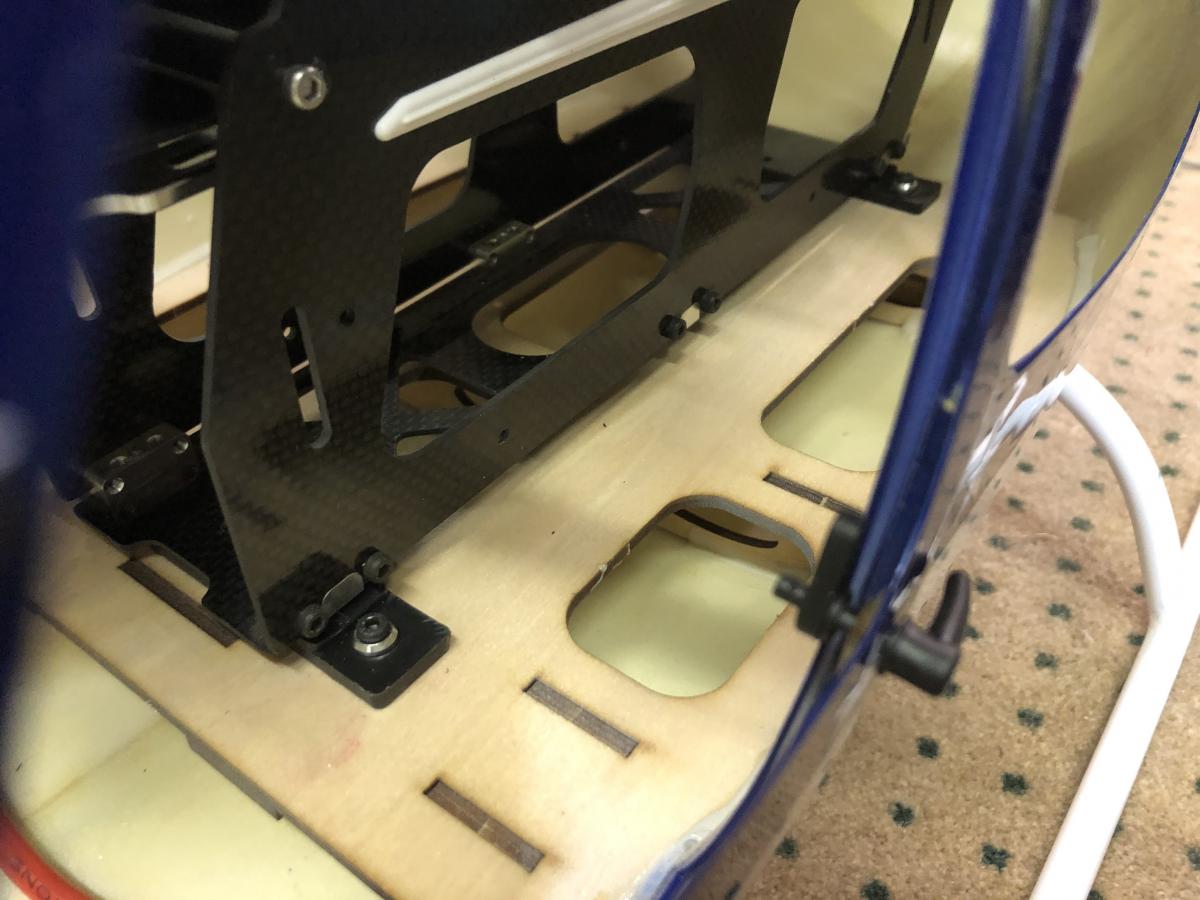

    Clearanced the frame adapter holes to 5mm for some wiggle room, again I used the 3mm hex-heads and cups from the T-rex.

    Click image for larger version  Name:	IMG_4593.jpg Views:	0 Size:	96.8 KB ID:	236997

    More to follow...
    TiredIron Aviation
    Tired Iron Military Vehicles

  • #2
    Following!

    Comment


    • #3
      Welcome to Hobby Squawk Ryanmlt1 !
      TiredIron Aviation
      Tired Iron Military Vehicles

      Comment


      • #4
        Looking nice already TiredIronGRB !

        Comment


        • #5
          TiredIronGRB Subscribed!

          The aluminum cups are a good idea, and I agree, the paintjob on this bird is really stunning! Many of Roban's models use two stage automotive paint, and this one's clear coat looks especially clean. I'm eager to see this bird in the sun where it will "pop" even more.

          Where will you be mounting the satellites?
          Camp My Instagram @Alpha.Makes , and Watch my 3D Design livestream on Twitch @AlphaMakesA every Tuesday at 9pm EST

          Comment


          • #6

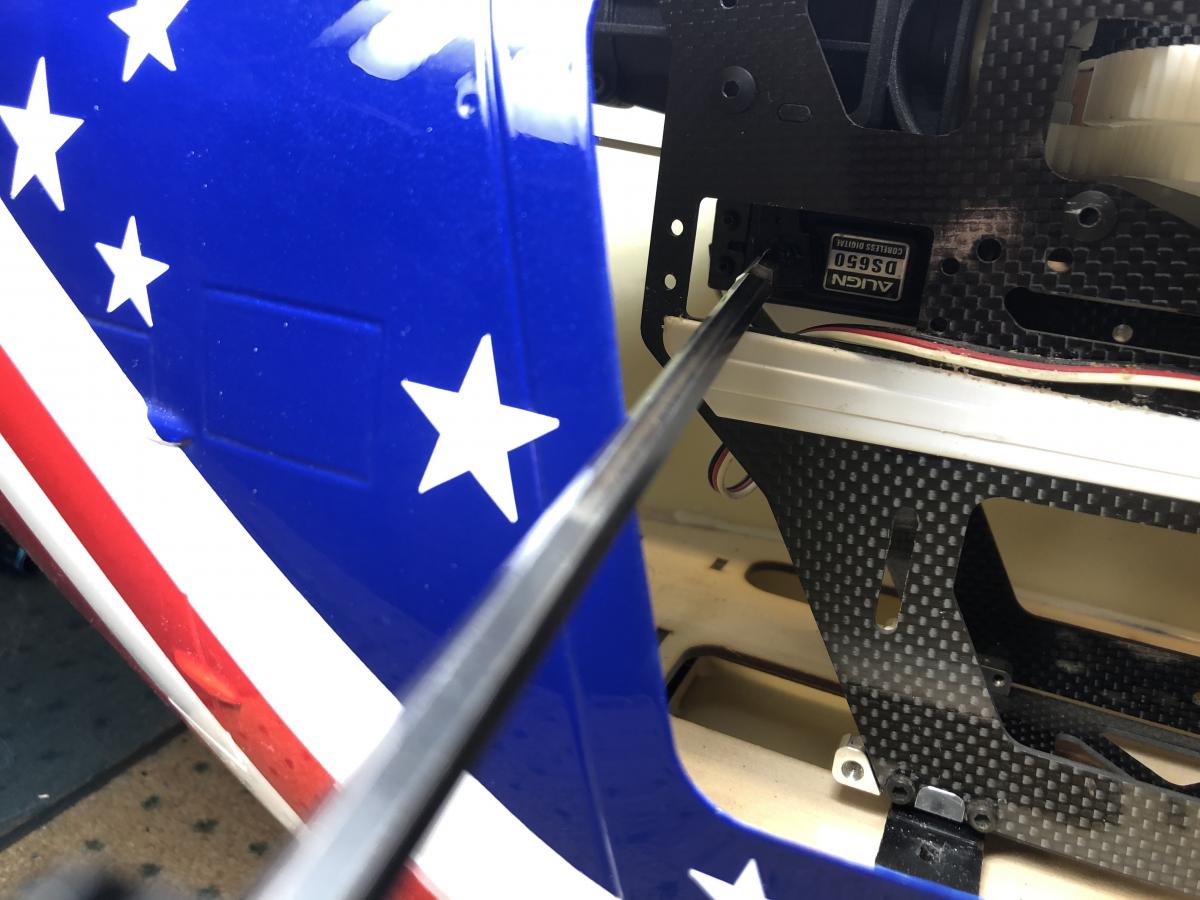

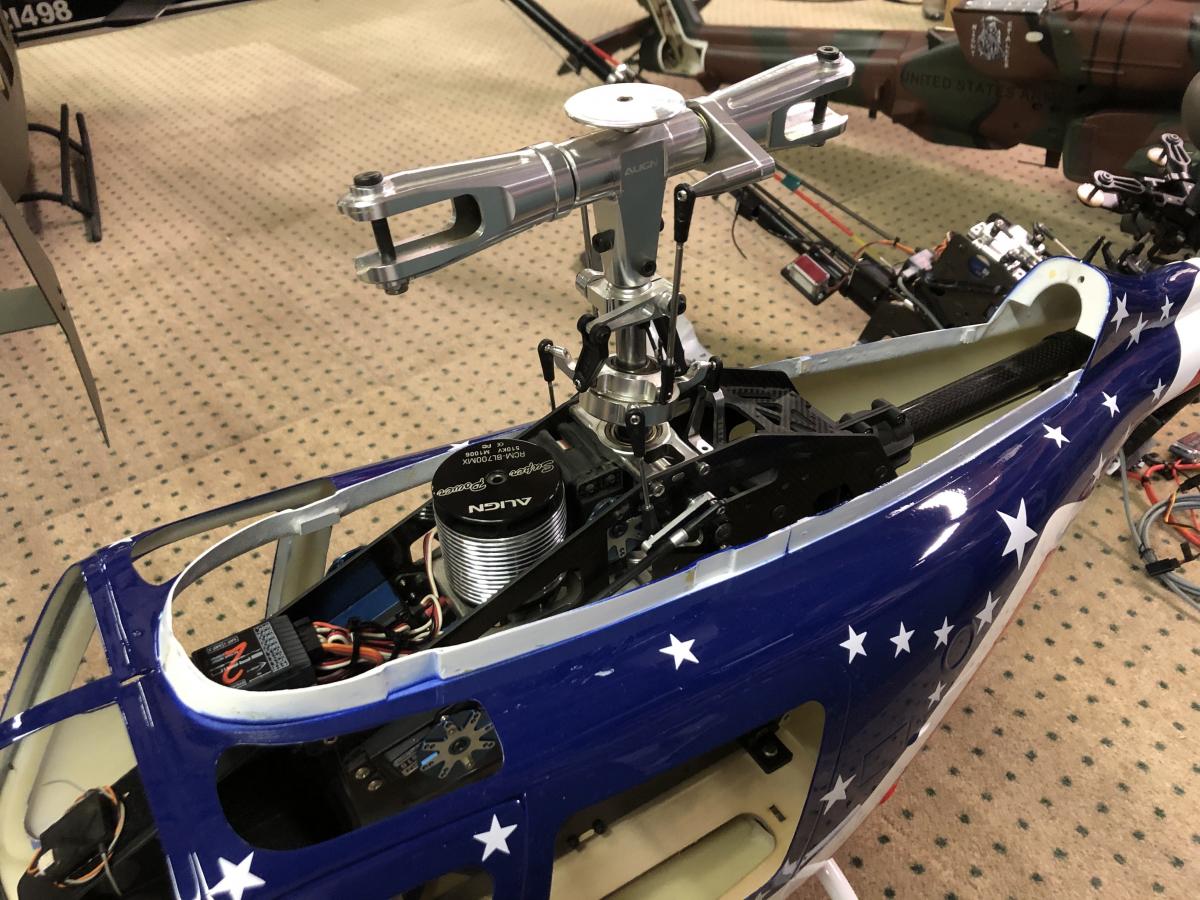

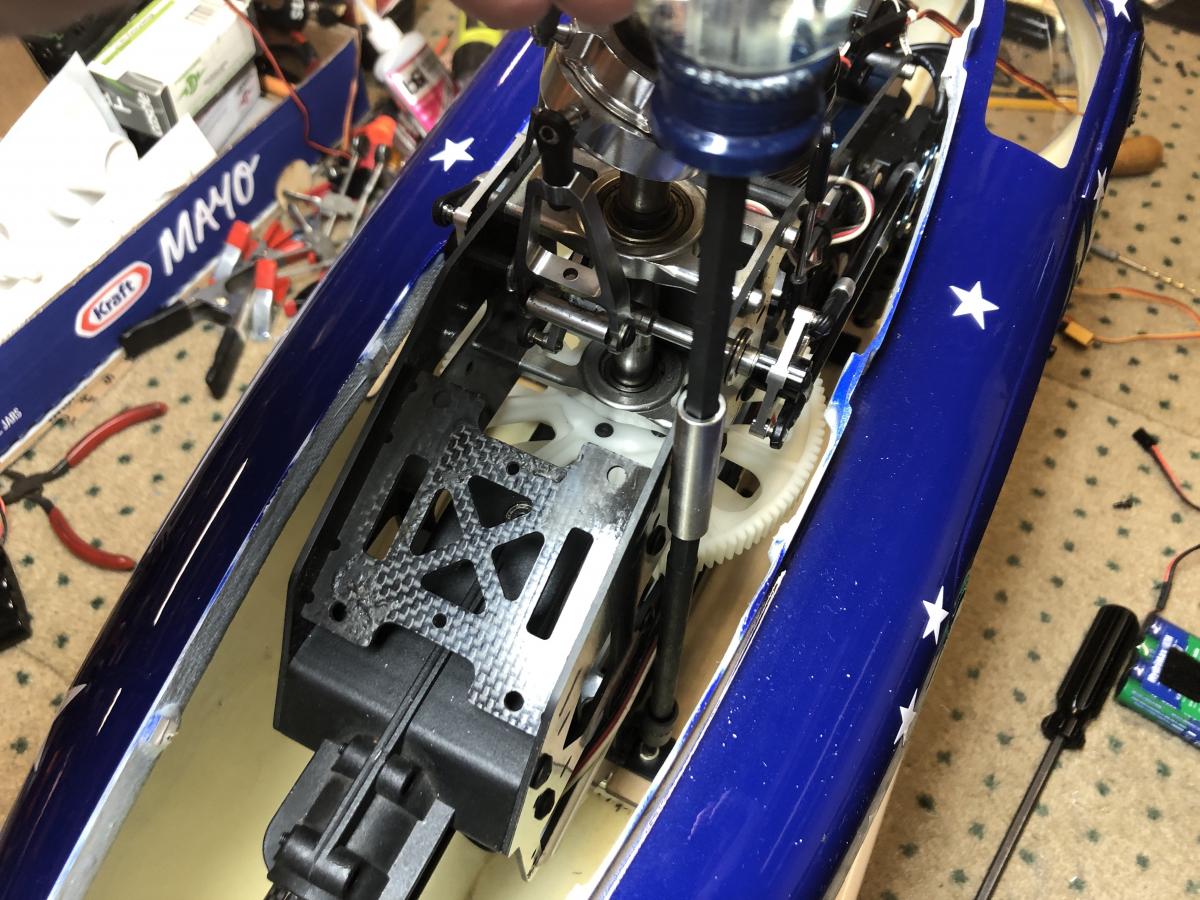

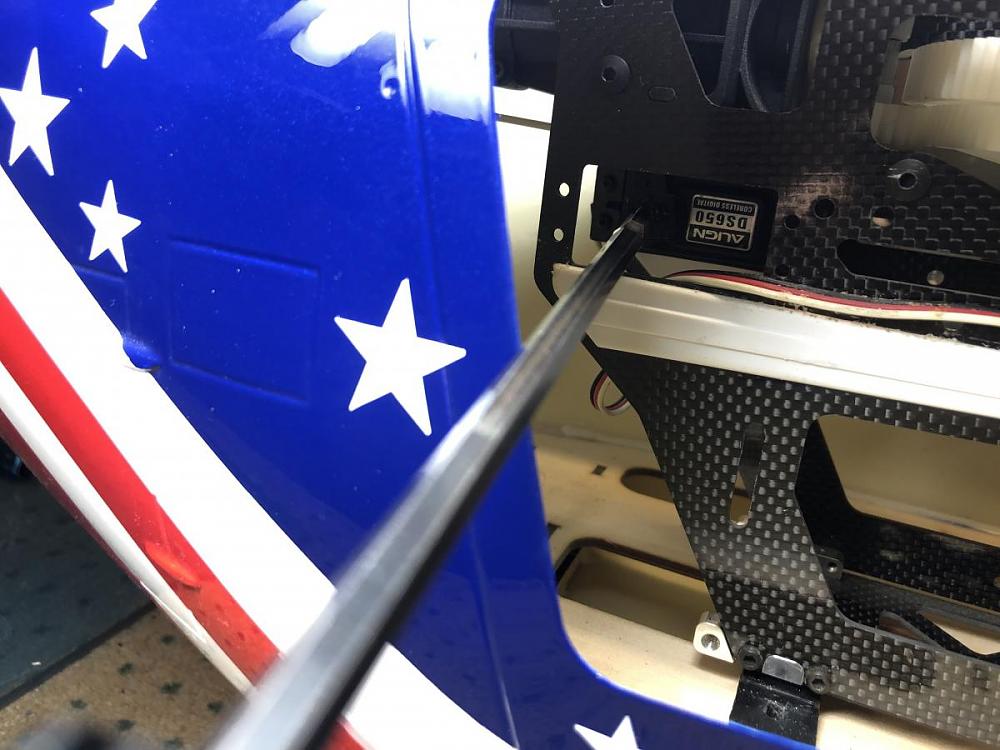

            I installed the tail boom in the fuselage first then dropped the frame in and hooked the boom back up, there's plenty of room to slide the mechanics forward enough to tighten the boom and put the servo arm back on.

            Click image for larger version

Name:	IMG_4606.JPG
Views:	314
Size:	105.4 KB
ID:	238430

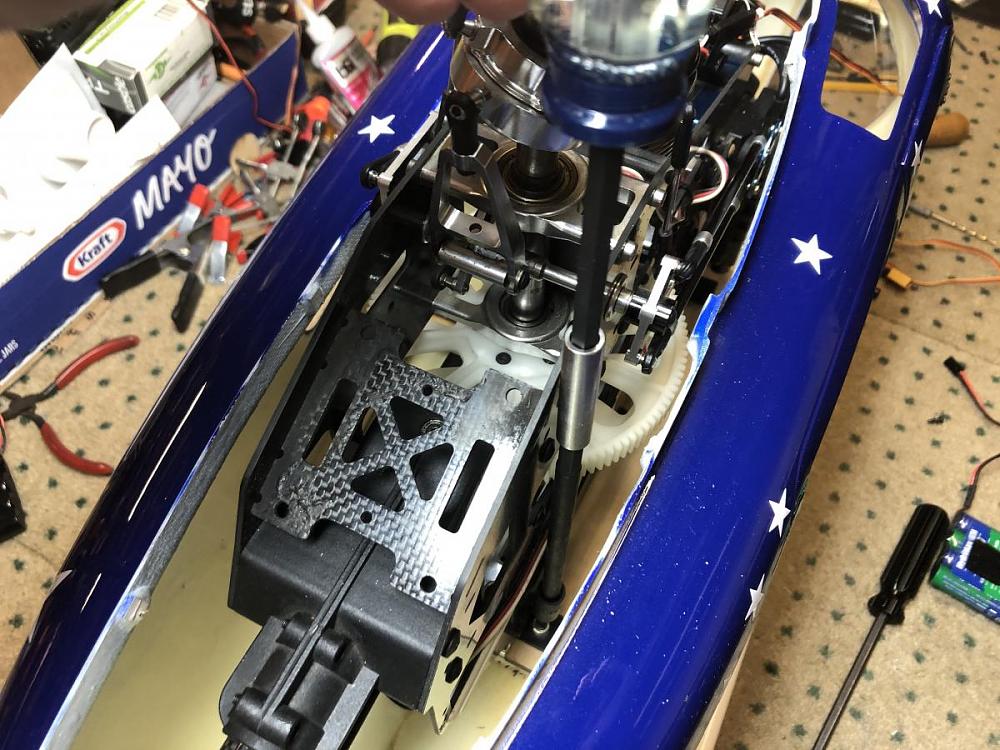

            I made this magnetic hex-driver extension that really helps in tight spots.

            Click image for larger version

Name:	IMG_4610.JPG
Views:	313
Size:	169.4 KB
ID:	238435

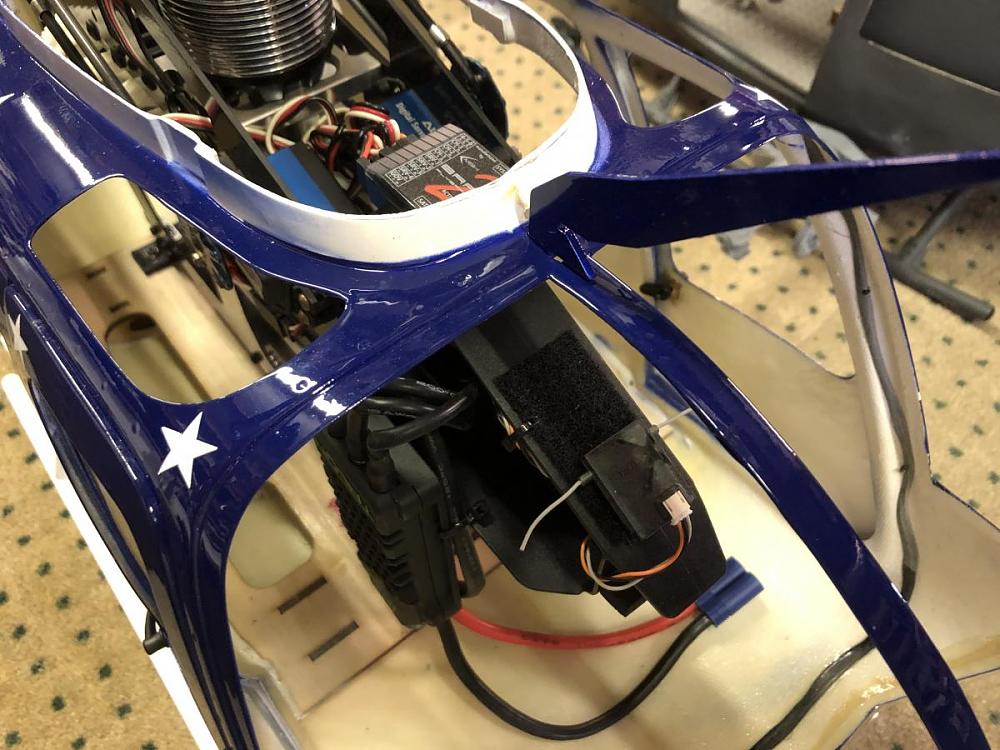

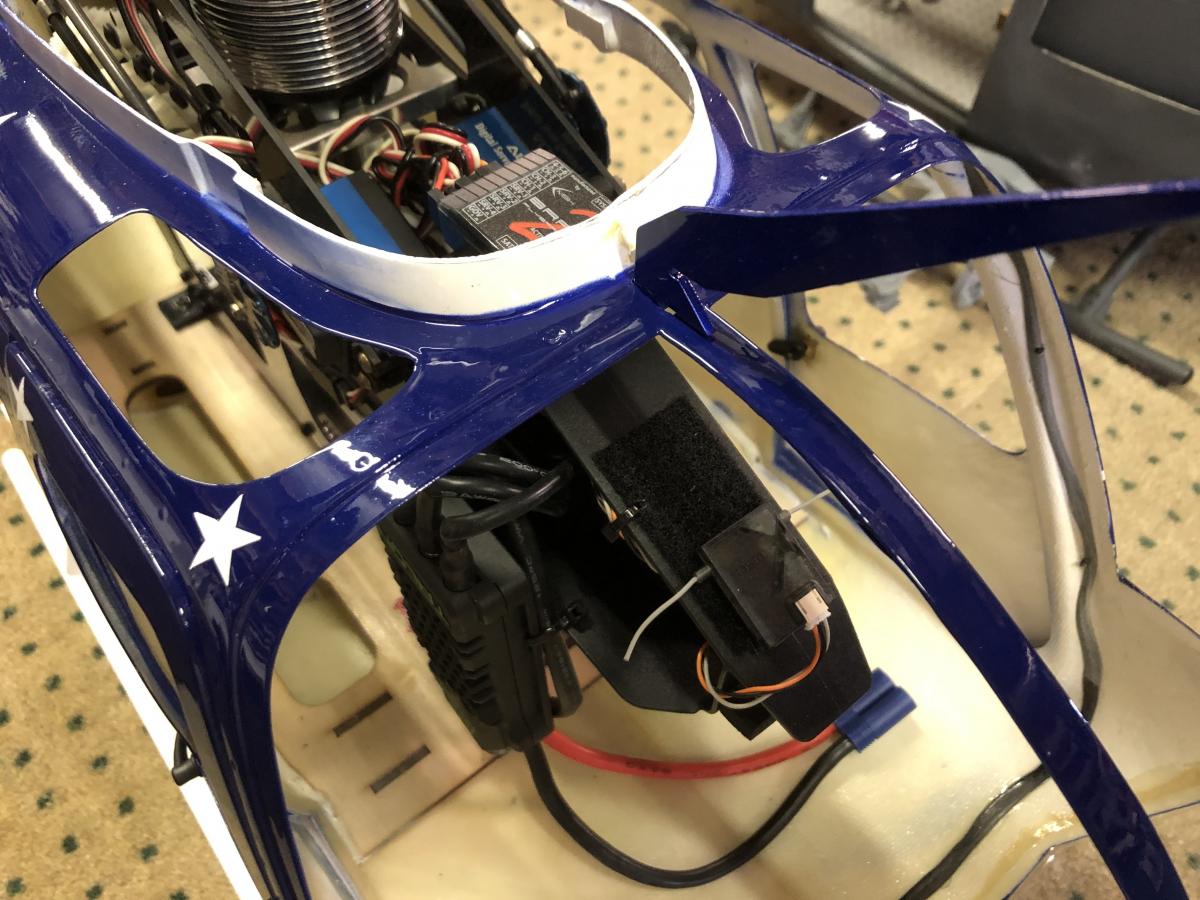

            Mounted the FBL up top so it's easily accessible, usually one satellite towards the top of the fuselage and one on the very bottom.

            Click image for larger version

Name:	IMG_4624.JPG
Views:	312
Size:	145.4 KB
ID:	238434

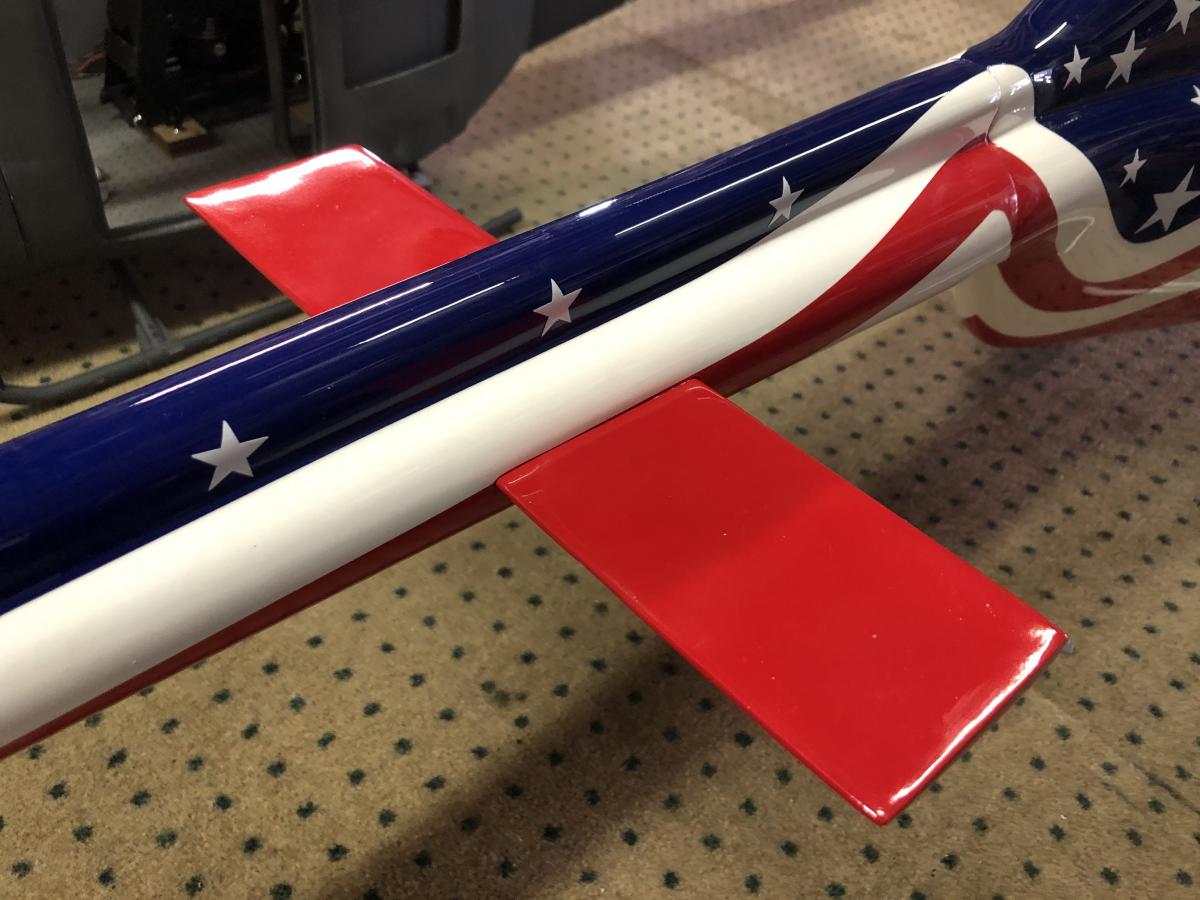

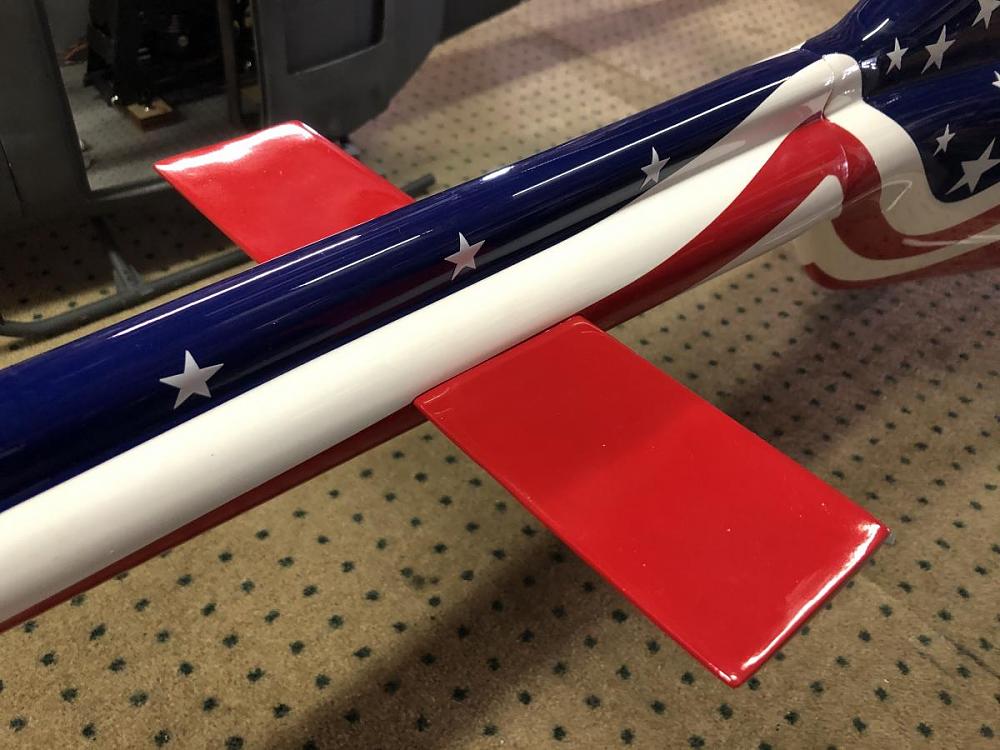

            Installed the horizontals using a 6mm wood dowel and E6000 (Goop) adhesive.

            Click image for larger version

Name:	IMG_4626.JPG
Views:	312
Size:	113.5 KB
ID:	238432

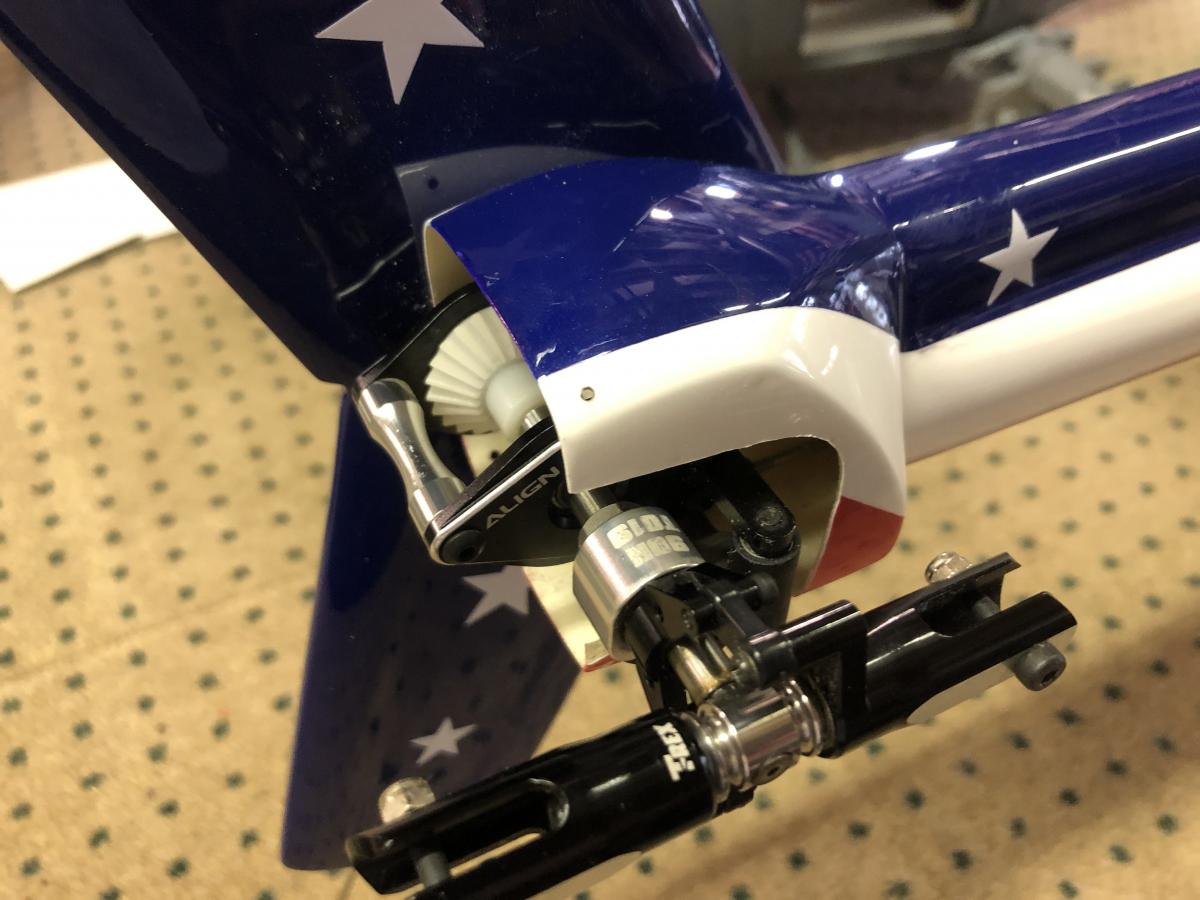

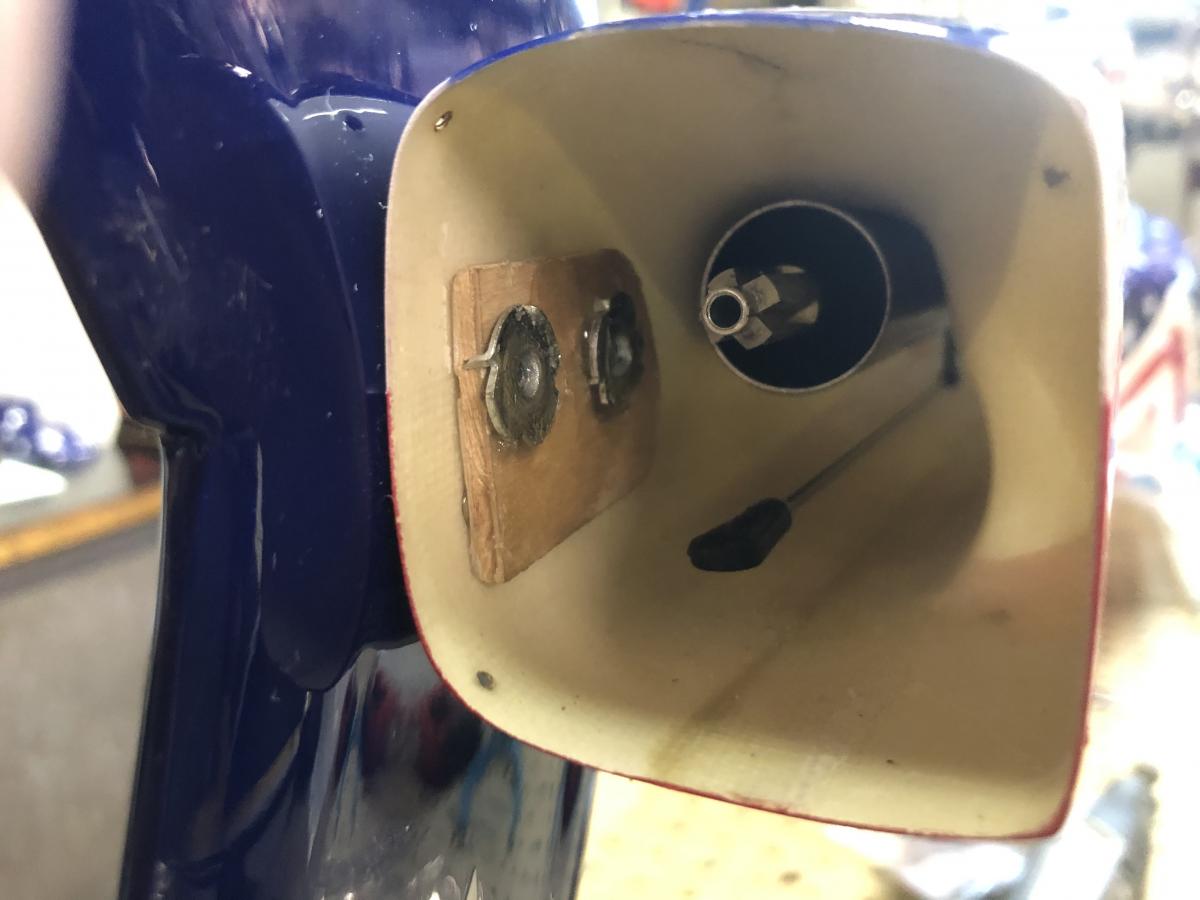

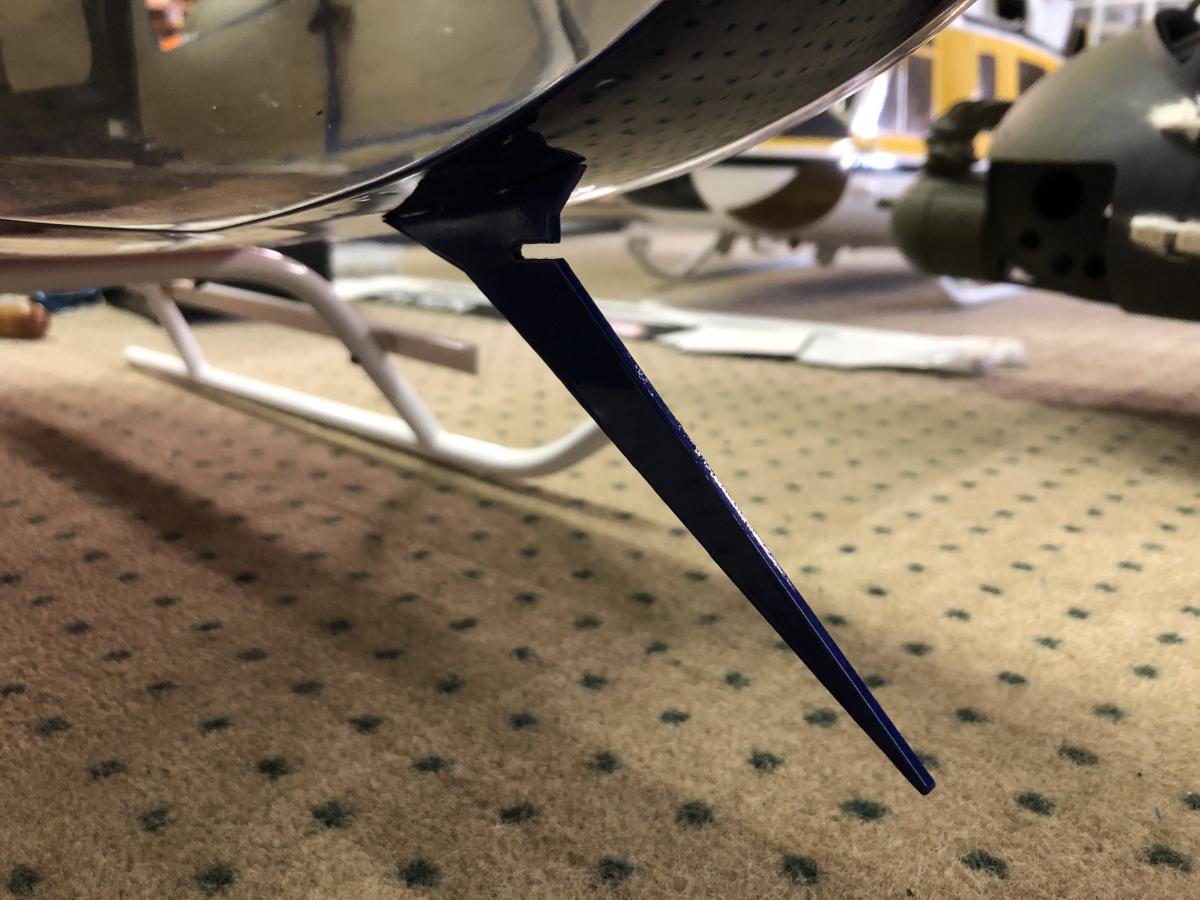

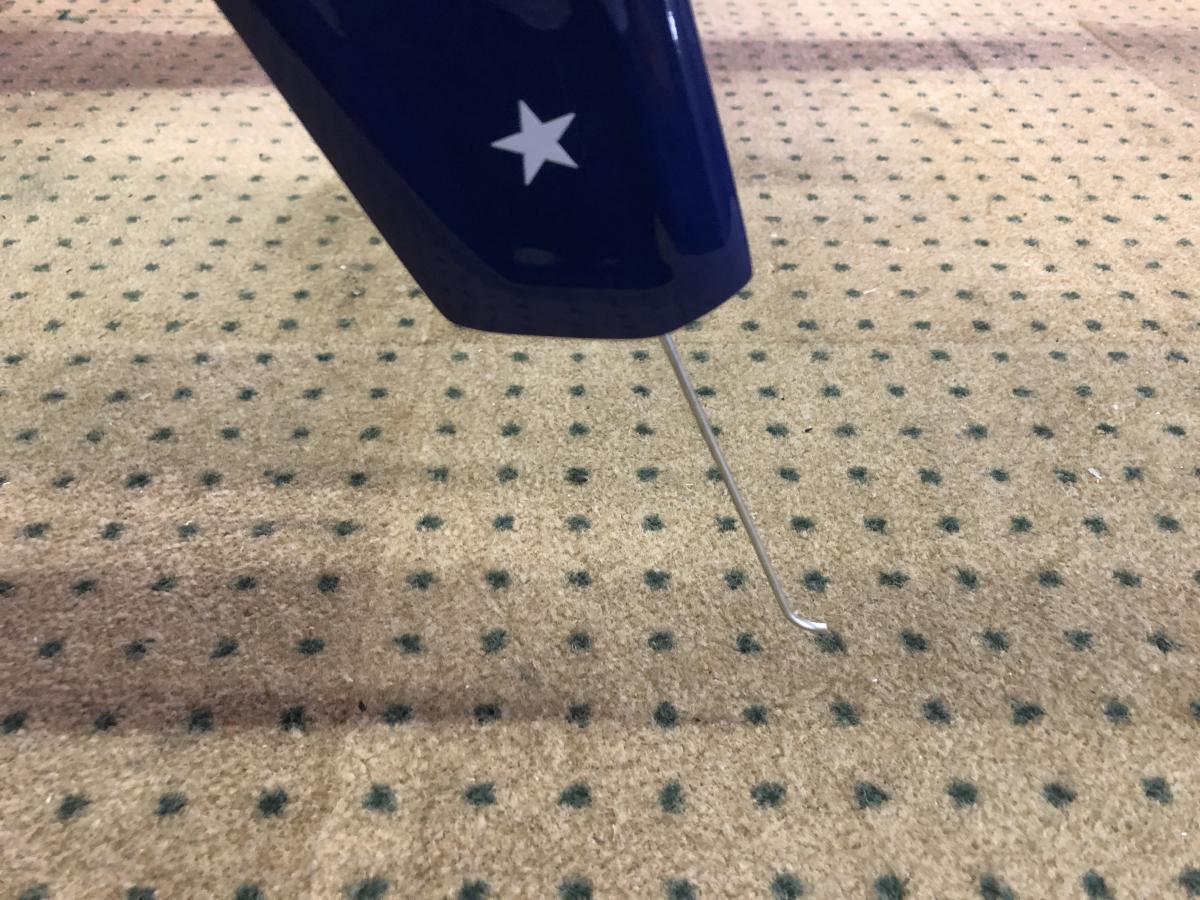

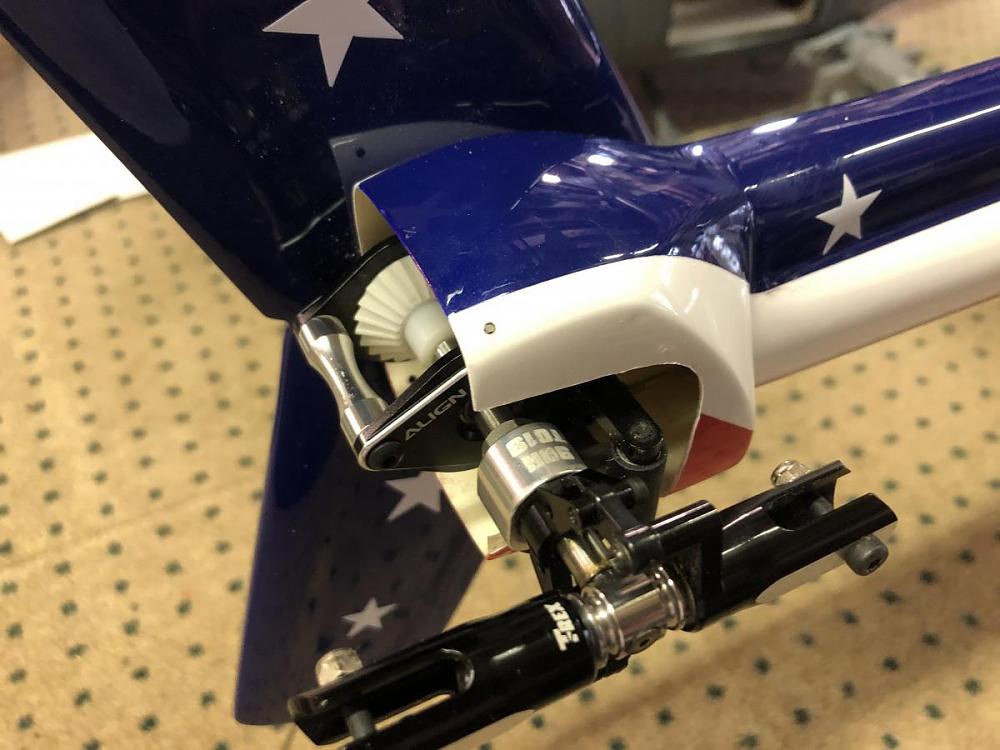

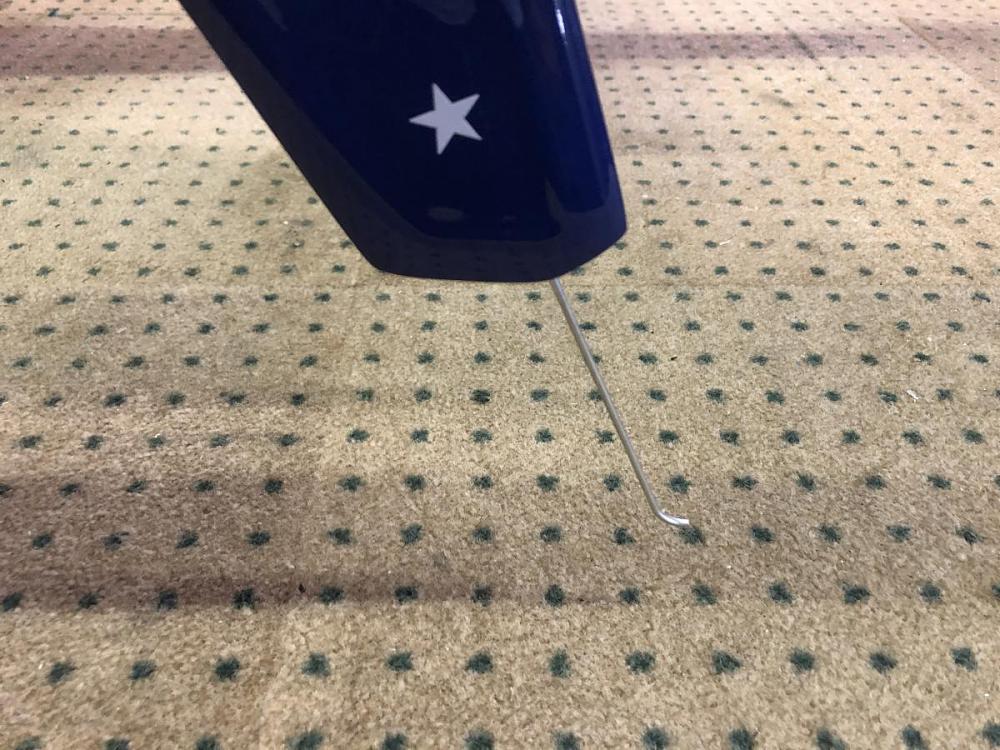

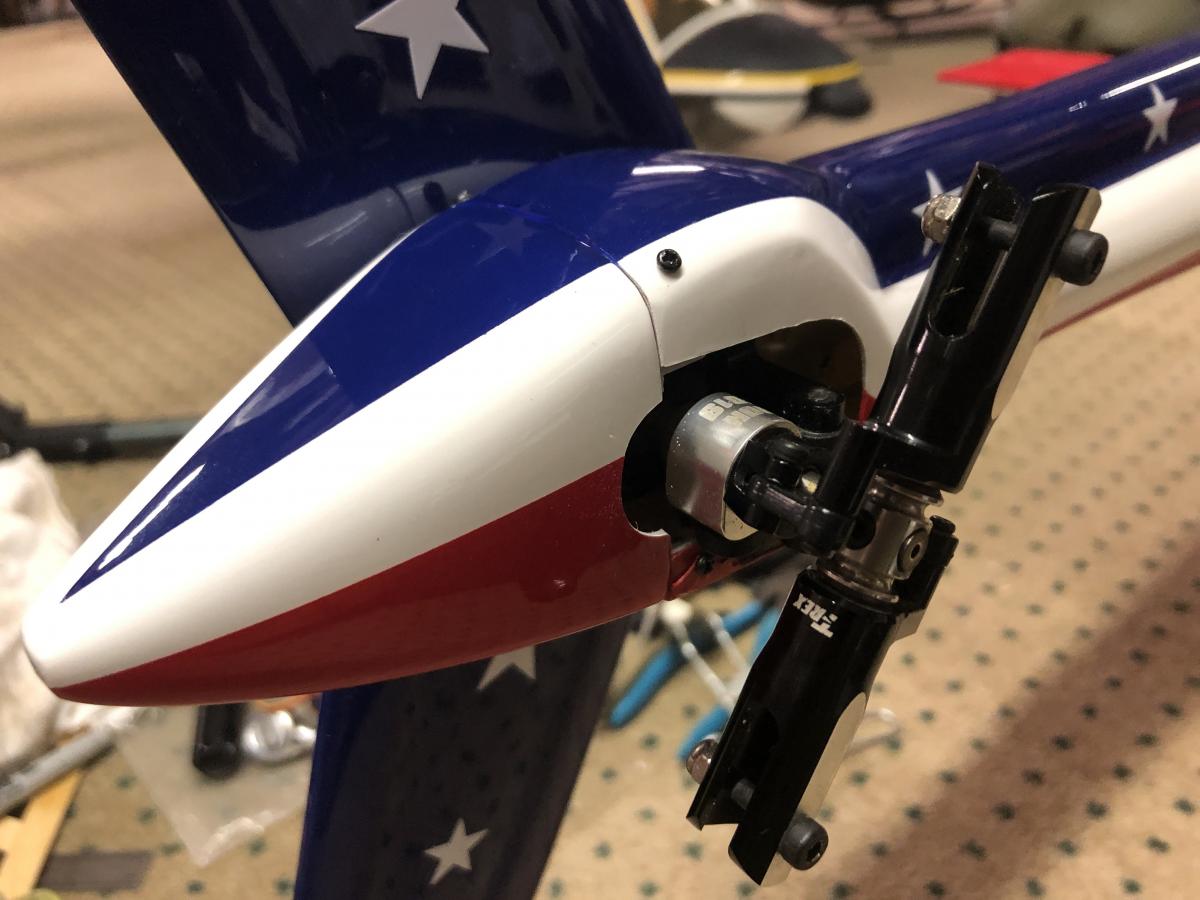

            Trimmed out for the tail rotor and installed the stiff wire skid, I'll put a black rubber hose over it to keep from impaling myself .

            Click image for larger version

Name:	IMG_4627.JPG
Views:	317
Size:	99.9 KB
ID:	238431

            Click image for larger version

Name:	IMG_4633.JPG
Views:	308
Size:	177.3 KB
ID:	238433

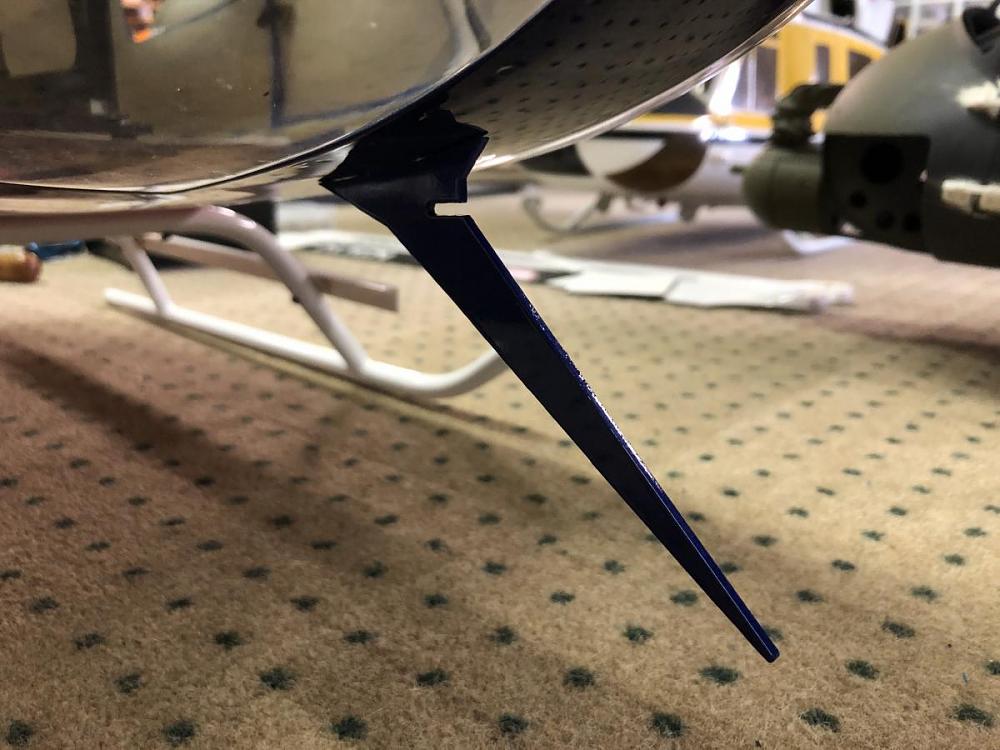

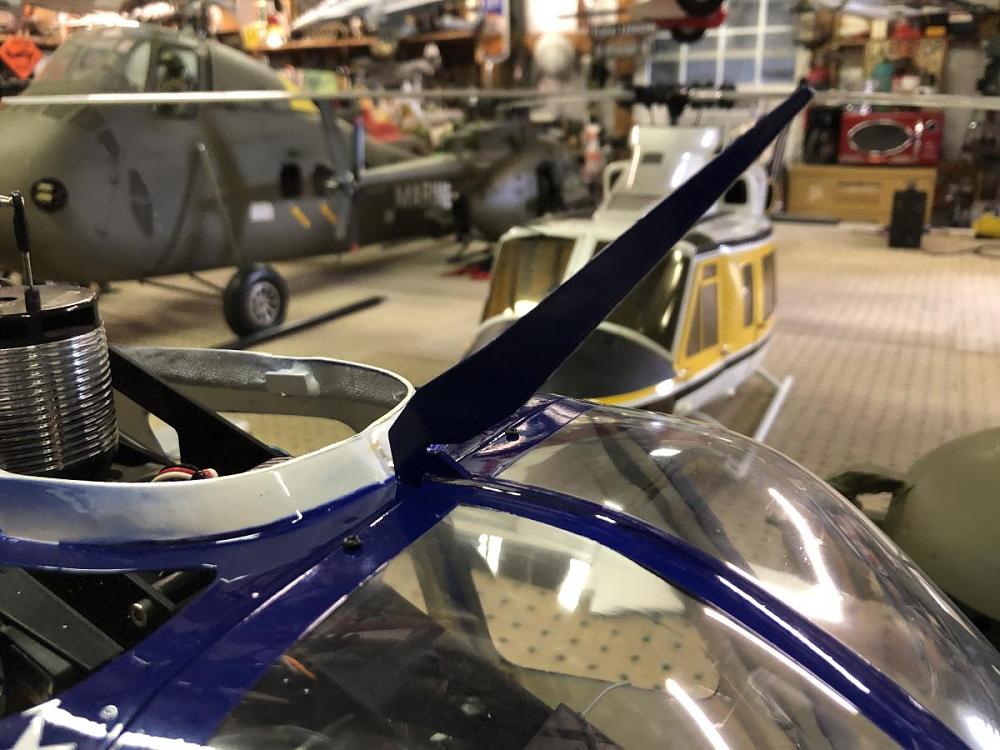

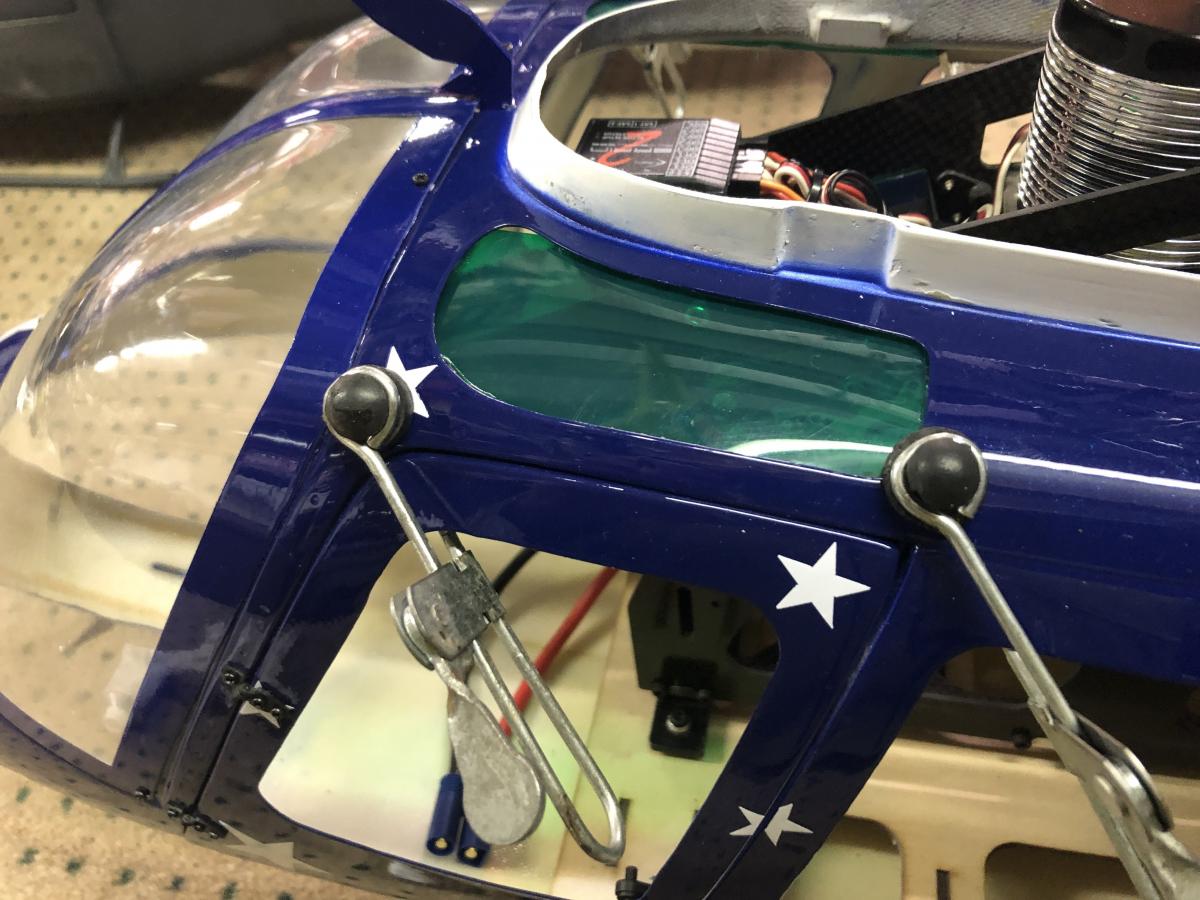

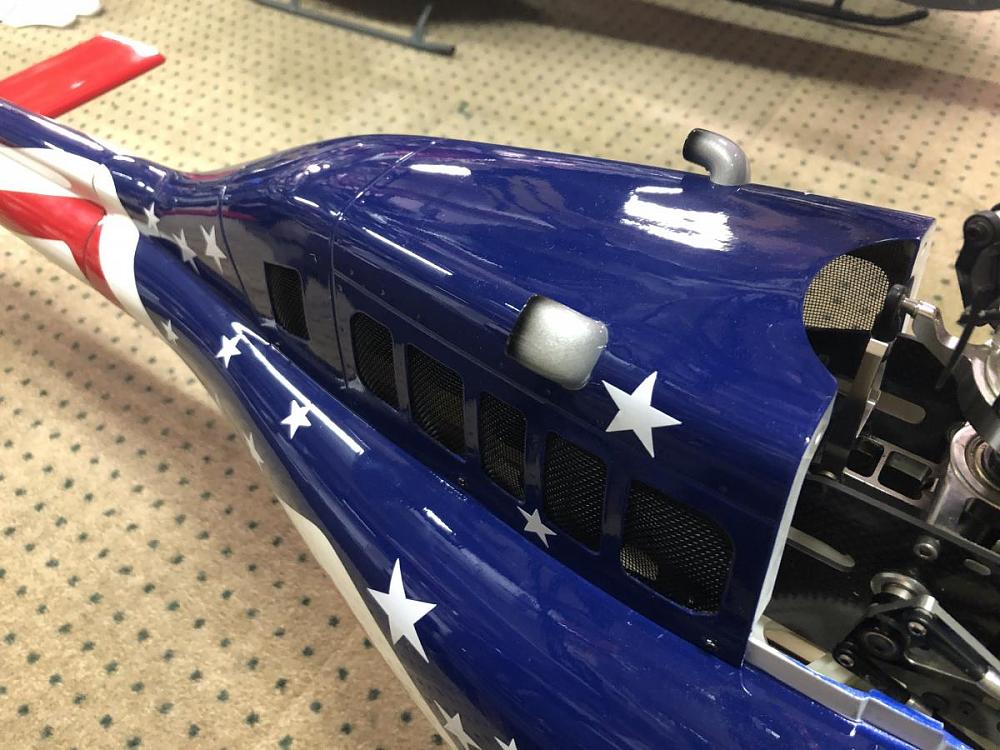

            Installed the wire cutters and started buttoning up the fuselage.

            Click image for larger version

Name:	IMG_4635.JPG
Views:	315
Size:	123.9 KB
ID:	238429

            Click image for larger version

Name:	IMG_4636.JPG
Views:	304
Size:	113.9 KB
ID:	238427

            Click image for larger version

Name:	IMG_4639.JPG
Views:	308
Size:	93.7 KB
ID:	238426

            Click image for larger version

Name:	IMG_4640.JPG
Views:	314
Size:	139.6 KB
ID:	238428

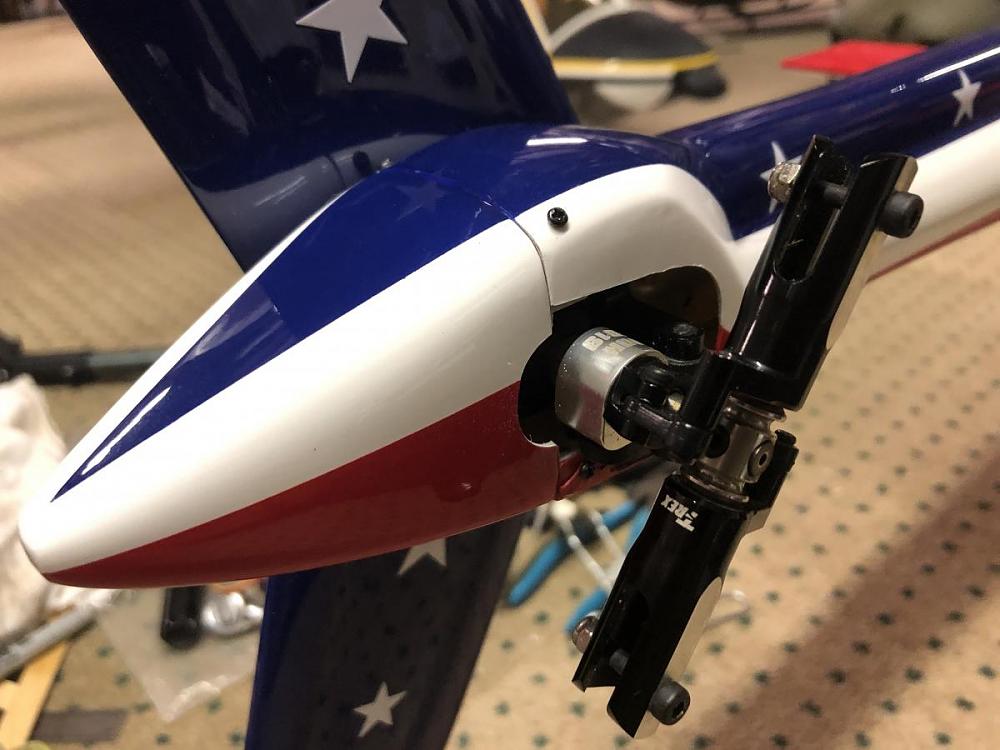

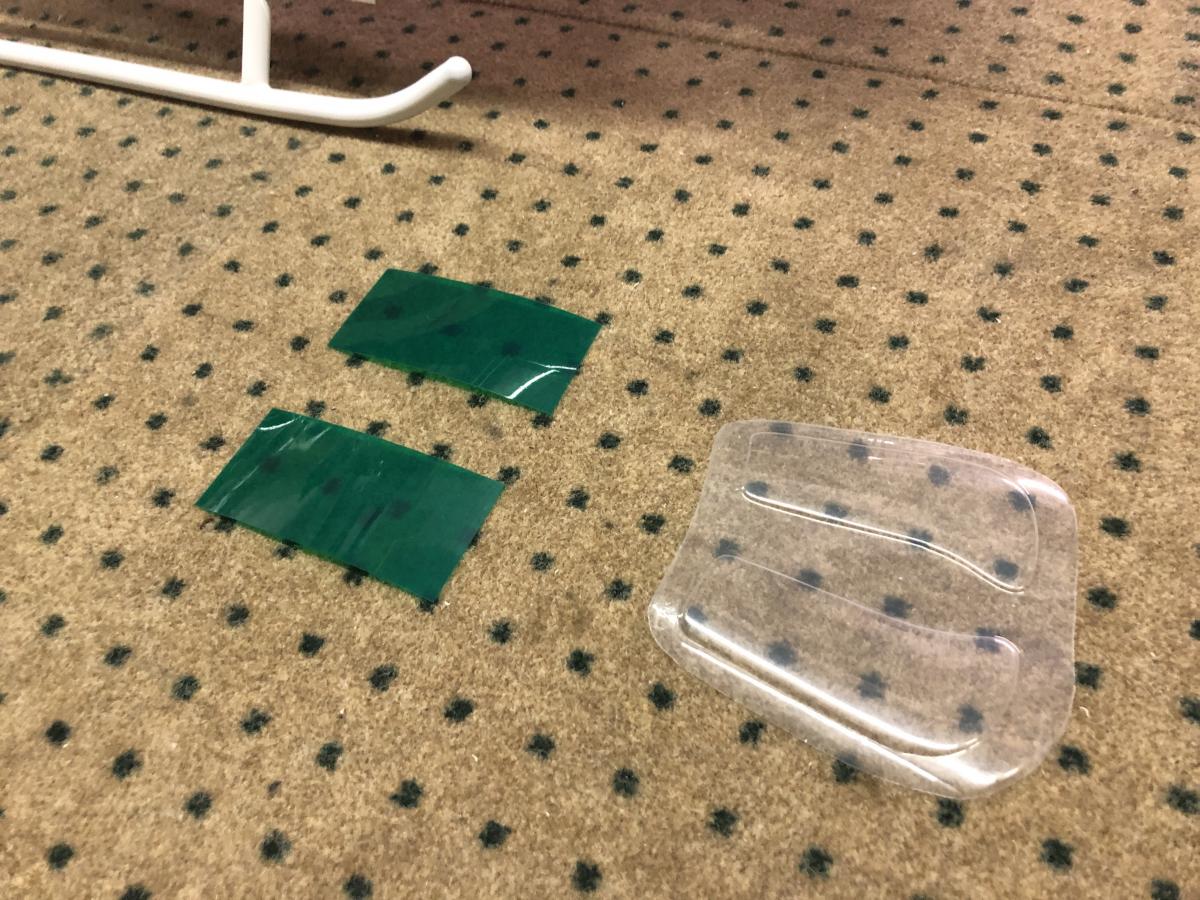

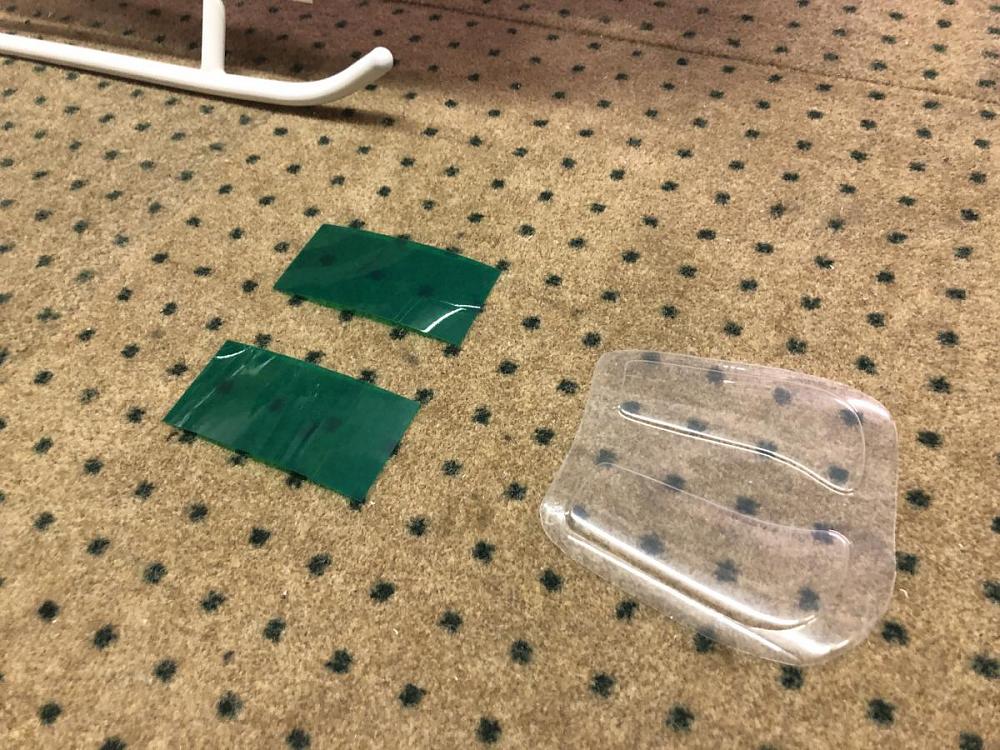

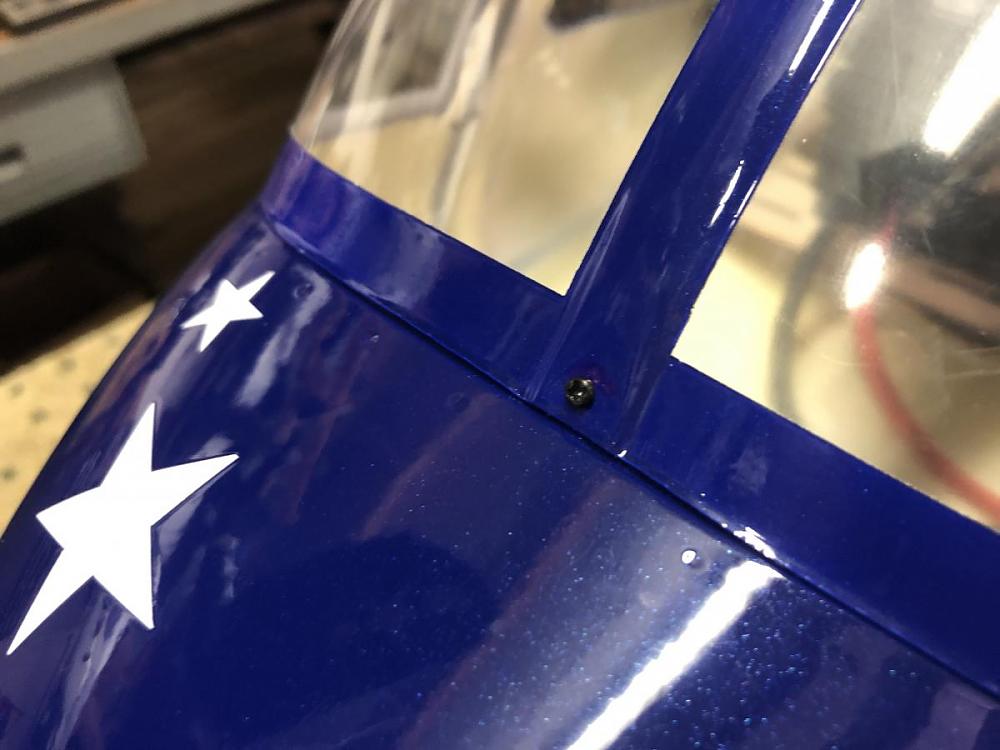

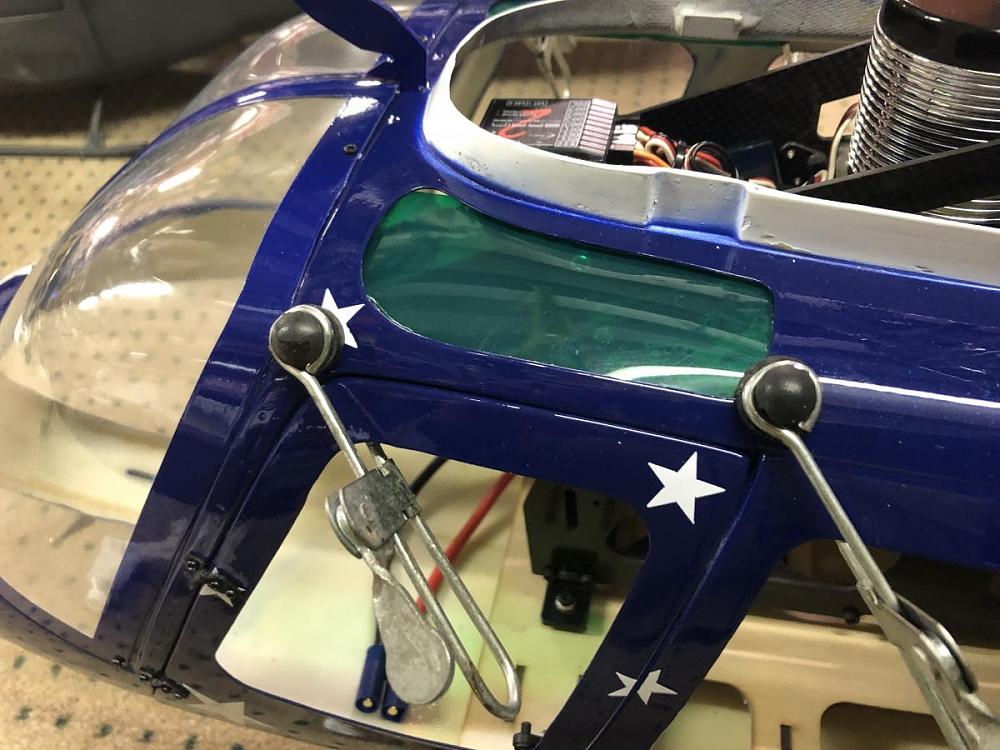

            Installed the windshield (fit was perfect) and opted for some tinted styrene on top, I'll wait on the side windows.

            Click image for larger version

Name:	IMG_4642.JPG
Views:	321
Size:	80.4 KB
ID:	238425

            Click image for larger version

Name:	IMG_4645.JPG
Views:	315
Size:	199.5 KB
ID:	238422

            Click image for larger version

Name:	IMG_4646.JPG
Views:	311
Size:	129.7 KB
ID:	238421

            Click image for larger version

Name:	IMG_4652.JPG
Views:	356
Size:	136.4 KB
ID:	238420

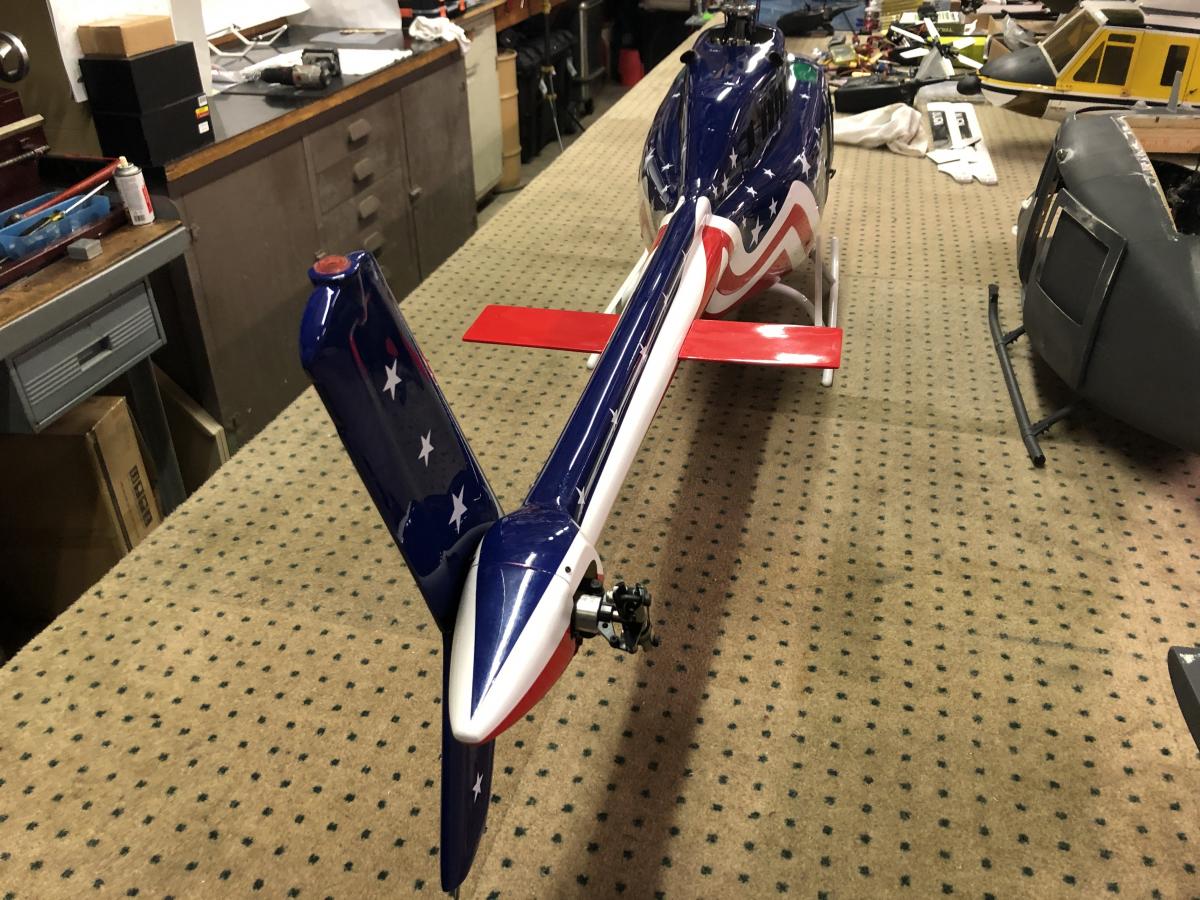

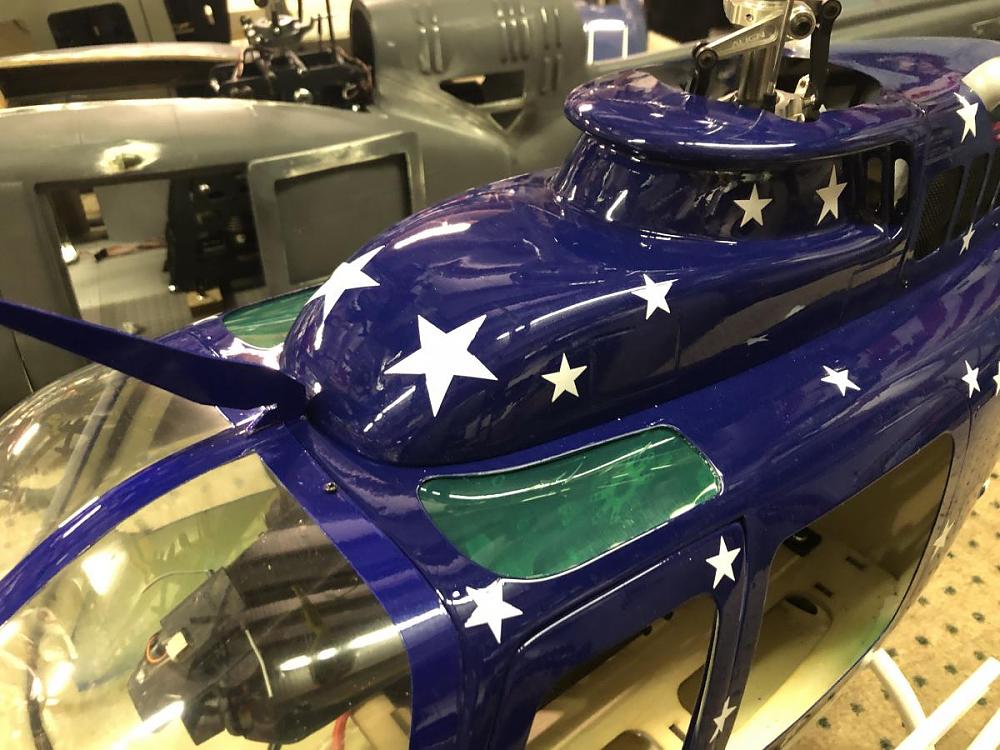

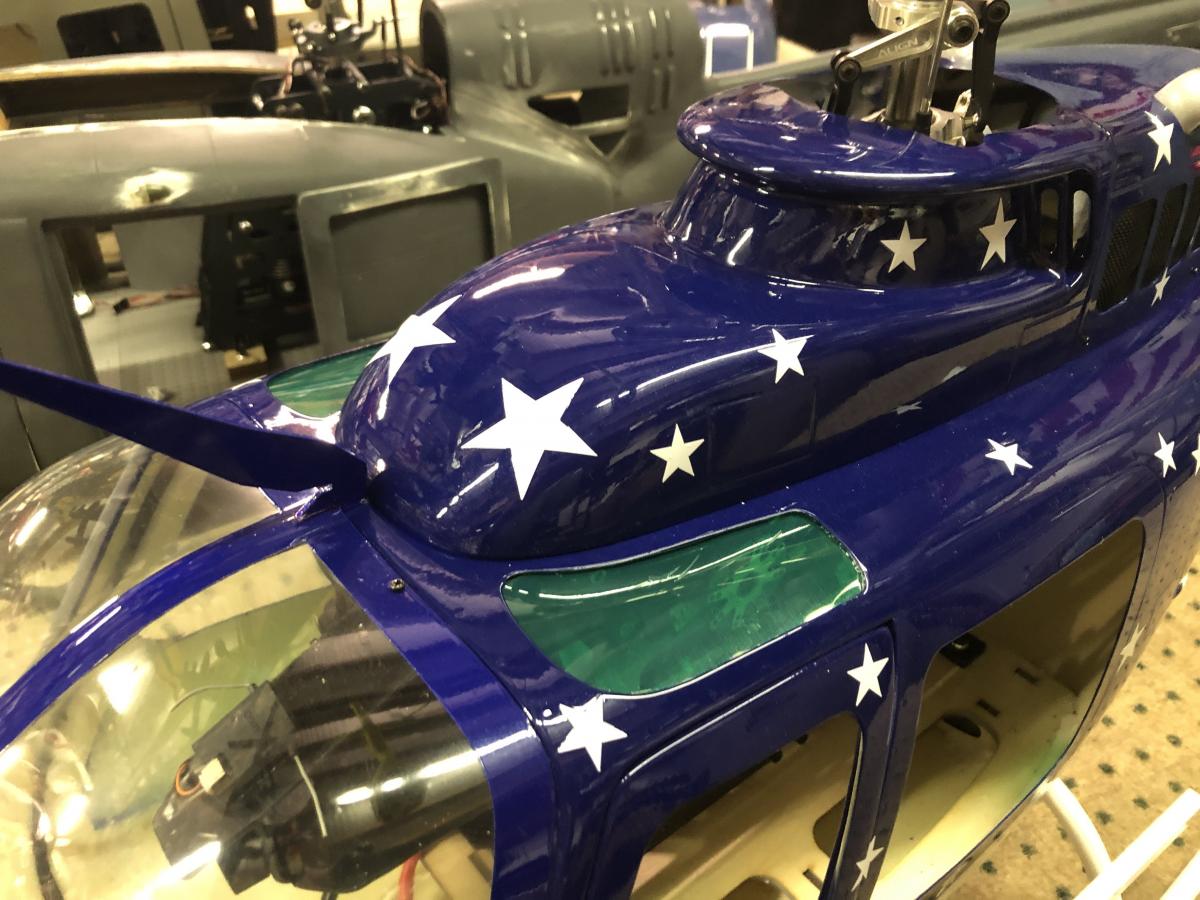

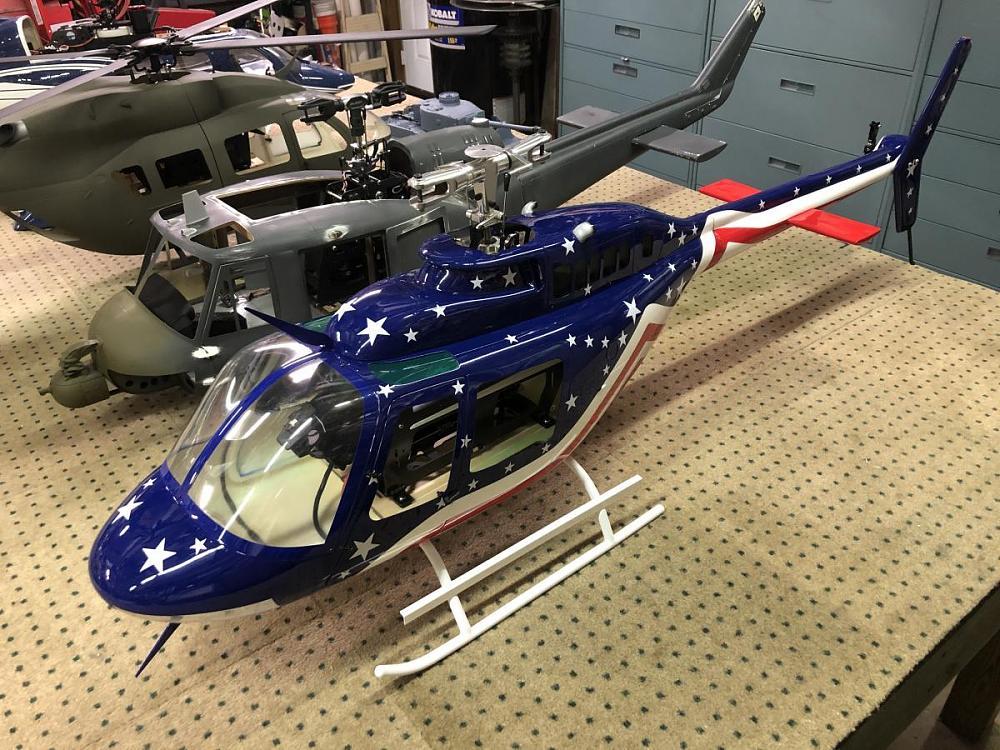

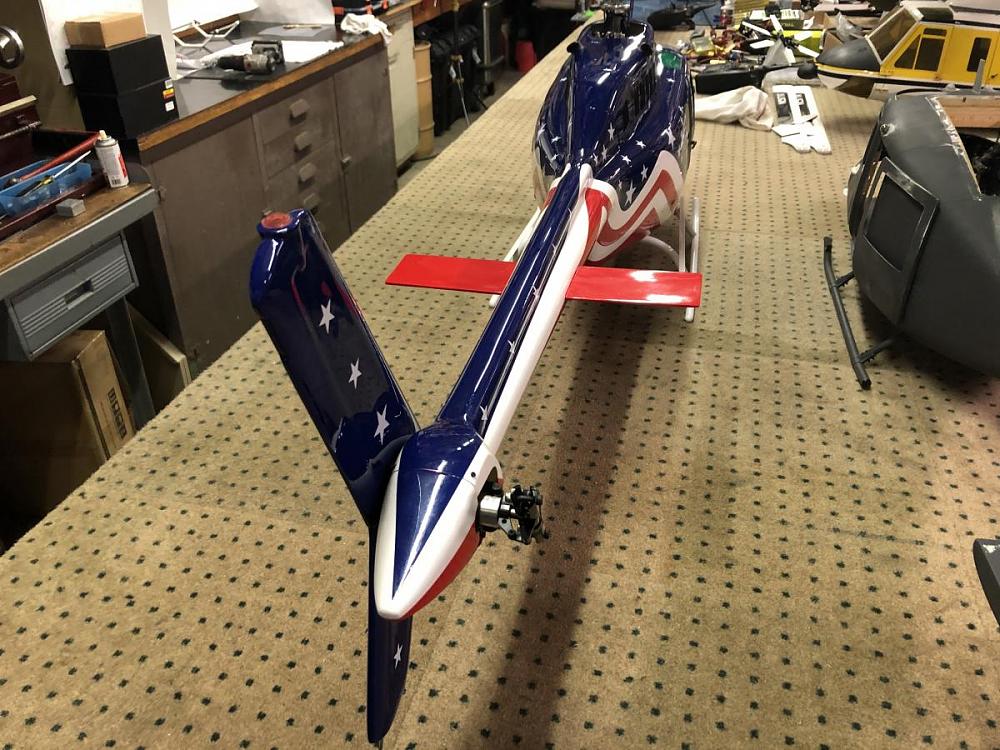

            She's one sleek looking bird and the paint is beautiful, I can't wait to get it out on a sunny day.
