  • M113 from Tongde review Rich Johnson Models N Stuff

    I received my dealer sample of the new Tongde M113 today from DKLM. What a great RC model.
    Details to note, metal edition has bearings in the arms and wheels, rubber tires, metal tranys.
    Smoker for exhaust.
    IR projector in the blackout light, inner light driver side.

    I am currently working out the logistical options to import a case of each version of the M113 to market in the US like I did for the 1/16 WWII RC MB Willys Jeep

    See the rest in the video.



    https://youtu.be/D9ckHOLrqAY?si=PDdkOAG8XVj4o_2R​

    Click image for larger version  Name:	IMG_20250902_192342141.jpg Views:	0 Size:	103.0 KB ID:	431810 Click image for larger version  Name:	IMG_20250902_192338961.jpg Views:	0 Size:	93.0 KB ID:	431809 Click image for larger version  Name:	IMG_20250902_192334921.jpg Views:	0 Size:	104.2 KB ID:	431807 Click image for larger version  Name:	IMG_20250902_201951948.jpg Views:	0 Size:	69.0 KB ID:	431811 Click image for larger version  Name:	IMG_20250902_190459857_HDR.jpg Views:	0 Size:	161.3 KB ID:	431814 Click image for larger version  Name:	IMG_20250902_191306781_HDR.jpg Views:	0 Size:	145.4 KB ID:	431813 Click image for larger version  Name:	IMG_20250902_190805958.jpg Views:	0 Size:	42.0 KB ID:	431808
    Attached Files
    RC tank parts and accessories I make
    www.RichardSJohnson.net/id28.html

  • #2

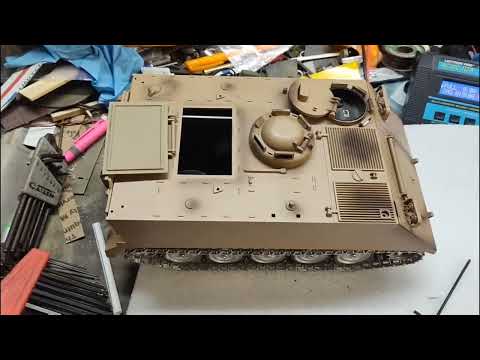

    Update video on the new M113 .

    Also I am importing a case from Tondge consisting of all 3 models in the metal edition.
    My price will be about 260-280 for the ACAV and Modern A2 and about $15 more for the Aussie turret version. I can't pin the retail price down until the order is ready to ship which will be about a month since shipping changes and conversion rates vary by day. But I have an estimated range to be able to set my price range.
    Amounts are limited so I'm charging a $100 deposit.

    RC tank parts and accessories I make
    www.RichardSJohnson.net/id28.html

    Comment


    • #3

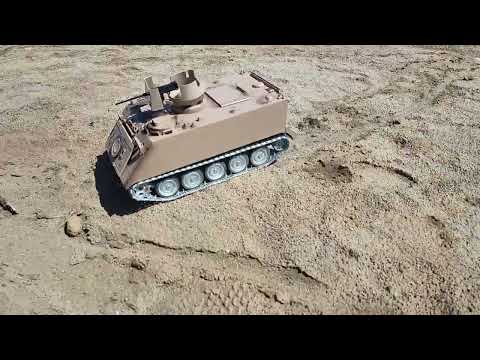

      Field test and shake down.

      RC tank parts and accessories I make
      www.RichardSJohnson.net/id28.html

      Comment


      • #4
        The standard 7.2 RC car pack fits in easily.
        Click image for larger version

Name:	IMG_20250906_145845934.jpg
Views:	344
Size:	157.5 KB
ID:	431996 Click image for larger version

Name:	IMG_20250906_145908654.jpg
Views:	338
Size:	189.0 KB
ID:	431995 Click image for larger version

Name:	IMG_20250906_145855157.jpg
Views:	358
Size:	124.3 KB
ID:	431994
        RC tank parts and accessories I make
        www.RichardSJohnson.net/id28.html

        Comment


        • #5
          Hey Rich how are you? I'm a Aussie Army veteran and one of my roles was driver of APC M113 A1 i saw you mention something about doing a Aussie version. Can you help out or point me in the right direction to make a start? It would be greatly appreciated as I've been looking for a decent rc to show the nephew and Stepdaughter what I did during my service.
          thanks Grant

          Comment


          • #6
            I have one case of the current Aussie version with the turret coming in my order.
            TD makes 3 versions , the Nam ACAV , modern A2 and the Aussie turret model.
            RC tank parts and accessories I make
            www.RichardSJohnson.net/id28.html

            Comment


            • #7
              The shipment from Tongde arrived today.
              Here I'm sorting customer preorders and preparing shipments out.


              Click image for larger version

Name:	IMG_20251023_123124690_HDR.jpg
Views:	171
Size:	165.5 KB
ID:	434772
              RC tank parts and accessories I make
              www.RichardSJohnson.net/id28.html

              Comment


              • #8
                I received mine from Rich today. We live within driving distance of each other. What a jewel this vehicle is! Hatches all over the place, battery access via the rear loading ramp. I will be building mine as the ACAV in Vietnam colors to start, adding an M901 missile launch tower afterwards. The latter is 3D Printed, also available from Rich Johnson's Models 'n Stuff.

                Last year, Tongde asked the community what they would like to see. I'm sure the M113 overwhelmed other requests. Well, we got it!
                The more screws it takes to reassemble a tank, the more likely it is you left something out!

                Comment


                • #9
                  The driver's hatch is wonky the way it opens, but that's not hard to correct.

                  Comment


                  • #10
                    It slides open because they mounted the magnet for the ir receiver on it. Also probably cheaper.
                    The benefit? For my M901 it makes it work like the real thing. On the M901 dual Tow launcher the hatch rotated open to clear the hammer head launcher.
                    Click image for larger version

Name:	IMG_20250928_093952781_HDR.jpg
Views:	161
Size:	285.3 KB
ID:	434802 Click image for larger version

Name:	IMG_20250928_094007506.jpg
Views:	142
Size:	255.1 KB
ID:	434803 Click image for larger version

Name:	IMG_20250928_093958638.jpg
Views:	147
Size:	289.1 KB
ID:	434804
                    RC tank parts and accessories I make
                    www.RichardSJohnson.net/id28.html

                    Comment


                    • #11
                      An issue:

                      The ACAV version supplies a shield for the main 50 Cal MG. However, there is no bracket for it, a major omission. The implication is that it is to be attached to the gun, an unsatisfactory solution. I checked the web for the correct method and found this:

                      Click image for larger version

Name:	Screenshot 2025-10-25 202044.jpg
Views:	133
Size:	74.0 KB
ID:	434903
                      it shouldn't be too hard to fashion the bracket from sheet styrene. It's too bad it's necessary.
                      The more screws it takes to reassemble a tank, the more likely it is you left something out!

                      Comment


                      • #12
                        Bump to get over the Temu spam.

                        Comment


                        • #13
                          TD is a quasi toy company and they bypass some details, like the swinging driver hatch. And the shield for the .50. They will do what looks good and is efficient for production aka cheaper. It doesn't distract from the model in any way but yes the shield keys into a tab on the .50 cal.
                          RC tank parts and accessories I make
                          www.RichardSJohnson.net/id28.html

                          Comment


                          • #14
                            Per post #11, here is a mount for the 50 cal gun shield:

                            Click image for larger version

Name:	M113 ACAV 04.jpg
Views:	114
Size:	144.1 KB
ID:	435963 Click image for larger version

Name:	M113 ACAV 05.jpg
Views:	111
Size:	119.3 KB
ID:	435962 Click image for larger version

Name:	M113 ACAV 03.jpg
Views:	118
Size:	79.4 KB
ID:	435961

                            This guy is now ready for mud, dirt, rust, dust and external stores.

                            Click image for larger version

Name:	M113 ACAV 06.jpg
Views:	112
Size:	141.0 KB
ID:	435964

                            The more screws it takes to reassemble a tank, the more likely it is you left something out!

                            Comment


                            • #15
                              That came out great Bob and one of my customers told me he already copied your mount in his ACAV which arrived Monday from me.

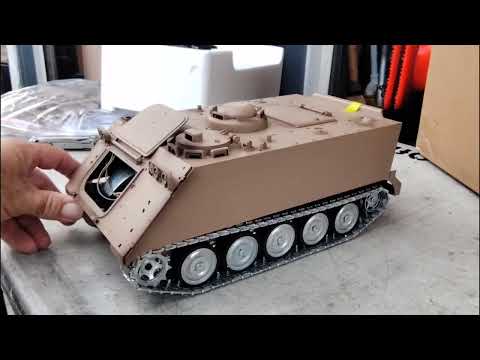

                              The front Trim Vane aka the wake board that fold down for swimming, is difficult to unfold without breaking .
                              Here is a video.

                              RC tank parts and accessories I make
                              www.RichardSJohnson.net/id28.html

                              Comment


                              • #16
                                I encountered the same Trim Vane break point. On mine it occurred simply when I was turning it over on the bench. It's a weak point in the design. I came up with the same solution as Rich; I drilled a tiny hole and inserted a piece of wire in place of the dimple that broke off.
                                The more screws it takes to reassemble a tank, the more likely it is you left something out!

                                Comment


                                • #17
                                  Finished, at least for now. You might thinks there is too much streaking and splashing, but it reflects actual photos from Vietnam. Dry dust on top streaked by rains, red dirt below, from those same rains!

                                  Click image for larger version

Name:	M113 ACAV 07.jpg
Views:	68
Size:	243.8 KB
ID:	438734
                                  Click image for larger version

Name:	M113 ACAV 10.jpg
Views:	77
Size:	240.6 KB
ID:	438733 Click image for larger version

Name:	M113 ACAV 08.jpg
Views:	71
Size:	219.6 KB
ID:	438735
                                  The more screws it takes to reassemble a tank, the more likely it is you left something out!

                                  Comment


                                  • #18
                                    That is a nice one. Thank you for sharing, Bob!
                                    SoCal RC Tank Club Facebook Group
                                    Largest active RC Tank club in Southern California
                                    Gathering 1-2x monthly/All Ages & Experience levels welcome​

                                    Comment


                                    • #19
                                      Originally posted by SoCalBobS View Post
                                      Finished, at least for now. You might thinks there is too much streaking and splashing, but it reflects actual photos from Vietnam. Dry dust on top streaked by rains, red dirt below, from those same rains!

                                      Click image for larger version

Name:	M113 ACAV 07.jpg
Views:	68
Size:	243.8 KB
ID:	438734
                                      Click image for larger version

Name:	M113 ACAV 10.jpg
Views:	77
Size:	240.6 KB
ID:	438733 Click image for larger version

Name:	M113 ACAV 08.jpg
Views:	71
Size:	219.6 KB
ID:	438735
                                      Once ago again Bob you did an amazing job.



                                      Click image for larger version

Name:	IMG_6200.jpg
Views:	57
Size:	112.3 KB
ID:	438761

                                      Comment


                                      • #20
                                        In addition to the M901 Hammerhead TOW launcher kit I am producing for $95 I have now added a 106mm Recoilless Rifle for the Vietnam ACAV version.
                                        These were often added in Vietnam on the right hand side replacing the M60 machine gun.
                                        My kit comes with a brass tube in the barrel for support and a feed hole at the mount to run wires for a 3mm flash LED or to relocate the 3mm IR LED from the front of the M113. A savoy person could drill a hole and mount it on a shaft and use a servo inside on the elevation channel to make the gun traverse left and right. This gives a good reason for the APC to go boom and good use in an IR battle.

                                        Click image for larger version

Name:	IMG_20251028_204210352.jpg
Views:	46
Size:	157.9 KB
ID:	438821 Click image for larger version

Name:	IMG_20251028_204618621.jpg
Views:	63
Size:	114.3 KB
ID:	438819 Click image for larger version

Name:	IMG_20251028_204600099.jpg
Views:	45
Size:	105.4 KB
ID:	438822 Click image for larger version

Name:	IMG_20251028_204538115.jpg
Views:	45
Size:	84.7 KB
ID:	438820
                                        RC tank parts and accessories I make
                                        www.RichardSJohnson.net/id28.html

                                        Comment
