Official FMS Lemur 1/24 Scale 4WD Crawler Discussion Thread

Collapse
X
Collapse
First Prev Next Last

  • Filter
  • Time
  • Show
Clear All
new posts

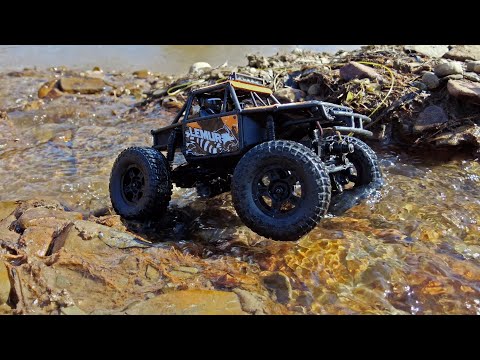

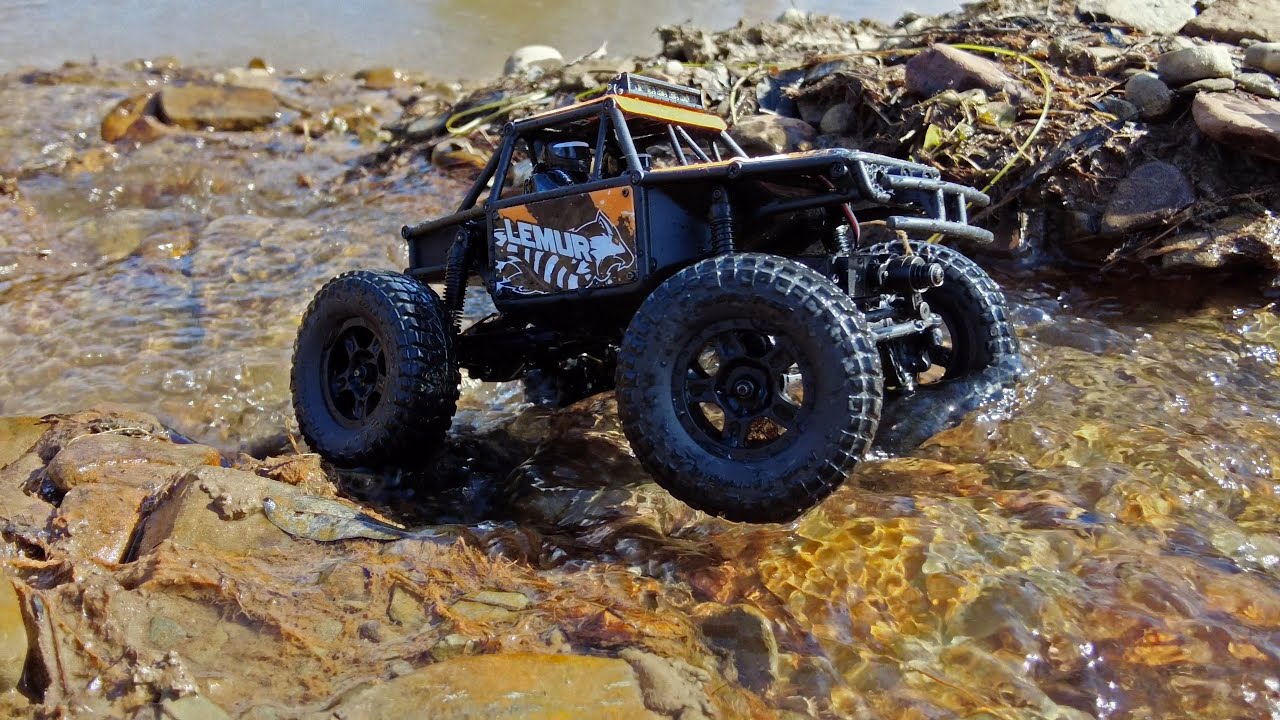

  • Official FMS Lemur 1/24 Scale 4WD Crawler Discussion Thread

    Click image for larger version

Name:	fms-lemur-green-1-24-scale-4wd-crawler-rtr-motion-rc-34887026147513.jpg
Views:	274
Size:	137.0 KB
ID:	388939


    Click image for larger version

Name:	fms-lemur-orange-1-24-scale-4wd-crawler-rtr-motion-rc-34887068221625.jpg
Views:	156
Size:	143.4 KB
ID:	388940


    Click image for larger version

Name:	fms-lemur-red-1-24-scale-4wd-crawler-rtr-motion-rc-34887080149177.jpg
Views:	157
Size:	132.1 KB
ID:	388941





    Version Info: This vehicle is delivered as “RTR”, but requires the additional purchase of 4 (four) AAA alkaline batteries for the transmitter.

    Every February, at Means Dry Lake in Johnson Valley, California, a feast awaits a group of brave racing enthusiasts—a combination of desert racing and rock crawling in an off-road race. The structure of the racing vehicles typically features an exposed roll cage that supports a full-time four-wheel-drive system, coupled with a long-travel suspension kit. These vehicles can reach speeds exceeding 200 kilometers per hour, with a high acceleration ratio that allows them to effortlessly dominate hardcore off-road vehicles in extreme rock crawling. Based on the FCX24 chassis, equipped with a roll cage body, the Lemur is exactly this kind of unstoppable racing vehicle.

    FCX24 high-performance crawler chassis is made of high-strength nylon. Compared with traditional designs, the overall weight is lower and strength is increased. The mid-mounted transmission incorporates a low center of gravity and contains the 2-speed transmission, transfer case, and 130-brushed motor. Power is transmitted to the front and rear axles through universal drive shafts, mated with portal axles for optimum ground clearance.

    The FCX24 is equipped with a straight, but an optional planetary gear differential can also be used and enhance with high-viscosity silicone oil to simulate the driving effect of a limited-slip differential. After installation, ultimate climbing ability will be reduced, but a reduced turning radius and a more stable high-speed driving quality can be experienced

    Combine the versatile, go-anywhere fun of the FMS Lemur 1/24 Scale 4WD Crawler RTR with Motion RC’s industry-leading customer service and product support for an unbeatable package!
    Longer Run Times

    The conveniently located battery compartment houses an included 1050mAh LiPo for extended run times and easy access.
    Precision Drivetrain

    The Lemur chassis features efficient and durable metal driveshafts for the ultimate in strength for crawling, rock racing, or bashing.
    Four-Link Suspension

    Utilizing a traditional 4-link chassis design, the Lemur includes long-throw dampers for maximum articulation and travel.
    LED Light Bar

    Light up the course with the included hi-intensity LED light bar for rock racing or crawling in low-light conditions.
    Features:
    • Completely RTR
    • Shift on the fly 2-speed transmission
    • Portal axles with metal gears
    • High-torque steering servo with metal gears
    • 4-Link suspension system
    • LED Roof Lightbar
    • Durable nylon roll cage
    • High-strength integrated nylon chassis
    • 7.4v 1050mAh Lipo for extended run times
    • Convenient USB charger
    Includes:
    • FMS Lemur Green 1/24 Scale 4WD Crawler - RTR
    • G3 transmitter v2
    • R3A receiver v2 (installed)
    • R3A ESC (installed
    • 130 brushed motor (installed)
    • Steering servo (installed)
    • Shift servo (installed)
    • 7.4V 1,050mAh LiPo battery
    • USB charger
    • Hex wrench
    • Instruction manual
    Requires:Product Specifications:

    AGE LEVEL : 14 and up
    SKILL LEVEL : Beginner
    BUILD TIME : Less Than 15 Minutes
    Model Scale 1/24
    Length 209mm / 8.2in
    Width 128mm / 5.0in
    Height 120mm / 4.7in
    Weight (No Battery) 442g / 15.8oz
    Wheelbase 139mm / 5.4in
    Ground Clearance 38mm / 1.5in
    Body Injection molded roll-cage with polycarbonate panels
    Chassis Composite nylon scale-type
    Drivetrain 4WD
    Wheel Size (Diameter x Width) N/A x 19.5mm
    Wheel Hex Size N/A
    Tire Tread All-terrain
    Bushing Material N/A
    Suspension Four-link with dampers
    Shock Type Coil-over dampers
    Transmission 4WD shaft-driven
    Gear Pitch N/A
    Internal Gear Ratio N/A
    Final Drive Ratio 99:1 (low), 24.75:1 (high)
    Pinion N/A
    Spur Gear N/A
    Differential No
    Ball Bearings Yes
    Brakes Electronic
    Electronic Speed Control 2-in-1 RX/ESC
    Motor 130-size brushed
    Battery 7.4v 1,050 mAh LiPo
    Max Battery Dimensions (L x W x H) N/A
    Servos 2
    Radio 3-channel
    Lights Yes
    Sound No
    Water Resistant Yes
    Skill Level Beginner
    Assembly Time Less than 15 minutes
    Recommended Environment Outdoors

  • #2

    Comment


    • #3
      I want to order a spare battery. Anyone have a compatible suggestion, or know the battery connector type?

      Comment


      • #4
        Originally posted by Nochtune View Post
        I want to order a spare battery. Anyone have a compatible suggestion, or know the battery connector type?
        24AWG JST 51005 2.0mm Spade 2Pin

        Comment


        • #5
          Originally posted by Nochtune View Post
          I want to order a spare battery. Anyone have a compatible suggestion, or know the battery connector type?
          https://amzn.to/3sm2vnG 600mAh

          Comment


          • #6
            Thanks for the suggestion. The stock battery is 1050 mah. I would like to get a battery with at least that capacity.

            Comment
