    Hey guys, gonna need some help for this thread. Member Gringotuerto and I are going to try to build a 3D printed Russian T-35A five turreted tank. The 3D files are on Thingiverse. G knows printing, and I am going to contribute the mechanical and electronic components. So far, all I've done is play with Heng Long innards.

    The tank's drive and main turret would be stick driven, with servos running rotation and gun control. The secondary turrets would have servo rotation. Tertiary turrets would be cosmetic (maybe flashing LEDs for MGs!)

    I'm looking for recommendations for the following:

    A transmitter - I've seen the Flysky i6/10S (or whatever it's called) and I could use its control inputs. Sticks for movement and main turret control. Roller wheels for secondary turret rotation. The Tx comes with a receiver that can control 10 functions.

    A MFU. The TK-40, if it can handle the above.

    A premium gearbox and motors. The original builder used a KV box, but said it was geared too high and stalled in turns. I'm thinking that we'd be using a higher voltage than HL stock to overcome some stalling, along with lower gearing and metal gears. Desirable that external dimensions are the same, as the tank was designed for that.

    So, I'm open to everyone's suggestions, recommendations and opinions.

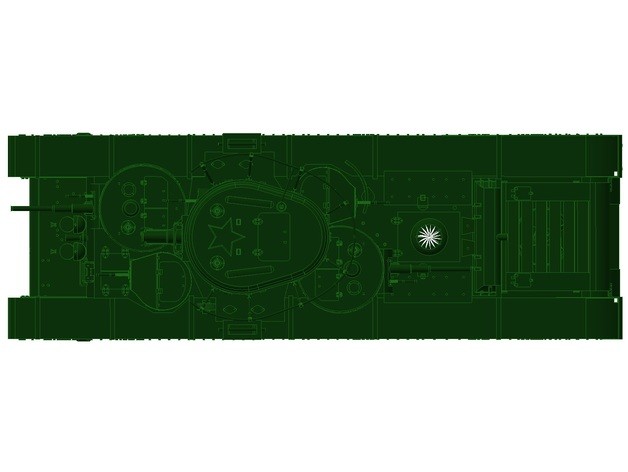

    Click image for larger version

Name:	0a68743a409069d29e3cc1bc9201ad1c_preview_featured.jpg
Views:	592
Size:	32.7 KB
ID:	316294


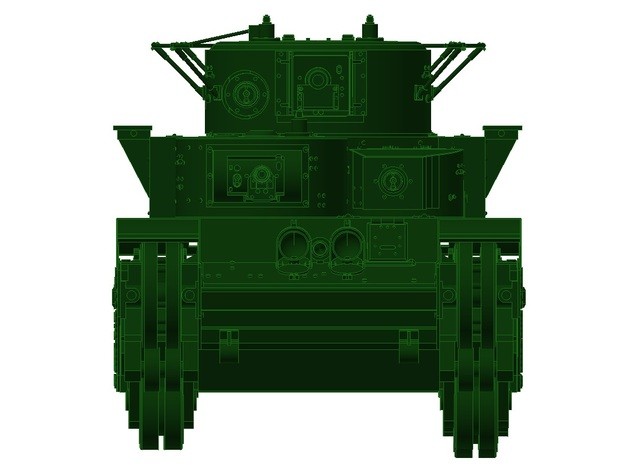

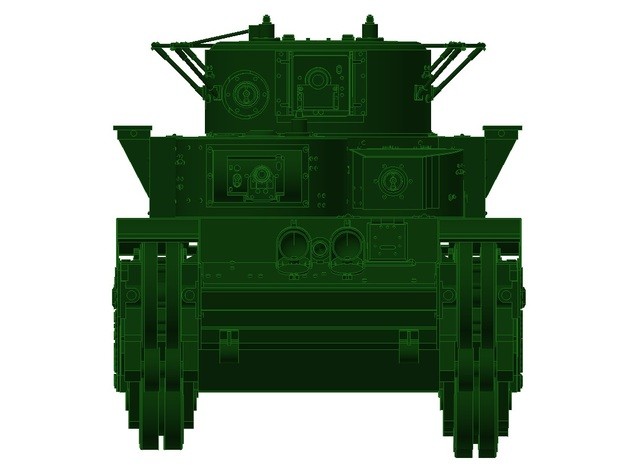

    Click image for larger version

Name:	61a1beb1f7dbc3cd89ee022248d8bbc1_preview_featured.jpg
Views:	498
Size:	33.2 KB
ID:	316295

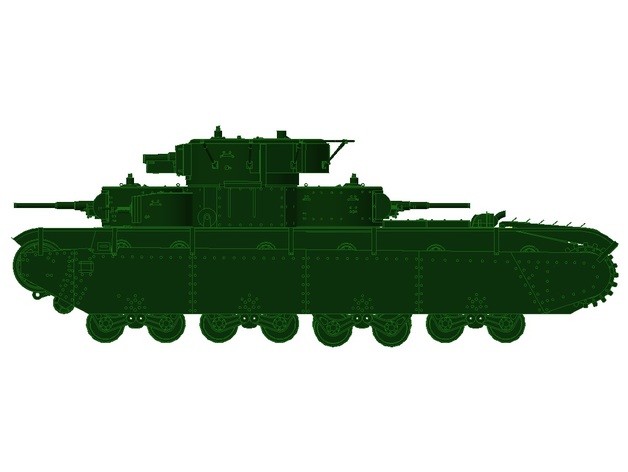

    Click image for larger version

Name:	7014824a73ba9e48258e1fdd40c56fdc_preview_featured.jpg
Views:	501
Size:	41.9 KB
ID:	316297
    Attached Files
    Brit WW1 Mk IV, Renault FT-17, M3 Lee, M4 Sherman, M26 Pershing, M41 Bulldog, M1A2 Abrams, T-34, T-35, KV-1E, Zik-20, PzKpfw 1A, PzKpfw 1B, PzKpfw II L, PzKpfw III, Sturmgeschutz III, PzKpfw IV, Sturmgeschutz IV, King Tiger, Panther G,

  • #2
    Wow, what a project! This will be awesome when you get a rolling prototype! Will make a great “early” Barbarossa opponent to the H-L Pzkw IIIs and IVs, please keep us updated!

    Comment


    • #3

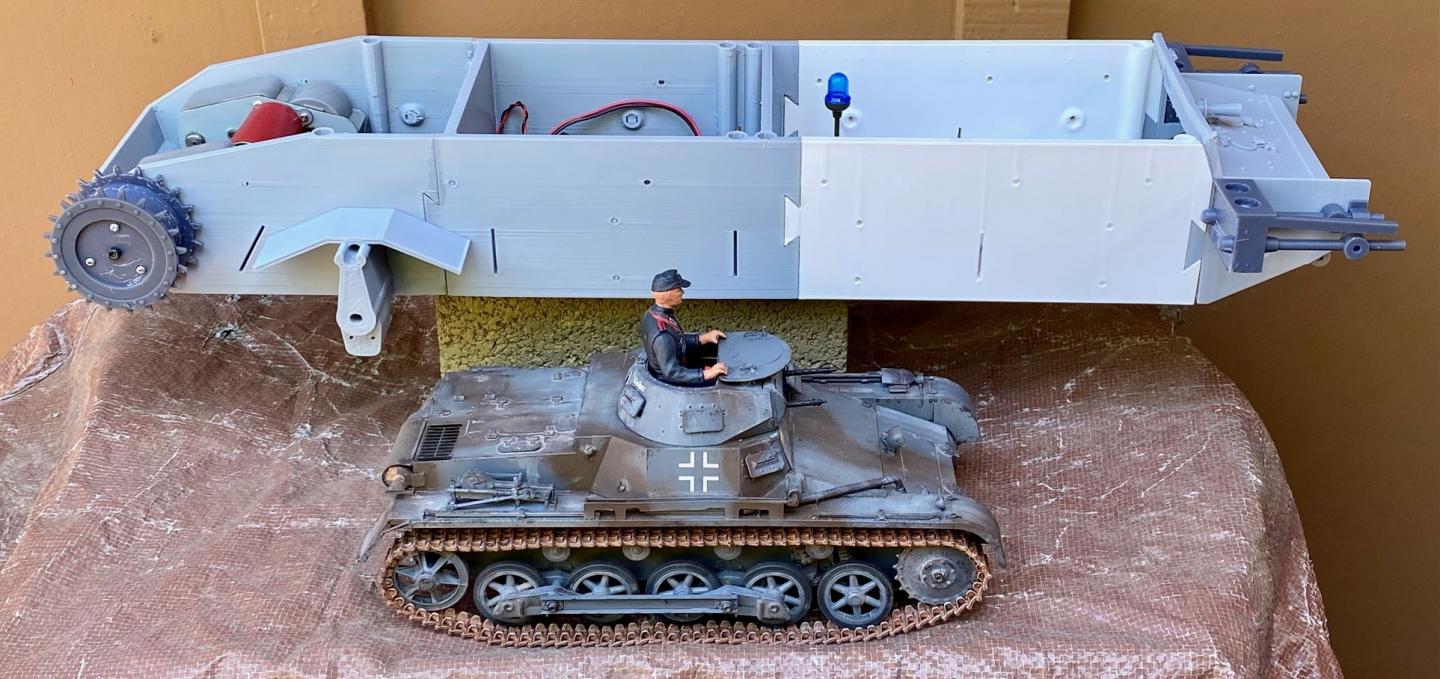

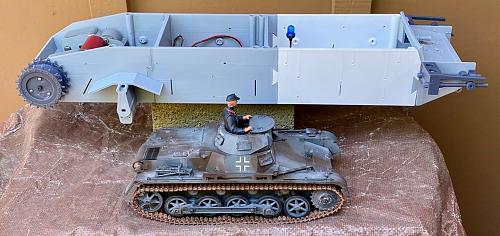

      Here's a teaser. This photo is of the four sections that make up the hull. Shows the overall length. I put my PzKpfw 1B in the shot for size comparison. They were contemporaries!

      Click image for larger version

Name:	T-35 09.jpg
Views:	460
Size:	160.9 KB
ID:	317550
      Brit WW1 Mk IV, Renault FT-17, M3 Lee, M4 Sherman, M26 Pershing, M41 Bulldog, M1A2 Abrams, T-34, T-35, KV-1E, Zik-20, PzKpfw 1A, PzKpfw 1B, PzKpfw II L, PzKpfw III, Sturmgeschutz III, PzKpfw IV, Sturmgeschutz IV, King Tiger, Panther G,

      Comment


      • #4
        Taigen makes a second gear box option called a 4.1 because it has 4 shafts instead of 3.
        FYI Henglong tranny gear ratio is 33:1 from motor to shaft.
        Taigen 3.1 is 39:1 ratio, slightly slower with more torque.
        Tamiya is 59:1 ratio slower yet with more torque.
        Then there is the taigen 4.1 which is 89:1. amazing torque but slow.
        Also there is mato, I cant remember their ratio but they are geared very low and slow as well, but their QC on their stuff sucks. I had to buy a spare tranny set for my mato sherman becuase the gears wobbled on their axis just terribly.

        I just got done testing the DK board. I think it would work for your tank but right now it needs alot of stick travel to get to near full throttle. It has a few glitches. When you get closer to being ready, he may have the updates done to the board. See my review on RCuniverse.com

        I prefer the Spektrum DX8. I love it and all the really cool stuff I can do with it like mixing and making one button make the cannon fire, and another button make the machine gun fire just by setting each one up to make the elevation stick full potential on either end. Another switch I have set to null the throttle to 75% for faster tanks. I cant reccomend the Dx8 or its series of 9 and 10 channel radios enough.

        Since your building a battleship on tracks, it reminds me of how I made my HO scale battleship turrets turn. The two forward and one aft all had gear drives on servos but the 5 dual 5" turrets on each side I was not going to make operate separately. I used one servo for all the turrets on one side and cams and rudder linkage on all of them so the servo would turn them all from facing for and aft, to a 45 deg angle from the ship, or to a 90 deg angle broadside. It was quite an impressive set up to engineer. but with all the turrets, you could rig up something similar.

        Comment


        • #5
          Originally posted by SoCalBobS View Post
          Here's a teaser. This photo is of the four sections that make up the hull. Shows the overall length. I put my PzKpfw 1B in the shot for size comparison. They were contemporaries!
          Click image for larger version

Name:	T-35 09.jpg
Views:	460
Size:	160.9 KB
ID:	317550
          You could use a pair of PzKpfw 1B's as tugs for that battleship...
          Sherman M4A3 105mm Houwitser / Sherman Firefly IC *under construction* / Panzer IV *awaiting side-grade from TK7.0S to TK6.0S* / Stug III / King Tiger / KV-1 *awaiting upgrade to TK6.0S* / Tiger I / T34-85 / Leopard 2A6 *waiting upgrade to TK7.0*... No, I do not have a problem....

          Comment


          • #6
            Rich, I’m interested in that Taigen 4:1 you mentioned. Sounds good for the T-35. Speed ain’t in it, but torque to make this beast turn is important. Do you know if it has the same footprint as HL gearboxes?
            Brit WW1 Mk IV, Renault FT-17, M3 Lee, M4 Sherman, M26 Pershing, M41 Bulldog, M1A2 Abrams, T-34, T-35, KV-1E, Zik-20, PzKpfw 1A, PzKpfw 1B, PzKpfw II L, PzKpfw III, Sturmgeschutz III, PzKpfw IV, Sturmgeschutz IV, King Tiger, Panther G,

            Comment


            • #7
              Originally posted by SoCalBobS View Post
              Rich, I’m interested in that Taigen 4:1 you mentioned. Sounds good for the T-35. Speed ain’t in it, but torque to make this beast turn is important. Do you know if it has the same footprint as HL gearboxes?
              Yes they are direct replacement for HL gearboxes. Run them with the 390 motors and you will have no issues with turning torque yet your top speed will still be rather slow even above 9 volts.

              Comment


              • #8
                Originally posted by Rubicon99 View Post
                ...you will have no issues with turning torque yet your top speed will still be rather slow even above 9 volts...
                Weeeelll... I don't think T35's were zipping around the battlefield like they were M18 Hellcats anyway...
                I've looked at the files for this beast on Thingiverse and promptly downloaded them. Might run some pieces during my printers "downtime" just for sh*ts and giggles...

                TTFN,
                Rob

                Sherman M4A3 105mm Houwitser / Sherman Firefly IC *under construction* / Panzer IV *awaiting side-grade from TK7.0S to TK6.0S* / Stug III / King Tiger / KV-1 *awaiting upgrade to TK6.0S* / Tiger I / T34-85 / Leopard 2A6 *waiting upgrade to TK7.0*... No, I do not have a problem....

                Comment


                • #9
                  Originally posted by Rob1970 View Post

                  Weeeelll... I don't think T35's were zipping around the battlefield like they were M18 Hellcats anyway...
                  I've looked at the files for this beast on Thingiverse and promptly downloaded them. Might run some pieces during my printers "downtime" just for sh*ts and giggles...

                  TTFN,
                  Rob
                  Obviously you have never run 4:1 gearboxes. “Slow” is meant to describe the speed in comparison to the standard HL 3:1 gearbox. By comparison the 4:1 is much slower. It’s not meant to make any reference to the historical speed of the real tank.


                  Comment


                  • #10
                    I stand corrected. And I feel like I should be standing in a corner...
                    Sherman M4A3 105mm Houwitser / Sherman Firefly IC *under construction* / Panzer IV *awaiting side-grade from TK7.0S to TK6.0S* / Stug III / King Tiger / KV-1 *awaiting upgrade to TK6.0S* / Tiger I / T34-85 / Leopard 2A6 *waiting upgrade to TK7.0*... No, I do not have a problem....

                    Comment


                    • #11
                      I'm back! Gringotuerco and I are still working on this project.

                      We're about 30% done. The running gear works, which is the most important step. Without that, it's a door stop! Doing this gives me more respect for the $200 we spend for a Heng Long tank.

                      To this point:

                      262 track links & track teeth. 262 track pins cut from music wire.
                      8 road wheel suspensions, incorporating 8 supports, 32 swing arms, 16 3-piece road wheels, 2 8-piece idlers, 2 3-piece sprockets, 52 3mm bolts & nuts cut to custom length.
                      4-piece lower hull.
                      12 3-piece return roller wheels and mounts.
                      Heng Long 2 red motor transmission, 6.1S MFU, speaker & battery.
                      One heckuva lot of 3D printing material.
                      So far an ounce of CA glue.

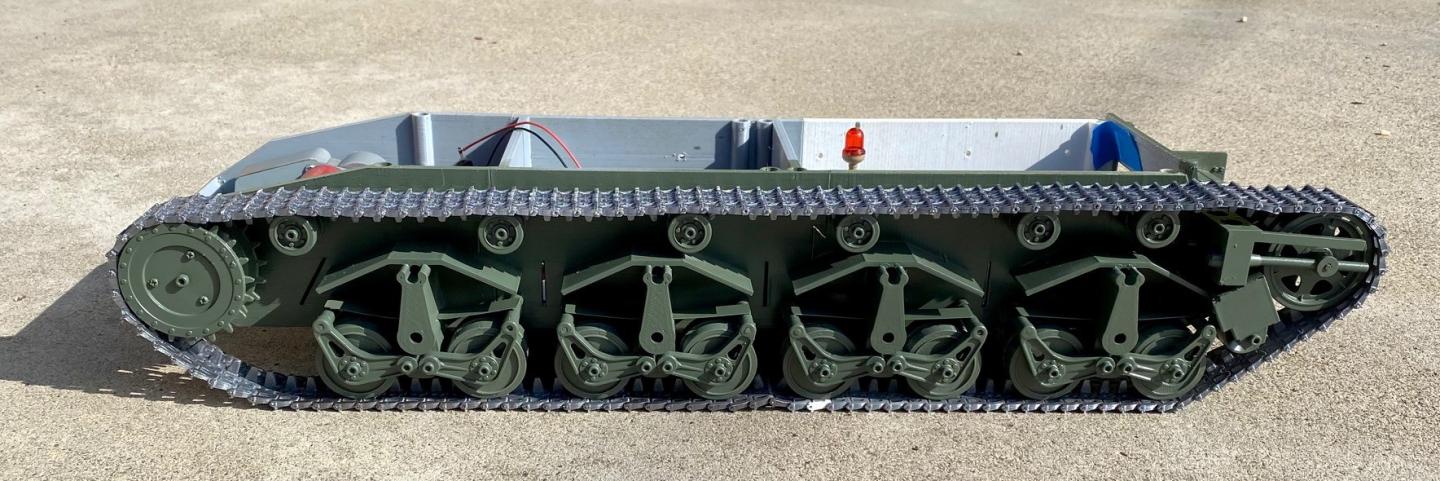

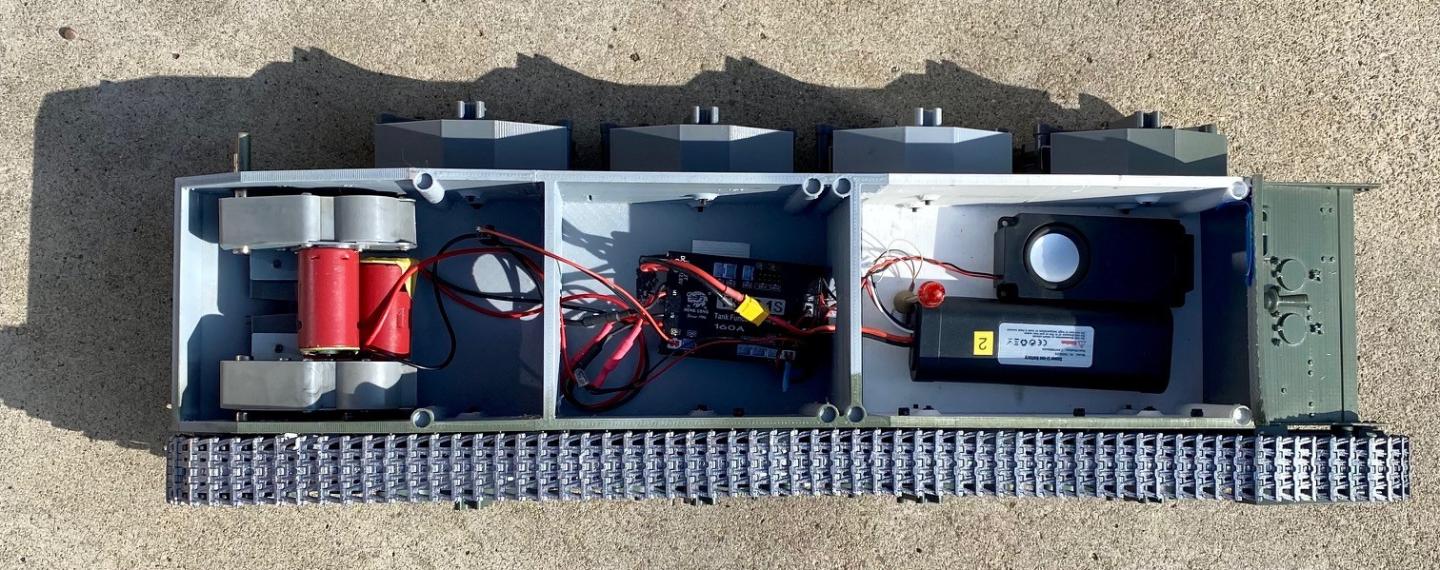

                      Click image for larger version

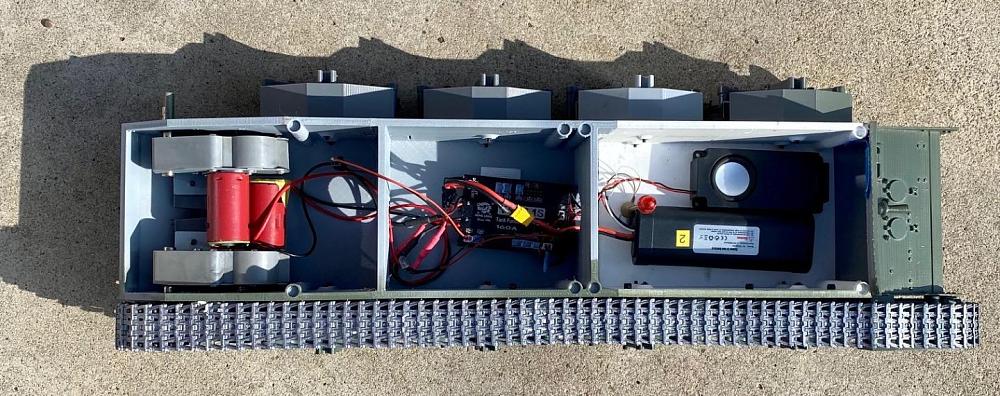

Name:	T-35 13.jpg
Views:	423
Size:	145.7 KB
ID:	331549

                      Click image for larger version

Name:	T-35 14.jpg
Views:	374
Size:	202.9 KB
ID:	331550

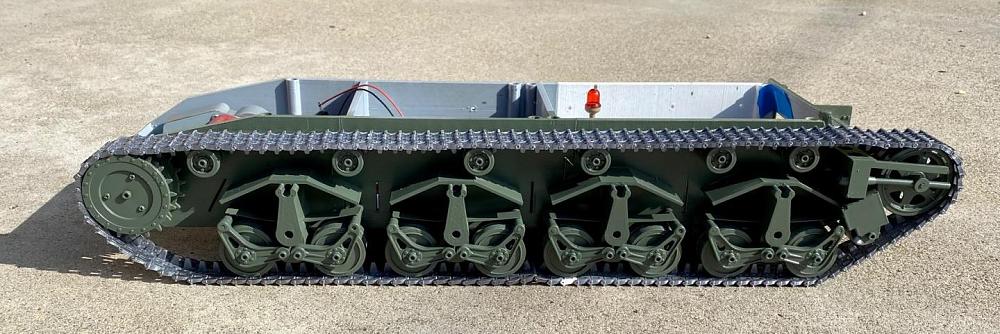

                      Besides a lot detail work, now we start on the top deck, turrets and guns. The main gun will have standard motorized traverse and elevation. The secondary and tertiary turrets will have programmable random servo motion.

                      The tracks run fine on pavement. We haven't tried them in dirt, and I don't think they'd work well on carpet for instance, due to their length. No "spinning", that's for sure!
                      Brit WW1 Mk IV, Renault FT-17, M3 Lee, M4 Sherman, M26 Pershing, M41 Bulldog, M1A2 Abrams, T-34, T-35, KV-1E, Zik-20, PzKpfw 1A, PzKpfw 1B, PzKpfw II L, PzKpfw III, Sturmgeschutz III, PzKpfw IV, Sturmgeschutz IV, King Tiger, Panther G,

                      Comment


                      • #12
                        From your picture posted, that is a very long set of tracks. Impressive!

                        Comment


                        • #13

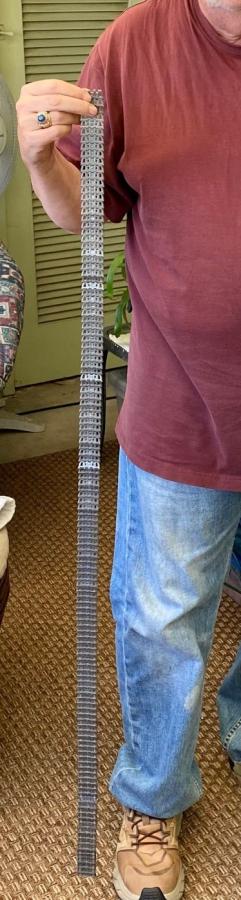

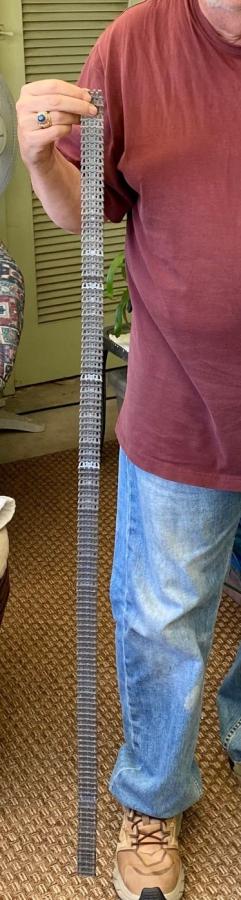

                          Click image for larger version

Name:	IMG_1972.jpg
Views:	381
Size:	47.2 KB
ID:	331558
                          Brit WW1 Mk IV, Renault FT-17, M3 Lee, M4 Sherman, M26 Pershing, M41 Bulldog, M1A2 Abrams, T-34, T-35, KV-1E, Zik-20, PzKpfw 1A, PzKpfw 1B, PzKpfw II L, PzKpfw III, Sturmgeschutz III, PzKpfw IV, Sturmgeschutz IV, King Tiger, Panther G,

                          Comment


                          • #14
                            Damn that's a huge run of tracks

                            Comment


                            • #15

                              Comment


                              • #16
                                That thing is not going to turn worth a darn lol. Impressive work so far Bob.

                                Comment


                                • #17
                                  Originally posted by RichJohnson View Post
                                  That thing is not going to turn worth a darn lol. Impressive work so far Bob.
                                  Comrade, a true hero of the people drives straight at the enemy, and has no need of turning.

                                  Comment


                                  • #18
                                    I salute Comrade Gringotuertovavich! However, sometimes the victory parades must go around curves. Here's proof it can.

                                    https://youtu.be/vThGIUpJ-zA

                                    By no means done, return rollers absent, some axles not secured. Just enough progress to test whether it can run.
                                    Brit WW1 Mk IV, Renault FT-17, M3 Lee, M4 Sherman, M26 Pershing, M41 Bulldog, M1A2 Abrams, T-34, T-35, KV-1E, Zik-20, PzKpfw 1A, PzKpfw 1B, PzKpfw II L, PzKpfw III, Sturmgeschutz III, PzKpfw IV, Sturmgeschutz IV, King Tiger, Panther G,

                                    Comment


                                    • #19
                                      Drove the chassis around on some outdoor carpet and some dirt. It worked quite adequately, very pleased.

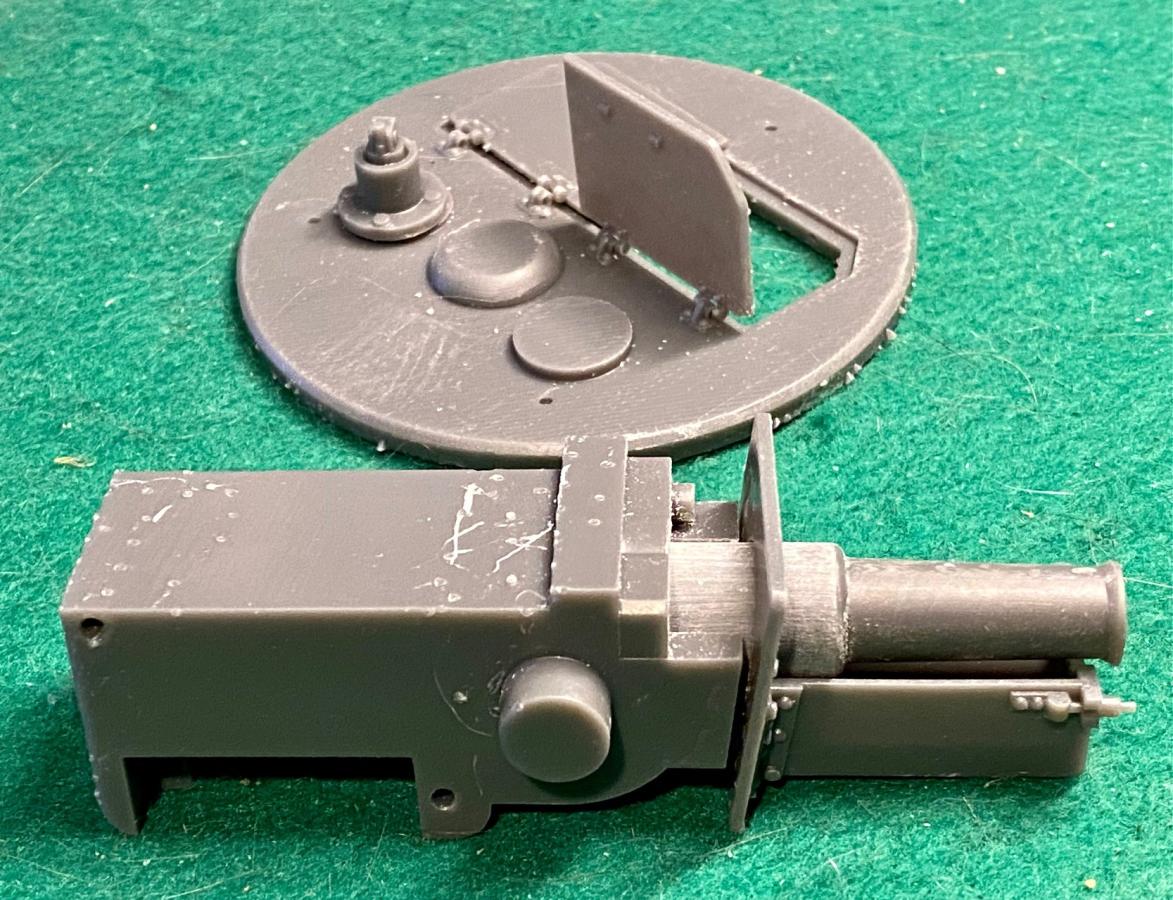

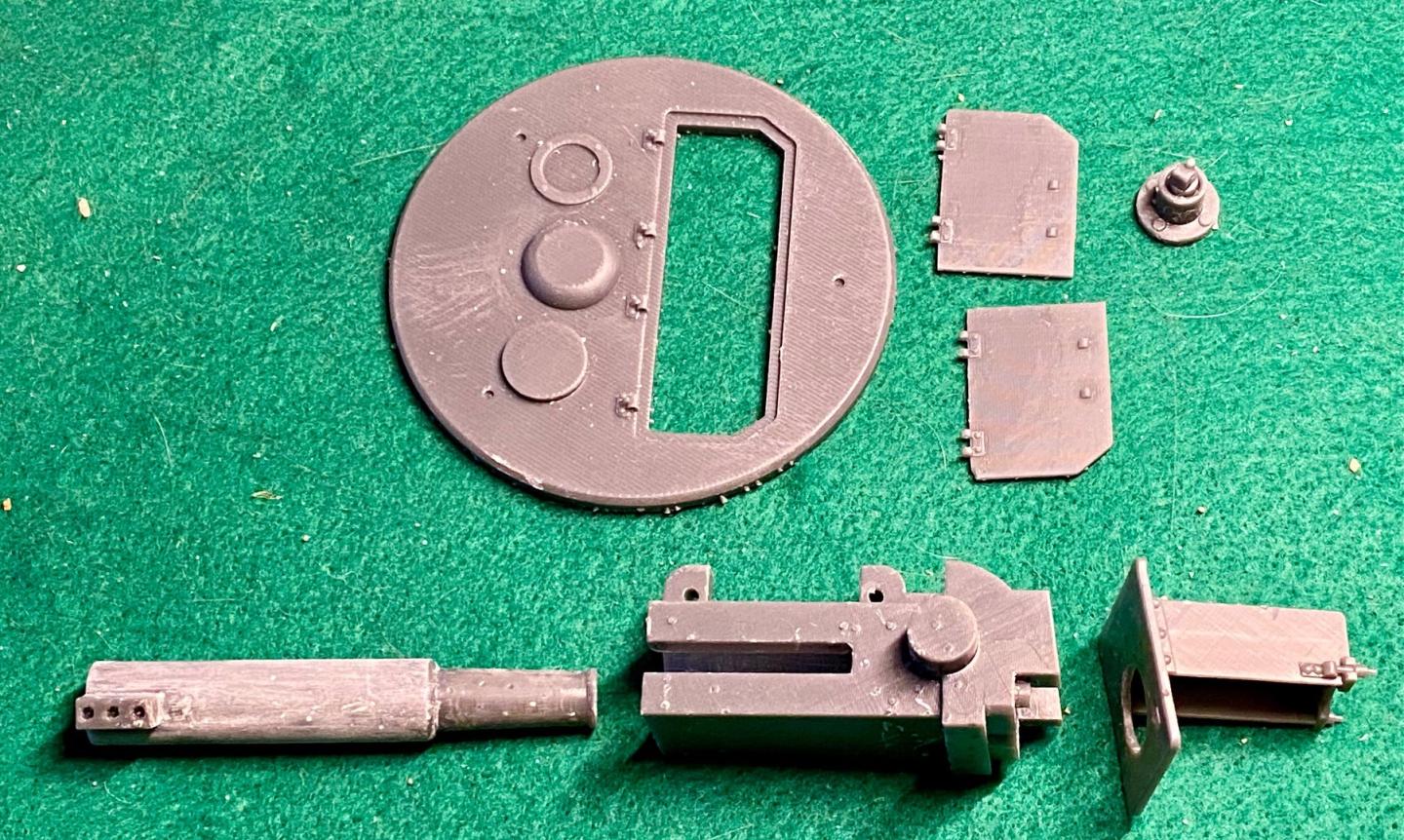

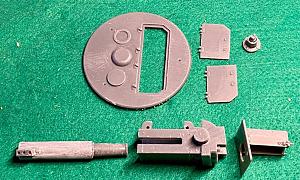

                                      Here's two tiny teasers of parts; not polished or painted yet: Three parts of the main gun, and the lid and hatches of a secondary turret.

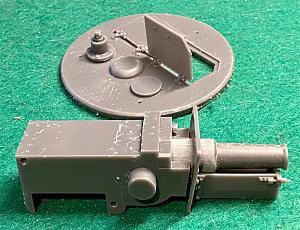

                                      Click image for larger version  Name:	T-35 17.jpg Views:	0 Size:	293.8 KB ID:	332847Click image for larger version  Name:	T-35 18.jpg Views:	0 Size:	190.6 KB ID:	332848
                                      Brit WW1 Mk IV, Renault FT-17, M3 Lee, M4 Sherman, M26 Pershing, M41 Bulldog, M1A2 Abrams, T-34, T-35, KV-1E, Zik-20, PzKpfw 1A, PzKpfw 1B, PzKpfw II L, PzKpfw III, Sturmgeschutz III, PzKpfw IV, Sturmgeschutz IV, King Tiger, Panther G,

                                      Comment


                                      • #20

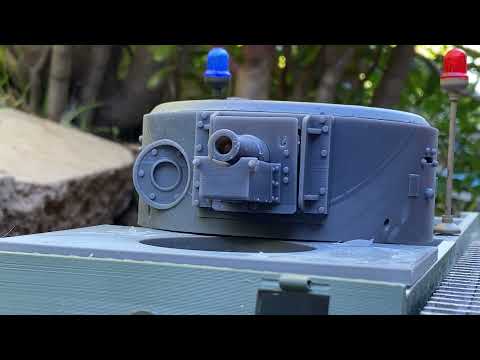

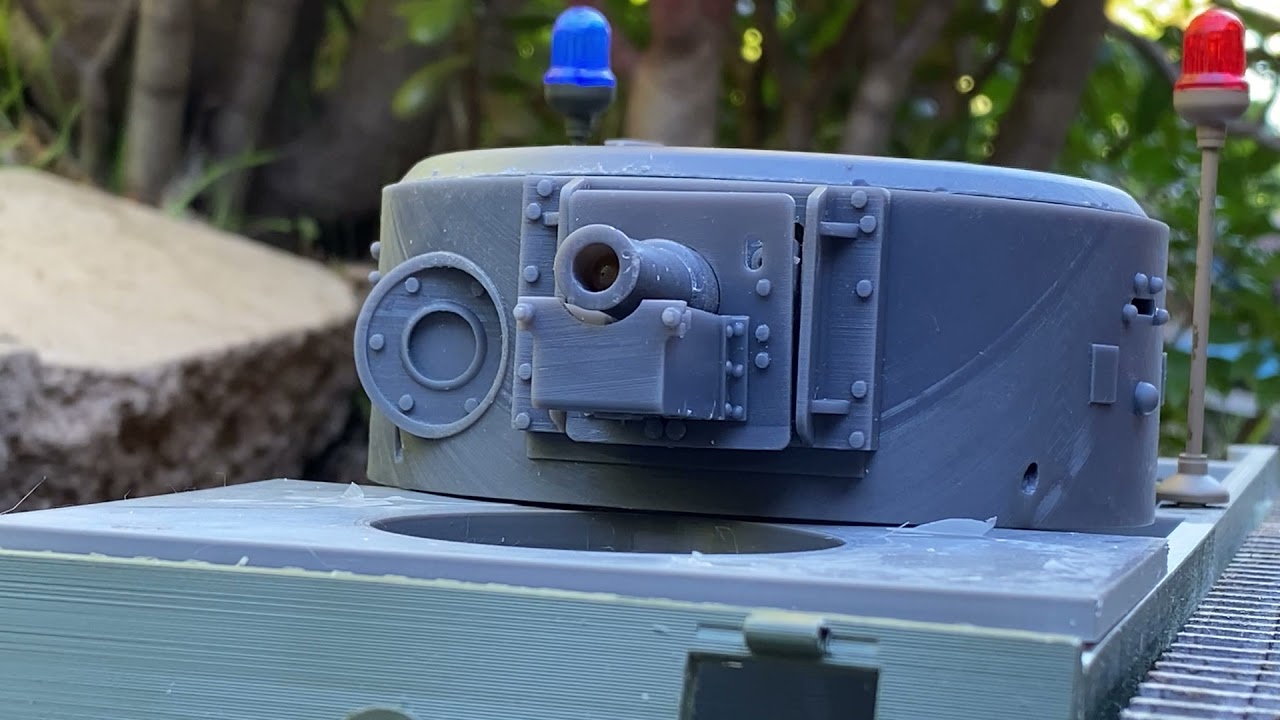

                                        Project update: received the turret shell yesterday. I added a muzzle flash LED, which I sprayed with transparent orange to shift the color from the bluish white. There were mounts in the turret for servos, so I activated the servo operated barrel recoil and gun elevation. I'm using a Heng Long 6.1S board for this.



                                        Oh, the lights are to tell me if the tank is turned on when I've muted the engine sound on the workbench.
                                        Brit WW1 Mk IV, Renault FT-17, M3 Lee, M4 Sherman, M26 Pershing, M41 Bulldog, M1A2 Abrams, T-34, T-35, KV-1E, Zik-20, PzKpfw 1A, PzKpfw 1B, PzKpfw II L, PzKpfw III, Sturmgeschutz III, PzKpfw IV, Sturmgeschutz IV, King Tiger, Panther G,

                                        Comment
