F9F-8 Cougar Super Scale 80mm EDF with Gyro from Freewing - PNP & ARF+ -
The Grumman F9F/F-9 Cougar is a carrier-based fighter aircraft for the United States Navy and United States Marine Corps. Based on Grumman's earlier F9F Panther, the Cougar replaced the Panther's straight wing with a more modern swept wing. Thrust was also increased with the installation of a newer, more powerful engine.
The Grumman F9F/F-9 Cougar is a carrier-based fighter aircraft for the United States Navy and United States Marine Corps. Based on Grumman's earlier F9F Panther, the Cougar replaced the Panther's straight wing with a more modern swept wing. Thrust was also increased with the installation of a newer, more powerful engine.

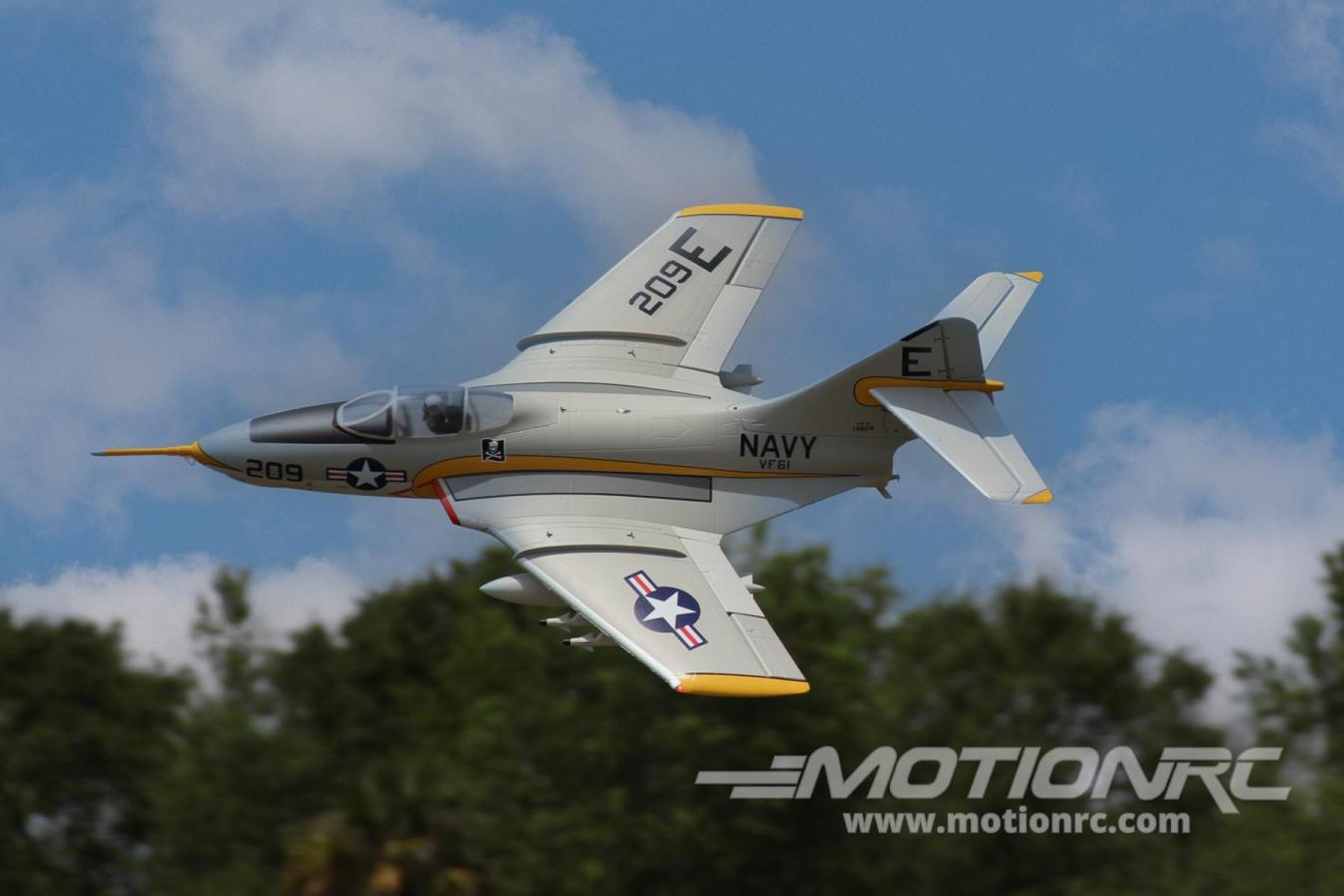

The Freewing F9F-8 Cougar is a next-gen 80mm EDF jet loaded with amenities and details normally reserved for 90mm class jets. This PNP version of the Cougar includes an E52 gyro, ultra-scale CNC landing gear, quick disconnect wings, thrust-reversing ESC, newly designed 12B EDF, scale LED light package, and a new powerful inrunner motor all coming together for a terrific new generation 80mm EDF jet brought to you by Freewing and Motion RC.
Visit the Official Freewing F9F-8 Cougar Super Scale 80mm EDF with E52 Gyro Product Page here: https://www.motionrc.com/products/fr...o-pnp-fj22011p  |
Quick-Install/Release Wings The Freewing F9F Cougar PNP includes a screwless quick-release wing design that makes field assembly quick and easy. |
 |
Super-Scale CNC-machined Landing Gear The Freewing F9F Cougar comes with the most scale CNC-machined gear ever produced in the 80mm class, accentuating the scale details you will find throughout the model. |
 |
Powerful Performer With the 3658-2150Kv 80mm inrunner motor the F9F Cougar has the power and performance to take you to the type of heights you desire in a new gen EDF jet. |
 |
E52 Gyro Pre-Installed (PNP Only) For the PNP version, an E52 gyro is pre-installed for your convenience. Tackle the skies with the added insuarance a quality gyro can offer you. |
 |
6 LED Lights with Controller The Cougar comes pre-installed with 6 scale LED lights with controller so you can configure your lighting the way you prefer. |
 |
Newly Designed 12-Blade A newly designed 12-Blade EDF was developed for efficiency, improving performance with the smooth jet whine you've come to enjoy in modern EDF jets. |
- NEW! E52 gyro included in the PNP version
- NEW! Quick-Install/Release wings make assembly at the field quick and easy
- NEW! New, super-scale CNC-machined and painted landing gear (First 80mm jet with ultra scale landing gear)
- NEW! 90mm detail level in an 80mm jet - Highly scale details are included on this 80mm jet that are normally reserved for 90mm jets
- NEW! A more powerful 3658-2150Kv 80mm inrunner motor
- NEW! A newly designed 12-Blade EDF for better thrust, sound, and efficiency
- Fully enclosed servo operated landing gear doors
- 10 metal gear servos (the most of any 80mm jet)
- 6 scale LED lights with LED light controller
- 100A Thrust reversing ESC with 7A BEC
- Freewing F9F-8 Cougar Super Scale 80mm EDF with Gyro - PNP
- Servos, motor, ESC pre-installed
- 7 Channel radio - select a minimum 7 channel radio from our Radio Collection
- 7 Channel receiver - select a minimum 7 channel receiver from our Receiver Collection
- 6 Cell 22.2V 4000 - 6000 mAh LiPo Battery with EC5 connector - we recommend the Admiral Carbon 5100mAh 6S 22.2V 70C LiPo Battery with EC5 Connector
- Minimum 6 Cell battery charger - select a minimum 6 Cell battery charger from our Battery Collection
AGE LEVEL :14 and up
SKILL LEVEL :intermediate
BUILD TIME :1 Hour
| Scale | 1/10 |
| Wingspan | 1050mm / 41.3in |
| Length | 1436mm / 56.5in |
| Flying Weight | ~2420g / 85.3oz |
| CG (Center of Gravity) | 106mm from the leading edge of the wing's root |
| Power System | 3658-2150Kv Brushless Inrunner Motor |
| Electronic Speed Control | 100A ESC with EC5 Connector |
| Propeller / EDF | 80mm EDF with 12-Blade Fan |
| Servos |
|
| Landing Gear | Super-scale CNC-machined and painted landing gear |
| Required Battery | 6S 22.2V 4000-6000mAh LiPo with EC5 Connector |
| Required Radio | 7+ Channel |
| Ailerons | Yes |
| Elevator | Yes |
| Rudder | Yes |
| Flaps | Yes |
| Lights | Yes |
| Hinge Type | Nylon |
| Material | EPO Foam |
| Skill Level | Intermediate |
| Build Time | 1 Hour |
| Recommended Environment | Outdoors |
I have moved on into the 120mm EDF jets now so this will be another one I pass on, but it does look very nice and scale and seems to have great performance, a lot of guys have been asking for this one for sure and its finally here, looks great and the sound is really good to. Good job Freewing but can you start designing some 120mm size EDF's next.....
I presume that the 100A Thrust reversing ESC with 7A BEC can be used on any 80mm-90mm EDF?
