  • CS-TK26 main Board

    Found something interesting on FB. Toucan posted this as a new main board for r/c tanks. Zipper, is this the one you are working with? I was interested in the listing of sounds, number 7 specifically.

    7 sound effects: Leopard2 A6, Tiger II, Tiger I, Abrams M1A2, Walker Bulldog, StugIII, Panzer VIII, Maus.​

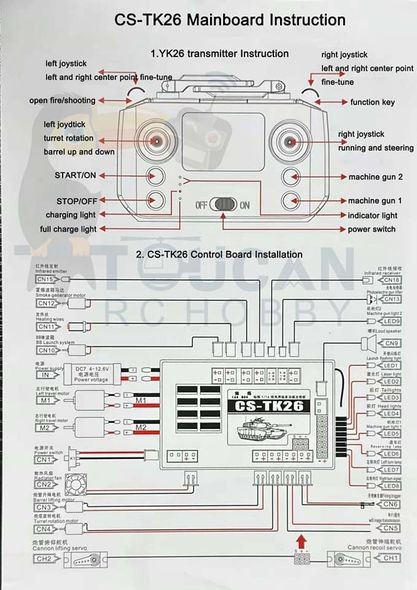

    Click image for larger version

Name:	323221140_714889476667103_1941551221799045683_n.jpg
Views:	373
Size:	77.2 KB
ID:	366188

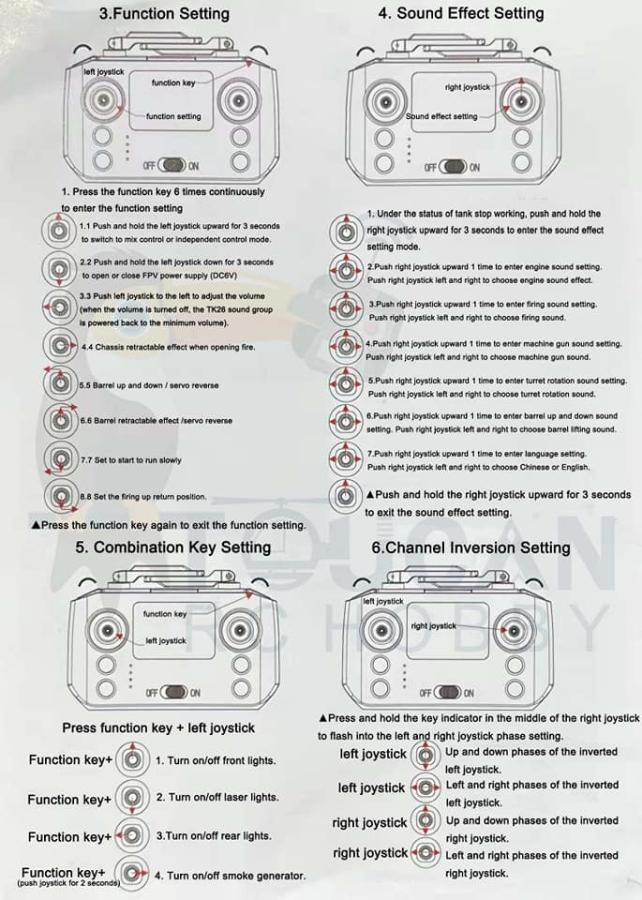

    Click image for larger version

Name:	324245124_5582069565235479_1579589320638928629_n.jpg
Views:	338
Size:	103.1 KB
ID:	366189
    Twenty six tanks, and not done yet!

  • #2
    Bob,

    The main differences I can see here from the other Canshuo 6.1 is that the CS (Canshuo) TK-26 has a built in ESC section where the CS 6.1 ESC is a separate module. The other differences would be the 6.1 has only 4 sounds and this says 7. It also seems that the TK-26 gives you the ability to change individual sounds like the turret turning, elevation, mg sounds, etc. Everything else pretty much looks the same except the new transmitter.

    Comment


    • #3
      My apologies, tank-me. I hadn't realized it was you who had done an extensive checkout of the other board. I have an email in to Toucan to see if they sell this setup.

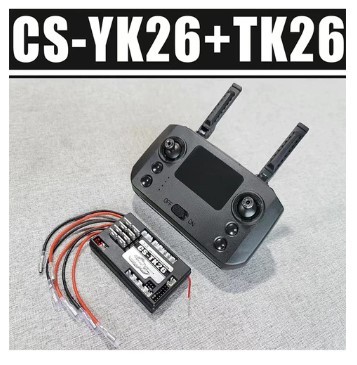

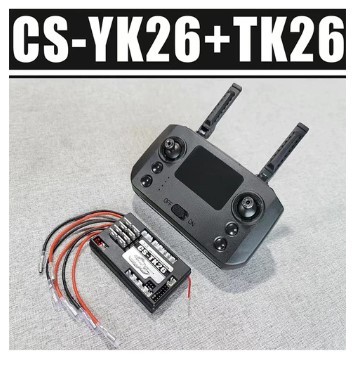

      Click image for larger version

Name:	Screenshot 2023-01-07 135836.jpg
Views:	271
Size:	42.2 KB
ID:	366209
      Twenty six tanks, and not done yet!

      Comment


      • #4
        Originally posted by SoCalBobS View Post
        Found something interesting on FB. Toucan posted this as a new main board for r/c tanks. Zipper, is this the one you are working with? I was interested in the listing of sounds, number 7 specifically.

        7 sound effects: Leopard2 A6, Tiger II, Tiger I, Abrams M1A2, Walker Bulldog, StugIII, Panzer VIII, Maus.​

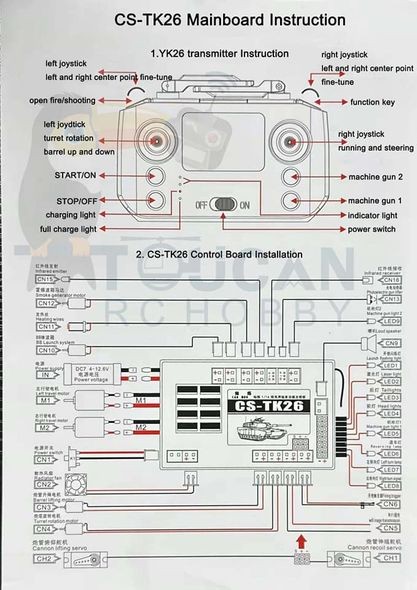

        Click image for larger version

Name:	323221140_714889476667103_1941551221799045683_n.jpg
Views:	373
Size:	77.2 KB
ID:	366188
        Click image for larger version

Name:	324245124_5582069565235479_1579589320638928629_n.jpg
Views:	338
Size:	103.1 KB
ID:	366189
        Bob I wonder if the “Walker bulldog” sound effect is what we are hearing in the recent TD M60 YouTube video of the 7.0 being used by TD.

        Knowing HL they would not have likely done a custom sound effect for a low production run order.

        Comment


        • #5
          Yeah, I noticed that I hadn’t heard that effect before.
          Twenty six tanks, and not done yet!

          Comment


          • #6
            Originally posted by SoCalBobS View Post
            My apologies, tank-me. I hadn't realized it was you who had done an extensive checkout of the other board. I have an email in to Toucan to see if they sell this setup.

            Click image for larger version

Name:	Screenshot 2023-01-07 135836.jpg
Views:	271
Size:	42.2 KB
ID:	366209
            No worries. I do like that the controller uses the now standard 18650 2S battery pack instead of AA batteries.

            Comment


            • #7
              Bob, let us know what you find out...I'm interested for sure.

              I have inquired to my Toucan source as well....Chinese New Year runs fron the 19th to the 29th according to my source, so we shall see

              Comment


              • #8
                They're available on AliExpress for about $80 including shipping, and the boards for $20ish, but let's see if Toucan can beat that..
                Twenty six tanks, and not done yet!

                Comment


                • #9
                  YK 26 controler use 1s/800 mA.

                  Comment


                  • #10
                    Guess I didn't see the 14500 on it. Still it's nice not to run on AAs regardless.

                    Comment


                    • #11
                      Bought it....we shall see...

                      https://www.ebay.com/itm/325480112479

                      $11 more than on Aliexpress, but at least it will ship speedpack....

                      https://www.ebay.com/itm/22532216258...Cclp%3A2047675


                      https://www.ebay.com/itm/32548011334...Cclp%3A2047675

                      Port CN13 "Photoelectric Gun Lifter" ??? Hmmm...

                      Comment


                      • #12
                        Originally posted by tank_me View Post

                        No worries. I do like that the controller uses the now standard 18650 2S battery pack instead of AA batteries.
                        I much prefer AA batteries over rechargeable batteries, especially if it a lipo

                        Do you think it will alow stick swapping so you can drive on the left and use turret function on the right? That would be nice. I came from model warships and thats how we set up radios, most of us. So I drive on the left. I can play with henglong tanks but my driving is slow and not intuitive and I have a very uncoordinated time trying to battle a henglong radio tank. So I have never used them. Thats really the reason I spend big money on after market boards to use my DX8 so that I can drive the way I can. Now that that the HL boards offer servo elevation and recoil they are almost there to replace the expensive boards, though hit counting for class in IR battle would be nice to add in there as well.

                        Comment


                        • #13
                          Ken; Toucan quoted $85 including shipping to me, so you didn't spend much more. The change in price was due to the exchange rate. Oh well. It'll be fun to experiment with. One thing to compare might be the smoothness of the driving control. I'm also going to see if range is any better. That's not a big deal, but would be a nice plus. We'll see!

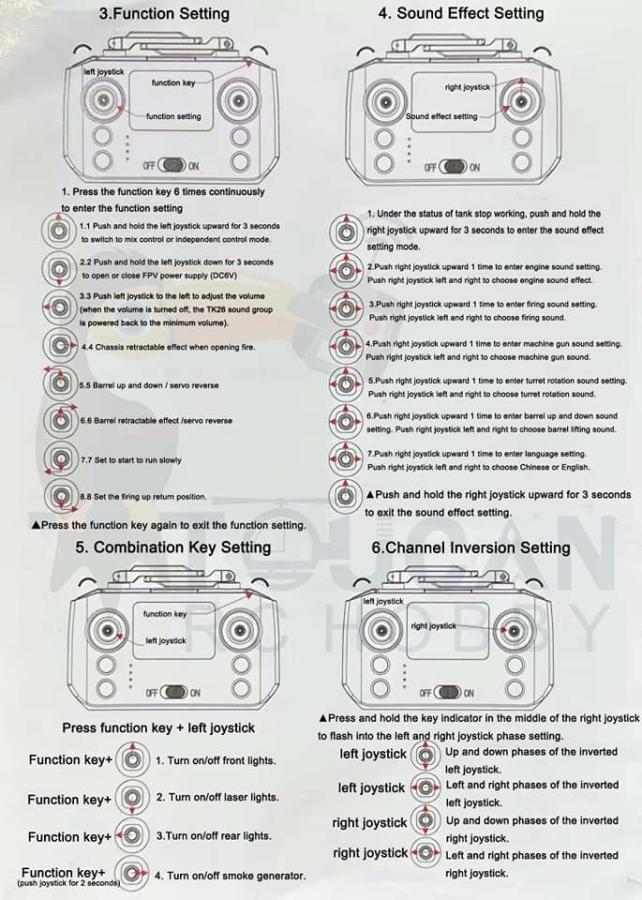

                          Rich; take a look at the function settings on the second sheet. Apparently there are control options, not sure if it includes a mode swap. You may have to find a higher resolution jpeg online to read it.
                          Twenty six tanks, and not done yet!

                          Comment


                          • #14
                            Yeah that looked to me like it was stick inversion like up becomes down left becomes right, Not stick swapping but when you guys get them try it and let me know.

                            Comment


                            • #15
                              Rich, I have an 6.0 HL MFU that does something different, is this what you're looking for? It's controlled by "hold button G down and move left stick down". Not all my MFU's do the following. When selected:

                              Mode A

                              RS up/down controls forward/backward movement.
                              RS left/right turns the tank.

                              LS up/down controls gun elevation.
                              LS left/right turns the turret.

                              Mode B

                              LS up/down controls forward/backward movement.
                              LS left/right turns the turret.

                              RS up/down controls gun elevation.
                              RS left/right turns the tank.

                              If this is what you're looking for, you're welcome to the MFU.
                              Twenty six tanks, and not done yet!

                              Comment


                              • #16
                                Originally posted by SoCalBobS View Post
                                Rich, I have an 6.0 HL MFU that does something different, is this what you're looking for? It's controlled by "hold button G down and move left stick down". Not all my MFU's do the following. When selected:

                                Mode A

                                LS up/down controls forward/backward movement.
                                LS left/right turns the tank.

                                RS up/down controls gun elevation.
                                RS left/right turns the turret.

                                Mode B

                                LS up/down controls forward/backward movement.
                                LS left/right turns the turret.

                                RS up/down controls gun elevation.
                                RS left/right turns the tank.

                                If this is what you're looking for, you're welcome to the MFU.
                                That is the Tamiya mode. Rich wants the same as a stock HL but with left stick doing what the right does and right doing what the left does.

                                Comment


                                • #17
                                  Ah. Oh, and oops, I got the HL mode sticks mixed up. I changed it on my post. I just took a spare controller apart. The gimbals are soldered to the board, no way to reroute any wires. Dang.
                                  Twenty six tanks, and not done yet!

                                  Comment


                                  • #18
                                    I already took one all apart to see if I could rewire the sticks lol.
                                    Yeah the new HLs will let you switch to tamiya mode where forward is left sick and turn i right stick. Then the turret is split between both sticks. Its wonky. I know one person that set all his tamiyas up like this. Try driving one of them and your all over the place because the tank wont do what your brain wants it to. I only drove his once that was enough.

                                    As I say, I drive on the left, fight on the right.

                                    Comment


                                    • #19
                                      Turn the CS controller upside down and invert the needed stick directions! Just kidding....
                                      Twenty six tanks, and not done yet!

                                      Comment


                                      • #20
                                        Originally posted by RichJohnson View Post
                                        As I say, I drive on the left, fight on the right.
                                        That's the way I prefer it also and set all my Clarks and TCBs up this way.
