3d Printed Part Sets - Freewing 90mm F-22 Raptor

[Con Papaioannou]

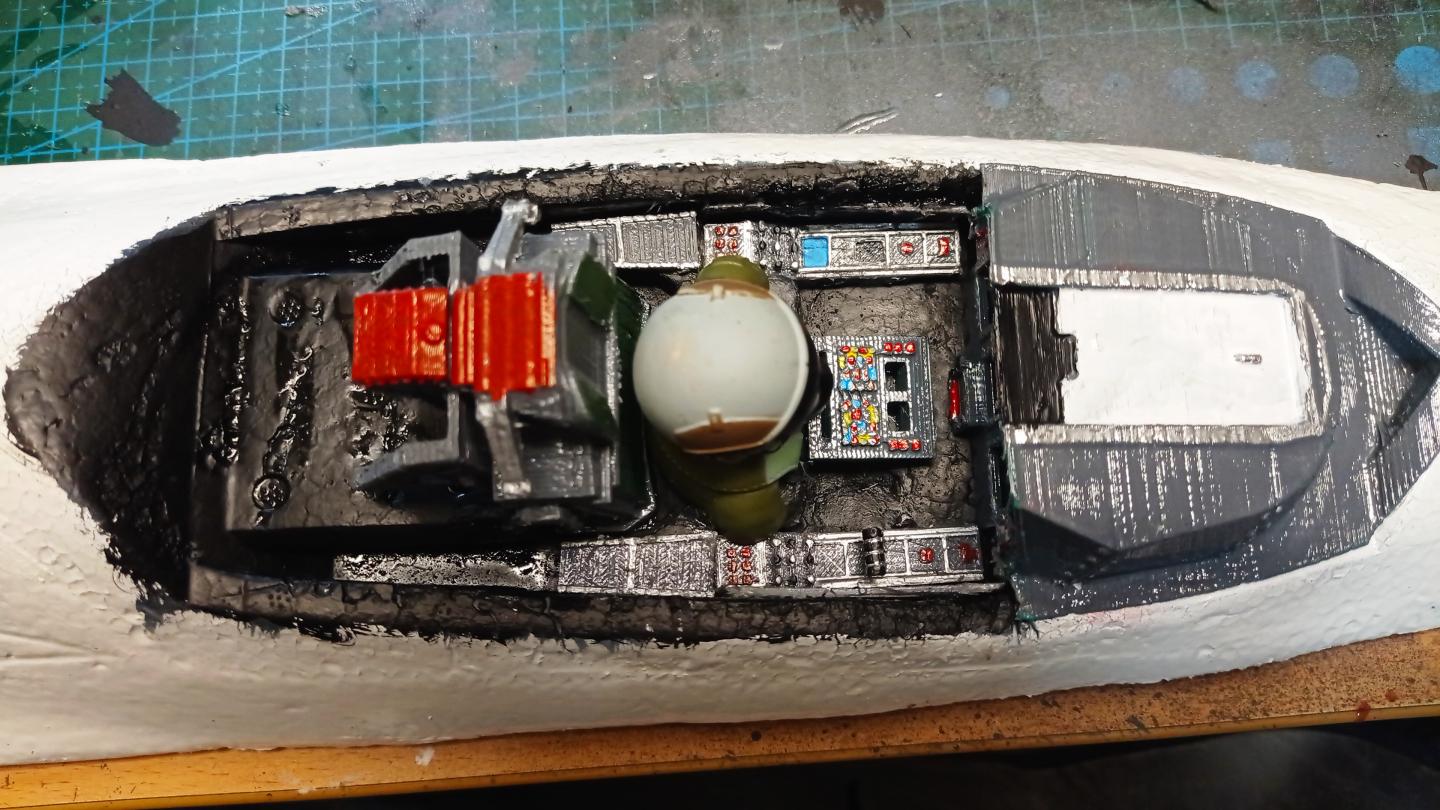

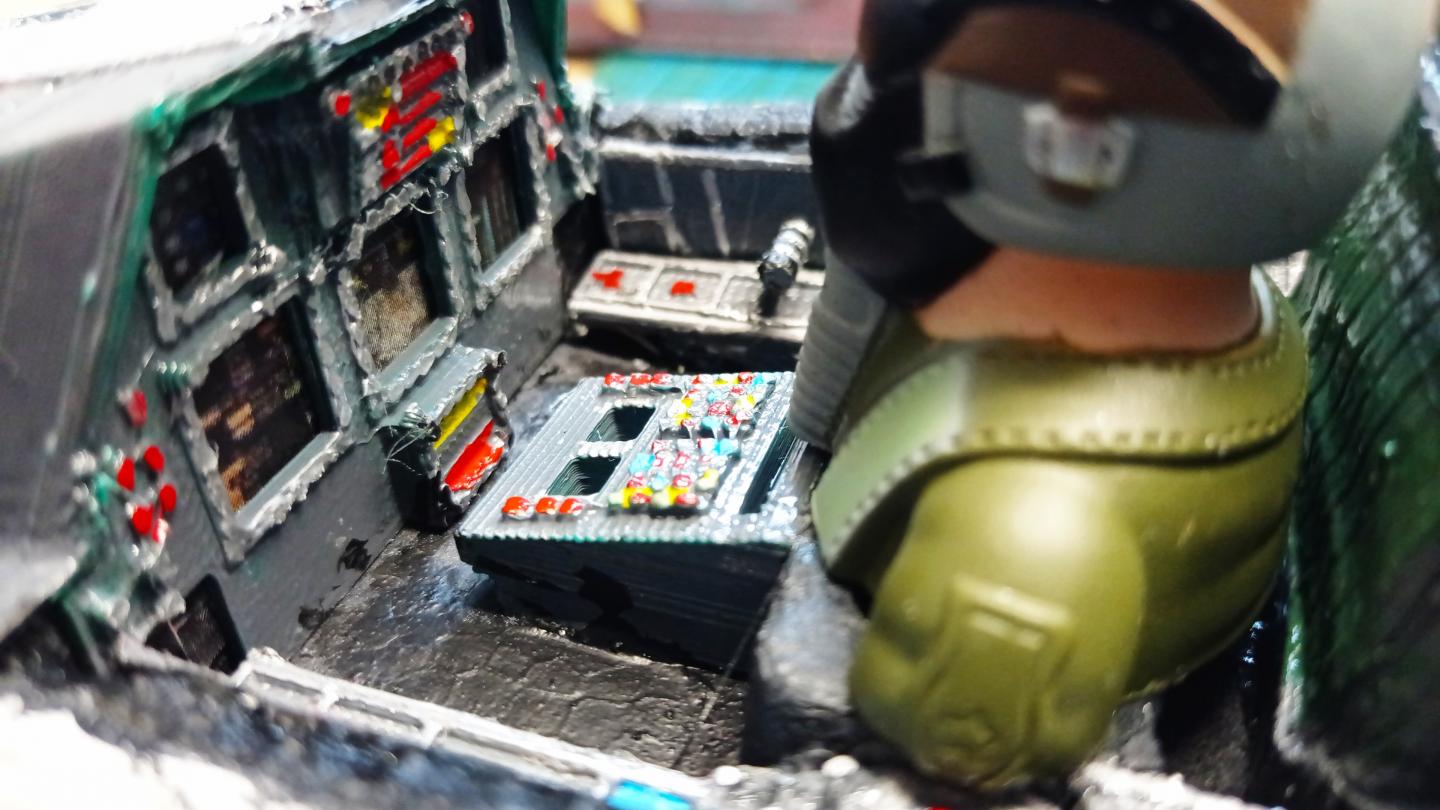

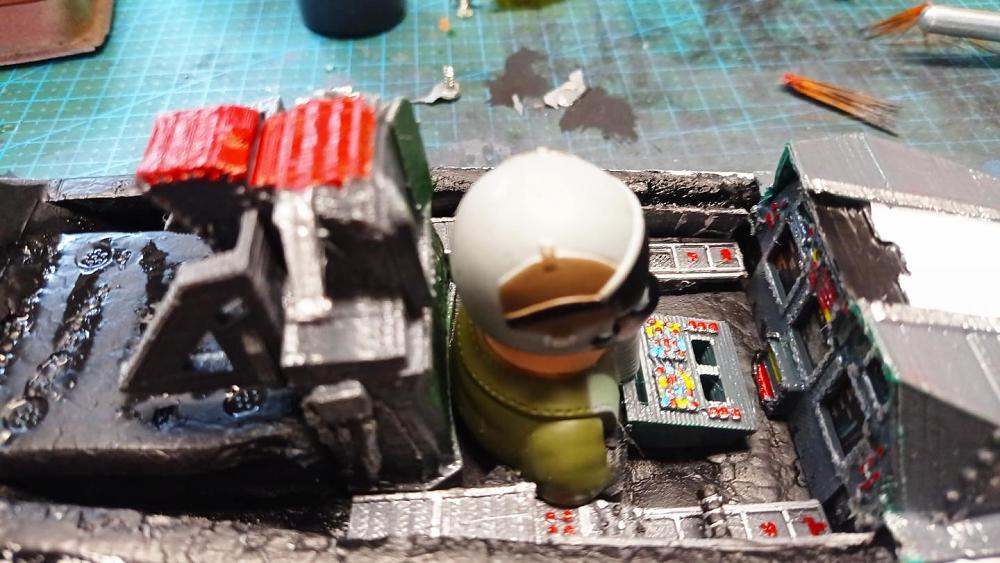

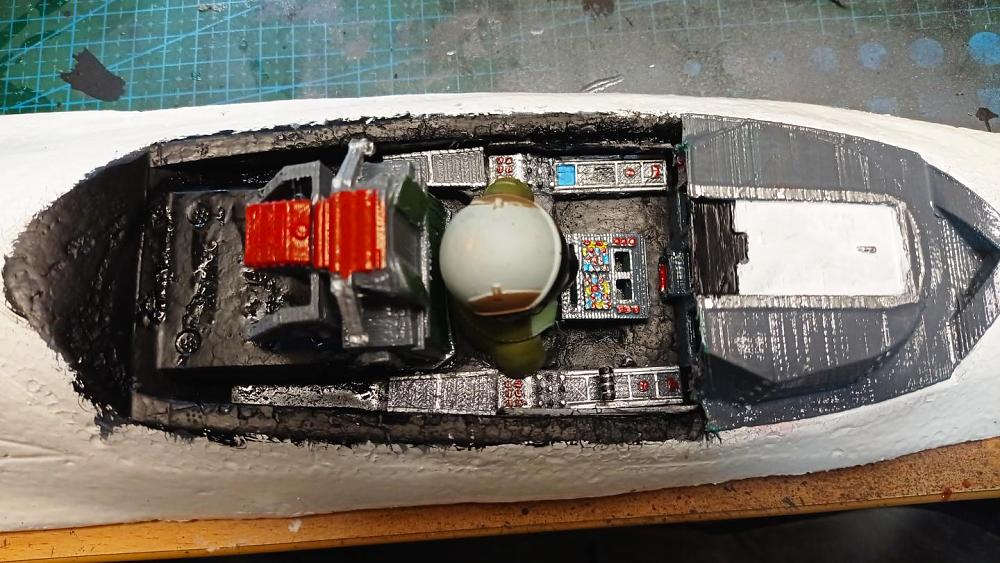

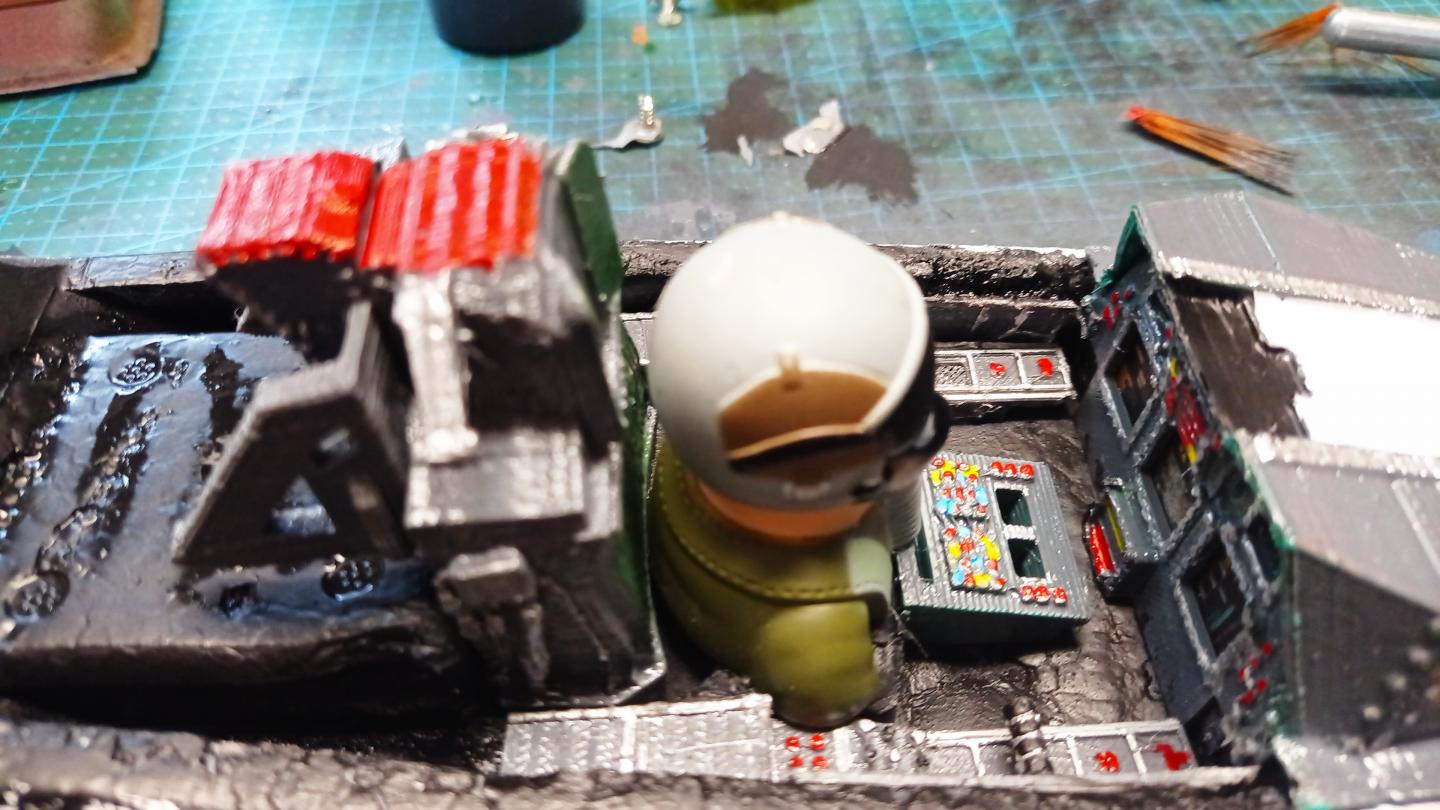

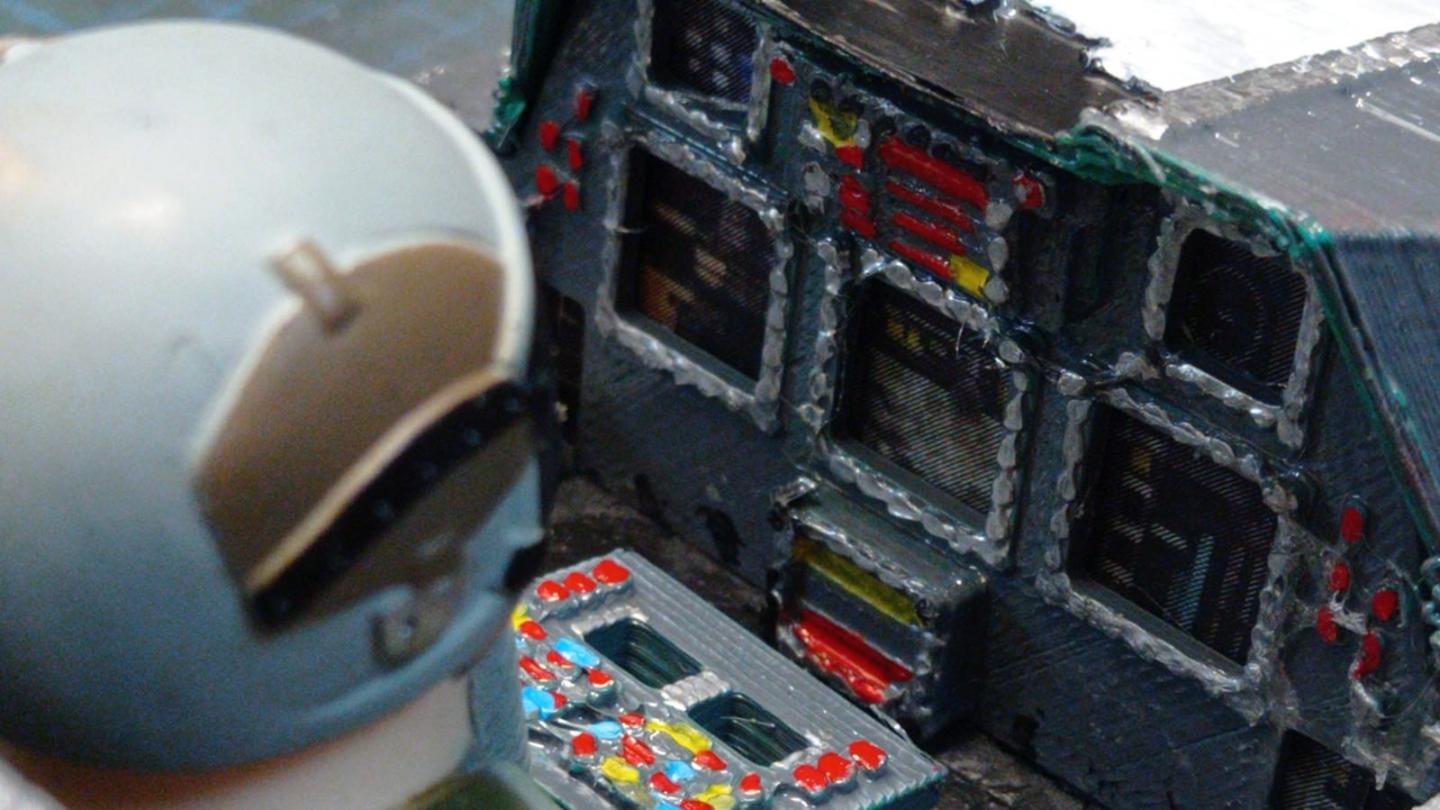

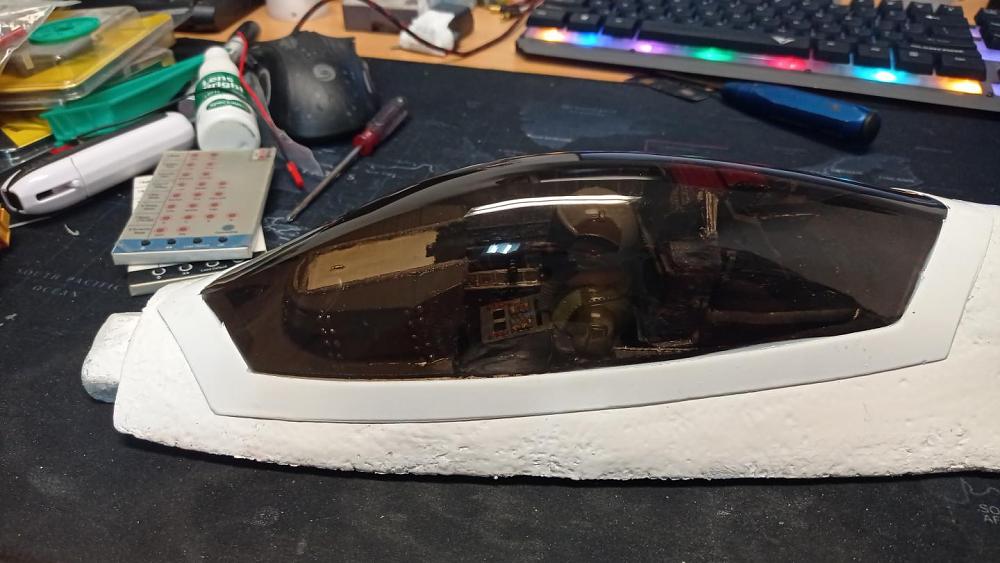

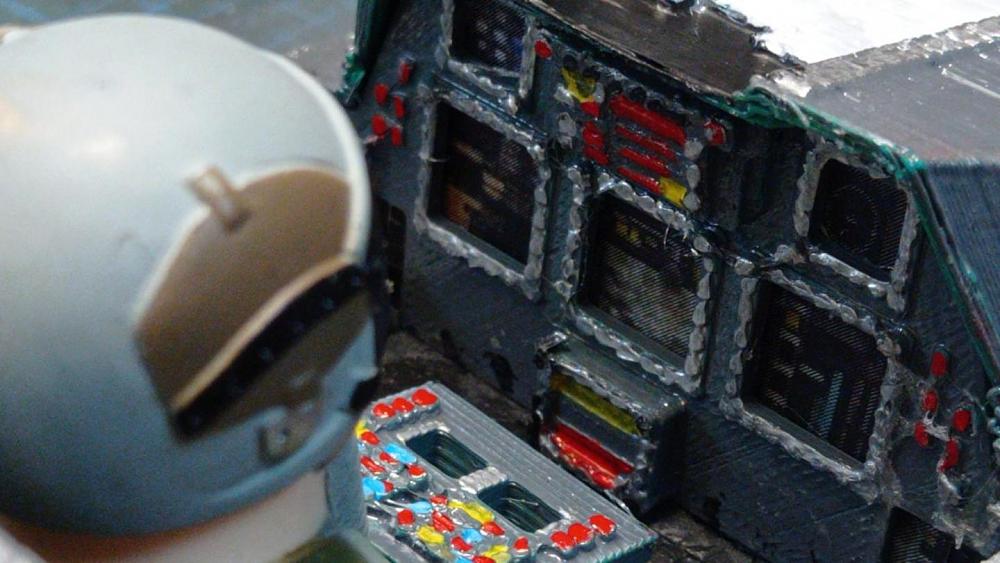

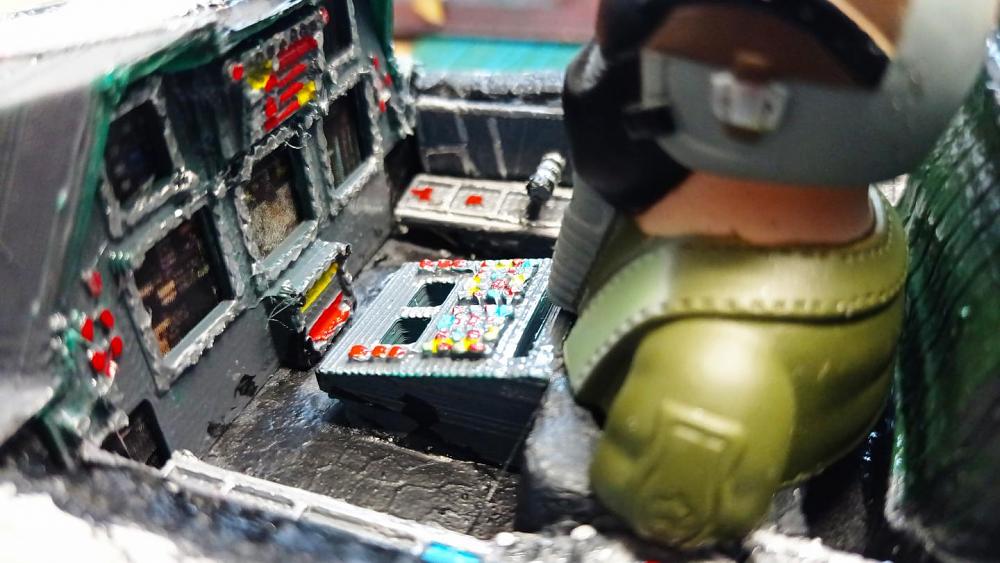

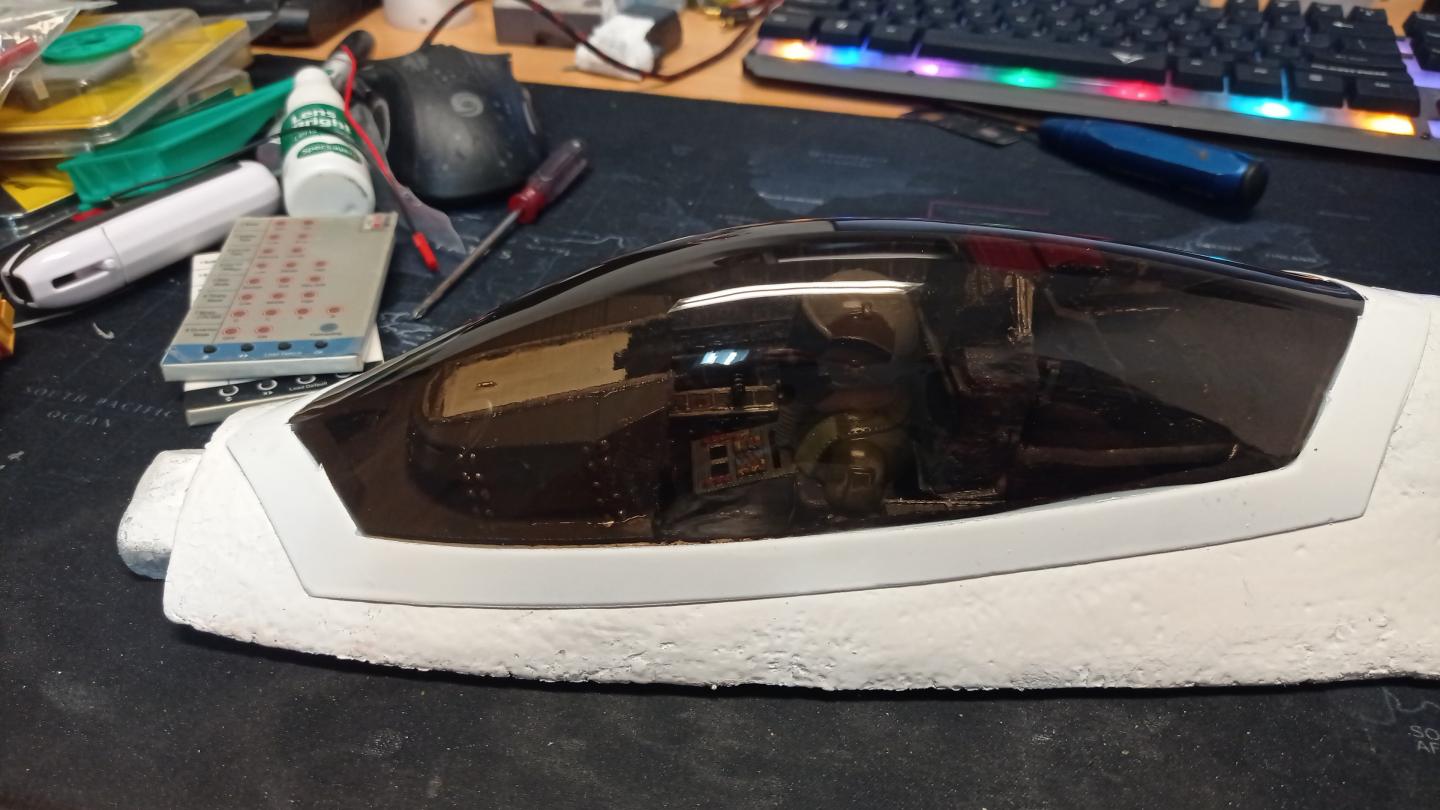

3D cockpit parts.




Freewing 90mm F-22 3D parts cockpit

[Jasony]

I cannot seem to locate the stl for the weapons bay, launcer, and rocket. did they get moved?

[Elbee]

I cannot seem to locate the stl for the weapons bay, launcer, and rocket. did they get moved?

Jasony, Motion RC took down all the 'freebie' add-on files from their website,
However, you might find the OEM STL files on page 1 Post #2 of this Official F-22 Thread. Best, LB

[kallend]

Jasony, Motion RC took down all the 'freebie' add-on files from their website,
However, you might find the OEM STL files on page 1 Post #2 of this Official F-22 Thread. Best, LB

I didn't see them there, but a quick search on Thingiverse found this.

https://www.thingiverse.com/thing:3931450

[HarmLess]

Here is an ESC cover (designed for the 6s 130A unit).

Hi Radar Guy, would love to install your cover, where can I find the STL?
Edit: Stupid me, it was there, just didnt click on the right thing...

[mr.frankenjet]

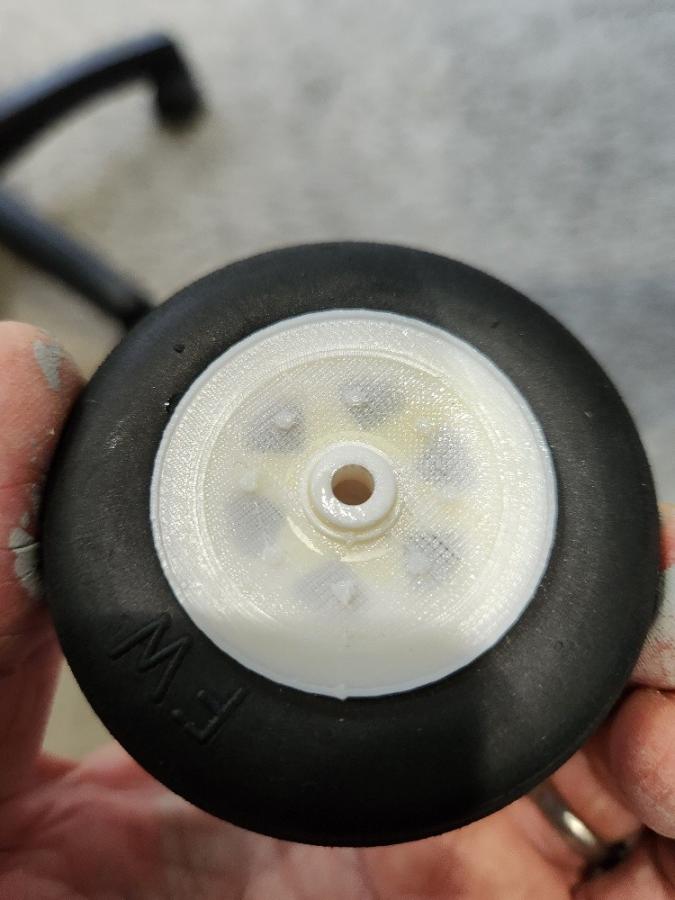

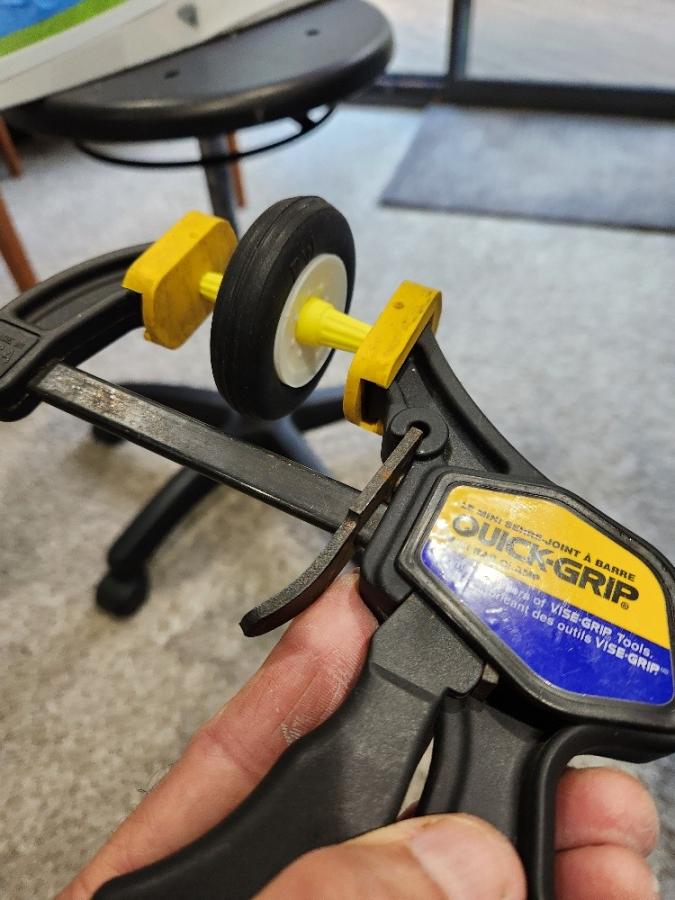

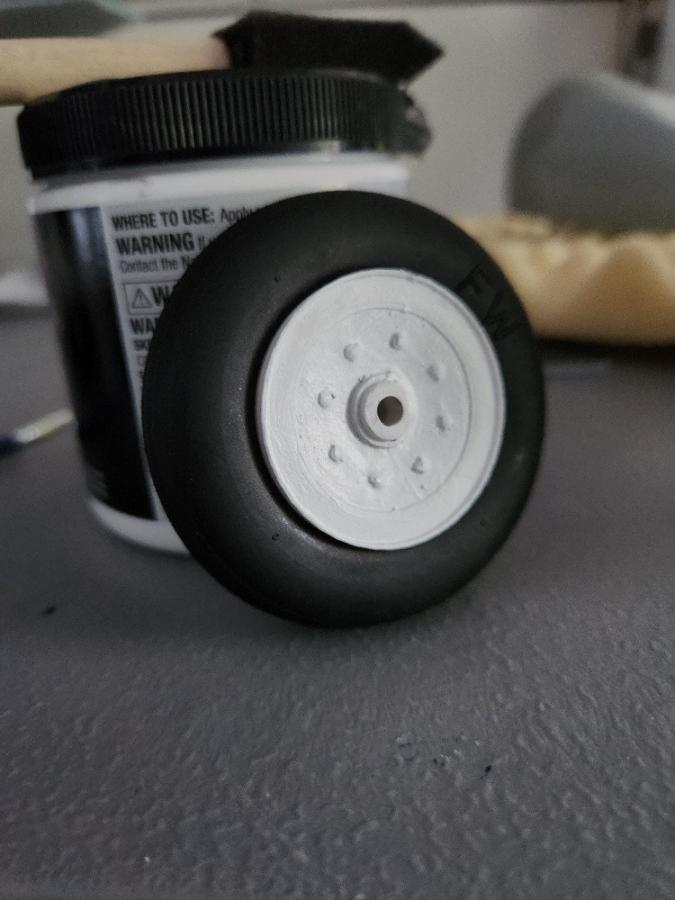

front wheel hub, really thin, print w raft base and leave it on, compress a bit and epoxy to fit concave taper

[Elbee]

mr.frankenjet, Very clever, Sir. Best, LB

[mr.frankenjet]

mr.frankenjet, Very clever, Sir. Best, LB

Thanks Elbee, much appreciated !
Does anyone have the complete cockpit set files, likely they are out there but I don't know where (story of my life )

[Elbee]

Does anyone have the complete cockpit set files, likely they are out there but I don't know where (story of......

https://www.hobbysquawk.com/forum/rc-airplanes/rc-jets/161174-3d-printed-part-sets-freewing-90mm-f-22-raptor

FJ, page 1 of this thread. .

No worries, most guys have forgotten that's where all the STL files were originally posted, on or near the opening pages.

And you can call me LB, but whatever you do, don't forget to call me for dinner.....

Best, LB

[mr.frankenjet]

https://www.hobbysquawk.com/forum/rc-airplanes/rc-jets/161174-3d-printed-part-sets-freewing-90mm-f-22-raptor

FJ, page 1 of this thread. .

No worries, most guys have forgotten that's where all the STL files were originally posted, on or near the opening pages.

And you can call me LB, but whatever you do, don't forget to call me for dinner.....

Best, LB

THANKS !!

[mr.frankenjet]

my daughter 3d modeled a symmetrical base for a complete sidewinder missile

[kallend]

my daughter 3d modeled a symmetrical base for a complete AMRAM missile

Looks like a Sidewinder.

[mr.frankenjet]

ahh, my mistake, TKS

[RCGeekMark]

Tutorial 5: AIM9 Launcher Display Set

This set is intended as a STATIC DISPLAY ONLY. Comprised of six parts, this Set uses two magnets to attach to the side of the fuselage. An AIM-9X head is also in the works if you want to depict the F-22's recent HOBS capability.



What you'll need:
The six STL files attached below
4pcs Freewing magnets 26mm x 4mm x 2mm (This is the common magnet used in all Freewing ordnance, pylons, and most battery hatches) or similar
2pcs Freewing screws M1.75x5mm or similar

Steps:
1) Print the STL files
2) Paint and detail the parts as desired
3) Attach the two door halves with the two screws
4) Glue the missile parts together with hot glue
5) Glue the missile to the launcher with hot glue
6) Glue that assembly to the main assembly with hot glue
7) Glue the magnets in with hot glue. There are four holes available, but only the upper two are needed.
8) Mark and score the magnet positions in the fuselage.
9) Remove the required foam and glue in the magnets. Be sure to double-check the polarity before gluing!

Check your references such as these online photos for color and detailing ideas:

STL AIM9 Launcher Display Set

What are the six STL file names?

[mr.frankenjet]

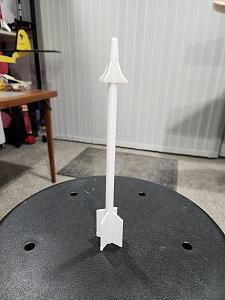

this is the symmetrical aim9 base

[mr.frankenjet]

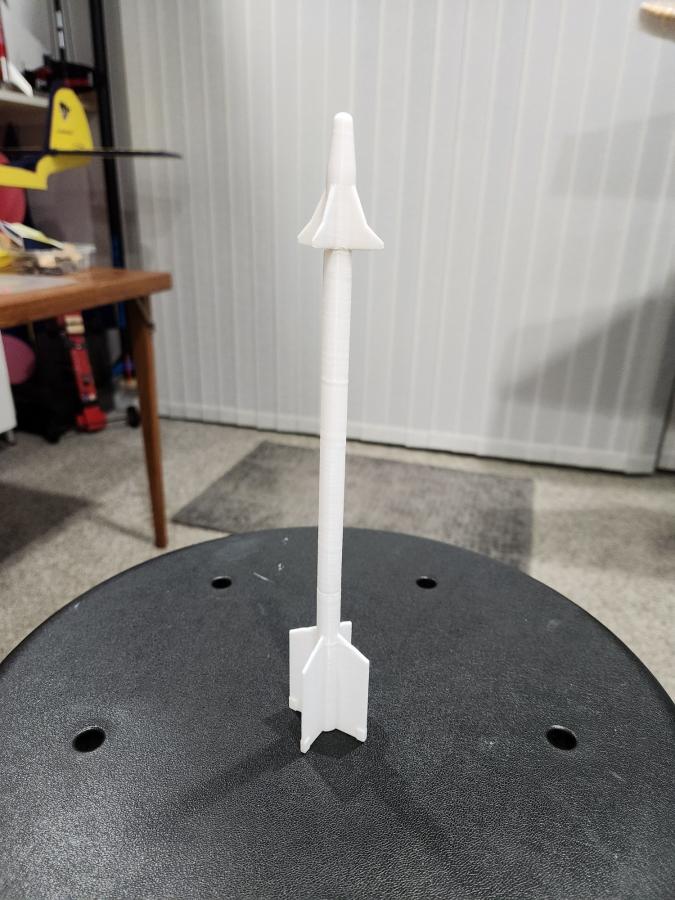

tip, tube and base with the cut off

[mr.frankenjet]

these are the files I have for the launcher and rail but I have not printed them

[Chillibadger]

Has anyone used these on the 70mm version and if so what is the scale/sizing? Ta

[F22-Builder]

Hey there,
great work here!

I've just ordered my F-22 90mm and can't wait to get it 😁
Will try to ramp up her scale level quite a lot in nearly every area 🤣
So let's see what we can achieve 😎

Ben

[Fast N Light]

Hey there,
great work here!

I've just ordered my F-22 90mm and can't wait to get it 😁
Will try to ramp up her scale level quite a lot in nearly every area 🤣
So let's see what we can achieve 😎

Ben

Dual beam landing light for 90mm Scale Wheels for 90mm and 80mm all here
