  • Hugh Wiedman
    replied
    Originally posted by CorsairPilot17
    Thank you Hugh.

    I had Callie create the gauges (Graphics) on a clear background from the set that she currently makes, specifically for doing this. I built a back plate and sides from balsa for the dashboard. The sides are 1/4 inch between the dashboard and the backing plate. I have 3 hole drilled into the balsa for the LEDs. I also filled the in between space with a "poly fill" like is used when making stuffed animals. By putting the "poly fill" in between the LEDs and and the dashboard it reduces and eliminates the "hot spots" that the LEDs normally produce. The "poly fill" acts like a defuser to spread the light over a broader area. Since the LEDs don't get hot there is no fear of burning. I soldered the LEDs to the wiring and put connectors on the ends that fix right into the connectors on the blue Motion RC Blue colored E1712 controller, which the Corsair comes with.
    Very ingenious. I assumed you used Callie's gauges, as did I on my Corsair cockpit, but having her print them on a clear background was the step I would have never thought of, yet seems so simple. Thanks for "clearing" that up and illuminating my curiosity, pun intended!

    Leave a comment:


  • CorsairPilot17
    replied
    Thank you Hugh.

    I had Callie create the gauges (Graphics) on a clear background from the set that she currently makes, specifically for doing this. I built a back plate and sides from balsa for the dashboard. The sides are 1/4 inch between the dashboard and the backing plate. I have 3 hole drilled into the balsa for the LEDs. I also filled the in between space with a "poly fill" like is used when making stuffed animals. By putting the "poly fill" in between the LEDs and and the dashboard it reduces and eliminates the "hot spots" that the LEDs normally produce. The "poly fill" acts like a defuser to spread the light over a broader area. Since the LEDs don't get hot there is no fear of burning. I soldered the LEDs to the wiring and put connectors on the ends that fix right into the connectors on the blue Motion RC Blue colored E1712 controller, which the Corsair comes with.
    Attached Files

    Leave a comment:


  • Hugh Wiedman
    replied
    Originally posted by CorsairPilot17
    This is Corsair_Smitty from You Tube. Here is the finished cockpit for my Flightline Corsair. It features a lighted dashboard. The entire cockpit is from the Motion RC 3D printer files that are available on the Flightline Corsair page. The dashboard also features the gun site and reflective glass. The dashboard is lighted up by 3, 5mm white LEDs. I had started with the Red LEDs, however they were not bright enough to light everything up and would have required a total of 5 LEDs. The pilot is the original one that came with the plane, just weathered a little.
    That lighted cockpit is truly spectacular! Maybe a stupid question, but where did you place the LED lights to light up the instruments, behind the panel? And if so, did you leave a space between the instrument sheet and the dials? Also looks like you filled in the dials with some clear urethane or something to simulate glass? Anyway, however you did it it's certainly unique! Bravo!

    BTW, you should post these photos in the "Official 1600mm Corsair" thread as well, it will likely go viral!

    Leave a comment:


  • CorsairPilot17
    replied
    This is Corsair_Smitty from You Tube. Here is the finished cockpit for my Flightline Corsair. It features a lighted dashboard. The entire cockpit is from the Motion RC 3D printer files that are available on the Flightline Corsair page. The dashboard also features the gun site and reflective glass. The dashboard is lighted up by 3, 5mm white LEDs. I had started with the Red LEDs, however they were not bright enough to light everything up and would have required a total of 5 LEDs. The pilot is the original one that came with the plane, just weathered a little.
    Attached Files

    Leave a comment:


  • Airguardian
    replied
    Some of my coolest F-18 footage to date (courtesy of some fantastic clouds that decided to drop in as background!) :)



    Yeah, I know... the music, copyright, etc... I will post the raw version along the week! ;)

    Leave a comment:


  • Justwingit
    replied
    Here's Chris "The RC Geek" Wolfe flying his QF-4B target drone "The Great Pumpkin" out at Rabbit Dry Lake a while back...😎:


    These were modified from F-4 Phantoms and used as target drones to test SAMs at various ranges throughout the US. This model (which started out as a stock Freewing F-4 Phantom II) pays homage to those F-4 Phantoms that ultimately ended their careers being shot down - by their OWN country...

    Enjoy the show 😁!

    Leave a comment:


  • Hugh Wiedman
    replied
    Originally posted by mshagg
    Thanks for shouting out the F-22 TV mod the other week James.

    (No, it's not life on Mars - it's the red dirt of South Australia)
    The F-22 in the TB scheme is awesome, wish it came that way, nice job on the repaint and TV mods. The T-28 is special as well.

    But if that's "Life on Mars", I would love to fly there! Nice open spaces with nothing to hinder any pattern (or lack there of) that you want to fly. Our runway is surrounded by high "saw" cane and everglades marsh, any mishap, unless it's right over the runway, and it's "Bye Bye Birdie"! Impossible to walk 2 feet into. When an aircraft goes down, almost impossible to find it even with a drone, and if we do, just as hard to get to it without a 4 wheel drive "Gator". So your field is "ideal" in my mind, but I guess the "Grass is always Greener on the Other Side of the Fence".

    Leave a comment:


  • mshagg
    replied
    Thanks for shouting out the F-22 TV mod the other week James. There's a minute or so of it doing its thing here.



    (No, it's not life on Mars - it's the red dirt of South Australia)

    Leave a comment:


  • T- Elbert
    replied
    Here is a flyer for our July event

    Leave a comment:


  • Elbee
    replied
    Originally posted by Dirty Dee
    Not a freewing model, but does it qualify if it uses various electronics purchased from Motion RC Likely doing the maiden memorial day weekend. 3D printed T-2A buckeye, 1/7.5 scale, 1550mm wingspan
    DD, Beautiful work, Sir. I admire your design talent and am a bit in awe of your final results. Bravo Zulu, my friend. Best as always, LB

    Leave a comment:


  • Dirty Dee
    replied
    Not a freewing model, but does it qualify if it uses various electronics purchased from Motion RC

    Likely doing the maiden memorial day weekend. 3D printed T-2A buckeye, 1/7.5 scale, 1550mm wingspan

    Leave a comment:


  • Airguardian
    replied
    The Su-35 is pure madness... :heart:



    Alpha come on, where are the twin 80mm Su-30SM or Su-57? I NEED THEM!!! :DDDDD

    Leave a comment:


  • T- Elbert
    replied
    This is a average day at the Helena Flying Tigers field. Usually 10 to 15 guys flying and this was a photo shot of just the motion products. For a small club motion is well represented.

    Leave a comment:


  • Mikkelb
    replied
    Originally posted by James
    Fantastic Mikkelb! Great sound, that turbine has (yoda voice)
    HAHA Thanks James! "A powerful jet you will become" (Palpatine voice) Its a great way to revive a jet

    Leave a comment:


  • James
    replied
    Fantastic Mikkelb! Great sound, that turbine has (yoda voice)

    Leave a comment:


  • Mikkelb
    replied
    Hey guys! Thought some of you may let a kick out of this! My friend converted my old Freewing A4 Skyhawk to turbine! I loved this craft as EDF but as a turbine it’s a love affair again. Enjoy!

    Leave a comment:


  • jerry_joseph
    replied

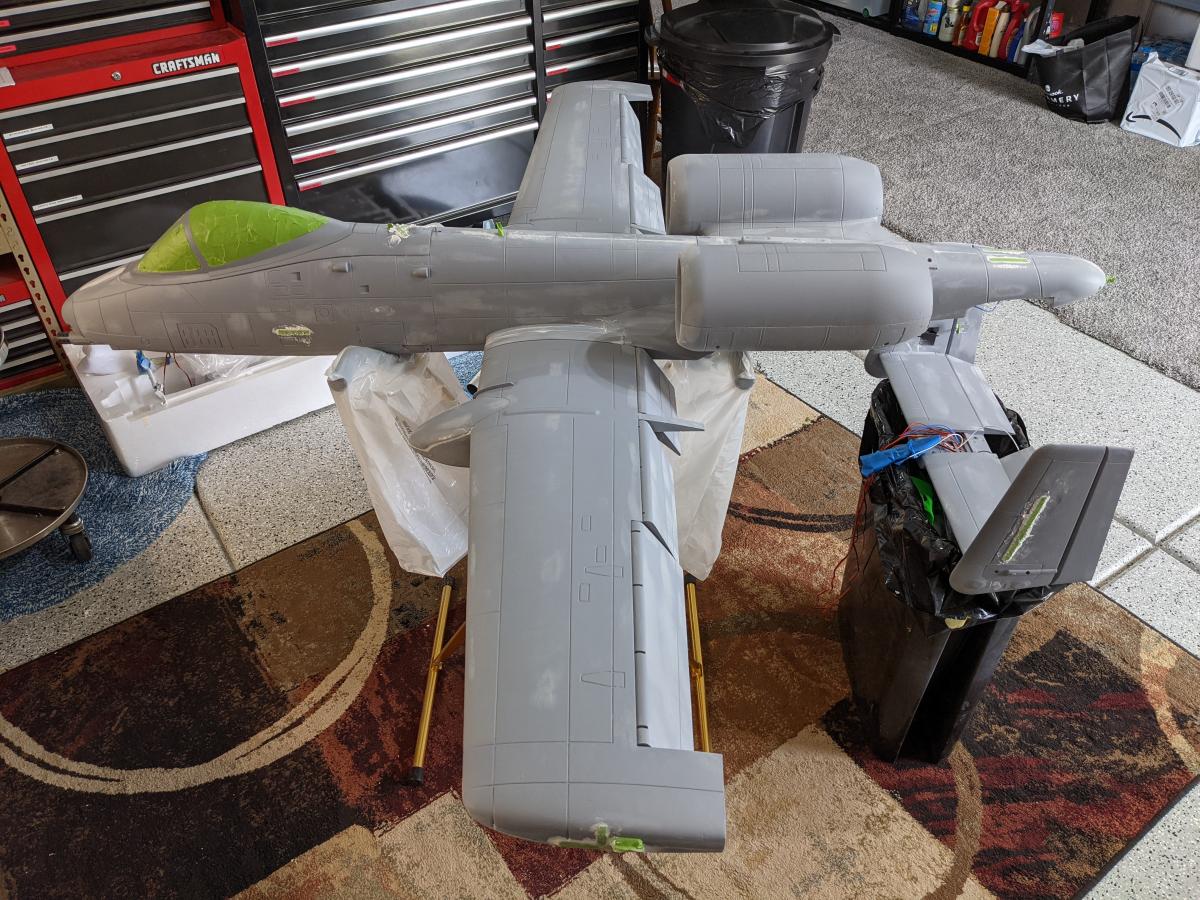

    Just finished installing Jeremy Solt's formation lights. Now to finish sanding and preparing for paint. Click image for larger version

Name:	PXL_20210515_182829025.jpg
Views:	682
Size:	218.0 KB
ID:	312801

    Leave a comment:


  • Icarus the 2nd
    replied
    Hi MRC, here's a midlife (I passed 130 flights) upgrade for my FW Mig-21.

    It has an awesome 8S setup now, the plane is totally different now, a very nimble speedster

    The Mig-21 is still my all-favorite EDF !

    Leave a comment:


  • Ashle roachclip
    replied

    Leave a comment:


  • Airguardian
    replied
    Back at it with crazy air to air shots!



    Leave a comment:
