Official Freewing F/A-18C Hornet 90mm EDF Thread

[Hajo77]

Ooops, what a major oversight! :Scared:
Here is the revised design. Btw, the rectangular plates between some of the outer bolts appear to be not standard. I've looked at some pics and there are none of these.
HUD parts are prepared as well.

@ Steve (RCjetdude): I assume you will be getting your hands on your F-18 sooner than me (ETA late June over here). Would you volunteer as tester for the hub caps?

Hi There,

Does anyone know where to get (also buy if necessary) the main wheel covers for the F/A-18?

thank you

Hajo

[xviper]

Yes, indeed. HV is the way to go now. When I need batteries, those will be the only ones I buy.

[Dougcarr73]

Looks like it flies really nice. Did you add thrust reverse?

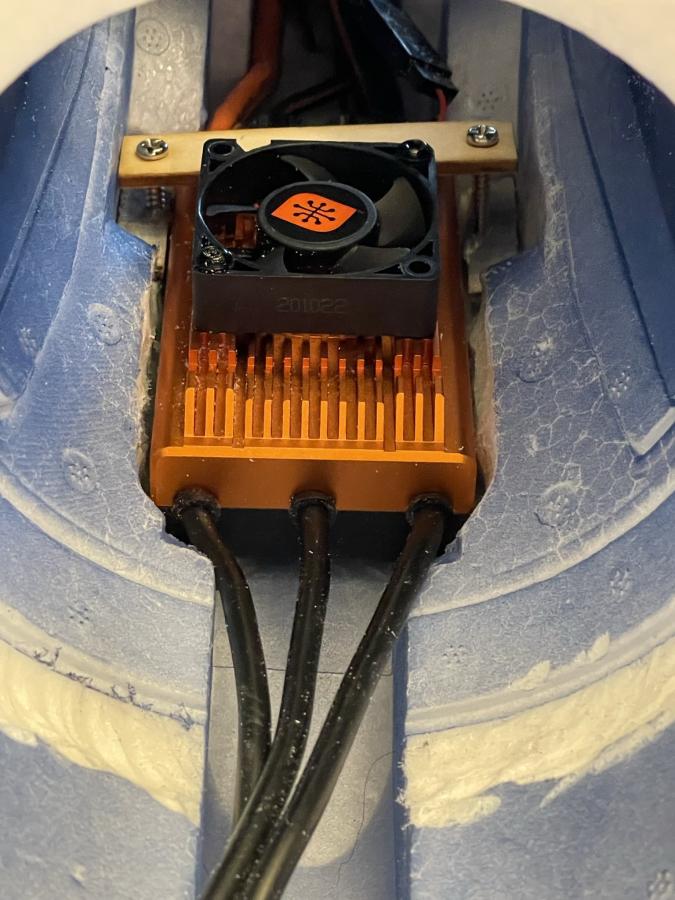

Sure did. I added the Spektrum 120a, 6-12s ESC. When combined with the AR8360T and my IX12, it enabled me to forward program reverse onto Ch 9 (Aux 4). Significantly reduced landing rollout. I had to shave out some foam to fit the larger ESC, but if I had discovered SMC batteries earlier, I likely would’ve never made this update. Pics attached.

I also flew it with two SMC 4s 6200mah LiHv batteries… AMAZING!! SMC batteries are the new GOAT in the battery industry. The 4.36v charge instead of the standard 4.20v is game changing. It’s like turning a 6s or 8s power system into a 7s or 9s setup without updating the ESC.

[xviper]

Looks like it flies really nice. Did you add thrust reverse?

[Dougcarr73]

Here’s a quick vid of my 18

https://youtu.be/k7eLWQhTtAQ

[Dougcarr73]

90mm CG and I fly on 9s (6s + 3s 5000 packs). I'm using Freewing's V2 8s motor (1350kv) with the Spektrum 120a 6-12s ESC. I think I'll get a couple LiHv (4.36v) packs from SMC and fly it on a true 8s setup. The standard 8s setup at 4.20v is better than a 6s, but it's just ok for me. The extra cell from the 9s gives me a similar flight time, with much better performance out of the 1350kv motor. Give it a shot if you're feeling crazy and wanting to push your 18 over 135mph.

[xviper]

Mine is also 8S but it got finished just as winter hit, so I've not flown it yet. I always start with the recommended CG in the book and change it after the first flight if it doesn't feel right for me.

[Evan D]

I have mine at 95mm but some go back as far as 110mm, not sure how they measure it though or wheels up or down. I measure wheels down. I have mine on 8S too. Fun plane and flies very smooth.

[dsmithwc04]

I’m going through thread trying to find where folks are putting CG. Stock is 88mm I know but how far back are folks going? Going to maiden my f18 on 8s soon

[Coolandquiet2013]

Thanks for the info might be able to get some outside shot soon

[Elbee]

finishing up my new 90mm f-18 hoping to see it on the live shows one day

CQ, great looking repaint and livery, Sir.

If you want a shot at the live show, post your pictures to that thread: "Share Your Pictures for the LIVE SHOW" or something like that.

Also, weather permitting if your bird is completed, take some snapshots outside in a setting that enhances the airframe.

That helps get a favorable response from the powers that be.

Best and good luck, LB

[Coolandquiet2013]

finishing up my new 90mm f-18 hoping to see it on the live shows one day

[Spad Driver]

Will Do!.👍

[Elbee]

Fellow Freewing F/A-18C fans!.
The Wallsburg Warbird Works is excited to announce the acquisition of a Hornet to their growing fleet of superb Motion aircraft.
Come on big box with the blue tape!.

SD, Yeppers, this is truly a day to Celebrate... Looking forward to watching your progress. Don't forget to take pix and post those Best, LB

[Spad Driver]

Fellow Freewing F/A-18C fans!.
The Wallsburg Warbird Works is excited to announce the acquisition of a Hornet to their growing fleet of superb Motion aircraft.
Come on big box with the blue tape!.

[Elbee]

I love the results after I applied the Minwax for that Blue Angels "shine".

JD, she is a beautiful thing. Nicely done. How many coats did you apply for that "Blues Shine"? Best, LB

[Juan De La Garza]

I love the results after I applied the Minwax for that Blue Angels "shine".

[Airguardian]

OHHHHhHH F**K!!!!!!!!!!!!!!!!!!!!!!!!!!!! NOOOOOOOOOOOOOOO...... ;((. Bloody Hell that sucks J looked like one of crashes! Damage looked same as my ocean dump on fusi exactly, easy fix for you brotha!

Thanks Tube!
Haven't started yet with the process :'(

[dbirds2]

Thunder Power and Hyperion. They may have been the so called premiere LiPos 10 years ago. Today, they don't even bother to test them or they fail in tests. In fact, they started to perform miserably over 5 years ago. So called "no name" brands of LiPos have become better and better, far better than TP.
TP = toilet paper.

not on 12s 700 size rc helis throwing smack 3d down. The rampage are the best and they are one of the lightest packs out. Ive tried them all and theres a few brands I would trust on my 5k chopper. I will try some smc on my planes first cause they are cheap in price and then I will decide which has better power.

[InTheTubeDeep]

Pilots all my parts on sale at RCG Classifieds now

https://www.rcgroups.com/aircraft-el...jets-fs-w-380/
