  • Juan De La Garza
    replied
    Love the size of this model. Afterburner is on order. Can't wait for her flight. Hoping the family sees this eventually or anyone that knew Captain Jeff Kuss.
    Attached Files

    Leave a comment:


  • jetpltrich
    replied
    That is some serious sand action! Definitely FODng the EDF. Well I’m still very impressed with you flying off the beach. Awesome!

    JPR

    Leave a comment:


  • InTheTubeDeep
    replied
    Originally posted by jetpltrich

    If you have the unfortunate luck and end up in the water your electronics are done for. My most immediate concern would be the EDF/ESC. My F-18 sucked in a 1/2” diameter rock and tore up the fan, brand new 12 bladed one so I know it’s is sucking in a tremendous amount of air. I know from morning ops off my property’s grass strip the dew gets all inside the gear and intake area thus the EDF. It is the main reason why I’ve switched to flying out at the local airport where the runway is flat and no rocks and or water. My F-4 and A-10 are the only ones that don’t ingest FOD. BTW I hated FOD walk downs on the carrier.

    JPR
    Its hit or miss from my ocean crashes! My fav Su30 Alenka went in on LVC last year (was using high end SMC which has linear power output- I didnt know that at 3.51v the voltage falls off a cliff unlike the HRBs I was using which have a curved power output)- on impact the nose section with 6s Lipo broke off on impact with ocean, I didn't know this from shore- was waiting for the smoke and fire as she floated- never came a paddle boarder brought her in 20 mins later to see batt and fusi had broken off- and saved all electrics! Every electric survived, ESCs retracts servos all of em! was cuz the batt broke off and no current while submerged! https://www.youtube.com/watch?v=t9HZUH86am8 I 3D designed new nose fusi section and the saga. continues- she fell a 2nd time from LVC on a Liperior 5000- same as SMC linear power output! this time batt stayed put but no fire! I did lose 2 servos still amazing ESCs survived again! https://www.youtube.com/watch?v=4oSL7mghuQM. Amazing how some much of the electrics in this EF Su30 survived ocean water- I had the FMS 80mm F18 before this beauty FW 90mm, it fell in ocean from landing stall, NOTHING survived the ocean water, not a single servo retract servo ESC, nada- go figure! I used to fly at SEFSD which has the USA's worst AMA runway- red Martian dirt with sand pebbles and rocks! I made FOD screens for both my Su35s, screens on grey camo, doors on desert camo, this was 8 years ago - if I do it again I'll design a sweet FOD door on 3D and print them., If anyone thinks this F18 needs FOD Doors I'll be happy to make a set!!

    Su35 FOD Screens Test in FLight


    FOD Screens in action, after this flight they were linked to Gear so down with gear down up with gear up


    Su35 FOD Doors Sneak Peek


    Su35 FOD Doors in flight
    https://www.youtube.com/watch?v=CBrrAex0_Yo

    SEFSD dirt runway in action!!


    Click image for larger version  Name:	Screen Shot 2022-09-02 at 2.58.27 PM.png Views:	0 Size:	533.5 KB ID:	356063

    Click image for larger version  Name:	Screen Shot 2022-09-02 at 2.49.20 PM.png Views:	0 Size:	844.8 KB ID:	356059

    Click image for larger version  Name:	Screen Shot 2022-09-02 at 2.49.31 PM.png Views:	0 Size:	804.8 KB ID:	356058

    Click image for larger version  Name:	Screen Shot 2022-09-02 at 2.49.20 PM.png Views:	0 Size:	844.8 KB ID:	356062



    Click image for larger version  Name:	Screen Shot 2022-09-02 at 2.50.25 PM.png Views:	0 Size:	481.3 KB ID:	356057
    Attached Files

    Leave a comment:


  • jetpltrich
    replied
    Ha all true ;). I've applied CorrosionX but even CorrosionX may not save electrics in salt water, this is know for fact ;)
    If you have the unfortunate luck and end up in the water your electronics are done for. My most immediate concern would be the EDF/ESC. My F-18 sucked in a 1/2” diameter rock and tore up the fan, brand new 12 bladed one so I know it’s is sucking in a tremendous amount of air. I know from morning ops off my property’s grass strip the dew gets all inside the gear and intake area thus the EDF. It is the main reason why I’ve switched to flying out at the local airport where the runway is flat and no rocks and or water. My F-4 and A-10 are the only ones that don’t ingest FOD. BTW I hated FOD walk downs on the carrier.

    JPR

    Leave a comment:


  • InTheTubeDeep
    replied
    Originally posted by jetpltrich
    Flying off the beach, novel idea. Smooth and you can put it in the water if needed. I’d implement a corrosion control program though. Remember, you’ve only got one good turn in the F-18 and don’t go vertical to chase your opponent. 😜
    Ha all true ;). I've applied CorrosionX but even CorrosionX may not save electrics in salt water, this is know for fact ;)

    Leave a comment:


  • jetpltrich
    replied
    Flying off the beach, novel idea. Smooth and you can put it in the water if needed. I’d implement a corrosion control program though. Remember, you’ve only got one good turn in the F-18 and don’t go vertical to chase your opponent. 😜

    Leave a comment:


  • InTheTubeDeep
    replied
    Hump Day Morning Mission



    Click image for larger version

Name:	Screen Shot 2022-08-31 at 8.38.25 AM.png
Views:	756
Size:	742.1 KB
ID:	355996Click image for larger version

Name:	Screen Shot 2022-08-31 at 8.13.34 AM.png
Views:	742
Size:	864.1 KB
ID:	355994Click image for larger version

Name:	Screen Shot 2022-08-31 at 8.17.28 AM.png
Views:	738
Size:	1.08 MB
ID:	355995
    Attached Files

    Leave a comment:


  • InTheTubeDeep
    replied
    Blue Angel Soldiers on



    Leave a comment:


  • InTheTubeDeep
    replied
    Back at Marine Room

    Click image for larger version  Name:	Screen Shot 2022-08-30 at 9.14.57 AM.png Views:	0 Size:	500.9 KB ID:	355905Click image for larger version  Name:	Screen Shot 2022-08-30 at 9.15.22 AM.png Views:	0 Size:	550.4 KB ID:	355906Click image for larger version  Name:	Screen Shot 2022-08-30 at 9.14.00 AM.png Views:	0 Size:	486.0 KB ID:	355907Click image for larger version  Name:	Screen Shot 2022-08-30 at 8.38.27 AM.png Views:	0 Size:	504.7 KB ID:	355908Click image for larger version  Name:	Screen Shot 2022-08-30 at 9.13.19 AM.png Views:	0 Size:	520.7 KB ID:	355909Click image for larger version  Name:	Screen Shot 2022-08-30 at 9.13.46 AM.png Views:	0 Size:	651.9 KB ID:	355910Click image for larger version  Name:	Screen Shot 2022-08-30 at 9.12.23 AM.png Views:	0 Size:	722.6 KB ID:	355911Click image for larger version  Name:	Screen Shot 2022-08-30 at 9.12.45 AM.png Views:	0 Size:	853.8 KB ID:	355912
    Attached Files

    Leave a comment:


  • InTheTubeDeep
    replied
    Blue Angel on NorthSide Patrol

    Leave a comment:


  • InTheTubeDeep
    replied
    Click image for larger version

Name:	Screen Shot 2022-08-29 at 10.12.39 AM.png
Views:	767
Size:	349.0 KB
ID:	355850 Blue Angel Patrols NorthSide

    Click image for larger version  Name:	Screen Shot 2022-08-29 at 10.13.00 AM.png Views:	0 Size:	303.8 KB ID:	355849Click image for larger version  Name:	Screen Shot 2022-08-29 at 10.12.50 AM.png Views:	0 Size:	308.5 KB ID:	355837Click image for larger version  Name:	Screen Shot 2022-08-29 at 10.09.48 AM.png Views:	0 Size:	330.2 KB ID:	355838Click image for larger version  Name:	Screen Shot 2022-08-29 at 10.12.39 AM.png Views:	0 Size:	349.0 KB ID:	355839Click image for larger version  Name:	Screen Shot 2022-08-29 at 10.11.32 AM.png Views:	0 Size:	395.2 KB ID:	355840Click image for larger version  Name:	Screen Shot 2022-08-29 at 10.10.28 AM.png Views:	0 Size:	408.0 KB ID:	355841Click image for larger version  Name:	Screen Shot 2022-08-29 at 10.13.56 AM.png Views:	0 Size:	473.2 KB ID:	355842Click image for larger version  Name:	Screen Shot 2022-08-29 at 10.15.11 AM.png Views:	0 Size:	580.1 KB ID:	355845Click image for larger version  Name:	Screen Shot 2022-08-29 at 10.09.27 AM.png Views:	0 Size:	559.3 KB ID:	355847Click image for larger version  Name:	Screen Shot 2022-08-29 at 10.15.52 AM.png Views:	0 Size:	682.8 KB ID:	355848Click image for larger version  Name:	Screen Shot 2022-08-29 at 10.12.26 AM.png Views:	0 Size:	557.9 KB ID:	355846
    Click image for larger version  Name:	IMG_4619.jpg Views:	0 Size:	52.5 KB ID:	355827Click image for larger version  Name:	IMG_4631.jpg Views:	0 Size:	54.3 KB ID:	355828Click image for larger version  Name:	IMG_4629.jpg Views:	0 Size:	45.8 KB ID:	355829Click image for larger version  Name:	IMG_4628.jpg Views:	0 Size:	45.9 KB ID:	355830Click image for larger version  Name:	IMG_4625.jpg Views:	0 Size:	59.5 KB ID:	355832Click image for larger version  Name:	IMG_4621-1.jpg Views:	0 Size:	52.3 KB ID:	355834Click image for larger version  Name:	IMG_4635-1.jpg Views:	0 Size:	60.1 KB ID:	355835
    Attached Files

    Leave a comment:


  • InTheTubeDeep
    replied

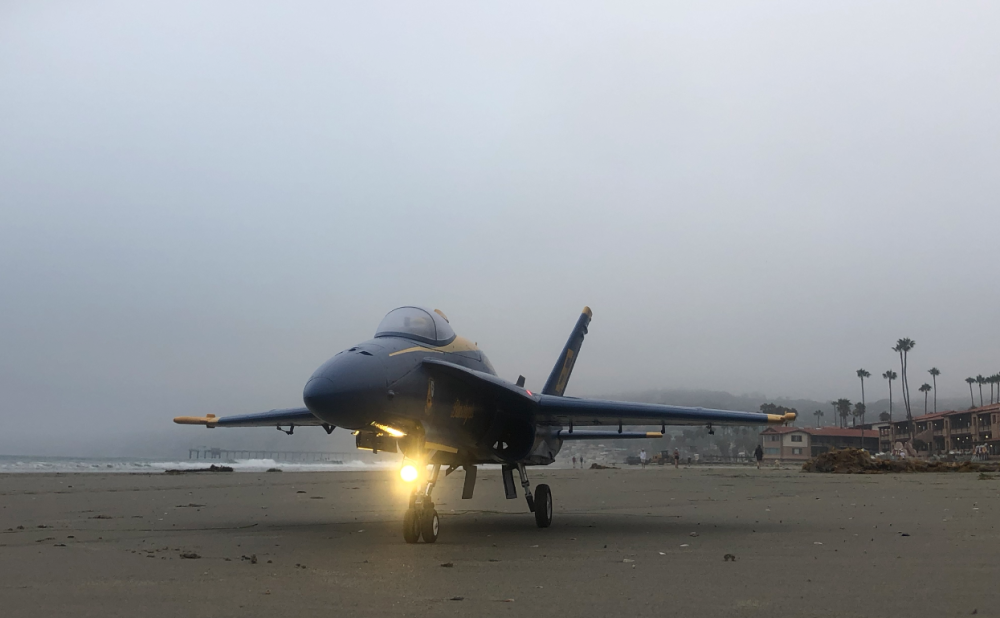

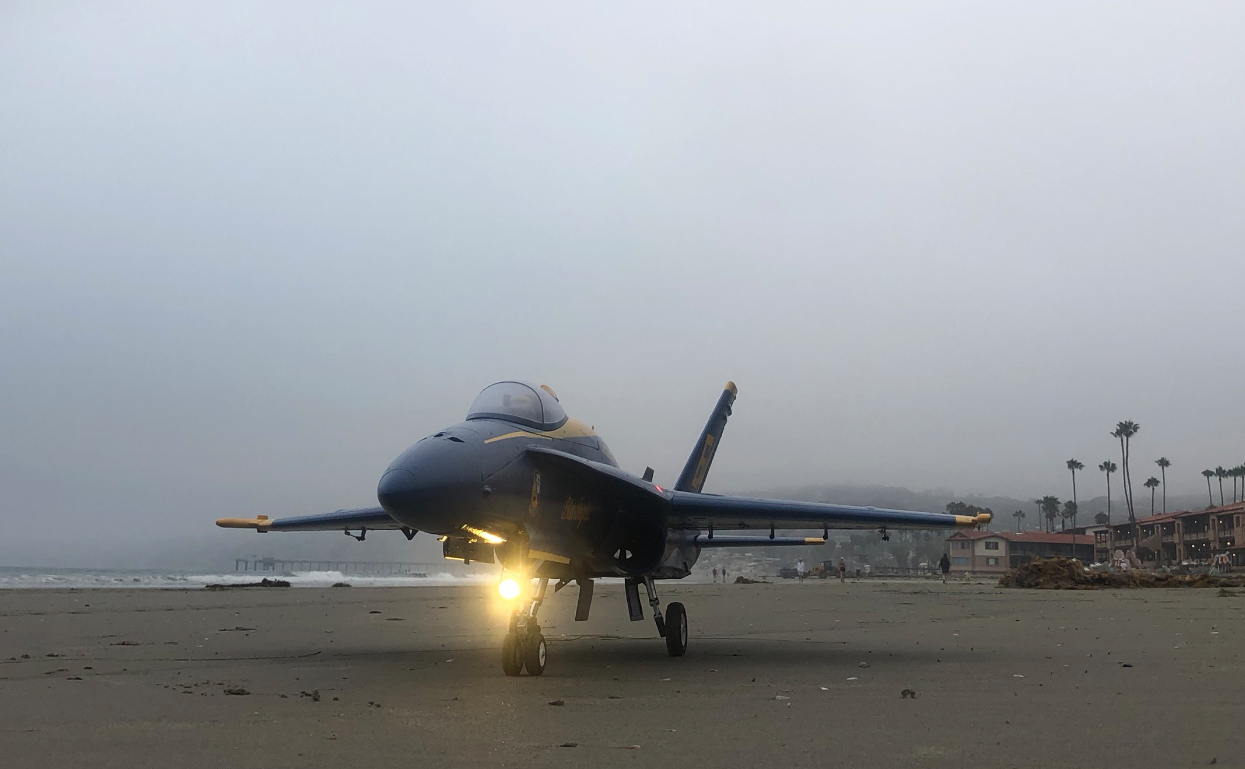

    Another day another beach mission

    Click image for larger version

Name:	IMG_4548.jpg
Views:	728
Size:	66.6 KB
ID:	355762Click image for larger version

Name:	IMG_4554-1.PNG
Views:	770
Size:	302.0 KB
ID:	355765Click image for larger version

Name:	IMG_4549.jpg
Views:	675
Size:	56.5 KB
ID:	355763
    Attached Files

    Leave a comment:


  • Elbee
    replied
    Originally posted by Juan De La Garza
    ] General build is done. Waiting on afterburner for that scale effect.
    Juan, beautiful work, Sir. Again, great tribute. :ba_f18: Best, LB

    Leave a comment:


  • Juan De La Garza
    replied
    Click image for larger version  Name:	4308783A-1F8E-4AF2-9D0D-385A683A99B9.jpeg Views:	0 Size:	155.7 KB ID:	355745 General build is done. Waiting on afterburner for that scale effect.

    Leave a comment:


  • InTheTubeDeep
    replied
    Remembered -AoA on dead stick final ;)

    Leave a comment:


  • InTheTubeDeep
    replied
    Crazy- I posted this at 7am its got 18k views!

    Leave a comment:


  • InTheTubeDeep
    replied
    ITTD returns with the Flyin' Toaster and a sweet landing!


    Click image for larger version

Name:	IMG_4376.jpg
Views:	846
Size:	50.0 KB
ID:	355626Click image for larger version

Name:	IMG_4370.jpg
Views:	757
Size:	73.4 KB
ID:	355627Click image for larger version

Name:	IMG_4373.jpg
Views:	833
Size:	59.5 KB
ID:	355628Click image for larger version

Name:	IMG_4378.jpg
Views:	742
Size:	76.4 KB
ID:	355629Click image for larger version

Name:	IMG_4369.jpg
Views:	758
Size:	58.4 KB
ID:	355630

    Leave a comment:


  • InTheTubeDeep
    replied
    Originally posted by Aros
    I would agree Hugh. I have been flying everything from micros to giant scale for 30+ years now. And as is well known, I am on to number 8 with this particular model. Some of it indeed was the gremlin/servo issues, but some was Dumb Thumbs too. There's just something about this model you have to be on your toes about. I can't even quantify it. I for one concur, this would be FAR FROM my first EDF jet recommendation. The Avanti is much more tame and predictable throughout the entire flight envelope. Just my two pennies.
    Ha thats so true!! I was warned about this Jet but seeing as how my Russian fleet is sanctioned and grounded still the F18 is a real beauty and a challenge to fly and land!

    Leave a comment:


  • InTheTubeDeep
    replied
    Originally posted by Hugh Wiedman

    Great tribute Juan!! Hope I'm not sticking my big nose in where it definitely doesn't belong, but I'm wondering if the F-18 is the best "candidate" for your first jet. What have you been flying up till now? The F-18 can be a little tricky at times, especially, like most aircraft, landing may be quite different from what you are used to. My first jet was a Stinger 90, extremely easy to fly and land, and I have to say it was a real handful for me the first time out. I was used to prop warbirds/BiPlanes/Sport props like Edge & Extra and when I first flew the jet, the speed compared to the others was almost frightening. Half way through the flight and almost crashing several times from over correcting, loosing orientation every 5 seconds and flying to fast, I threw my TX to a friend who knew what he was doing (who had made the comment at least twice during my flight that I could "Kiss that Baby Goodbe") and told him to land the damn thing! After 5 years and having a host of military jets, I'm still not sure I'm a whole lot better. I know a lot of guys recommend the Avanti for a first jet, which is a great idea (have one also), but just not sure I'd start out with the F-18. Anybody out there, please weigh in on this as I don't want to scare him off this, but a bad experience at the beginning isn't that much fun either.
    Haha I've goobered 3 landings in a row- in hindsight I know my errors- I have to dead stick this F18 in otherwise it will float forever- my 1st 18 flights I nailed the final with -AoA and flared near touchdown worked great- last 3 I just didn't get a nice descent with nose down, I came in almost +AoA nearly stalled 3 times dropped R wing twice next time I'll hopefully NOT make that error again! 1st EDF!? Might be challenging but hey live and learn

    Leave a comment:


  • Aros
    replied
    I would agree Hugh. I have been flying everything from micros to giant scale for 30+ years now. And as is well known, I am on to number 8 with this particular model. Some of it indeed was the gremlin/servo issues, but some was Dumb Thumbs too. There's just something about this model you have to be on your toes about. I can't even quantify it. I for one concur, this would be FAR FROM my first EDF jet recommendation. The Avanti is much more tame and predictable throughout the entire flight envelope. Just my two pennies.
