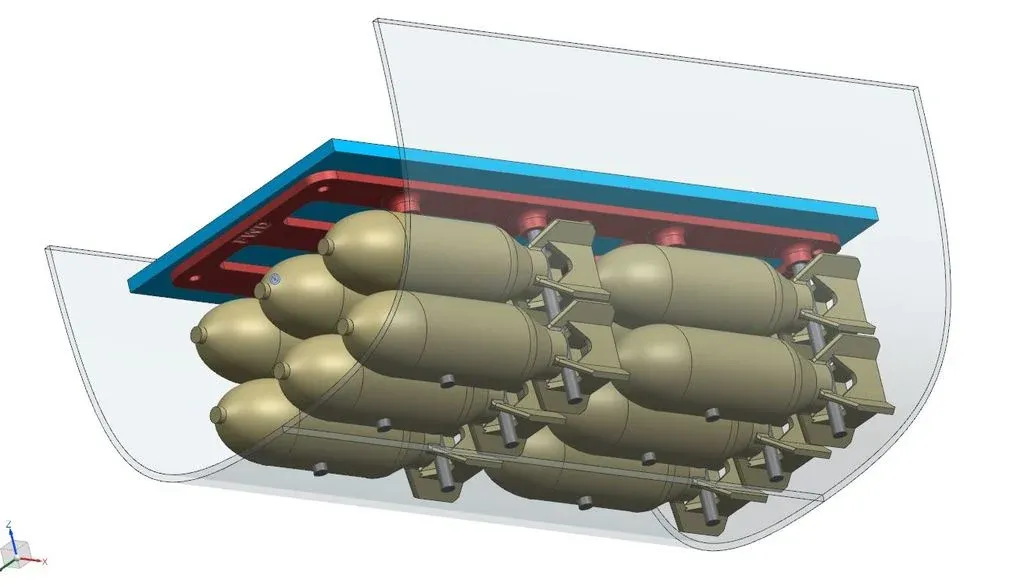

While waiting for my B-25 to arrive via FedEx tomorrow, I printed a few items I plan to use on my plane on occasion. These are bombs and a bomb rack, and a tray to put small parachute items in so they hopefully don't snag on the airplane coming out of the bomb bay.

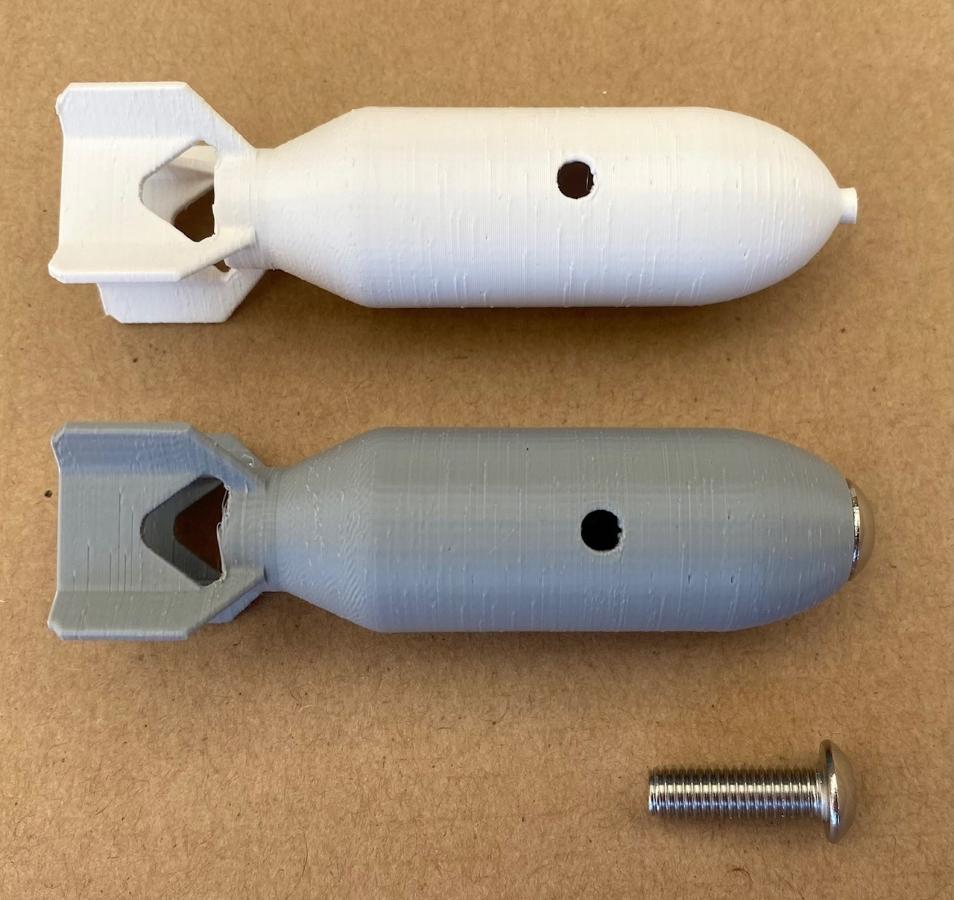

These designs are courtesy of Fast N Light. The bombs have holes drilled through them and mount onto 12 aluminum 1/8" diameter tubes. When the bomb bay doors open, they will fall out by gravity. Or that's the plan, I'm thinking it will work. Per Fast N Light, a 3 g. M5 screw 16mm long is screwed into the top to give it more stability and realism during the drop to the ground. You can drop from 1 to 12 bombs simultaneously. I have 6 made up now for Initial tests. I'll try to drop them in the ground just off to the side of the runway so that they don't break and I can find them again!

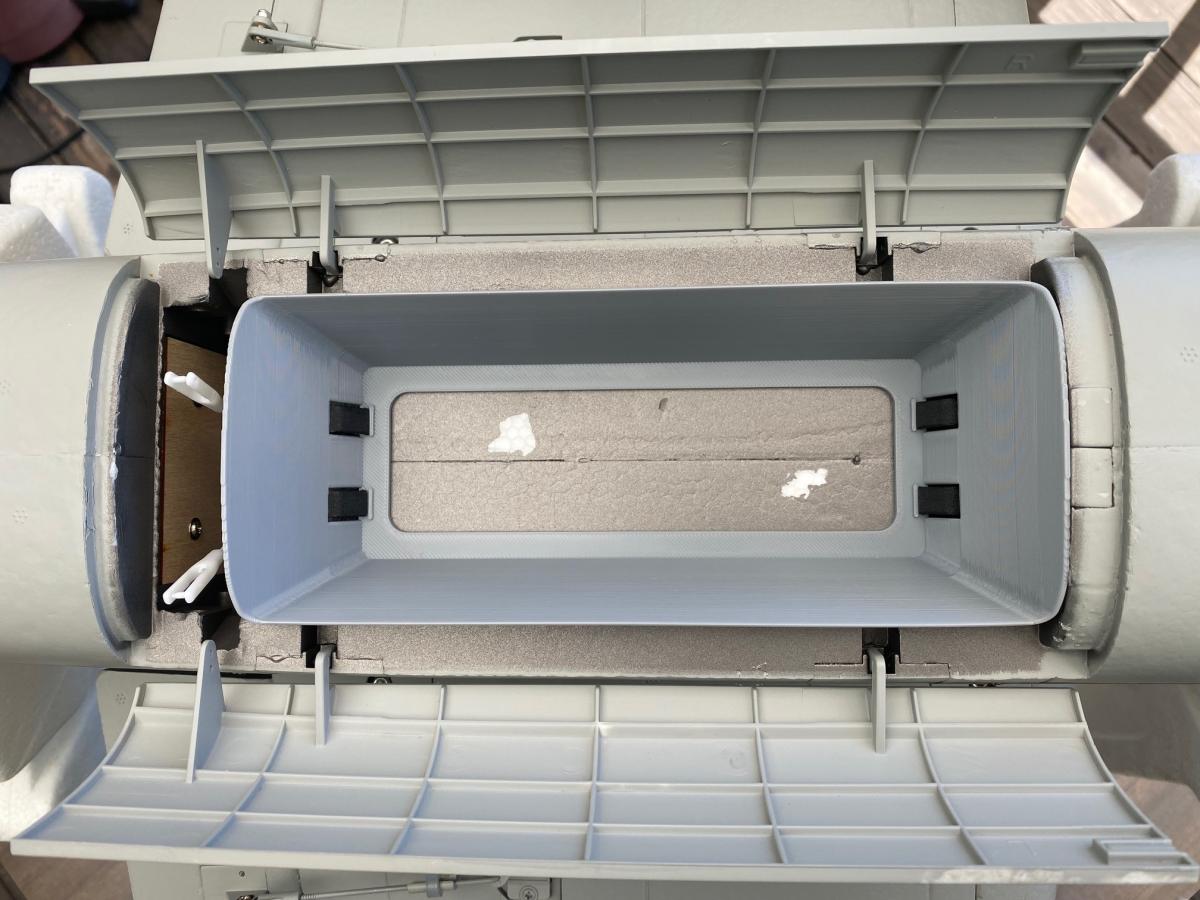

The tray that I printed up is designed to put soft items in, like parachutes. The hope is that they will fall out of the bomb bay without getting caught on some structure of the airplane.

The aircraft I am going to replicate, Cactus Kitten, was in a unit in the Pacific Theater that did strictly low level work; strafing and low altitude bombing. One thing I read they did was tie a parachute onto bombs that were going to be dropped at very low altitudes, hopefully giving them enough time to escape without "fragging" themselves on their own bombs! Unfortunately, this happened many times to pilots and aircraft doing dive bombing and low altitude bombing during WWII.

I'm hoping my B-25 will be ready for its maiden flight sometime this upcoming week. Once I have a few successful flights on it, I'll add the bombs and other scale details to the plane. I'll post developments here as they happen.

Cheers

davegee

I made some progress on assembling the plane yesterday. Got the wings on for the first time, painted white stripes on the outboard wing sections that this unit had, and did a test bomb drop in the shop just now. The main purpose for today's test was to be sure that the bombs (6 of them in this test) would drop clear of the airplane when the doors are opened and the bombs slide down the aluminum tubes.

I took note of the unfortunate accident that our friend Arthur from France had on his maiden flight of his B-25. I don't know exactly what happened there, but I did take away that is is possible for the pilot to get distracted watching the bombs or parachutes drop out of the airplane during flight. I took that to heart, as I could see I could be distracted for a glimpse of this just long enough to lose control of the aircraft. I'll be sure to keep my eyes on the plane at all times, and if a friend is around to snap some pictures or video that is a much better way to go for me.

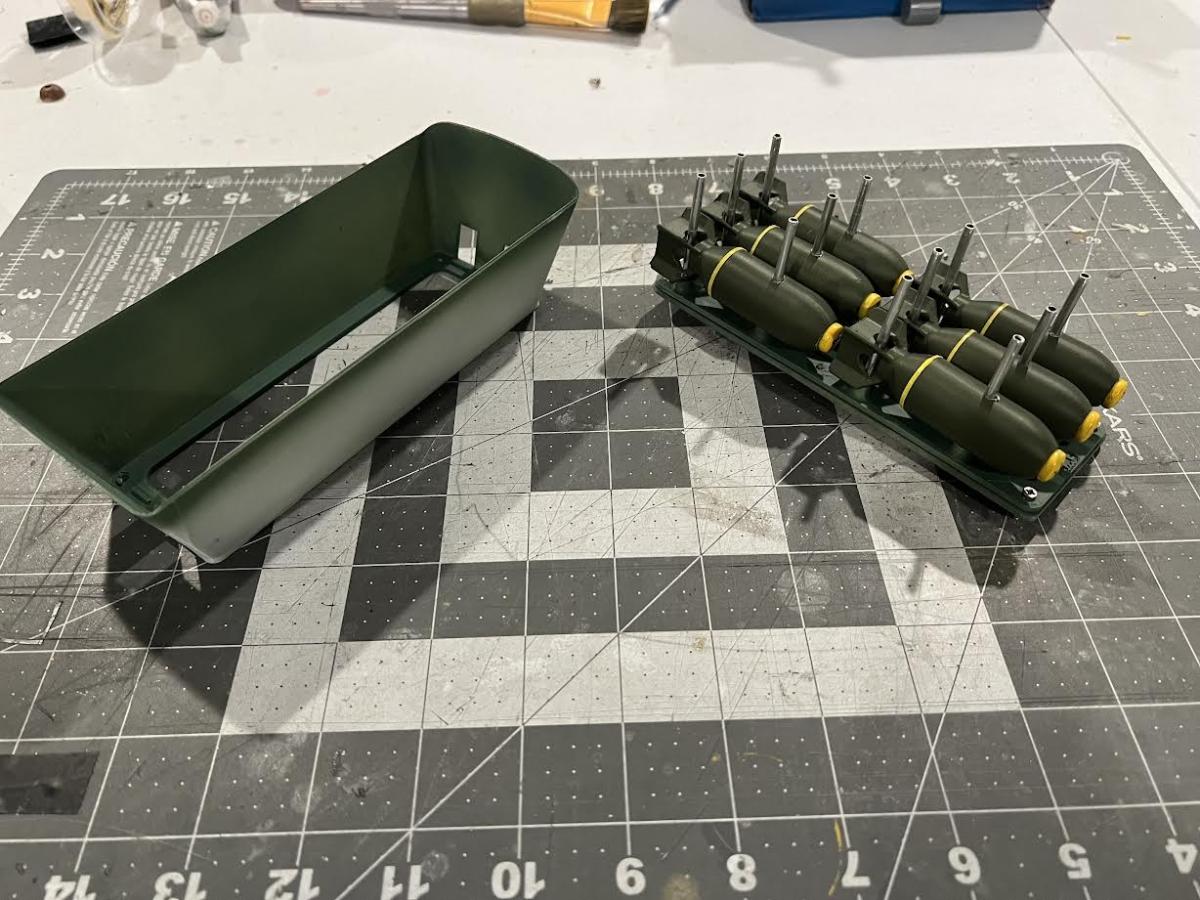

I'll include a photo of the bombs in the airplane. I tried a10 second video of a static drop in my shop but it was too long. I might try another one later, but this one proved what I needed to know for now.. Each bomb (up to 12 max load) has a 5mm 16 screw that is screwed into the nose. This will hopefully give some stability and realism when they are actually dropped on a flight. We'll see.

Possible maiden has slipped to sometime next week, weather permitting. It will still be a work in progress for several months as I do some additional detailing and weathering of the airplane. So far, I'm liking this airplane.
