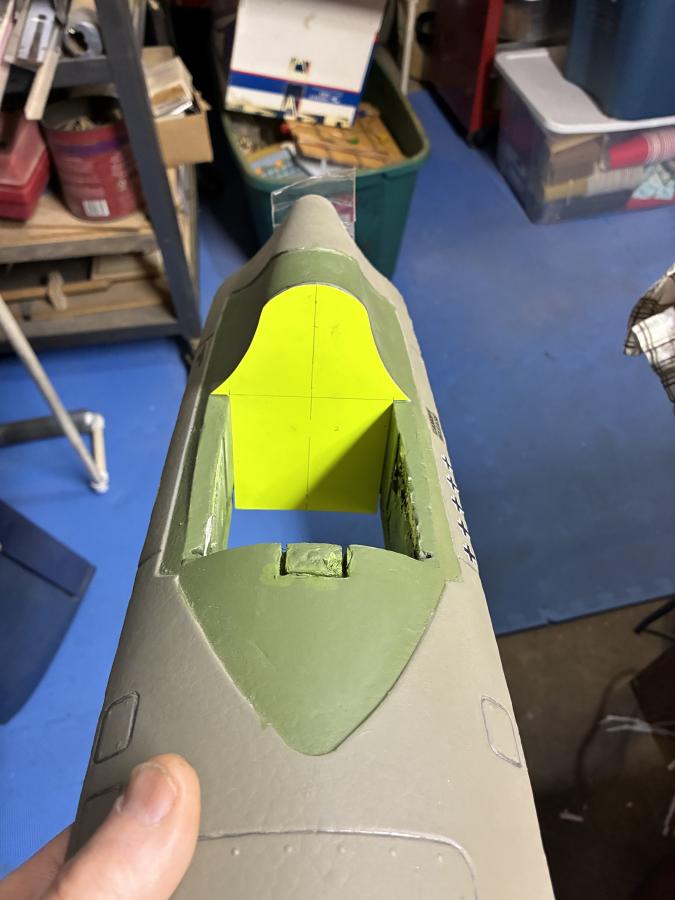

I cut the OEM headrest out sanded former smooth but the foam texture for this aera didn't look scale so I made a new former from .010" plastic sheet, sanded and will add the structural braces and a new headrest before gluing in.
Also added the hand canopy bar that the pilot grabs to close canopy. After cutting canopy apart I will add the black rubber seal around the inside edge of front canopy. I think 22-26ga wire will give the correct effect. I keep finding more details to add!
Best Regards, Rex

[davegee]

cool!

d

vrosi1963 gives a good point. From pictures he shows, the razorback jug headrest is more rectangular, rounded edges, with the long edge up and down on the back wall of the cockpit. I've seen period pics of several minor variations of that, with thousands of P-47s manufactured by three plants (Republic, NY, Republic Evansville, and some Curtiss in NY) but you can see the basic idea. Most of the headrest will be covered by the pilot's head, but it is still important to get one in there of the basic shape.

davegee

[vrosi1963]

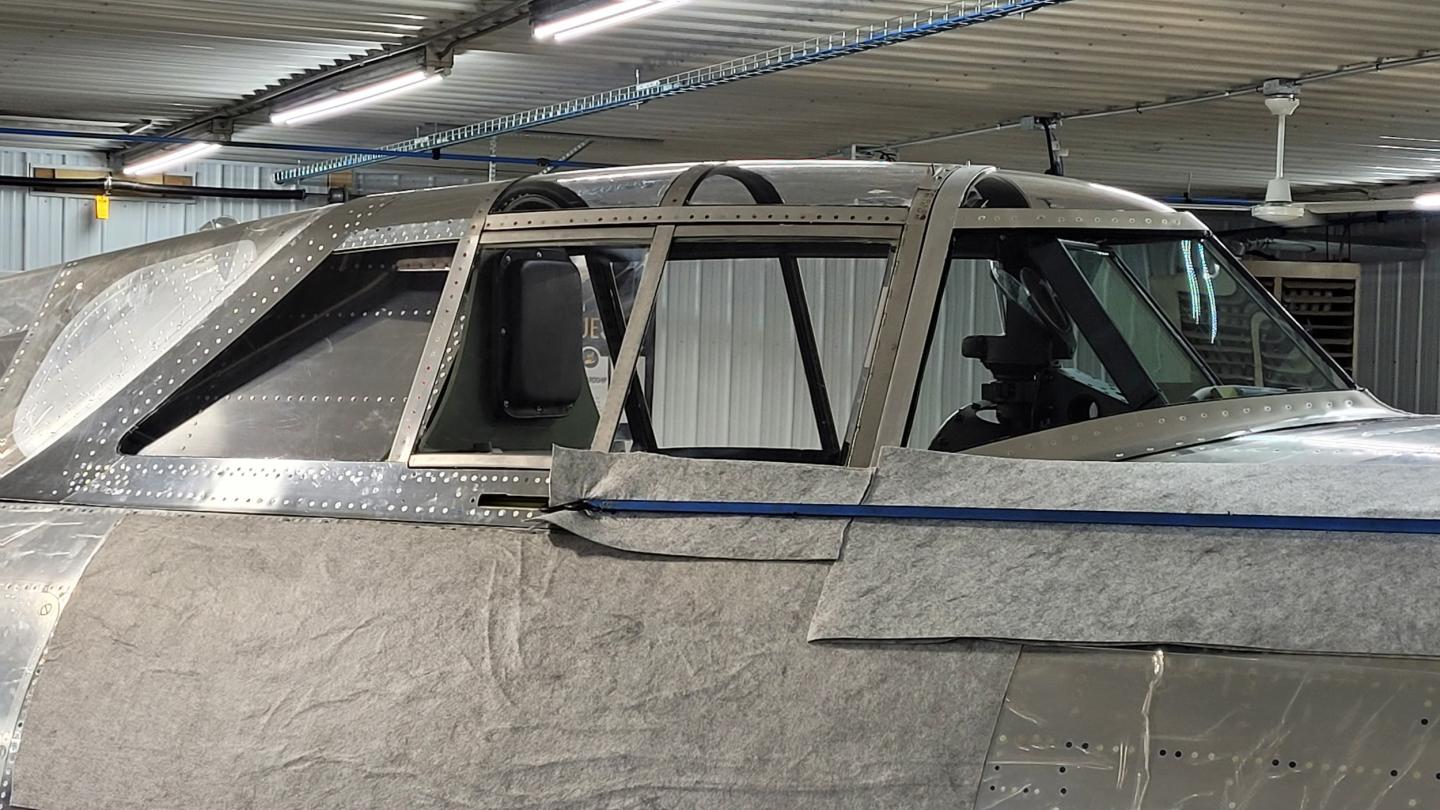

Correct headrest is a rounder rectangle Dakota Territory Air Museum’s P-47 Update – June/July, 2022

[davegee]

Davegee,
Head rest is exactly what I am doing, also adding the 2 angled structural braces on the former.
Rex

cool!

d

[davegee]

Davegee,
Great news. Looking forward to the package. Please send an e-mail of the cost for you and Dan.

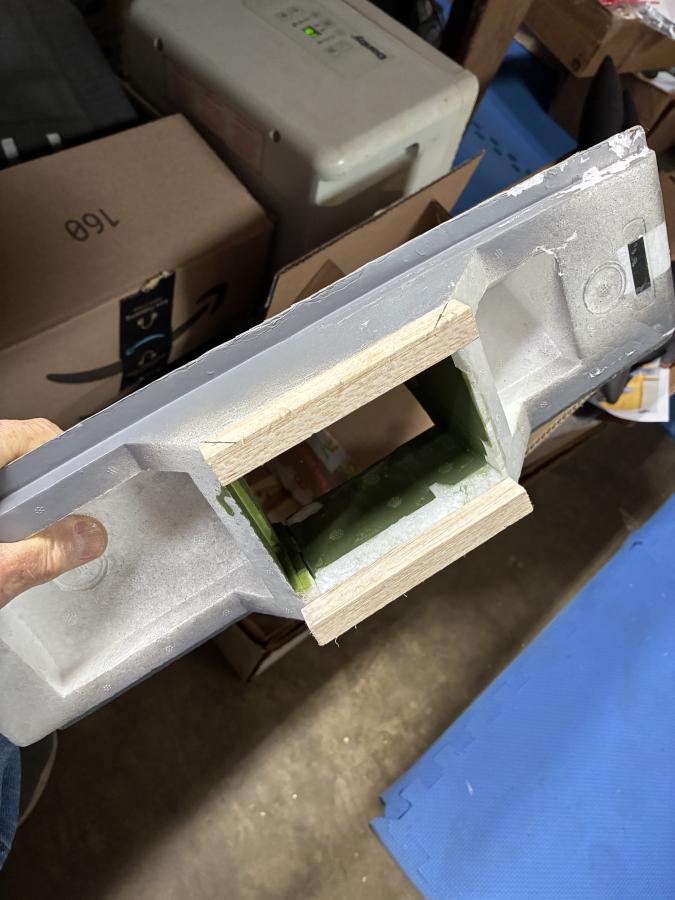

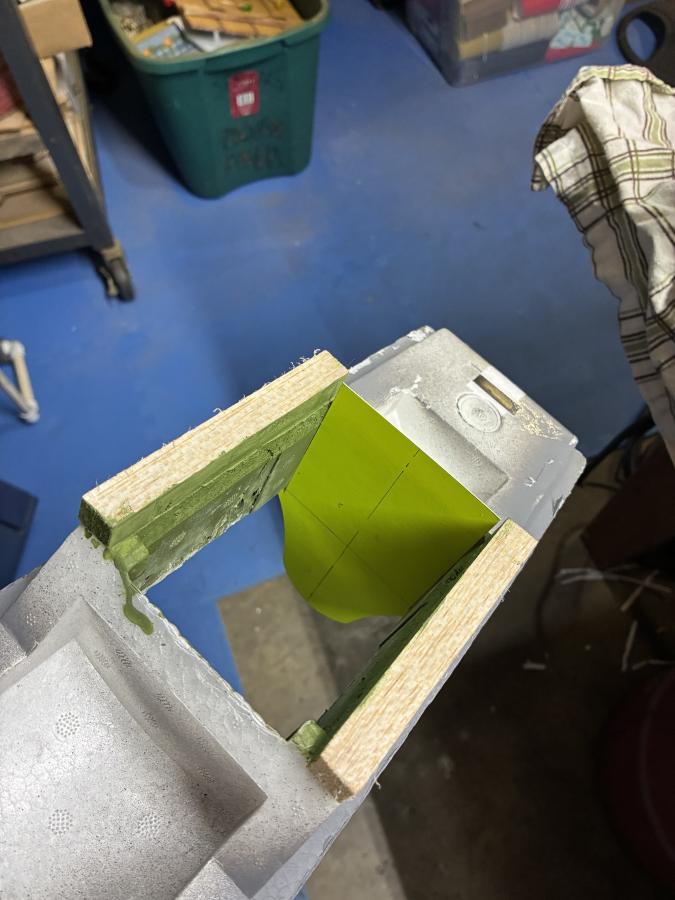

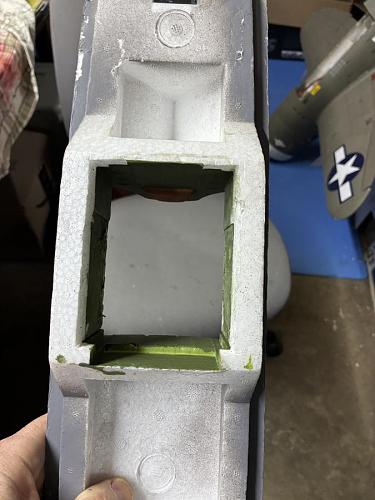

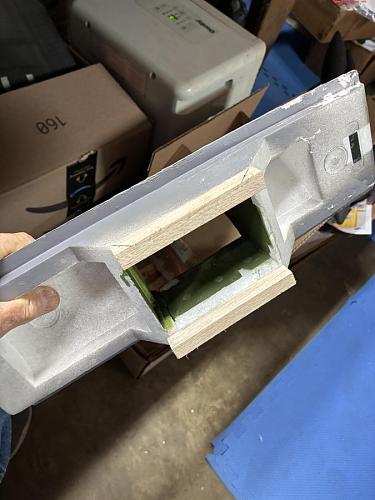

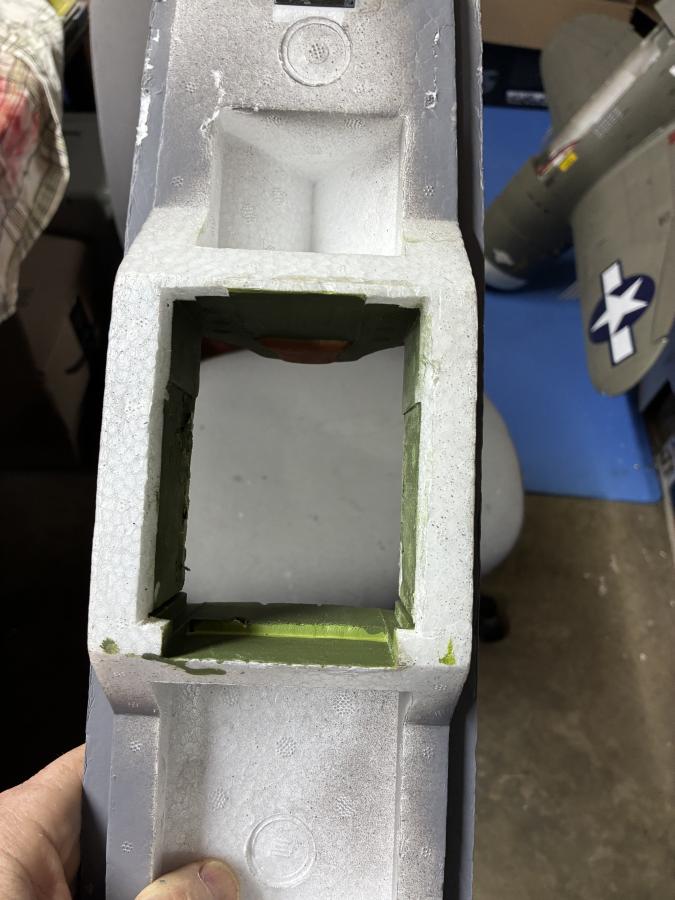

I gutted the cockpit of the OEM panels and cut the floor out, added the 1/2" sq. balsa extensions Will wait for parts before adding new floor.
May use your printed mirror. How long did you make the mirror post from the canopy?
Ready to cut the canopy apart. Need to find some small flat strip steel for the sliding canopy.

Phantom is getting attention also just on a smaller bench. 2 1/2 months till Toledo! May have some sleepless nights coming.

Best Regards, Rex

You can probably remove some of the parts from the OEM cockpit to repaint and glue onto the new sidewalls of the cockpit. They aren't totally bad, but can be improved upon over the OEM parts.

Take a look at the printed rearview mirror when you get it. It looks pretty scale, is already painted and can easily glue onto the top of the windscreen glass. If you use the OEM Spitfire rear view mirror, I cut the mirror post to about 3/8 inch long, or so, beveled at the base for the mirror to angle down to look like photos of it in books. If you use the mirror I am sending, you can simply glue it onto the top of the windscreen, as it is already angled properly.

[jetfool]

Davegee,
Head rest is exactly what I am doing, also adding the 2 angled structural braces on the former.
Rex

[davegee]

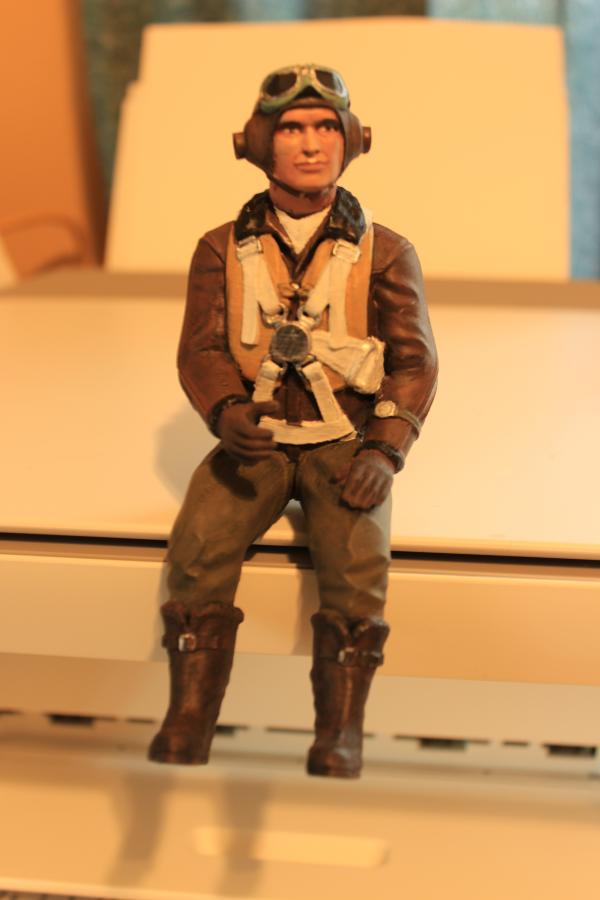

That's good. That should allow the full figure pilot to be able to fit in the cockpit properly without surgery to remove his lower legs! You can adjust the height of the cockpit seat glued onto the back wall of the cockpit to adjust the pilot's proper height in the cockpit.

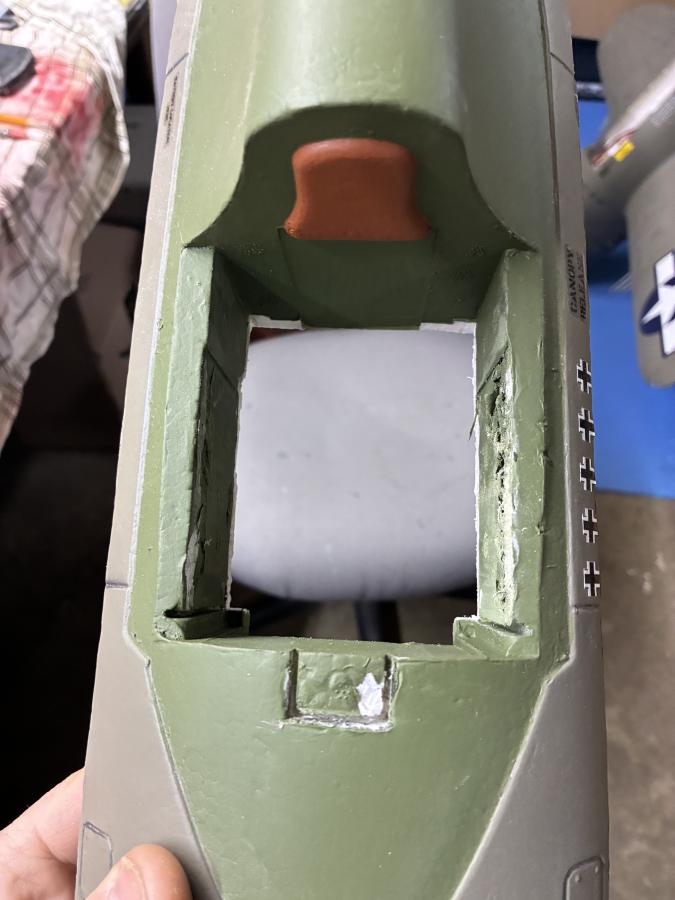

Regarding the OEM headrest on the back wall of the cockpit, no jug had anything like that. I would recommend taking a exacto knifeor razor saw and remove it from the back wall, patch it with whatever you use for foam, and replace it with a much smaller square head rest per photos you can find of actual cockpits or pilots sitting in the cockpits with the head rest visible. They were usually painted black. I usually use a small piece of balsa or bass wood, round the corners slightly, prime and paint.

Cheers

davegee

[jetfool]

Davegee,
Great news. Looking forward to the package. Please send an e-mail of the cost for you and Dan.
I gutted the cockpit of the OEM panels and cut the floor out, added the 1/2" sq. balsa extensions Will wait for parts before adding new floor.
May use your printed mirror. How long did you make the mirror post from the canopy?
Ready to cut the canopy apart. Need to find some small flat strip steel for the sliding canopy.

Phantom is getting attention also just on a smaller bench. 2 1/2 months till Toledo! May have some sleepless nights coming.

Best Regards, Rex

[jetfool]

[davegee]

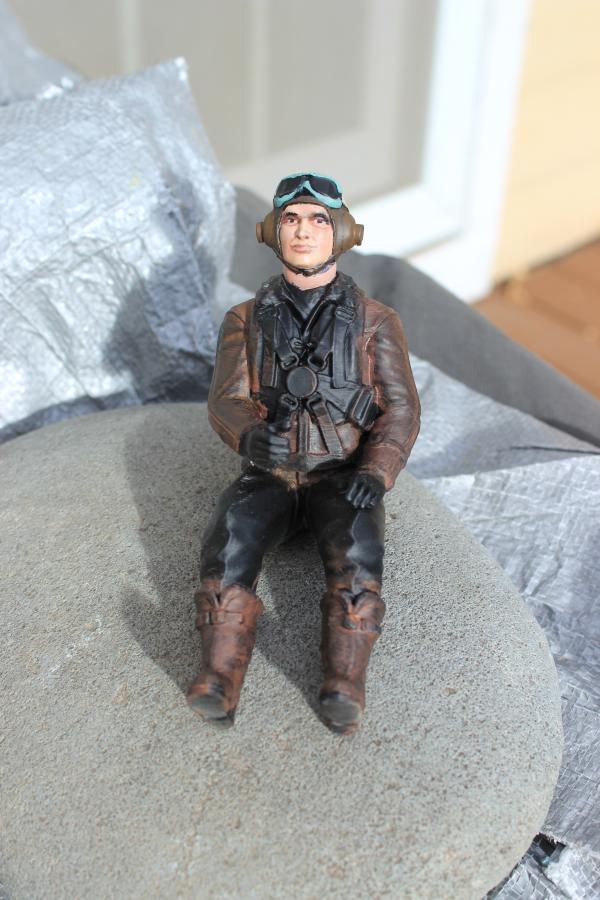

You'll have to wait and see! I'm mailing him with a full bottle in his hand, so you'll have to see how much is left when you receive the package in a few days!🤣🤣

Shipping out today via UPS.

Cheers

dave

Package is shipped! Should be there Tuesday, January 20, via UPS. I did print up a scale Spitfire rearview mirror with the bracket in case you want to use that one. Your decision using that or the one that comes from Flightline.

Cheers

dave

[davegee]

Davegee,

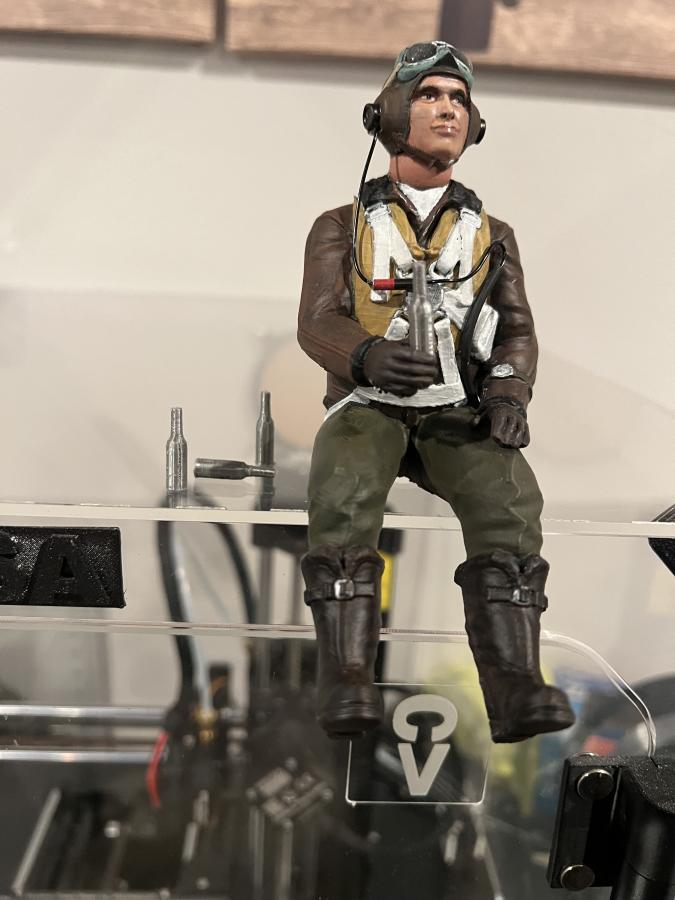

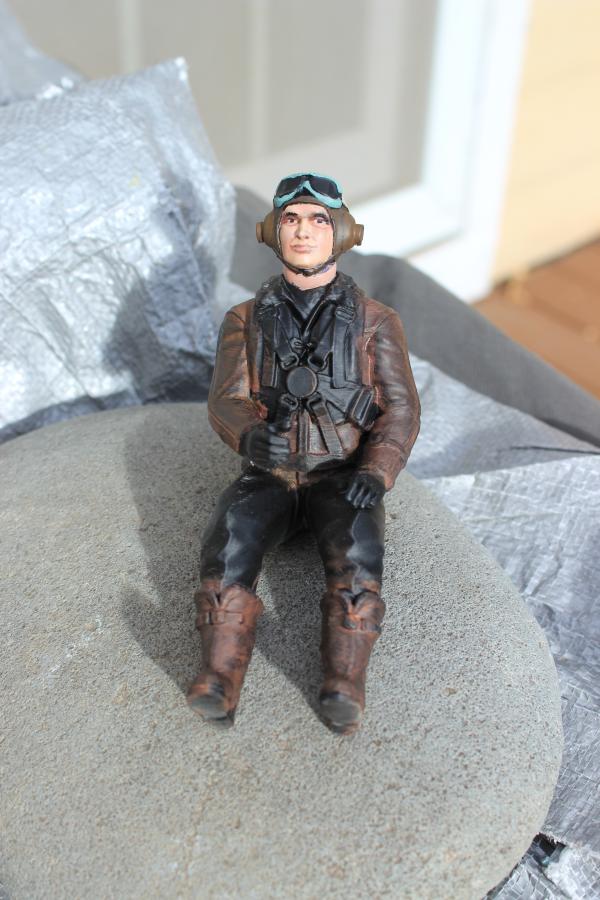

Do you think when Bob arrives the bottle will be full or empty? Dan has made him look so authentic I am not sure.
