  • Originally posted by RCjetdude View Post

    For me, because my weight is at the upper end they thought it might be just that in case I had a harder than desired landing (who me?). The channels are in there and great for wiring runs but can also be used to help strengthen the fuse if desired. I don't think it is necessary on a stock setup but sometimes people start out stock and then get "mod fever" and it is easier to install them before making any significant mods obviously. Or if someone desires to add bigger heavier batteries that puts their weight up around mine.
    Makes sense, thanks.

    Awesome mods so far. Looking forward to seeing the cannon test in-flight.

    Comment


    • Originally posted by Twowingtj View Post

      Makes sense, thanks.

      Awsome mods so far. Looking forward to seeing the cannon test in-flight.
      Thanks, I will be re-doing my decals tonight and looking to line up a maiden on it soon. I need the weather, work and family commitments to all align. :)

      Comment


      • Originally posted by RCjetdude View Post

        Thanks, I will be re-doing my decals tonight and looking to line up a maiden on it soon. I need the weather, work and family commitments to all align. :)
        I'm expecting to see that GAU-8 Avenger test @ NEFI ;)
        Warbird Charlie
        HSD Skyraider FlightLine OV-10 FMS 1400: P-40B, P-51, F4U, F6F, T-28, P-40E, Pitts, 1700 F4U & F7F, FOX glider Freewing A-6, T-33, P-51 Dynam ME-262, Waco TF Giant P-47; ESM F7F-3 LX PBJ-1 EFL CZ T-28, C-150, 1500 P-51 & FW-190

        Comment


        • "I just got done going back and adding some 5mm square carbon fiber tubes inside the fuselage to strengthen it. There are chanels already molded into the inner walls of the fuse on each side and I just ran a bead of Foam Tac into the chanels and pressed the rods in place. I am doing this to strengthen the fuse because of the weight I am carrying and based on input from Captin Mike and Pilot Ryan. It might not be a bad idea to go ahead and do it on your own planes as well just in case. It certainly can't hurt and it is super easy to do."

          How long were the square carbon fiber tubes you put in the fuselage? Getting ready to order some and they come in 40" length and wanted to know if I need to get one or two tubes.

          thanks,
          Mark

          Comment


          • Originally posted by zorkahn View Post
            "I just got done going back and adding some 5mm square carbon fiber tubes inside the fuselage to strengthen it. There are chanels already molded into the inner walls of the fuse on each side and I just ran a bead of Foam Tac into the chanels and pressed the rods in place. I am doing this to strengthen the fuse because of the weight I am carrying and based on input from Captin Mike and Pilot Ryan. It might not be a bad idea to go ahead and do it on your own planes as well just in case. It certainly can't hurt and it is super easy to do."

            How long were the square carbon fiber tubes you put in the fuselage? Getting ready to order some and they come in 40" length and wanted to know if I need to get one or two tubes.

            thanks,
            Mark
            They were about 15" long. You should only need one piece.

            Comment


            • Who are you ordering this tubing from?

              Comment


              • Originally posted by Patrnflyr View Post
                Who are you ordering this tubing from?

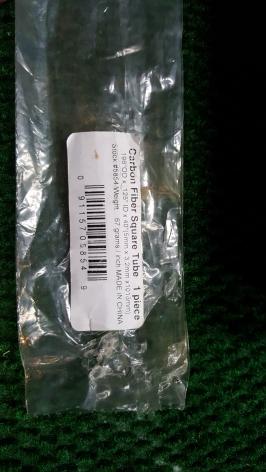

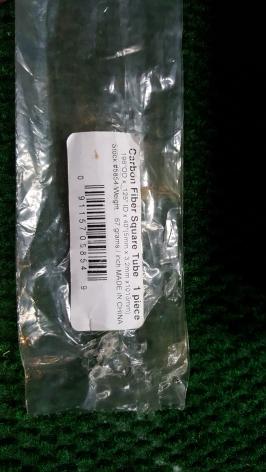

                I got the 5mm square CF tubing from my LHS. Here is the label that was on it.

                Click image for larger version

Name:	20170531_212008.jpg
Views:	794
Size:	21.8 KB
ID:	78553

                Comment


                • I think Headsuprc has it
                  Currently flying: Twin 80mm A-10, 80mm F5, 80mm A6, 70mm Yak-130, 70mm F-16v2,90mm Stinger 90, 70mmRC Lander F9F, Flightline F7F TigerCat, Phoenix 46 size Tucano, Flyzone L-39
                  Out of Service: 80mm Mig-21,64mm F-35, 64mm F/A-18
                  I Want: 80mm A-4, twin 80mm F4J Phantom

                  Comment


                  • I was going to ask if it was OK to post our mods in this thread; don't want to hijack what Steve is doing. Glad we can put ours in here too, and correct me if I'm wrong. I had an idea the other day about the powder cannon and wanted to post it here. My idea was to use a CO2 inflator that cyclists carry with them to quickly inflate a flat. It's lightweight and also expels the air at a high rate. The trigger could be actuated with a servo to open/close and you should get quite a few 'cannon bursts' with each CO2 cartridge. Figured a small container of talcum powder in-line with a tube that extends out of the gun in the nose should get you what you need. I'm going to experiment with that setup and see if the CO2 blast can overcome the rushing of air while the plane is in flight.

                    Comment


                    • Originally posted by Mike_Then View Post
                      I was going to ask if it was OK to post our mods in this thread; don't want to hijack what Steve is doing. Glad we can put ours in here too, and correct me if I'm wrong. I had an idea the other day about the powder cannon and wanted to post it here. My idea was to use a CO2 inflator that cyclists carry with them to quickly inflate a flat. It's lightweight and also expels the air at a high rate. The trigger could be actuated with a servo to open/close and you should get quite a few 'cannon bursts' with each CO2 cartridge. Figured a small container of talcum powder in-line with a tube that extends out of the gun in the nose should get you what you need. I'm going to experiment with that setup and see if the CO2 blast can overcome the rushing of air while the plane is in flight.
                      Absolutely Mike! As more get theirs and come up with cool mods post away. Everyone is familiar with different products and building methods such that they can bring their creative ideas to the table and share so we can all benefit. I do things a certain way based on my experiences and the way I think but I don't even claim that my ways are the best. There is soooo much that can be done with this plane to trick it out and it is really causing us to stretch our imaginations to do so. This thread is intended to allow us all to show others those ideas, not just me.

                      Comment


                      • Hey Steve, appreciate your attitude on mods from others. You and I talked awhile back about the extendable ladder tubing on the main thread and yours turned out great.....anyway, I was wondering if it would be possible to concentrate all of your info on the functional canopy, for instance, in one place in a step by step format to make it a little easier to digest and ask questions. So far, it's spread out over 10 pages. Just a thought, Brad

                        Comment


                        • Hey Brad, I am trying to keep the posts on the canopy/cockpit mods linked by post number. I am not sure how else to do it. It has been the most time consuming mod so far and I did not want to not post other things until it was all up. I will post another update on it later this afternoon now that other activities with it are winding down. I think the canopy mechanism from the LX A-10 could work very well with a little pivoting support up front to stabilize it.

                          Comment


                          • Hey Steve, no worries. After I posted that, I realized I could just go through and list the post numbers for each mod for later. I'm gonna go out and fly mine for awhile first and then do the mods later. Don't think I could take the stress of flying this plane for the first time with all that emotional investment. As far as the lx canopy goes, I will try which ever works best. I think yours looks more scale but I'm concerned about it staying down in flight. On your next post, I'd like to know how you did the geometry and wondering about that ply tab at the back of the ply sill. Thanks, Brad

                            Comment


                            • Canopy/cockpit mods (continued from post #96, next installment on post #246)

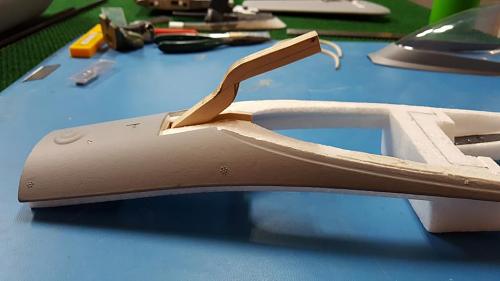

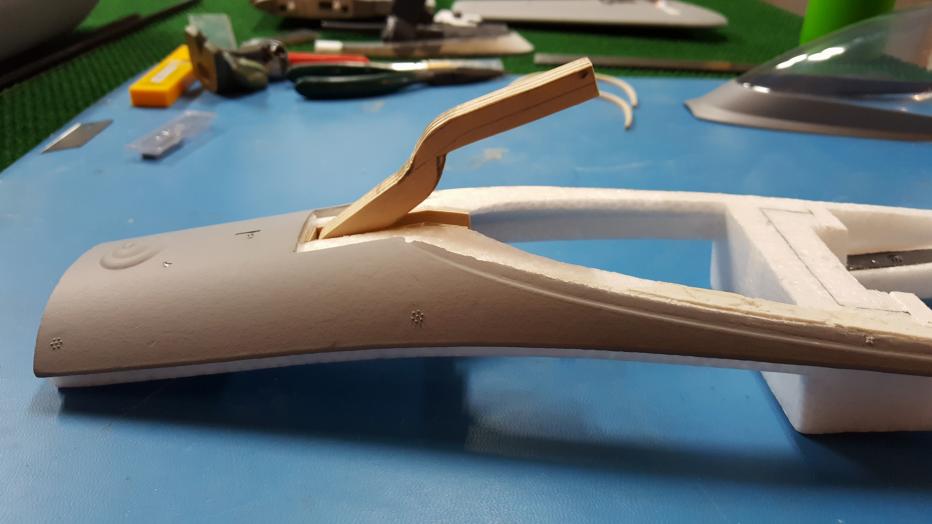

                              OK, back to the canopy. For the raising mechanism I tried to emulate as much as possible the real deal but using a servo instead of a piston. I wanted it to slide forward and back to allow for locking the canopy and be stout enough to solidly support the canopy when open. For the main beam I used 3/8" ply and mocked up a quick poster board template for what shape I thought it needed to be. I also tried to envision a frame that could be secured inside the back of the hatch to allow the arm to swing up and down. This is what I came up with. Sorry I don't have more detail.

                              Click image for larger version  Name:	20170506_183649.jpg Views:	1 Size:	44.1 KB ID:	78681

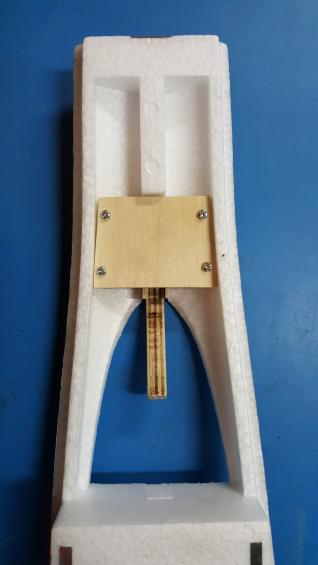

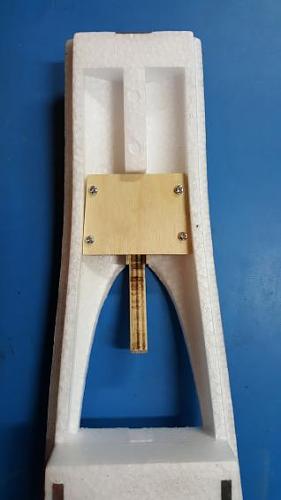

                              The screws secure the plate to a couple strips of wood I beveled to fit the inside contour of the hatch and glued in place.

                              Click image for larger version  Name:	20170506_183721.jpg Views:	1 Size:	16.9 KB ID:	78682

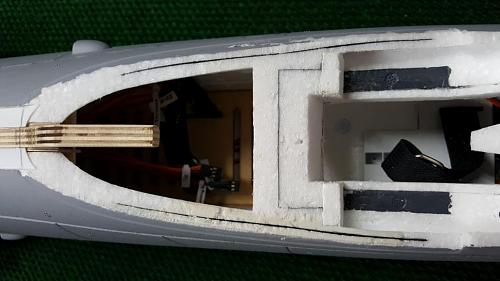

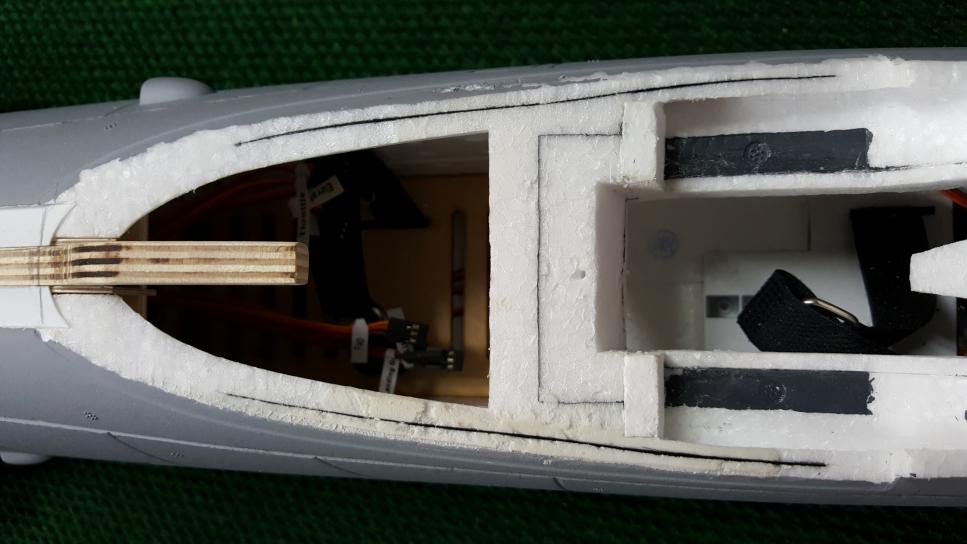

                              With cutting this much foam away I embedded some 1/8" wide CF strips on either side of the hatch. I also added some additional CF strips to the underside of the hatch in the corner where the flange that fits inside the fuse meets the bottom lip of the hatch.Doing this stiffened the hatch back up considerably. I also dressed off the area hear the hinge pin end of the arm with some styrene.

                              Click image for larger version  Name:	20170506_202123.jpg Views:	2 Size:	56.8 KB ID:	78683

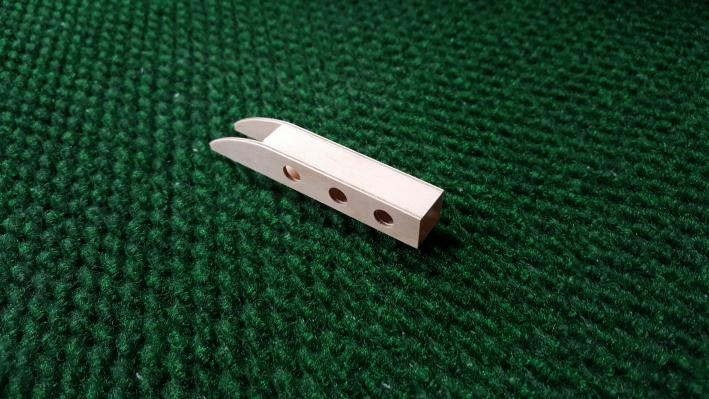

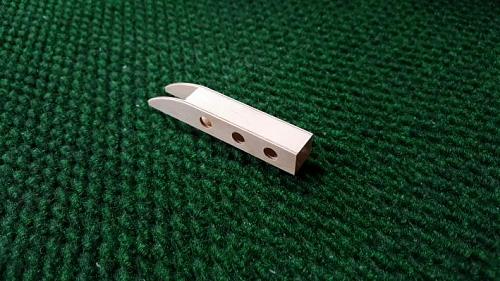

                              I then fabricated a square tube if you will from 3/32" ply that fit freely but snugly on the raising arm and slid back and forth.

                              Click image for larger version  Name:	20170506_211937.jpg Views:	1 Size:	60.2 KB ID:	78684

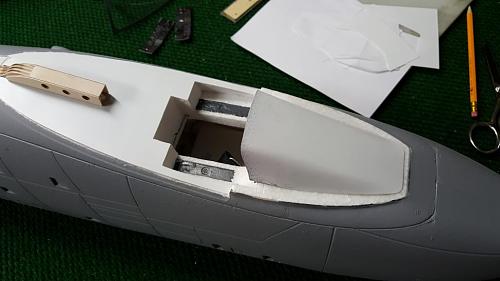

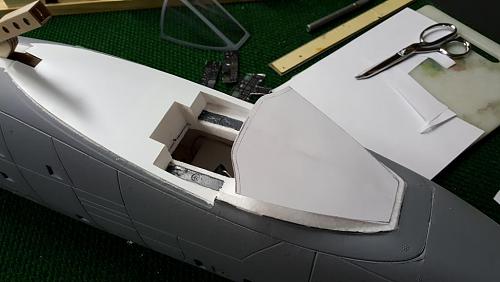

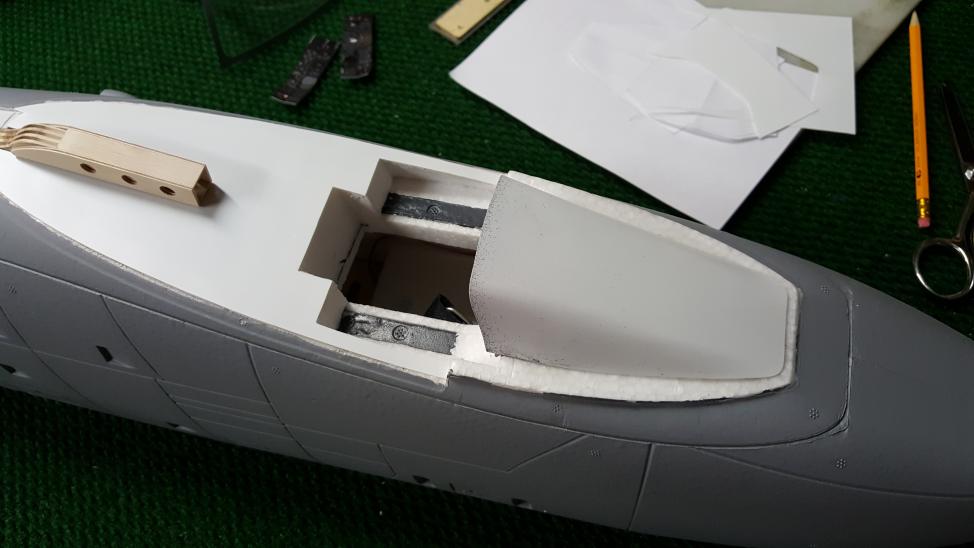

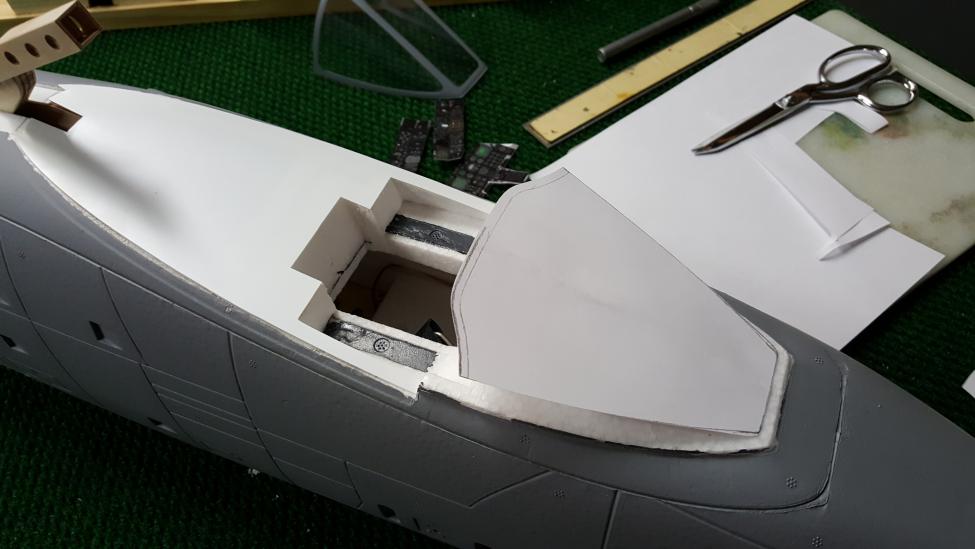

                              I then sheeted the back of the cockpit/hatch with 0.5mm styrene and made a posterboard template for the forward dash area. Once I had it shaped to my liking I cut it out of 0.5 styrene and glued it down.

                              Click image for larger version  Name:	20170506_222409.jpg Views:	1 Size:	52.4 KB ID:	78685

                              Click image for larger version  Name:	20170506_225446.jpg Views:	1 Size:	48.7 KB ID:	78686

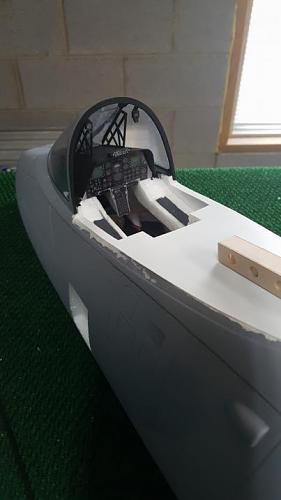

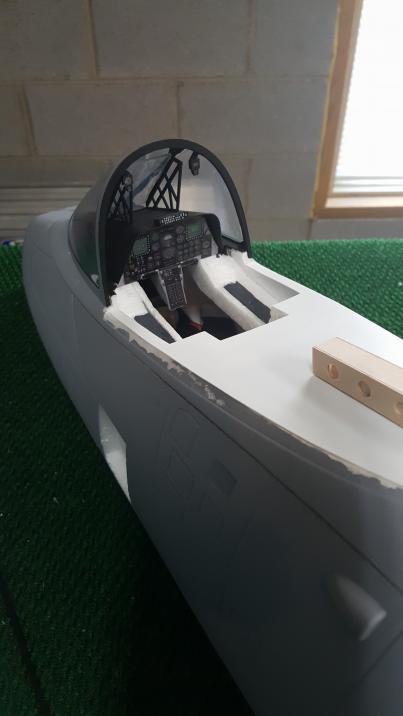

                              After this I beveled the front edge of the windshield frame for a good clean fit and glued it to the windshield with some medium CA.I then dry fit the windshield, painted the dash, re-attached the HUD, glued the windshield in place and added some additional detail.

                              Click image for larger version  Name:	20170507_175028.jpg Views:	1 Size:	24.3 KB ID:	78687

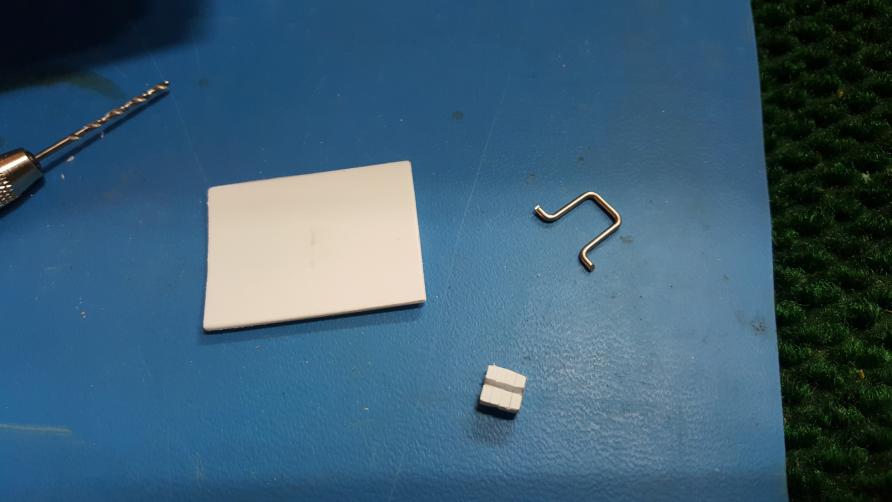

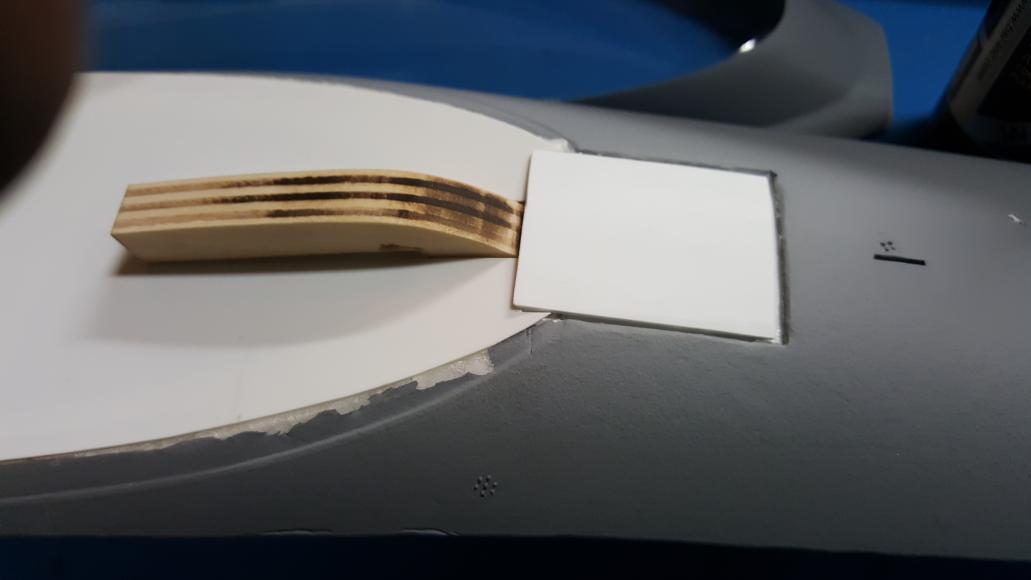

                              This next part was really tricky to accomplish and even more tricky to describe but I made a simple styrene plate to dress of the area behind the canopy. The real A-10 has a plate that rises and move back a little when the canopy is opened. I tried to simulate this as best I could and it works OK but was a pain to deal with and I could have done better I think.

                              Click image for larger version  Name:	20170508_203737.jpg Views:	1 Size:	30.5 KB ID:	78688

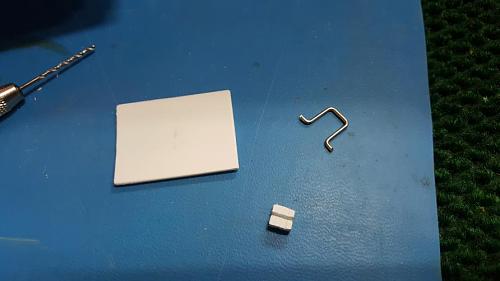

                              The small plastic bracket was used to secure the wire retainer to the underside of the plate and allow the wire to pivot. I then had to disassemble the raising mechanism and drill a couple small holes through it for the wire retainer to pivot in. The front of the plate I just secured to the back of the arm with a spot of Foam Tac. So as the arm raises up it pushes back on the plate and causes the plate to rise up just a little in a somewhat horizontal manner because of how it moves on the wire retainer. The back lip of the canopy helps hold it in place and keep it somewhat aligned and level. I will try to post a video of it working.

                              Click image for larger version  Name:	20170508_210402.jpg Views:	1 Size:	37.0 KB ID:	78689

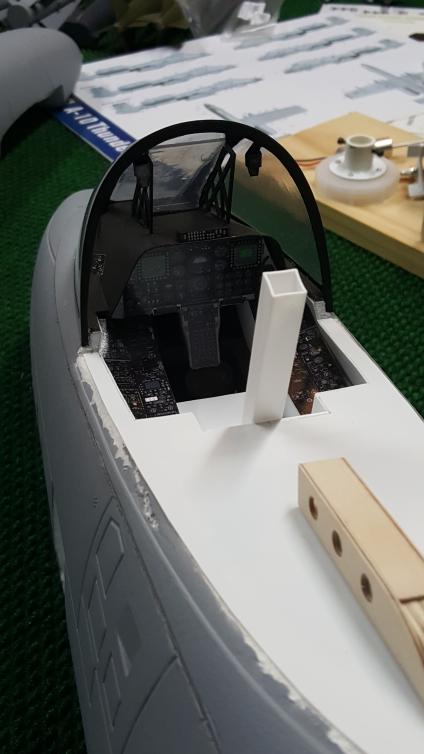

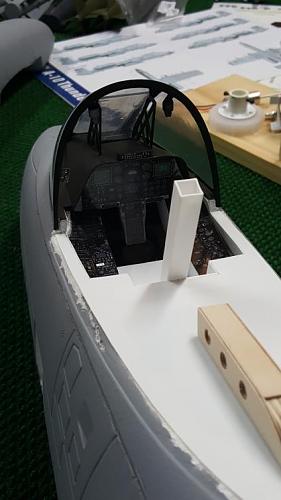

                              I then glued a 3/8" square styrene tube to the back wall of the cockpit. This formed the foundation upon which I built the ejection seat on.

                              Click image for larger version  Name:	20170507_194926.jpg Views:	1 Size:	35.7 KB ID:	78690

                              Next up.... the ejection seat.

                              Comment


                              • Originally posted by downwindleg View Post
                                Hey Steve, no worries. After I posted that, I realized I could just go through and list the post numbers for each mod for later. I'm gonna go out and fly mine for awhile first and then do the mods later. Don't think I could take the stress of flying this plane for the first time with all that emotional investment. As far as the lx canopy goes, I will try which ever works best. I think yours looks more scale but I'm concerned about it staying down in flight. On your next post, I'd like to know how you did the geometry and wondering about that ply tab at the back of the ply sill. Thanks, Brad
                                Hey Brad, the lip on the underside of the canopy frame engages under the windshield frame when the canopy slides forward to lock it down. It is actually quite secure along with the fact that the servo is helping to hold it down as well. Help me understand what you mean by the ply tab at the back of the ply sill....

                                Comment


                                • Originally posted by Alpha.MotionRC View Post
                                  I've airbrushed Testor Model Master Enamel and Tamiya Acrylics directly onto Freewing, Dynam, and FMS models' factory paint without any issues. No primer, no woes. Testors seem to stick better is some cases. If you have those Testor Model Master Enamels, don't worry about using them through an airbrush. I thin those ~4:1 with Testor thinner and they shoot great at ~15 psi.

                                  RCAV8R, I thin Tamiya Acrylics with Tamiya thinner, X-20A. The big 250ml bottle is only $5 or $6. In the past, I've thinned Tamiya with different ratios of water, 100% isopropyl, ammonia-free windex, and Future floor polish, with varying degrees of success at varying psi. It saved me $2, but why incur the hassle when I could just use the factory stuff and not have to worry about consistency? Nowadays I shoot a 2:1 ratio at 20psi for coverage and 3:1 ratio at 9-12 psi for detail. Everything is always consistent and I don't worry about clumping or dry time or spatter.

                                  Regarding the medium tip, I use this airbrush, stock. I would say it's a Fine to Medium airbrush. It can draw a line 1mm wide if I needed it do, which is smaller than I'd ever really need for airplane models at this scale.

                                  https://www.amazon.com/Badger-Air-Br...er+patriot+105

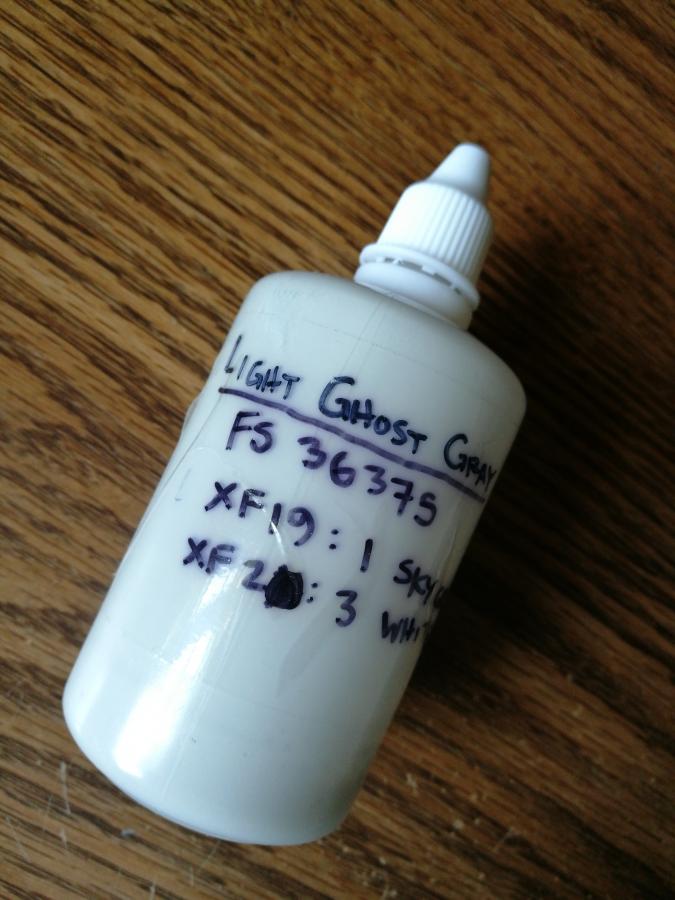

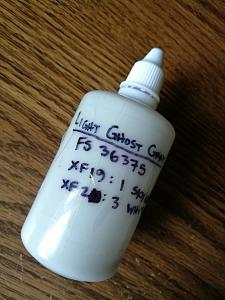

                                  I mix and store my Tamiya paint in these soft squeeze bottles. They're the perfect size, and have an eye dropper tip, so I can add paint into the airbrush's paint cup one drop at a time.

                                  https://www.amazon.com/gp/product/B0...?ie=UTF8&psc=1


                                  Another thing to be mindful of with Tamiya is that their XF line of paints don't always have perfect FS matches. If I'm mixing Tamiyas to create FS, the bottles come in handy since they're large enough to mix 100ml total of product. Light Ghost Gray, for example, is FS36375. The closest Tamiya equivalent is one part XF19 (Sky Gray) and three parts XF2 (White). That totals four parts paint, to which I'll add about two parts thinner (see ratios above).


                                  Click image for larger version

Name:	14961814333681128479605.jpg
Views:	964
Size:	68.7 KB
ID:	78320






                                  Thanks again for all the specifics Alpha! I think I'm going to go with enamel, since it's what I'm used to and I have felt it was a "harder" finish than acrylics. Do you have an FS number for the shade of gray that the A-10 is coming with, or any other point of reference for the gray, or do I just have to mix to match? I'm going with your technique of layering, so I want to be sure that I am using a base color that is not darker than the stock base it comes with, and get the highlighting you referenced by moving from the center out! Rob

                                  Comment


                                  • Rcjetdude.......outstanding work on your cockpit.

                                    Can't wait to see it done.

                                    Just went over the entire thread and saw the finished product. TOO KEWL !!!!!
                                    Love the sound system.

                                    Woody

                                    Comment


                                    • Originally posted by RCjetdude View Post

                                      Hey Brad, the lip on the underside of the canopy frame engages under the windshield frame when the canopy slides forward to lock it down. It is actually quite secure along with the fact that the servo is helping to hold it down as well. Help me understand what you mean by the ply tab at the back of the ply sill....
                                      I didn't realize there was a lip on the underside of the leading edge of the canopy or that it slid forward like the LX so that's cool. Second, I was refering to what you are calling the main beam. I didn't know at the time I posted that that was what you were calling it. Terminology is always half the battle. Now we know what to call that 3/8" plywood piece. Great pictures but I'm still having trouble understanding the mechanics of it. So you have 8 pictures in this latest post. I will use them as a reference. In picture #2 does that plate simply keep the main beam from falling through? In picture #4 does that sliding square tube attach to the underside of the canopy? In picture #8 if understand correctly you are using the foam tac as a " hinge" for the leading edge of the styrene plate.Wondering if a small Dubro nylon hinge, #119, might be more durable over time or? Makes good sense that the trailing edge of the canopy helps stabilize the styrene plate. In picture #9 I think I understand your explanation but a side view showing where the clip holes are drilled and where on the bottom of the styrene plate the small plastic bracket is glued. Also, the dimensions of the styrene plate and possibly a template of the main beam would be helpful. I'm wondering how the 1/8" ply sill attaches, I assume, to the bottom of the canopy. My hat is off to you figuring all this out dude! Waiting to see how the servo mechanism works and the video. Thanks, Brad

                                      Comment


                                      • Fantastic job RCjetdude!!! Can't wait to see this in person at NEFI next weekend...

                                        Comment


                                        • Hey Guys...I'm researching the wings trying to get the detail on rivots. It appears from the pics I have seen that they are almost invisible on the wings. Does anybody have any good pics or thoughts? Rob
