My old one got smashed up beyond repair due to a brownout which was my fault (I would have had to replace the fuse, and why would I when I knew this one was coming) so I just ordered the new one!
Order 343327
Yay, so I already have some spare parts. (check out post #71, I tried to sell the "remains" but no one was interested!!)
Guys, its strongly recommended to add some CF reinforcement to the inside of the nose on this plane. There's some weight up front and the physics of inertia can snap the nose right off in a bad landing (its a weak spot). Other than that - like you see in the video, this plane is an awesome flyer. I can hardly wait to fly the new one!Marc flies FW & FL: AL37, MiG-29, T45,F4, A4, A10, F104 70 and 90, P38, Dauntless SBD, Corsair, B17, B24, B26 & P61, Lipp.P19, ME262, Komets, Vampire, SeaVixen, FMS Tigercat, FOX Glider & Radian XL.
Rabid Models foamies, including my 8' B17 & 9' B36... and my Mud Ducks! www.rabidmodels.com
Comment
-
correction.. saw a pic posted, thought it was the model... its not.
Split flaps used on the model are really not appropriate.
they are doing the classic "split"... upper half of TE fixed, lower half comes down.
The sections of flap inboard and outboard of the engine nacelles is the correct idea.
Full scale it appears the top of the flap is shorter than the bottom, and the whole flap pushes back as it rotates down. This is essentially a single stage Folwer flap. (typical modern airliners use multiple stage Fowler)
Linkage to do scale movement of the scale flap sections is difficult. I'm trying to solve it for a 107 inch span Me262. Closest I have come up with gets the correct movement but requires 2 servos per flap section (and a ton of ball links)
Some early experimental results:
Yes, the servo has to be that far away for the geometry to work.FF gliders and rubber power since 1966, CL 1970-1990, RC since 1975.
current planes from 1/2 oz to 22 lbs
Comment
-
Originally posted by fhhuber View Postcorrection.. saw a pic posted, thought it was the model... its not.
Split flaps used on the model are really not appropriate.
they are doing the classic "split"... upper half of TE fixed, lower half comes down.
The sections of flap inboard and outboard of the engine nacelles is the correct idea.
Full scale it appears the top of the flap is shorter than the bottom, and the whole flap pushes back as it rotates down. This is essentially a single stage Folwer flap. (typical modern airliners use multiple stage Fowler)
Linkage to do scale movement of the scale flap sections is difficult. I'm trying to solve it for a 107 inch span Me262. Closest I have come up with gets the correct movement but requires 2 servos per flap section (and a ton of ball links)
Some early experimental results:
Yes, the servo has to be that far away for the geometry to work.
Link to p38 build http://www.flyinggiants.com/forums/s...t=50949&page=2
Comment
-
I was just asking why they chose to do split flaps instead of the more scale version, hoping to get some insight from the MRC dudes as to why they did that. The area of the wing directly above the split flaps on mine was rather warped. The split flaps would not close properly. That is why I did the mod. It helped the looks and the function.
That being said, the 262 was liked by everyone at the field. And, it sounded pretty good too.
Meridian Aeromodelers, Meridian MS
Comment
-
Yeah I wondered the same thing, on the original model-- why do split flaps, they could have easily done normal ones.
Its a shame that we lost almost 3 years worth of posts on this thread (everything between post #17 from Dec 2014 and post #18 March 2017 is gone). There was a lot here. Guess we need to start over again! Seaviper, can you post a new pic of your mod flaps? Or perhaps Brandon Moon?Marc flies FW & FL: AL37, MiG-29, T45,F4, A4, A10, F104 70 and 90, P38, Dauntless SBD, Corsair, B17, B24, B26 & P61, Lipp.P19, ME262, Komets, Vampire, SeaVixen, FMS Tigercat, FOX Glider & Radian XL.
Rabid Models foamies, including my 8' B17 & 9' B36... and my Mud Ducks! www.rabidmodels.com
Comment
-
Originally posted by JFandL View Post
This setup looks good while its of a P-38 you may want to give it a try. Not My p-38 or work.
Link to p38 build http://www.flyinggiants.com/forums/s...t=50949&page=2

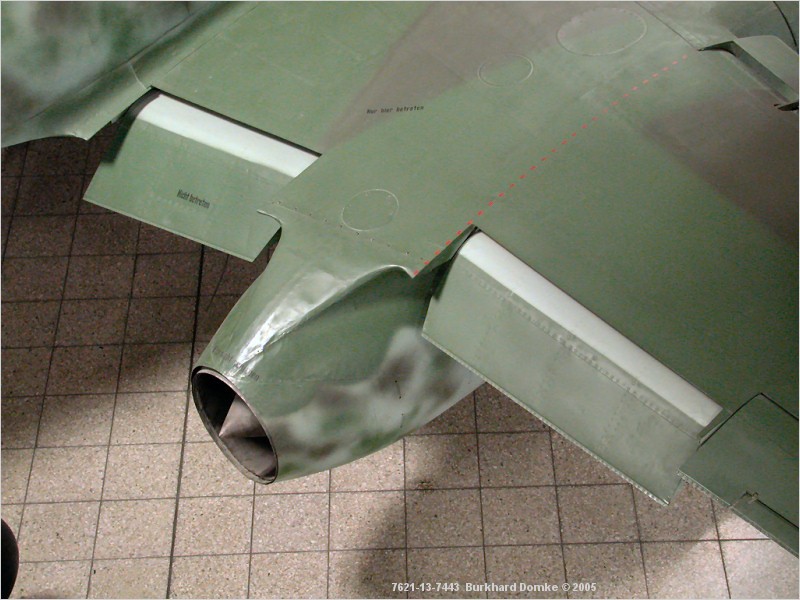

Full scale Me262 has tracks at the ends of each flap section and each section is pushed back by 4 lead screws. Tracks keep the flaps from skewing.
Making the scale tracks would be useless on the model because material flexing in flight would have the flaps popping out of the tracks.
the normal solution on models is to not do the push back and low hinge the flap. It looks pretty good, but doesn't produce the classic Folwer gap (or effectively increase wing area, which is why they move back) as the flap moves.
Not as important to gain the area for the foamy by Freewing. The large one I am doing needs the added area to reduce landing speed.FF gliders and rubber power since 1966, CL 1970-1990, RC since 1975.
current planes from 1/2 oz to 22 lbs
Comment
-
The flaps dont have to be 100% scale function but they still shouldnt be just split. Kinda like the the V2 Freewing Fw-190. the first version didnt have flaps then the V2 they add flaps but they make them wrong. Its not hard to make split flaps
I have made many KISS split flaps on the V1 Freewing Fw-190, Parkzone Spitfire, Unkown name C-47, Unique Models T-6 Texan II
Comment
-
Originally posted by seaviper View Post
I noticed on that thread you posted, Alpha gave you an "attaboy" - but he didn't comment on why this model was designed with split flaps.

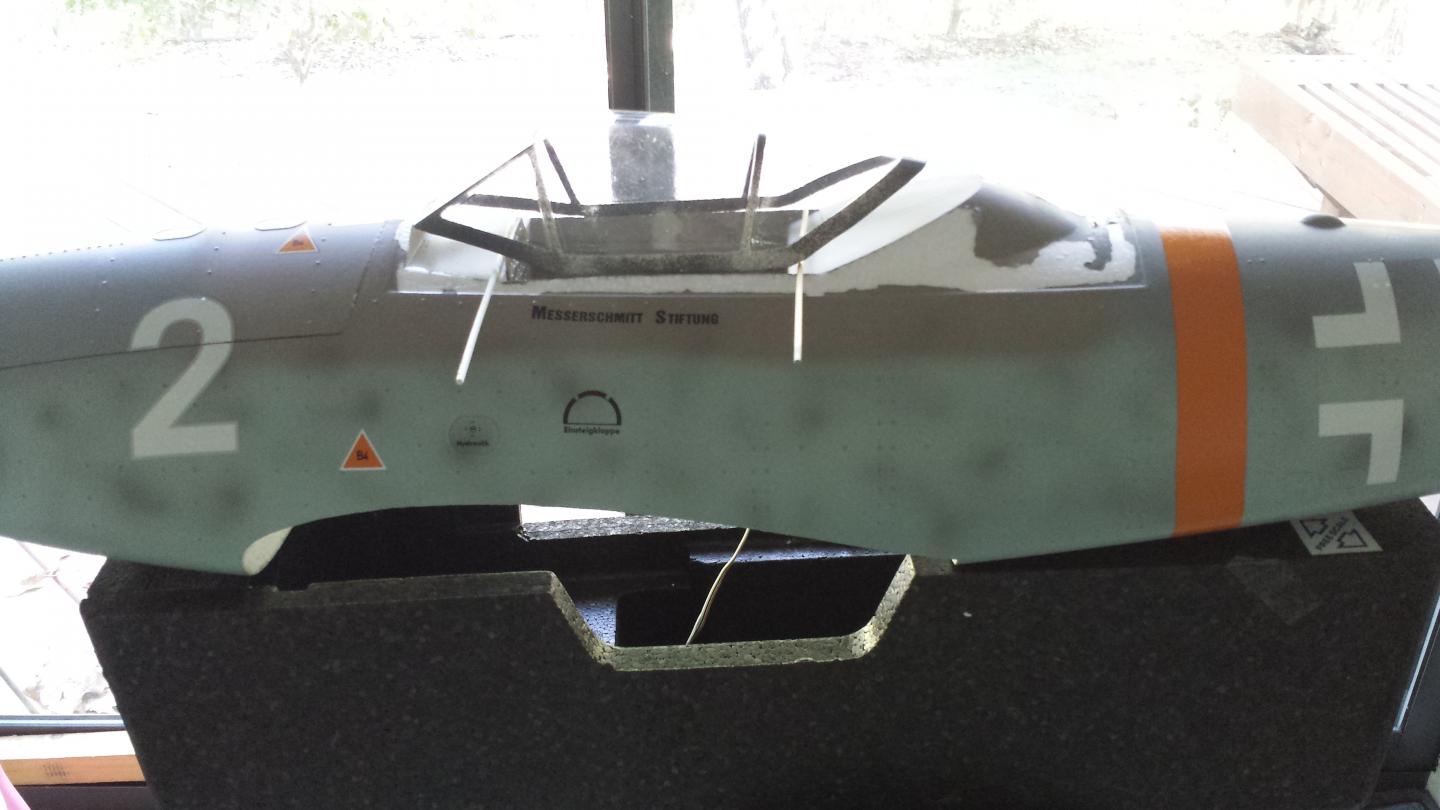

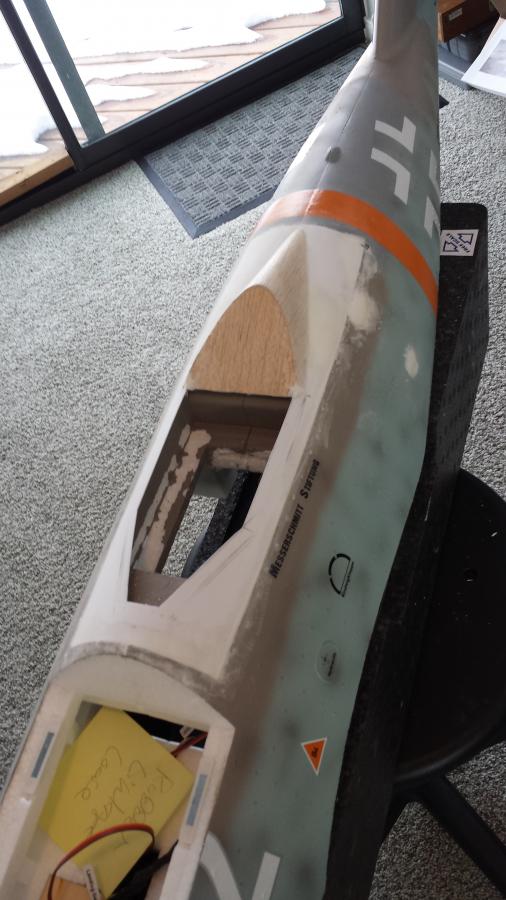

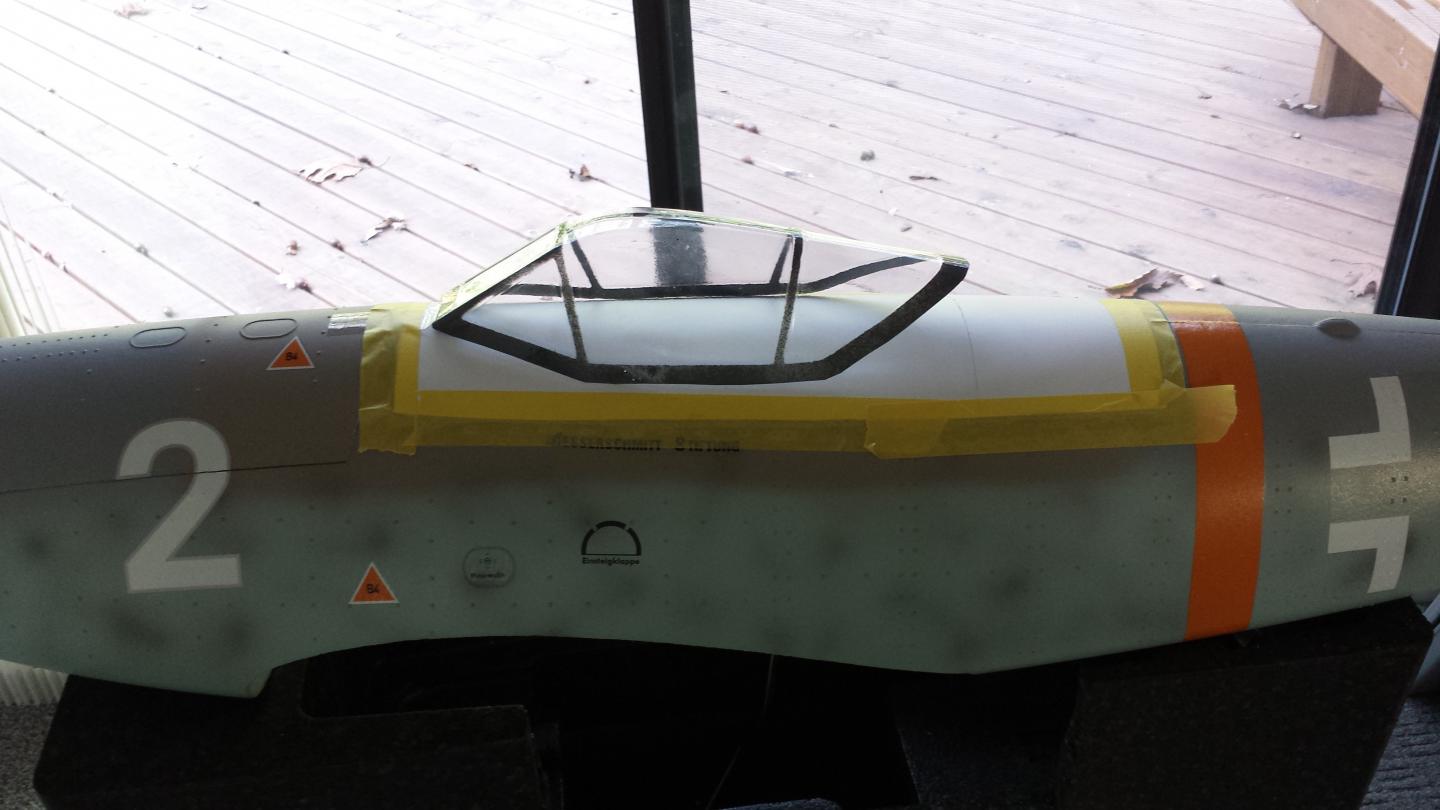

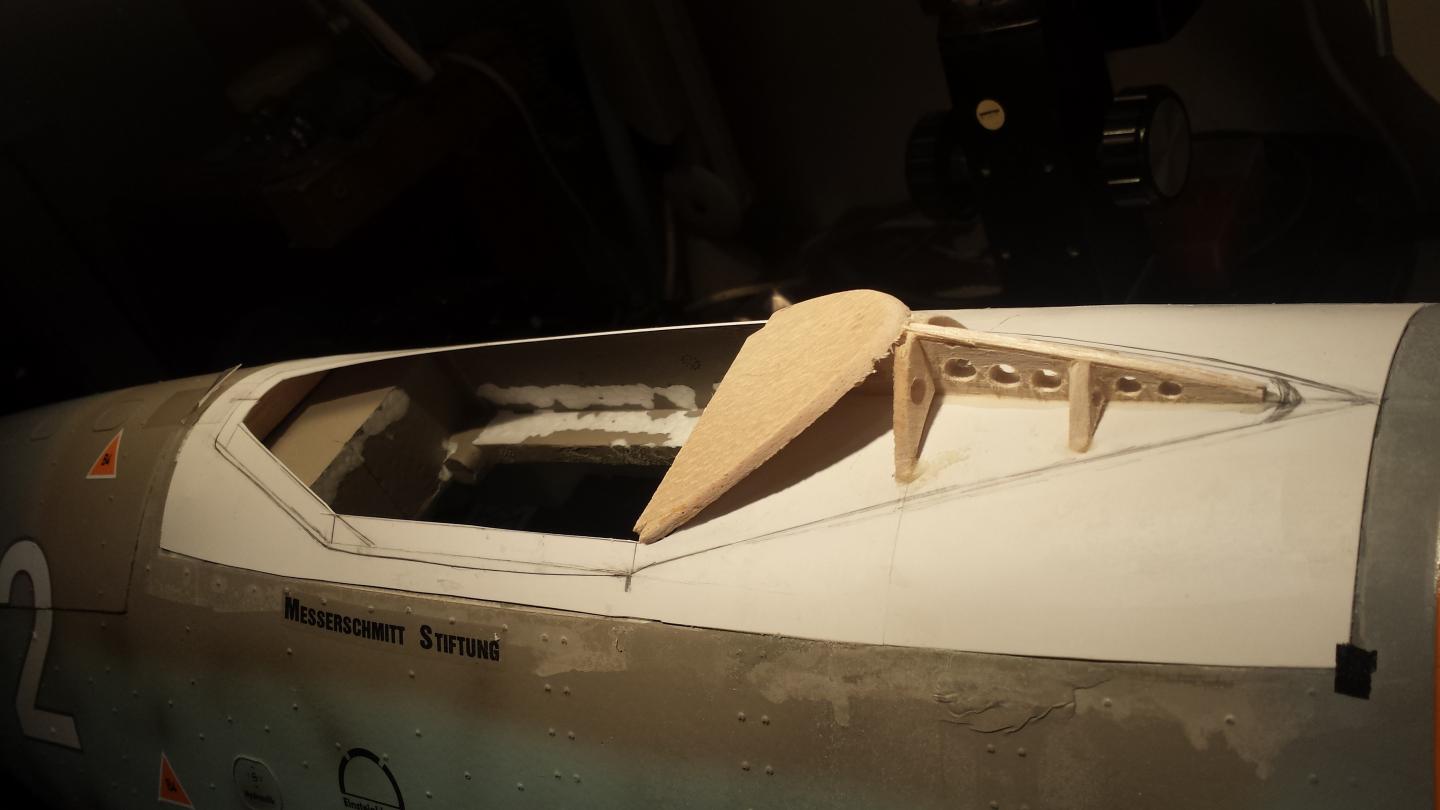

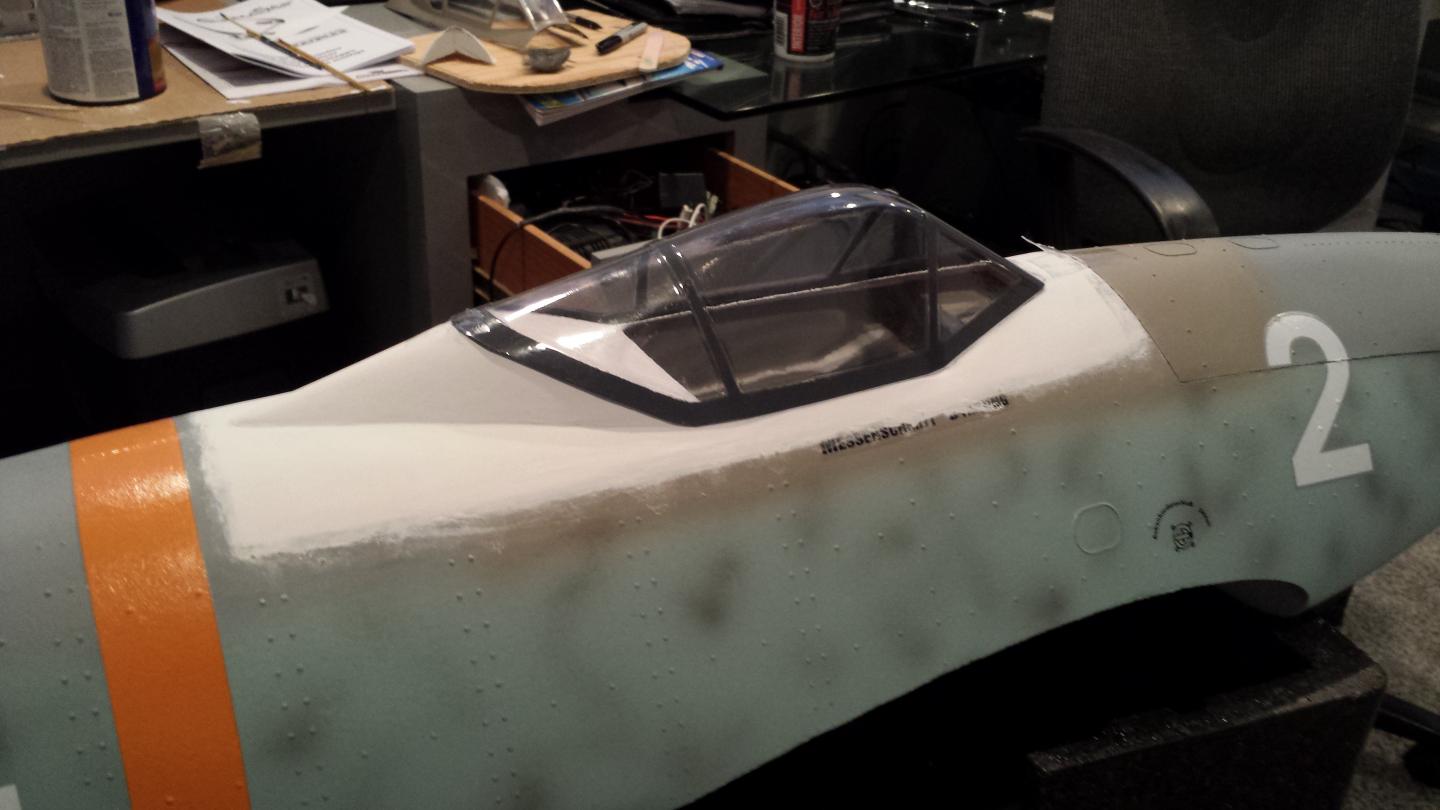

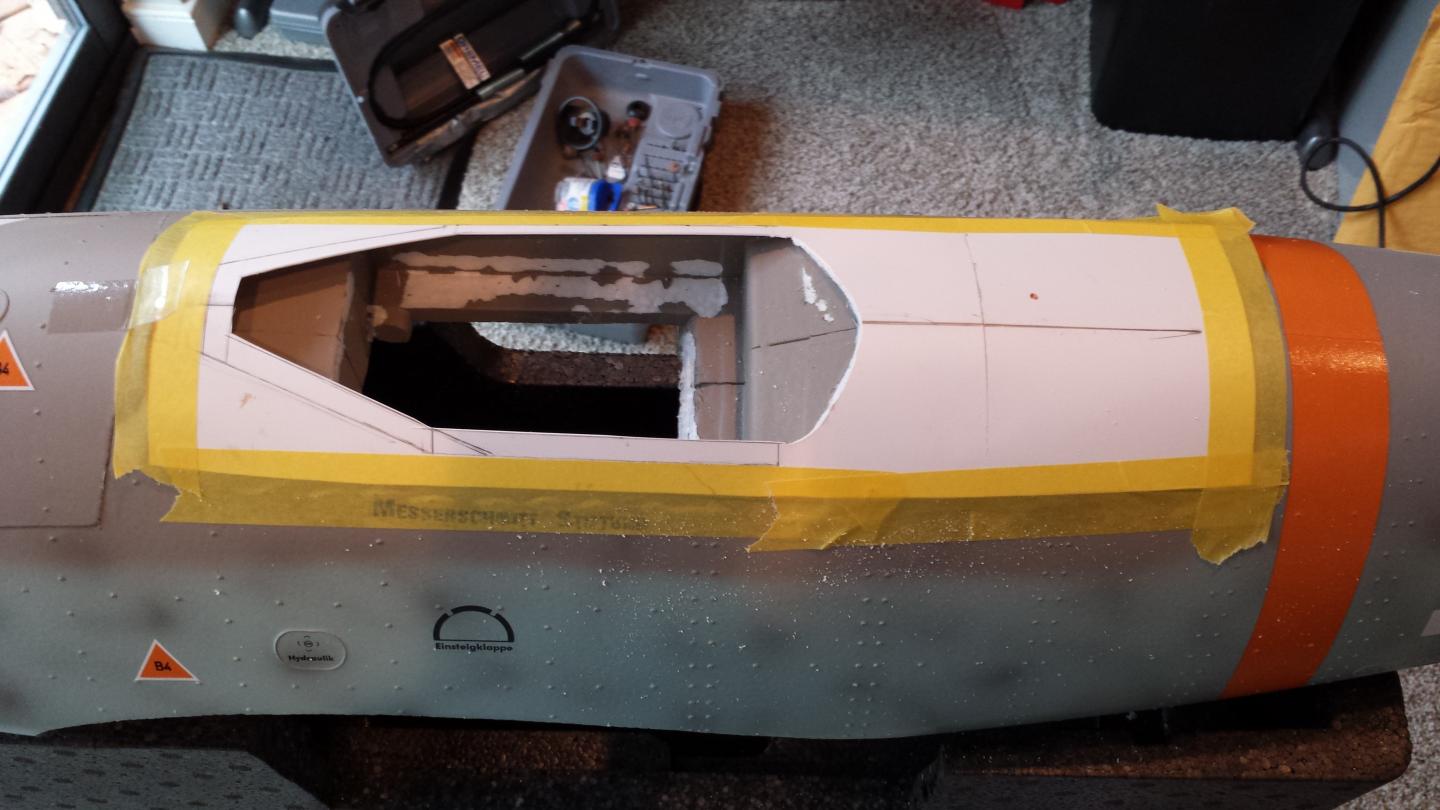

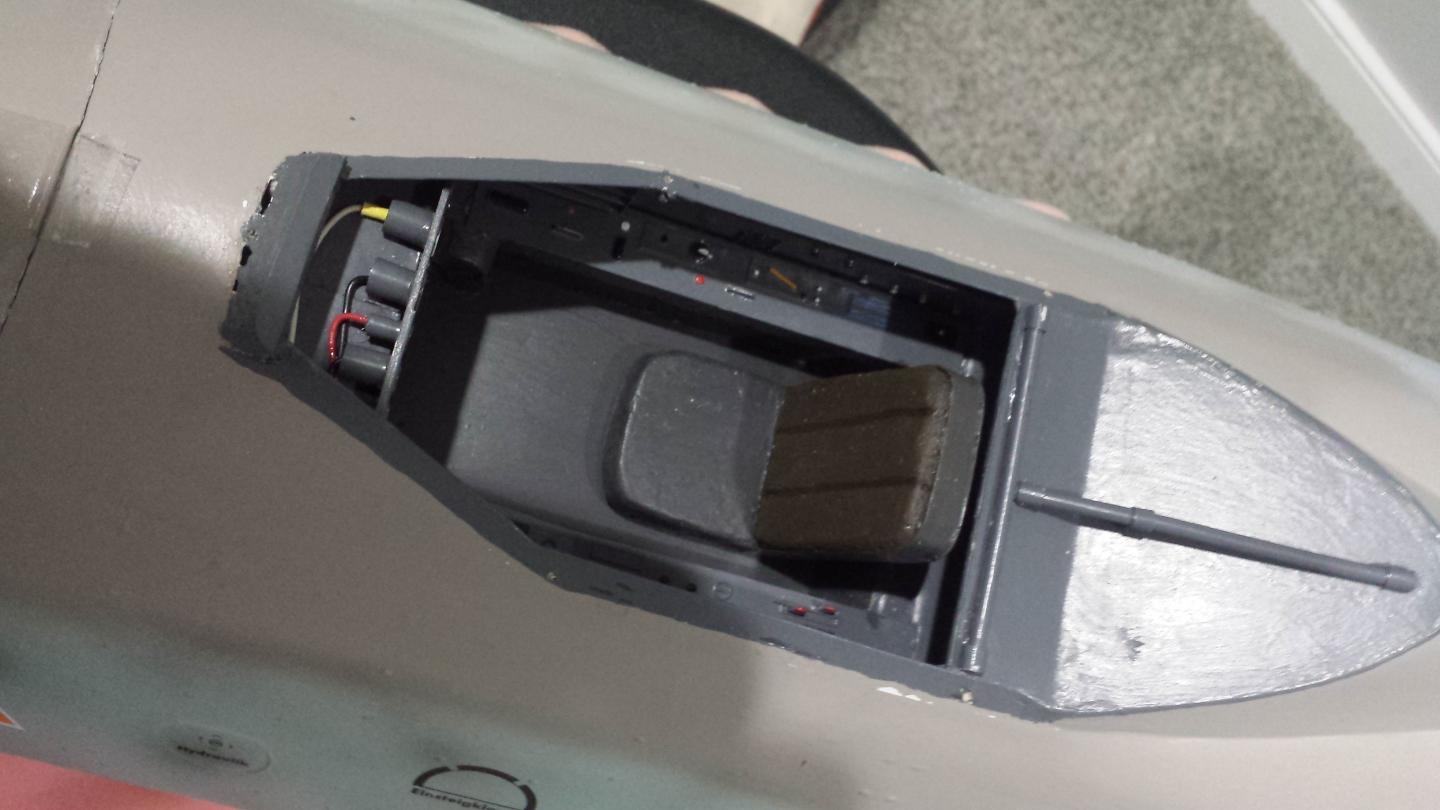

What I would like to know is, why did they make the pilot like he's sitting in the back seat? Why a full-body pilot for this plane? Just about all the others have busts. Someone here needs to make some 3D cockpit parts so we can stick in a normal pilot in the correct size, in the correct position, in a seat with the armor-plated back.Marc flies FW & FL: AL37, MiG-29, T45,F4, A4, A10, F104 70 and 90, P38, Dauntless SBD, Corsair, B17, B24, B26 & P61, Lipp.P19, ME262, Komets, Vampire, SeaVixen, FMS Tigercat, FOX Glider & Radian XL.
