  • Originally posted by Bobaroo View Post
    Used a Click image for larger version  Name:	66-7709.jpg Views:	661 Size:	44.6 KB ID:	182117 FreeWing attachment to the Rail !! As Good a place as any, considering the Pylons are Multi-Use anyway !!
    Here are a couple of more pictures of "709" in the air when it was assigned to the 13th TFS (circa 1969-1970). That's my Dad in the back seat.

    Click image for larger version

Name:	F-4D Aug 27 1970 Over North Viet Nam.jpg
Views:	285
Size:	83.7 KB
ID:	362692Click image for larger version

Name:	F-4D Over Viet Nam (August 1970).jpg
Views:	283
Size:	101.6 KB
ID:	362693

    Comment

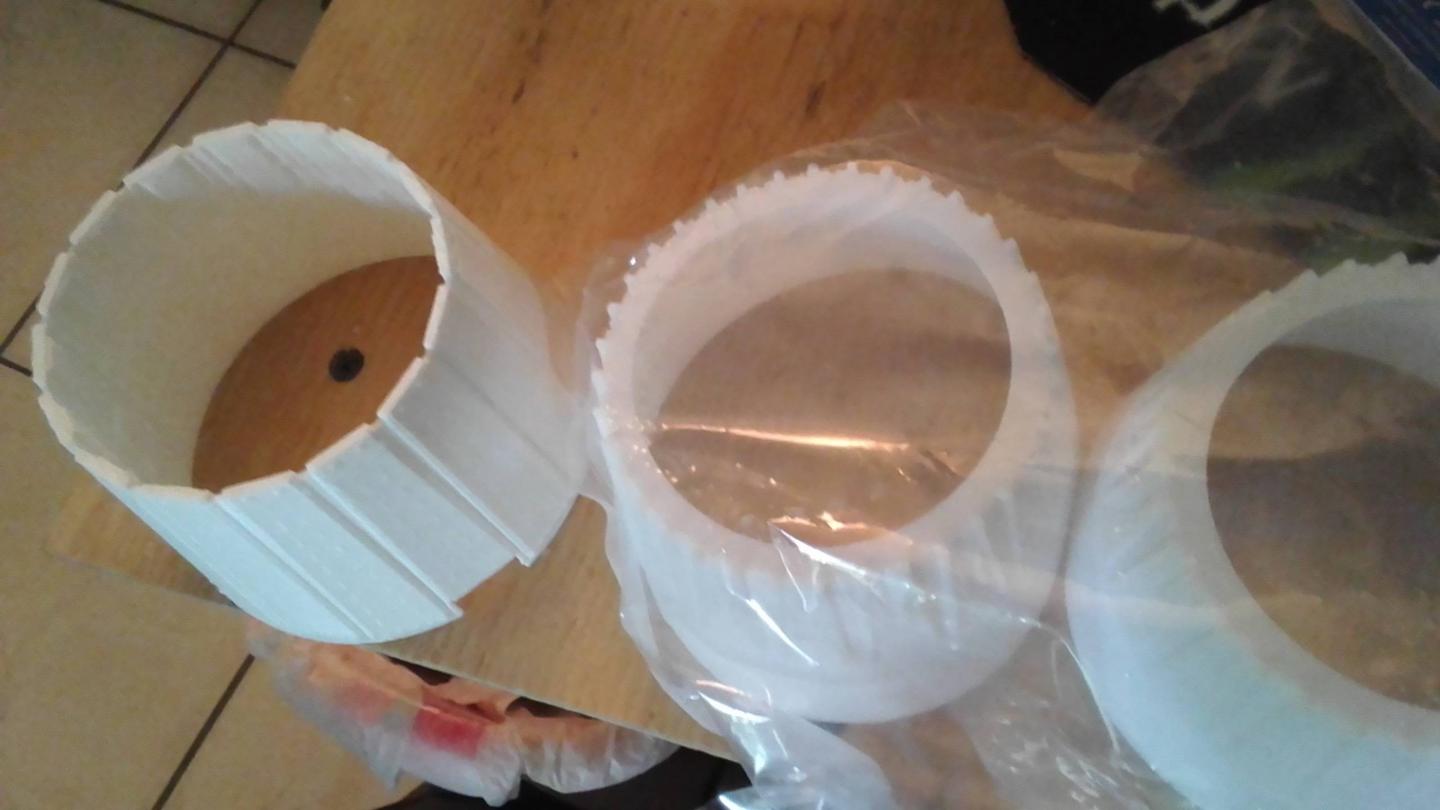

    • Originally posted by Bobaroo View Post

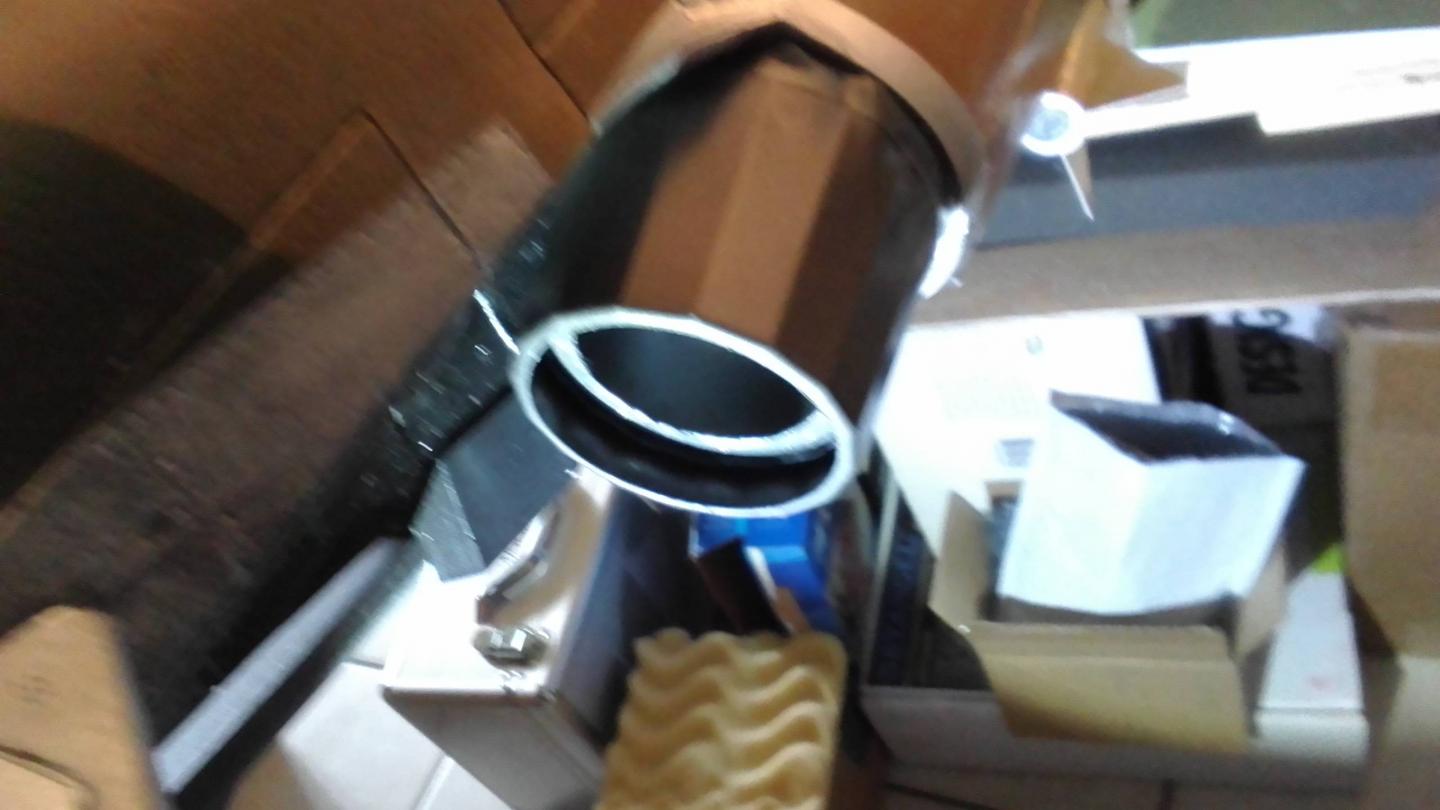

      Yes,... I put a Drop on the No.1 F-4D Nozzles and used a Plastic Drinking Cup for the Nozzles. Extended them to the Later E-Model Length.

      Click image for larger version Name:	IMG_20190424_141432.jpg Views:	0 Size:	81.7 KB ID:	191598

      No.2 F-4E (Early) has the FW 3DP Nozzles shown here before the Drop and Chop !!! This Extraordinarily Wide Exit Lip was unacceptable to me. This is what you get when you just stick them onto the Foam after removing the stock plastic cones. Most guys just leave it like this.


      Click image for larger version Name:	IMG_20190424_141433.jpg Views:	0 Size:	84.1 KB ID:	191599


      The No.3 F-4F will be getting the RCGeek LongNose F-4E/F 3DP Nozzles. They are 'Longer' and have a very nice Exit Lip on them and are already at a nice Thickness. No need for Chopping back the Foam as they are already extended past the Inner Nozzle Boundary. Depending on which Aircraft you are modeling, there is a nice set of Nozzles to be added for someone who desires a more realistic F-4C/D/E/F look on their Foamie !! Cheers


      Click image for larger version Name:	IMG_20190424_141548.jpg Views:	0 Size:	73.4 KB ID:	191600


      Click image for larger version Name:	-8 vs -10 Annotated Pictures.jpg Views:	1 Size:	135.7 KB ID:	191601
      This is some great work. I really like the "dash 10" nozzles. Of the research I have done and the pictures I have from my Dad's planes - those seem to be the right ones. Love the attention to detail. Awesome stuff.

      Comment


      • Originally posted by jthenry8 View Post

        This is some great work. I really like the "dash 10" nozzles. Of the research I have done and the pictures I have from my Dad's planes - those seem to be the right ones. Love the attention to detail. Awesome stuff.
        I think I am going to correct myself. It looks like the "turkey feathers" nozzle may be the right one for a 1968 produced F-4D. The definitive picture I have is of F-4D 68-709 on a low power setting and you can clearly see the collar. I mistook the constricted nozzle to be more representative of the "dash 10." Looks like upon closer inspection that the nozzle has a collar. Would love some feedback on this one.
        Click image for larger version

Name:	image.png
Views:	272
Size:	290.1 KB
ID:	362724

        Comment


        • Originally posted by EA-6B Geek View Post

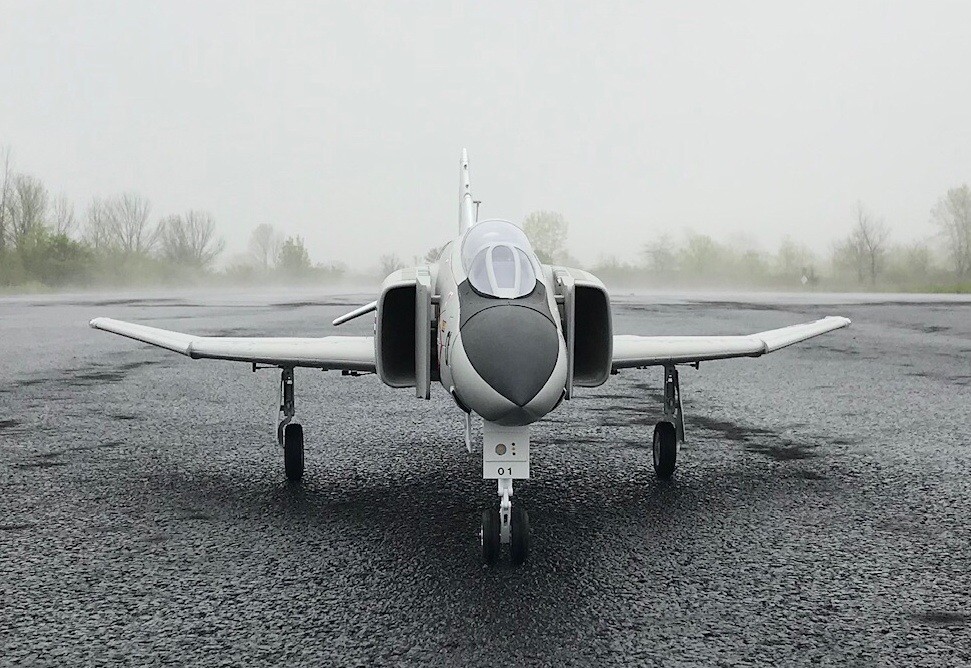

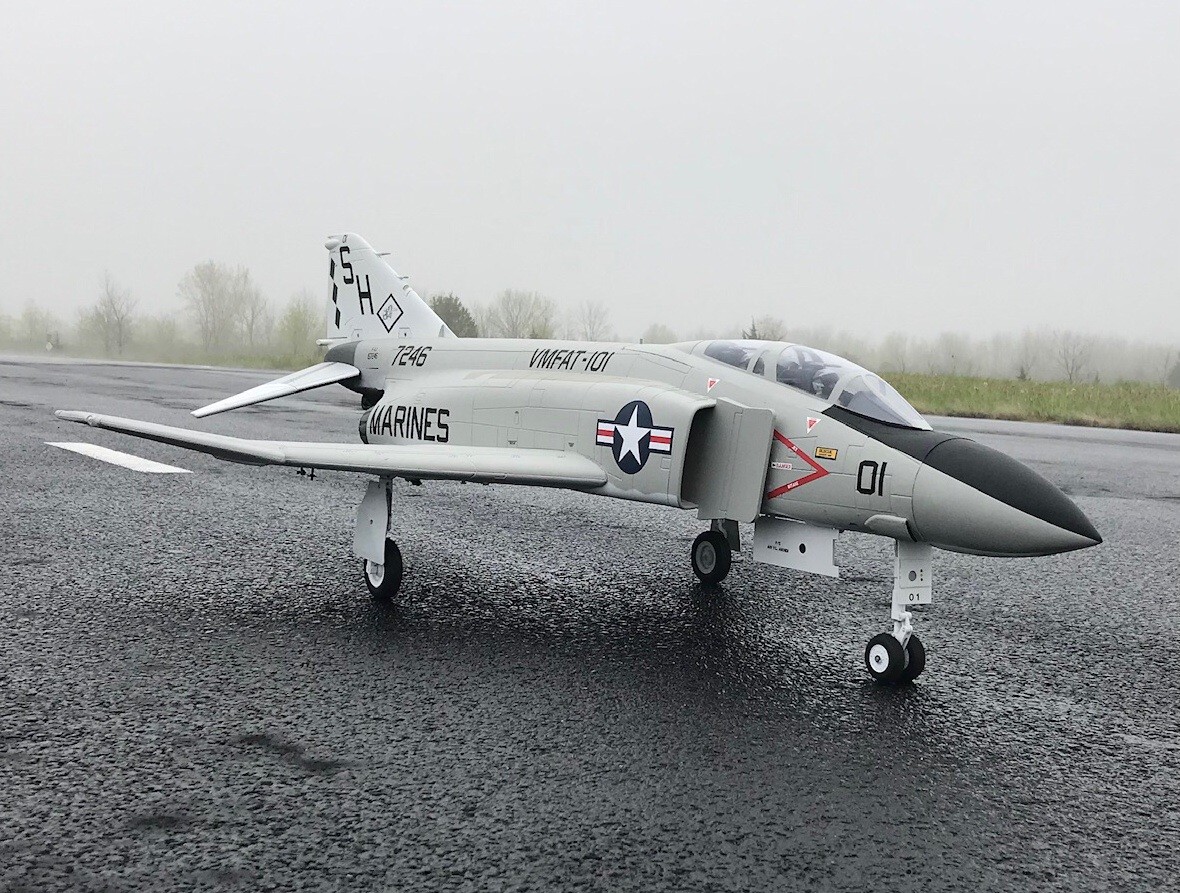

          :)Waiting for the fog to burn off this morning, got a few photos of the Phantom out on the runway. Can't say enough about how sweet flying this airplane is.

          Click image for larger version

Name:	image.jpg
Views:	908
Size:	336.4 KB
ID:	192732Click image for larger version

Name:	image.jpg
Views:	878
Size:	205.5 KB
ID:	192731
          Holy Crud, Batman! What great pictures. The sky is perfectly matched to the paint scheme!

          Comment

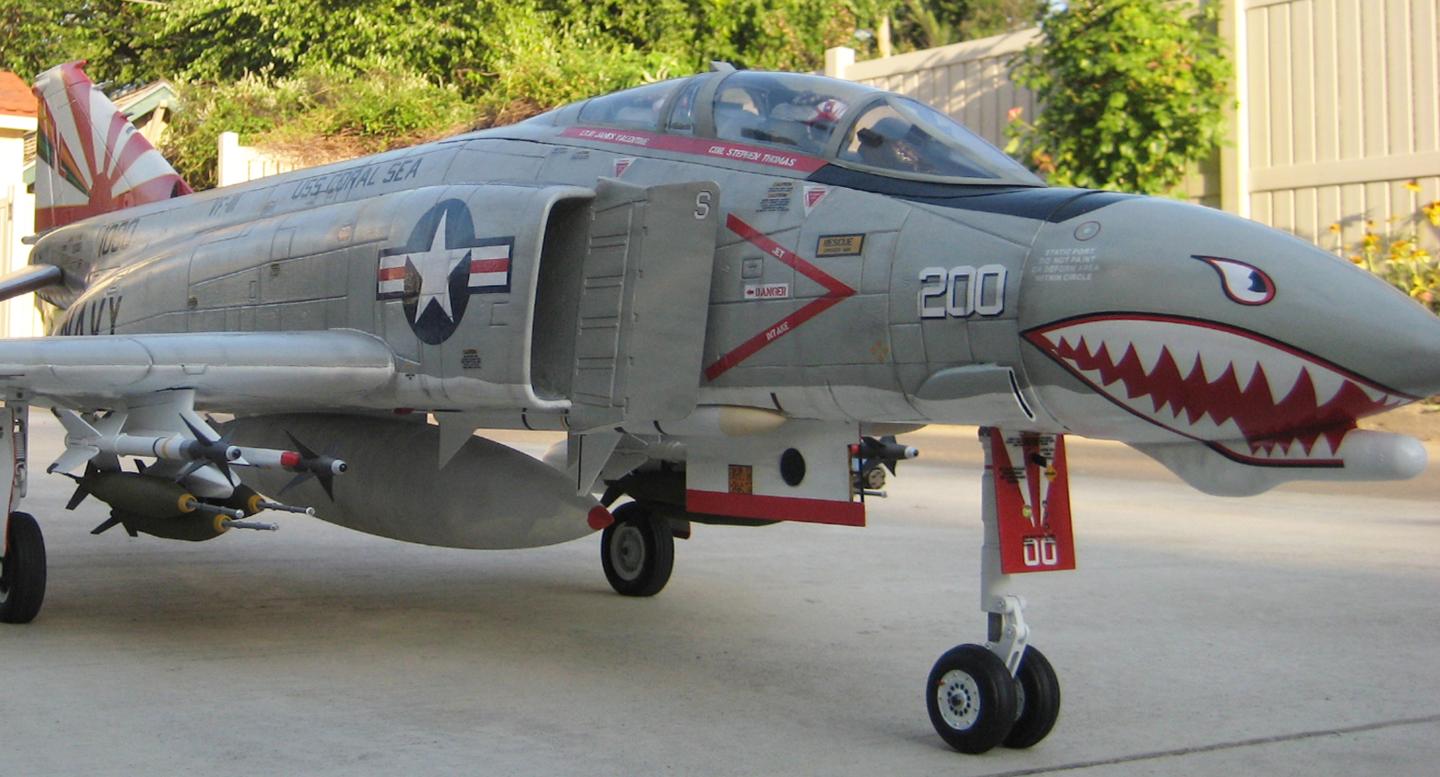

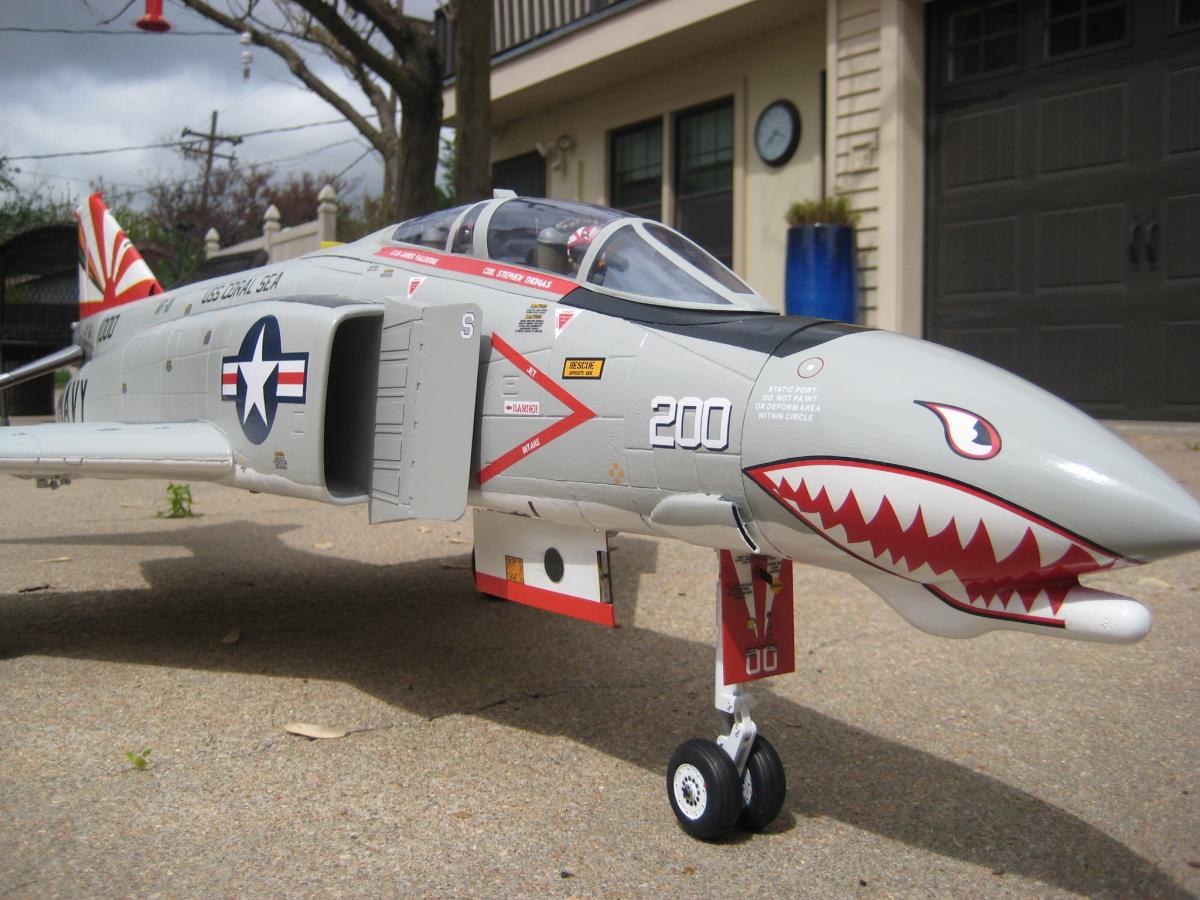

          • Originally posted by Elbee View Post

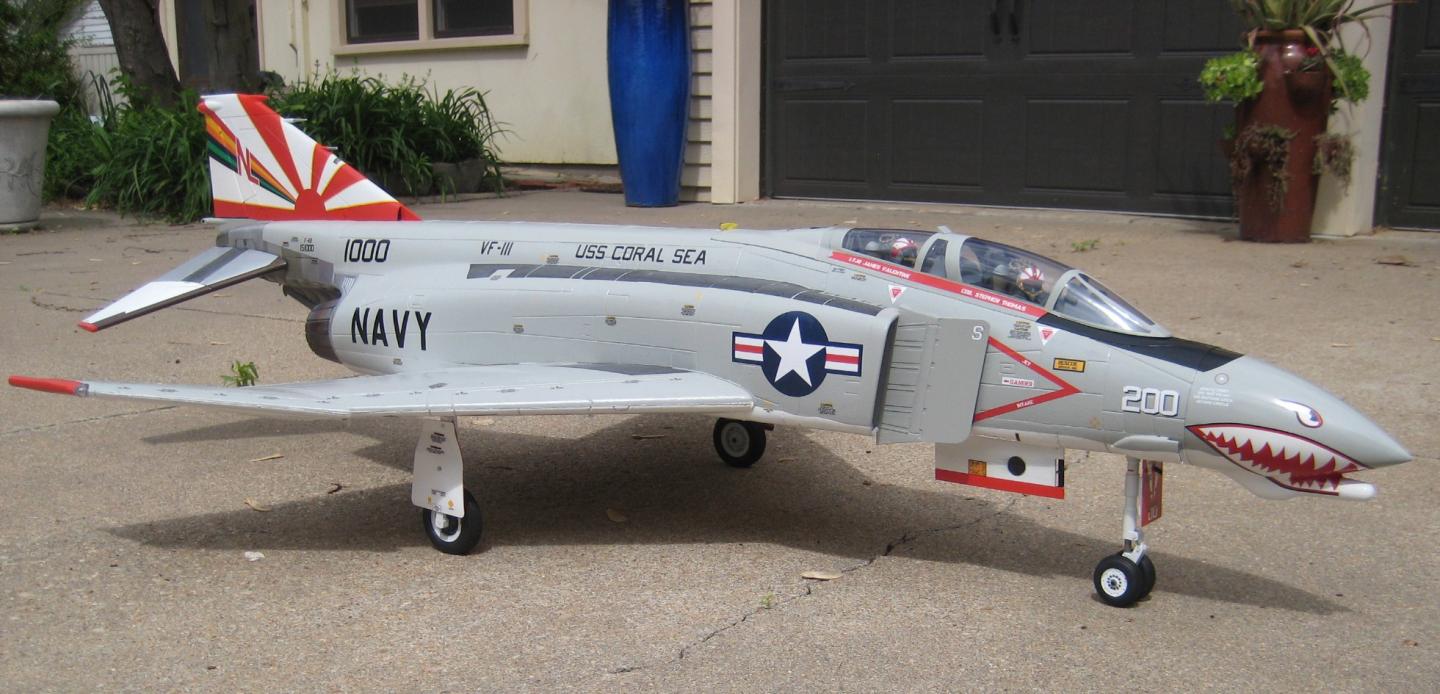

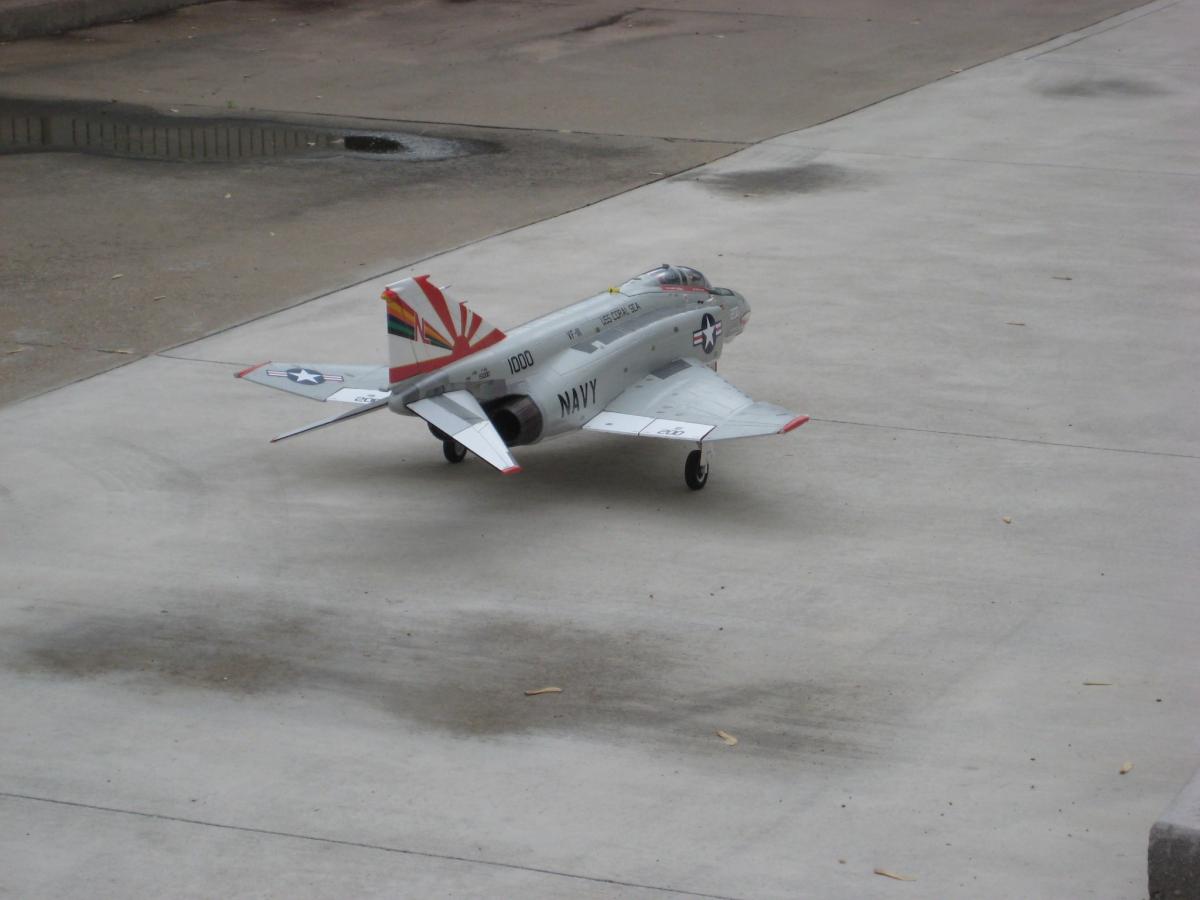

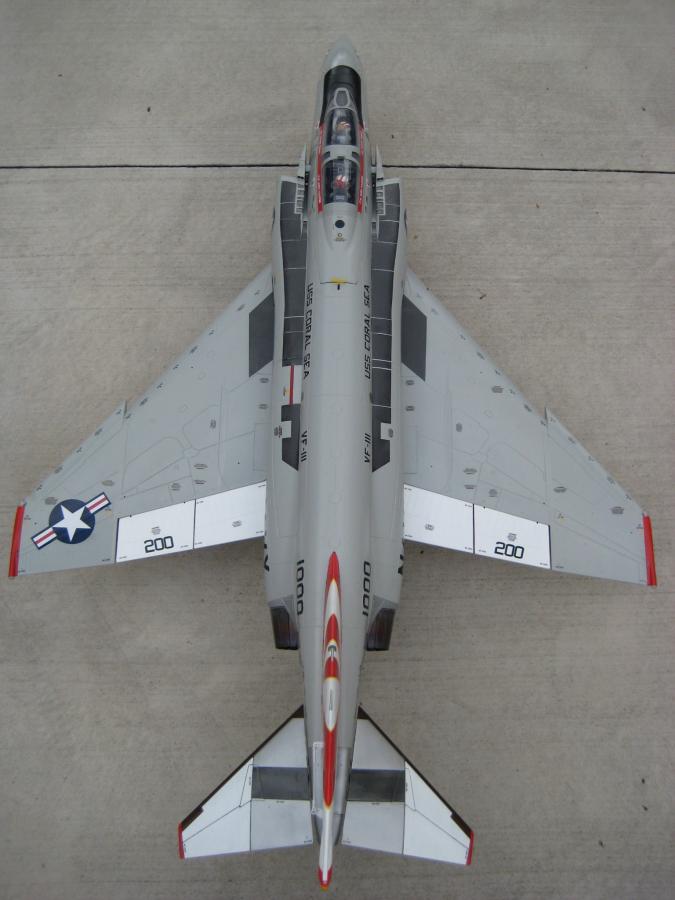

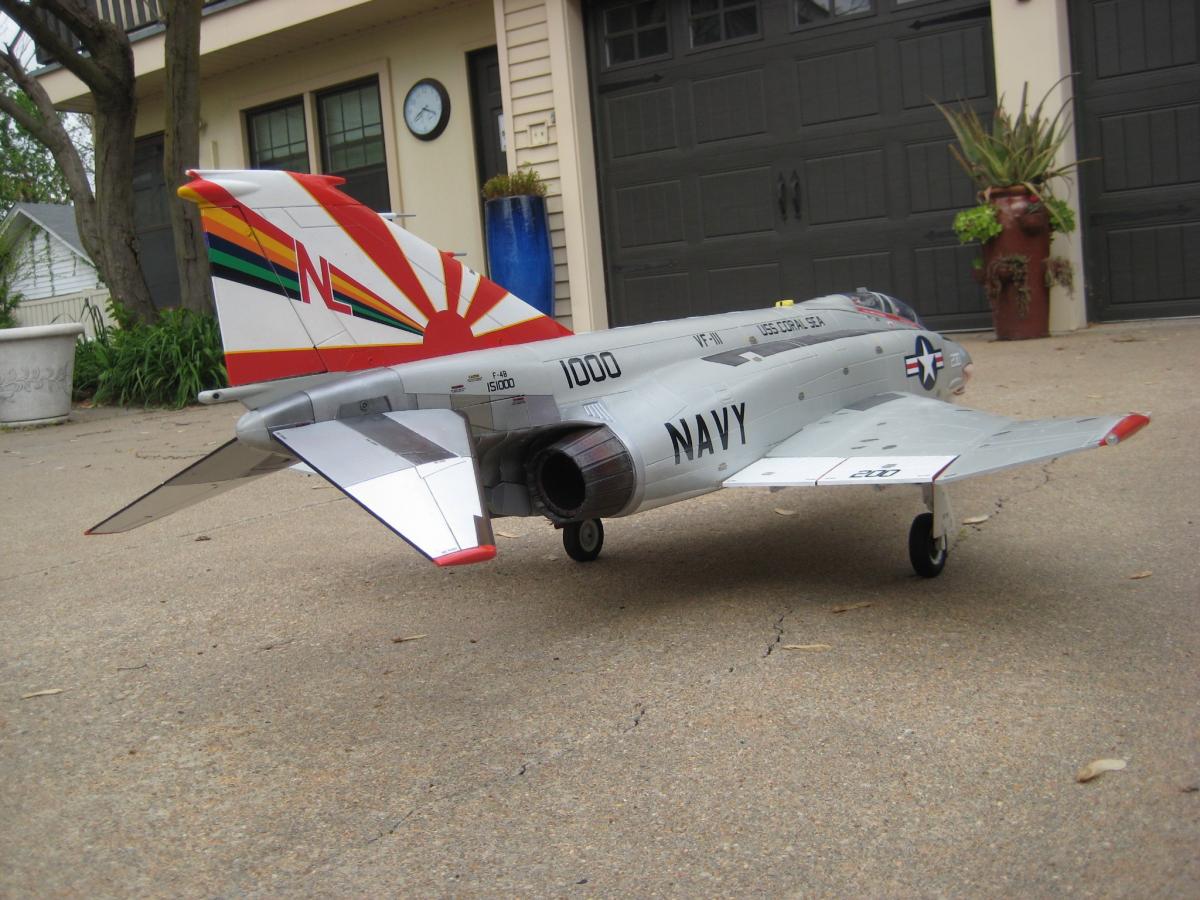

            Hey Y'all, She's on her own feet for the first time. Some soft weathering on the upper fuselage, light touch up, airbrushing the tailhook, and a matte finish coat yet to do. Ordinance is a work in progress. :Whew:Best, LB
            Click image for larger version

Name:	IMG_0163.JPG
Views:	1727
Size:	138.3 KB
ID:	192907Click image for larger version

Name:	IMG_0164.JPG
Views:	1503
Size:	138.4 KB
ID:	192908Click image for larger version

Name:	IMG_0178.JPG
Views:	1514
Size:	139.6 KB
ID:	192909Click image for larger version

Name:	IMG_0186.JPG
Views:	1533
Size:	105.6 KB
ID:	192910Click image for larger version

Name:	IMG_0168.JPG
Views:	1489
Size:	148.7 KB
ID:	192911Click image for larger version

Name:	IMG_0180.JPG
Views:	1590
Size:	112.1 KB
ID:	192912Click image for larger version

Name:	IMG_0181.JPG
Views:	1521
Size:	57.4 KB
ID:	192913Click image for larger version

Name:	IMG_0183.JPG
Views:	1470
Size:	74.9 KB
ID:	192914
            Love the intake ramps and the pilot figures. in the first picture it seems like he is looking directly at ground crew directing him to the catapult. I commented previously on the nozzles. Great work. Looks like you did some work on the chin air intakes. Would like to hear some details about if you made the parts or if they are available somewhere else. Overall, exceptional craftmanship.

            Comment


            • Originally posted by RCjetdude View Post

              The G nose (Wild Weasel) is different than the E nose. I only know of two sources for the E nose and that is Tom Mansel and Chris Wolfe. Chris's is more scale. The small door on mine was hinged with a standard Dubro hinge.

              I want to build a G variant, but the "E" nose variant looks a little bit off - too thick? Has anyone else noticed this? Is it because the base of the nose from the kit to round and a difficult transition? Thoughts? Please don't think this is a criticism of the work of those who developed the E nose - it is not. Those who developed that mod are amazing craftsman. Just trying to understand the build and the dimensions affecting the nose adaptation. Humbly submitted.

              Comment


              • Originally posted by jthenry8 View Post
                Would like to hear some details about if you made the parts...
                JT, I thank you for the kind words. The parts you mentioned are 3D printed mods of my design. Mostly, I took the OEM piece parameters and changed the profiles. The VIRs need to look sharp and thinned in my opinion, that was a given, the A/C intakes should look cleaner, and so on.

                The pilots are JHH 1/12th scale from "The RC Geek" as are the "B" Nozzles (I did not have my printer when I bought all the parts for this build). The Cockpit is the Freewing version offered by Motion RC. It is a resin 3D print and fits perfectly.

                I built the "B" variant the best I could without changing any fuselage profiles and you wrote about doing an "E" or "G". The fuselage is wide on this model, though I have seen others in this thread that have squared the cockpit section to better represent the "E". I do not know if there are other 3D printable designs for modding the Freewing "D" to an "E" or "G".

                This was an early project in design for me, but all the parts turned out quite good, I think. Each design change I made was a compromise to the OEM and I did not want to stray to far from what is a very detailed and flyable model.

                If you have a 3D printer or access to one, I can send G-codes of those parts. I would need to know the printer manufacturer, filament, and nozzle size you are using. The parts print nicely.

                Best, LB

                Click image for larger version  Name:	IMG_0002 PS 1 Cropped Blow Up Contrast.jpg Views:	2 Size:	137.8 KB ID:	362747
                Click image for larger version  Name:	..and kill MIGs.jpg Views:	2 Size:	113.9 KB ID:	362748
                Captain: Got any ideas?
                F/O: Actually not.
                — Captain Chesley B 'Sully' Sullenberger III and F/O Jeff Skiles—

                You'll never be good at something unless you're willing to suck at it first.
                ~Anonymous~

                AMA#116446

                Comment


                • Originally posted by Radar-Guy View Post
                  Yep, crewed by JHH pilots. Visors covered with Future floor finish....

                  Click image for larger version Name:	A62CD2B4-584F-4210-A160-7F8DF2034D15.jpeg Views:	0 Size:	85.4 KB ID:	235164
                  Did you raise the WSO up towards the canopy? I have always thought they looked like there were sitting really low in the cockpit. From this angle it looks just about right.

                  Comment


                  • Originally posted by vduniec View Post

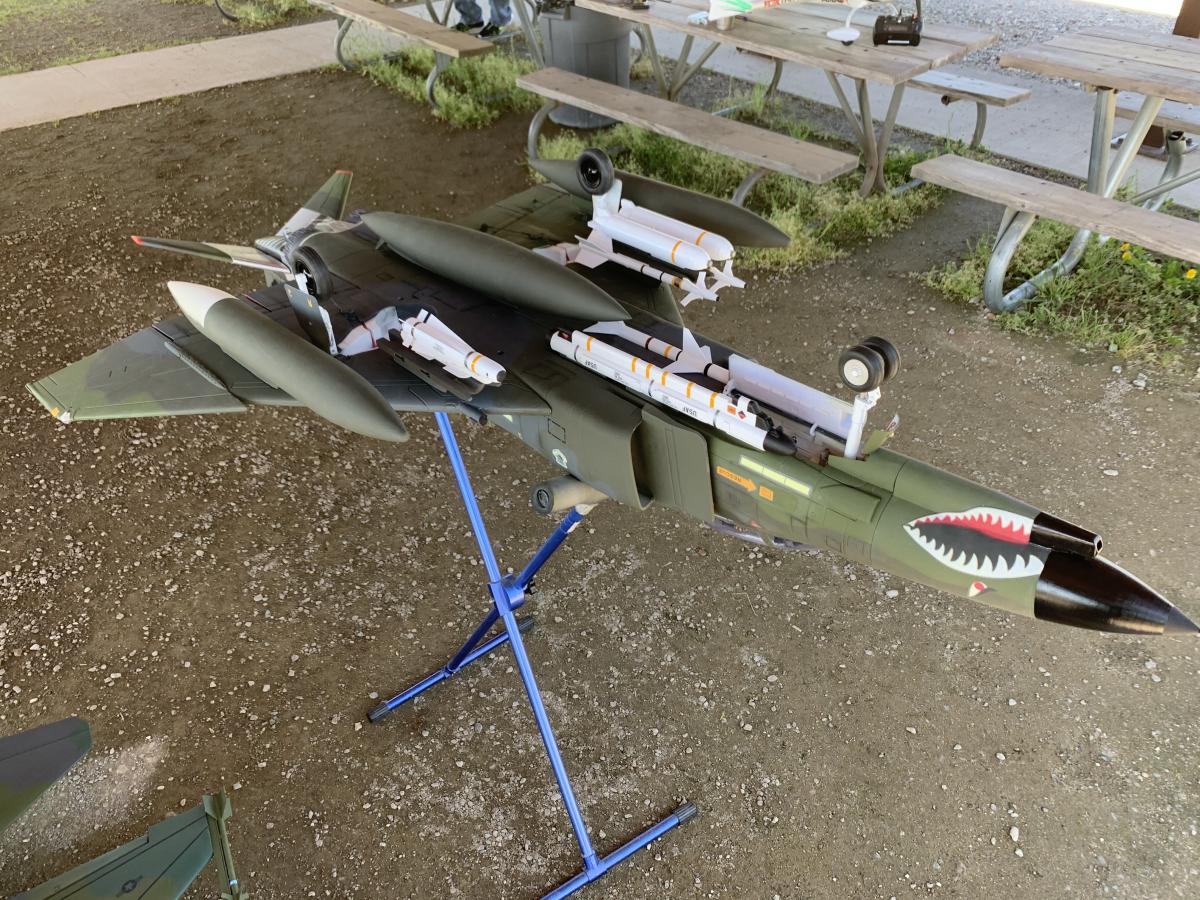

                    Ready for inspection! Here's the final product. Weapons, "E" nose, cockpit, pilots, TIESO and centerline tank are 3D printed. Only one flight on it so far. It has survived the maiden but was pretty nose heavy and I bounced the landing shearing the nose gear pin. Already repaired and ready for the next sortie.

                    Click image for larger version

Name:	IMG-3375.jpg
Views:	801
Size:	237.9 KB
ID:	252899Click image for larger version

Name:	IMG-3377.jpg
Views:	796
Size:	311.9 KB
ID:	252900




                    Click image for larger version

Name:	IMG-3378.jpg
Views:	848
Size:	295.3 KB
ID:	252898
                    Absolutely fantastic. My Dad was the Ops Officer and later the squadron commander of the 3rd TFS at Clark. Your Rhino looks great.

                    Comment


                    • Originally posted by heisteff View Post
                      hi just wanted to show some pics of my rhino. maiden still to come
                      Looks absolutely fantastic. Is that the RC Geek "E" conversion kit?

                      Comment


                      • Originally posted by jthenry8 View Post

                        Absolutely fantastic. My Dad was the Ops Officer and later the squadron commander of the 3rd TFS at Clark. Your Rhino looks great.
                        Also, did you create the Standard ARM and AN/ALQ-184 pod? I am trying to pull together everything I would need to build a "G" variant, and these pieces would really help.

                        Comment


                        • Originally posted by jthenry8 View Post

                          Did you raise the WSO up towards the canopy? I have always thought they looked like there were sitting really low in the cockpit. From this angle it looks just about right.
                          Yes, I did. These are JHH pilot busts raised with some balsa. The GIB deserves his view of the outside world.

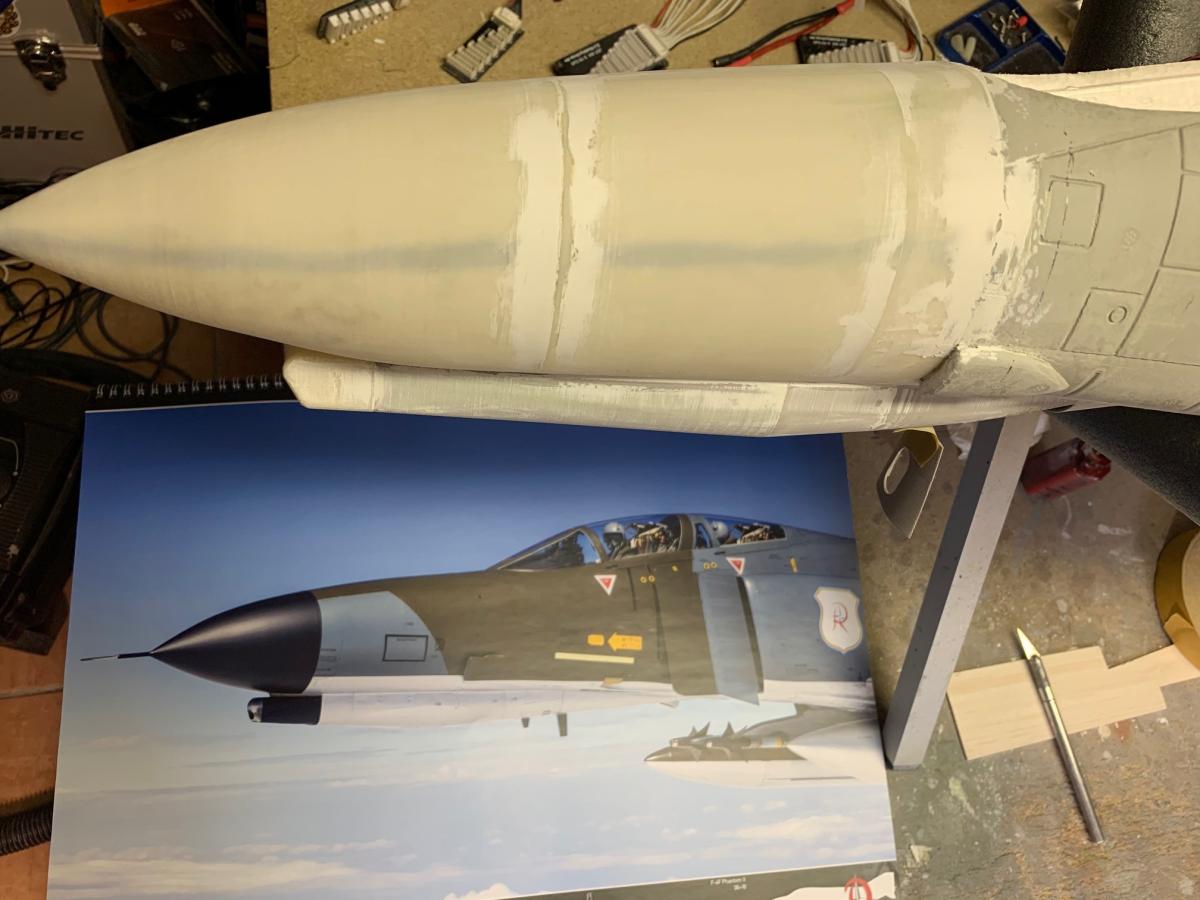

                          Regarding the printed ‚long nose‘ conversions. After some trials and looking at ‚good‘ drawings‘, I decided to make another design starting right in front of the wind screen including the different air scoops.

                          Click image for larger version

Name:	909B2A28-3C8D-4B30-8C2B-BFE37F9D5AA1.jpg
Views:	226
Size:	138.0 KB
ID:	363224
                          Click image for larger version

Name:	1ECD62CC-1A74-4607-91A2-CE224005EF4D.jpg
Views:	216
Size:	68.7 KB
ID:	363225
                          Click image for larger version

Name:	825B9813-60C0-469F-99C7-72FA1EDC5670.jpg
Views:	214
Size:	56.9 KB
ID:	363226
                          Click image for larger version

Name:	67DBEB30-C786-4A4B-8C76-77D5DFDC4B48.jpg
Views:	207
Size:	91.3 KB
ID:	363227

                          Comment


                          • Originally posted by jthenry8 View Post

                            I want to build a G variant ...
                            Also, make sure to add the outer wing slats then!

                            Click image for larger version

Name:	120F7D71-74B0-4740-9AB7-44BEADA9AD58.jpg
Views:	225
Size:	123.3 KB
ID:	363215Click image for larger version

Name:	EAF2E73D-6E6C-4229-9FE3-DFF46EF7C1F3.jpg
Views:	207
Size:	65.0 KB
ID:	363216Click image for larger version

Name:	FEFE4ADC-1154-48D6-AA45-67C088160F8F.jpg
Views:	211
Size:	78.3 KB
ID:	363217

                            Comment


                            • Radar-Guy That's just beautiful work, Sir. Outstanding. Best, LB
                              Captain: Got any ideas?
                              F/O: Actually not.
                              — Captain Chesley B 'Sully' Sullenberger III and F/O Jeff Skiles—

                              You'll never be good at something unless you're willing to suck at it first.
                              ~Anonymous~

                              AMA#116446

                              Comment


                              • Originally posted by jthenry8 View Post

                                Looks absolutely fantastic. Is that the RC Geek "E" conversion kit?
                                hi, no it´s the F-nose posted on thingivers

                                Comment


                                • Originally posted by Radar-Guy View Post

                                  Yes, I did. These are JHH pilot busts raised with some balsa. The GIB deserves his view of the outside world.

                                  Regarding the printed ‚long nose‘ conversions. After some trials and looking at ‚good‘ drawings‘, I decided to make another design starting right in front of the wind screen including the different air scoops.

                                  Click image for larger version

Name:	909B2A28-3C8D-4B30-8C2B-BFE37F9D5AA1.jpg
Views:	226
Size:	138.0 KB
ID:	363224
                                  Click image for larger version

Name:	1ECD62CC-1A74-4607-91A2-CE224005EF4D.jpg
Views:	216
Size:	68.7 KB
ID:	363225
                                  Click image for larger version

Name:	825B9813-60C0-469F-99C7-72FA1EDC5670.jpg
Views:	214
Size:	56.9 KB
ID:	363226
                                  Click image for larger version

Name:	67DBEB30-C786-4A4B-8C76-77D5DFDC4B48.jpg
Views:	207
Size:	91.3 KB
ID:	363227


                                  Awesome job! Is this nose printed or hand made with wood or foam?

                                  Comment


                                  • Originally posted by spook View Post
                                    Awesome job! Is this nose printed or hand made with wood or foam?
                                    Thanks! The entire nose section is printed (ASA filament) and reinforced with carbon tow.

                                    Click image for larger version  Name:	IMG_4233.jpg Views:	0 Size:	96.2 KB ID:	363300

                                    Comment


                                    • Originally posted by jthenry8 View Post

                                      I want to build a G variant, but the "E" nose variant looks a little bit off - too thick? Has anyone else noticed this? Is it because the base of the nose from the kit to round and a difficult transition? Thoughts? Please don't think this is a criticism of the work of those who developed the E nose - it is not. Those who developed that mod are amazing craftsman. Just trying to understand the build and the dimensions affecting the nose adaptation. Humbly submitted.
                                      I obtained the 3D files from Thingiverse. I printed out both the "E" and "F" versions. The "E" didn't look right to me so I went with the "F" version. Dirty_Dee is a great 3D designer and had the "G" version up on Cults3D.com a while ago but I don't see it there anymore. Maybe you can reach out to him to inquire about the "G."

                                      Comment


                                      • Those look great! Have you flown it yet? How did you address ensuring that they're at the same angle to each other? I was nervous I wouldn't be able to do a good job on that so I kept mine a "Hard-wing" version. Technically inaccurate but the plane is at least still in one piece.
                                        Thanks.

                                        Originally posted by Radar-Guy View Post

                                        Also, make sure to add the outer wing slats then!

                                        Click image for larger version

Name:	120F7D71-74B0-4740-9AB7-44BEADA9AD58.jpg
Views:	225
Size:	123.3 KB
ID:	363215Click image for larger version

Name:	EAF2E73D-6E6C-4229-9FE3-DFF46EF7C1F3.jpg
Views:	207
Size:	65.0 KB
ID:	363216Click image for larger version

Name:	FEFE4ADC-1154-48D6-AA45-67C088160F8F.jpg
Views:	211
Size:	78.3 KB
ID:	363217

                                        Comment


                                        • Originally posted by jthenry8 View Post

                                          Also, did you create the Standard ARM and AN/ALQ-184 pod? I am trying to pull together everything I would need to build a "G" variant, and these pieces would really help.
                                          Here's the link for the Standard missile:

                                          https://www.thingiverse.com/thing:3388651

                                          I added the ALQ-119(slightly different from the ALQ-184):

                                          https://cults3d.com/en/3d-model/game...lq-119-ecm-pod

                                          I don't recall if I had to resize it for the F-4.

                                          There is an ALQ-184 on Cults3D, but it's 1/72 scale and I don't know how well it will scale up so much to the fit the FW F-4.
