Alternative motor windings and drive schemes

[Clugh]

If they learned to used the tools their smarter friends give them they would be alot further along in understanding the power of Idle current and their AC performance. You can see in Holle's calculator as a comparative tool what happens if you can keep the dc resistance the same while lowering the idle current. Now a fool only looks at the bearings effect and not all the cumulative things one could do in concert to drop 2.7 amps in idle current. Its the same thing with thermally conductive compounds that lower the working winding temperature which keeps the efficiency higher across the board. In the Tekin test they dropped nearly an amp of idle current with just the bearing. That has nothing to do with balancing the rotor, slot wedges, bearing shielding or a hybrid wind that significantly improves the ac performance. Its easily possible to reduce the AC even more. A 2 % efficiency difference is quite substantial at these level of efficiency.

How many times do you need to reread the 2% increase in efficiency is actually an increase of about 1.5 fold more throughput power. That's significant. Doings things like pm segmentation takes no larger nibbles at it but that nibbles more money to manufacture than to do things like a bearing upgrade, TC potting, or a new wind.

[Clugh]

Then what will amaze you is post like this by a real Engineer on the German site that gets totally ignored despite its critical relevance to the motors perfromance. Rember okon is also around the same empiric truth.

If they believe they couldn't benefit from a few more efficiency points it is what it is....

[Clugh]

They don't speak alot on post like this....from the EE on the German site.




look at the time of my post and his activity....

He is on point like clock work.

[Clugh]

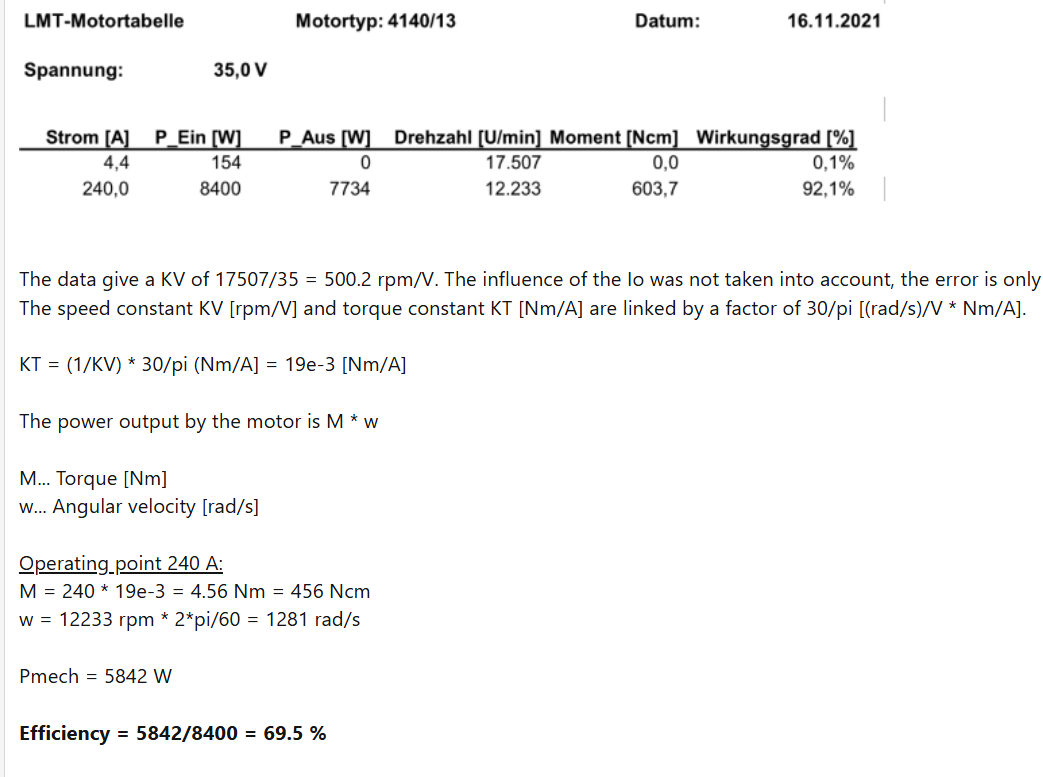

This is data from ralphs 5040!

If they learned to used the tools their smarter friends give them they would be alot further along in understanding the power of Idle current and their AC performance. You can see in Holle's calculator as a comparative tool what happens if you can keep the dc resistance the same while lowering the idle current. Now a fool only looks at the bearings effect and not all the cumulative things one could do in concert to drop 2.7 amps in idle current. Its the same thing with thermally conductive compounds that lower the working winding temperature which keeps the efficiency higher across the board. In the Tekin test they dropped over an amp of idle current with just the bearing upgrade. That has nothing to do with balancing the rotor, slot wedges, bearing shielding or a hybrid wind that significantly improves the ac performance. Its easily possible to reduce the AC even more. A 2 % efficiency difference is quite substantial at these level of efficiency.

How many times do you need to reread the 2% increase in efficiency is actually an increase of about 1.5 fold more throughput power. That's significant. Doings things like pm segmentation takes no larger nibbles at it but that nibbles more money to manufacture than to do things like a bearing upgrade, TC potting, or a new wind.

For comparisons Take the formula
ηmax= (1 minus the square root of Idle current divided by stall current)<sup>2

so in the scenario the two efficiencies are 94 and 95 percent</sup>

General case

Going from efficiency ηold to efficiency ηnew

would give an increase in maximum power motor can handle by factor N

N = (1 - ηold) / (1 - ηnew)

so (1-.94) / (1- .95) = a factor of 1.2

That measly +1 percent in Eta that came from the 2.7 amp drop in Idle current equals 20% more throughput power on the back end. So like the expert in Germany told you, you all can simply ignore the effects a better bearing can bring with just a marginal change in idle currents.

Fallacy isn't nearly as compelling as the mathematics to intelligent people.



Its truly hilarious because according to them they are supposed to be the said authorities on the subject matter


Thanks
Hubert

[Clugh]

Study hard A-boys

[Clugh]

I can also tell you Micha's calculation on Ralph isnt absolutely correct because he derived the KT with no reference to the Kw. The TQ he calculated was if ralphs motor had a winding factor or 100% when it is only 93% in reality. You have to multiply Micha TQ by the winding arrangements Kw for the number . If you visit the Neumotors specification charts you will realize that the Kw is factored into the Torque constant calculation . It is not just based on 1/KV

[Clugh]

LOL!!

So shook he's signed out already so i guess he missed the little bone i just threw him which might raise his Eta calculations slightly. Id think he wants it since Micha, the degreed German EE placed his real ETA under 70% I calculated 69% at max loading by another method so he is very close.


But there is a problem now. Their moderator doesn't want to hear about Hubert so now either he has to come into this room like a man to debate directly or walk on egg shells less he be disciplined for being a forum trouble makers hating on Hugh who isn't on the forum at all..



I truly love the poetic justice.... because you can only lower the DC so much by space restraints of a geometric slot whereas the AC can be manipulated by things as simple as the location of the wire in the slot and the termination.

Lets see how they figure out a way to respond fallacy free to the numbers. Christian's nonsense has been silenced there already today...

[Clugh]

Ralph sagt, die Io-Unterschiede in einem Lager seien leicht zu testen. Also frag ihn, worauf er wartet. Sag ihm, er solle anfangen und die Daten sofort beiseite legen, damit du seine Dummheit und seine Verzerrungen erkennen kannst.

Du weißt ja bereits, dass er die falschen Schmiermittel usw. verwendet. Er hat keines der Spezialmaterialien, die wir hier haben. Seine Schrottkiste ist voller Schrott von Scorpion.

[Clugh]

[Clugh]

[Clugh]

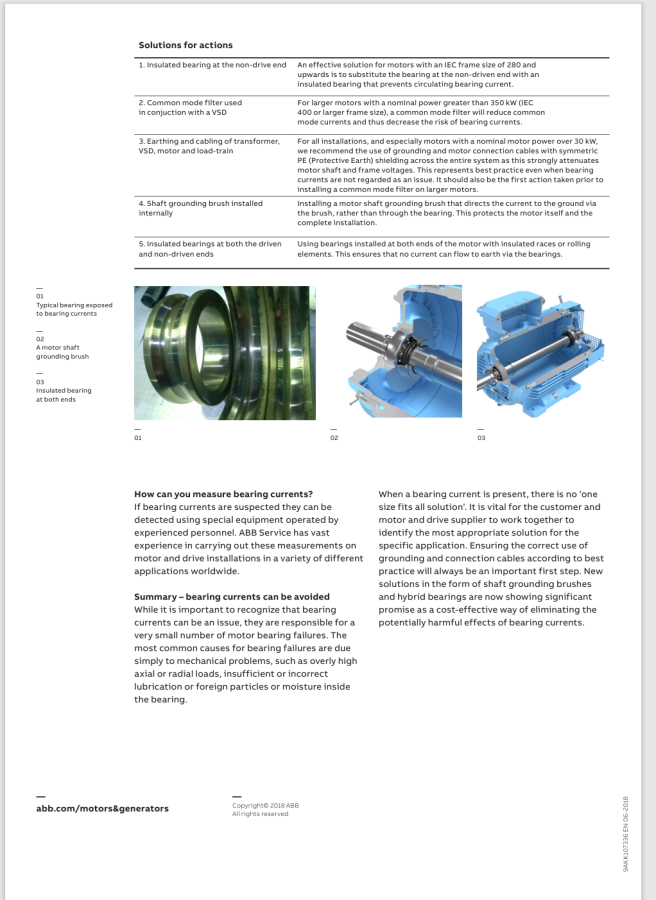

That bearing deterioration from shaft currents also raises the Io. A delta motor like the 4125 especially will generate the shaft triplen Christina!
