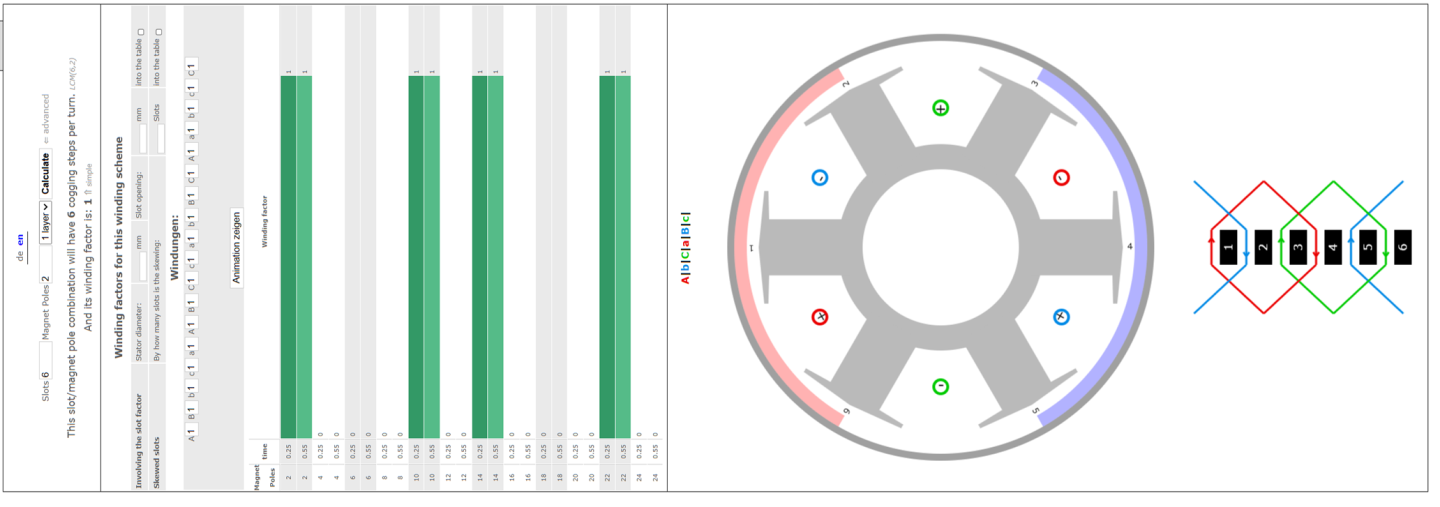

The smallest practical integers observing that 3 slot per pole rule that will give you the most slot space is 6 slot 2 pole. It the cogging of external rotor is too much make it a slot less machine with a lapped rhombic winding scheme. Similar to Hanz in runner.. You use a toroid core but lap the entire winding on the external circumference of the core unless you plan to do an inner/outer rotor pole design
Announcement
Collapse
No announcement yet.
Alternative motor windings and drive schemes
Collapse
X
-

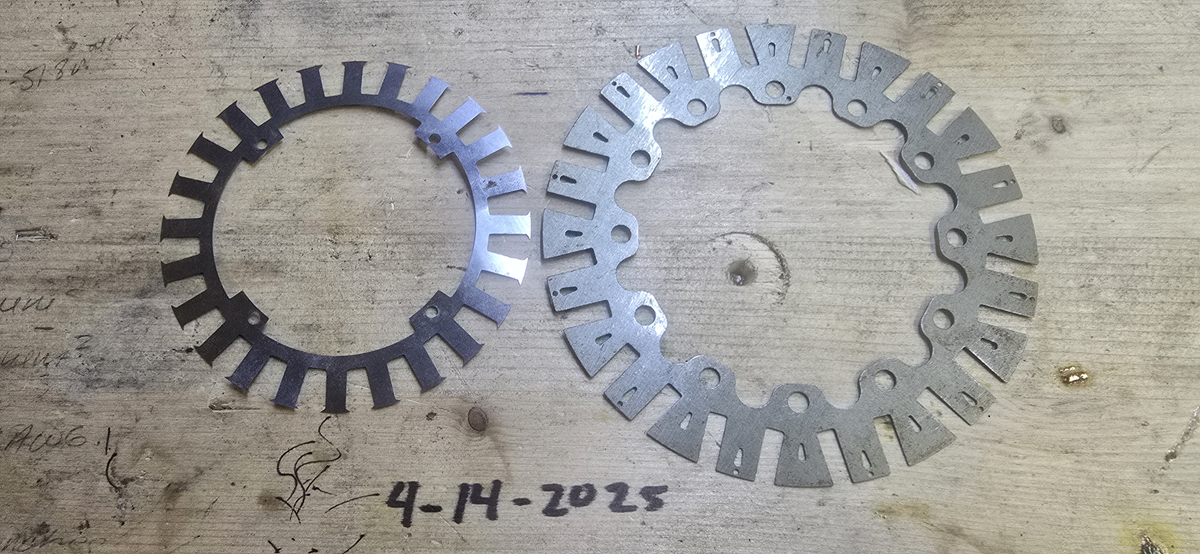

The 2 poles can be radially and axially segmented. Six wide teeth and three big copper braids!!
Lay the Rhombic pattern on the outside a toothless toroidal core for the slot less machine with no cogging.
H.H. 4/15/2025
It is not my fault u2 are simple minded and silly the coil span is 180 degrees. for each coil overlapped
Comment
-

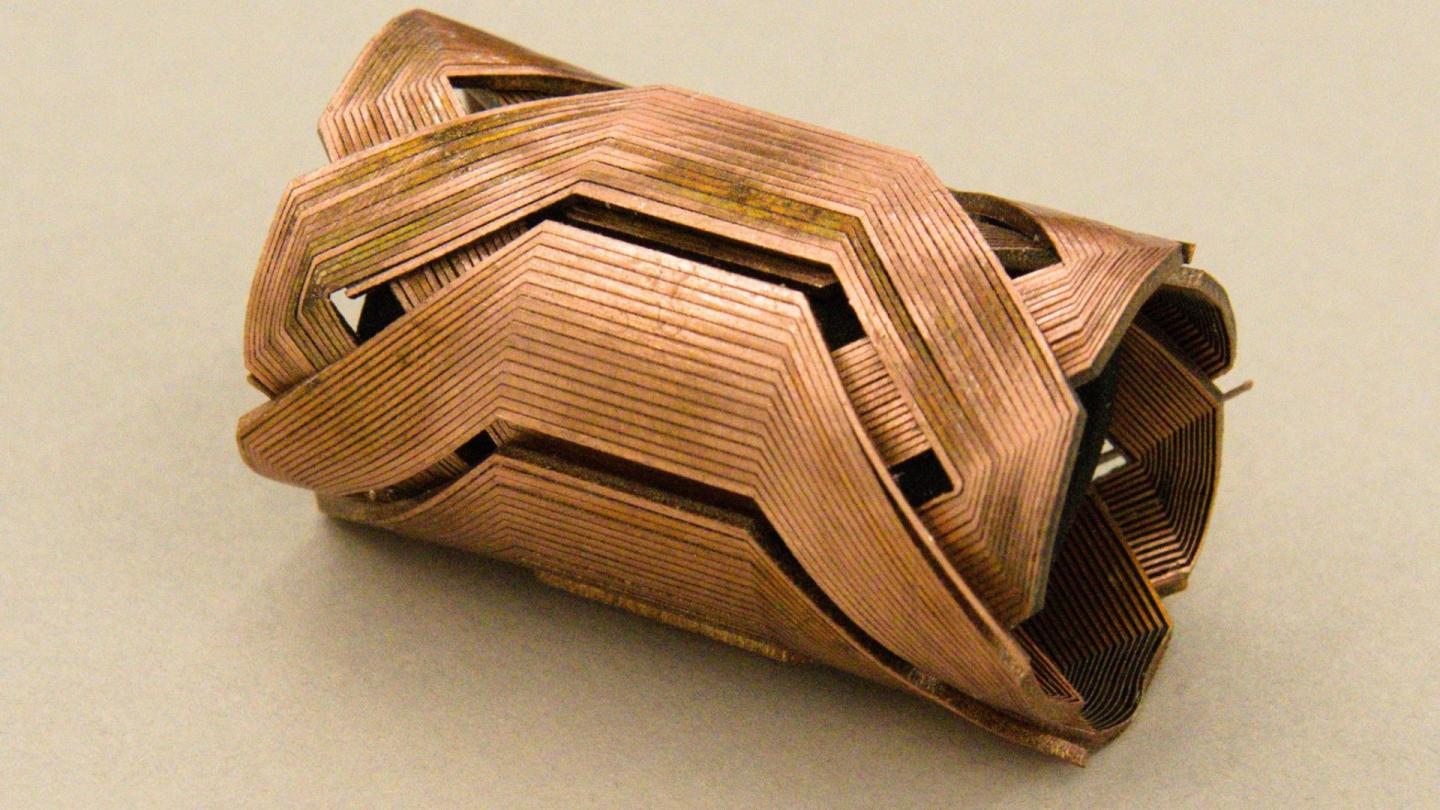

You wind the coil conductor around a rhombic mandrel first pull them off and apart into the exaggerated rhombic shape that will allow them to be overlapped. You make the overlap rhombic coil sides to fit over and under like a herringbone or hairpin pattern. You have to lap and size the coils and conductor properly to have symmetry and the 3 coils all observe their 180 degree coil span around the circumference of the core.. You have to be neat because you want a consistent air gap. You can vaccum seal the winding to the core with TC or they wont stay in place. You can even VIP the coil lattice to the core for no holes. or hotspots
I see you in Class Dr Okon on the front row. Do not think I don't.
You are welcomed.
Hubert
Comment
-
18N14P ABbcaABCcabBCAabcC Kw.90 but specializes the 7th working harmonic. Look at the 5th harmonic pushed down to 13%
You haven't done much winding research at all or you would have seen this. Its an excellent FSCW topology because the sub and space harmonics have been attenuated significantly leaving only the 14th to work mostly alone. The rotor will be a cool runner.
Comment
-
On march first 2025 this is what he said about the 20 pole winding that now has become a very sophisticated proposal ....
"Hi,
thanks for the picture of the 20 poler, I didn't know. Actually, it would be the machine that I am also examining. For testing, however, I would like to wrap the grooves really fully, i.e. until the last turn already ends with the groove opening. And I use the single-layer winding scheme where only one side of the coil is always in a groove. So no mixing of the active conductors in the stator grooves. I also use a nested winding scheme. In this process, all three phases begin to wind the winding in constant rotation. This allows you to wind only one conductor of each phase in the groove base, then increase it to two conductors and then switch to 3 or 4 conductors on the outside. This takes into account that the induction is lowest in the groove base, i.e. the smallest voltage is generated per conductor. The further out, the more efficient the induction becomes there and then it makes sense to let more leaders participate in the action there.
Secondly, the winding head is unravelled in such a way that there are more conductors free of cooling medium that can be flowed around in the winding head. Since the groove is to be filled and not much air can pass through there, the heat loss should be led out axially through the conductors and cooled there. That's why I'm investigating it. Oh yes, and with only coil sides of a phase in a statotnut, the syncloss should also start later, mix by mixing fewer phases.

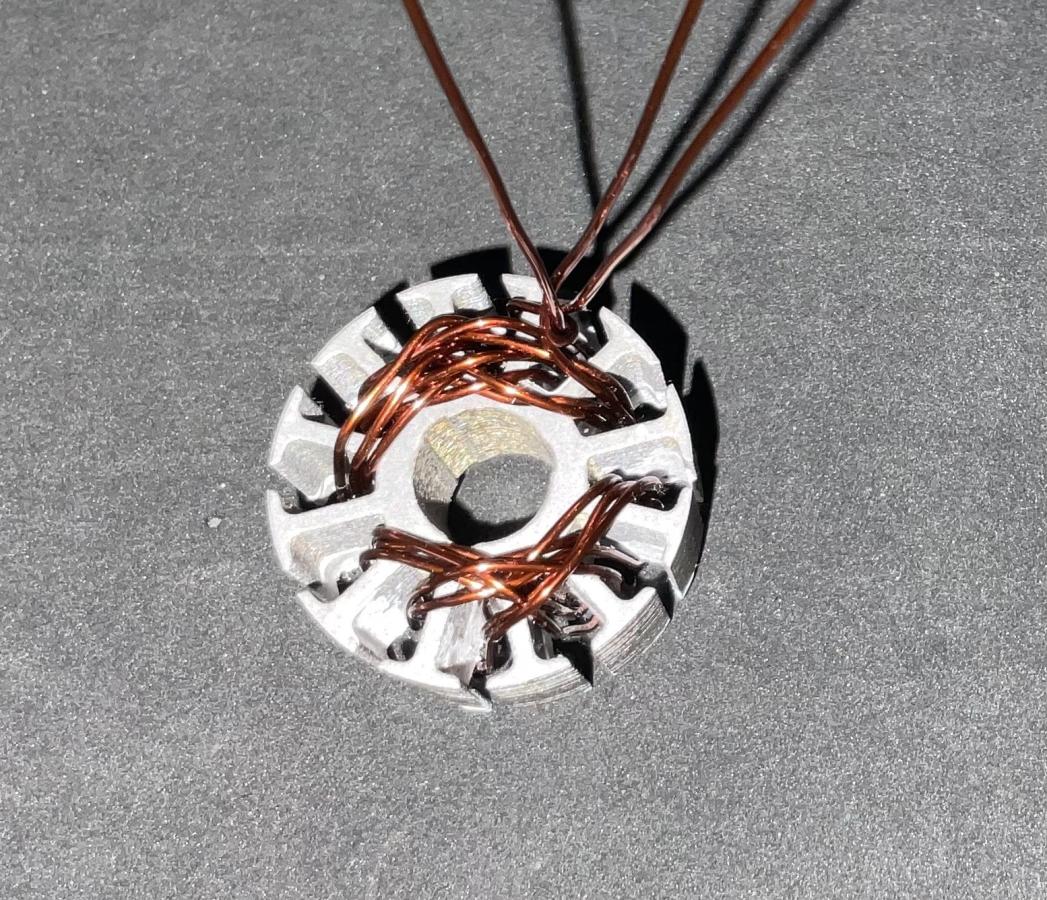

Picture quickly times executed throwing winding how that will look like."
~Christian Lucas~
Sounds and looks like a hand winding was proposed to me what about you?
Now we will wait a long time he says for laser sintering etc....
Comment
-

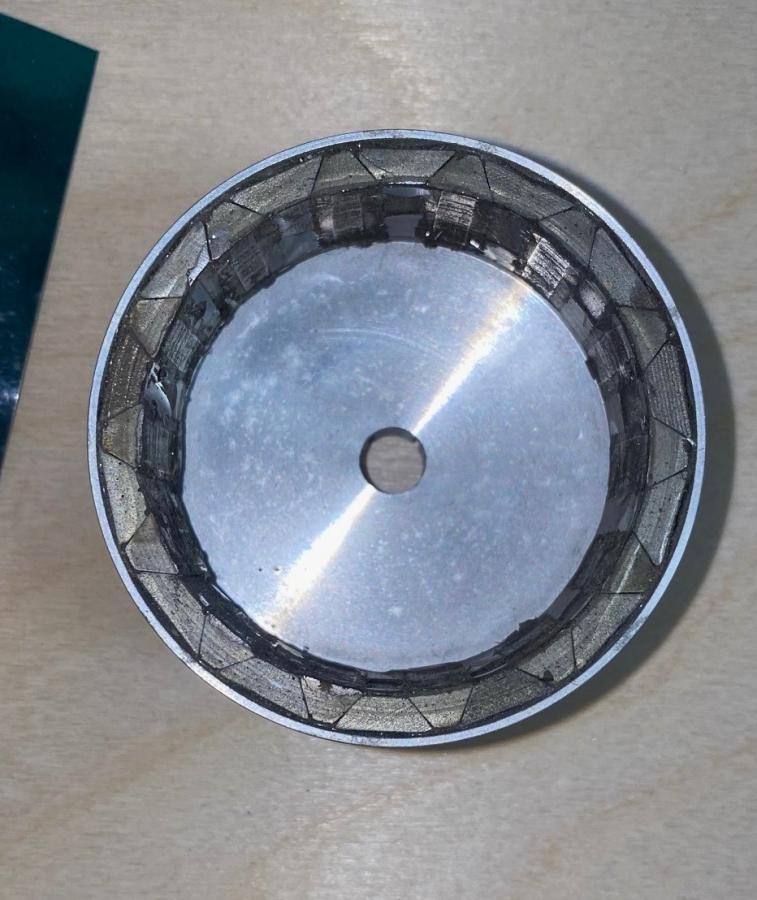

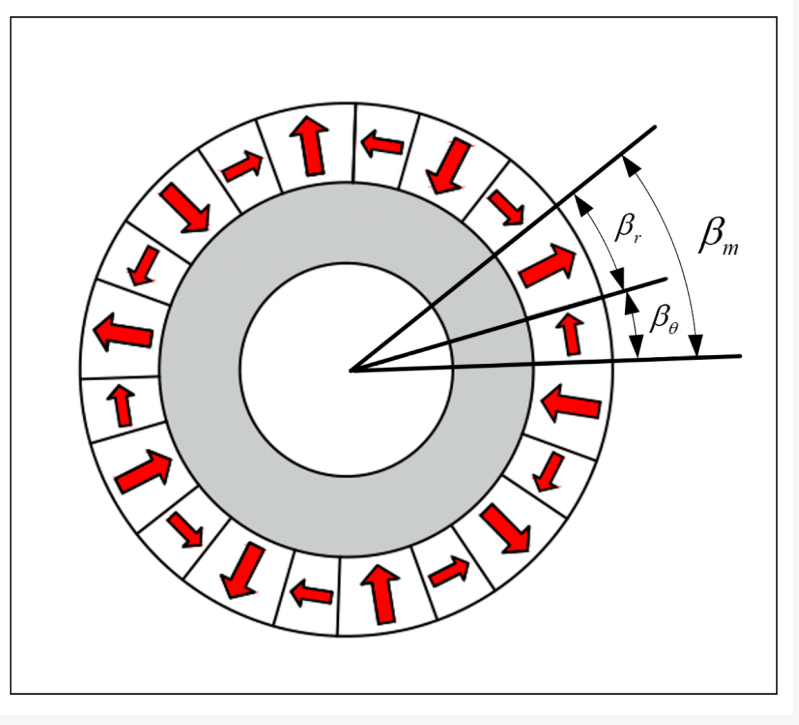

Guess I will have to scale it in cad and calculate the arc lengths myself since the GSM and its two resident editors are so quiet now and the motor Fuhrer refuses to post anything relevant about the Halbach machine. There's been no real explanation about it. I wonder why wasn't it made slotless by the superior? It wouldn't suffer cogging torque or space harmonics.
I see It's quiet across the pond after the fact checks. The remote control is off.
Thanks,
Hubert
Comment
-

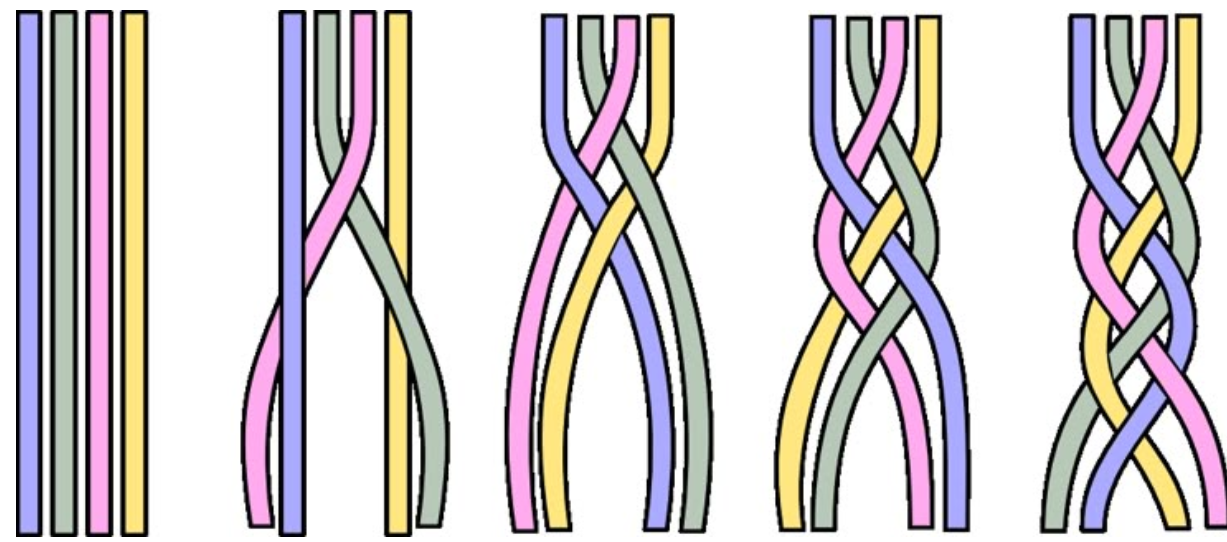

Ich hoffe, eure Freunde in Deutschland verstehen jetzt, was für ein Spaß ihr beide seid. Ich hoffe auch, ihnen gefällt das urkomische, isolierte Chaos, das ihr auf den Kontronics angerichtet habt. Oder die neuesten ungeformten Kracher, bei denen das Kabel hin und her schleift, bis es einen Kurzschluss gibt. So läuft das bei DNF. DZ und Markus Koch kennen die Powercroco-Methode Ich fände es auch toll, wenn Luke Ass sein Rmp melden würde, damit ich euch sagen kann, dass es keine Sinuswelle ist. Wie gesagt, es ist keine lineare Beziehung, denn das höchste Drehmoment lag bei 0,8, nicht bei 1. Es ist keine Pseudosinuswelle. Die tritt bei etwa 0,05 auf, wo das Drehmoment auch niedriger ist. In vielen Fällen erhöht ein Teil der Oberwellen, die die Sinuswelle dämpft, tatsächlich das statische Drehmoment. Wenn er es nicht benennt, kann er euch nicht sagen, als was es am besten funktioniert: als BLAC- oder BLDC-Motor. Für mich ist es fast immer Letzterer, weil es keine bipolare Maschine ist. Er sagte, Flachspulen ließen sich mit einer Spitzzange in der Küche herstellen. Worauf wartet er also noch? Wenn er wie die meisten Afrikaner flechten könnte, könnte er die Flachspule mit mehreren Leitern in einem Flachgeflecht herstellen. Er müsste LITZ kaufen, wo eine Maschine für ihn erledigt, was ich von Hand machen kann.
Und zu den bifilaren Wicklungen Powercroco skorpion 5050 und 5040:
Bei Anwendungen, bei denen mehrere Drähte mit gleichem Strom nebeneinander liegen, wie beispielsweise in Spulen- und Transformatorwicklungen, führt der Proximity-Effekt zu einer zusätzlichen Stromkompression, die den Drahtwiderstand mit zunehmender Frequenz zusätzlich erhöht. In zwei parallelen Drähten induziert das Magnetfeld des benachbarten Drahtes longitudinale Wirbelströme im Draht, wodurch sich der Strom in einem schmalen Streifen auf der Drahtseite konzentriert. Bei benachbarten Leitern, die Wechselstrom in gleicher Richtung führen, führt dies dazu, dass sich der Strom im Leiter auf der dem Nachbarleiter abgewandten Seite konzentriert. Bei Leitern, die Wechselstrom in entgegengesetzter Richtung leiten, konzentriert sich der Strom im Leiter auf der dem Nachbarleiter benachbarten Seite. Dies hat einen ähnlichen Effekt wie der Skin-Effekt: Der Strom wird auf einen kleineren Drahtquerschnitt gezwungen, wodurch der Widerstand steigt.
Hubert
Comment
-
Originally posted by Clugh View Post
Comment
-
Ralph, du solltest dem alten Knacker in Bayern helfen. Ich frage mich, ob er auf den Fotos seinen Fehler überhaupt bemerkt? Er lügt auch schlecht. Er kannte Jim Allen nie. Er hat Jim durch mich kennengelernt. Christian hat ein soziales Problem. Er ist immer schlauer als der Rest des Dorfes. Er hält sich für exklusiv. Er ist ein komischer kleiner Mann.
Es ist schön, ein paar Maulkörbe im Tierheim zu haben!
Ich wiederhole, Jim hat ihn nie gebeten, irgendetwas zu tun. Wozu zum Teufel brauche ich dieses Sauerkraut, das rassistische Schimpfwörter verwendet, um über mich zu wachen????
Ich bin 54 Jahre alt. Meine Eltern leben also noch, wofür brauche ich das? Mein Vater heißt Hubert und nicht James … er ist also total verrückt.l
was hat der Trugschluss bewirkt, außer mehr Peinlichkeit für euch .
Posten Sie weiter!
Danke
Hubert
Comment
-
Like the data from Brusa(BMW) that shows formed litz wire has no fill or significant performance advantage over the right rectangular conductor especially at lower frequencies. If you were there why does the 41 have the formed Litz? and now you speak of this flat coil amendment. I showed it to YOU 2 or 3 years ago. You will talk smack on the open forum then write me a backdoor email "hugh imma try it" away from forum view.
I also already had the plans for your Halbach from 3 years ago . DID YOU FORGET THOSE EMAILS AND ATTACHMENTS? so ill keep asking about the Rmp. on the open forum.
I know you are reading up on that before you run your mouth going on 3 days silent...
Hubert
