  • That poses a new question,,, im sure the higher kv , spit motor will bolt up etc.. to the corsar likely the eighty amp esc will need upgrading,, bigger prop ??? (dont have amp checking equipment) looks like shaft etc will fit.... anybody done it?? Should have asked on f4u thread... o well

    Comment


    • I was busy with some orders and CAD works in last days, well I did not work on Spitfire very much. Bottom side is almost done for painting and now I am going to open the cockpit.
      Today I only painted exhaust stacks. Final coat they will get when I put them back on nose.Click image for larger version

Name:	136.jpg
Views:	432
Size:	164.5 KB
ID:	373403Click image for larger version

Name:	134.jpg
Views:	453
Size:	184.5 KB
ID:	373401Click image for larger version

Name:	135.jpg
Views:	409
Size:	185.3 KB
ID:	373402

      Comment


      • Very, very nice Prekin. Attention to details really brings the model to life. Rex

        Comment


        • Thank you very much Rex! I hope, I will keep my motivation to the end of project!

          Comment

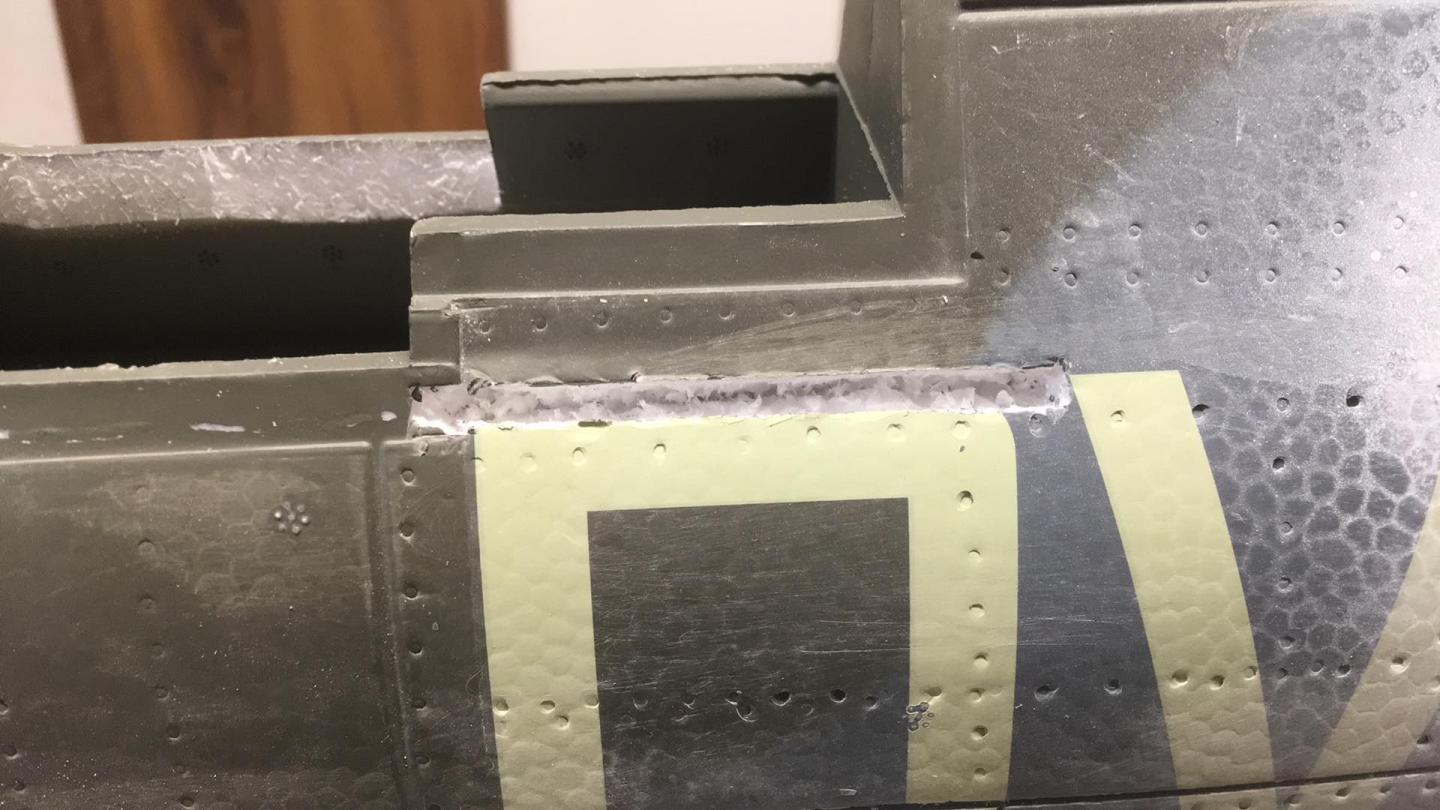

          • I really missed the canopy rails on the fuselage. I cut the a hole for dummy rails and also did cockpit a little wider.
            Cockpit is very shallow, so there will not be many details on side panels.
            Click image for larger version

Name:	137.jpg
Views:	413
Size:	133.5 KB
ID:	373776
            Click image for larger version

Name:	138.jpg
Views:	409
Size:	111.0 KB
ID:	373775Click image for larger version

Name:	139.jpg
Views:	407
Size:	101.1 KB
ID:	373774​​
            Attached Files

            Comment


            • [QUOTE=Prekin;n373772]I really missed the canopy rails on the fuselage./QUOTE]

              PK, Nice touch, as usual. Best, LB
              I solemnly swear to "over-celebrate" the smallest of victories.
              ~Lucky B*st*rd~

              You'll never be good at something unless you're willing to suck at it first.
              ~Anonymous~

              AMA#116446

              Comment


              • Thank you LB!
                I got back to wings for a minute and added flap control arm doors. Those I cut from piece of aluminium tape.
                MG ports will be covered by fabric tape, but it may will be more authentic if there will be holes in leading edge.​
                Click image for larger version

Name:	140.jpg
Views:	392
Size:	115.7 KB
ID:	373874Click image for larger version

Name:	141.jpg
Views:	398
Size:	95.6 KB
ID:	373873

                Comment


                • I looked at the cockpit closer. Depth of the cockpit area is 40mm. It seem, there will not be a lot of work on cockpit details. Only some braces of the fuselage and small piece of seat. But on the port side I may add radio channel switch and parts of crowbar and throttle quadrant.
                  Click image for larger version

Name:	FLS.jpg
Views:	390
Size:	43.2 KB
ID:	373964

                  Comment


                  • 2 more flights on my spit thismorning ,, loving the way it flys.. great power..,, still need abit less elev flap mix ,, will reduce that 4 next weekend

                    Comment


                    • I added some covering tape on tail. Now I will do some painting to see, how it looks under paint.
                      Click image for larger version

Name:	142.jpg
Views:	360
Size:	136.3 KB
ID:	374145Click image for larger version

Name:	143.jpg
Views:	369
Size:	87.6 KB
ID:	374144

                      Comment


                      • I am happy with the result of painted tail. Does not look bad.
                        Click image for larger version

Name:	145.jpg
Views:	349
Size:	47.1 KB
ID:	374148Click image for larger version

Name:	144.jpg
Views:	360
Size:	62.2 KB
ID:	374147

                        Comment


                        • Jiri,
                          Looking great! Rex

                          Comment


                          • Spitfire is getting back camouflage. For masking the light grey bottom side I use our masking tape for very sensitive surfaces. As you can see, no peeling.
                            Click image for larger version

Name:	146.jpg
Views:	239
Size:	131.8 KB
ID:	376875Click image for larger version

Name:	147.jpg
Views:	215
Size:	263.5 KB
ID:	376876Click image for larger version

Name:	148.jpg
Views:	216
Size:	271.4 KB
ID:	376878Click image for larger version

Name:	149.jpg
Views:	225
Size:	217.7 KB
ID:	376879Click image for larger version

Name:	150.jpg
Views:	219
Size:	211.4 KB
ID:	376877

                            Comment


                            • Yellow painted leading edges looks much better than stock decals to me.

                              Click image for larger version

Name:	151.jpg
Views:	216
Size:	85.5 KB
ID:	377035Click image for larger version

Name:	152.jpg
Views:	202
Size:	108.3 KB
ID:	377037Click image for larger version

Name:	153.jpg
Views:	197
Size:	80.1 KB
ID:	377036Click image for larger version

Name:	154.jpg
Views:	198
Size:	77.7 KB
ID:	377038

                              Comment


                              • Prekin, Acknowledged & Agreed. Best, LB
                                I solemnly swear to "over-celebrate" the smallest of victories.
                                ~Lucky B*st*rd~

                                You'll never be good at something unless you're willing to suck at it first.
                                ~Anonymous~

                                AMA#116446

                                Comment


                                • Painting is in progress. Fin tricolor is finished, next I will do all roudels.
                                  I was not sure about width of the white field, but I was very happy when I found camouflage regulation for RAF WWII airplanes.

                                  Click image for larger version

Name:	155.jpg
Views:	178
Size:	110.9 KB
ID:	377150Click image for larger version

Name:	156.jpg
Views:	177
Size:	48.5 KB
ID:	377148Click image for larger version

Name:	157.jpg
Views:	190
Size:	83.2 KB
ID:	377147Click image for larger version

Name:	158.jpg
Views:	177
Size:	87.5 KB
ID:	377149

                                  Comment


                                  • Prekin, painting your markings looks so much better. Nicely done. Best, LB
                                    I solemnly swear to "over-celebrate" the smallest of victories.
                                    ~Lucky B*st*rd~

                                    You'll never be good at something unless you're willing to suck at it first.
                                    ~Anonymous~

                                    AMA#116446

                                    Comment


                                    • Thank you LB!! fuselage roundels are challenge on the fuselage, but I've already tried it on B-24.

                                      Comment


                                      • Looking forward to finished product,, looks great

                                        Comment


                                        • Thank you ausie! Actually I am in rush now. Only 2 weeks left to event. That is the reason why I closed the cockpit and started painting. I will finish the cockpit later.
