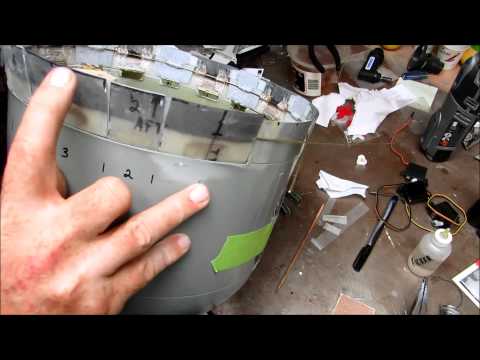

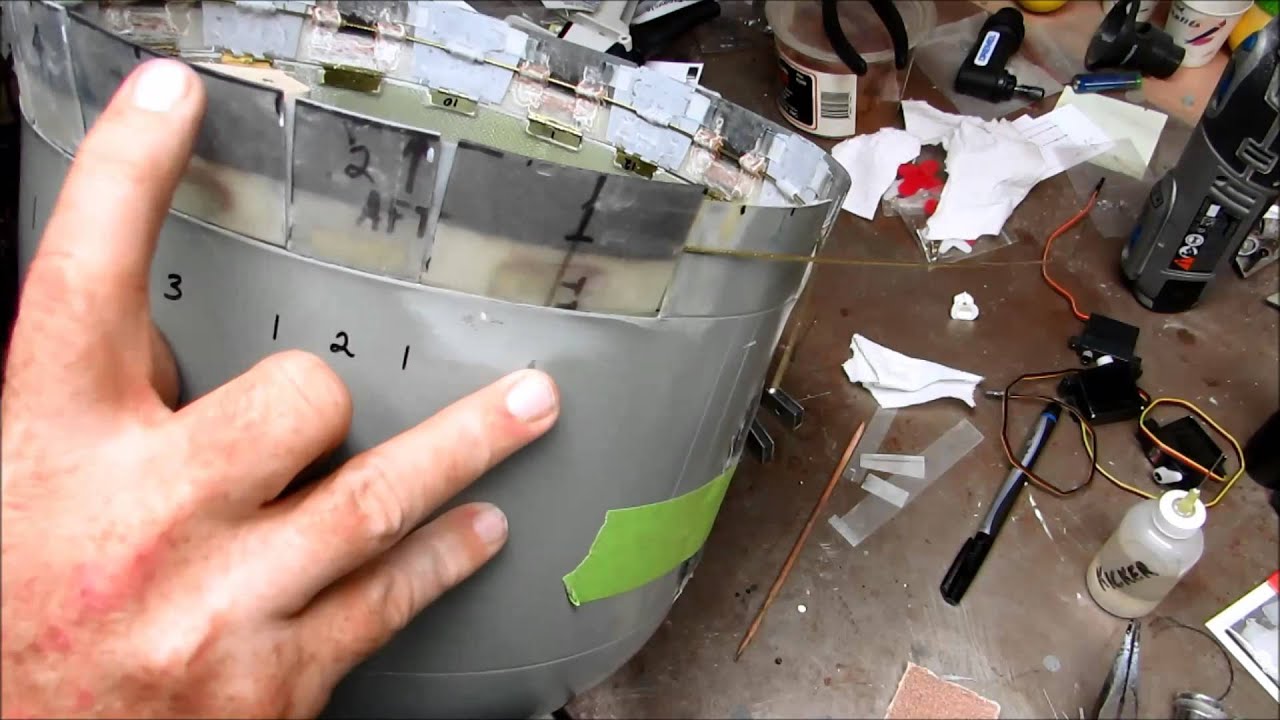

Not sure if this is helpful or not but I was always transfixed by the late Don Rice's work on his giant scale Corsair. There's several videos on his cowl flap mod and here's one of them.

[Elbee]

Not sure if this is helpful or not but I was always transfixed by the late Don Rice's work on his giant scale Corsair. There's several videos on his cowl flap mod and here's one of them.

Aros, great find. I've watched all of his videos I could find on the Corsair project, too. I liked his building style, that is, he was not afraid to try anything and 'trial and error was the methodology. As my gran-pappy used to say, "Never time to do it right, but always time to do it again." Sadly, I understand he passed away before completing his Corsair. Best, LB

[I-fly-rc-aircraft]

LB, yes, when the cable is expanded/retracted it will open close the flaps. The flaps will be attached to nylon hinges. Two servos will push/pull on the music wire. Placement of the servos will be a challenge.Tom

[Elbee]

Are you designing for Cowl Flaps 360 around the Cowl or the other version with the solid area at the top of the fuselage? I presume the 360 degree version is an early variant style, but have not researched that far.

[I-fly-rc-aircraft]

Aros, yes I'm using Don's guidance. Tom

[Beeg]

LB, yes, when the cable is expanded/retracted it will open close the flaps. The flaps will be attached to nylon hinges. Two servos will push/pull on the music wire. Placement of the servos will be a challenge.Tom

I've spent a little time thinking about the mechanics. Here's my idea for what it's worth.
Instead of using an extra servo to open the flaps, maybe make the cowl flaps spring loaded to the open position just like the real full size Corsair and with one servo mounted behind the firewall you could route both cables (stainless cable, not wire. Or other fishing leader material) to the one servo to pull them closed. I thought about just anchoring one side and pulling on the other side but you may get asymmetric movement?
My two cents....

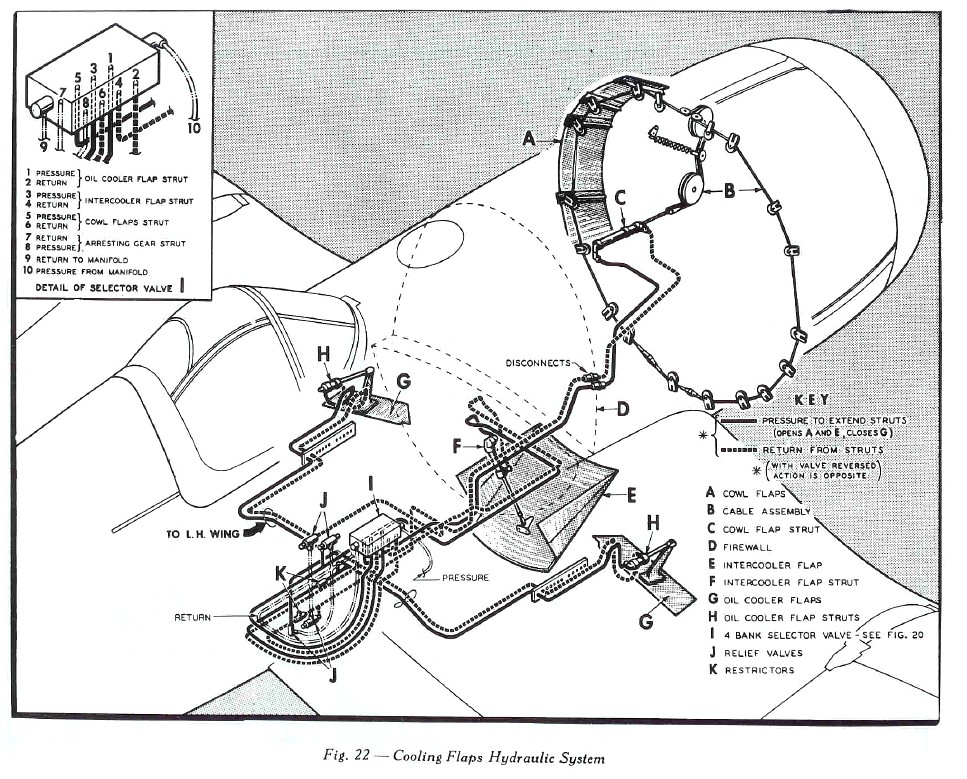

Here's a schematic of the system showing the cables that pull the flaps closed.

[Beeg]

You could use these wicked cool little spring loaded micro hinges...
https://www.jansjewels.com/8mm-516-S...s_p_10092.html

[Elbee]

You could use these wicked cool little spring loaded micro hinges...
https://www.jansjewels.com/8mm-516-S...s_p_10092.html

What you think the amount of force it would take to hold those spring hinges Closed or Open depending on the design? I'm still thinking of turning rotational motion to linear similar to servo push-rods to each large flap and floating the smaller flap with the gap spacers between each outer flap. That would require fewer links than even a cable system, but would require a near central mounted circular crank; just noodling the system without cable. Best, LB

[I-fly-rc-aircraft]

We are dealing with a molded foam model where the cowl isn't removable. This limits accessibility and structure for a lot of options. Great ideas guys.

Tom

[Aros]

Aros, great find. I've watched all of his videos I could find on the Corsair project, too. I liked his building style, that is, he was not afraid to try anything and 'trial and error was the methodology. As my gran-pappy used to say, "Never time to do it right, but always time to do it again." Sadly, I understand he passed away before completing his Corsair. Best, LB

Yes he did pass away before completing the model unfortunately. I think it was a sudden passing. So sad. I hope the model went to someone he would have wanted it to go to to finish her up in his memory.

[paulsnapp]

I used Hiflyer's paint formula for HD and it is a perfect Dark Blue match!. Has anyone figured out how to match the metallic silver used for the simulated engine inside the cowl ring? Mine has heavy blue overspray and two blue thumbprints. I has been working with some of the model acrylics but not getting a good match yet.

[Alpha]

paulsnapp Welcome to Hobby Squawk, Paulsnapp! At the factory we spray those simulated engine components with a deep gunmetal. Tamiya's Gunmetal is close but you'll likely need to add a bit of black to the mix to get closer.

[paulsnapp]

Alpha - Thanks for the reply I will give it a try!

[RichJ53]

Aros, great find. I've watched all of his videos I could find on the Corsair project, too. I liked his building style, that is, he was not afraid to try anything and 'trial and error was the methodology. As my gran-pappy used to say, "Never time to do it right, but always time to do it again." Sadly, I understand he passed away before completing his Corsair. Best, LB

so sad to hear that. What a talented guy!

Rich

[wldecker]

Wow! Sorry I waited so long, but had to get the Spitfire and Al-37 before I finally ordered my birdcage! It will be here in 2 days (it's in a snowstorm right now!)
I ordered "Marine's Dream" Lt. Edwin L. Olander's livery from Callie Graphics! I grew up watching "Baa Baa" and always liked the other pilots that made Pappy look so good! Thanks to all who posted before, on this thread. Lots of great ideas...Where did the 3D printed cockpit go?

[Elbee]

wldecker, The STL 3DP files are on the MotionRC Website. Click on the Corsair you bought in the menu, go to "Support" and look for either 'Birdcage' or "Bubble" versions. Note: you will need to do a bit of 'foam' surgery in either case, but it is worth the extra efforts as you have no doubt seen in this thread to get it just right. Post pics if you can. Best, LB

[Seahawk One]

I'm late to the party but finally hit the buy now button yesterday.
Looking forward to having this bird in my hangar!
This will be my first Flightline, but I've more than a baker's dozen of the Freewing jets.
On that note, while I've had almost all of the FMS 1400 warbirds, I've no warbirds using 6S.
Oh wait, I lie; I've the FMS Tigercat. So lemme re-type that as I've not had any single prop warbird using 6S lol!

Good times and looking forward!

Thanks Motion!

~Neil
